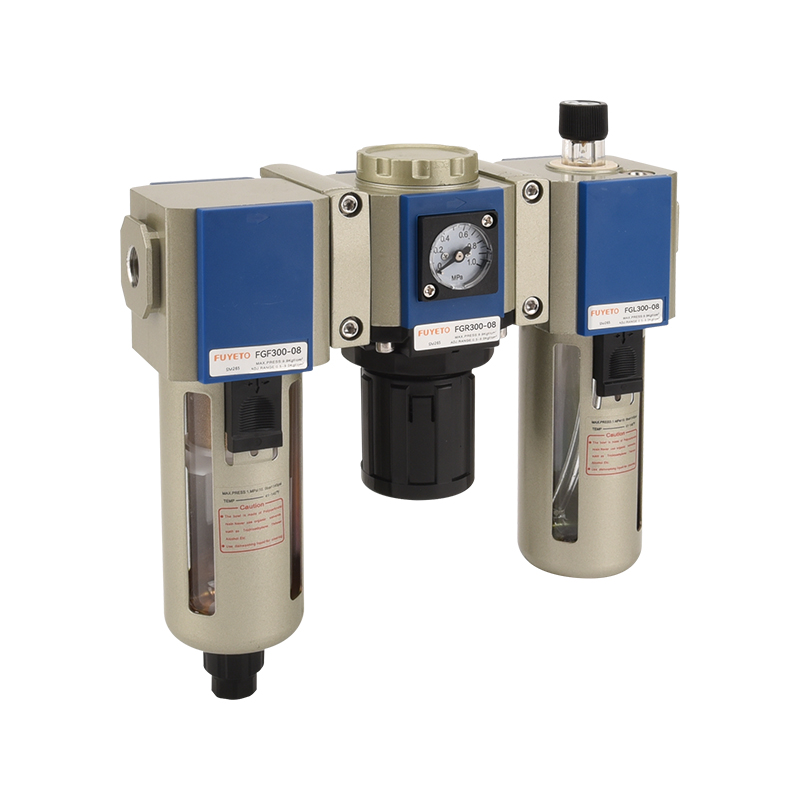

Type-Three-In-One Unit FGC

Integrated design: filtration, pressure regulation, and lubrication are integrated into one modular unit, making installation and disassembly convenient.

Precise pressure regulation: The pressure regulating valve adopts a balanced structure, which has high pressure regulation accuracy and good pressure stabilization effect, with an adjustment range of 0.05MPa~1.0MPa.

High-efficiency filtration: The filter is equipped with a high-precision filter element (5μm/40μm optional), which can effectively remove impurities and moisture from compressed air and supports manual/automatic drainage.

Controllable lubrication: The oil volume of the oil mist lubricator can be precisely adjusted, the atomization effect is uniform, and it can provide lubrication to downstream components as needed, reducing wear.

High durability: The main body is made of a combination of engineering plastics and metal materials, which is corrosion-resistant, impact-resistant, and suitable for complex industrial working conditions.

product details

Detailed description

The three-in-one unit FGC combines filtration, pressure regulation, and lubrication into a single modular assembly, significantly simplifying both installation and removal processes. This integrated approach reduces the need for multiple separate components, allowing for a more streamlined setup and easier maintenance.

Designed for precision, the pressure regulating valve incorporates a balanced structure that ensures high accuracy in pressure control and excellent stability throughout operation. The adjustable pressure range spans from 0.05 MPa to 1.0 MPa, offering flexibility to accommodate diverse application requirements.

For efficient contaminant removal, the integrated filter can be equipped with a high-precision filter element, available in either 5 μm or 40 μm options. This effectively captures impurities and moisture from compressed air, helping to protect downstream equipment. Drainage is supported through both manual and automatic methods, giving users flexibility based on their operational preferences.

Lubrication is equally well controlled, with the oil mist lubricator allowing precise adjustment of oil output. The atomization effect remains consistently uniform, ensuring that downstream components receive an adequate and steady supply of lubrication as needed. This helps reduce wear over time, contributing to more reliable system performance.

Durability is reinforced through the use of a hybrid construction combining engineering plastics and metal materials. This composition provides strong resistance against corrosion and impact, making the unit well suited for demanding industrial environments where long-term reliability is essential.

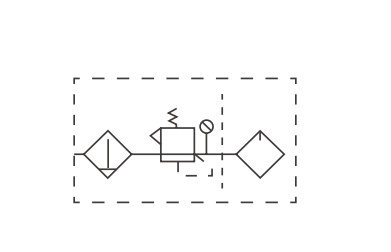

Symbols

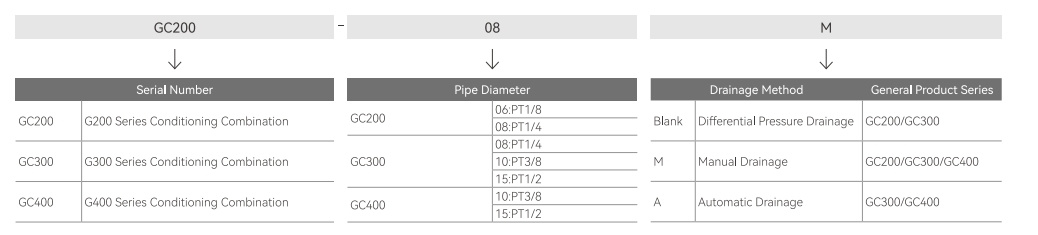

Finished Product Order Code

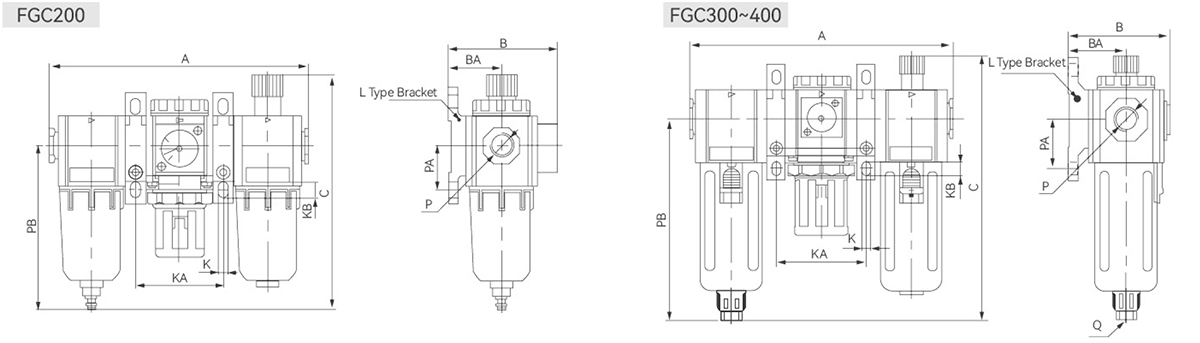

Specifications

Model		FGC200-06	FGC200-08	FGC300-08	FGC300-10	FGC300-15	FGC400-10	FGC400-15
Working Medium		Clean Air
Pipe Diameter		PT1/8	PT1/4	PT1/4	PT3/8	PT1/2	PT3/8	PT1/2
Filter Precision		40μm or 5μm
Pressure Adjustment Range		Automatic and Differential Pressure Drainage: 0.15~0.9MPa (20~130psi); Manual Drainage: 0.05~0.9MPa (7~130psi)
Maximum Operating Pressure		1.0MPa(145psi)
Guaranteed Pressure Resistance		1.5MPa(215psi)
Operating Temperature Range		-5~70℃(But Not Frozen)
Water Filter Cup Capacity		10CC		40CC			80CC
Oil Cup Capacity		25CC		75CC			160CC
Recommended Lubricating Oil		IS0 VG 32 or Same Grade Oil
Weight		580g		1300g			2360g
Elements	Filter	FGF200-06	FGF200-08	FGF300-08	FGF300-10	FGF300-15	FGF400-10	FGF400-15
	High Pressure Valve	FGR200-06	FGR200-08	FGR300-08	FGR300-10	FGR300-15	FGR400-10	FGR400-15
	Oil Feeder	FGL200-06	FGL200-08	FGL300-08	FGL300-10	FGL300-15	FGL400-10	FGL400-15
