Type-Air Filter FGF

Graded filtration: The standard model comes with a 40μm glass fiber filter, while the precision model offers a choice of 1μm~5μm filter elements. Activated carbon oil removal can also be added to meet different cleanliness requirements.

Visual design: The transparent PC cup body allows direct observation of impurity accumulation, and some models are equipped with a metal cup body for enhanced impact resistance.

Easy maintenance: Supports manual/automatic drainage, and the filter element can be removed and replaced individually without replacing the entire component.

High adaptability: The die-cast aluminum alloy housing is anodized for corrosion resistance; the interface covers 1/8′′~1′′, and can be modularly combined with pressure regulating valves and oil mist lubricators.

Safe and reliable: The cup body is equipped with an explosion-proof protective cover to prevent splashing when broken, and meets the safety standards of industrial pneumatic systems.

product details

Detailed description

The Type-Air Filter FGF is designed to provide adaptable and reliable air treatment for pneumatic systems, offering a range of filtration options to suit varying operational requirements. For general applications, the standard model is equipped with a 40μm glass fiber element that effectively captures particulates from compressed air lines. Where higher precision is needed, the precision model accommodates filter elements ranging from 1μm to 5μm, allowing for finer contaminant removal. Additionally, an activated carbon stage can be integrated to target oil vapor, enabling the unit to meet more stringent air quality specifications depending on the application.

Visual monitoring is supported by a transparent polycarbonate bowl that allows operators to easily observe the accumulation of impurities without disassembly. For environments where mechanical impact is a concern, select models feature a metal bowl option that provides added durability and protection. Maintenance has been simplified through the inclusion of either manual or automatic drainage, depending on the configuration, and the filter element can be replaced individually. This modular approach reduces downtime and service costs by eliminating the need to replace the entire assembly.

The unit is built around a die-cast aluminum alloy housing with an anodized finish, offering consistent resistance to corrosion and extending service life in industrial settings. Port sizes range from 1/8 inch to 1 inch, providing flexibility for integration into various piping systems. The filter is also designed for modular connectivity, allowing it to be combined with pressure regulators and oil mist lubricators to form a complete air preparation unit as needed.

Safety considerations are addressed through the inclusion of an explosion-proof protective cover surrounding the bowl, which helps contain fragments in the unlikely event of breakage. This feature supports compliance with typical safety standards for industrial pneumatic systems, contributing to safer operation in demanding environments. Overall, the FGF air filter combines flexible filtration performance, straightforward maintenance, and robust construction to support reliable compressed air preparation across a range of industrial applications.

Symbols

Finished Product Order Code

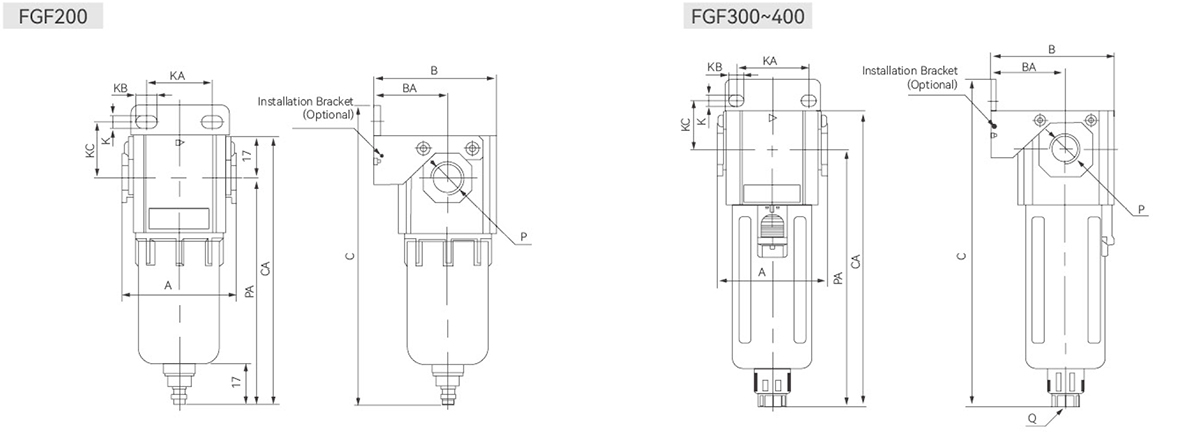

Specifications

Model	FGF200-06	FGF200-08	FGF300-08	FGF300-10	FGF300-15	FGF400-10	FGF400-15
Working Medium	Air
Pipe Diameter	PT1/8	PT1/4	PT1/4	PT3/8	PT1/2	PT3/8	PT1/2
Filter Precision	40μm or 5μm
Pressure Adjustment Range	Automatic and Differential Pressure Drainage: 0.15~0.9MPa (20~130psi); Manual Drainage: 0.05~0.9MPa (7~130psi)
Guaranteed Pressure Resistance	1.5MPa(215psi)
Operating Temperature Range	-5~70℃(But Not Frozen)
Water Filter Cup Capacity	10CC		40CC			80CC
Weight	135g		360g			680g
