FTR Series Double-Rod Cylinder

·Implementing JIS standards.
·High non-rotation accuracy, small deflection at the end of the piston rod, suitable for precise guidance.
·Extended sliding support guide, no need for additional oil lubrication, good guiding performance.
·The fixing plate has installation holes on three sides, convenient for multi-position loading.
·The structure has certain anti-bending and anti-torsion performance, and can withstand certain lateral load.
·The body has installation holes on all sides except the axial direction, providing customers with a variety of installation and fixing methods.
·There are two groups of inlets and outlets on both sides of the cylinder for actual needs.
·The front bumper pad of the body can adjust the cylinder stroke and alleviate impact.
·The standard configuration of this series of cylinders is magnetic type, and the non.magnetic type is not optional.

product details

Symbols

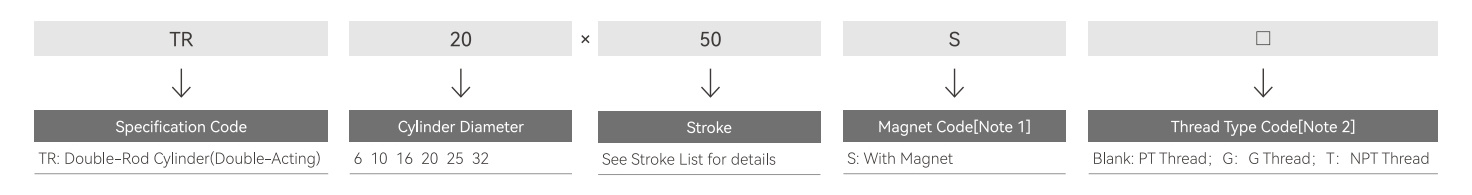

Finished Product Order Code

[Note 1]All TN series cylinders are of magnetic type.

[Note 2] If the pipe is M5, this item will be blank.

Specifications

Inner Diameter(mm)	6	10	16	20	25	32
Mode of Operation	Double-Acting Type
Working Medium	Air (filtered through a Filter Element with a pore size smaller than 40μm)
Operating Pressure Range	0.15~1.0MPa(22~145psi)
Guaranteed Pressure Resistance	1.5MPa(215psi)
Operating Temperature (℃ )	-20~70
Operating Speed Range (mm/s)	30~500
Adjustable Strokemm	-5~0
Stroke Tolerance Range	≤100 > 100
Cushion Type	Bumper Pad
Non-Rotation Accuracy[Note 1]	±0.2°	±0.15°
Pipe Diameter[Note 2]	M5X0.8					PT1/8

[Note 1] Non-rotation accuracy refers to the angle that the cylinder fixing plate can rotate when the cylinder is fully retracted.

[Note 2] PT Thread, G Thread and NPT Thread are available for Pipe Thread.

Stroke

Inner Diameter(mm)	Standard Stroke	Maximum Stroke
6	10 20 30 40 50	50
10	10 20 30 40 50 60 70 80 90 100	100
16	10 20 30 40 50 60 70 80 90 100 125 150 175 200	200
20	10 20 30 40 50 60 70 80 90 100 125 150 175 200	200
25	10 20 30 40 50 60 70 80 90 100 125 150 175 200	200
32	10 20 30 40 50 60 70 80 90 100 125 150 175 200	200

[Note] Within the range of 100mm,the stroke is at a level of 5mm, which is modified from the previous standard stroke, and its external dimensions are the external dimensions of the previous standard stroke cylinder. For example, a non-standard stroke cylinder with a stroke of 35 is modified from a standard cylinder with a standard stroke of 40, and its external dimensions are the same.

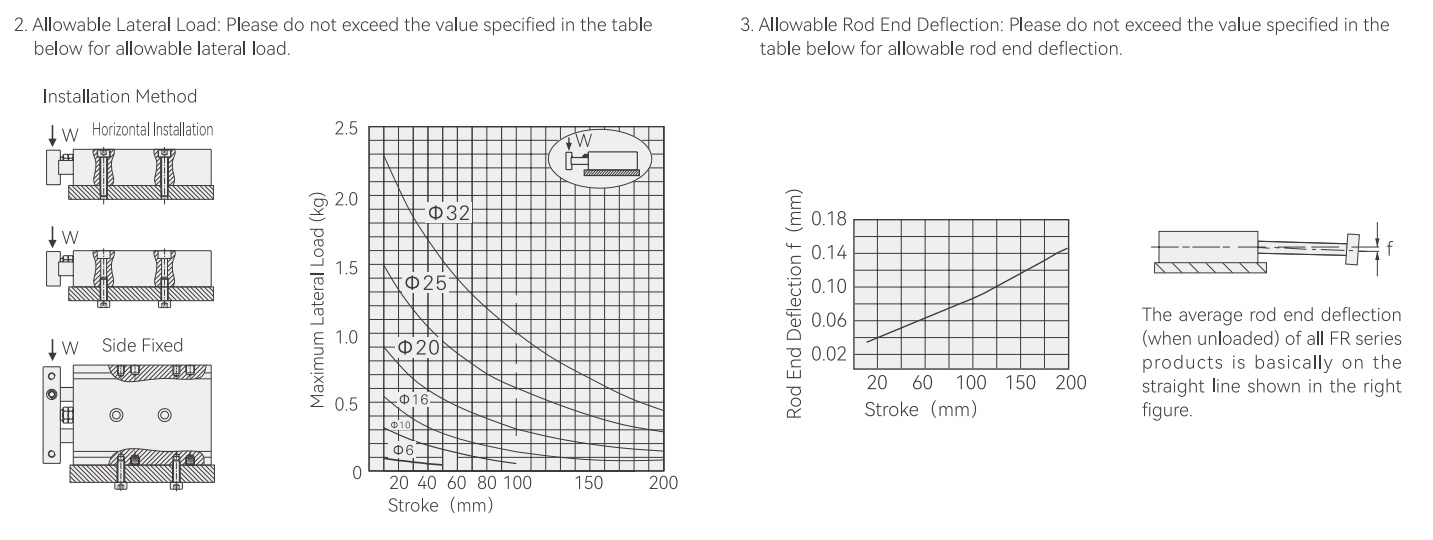

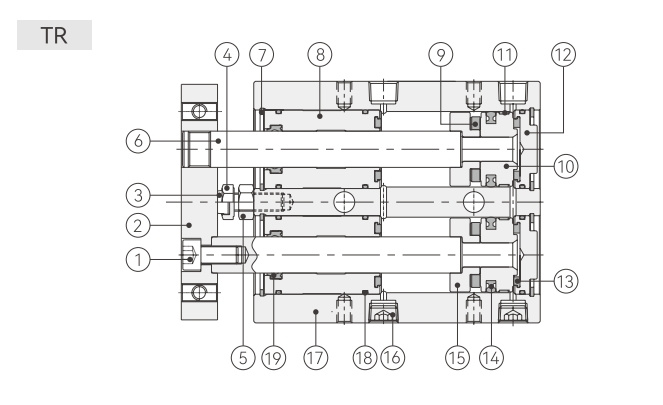

Internal Structure and Main Component Materials

No.	Name	Material	No.	Name	Material
1	Hexagon Socket Screw	Medium Carbon Steel	11	Wear-Resistant Pad	Nylon 6
2	Cylinder Fixing Plate	Aluminum Alloy	12	Rear Cover	Aluminum Alloy
3	Bumper Pad	POM	13	Bumper Pad	TPU
4	Screw	Free Cutting Steel	14	Piston O-Ring	NBR
5	Nut	Medium Carbon Steel	15	Magnet Seat	SUS304(Ф6/10)/Aluminum Alloy(Others)
6	Piston Rod	Medium Carbon Steel(Ф25/32)/SUS304(0thers)	16	Set Screw	Medium Carbon Steel
7	C-shaped Retaining Ring	Spring Steel	17	Body	Aluminum Alloy
8	Front Cover	Aluminum Alloy	18	O-Ring	NBR
9	Magnet	Plastic(Ф32)/Rare Earth(Others)	19	Rod Core O-Ring	NBR
10	Piston	SUS304(Ф6/10)/Aluminum Alloy(Others)

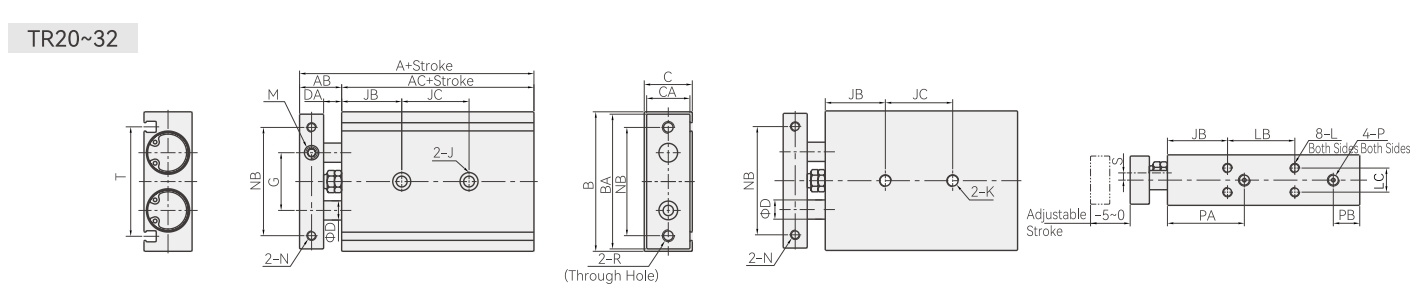

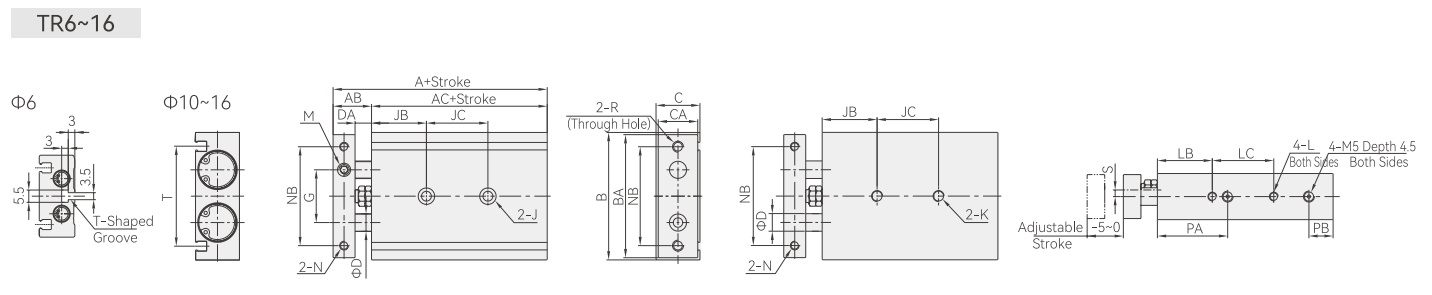

External Specifications

Cylinder Diameter/ Symbol	A	AB	AC	B	BA	C	CA	D	DA	G	JC LC								T
											10~25	30~50	60~80	90~100	125	150	175	200
6	58.5	13.5	45	37	35	16	14	4	8	16	JC=10+Stroke/2		-	-	-	-	-	-	23
											LC=13+Stroke
10	72	17	55	46	44	17	15	6	9	20	30	40	50	60	-	-	-	-	36.5
16	79	19	60	58	56	20	18	8	9	25	25	35	45	55	65	75	145	145	46.5

Cylinder Diameter/Symbol	J	JB	K	L	LB	M	N	NB	PA	PB	R	S
6	One Side:Ф6.5 Depth 3.5 Through Hole:Ф3.5	13	-	M3X0.5 Depth4.5	10	M3X0.5	M3X0.5Through Hole	28	24.5	6.5	M3X0.5	4.5
10	One Side:Ф6.5 Depth 3.5 Through Hole:Ф3.5	20	M4x0.7 Tapping	M3X0.5 Depth5	20	M5X0.8	M3X0.5 Depth 7.5	35	30	8	M4x0.7	3.5
16	One Side:Ф8.0 Depth 4.5 Through Hole:Ф4.5	30	M5X0.8 Tapping	M4X0.7 Depth5	30	M6X1.0	M4X0.7 Through Hole	45	38	8	M5x0.8	5

Cylinder Diameter/Symbol	A	AB	AC	B	BA	C	CA	D	DA	G	JB	JC LB							P	PA	PB
Stroke ≤	A	AB	AC	B	BA	C	CA	D	DA	G	JB	10~25	30~50	60~80	125	150	175	200	P	PA	PB
20	94	24	70	64	62	25	23	10	12	28	30	30	40	60	80	80	100	100	M5X0.8	46	9
25	96	24	72	80	78	30	28	12	12	35	30	30	40	60	80	80	100	100	PT1/8	43	9
32	112	30	82	98	96	38	36	16	14	44	30	40	50	70	90	90	110	110	PT1/8	53	10

Cylinder Diameter/Symbol	J	K	L	LC	M	N	NB	R	S	T
20	One Side:Ф9.5 Depth 5.5 Through Hole:Ф5.5	M6X1.0	M4X0.7 Depth 5.5	9.5	M8X1.25	M4X0.7 Depth 6	50	M5X0.8	6.5	52
25	One Side:Ф11 Depth 6.5 Through Hole:Ф7	M8X1.25	M5X0.8 Depth 7	13	M8X1.25	M5X0.8 Depth 7.5	60	M6X1.0	9	61
32	One Side:Ф11 Depth 6.5 Through Hole:Ф7	M8X1.25	M5X0.8 Depth 7	20	M10X1.5	M5x0.8 Depth 8	75	M6X1.0	11.5	73
