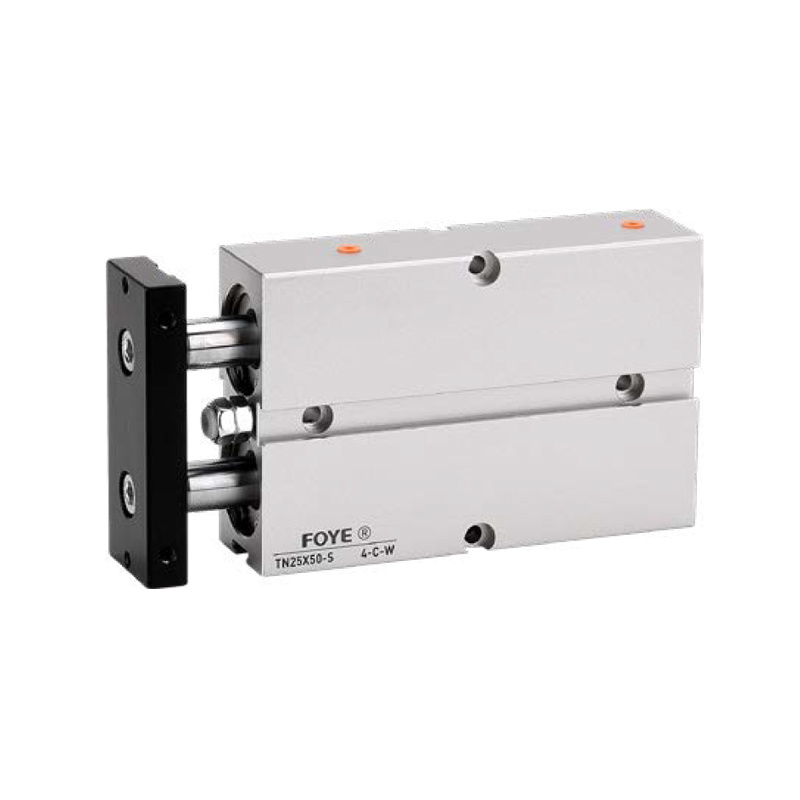

FTN Series Double-Rod Cylinder

·Implementing corporate standards;
·Embedded body installation and fixing form save installation space.
·The structure has certain anti-bending and anti-torsion performance, and can withstand certain lateral load.
·The fixing plate has installation holes on three sides, convenient for multi-position loading.
·The front bumper pad of the body can adjust the cylinder stroke and alleviate impact.
·The standard configuration of this series of cylinders is magnetic type, and the non-magnetic type is not optional.

product details

Symbols

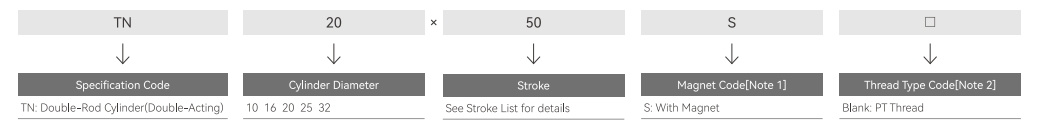

Finished Product Order Code

[Note 1] All TN series cylinders are of magnetic type.

[Note 2] If the pipe is M5, this item will be blank.

Specifications

Inner Diameter(mm)	10	16	20	25	32
Mode of Operation	Double-Acting Type
Working Medium	Air (filtered through a Filter Element with a pore size smaller than 40μm)
Operating Pressure Range	0.15~1.0MPa(22~145psi)
Guaranteed Pressure Resistance	1.5MPa(215psi)
Operating Temperature (℃ )	-20~70
Operating Speed Range (mm/s)	30~500
Adjustable Stroke mm	-5~0
Stroke Tolerance Range	≤100 > 100
Cushion Type	Bumper Pad
Non-Rotation Accuracy[Note 1]	±0.4°	±0.3°
Pipe Diameter[Note 2]	M5X0.8				PT1/8

[Note 1] Non-rotation accuracy refers to the angle that the cylinder fixing plate can rotate when the cylinder is fully retracted.

[Note 2] PT Thread is available for Pipe Thread.

Stroke

Inner Diameter(mm)	Standard Stroke	Maximum Stroke
10	10 20 30 40 50 60 70 80 90 100	100
16	10 20 30 40 50 60 70 80 90 100 125 150 175 200	200
20	10 20 30 40 50 60 70 80 90 100 125 150 175 200	200
25	10 20 30 40 50 60 70 80 90 100 125 150 175 200	200
32	10 20 30 40 50 60 70 80 90 100 125 150 175 200	200

[Note] Within the range of 10mm,the non-standard stoke is at a level of 5mm,which is modified from the previous standard stoke.and its external dimensions are the external dimensions of the previous standard stroke cylinder. For example, a non-standard stroke cylinder with a stroke of 35 is modified from a standard cylinder with a standard stroke of 40,and its external dimensions are the same.

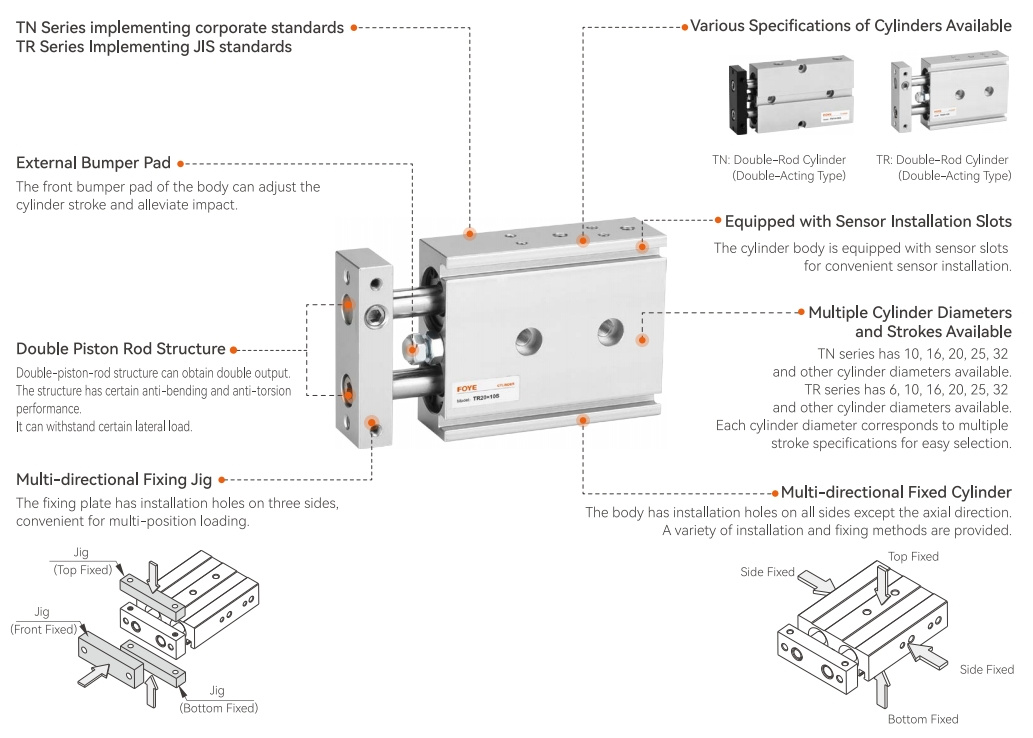

Overview of TN, TR Series Products

Cylinder Theoretical Output Table

Cylinder Inner Diameter	Piston Rod Outer Diameter	Mode of Operation		Pressure Area(mm²)	Air Pressure(MPa)
Cylinder Inner Diameter	Piston Rod Outer Diameter	Mode of Operation		Pressure Area(mm²)	0.1	0.2	0.3	0.4	0.5	0.6	0.7
6	4	Double-Acting	Push Side	56.5	5.7	113	17.0	22.6	28.3	33.9	39.6
6	4	Double-Acting	Pull Side	31.4	3.1	6.3	9.4	12.6	15.7	18.8	22
10	6	Double-Acting	Push Side	157.1	15.7	31.4	47.1	62.8	78.6	94.3	110.0
10	6	Double-Acting	Pull Side	100.5	10.1	20.1	30.2	40.2	50.3	60.3	70.4
16	8	Double-Acting	Push Side	402.1	40.2	80.4	120.6	160.8	201.1	241.3	281.5
16	8	Double-Acting	Pull Side	301.6	30.2	60.3	90.5	120.3	150.8	181.0	211.1
20	10	Double-Acting	Push Side	628.3	62.8	125.7	188.5	251.3	314.2	377.0	439.8
20	10	Double-Acting	Pull Side	471.2	47.1	94.2	141.4	188.5	235.6	282.7	329.8
25	12	Double-Acting	Push Side	981.7	98.2	196.4	294.5	392.7	490.9	589.0	687.2
25	12	Double-Acting	Pull Side	755.6	75.6	151.1	226.7	302.2	377.8	453.4	528.9
32	16	Double-Acting	Push Side	1608.5	160.9	321.7	482.6	643.4	804.3	965.1	1126.0
32	16	Double-Acting	Pull Side	1206.4	120.6	241.3	361.9	482.6	603.2	723.8	844.5

Installation and Use (General Purpose)

·When the load changes during operation, a cylinder with ample output force should

be selected.

·Under high temperature or corrosive conditions, a corresponding high-temperature resistant or corrosion-resistant cylinder should be selected.

·In environments with high humidity, lots of dust, or presence of water droplets, oil dust and welding slag, appropriate protective measures should be taken for the cylinder.

·Before the cylinder is connected to the pipeline, the dirt inside the pipeline must be cleared to prevent foreign objects from entering the cylinder.

·The medium used in the cylinder should be filtered through a filter element with a pore size smaller than 40um before use.

·Because the front cover and piston of the cylinder are relatively short, the stroke generally should not be too large.

·In low-temperature environments, anti-freezing measures should be taken to prevent the water in the system from freezing.

·During the operation of the cylinder, lateral loads should not exceed the allowable value to maintain the normal working life of the cylinder.

·If the cylinder is disassembled and not used for a long time, attention should be paid to surface rust prevention, dust-proof caps should be added to the intake and exhaust ports. Due to the high production and guidance accuracy of the product, the user should not disassemble the cylinder block or cylinder cover independently.

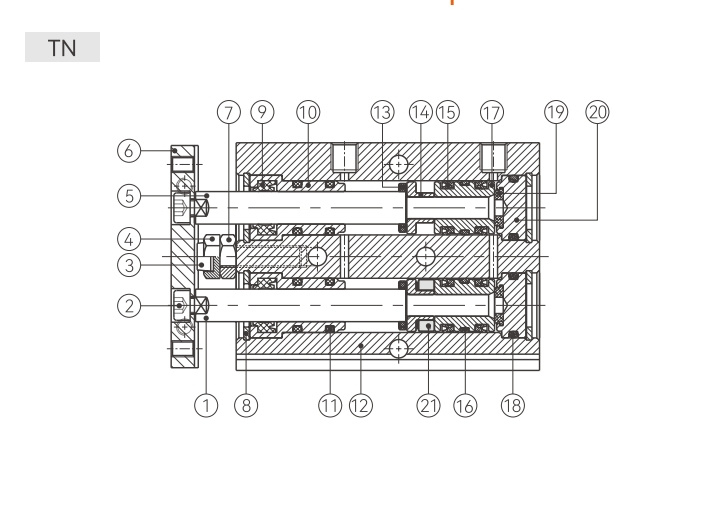

Internal Structure and Main Component Materials

No.	Name		Material	No.	Name		Material
1	Piston Rod B	φ32	S45C Hard Chrome Grinding Rod	12	Body		Aluminum Alloy
		Others	SUS304 Hard Chrome Grinding Rod	13	Bumper Pad		TPU
2	Hexagon Socket Screw		Medium Carbon Steel	14	Magnet Seat	Φ10	SUS303
3	Bumper Pad		POM			Others	Aluminum Alloy
4	Screw		Medium Carbon Steel	15	Piston O-Ring		NBR
5	Piston Rod A		S45C Hard Chrome Grinding Rod	16	Wear-Resistant Pad		Wear-Resistant Material
6	Cylinder Fixing Plate		Free Cutting Steel	17	Piston	Φ10	SUS303
7	Nut		Medium Carbon Steel			Others	Aluminum Alloy
8	C-shaped Retaining Ring		Spring Steel	18	Rear Cover0-Ring		NBR
9	Front Cover O-Ring		NBR	19	Bumper Pad		TPU
10	Front Cover		Aluminum Alloy	20	Rear Cover		Aluminum Alloy
11	O-Ring		NBR	21	Magnet		Rare Earth

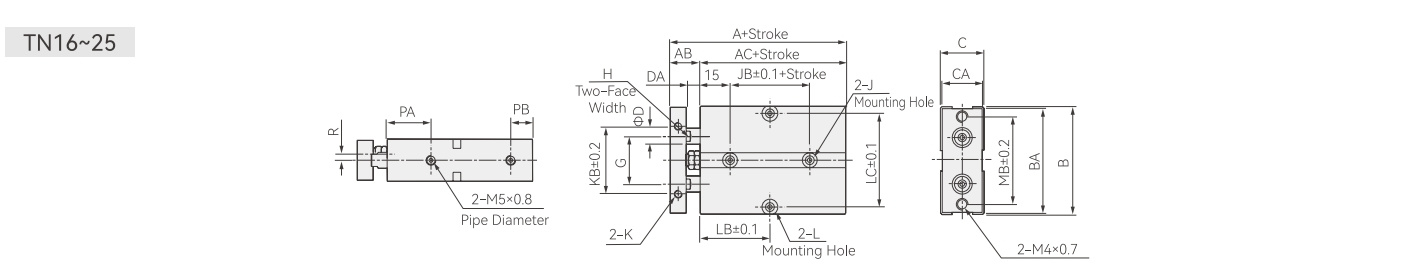

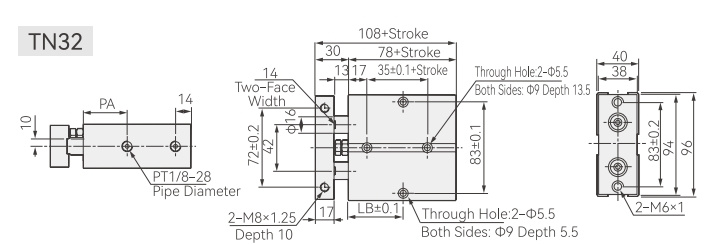

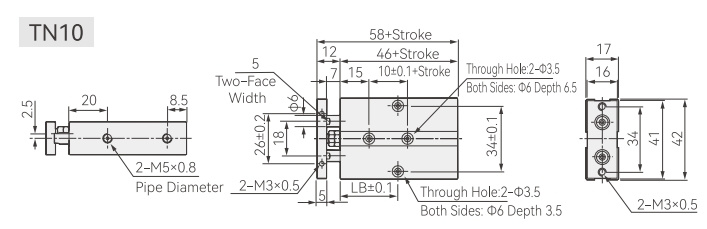

External Specifications

Symbol/Stroke	10	20	30	40	50	60	70	80	90	100
LB	30	30	35	40	45	50	55	60	65	70

Symbol/Stroke	10	20	30	40	50	60	70	80	90	100	125	150	175	200
LB	45	50	55	60	65	70	75	80	95	90	102.5	115	127.5	140
PA	35	40

Cylinder Diameter/Symbol	A	AB	AC	B	BA	C	CA	D	DA	G	H	J	JB	K	KB	PA	PB	L	LC	MB	R
16	68	15	53	54	53	21	20	8	8.2	24	6	Both sides:Φ7.5 Depth 7.5 Through Hole:Φ4.5	20	M4X0.7 Depth5	34	22	11	Both sides: Φ8 Depth 4.5 Through Hole:Φ4.5	47	47	3
20	75	20	58	62	61	25	24	10	10.2	28	8	Both sides:Φ7.5 Depth 7.5 Through Hole:Φ4.5	20	M4X0.7 Depth5	44	25	12	Both sides: Φ8 Depth 4.5 Through Hole:Φ4.5	55	55	3.5
25	81	19	62	73	72	30	29	12	10.2	34	10	Both sides:Φ7.5 Depth 7.5 Through Hole:Φ4.5	30	M4X0.7 Depth6	56	27	12	Both sides: Φ8 Depth 4.5 Through Hole:Φ4.5	66	66	6

FAT1.5-M8 Series

FDT3-M8 Series

FBT0.5-MM3 Series

FHSV Series Manual Slide Valve

F4H Series Manual Valve

LVD100 Series Universal Variable Frequency Drive

HVD Series High-voltage Variable Frequency Drive

60 Absolute value Series servo motor

40 series servo absolute value motor

HS100M1/M2-NQ level/HS100M1/M2-NQS level

FTN Series Double-Rod Cylinder

Symbols

Finished Product Order Code

Specifications

Stroke

Overview of TN, TR Series Products

Cylinder Theoretical Output Table

Installation and Use (General Purpose)

Internal Structure and Main Component Materials

External Specifications

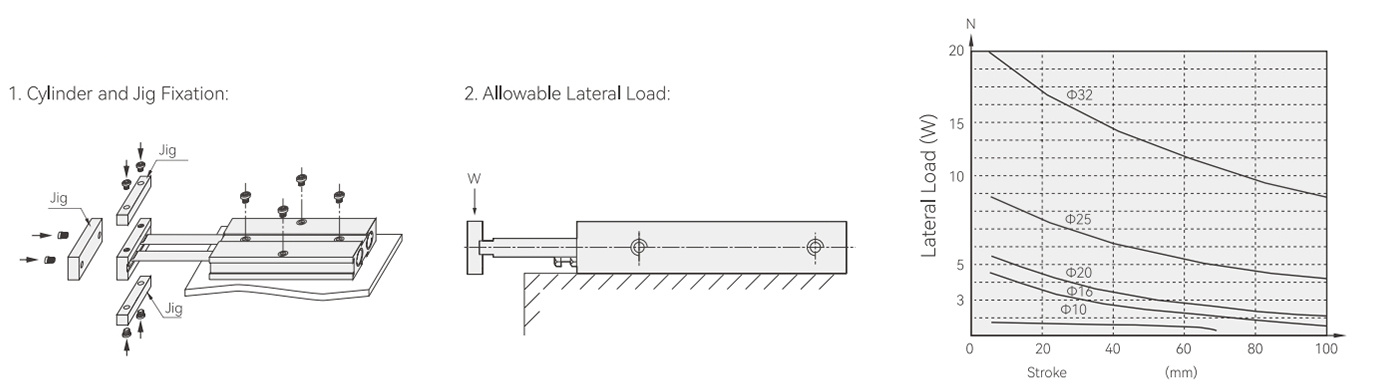

Installation and Use
