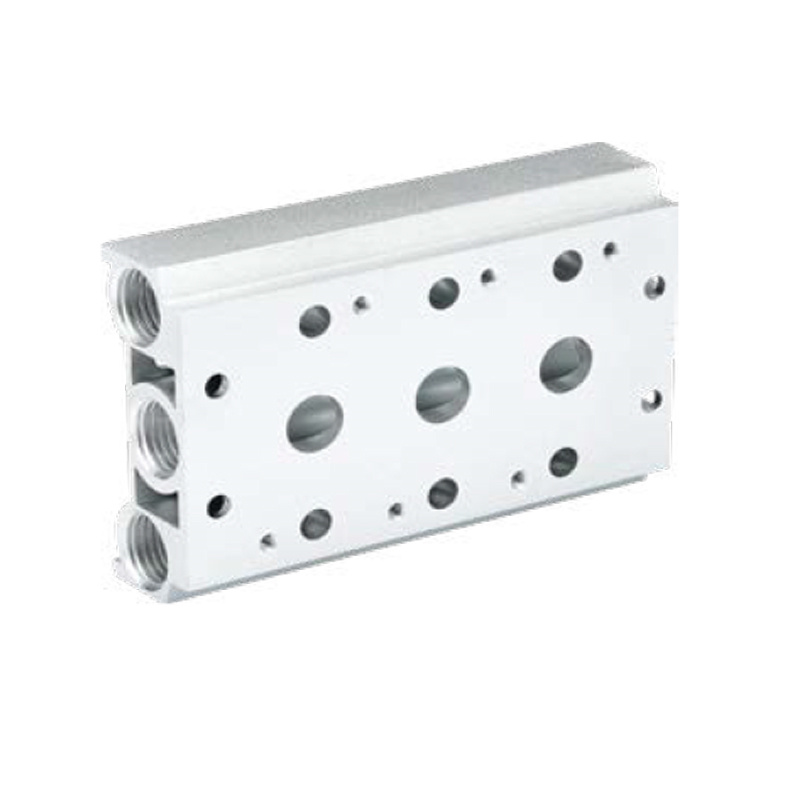

Solenoid Valve Accessories-Base Series

The Solenoid Valve Accessories-Base Series adopts a modular design concept, which supports the integration of directional control valves of the same series into a single valve group, effectively optimizing space utilization and reducing system costs. The standardized intake and exhaust interfaces and centralized wiring design greatly simplify the pipeline layout, while facilitating troubleshooting and maintenance. Its unique modular architecture can flexibly adjust the number of valve bodies according to actual needs, supporting both the independent use of the basic unit and the free expansion of multiple valve bodies, fully meeting the configuration requirements of automation systems of different sizes. This highly integrated solution significantly improves the efficiency of equipment deployment and the convenience of subsequent maintenance.

    Contact us
    product details

    Finished Product Order Code

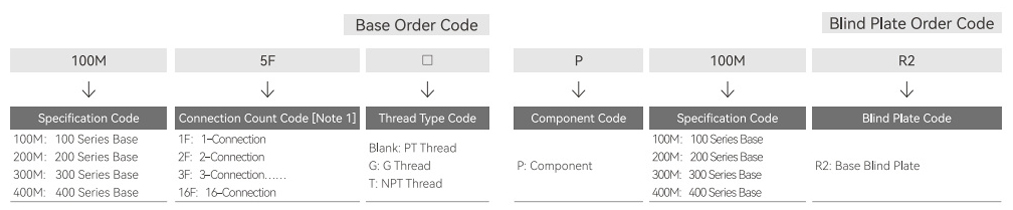

    solenoid-valve-accessories-base-series1-1

    [Note 1] The number of connection seats in the 100M and 200M series is up to 16; the number of connection seats in the 300M series is up to 12;the number of connection seats in the 400M series is up to 8.
    [Alternative] 1. The order code includes the base and the blind plate. 2. The base assembly includes the base, base gasket. and screws; 3. The blind plate assembly includes the blind plate and screws.

    Product Overview

    Solenoid Valve Accessories-Base Series provides four specifications of 100M/200M/300M/400M to meet different flow requirements. This series uses 40μm precision filtered air medium, and the operating temperature covers -20℃ to 70℃, with excellent environmental adaptability. The modular design supports stable operation in harsh industrial environments, and significantly improves system reliability by optimizing airflow control. It is suitable for industries such as food, pharmaceuticals, semiconductors, etc. that have strict requirements on cleanliness and durability, and realizes high-efficiency and long-life fluid control management.

    Specifications

    Item \ Base Model

    100M

    200M

    300M

    400M

    Working Medium

    Air (filtered through a Filter Element with a pore size smaller than 40μm)

    Operating Temperature

    -20~70℃

    Applicable Valve Series

    4V100 Series

    4V200 Series

    4V300 Series

    4V400 Series

    5V100 Series

    5V200 Series

    5V300 Series

    5V400 Series

    External Specifications

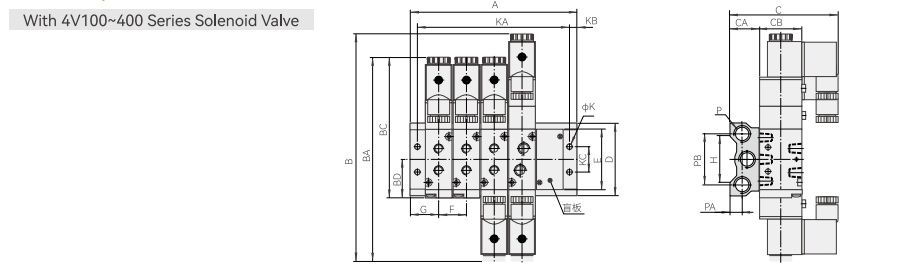

    Solenoid Valve Accessories-Base Series3

    Model\ Symbol

    A

    1F

    2F

    3F

    4F

    5F

    6F

    7F

    8F

    9F

    10F

    11F

    12F

    13F

    14F

    15F

    16F

    100M 口F

    38

    57

    76

    95

    114

    133

    152

    171

    190

    209

    228

    247

    266

    285

    304

    323

    200M 口F

    44

    67

    90

    113

    136

    159

    182

    205

    228

    251

    274

    297

    320

    343

    366

    389

    300M 口F

    52

    80

    108

    136

    164

    192

    220

    248

    276

    304

    332

    360

    -

    -

    -

    -

    400M 口F

    61

    96

    131

    166

    201

    236

    271

    306

    -

    -

    -

    -

    -

    -

    -

    -

    Model\ Symbol

    KA

    1F

    2F

    3F

    4F

    5F

    6F

    7F

    8F

    9F

    10F

    11F

    12F

    13F

    14F

    15F

    16F

    100M 口F

    28

    47

    66

    85

    104

    123

    142

    161

    180

    199

    218

    237

    256

    275

    294

    313

    200M 口F

    34

    57

    80

    103

    126

    149

    172

    195

    218

    241

    264

    287

    310

    333

    356

    379

    300M 口F

    42

    70

    98

    126

    154

    182

    210

    238

    266

    294

    322

    350

    -

    -

    -

    -

    400M 口F

    49

    84

    119

    154

    189

    224

    259

    294

    -

    -

    -

    -

    -

    -

    -

    -

    Model\ Symbol

    B

    BA

    BC

    BD

    C

    CA

    CB

    D

    E

    F

    G

    H

    K

    KB

    KC

    P

    PA

    PB

    100M 口F

    154.5

    142.5

    99.5

    28

    77

    22

    27

    57.5

    43

    19

    19

    36

    4.5

    5

    20

    PT1/4

    10

    40

    200M 口F

    189

    171

    117

    31.7

    91

    24

    35

    60

    52

    23

    22

    38

    4.5

    5

    21

    PT1/4

    10

    42

    300M 口F

    208

    190

    135

    40

    97

    28

    40

    75

    64

    28

    26

    54

    4.5

    5

    26

    PT3/8

    13.5

    53

    400M 口F

    243

    223

    168.5

    57

    107

    33

    50

    100

    94

    35

    30.5

    75

    5.5

    6

    32

    PT1/2

    15

    68
