FSE Series Standard Cylinder

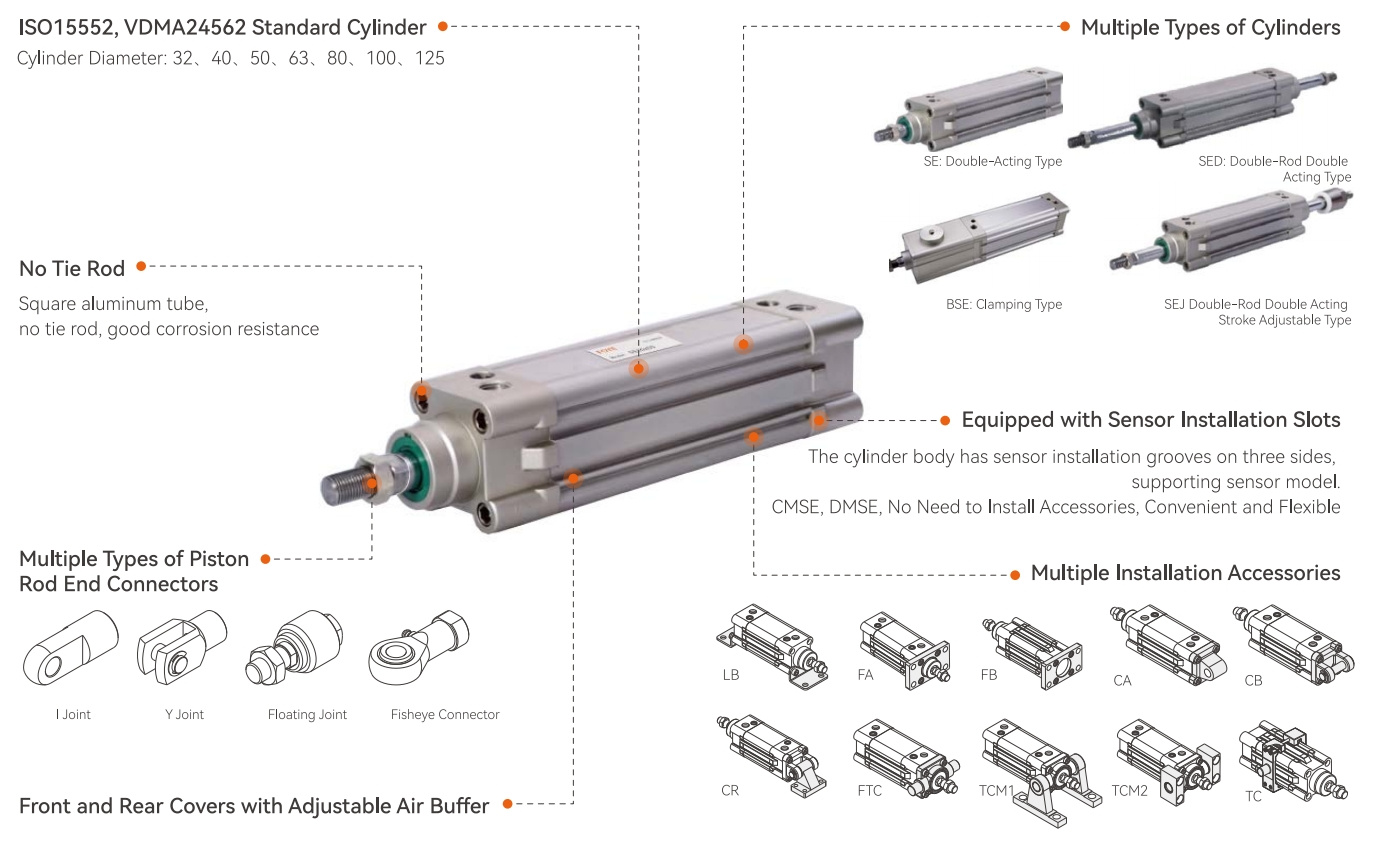

·IS015552,VDMA24562 Standard Cylinder.
·The piston seal adopts an asymmetric compact bidirectional sealing structure,with oil storage function.
·Square aluminum tube, no tie rod, good corrosion resistance.
·A variety of cylinder specifications and cylinder installation accessories are available for customers to choose.
·Choose high-temperature resistant sealing materials, the use temperature range is 0~150℃.

product details

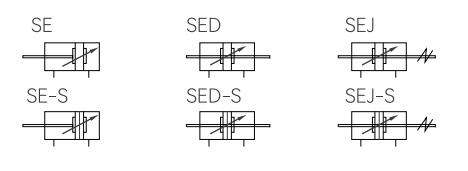

Symbols

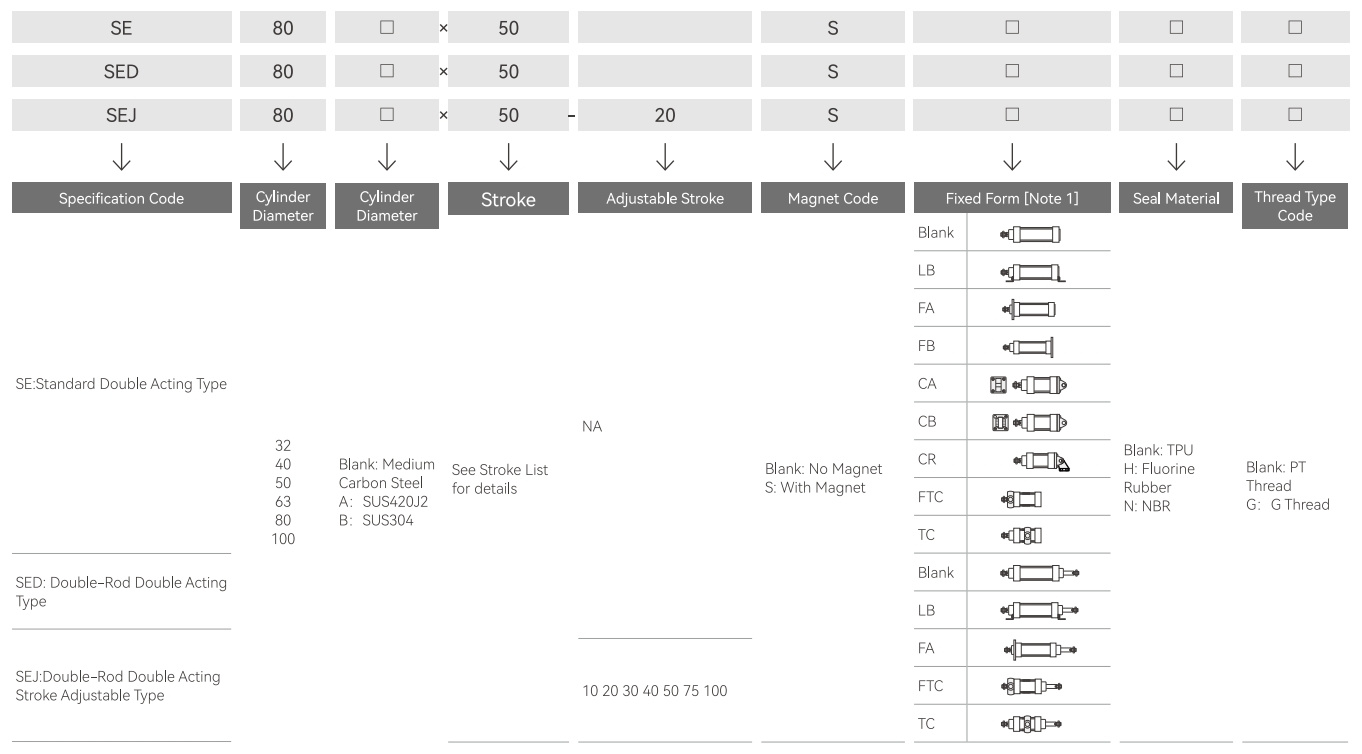

Finished Product Order Code

[Note 1] The CR accessory is used in conjunction with CB, FTC, TC accessories are used in conjunction with TCM1, TCM2.

Specifications

Inner Diameter(mm)		32	40	50	63	80	100	125
Mode of Operation		Double-Acting Type
Working Medium		Air (filtered through a filter element with a pore size smaller than 40μm)
Fixed Form	SE	Basic Type FA、FB、CA、CB、CR、LB、TC、FTC、TCM1、TCM2
	SED、SEJ	Basic Type FA、LB、TC、FTC、TCM1、TCM2
Operating Pressure Range		0.15~1.0MPa(22~145psi)(1.5~10.0bar)
Guaranteed Pressure Resistance		1.5MPa(215psi)(15bar)
Operating Temperature (℃)		-20 ~ 70
Operating Speed Range (mm/s)		30~800
Stroke Tolerance Range		0~250 ^{+1.0 0} 251~1000^{+1.5 0} 1001~15009^{+2.0 0}
Cushion Type		Adjustable Buffer
Buffer Stroke		27		30		36		40
Pipe Diameter [Note 1]		PT1/8	PT1/4		PT3/8		PT1/2

[Note 1] PT Thread and G Thread are available for Pipe Thread.

Stroke

Inner Diameter(mm)	Standard Stroke(mm)	Maximum Stroke	Allowable Stroke
32	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500	1000	1800
40	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1200	1800
50	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1200	1800
63	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
80	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
100	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
125	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800

[Note] For other special strokes, please contact our company.

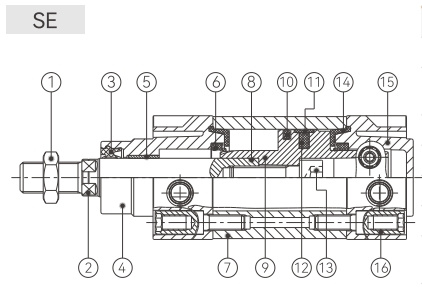

Internal Structure and Main Component Materials

No.	Part Name	Material	No.	Part Name	Material
1	Nut	Carbon Steel\Stainless Steel	9	Piston	Aluminum Alloy
2	Piston Rod	S45C Hard Chrome S45C Hard Chrome Grinding Rod\Stainless Steel	10	Piston O-Ring	NBR
3	Front Cover O-Ring	TPU	11	Wear Ring	Wear-Resistant Material
4	Front Cover	Aluminum Alloy	12	Magnet	Plastic\Rubber (ф125)
5	Bushing	Wear-Resistant Material	13	Hex Socket Bolt	Carbon Steel
6	Buffer O-Ring	TPU	14	Buffer Seal Pad	TPU
7	Cylinder Body	Aluminum Alloy	15	Rear Cover	Aluminum Alloy
8	O-Ring	NBR	16	Pillar Nut

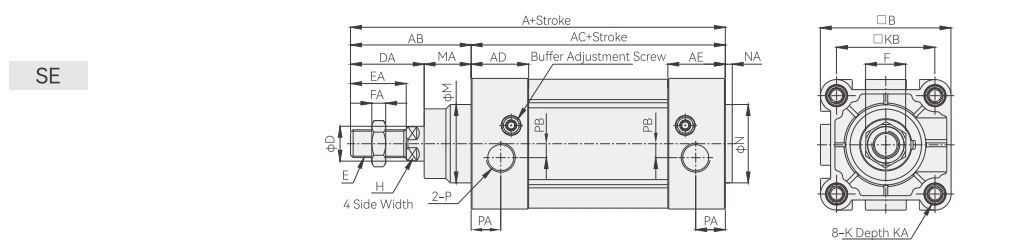

External Specifications

Cylinder Diameter \Symbol	A	AB	AC	AD	AE	B	D	DA	E	EA	F	FA	H	K	KA	KB	M	MA	NA	N	P	PA	PB
32	142	48	94	27.5	27.5	46.5	12	29	M10x1.25	22	17	6	10	M6	16	32.5	30	19	3	30	PT1/8	13.5	6
40	159	54	105	32	32	54	16	33	M12x1.25	24	17	7	13	M6	17	38	35	21	3.5	35	PT1/4	17.5	6
50	175	69	106	31	31	64	20	42	M16x1.5	32	23	8	17	M8	17	46.5	40	27	3.5	40	PT1/4	14	8
63	190	69	121	33	33	75	20	42	M16x1.5	32	23	8	17	M8	17	56.5	45	27	4	45	PT3/8	17	8
80	214	86	128	33	33	93	25	53	M20x1.5	40	26	10	22	M10	19	72	45	33	4	45	PT3/8	16.5	8
100	229	91	138	37	37	110	25	55	M20x1.5	40	26	10	22	M10	19	89	55	36	4	55	PT1/2	19.5	10
125	279	119	160	46	46	134	32	74	M27x2	54	41	13.5	27	M12	22	110	60	45	4	60	PT1/2	23	11

[Note] The size of the magnetic type and the non-magnetic type is the same.

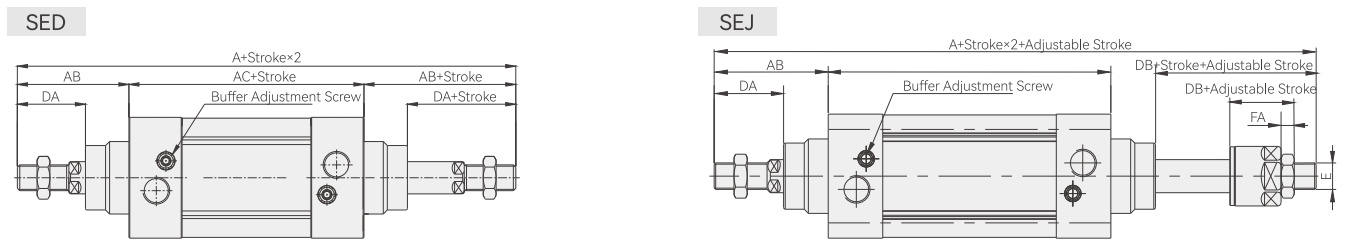

Cylinder Diameter \Symbol	A		AB	AC	DA	DB	E	FA
Specification Code	FSED	FSEJ	AB	AC	DA	DB	E	FA
32	190	188	48	94	29	27	M10x1.25	6
40	213	208	54	105	33	28	M12x1.25	7
50	244	231	69	106	42	29	M16x1.5	8
63	259	246	69	121	42	29	M16x1.5	8
80	300	282.5	86	128	52	35.5	M20x1.5	10
100	320	300.5	91	138	55	35.5	M20x1.5	10
125	398	366.5	119	160	74	42.5	M27x2.0	13.5

[Note]1. The size of the magnetic type and the non-magnetic type is the same.

The size not marked is the same as the SE standard type.

Overview of FSE Series Products

Cylinder Inner Diameter	Piston Rod Outer Diameter	Mode of Operation		Pressure Area(mm²)	Air Pressure(MPa)
Cylinder Inner Diameter	Piston Rod Outer Diameter	Mode of Operation		Pressure Area(mm²)	0.1	0.2	0.3	0.4	0.5	0.6	0.7	0.8	0.9
32	12	Double-Acting	Pull Side	804	80.4	160.8	241.2	321.6	402.0	482.4	562.8	643.2	723.6
32	12	Double-Acting	Push Side	690	69.0	138.0	207.0	276.0	345.0	414.0	483.0	552.0	621
40	16	Double-Acting	Pull Side	1256	125.6	251.2	376.8	502.4	628.0	753.6	879.2	1004.8	1130.4
40	16	Double-Acting	Push Side	1055	105.5	211.0	316.5	422.0	527.5	633.0	738.5	844.0	949.5
50	20	Double-Acting	Pull Side	1963.0	196.3	392.6	588.9	785.2	981.5	1177.8	1374.1	1570.4	1766.7
50	20	Double-Acting	Push Side	1649	164.69	329.8	494.7	659.6	824.5	989.4	1154.3	1319.2	1484.1
63	20	Double-Acting	Pull Side	3117.0	311.7	623.4	935.1	1246.8	1558.5	1870.2	2181.9	2493.6	2805.3
63	20	Double-Acting	Push Side	2803	280.3	560.6	840.9	1121.2	1401.5	1681 8	1962.1	2242.4	2522.7
80	25	Double-Acting	Pull Side	5026	502.6	1005.2	1507.8	2010.4	2513.0	3015.6	3518.2	4020.8	4523.4
80	25	Double-Acting	Push Side	4536	453.6	907.2	1360.8	1814.4	2268.0	2721.6	3175.2	3628.8	4082.4
100	25	Double-Acting	Pull Side	7853	785.3	1570.6	2355.9	3141.2	3926.5	4711.8	5497.1	6282.4	7067.7
100	25	Double-Acting	Push Side	7362	736.2	1472.4	2208.6	2944.8	3681.0	4417.2	5153.4	5889.6	6625.8
125	32	Double-Acting	Pull Side	12272	1227.2	2454.4	3681.6	4908.8	6136.0	7363.2	8590.4	9817.6	11044.8
125	32	Double-Acting	Push Side	11468	1146.8	2293.6	3440.4	4587.2	5734.0	6880.8	8027.6	9174.4	10321.2

Installation and Use (General Purpose)

·When the load changes during operation, a cylinder with ample output force should be selected.

·Under high temperature or corrosive conditions, a corresponding high-temperature resistant or corrosion-resistant cylinder should be selected.

·In environments with high humidity, lots of dust, or presence of water droplet soil dust, and welding slag, appropriate protective measures should be taken for the cylinder.

·Before the cylinder is connected to the pipeline, the dirt inside the pipeline must be cleared to prevent foreign objects from entering the cylinder.

·The medium used in the cylinder should be filtered through a filter element with a pore size smaller than 4μm before use.

·In low-temperature environments, anti-freezing measures should be taken to prevent the water in the system from freezing.

·Before using the cylinder, it should be run under no load. Before running the buffer should be minimized and gradually relaxed to avoid damaging the cylinder due to excessive impact.

·During the operation of the cylinder, avoid lateral loads as much as possible to maintain the normal operation of the cylinder and extend its service life.

·If the cylinder is disassembled and not used for a long time, attention should be paid to surface rust prevention, dust-proof caps should be added to the intake and exhaust ports.
