FSC Series Standard Cylinder - Rod Type

·The piston seal adopts an asymmetric compact bidirectional sealing structure.
·with oil storage function.
For the tie rod type cylinder, the front and rear covers are connected to the aluminum tube cylinder body with pillars, which is reliable.
·Compared with the lS015552 standard cylinder, the FSC series cylinder of the same diameter is shorter.
·The cylinder buffer adjustment is stable.
·A variety of cylinder specifications and cylinder installation accessories are available for customers to choose.
·Selection of high-temperature resistant sealing materials ensures the cylinder operating normally even at 150°C.

product details

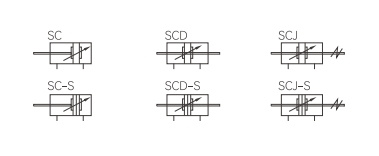

Symbols

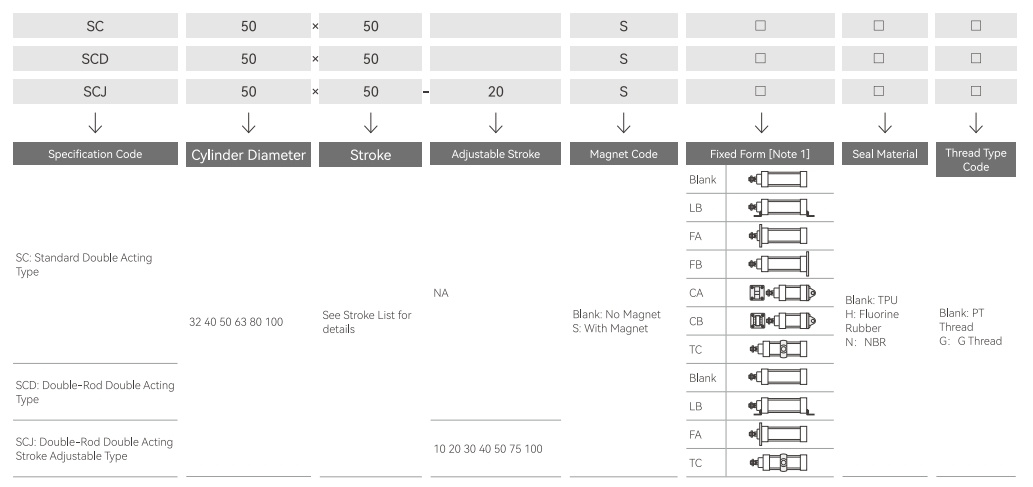

Finished Product Order Code

[Note 1] The accessories are common with the SAU series, and the Tc accessories are used in conjunction with TCM1. They cannot be ordered separately and must be ordered with the cylinder.

Specifications

Inner Diameter(mm)		32	40	50	63	80	100
Mode of Operation		Double-Acting Type
Working Medium		Air (filtered through a filter element with a pore size smaller than 40μm)
Fixed Form	FSC	Basic Type FA FB CA CB LB TC TCM1
	FSCD、FSCJ	Basic Type FA LB TC TCM1
Operating Pressure Range		0.15-1.0MPa(22~145psi)(1.5~10.0bar)
Guaranteed Pressure Resistance		1.5MPa(215psi)(15bar)
Operating Temperature (℃)		-20 ~ 70
Operating Speed Range (mm/s)		30~800
Stroke Tolerance Range		0~250 ^{+1.0 0} 251~1000^{+1.5 0} 1001~15009^{+2.0 0}
Cushion Type		Adjustable Buffer
Buffer Stroke		21				28	29
Pipe □ Diameter [Note 1]		PT1/8	PT1/4		PT3/8		PT1/2

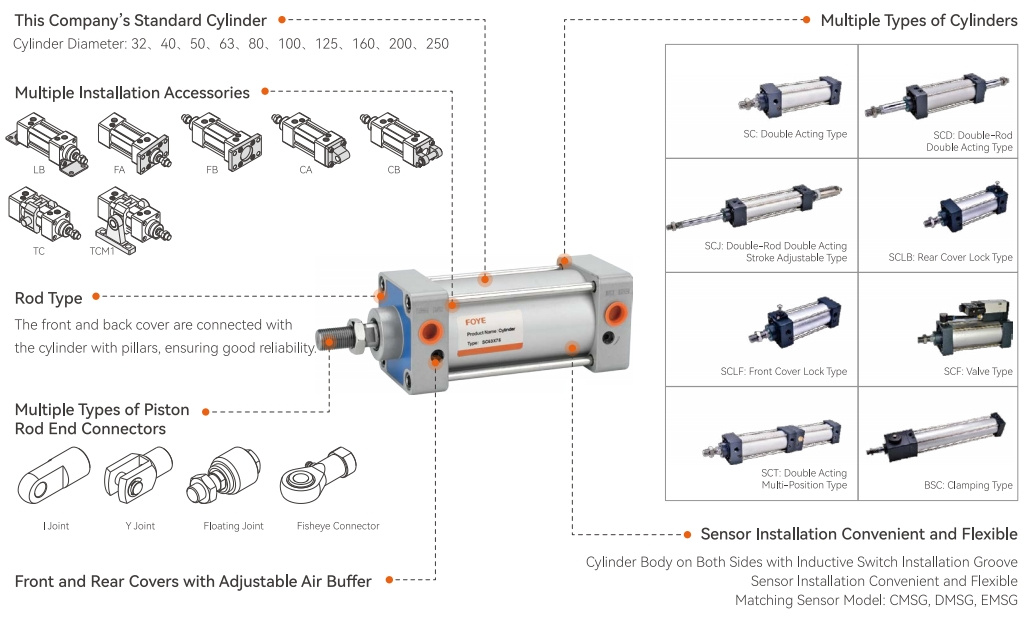

FSC Series Product Overview

Cylinder Theoretical Output Table

Cylinder Inner Diameter	Piston Rod Outer Diameter	Mode of Operation		Pressure Area(mm²)	Air Pressure(MPa)
Cylinder Inner Diameter	Piston Rod Outer Diameter	Mode of Operation		Pressure Area(mm²)	0.1	0.2	0.3	0.4	0.5	0.6	0.7	0.8	0.9
32	12	Double-Acting	Pull Side	804	80.4	160.8	241.2	321.6	402.0	482.4	562.8	643.2	723.6
32	12	Double-Acting	Push Side	690	69.0	138.0	207.0	276.0	345.0	414.0	483.0	552.0	621
40	16	Double-Acting	Pull Side	1256	125.6	251.2	376.8	502.4	628.0	753.6	879.2	1004.8	1130.4
40	16	Double-Acting	Push Side	1055	105.5	211.0	316.5	422.0	527.5	633.0	738.5	844.0	949.5
50	20	Double-Acting	Pull Side	1963.0	196.3	392.6	588.9	785.2	981.5	1177.8	1374.1	1570.4	1766.7
50	20	Double-Acting	Push Side	1649	164.69	329.8	494.7	659.6	824.5	989.4	1154.3	1319.2	1484.1
63	20	Double-Acting	Pull Side	3117.0	311.7	623.4	935.1	1246.8	1558.5	1870.2	2181.9	2493.6	2805.3
63	20	Double-Acting	Push Side	2803	280.3	560.6	840.9	1121.2	1401.5	1681 8	1962.1	2242.4	2522.7
80	25	Double-Acting	Pull Side	5026	502.6	1005.2	1507.8	2010.4	2513.0	3015.6	3518.2	4020.8	4523.4
80	25	Double-Acting	Push Side	4536	453.6	907.2	1360.8	1814.4	2268.0	2721.6	3175.2	3628.8	4082.4
100	25	Double-Acting	Pull Side	7853	785.3	1570.6	2355.9	3141.2	3926.5	4711.8	5497.1	6282.4	7067.7
100	25	Double-Acting	Push Side	7362	736.2	1472.4	2208.6	2944.8	3681.0	4417.2	5153.4	5889.6	6625.8
125	32	Double-Acting	Pull Side	12272	1227.2	2454.4	3681.6	4908.8	6136.0	7363.2	8590.4	9817.6	11044.8
125	32	Double-Acting	Push Side	11468	1146.8	2293.6	3440.4	4587.2	5734.0	6880.8	8027.6	9174.4	10321.2
160	40	Double-Acting	Pull Side	20106	2010.6	4021.3	6031.8	8042.4	10053.0	12063.6	14074.2	16084.8	18095.4
160	40	Double-Acting	Push Side	18849	1884.9	3769.8	5654.7	7539.6	9424.5	11309.4	13194.3	15079.2	16964.1
200	40	Double-Acting	Pull Side	31416	3141.6	6283.2	9424.8	12566.4	15708.0	18849.6	21991.2	25132.8	28274.4
200	40	Double-Acting	Push Side	30159	3015.9	6031.8	9047.7	12063.6	15079.5	18095.4	27117 3	24127.2	27143.1
250	50	Double-Acting	Pull Side	49087	4908.7	9817.4	14726.1	19634.8	24543.5	29452.2	34360.9	39269.6	44178.3
250	50	Double-Acting	Push Side	47124	4712.4	9424.8	14137.2	18849.6	23562.0	28274.4	32986.8	37699.2	42411.6

Installation and Use (General Purpose)

·When the load changes during operation, a cylinder with ample output force should be selected.

·Under high temperature or corrosive conditions, a corresponding high-temperature resistant or corrosion-resistant cylinder should be selected.

·In environments with high humidity, lots of dust, or presence of water droplet soil dust, and welding slag, appropriate protective measures should be taken for the cylinder.

·Before the cylinder is connected to the pipeline, the dirt inside the pipeline must be cleared to prevent foreign objects from entering the cylinder.

·The medium used in the cylinder should be filtered through a filter element with a pore size smaller than 40μm before use.

·In low-temperature environments, anti-freezing measures should be taken to prevent the water in the system from freezing.

·Before using the cylinder, it should be run under no load. Before running the buffer should be minimized and gradually relaxed to avoid damaging the cylinder due to excessive impact.

·During the operation of the cylinder, avoid lateral loads as much as possible to maintain the normal operation of the cylinder and extend its service life.

·If the cylinder is disassembled and not used for a long time, attention should be paid to surface rust prevention, dust-proof caps should be added to the intake and exhaust ports.

Stroke

Inner Diameter(mm)	Standard Stroke(mm)	Maximum Stroke
32	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500	1000
40	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1200
50	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1200
63	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500
80	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500
100	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500

[Note] Within the allowable stroke range, if the stroke is ≥1600mm, it is treated as non-standard; for other special strokes, please contact our company.

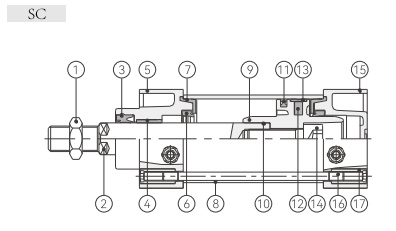

Internal Structure and Main Component Materials

No.	Part Name	Material	No.	Part Name	Material
1	Nut	Carbon Steel	10	Piston Rod O-Ring	NBR
2	Piston Rod	S45C Hard Chrome Grinding Rod	11	Piston O-Ring	NBR
3	Front Cover O-Ring	TPU	12	Magnet	Plastic
4	Bushing	Wear-Resistant Material	13	Wear Ring	Wear-Resistant Material
5	Front Cover	Aluminum Alloy	14	Hex Socket Bolt	Carbon Steel
6	Buffer O-Ring	NBR	15	Rear Cover	Aluminum Alloy
7	Buffer Seal Pad	TPU	16	Pillar	Carbon Steel
8	Cylinder Body	Aluminum Alloy	17	Pillar Nut	Carbon Steel
9	Piston	Aluminum Alloy	23

External Specifications

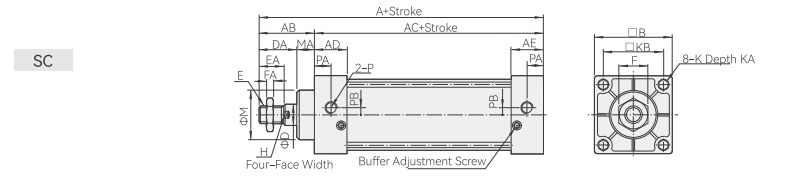

Cylinder Diameter \Symbol	A	AB	AC	AD	AE	B	D	DA	E	EA	F	FA	H	K	KA	KB	M	MA	P	PA	PB
32	140	47	93	27.5	27.5	45	12	32	M10x1.25	22	17	6	10	M6x1.0	14.5	33	28	15	PT1/8	14	5.5
40	142	49	93	27.5	27.5	50	16	34	M12x1.25	24	17	7	13	M6x1.0	14.5	37	32	15	PT1/4	15	6
50	150	57	93	27.5	27.5	62	20	42	M16x1.5	32	23	8	17	M6x1.0	14.5	47	38	15	PT1/4	17	8.5
63	153	57	96	27.5	27.5	75	20	42	M16x1.5	32	23	8	17	M8x1.25	14.5	56	38	15	PT3/8	15	9.5
80	182	75	107	33	33	94	25	54	M20x1.5	40	26	10	22	M10x1.5	17	70	47	21	PT3/8	19.5	10
100	188	75	113	33	33	112	25	54	M20x1.5	40	26	10	22	M10x1.5	17	84	47	21	PT1/2	19.5	11

[Note] The size of the magnetic type and the non-magnetic type is the same.

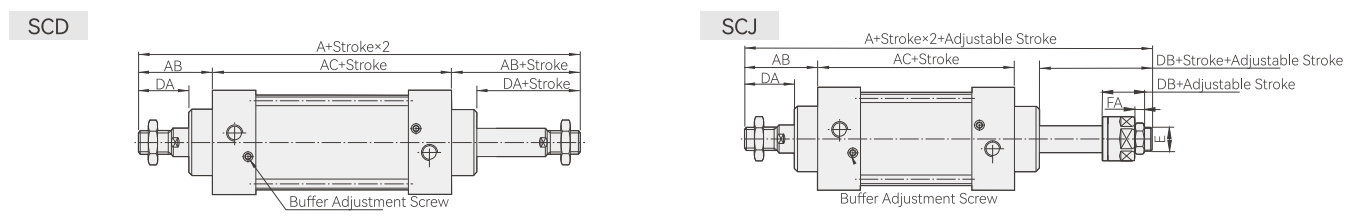

Cylinder Diameter \Symbol	A(SCD)	A(SCJ)	AB	AC	DA	DB	E	FA
32	187	182	47	93	32	27	M10X1.25	6
40	191	185	49	93	34	28	M12X1.25	7
50	207	194	57	93	42	29	M16X1.5	8
63	210	197	57	96	42	29	M16X1.5	8
80	257	238.5	75	107	54	35.5	M20X1.5	10
100	263	244.5	75	113	54	35.5	M20X1.5	10

[Note]1. The size of the magnetic type and the non-magnetic type is the same.

2.The size not marked is the same as the SC standard type.
