Quick Connector KQ2
product description
|

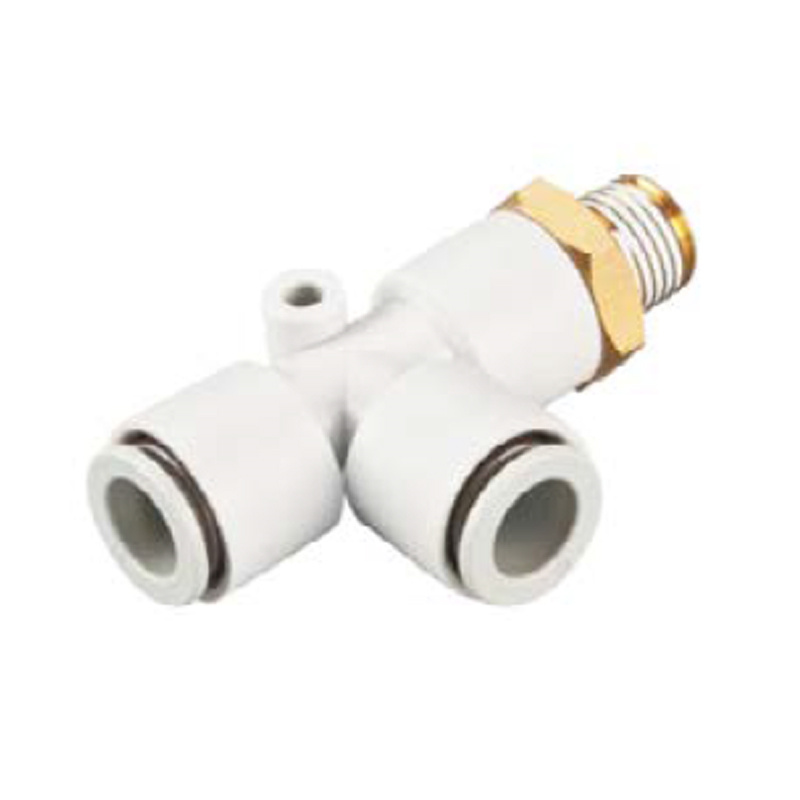

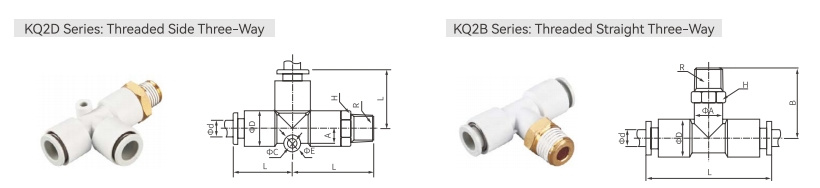

Model |
Φd |
L |
ΦD |
A |
F |
ΦC |
ΦE |
R |
H (Hexagon) |
|
KQ2D4-M5 |
4 |
19.5 |
10.5 |
4 |
25.5 |
6 |
3.2 |
M5 |
12 |
|
KQ2D4-01 |
4 |
19.5 |
10.5 |
4 |
29 |
6 |
3.2 |
PT1/8 |
12 |
|
KQ2D4-02 |
4 |
19.5 |
10.5 |
4 |
31 |
6 |
3.2 |
PT1/4 |
14 |
|
KQ2D6-M5 |
6 |
21 |
12.8 |
5.5 |
27 |
6 |
3.2 |
M5 |
14 |
|
KQ2D6-01 |
6 |
21 |
12.8 |
5.5 |
30.5 |
6 |
3.2 |
PT1/8 |
14 |
|
KQ2D6-02 |
6 |
21 |
12.8 |
5.5 |
31 |
6 |
3.2 |
PT1/4 |
14 |
|
KQ2D6-03 |
6 |
21 |
12.8 |
5.5 |
32 |
6 |
3.2 |
PT3/8 |
17 |
|
KQ2D8-01 |
8 |
24 |
15.5 |
6.5 |
33.5 |
8 |
4.2 |
PT1/8 |
17 |
|
KQ2D8-02 |
8 |
24 |
15.5 |
6.5 |
35.5 |
8 |
4.2 |
PT1/4 |
17 |
|
KQ2D8-03 |
8 |
24 |
15.5 |
6.5 |
35.5 |
8 |
4.2 |
PT3/8 |
17 |
|
KQ2D10-01 |
10 |
27 |
18.5 |
7.5 |
36.5 |
8 |
4.2 |
PT1/8 |
19 |
|
KQ2D10-02 |
10 |
27 |
18.5 |
7.5 |
38.5 |
8 |
4.2 |
PT1/4 |
19 |
|
KQ2D10-03 |
10 |
27 |
18.5 |
7.5 |
38.5 |
8 |
4.2 |
PT3/8 |
19 |
|
KQ2D10-04 |
10 |
27 |
18.5 |
7.5 |
39.5 |
8 |
4.2 |
PT1/2 |
21 |
|
KQ2D12-02 |
12 |
30 |
21 |
8.5 |
40.5 |
8 |
4.2 |
PT1/4 |
21 |
|
KQ2D12-03 |
12 |
30 |
21 |
8.5 |
40.5 |
8 |
4.2 |
PT3/8 |
21 |
|
KQ2D12-04 |
12 |
30 |
21 |
8.5 |
41.5 |
8 |
4.2 |
PT1/2 |
21 |
|

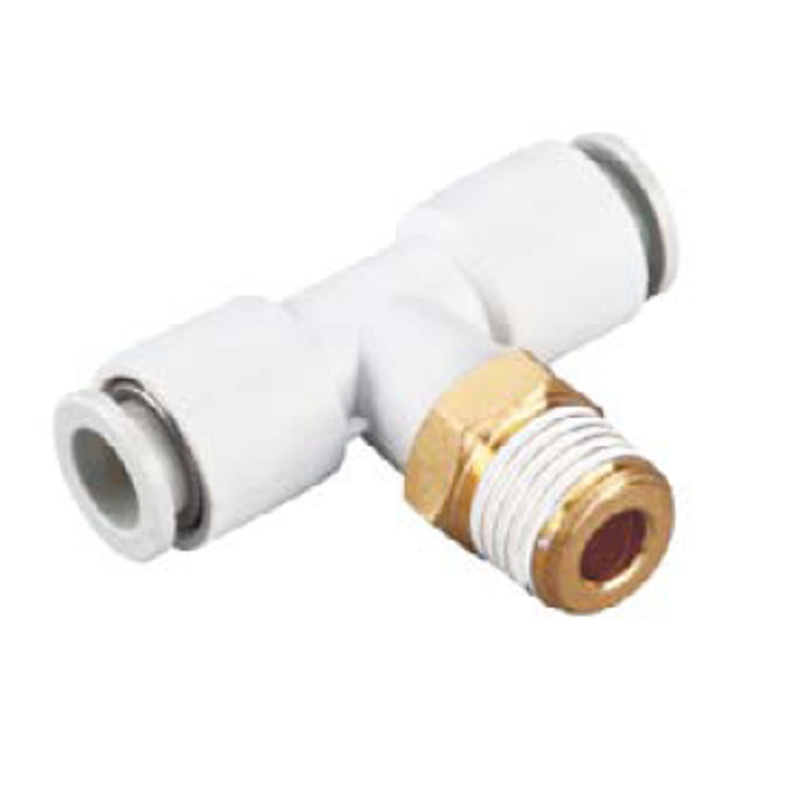

Model |
Φd |
L |
ΦD |
ΦA |
B |
R |
H (Hexagon) |
|
KQ2B4-M5 |
4 |
39 |
10.5 |
10.5 |
19.5 |
M5 |
10 |
|
KQ2B4-01 |
4 |
39 |
10.5 |
10.5 |
23 |
PT1/8 |
10 |
|
KQ2B4-02 |
4 |
39 |
10.5 |
10.5 |
25 |
PT1/4 |
14 |
|
KQ2B6-M5 |
6 |
42 |
12.8 |
12.8 |
20.5 |
M5 |
10 |
|
KQ2B6-01 |
6 |
42 |
12.8 |
12.8 |
24 |
PT1/8 |
10 |
|
KQ2B6-02 |
6 |
42 |
12.8 |
12.8 |
26 |
PT1/4 |
14 |
|
KQ2B6-03 |
6 |
42 |
12.8 |
12.8 |
28 |
PT3/8 |
17 |
|
KQ2B8-01 |
8 |
48 |
15.5 |
15.5 |
26 |
PT1/8 |
12 |
|
KQ2B8-02 |
8 |
48 |
15.5 |
15.5 |
27 |
PT1/4 |
14 |
|
KQ2B8-03 |
8 |
48 |
15.5 |
15.5 |
29.5 |
PT3/8 |
17 |
|
KQ2B10-01 |
10 |
54 |
18.5 |
18.5 |
28 |
PT1/8 |
17 |
|
KQ2B10-02 |
10 |
54 |
18.5 |
18.5 |
30 |
PT1/4 |
17 |
|
KQ2B10-03 |
1O |
54 |
18.5 |
18.5 |
31 |
PT3/8 |
17 |
|
KQ2B10-04 |
10 |
54 |
18.5 |
18.5 |
32 |
PT1/2 |
21 |
|
KQ2B12-02 |
12 |
60 |
21 |
21 |
31 |
PT1/4 |
17 |
|
KQ2B12-03 |
12 |
60 |
21 |
21 |
32 |
PT3/8 |
17 |
|
KQ2B12-04 |
12 |
60 |
21 |
21 |
33 |
PT1/2 |
21 |
|

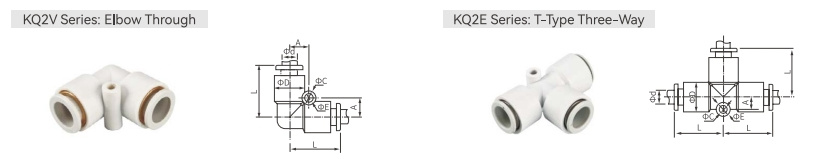

Model |
Φd |
L |
ΦD |
A |
ΦC |
ΦE |
|

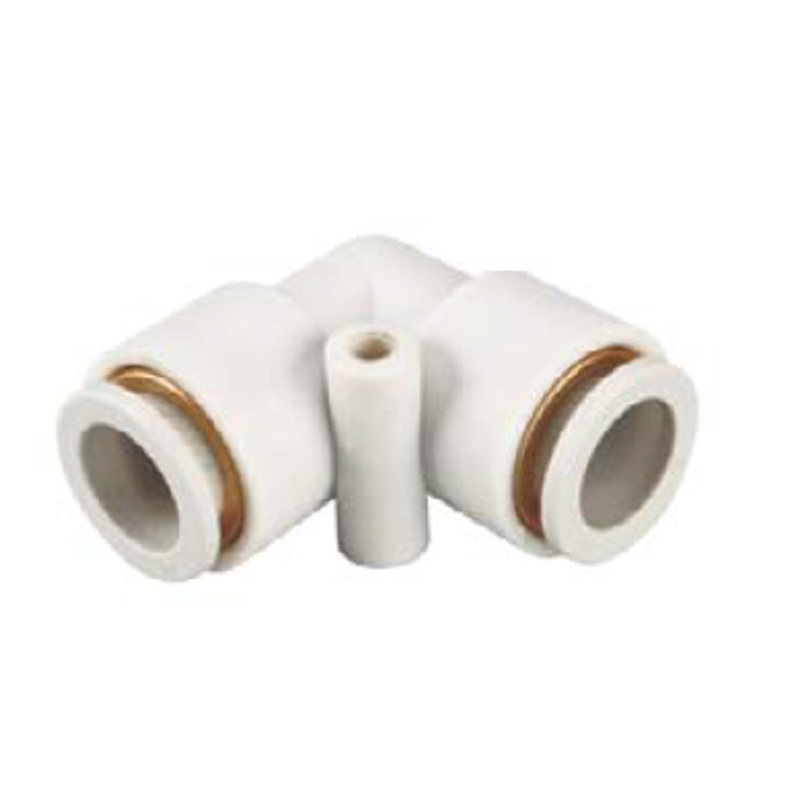

KQ2V-4 |
4 |
19.5 |
10.5 |
7.5 |
6 |
3.2 |
|
KQ2V-6 |
6 |
21 |
12.8 |
8.2 |
6 |
3.2 |
|
KQ2V-8 |
8 |
24 |
15.5 |
9.5 |
8 |
4.2 |
|
KQ2V-10 |
10 |
27 |
18.5 |
11 |
8 |
4.2 |
|
Model |
Φd |
L |
ΦD |
A |
ΦC |
ΦE |
|

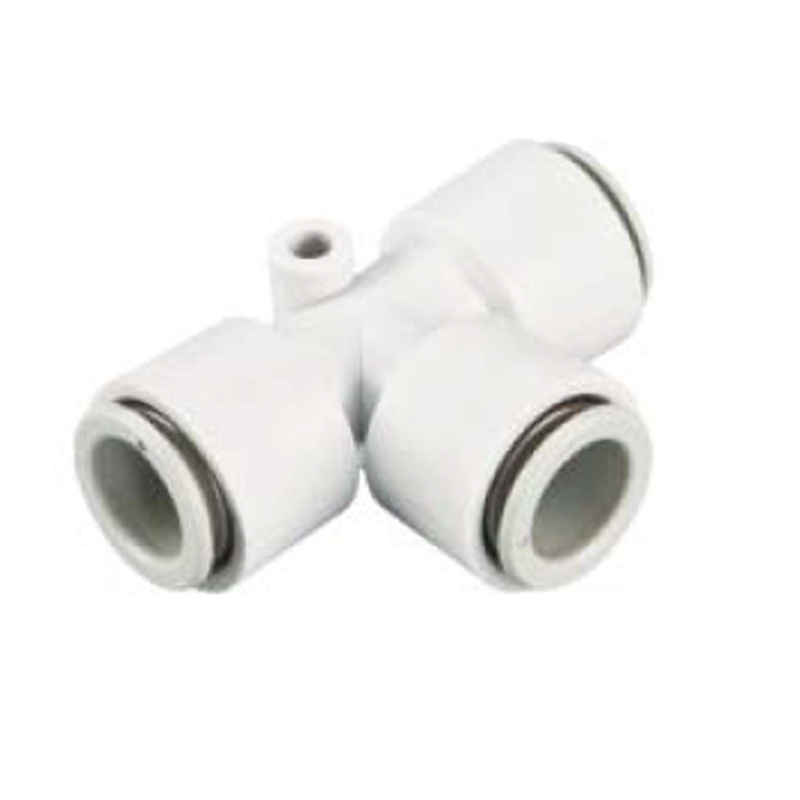

KQ2E-4 |
4 |
19.5 |
10.5 |
4 |
6 |
3.2 |
|
KQ2E-6 |
6 |
21 |
12.8 |
5.5 |
6 |
3.2 |
|
KQ2E-8 |
8 |
24 |
15.5 |
6.5 |
8 |
4.2 |
|
KQ2E-10 |
10 |
27 |
18.5 |
7.5 |
8 |
4.2 |
|
KQ2E-12 |
12 |
30 |
21 |
8.5 |
8 |
4.2 |
|

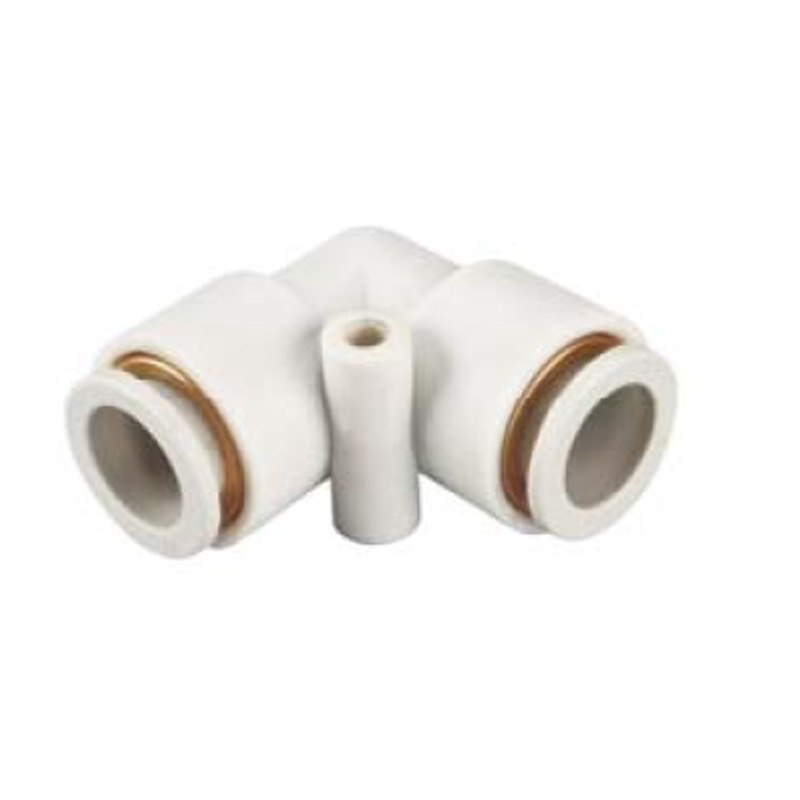

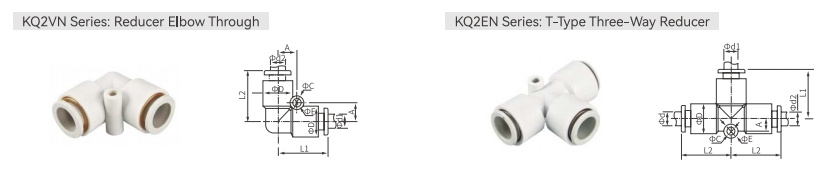

Model |
Φd1 |
Φd2 |
L1 |
L2 |
ΦD |
A |
ΦC |
ΦE |
|
KQ2VN4-6 |
6 |
4 |
21 |
21 |
12.8 |
8.2 |
6 |
3.2 |
|
KQ2VN4-8 |
8 |
4 |
24 |
24 |
15.5 |
9.5 |
6 |
4.2 |
|
KQ2VN6-8 |
8 |
6 |
24 |
24 |
15.5 |
9.5 |
6 |
4.2 |
|
KQ2VN6-10 |
10 |
6 |
27 |
27 |
18.5 |
11 |
6 |
4.2 |
|
KQ2VN8-10 |
10 |
8 |
27 |
27 |
18.5 |
11 |
6 |
4.2 |
|
KQ2VN8-12 |
12 |
08 |
30 |
29 |
21 |
12 |
6 |
4.2 |
|
KQ2VN10-12 |
12 |
10 |
30 |
29 |
21 |
12 |
6 |
4.2 |
|

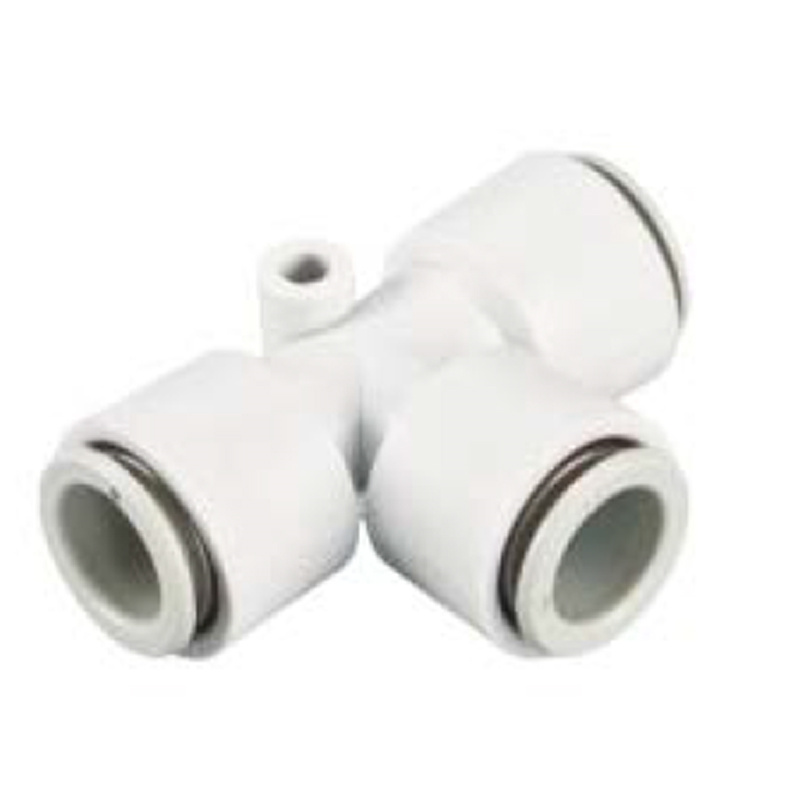

Model |
Φd1 |
Φd2 |
L1 |
L2 |
ΦD |
A |
ΦC |
ΦE |
|
KQ2EN4-6 |
6 |
4 |
21 |
21 |
12.8 |
5.5 |
6 |
3.2 |
|
KQ2EN6-8 |
8 |
6 |
24 |
24 |
15.5 |
6.5 |
8 |
4.2 |
|
KQ2EN8-10 |
10 |
8 |
27 |
27 |
18.5 |
7.5 |
8 |
4.2 |
|
KQ2EN10-12 |
12 |
10 |
30 |
29 |
21 |
8.5 |
8 |
4.2 |
|

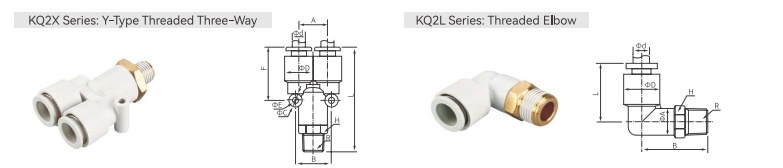

Model |
Φd |
L |
ΦD |
A |
B |
F |
ΦC |
ΦE |
R |
H (Hexagon) |
|

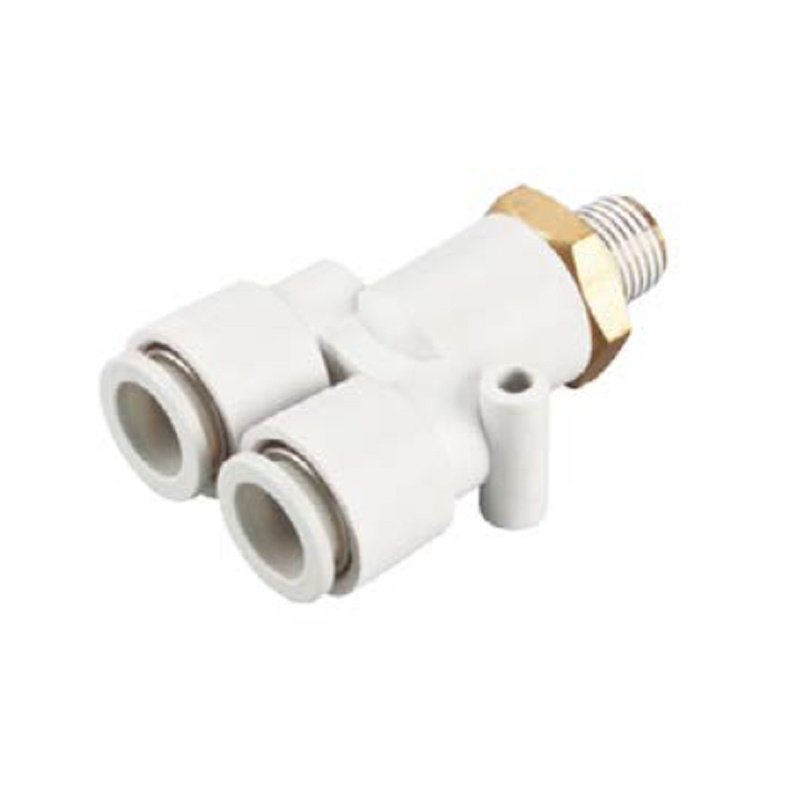

KQ2X4-M5 |
4 |
41 |
10.5 |
10.5 |
14.5 |
21.5 |
6 |
3.2 |
M5 |
12 |
|
KQ2X4-01 |
4 |
44.5 |
10.5 |
10.5 |
14.5 |
21.5 |
6 |
3.2 |
PT1/8 |
12 |
|
KQ2X4-02 |
4 |
46.5 |
10.5 |
10.5 |
14.5 |
21.5 |
6 |
3.2 |
PT1/4 |
14 |
|
KQ2X6-M5 |
6 |
44 |
12.8 |
12.8 |
16.5 |
23.5 |
6 |
3.2 |
M5 |
14 |
|
KQ2X6-01 |
6 |
47.5 |
12.8 |
12.8 |
16.5 |
23.5 |
6 |
3.2 |
PT1/8 |
14 |
|
KQ2X6-02 |
6 |
49.5 |
12.8 |
12.8 |
16.5 |
23.5 |
6 |
3.2 |
PT1/4 |
14 |
|
KQ2X6-03 |
6 |
49.5 |
12.8 |
12.8 |
16.5 |
23.5 |
6 |
3.2 |
PT3/8 |
17 |
|
KQ2X8-01 |
8 |
53 |
15.5 |
15.5 |
19.5 |
28 |
8 |
4.2 |
PT1/8 |
17 |
|
KQ2X8-02 |
8 |
55 |
15.5 |
15.5 |
19.5 |
28 |
8 |
4.2 |
PT1/4 |
17 |
|
KQ2X8-03 |
8 |
55 |
15.5 |
15.5 |
19.5 |
28 |
8 |
4.2 |
PT3/8 |
17 |
|
KQ2X10-01 |
10 |
57.5 |
18.5 |
18.5 |
24.5 |
30 |
8 |
4.2 |
PT1/8 |
19 |
|
KQ2X10-02 |
10 |
59.5 |
18.5 |
18.5 |
24.5 |
30 |
8 |
4.2 |
PT1/4 |
19 |
|
KQ2X10-03 |
10 |
59.5 |
18.5 |
18.5 |
24.5 |
30 |
8 |
4.2 |
PT3/8 |
19 |
|
KQ2X10-04 |
10 |
60.5 |
18.5 |
18.5 |
24.5 |
30 |
8 |
4.2 |
PT1/2 |
21 |
|
KQ2X12-02 |
12 |
63.5 |
21 |
21 |
29 |
34 |
8 |
4.2 |
PT1/4 |
21 |
|
KQ2X12-03 |
12 |
63.5 |
21 |
21 |
29 |
34 |
8 |
4.2 |
PT3/8 |
21 |
|
KQ2X12-04 |
12 |
64.5 |
21 |
21 |
29 |
34 |
8 |
4.2 |
PT1/2 |
21 |
|

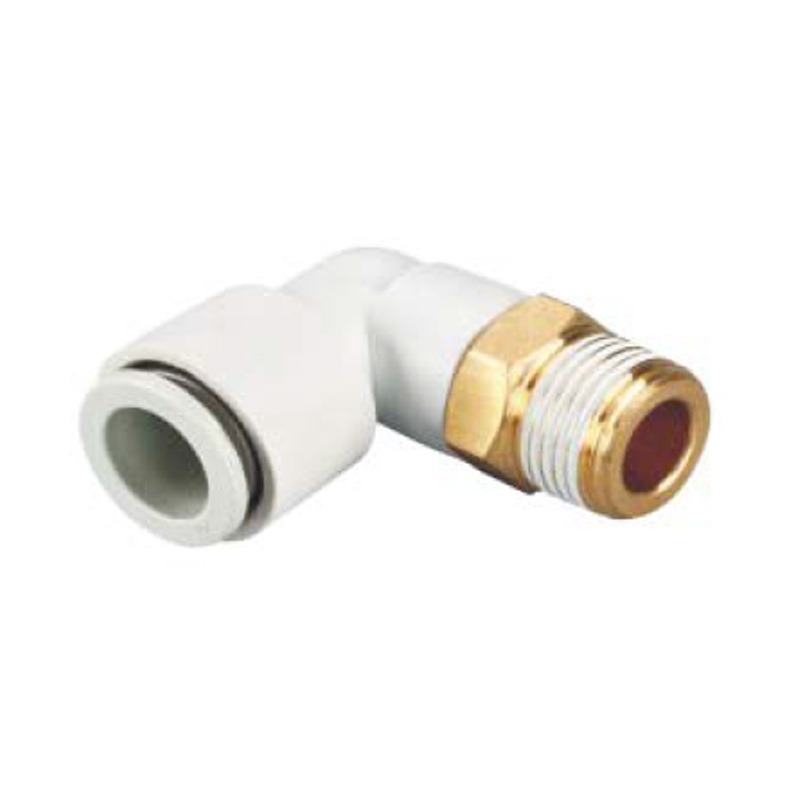

Model |
Φd |
L |
ΦD |
A |
B |
R |
H (Hexagon) |
|
KQ2L4-M5 |
4 |
19.5 |
10.5 |
10 |
19.5 |
M5 |
10 |
|
KQ2L4-01 |
4 |
19.5 |
10.5 |
10 |
23 |
PT1/8 |
10 |
|
KQ2L4-02 |
4 |
19.5 |
10.5 |
10 |
25 |
PT1/4 |
14 |
|
KQ2L6-M5 |
6 |
21 |
12.8 |
10 |
20.5 |
M5 |
10 |
|
KQ2L6-01 |
6 |
21 |
12.8 |
10 |
24 |
PT1/8 |
10 |
|
KQ2L6-02 |
6 |
21 |
12.8 |
10 |
26 |
PT1/4 |
14 |
|
KQ2L6-03 |
6 |
21 |
12.8 |
10 |
28 |
PT3/8 |
17 |
|
KQ2L8-01 |
8 |
24 |
15.5 |
12 |
26 |
PT1/8 |
12 |
|
KQ2L8-02 |
8 |
24 |
15.5 |
12 |
27 |
PT1/4 |
14 |
|
KQ2L8-03 |
8 |
24 |
15.5 |
12 |
29.5 |
PT3/8 |
17 |
|
KQ2L10-01 |
10 |
27 |
18.5 |
17 |
28 |
PT1/8 |
17 |
|
KQ2L10-02 |
10 |
27 |
18.5 |
17 |
30 |
PT1/4 |
17 |
|
KQ2L10-03 |
10 |
27 |
18.5 |
17 |
31 |
PT3/8 |
17 |
|
KQ2L10-04 |
10 |
27 |
18.5 |
17 |
32 |
PT1/2 |
21 |
|
KQ2L12-02 |
12 |
30 |
21 |
17 |
31 |
PT1/4 |
17 |
|
KQ2L12-03 |
12 |
30 |
21 |
17 |
32 |
PT3/8 |
17 |
|
KQ2L12-04 |
12 |
30 |
21 |
17 |
33 |
PT1/2 |
21 |
|
Model |
Φd |
L |
ΦD |
A |
B |
ΦC |
ΦE |
F |
|

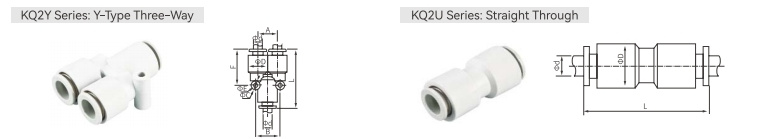

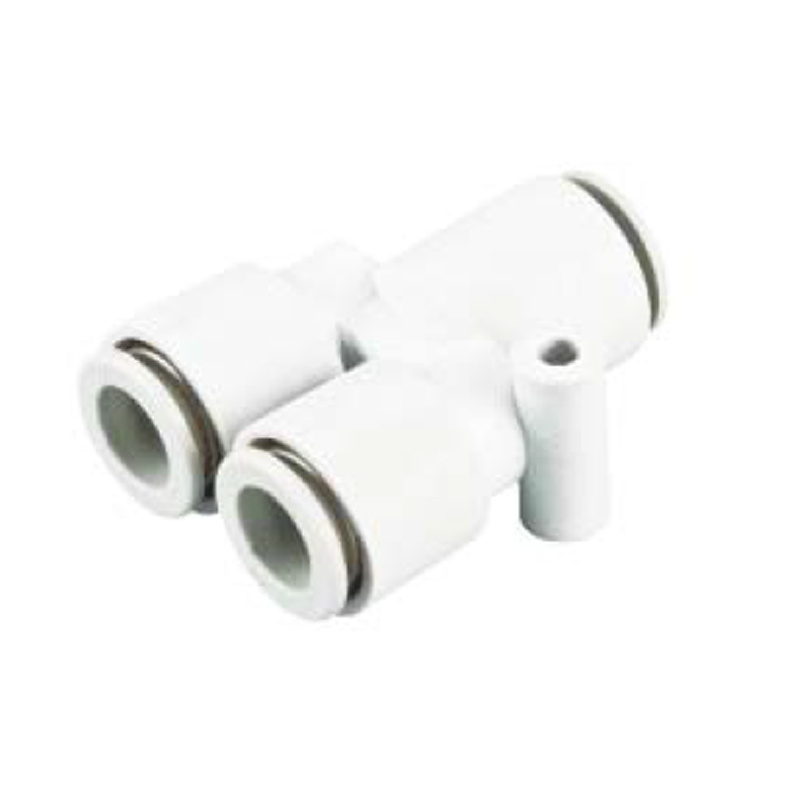

KQ2Y-4 |
4 |
35 |
10.5 |
10.5 |
14.5 |
6 |
3.2 |
21.5 |
|
KQ2Y-6 |
6 |
38 |
12.8 |
12.8 |
16.5 |
6 |
3.2 |
23.5 |
|
KQ2Y-8 |
8 |
43.5 |
15.5 |
15.5 |
19.5 |
8 |
4.2 |
28 |
|
KQ2Y-10 |
10 |
48 |
18.5 |
18.5 |
24.5 |
8 |
4.2 |
30 |
|
KQ2Y-12 |
12 |
53 |
21 |
21 |
29 |
8 |
4.2 |
34 |
|
Model |
Φd |
L |
ΦD |
|

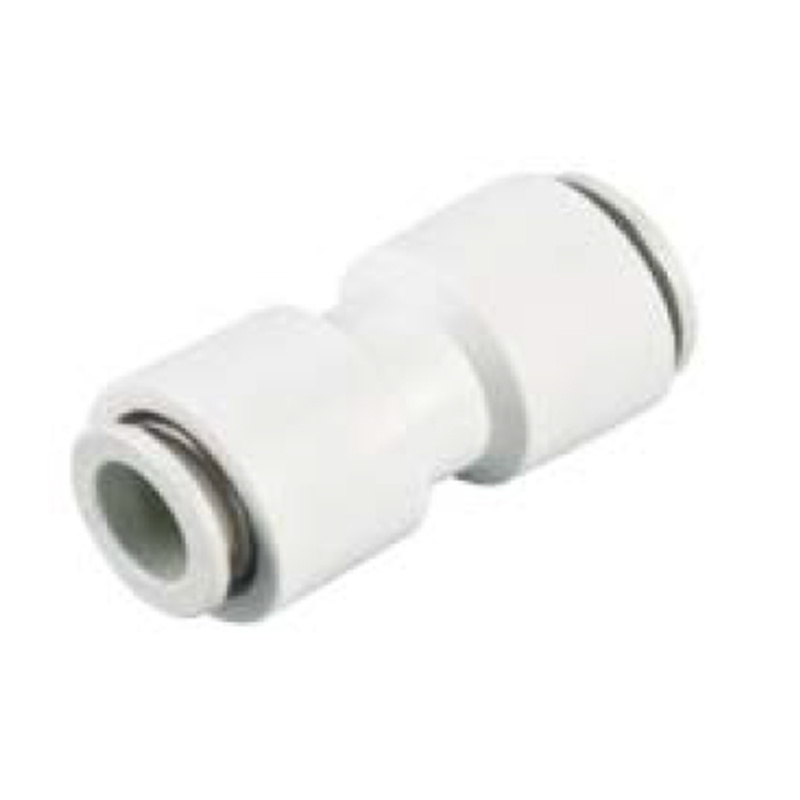

KQ2U-4 |
4 |
33.5 |
10.5 |
|
KQ2U-6 |
6 |
35 |
12.8 |
|
KQ2U-8 |
8 |
38.5 |
15.5 |
|
KQ2U-10 |
10 |
42 |
18.5 |
|
KQ2U-12 |
12 |
45 |
21 |
|

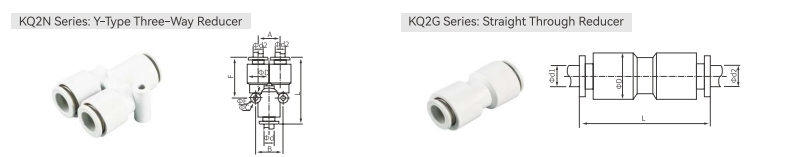

Model |
Φd1 |
Φd2 |
L |
ΦD |
A |
B |
ΦC |
ΦE |
F |
|

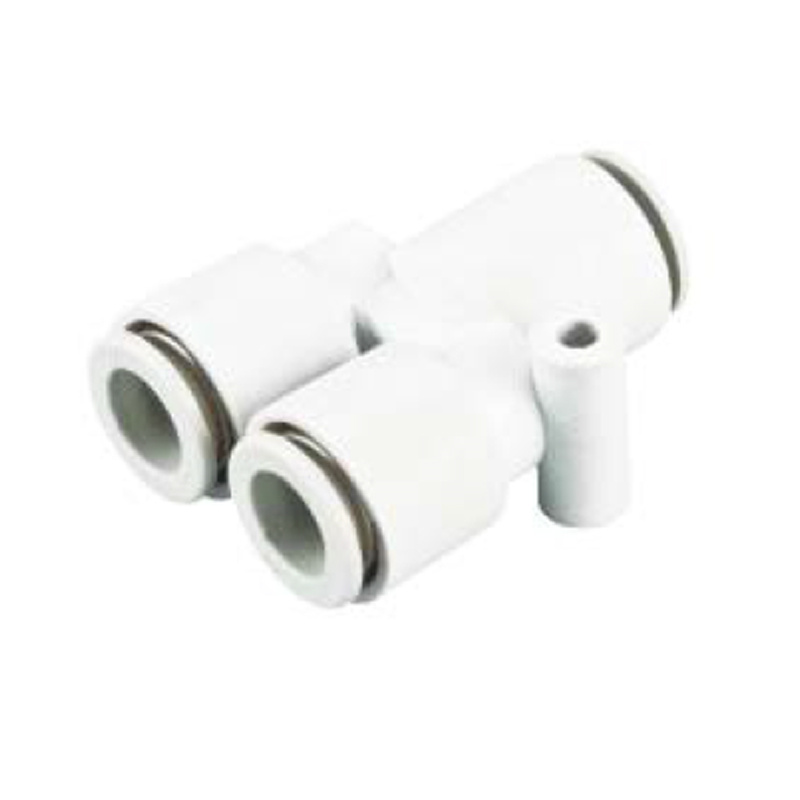

KQ2N4-6 |
6 |
4 |
38 |
12.8 |
12.8 |
16.5 |
6 |
3.2 |
23.5 |
|
KQ2N6-8 |
8 |
6 |
43.5 |
15.5 |
15.5 |
19.5 |
8 |
4.2 |
28 |
|
KQ2N8-10 |
10 |
8 |
48 |
18.5 |
18.5 |
24.5 |
8 |
4.2 |
30 |
|
KQ2N10-12 |
12 |
10 |
52 |
21 |
21 |
29 |
8 |
4.2 |
34 |
|

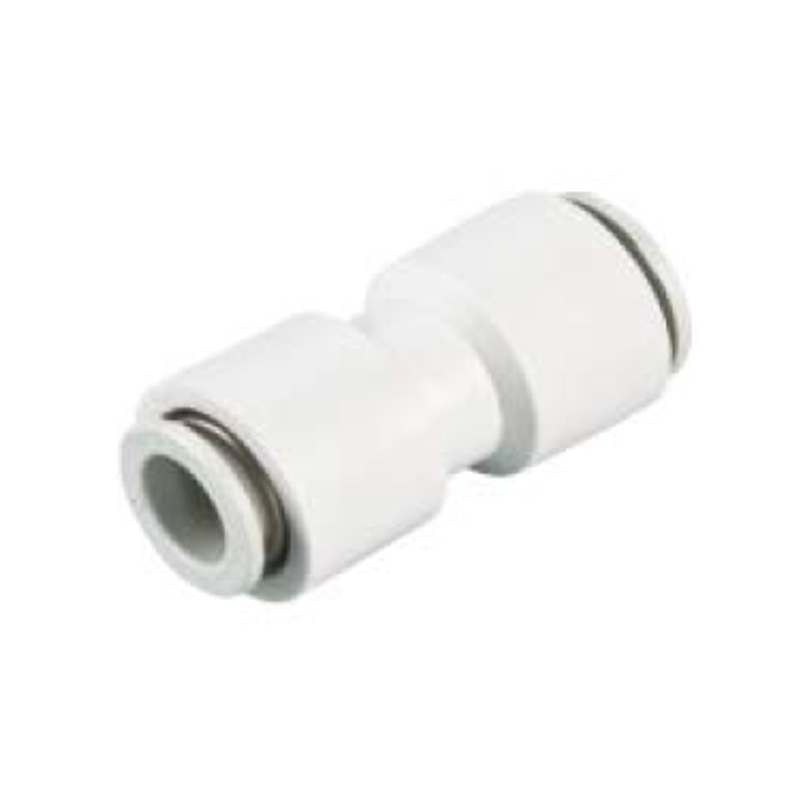

Model |
Φd1 |
Φd2 |
L |
ΦD |
|
KQ2G4-6 |
6 |
4 |
34.5 |
12.8 |
|
KQ2G6-8 |
8 |
6 |
39 |
15.5 |
|
KQ2G8-10 |
10 |
8 |
42 |
18.5 |
|
KQ2G10-12 |
12 |
10 |
45 |
21 |
|

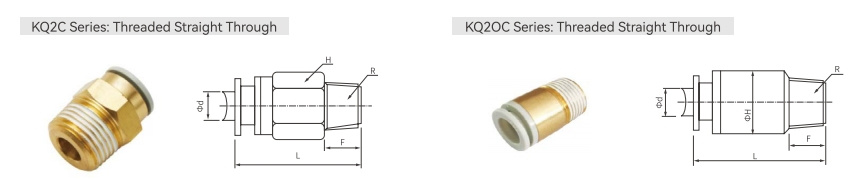

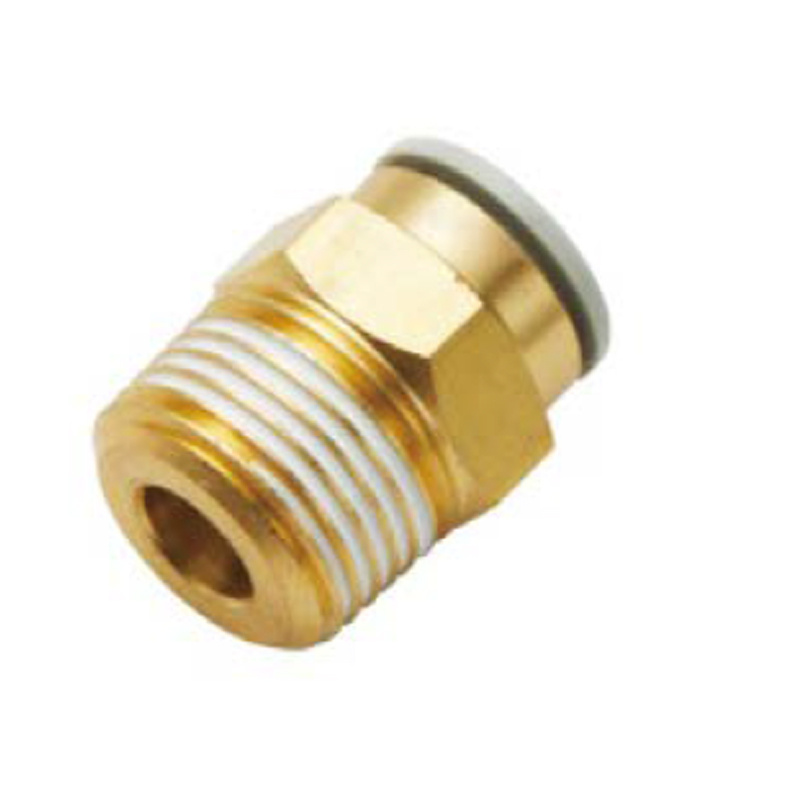

Model |
Φd |
L |
F |
R |
H (Hexagon) |
|
KQ2C4-M5 |
4 |
23.5 |
4.5 |
M5 |
10 |
|
KQ2C4-01 |
4 |
21.5 |
7 |
PT1/8 |
10 |
|
KQ2C4-02 |
4 |
215 |
9 |
PT1/4 |
14 |
|
KQ2C6-M5 |
6 |
24 |
4.5 |
M5 |
12 |
|
KQ2C6-01 |
6 |
23.5 |
7 |
PT1/8 |
12 |
|
KQ2C6-02 |
6 |
23.5 |
9 |
PT1/4 |
14 |
|
KQ2C6-03 |
6 |
23 |
10 |
PT3/8 |
17 |
|
KQ2C8-01 |
8 |
28 |
7 |
PT1/8 |
14 |
|
KQ2C8-02 |
8 |
26 |
9 |
PT1/4 |
14 |
|
KQ2C8-03 |
8 |
23 |
10 |
PT3/8 |
17 |
|
KQ2C10-01 |
10 |
31 |
7 |
PT1/8 |
17 |
|
KQ2C10-02 |
10 |
31.5 |
9 |
PT1/4 |
17 |
|
KQ2C10-03 |
10 |
29 |
10 |
PT3/8 |
17 |
|
KQ2C10-04 |
10 |
25.5 |
11 |
PT1/2 |
21 |
|
KQ2C12-02 |
12 |
34.5 |
9 |
PT1/4 |
19 |
|
KQ2C12-03 |
12 |
31.5 |
10 |
PT3/8 |
19 |
|
KQ2C12-04 |
12 |
31 |
11 |
PT1/2 |
21 |
|
Model |
Φd |
L |
F |
R |
ΦH |
|
KQ20C4-M5 |
4 |
23.5 |
4.5 |
M5 |
10 |
|
KQ20C4-01 |
4 |
21.5 |
7 |
PT1/8 |
10 |
|
KQ20C6-M5 |
6 |
24 |
4.5 |
M5 |
12 |
|
KQ20C6-01 |
6 |
23.5 |
7 |
PT1/8 |
12 |
|
KQ20C6-02 |
6 |
23.5 |
9 |
PT1/4 |
14 |
|
KQ20C8-01 |
8 |
28 |
7 |
PT1/8 |
14 |
|
KQ20C8-02 |
8 |
26 |
9 |
PT1/4 |
14 |
|
KQ20C8-03 |
8 |
23 |
10 |
PT3/8 |
17 |
|
KQ20C10-01 |
10 |
31 |
7 |
PT1/8 |
17 |
|
KQ20C10-02 |
10 |
31.5 |
9 |
PT1/4 |
17 |
|
KQ20C10-03 |
10 |
29 |
10 |
PT3/8 |
17 |
|
KQ20C10-04 |
10 |
25.5 |
11 |
PT1/2 |
21 |
|
KQ20C12-02 |
12 |
34.5 |
9 |
PT1/4 |
19 |
|
KQ20C12-03 |
12 |
31.5 |
10 |
PT3/8 |
19 |
|
KQ20C12-04 |
12 |
31 |
11 |
PT1/2 |
21 |
|

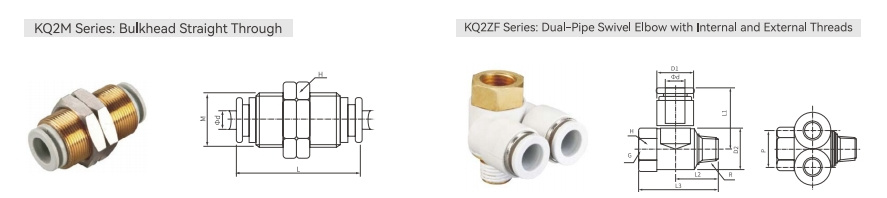

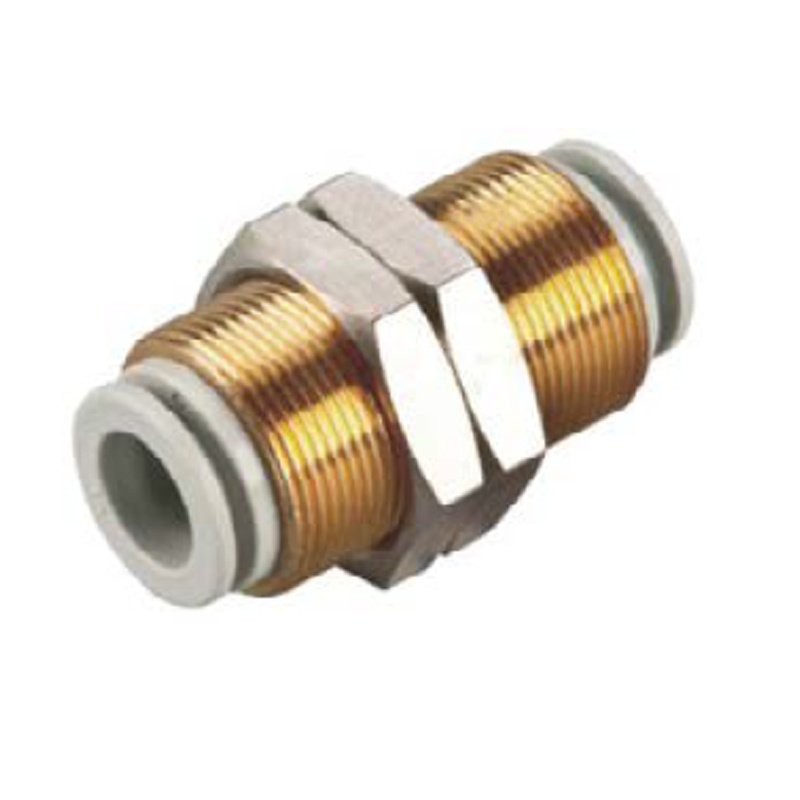

Model |
Φd |
L |
M |
H (Hexagon) |
|
KQ2M-4 |
4 |
31 |
M12X1 |
15 |
|
KQ2M-6 |
6 |
35 |
M14X1 |
17 |
|
KQ2M-8 |
8 |
38.5 |
M16X1 |
19 |
|
KQ2M-10 |
10 |
42.5 |
M20X1 |
24 |
|
KQ2M-12 |
12 |
45 |
M22X1 |
27 |
|

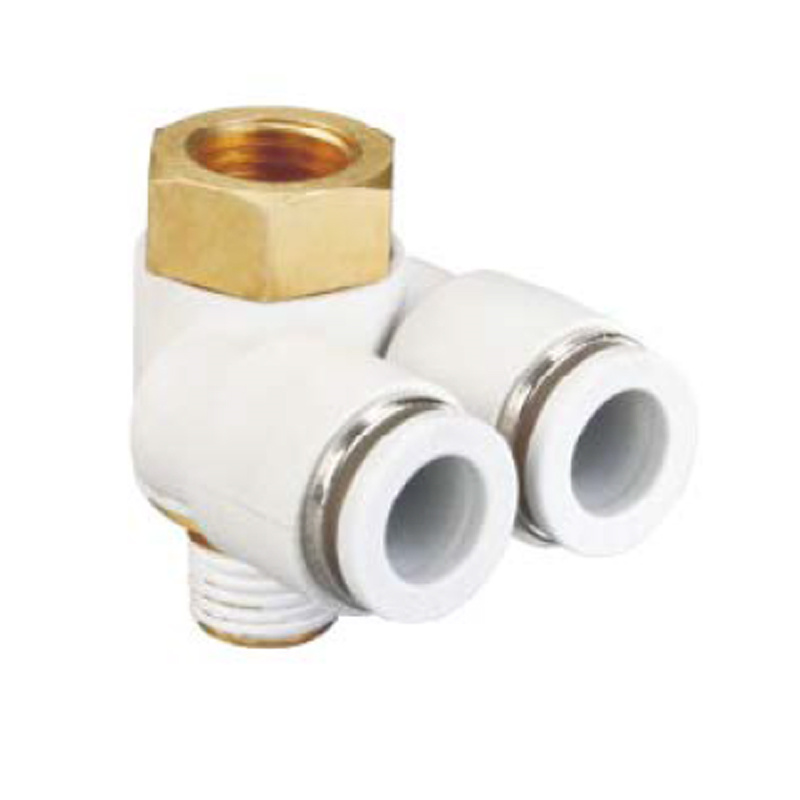

Model |
Φd |
ΦD1 |
ΦD2 |
H |
G |
R |
P |
L1 |
L2 |
L3 |
|
KQ2ZF6-01 |
06 |
13 |
13.5 |
14 |
G1/8 |
PT1/8 |
26 |
24 |
17 |
28.5 |
|
KQ2ZF6-02 |
06 |
15 |
13.5 |
19 |
G1/4 |
PT1/4 |
26 |
24 |
19 |
40.5 |
|
KQ2ZF8-01 |
08 |
15 |
17.5 |
17 |
G1/8 |
PT1/8 |
15.5 |
28 |
18 |
30 |
|
KQ2ZF8-02 |
08 |
15 |
17.5 |
19 |
G1/4 |
PT1/4 |
15.5 |
28 |
20 |
40.5 |
|
KQ2ZF10-02 |
10 |
18.5 |
21 |
19 |
G1/4 |
PT1/4 |
19 |
31 |
22 |
40.5 |
|
KQ2ZF10-03 |
10 |
18.5 |
21 |
22 |
G3/8 |
PT3/8 |
19 |
31 |
22 |
40.5 |
|
KQ2ZF12-03 |
12 |
21 |
24 |
22 |
G3/8 |
PT3/8 |
21.5 |
34 |
23 |
44 |
|
KQ2ZF12-04 |
12 |
21 |
24 |
24 |
G1/2 |
PT1/2 |
21.5 |
34 |
24 |
49 |
|

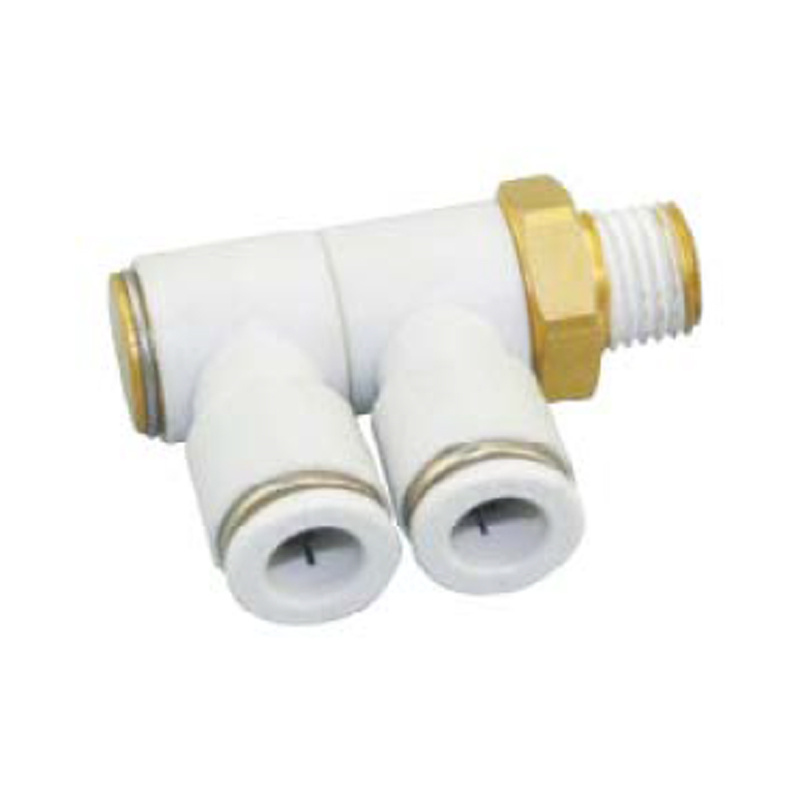

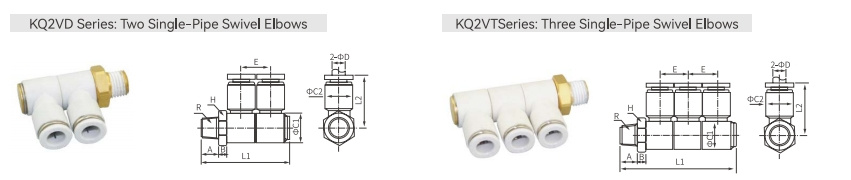

Model |
ΦD |
A |
B |
C1 |
C2 |
R |
H |
E |
L1 |
L2 |
|
KQ2VD6-01 |
6 |
8 |
3.8 |
13.5 |
13 |
PT1/8 |
14 |
13.5 |
41 |
25 |
|
KQ2VD6-02 |
6 |
10 |
3.8 |
13.5 |
13 |
PT1/4 |
14 |
13.5 |
43 |
25 |
|
KQ2VD6-03 |
6 |
10 |
3.8 |
13.5 |
13 |
PT3/8 |
17 |
13.5 |
43 |
25 |
|
KQ2VD6-04 |
6 |
12 |
3.8 |
13.5 |
13 |
PT1/2 |
21 |
13.5 |
44 |
25 |
|
KQ2VD8-01 |
8 |
8 |
5.8 |
17.5 |
15 |
PT1/8 |
19 |
16 |
48 |
30.5 |
|
KQ2VD8-02 |
8 |
10 |
5.8 |
17.5 |
15 |
PT1/4 |
19 |
16 |
50 |
30.5 |
|
KQ2VD8-03 |
8 |
10 |
5.8 |
17.5 |
15 |
PT3/8 |
19 |
16 |
50 |
30.5 |
|
KQ2VD8-04 |
8 |
12 |
5.8 |
17.5 |
15 |
PT1/2 |
21 |
16 |
52 |
30.5 |
|
KQ2VD10-01 |
10 |
8 |
4.1 |
21 |
18.5 |
PT1/8 |
21 |
19.5 |
54.5 |
33 |
|
KQ2VD10-02 |
10 |
10 |
4.1 |
21 |
18.5 |
PT1/4 |
21 |
19.5 |
56.5 |
33 |
|
KQ2VD10-03 |
10 |
10 |
4.1 |
21 |
18.5 |
PT3/8 |
21 |
19.5 |
56.5 |
33 |
|
KQ2VD10-04 |
10 |
12 |
4.1 |
21 |
18.5 |
PT1/2 |
21 |
19.5 |
58.5 |
33 |
|
KQ2VD12-01 |
12 |
8 |
4.1 |
24 |
21 |
PT1/8 |
24 |
22 |
59.5 |
35.5 |
|
KQ2VD12-02 |
12 |
10 |
4.1 |
24 |
21 |
PT1/4 |
24 |
22 |
61.5 |
35.5 |
|
KQ2VD12-03 |
12 |
10 |
4.1 |
24 |
21 |
PT3/8 |
24 |
22 |
61.5 |
35.5 |
|
KQ2VD12-04 |
12 |
12 |
4.1 |
24 |
21 |
PT1/2 |
24 |
22 |
63.5 |
35.5 |
|

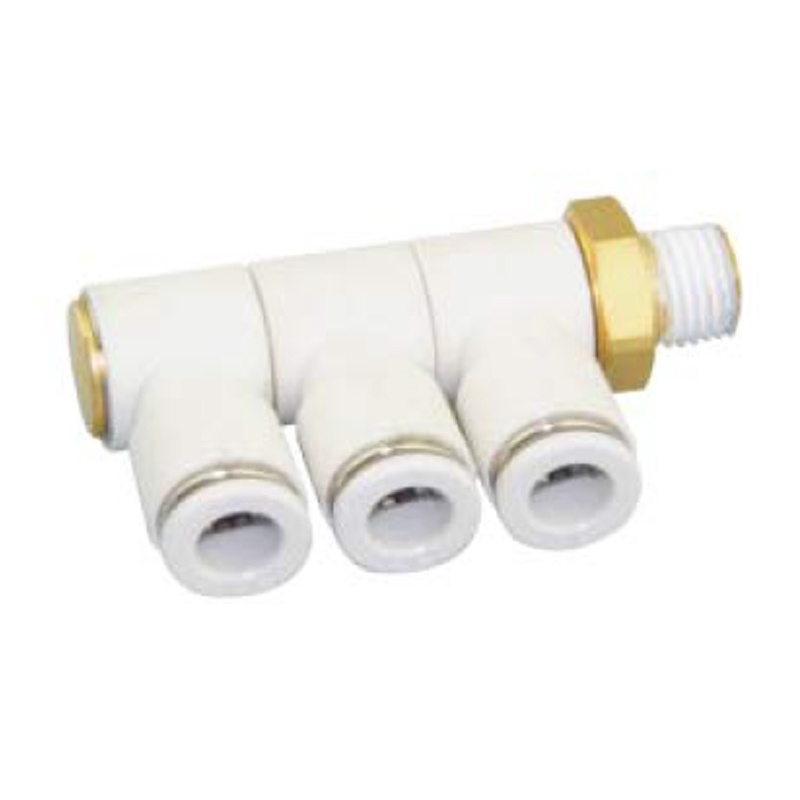

Model |
ΦD |
A |
B |
C1 |
C2 |
R |
H |
E |
L1 |
L2 |
|
KQ2VT6-01 |
6 |
8 |
3.8 |
13.5 |
13 |
PT1/8 |
14 |
13.5 |
54.5 |
25 |
|
KQ2VT6-02 |
6 |
10 |
3.8 |
13.5 |
13 |
PT1/4 |
14 |
13.5 |
56.5 |
25 |
|
KQ2VT6-03 |
6 |
10 |
3.8 |
13.5 |
13 |
PT3/8 |
17 |
13.5 |
56.5 |
25 |
|
KQ2VT6-04 |
6 |
12 |
3.8 |
13.5 |
13 |
PT1/2 |
21 |
13.5 |
56.5 |
25 |
|
KQ2VT8-01 |
8 |
8 |
5.8 |
17.5 |
15 |
PT1/8 |
19 |
16 |
64 |
30.5 |
|
KQ2VT8-02 |
8 |
10 |
5.8 |
17.5 |
15 |
PT1/4 |
19 |
16 |
66 |
30.5 |
|
KQ2VT8-03 |
8 |
10 |
5.8 |
17.5 |
15 |
PT3/8 |
19 |
16 |
66 |
30.5 |
|
KQ2VT8-04 |
8 |
12 |
5.8 |
17.5 |
15 |
PT1/2 |
21 |
16 |
67.8 |
30.5 |
|
KQ2VT10-01 |
10 |
8 |
4.1 |
21 |
18.5 |
PT1/8 |
21 |
19.5 |
74 |
33 |
|
KQ2VT10-02 |
10 |
10 |
4.1 |
21 |
18.5 |
PT1/4 |
21 |
19.5 |
76 |
33 |
|
KQ2VT10-03 |
10 |
10 |
4.1 |
21 |
18.5 |
PT3/8 |
21 |
19.5 |
76 |
33 |
|
KQ2VT10-04 |
10 |
12 |
4.1 |
21 |
18.5 |
PT1/2 |
21 |
19.5 |
78 |
33 |
|
KQ2VT12-01 |
12 |
8 |
4.1 |
24 |
21 |
PT1/8 |
24 |
22 |
81.5 |
35.5 |
|
KQ2VT12-02 |
12 |
10 |
4.1 |
24 |
21 |
PT1/4 |
24 |
22 |
83.5 |
35.5 |
|
KQ2VT12-03 |
12 |
10 |
4.1 |
24 |
21 |
PT3/8 |
24 |
22 |
83.5 |
35.5 |
|
KQ2VT12-04 |
12 |
12 |
4.1 |
24 |
21 |
PT1/2 |
24 |
22 |
83.5 |
35.5 |
|

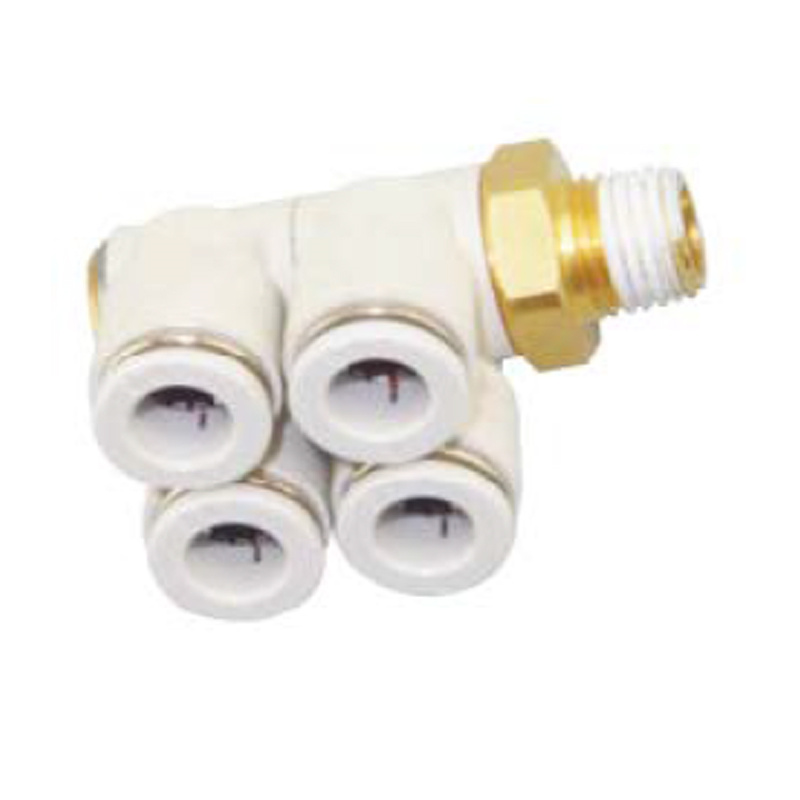

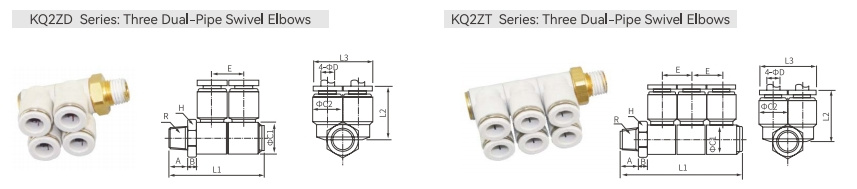

Model |
ΦD |
A |
B |
C1 |
C2 |
R |
H |
E |
L1 |
L2 |
L3 |
|
KQ2ZD6-01 |
6 |
8 |
3.8 |
13.5 |
13 |
PT1/8 |
14 |
13.5 |
41 |
23.5 |
26 |
|
KQ2ZD6-02 |
6 |
10 |
3.8 |
13.5 |
13 |
PT1/4 |
14 |
13.5 |
43 |
23.5 |
26 |
|
KQ2ZD6-03 |
6 |
10 |
3.8 |
13.5 |
13 |
PT3/8 |
17 |
13.5 |
43 |
23.5 |
26 |
|
KQ2ZD6-04 |
6 |
12 |
3.8 |
13.5 |
13 |
PT1/2 |
21 |
13.5 |
44 |
23.5 |
26 |
|
KQ2ZD8-01 |
8 |
8 |
5.8 |
17.5 |
15 |
PT1/8 |
19 |
16 |
48 |
28 |
30.5 |
|
KQ2ZD8-02 |
8 |
10 |
5.8 |
17.5 |
15 |
PT1/4 |
19 |
16 |
50 |
28 |
30.5 |
|
KQ2ZD8-03 |
8 |
10 |
5.8 |
17.5 |
15 |
PT3/8 |
19 |
16 |
50 |
28 |
30.5 |
|
KQ2ZD8-04 |
8 |
12 |
5.8 |
17.5 |
15 |
PT1/2 |
21 |
16 |
52 |
28 |
30.5 |
|
KQ2ZD10-01 |
10 |
8 |
4.1 |
21 |
18.5 |
PT1/8 |
21 |
19.5 |
54.5 |
31 |
37.5 |
|
KQ2ZD10-02 |
10 |
10 |
4.1 |
21 |
18.5 |
PT1/4 |
21 |
19.5 |
56.5 |
31 |
37.5 |
|
KQ2ZD10-03 |
10 |
10 |
4.1 |
21 |
18.5 |
PT3/8 |
21 |
19.5 |
56.5 |
31 |
37.5 |
|
KQ2ZD10-04 |
10 |
12 |
4.1 |
21 |
18.5 |
PT1/2 |
21 |
19.5 |
58.5 |
31 |
37.5 |
|
KQ2ZD12-01 |
12 |
8 |
4.1 |
24 |
21 |
PT1/8 |
24 |
22 |
59.5 |
33.5 |
43 |
|
KQ2ZD12-02 |
12 |
10 |
4.1 |
24 |
21 |
PT1/4 |
24 |
22 |
61.5 |
33.5 |
43 |
|
KQ2ZD12-03 |
12 |
10 |
4.1 |
24 |
21 |
PT3/8 |
24 |
22 |
61.5 |
33.5 |
43 |
|
KQ2ZD12-04 |
12 |
12 |
4.1 |
24 |
21 |
PT1/2 |
24 |
22 |
63.5 |
33.5 |
43 |
|
Model |
ΦD |
A |
B |
C1 |
C2 |
R |
H |
E |
L1 |
L2 |
L3 |
|

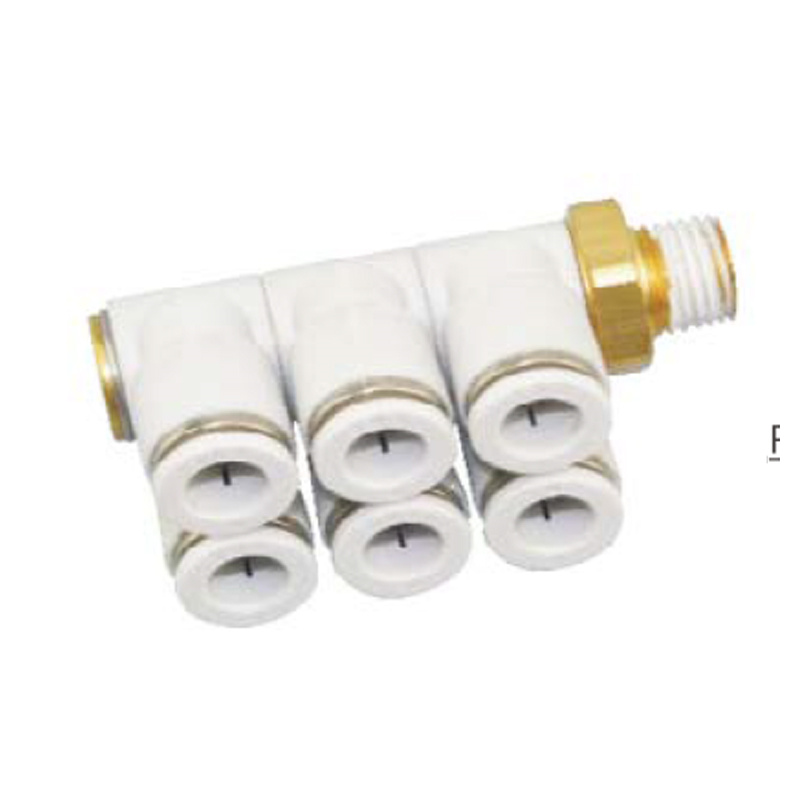

KQ2ZT6-01 |
6 |
8 |
3.8 |
13.5 |
13 |
PT1/8 |
14 |
13.5 |
64.5 |
23.5 |
26 |
|
KQ2ZT6-02 |
6 |
10 |
3.8 |
13.5 |
13 |
PT1/4 |
14 |
13.5 |
56.5 |
23.5 |
26 |
|
KQ2ZT6-03 |
6 |
10 |
3.8 |
13.5 |
13 |
PT3/8 |
17 |
13.5 |
56.5 |
23.5 |
26 |
|
KQ2ZT6-04 |
6 |
12 |
3.8 |
13.5 |
13 |
PT1/2 |
21 |
13.5 |
57.5 |
23.5 |
26 |
|
KQ2ZT8-01 |
8 |
8 |
5.8 |
17.5 |
15 |
PT1/8 |
19 |
16 |
64 |
28 |
30.5 |
|
KQ2ZT8-02 |
8 |
10 |
5.8 |
17.5 |
15 |
PT1/4 |
19 |
16 |
66 |
28 |
30.5 |
|
KQ2ZT8-03 |
8 |
10 |
5.8 |
17.5 |
15 |
PT3/8 |
19 |
16 |
68 |
28 |
30.5 |
|
KQ2ZT8-04 |
8 |
12 |
5.8 |
17.5 |
15 |
PT1/2 |
21 |
16 |
68 |
28 |
30.5 |
|
KQ2ZT10-01 |
10 |
8 |
4.1 |
21 |
18.5 |
PT1/8 |
21 |
19.5 |
74 |
31 |
37.5 |
|
KQ2ZT10-02 |
10 |
10 |
4.1 |
21 |
18.5 |
PT1/4 |
21 |
19.5 |
76 |
31 |
37.5 |
|
KQ2ZT10-03 |
10 |
10 |
4.1 |
21 |
18.5 |
PT3/8 |
21 |
19.5 |
76 |
31 |
37.5 |
|
KQ2ZT10-04 |
10 |
12 |
4.1 |
21 |
18.5 |
PT1/2 |
21 |
19.5 |
78 |
31 |
37.5 |
|
KQ2ZT12-01 |
12 |
8 |
4.1 |
24 |
21 |
PT1/8 |
24 |
22 |
81.5 |
33.5 |
42.5 |
|
KQ2ZT12-02 |
12 |
10 |
4.1 |
24 |
21 |
PT1/4 |
24 |
22 |
83.5 |
33.5 |
42.5 |
|
KQ2ZT12-03 |
12 |
10 |
4.1 |
24 |
21 |
PT3/8 |
24 |
22 |
83.5 |
33.5 |
42.5 |
|
KQ2ZT12-04 |
12 |
12 |
4.1 |
24 |
21 |
PT1/2 |
24 |
22 |
83.5 |
33.5 |
42.5 |
