01

Pneumatic Piston Rod End Connection Accessory

Pneumatic Piston Rod End Connection Accessory plays a vital role in the functionality and efficiency of pneumatic systems, among which Pneumatic Piston Rod End Connection Accessory-I Joint, Pneumatic Piston Rod End Connection Accessory-Y Joint, Pneumatic Piston Rod End Connection Accessory-Floating Joint and Pneumatic Piston Rod End Connection Accessory-Fisheye Conrector stand out due to their unique characteristics and applications. I-type joints are known for their simple design, which enables direct linear motion and is ideal for applications that require precise movement along a single axis. Its rugged construction ensures durability and reliability, which is crucial in harsh environments.

Y-joints provide greater flexibility by enabling multiple angle connections, especially when space is limited or components require multi-directional operation. This adaptability makes them the first choice for complex machinery that frequently changes direction, resulting in smoother operation and less wear on components.

Floating joints introduce a degree of freedom that is very beneficial in dynamic applications. The design allows a certain amount of movement between connected components, helping to absorb shock and vibration, thereby protecting sensitive equipment from damage. This feature is particularly useful in environments where the load is not static, and can enhance the overall stability and life of the system.

Fisheye connectors are known for their spherical design, which provides a wide range of motion and is particularly suitable for applications that require complex motion patterns because it allows greater rotational freedom and adaptability to different operating conditions. The ability of fisheye connectors to accommodate complex motion trajectories makes them an indispensable component in advanced pneumatic systems.

Pneumatic Piston Rod End Connection Accessory enhances the versatility and efficiency of pneumatic systems, enabling them to meet a variety of industrial needs, ensuring optimal performance and reliability. Each connector has a specific purpose, and engineers and designers can choose the most appropriate solution based on their application needs.

    Contact us
    product details

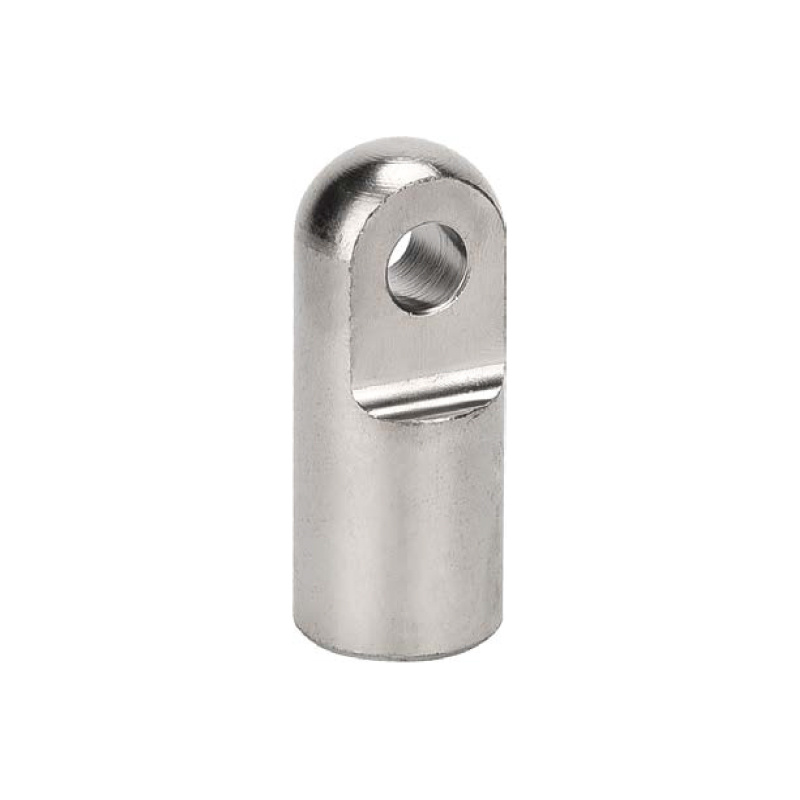

    Pneumatic Piston Rod End Connection Accessory-I Joint

    Pneumatic-Piston-Rod-End-Connection-Accessory-I-Joint

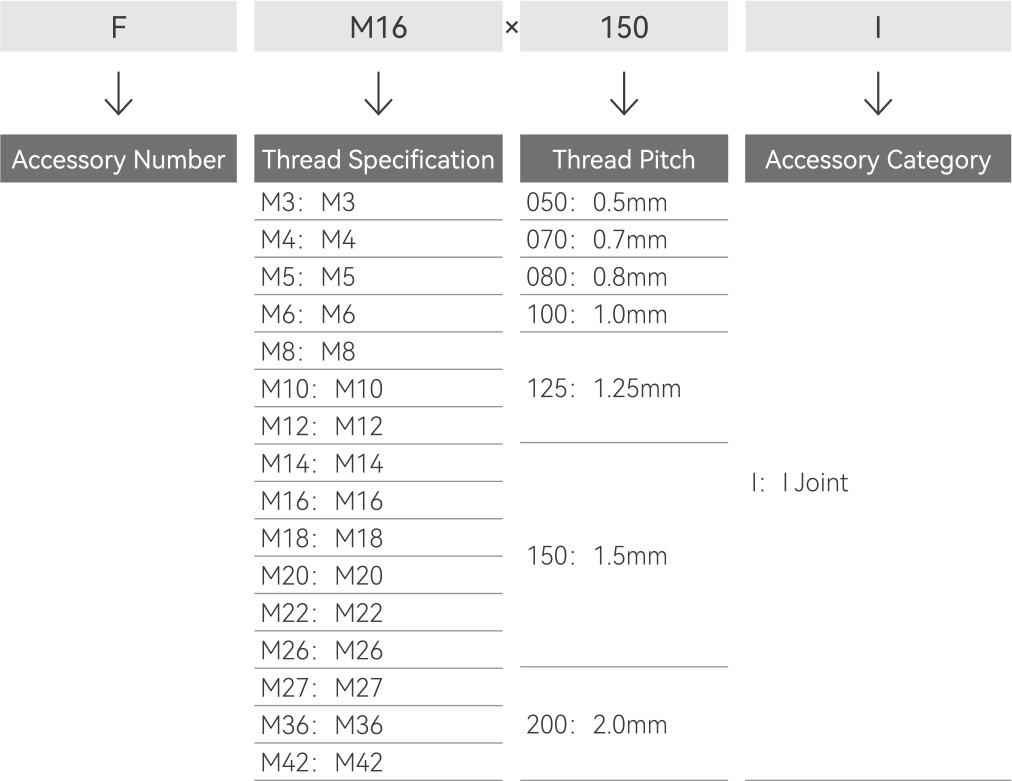

    Finished Product Order Code

    Finished-Product-Order-Code

    I Joint and Cylinder Matching Table

    Cylinder Series SE SAI
    Accessory Name 32 40 50 63 80 100 125 32 40 50 63 80 100 125 160 200
    F-M10x125I ●             ●
    F-M12x125I   ●             ●
    F-M16x150I     ● ●           ● ●
    F-M20x150I         ● ●           ● ●
    F-M27x200I             ●             ●
    F-M36x200I                             ● ●
    Cylinder Series MI MPG
    Accessory Name 8 10 12 16 20 25 32 40 6 8 10 12 16
    F-M3x050I                 ●
    F-M4x070I ● ●               ● ●
    F-M5x080I                       ● ●
    F-M6x100I     ● ●
    F-M8x125I         ●
    F-M10x125I           ● ●
    F-M12x125I               ●
    Cylinder Series SA/SAC SC/SAU SC JSI
    Accessory Name 125 160 200 250 32 40 50 63 80 100 125 160 200 250 32 40 50 63 80 100 125
    F-M10x125I         ●                   ●
    F-M12x125I           ●
    F-M14x150I                               ●
    F-M16x150I             ● ●
    F-M18x150I                                 ● ●
    F-M20x150I                 ● ●
    F-M22x150I                                     ●
    F-M26x150I                                       ●
    F-M27x200I ●                   ●                   ●
    F-M36x200I   ● ●                 ● ●
    F-M42x200I       ●                   ●

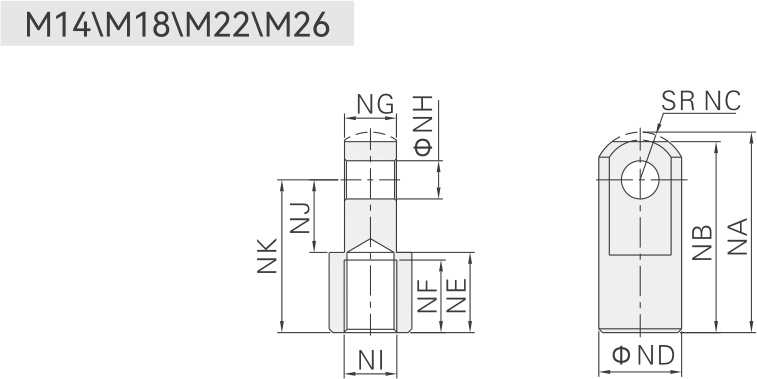

    I-Joint-and-Cylinder-Matching-Table
    Model\Symbol NA NB NC ND NE NF NG NH NJ NK NI
    F-M14x150I 52.5 50 12.5 22 21 19 13.8 10 19 40 M14x1.5
    F-M18x150I 66.5 64 16.5 28 27 24 19.8 14 24 50 M18×1.5
    F-M22x150I 83.5 80 23.5 40 29 34 29.8 22 34 60 M22×1.5
    F-M26x150I 83.5 80 23.5 40 29 34 29.8 22 34 60 M26×1.5

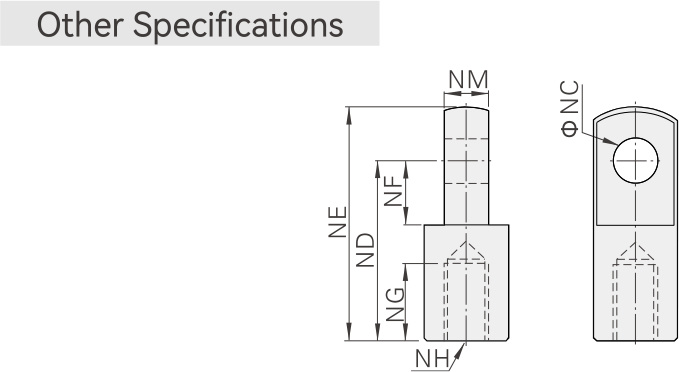

    I-Joint-and-Cylinder-Matching-Table-2
    Model\Symbol NC ND NE NF NG NH NM
    F-M3x050I 3 12 15.5 5 5 M3×0.5 3
    F-M4x070I 4 16 21 6.8 8 M4×0.7 4
    F-M5x080I 5 25 32 14.1 7.5 M5×0.8 6.3
    F-M6x100I 6 21 28 8.5 8 M6×1.0 6
    F-M8x125I 8 30 40 11 15 M8×1.25 8
    F-M10x125I 10 40 50 15 20 M10×1.25 10
    F-M12x125I 12 48 62 24 20 M12×1.25 12
    F-M16×150I 16 64 82 32 23 M16×1.5 16
    F-M20x150I 20 80 102 40 30 M20×1.5 20
    F-M27x200I 30 110 139 51 45 M27×2.0 30
    F-M36x200I 35 144 181 65 55 M36×2.0 35
    F-M42x200I 40 168 211 85 62 M42×2.0 40

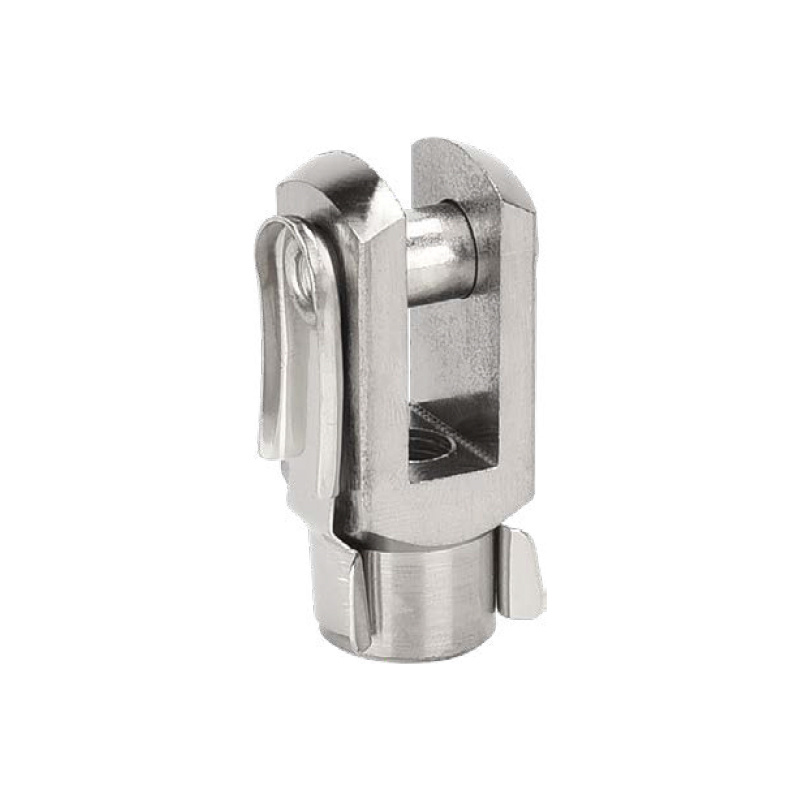

    Pneumatic Piston Rod End Connection Accessory-Y Joint

    Pneumatic-Piston-Rod-End-Connection-Accessory-Y-Joint

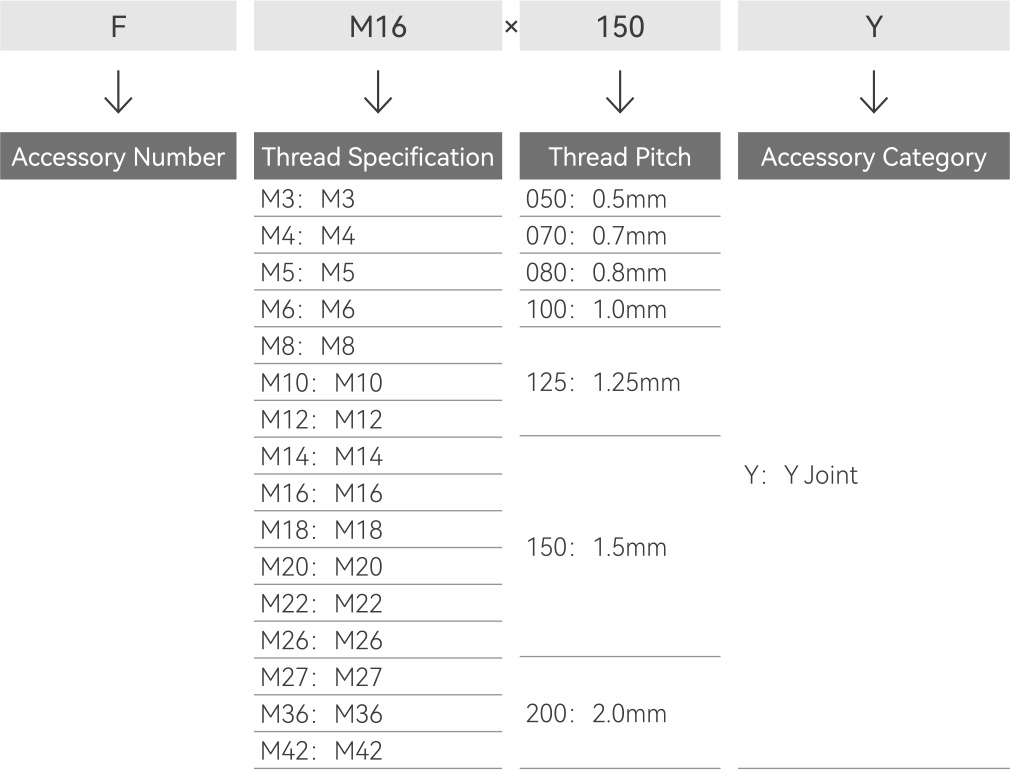

    Finished Product Order Code

    Finished-Product-Order-Code-2

    Y Joint and Cylinder Matching Table

    Cylinder Series SE SAI
    Accessory Name 32 40 50 63 80 100 125 32 40 50 63 80 100 125 160 200
    F-M10x125Y ●             ●
    F-M12x125Y   ●             ●
    F-M16x150Y     ● ●           ● ●
    F-M20x150Y         ● ●           ● ●
    F-M27x200Y             ●             ●
    F-M36x200Y                             ● ●
    Cylinder Series MI MPG
    Accessory Name 8 10 12 16 20 25 32 40 6 8 10 12 16
    F-M3x050Y                 ●
    F-M4x070Y ● ●               ● ●
    F-M5x080Y                       ● ●
    F-M6x100Y     ● ●
    F-M8x125Y         ●
    F-M10x125Y           ● ●
    F-M12x125Y               ●
    Cylinder Series SG/SGC SC/SAU SC JSI
    Accessory Name 125 160 200 250 32 40 50 63 80 100 125 160 200 250 32 40 50 63 80 100 125
    F-M10x125Y         ●                   ●
    F-M12x125Y           ●
    F-M14x150Y                               ●
    F-M16x150Y             ● ●
    F-M18x150Y                                 ● ●
    F-M20x150Y                 ● ●
    F-M22x150Y                                     ●
    F-M26x150Y                                       ●
    F-M27x200Y ●                   ●                   ●
    F-M36x200Y   ● ●                 ● ●
    F-M42x200Y       ●                   ●

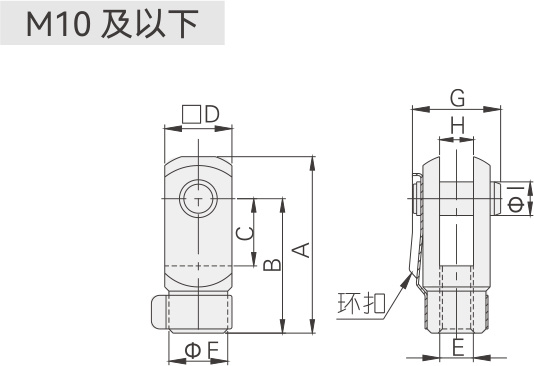

    Y-Joint-and-Cylinder-Matching-Table
    Model\Symbol A B C D F
    F-M3x050Y 15.5 12 5 6 6
    F-M4x070Y 22 16 8 8 7
    F-M5x080Y 28 21 10.2 12 10
    F-M6x100Y 32 24 12 12 10
    F-M8x125Y 42 32 16 16 14
    F-M10x125Y 52 40 20 19 18
    Model\Symbol E G H I
    F-M3x050Y M3×0.5 9 3 3
    F-M4x070Y M4×0.7 11.5 4 4
    F-M5x080Y M5×0.8 15.5 6.5 5
    F-M6x100Y M6×1.0 16 6 6
    F-M8x125Y M8×1.25 21 8 8
    F-M10x125Y M10×1.25 25 10 10

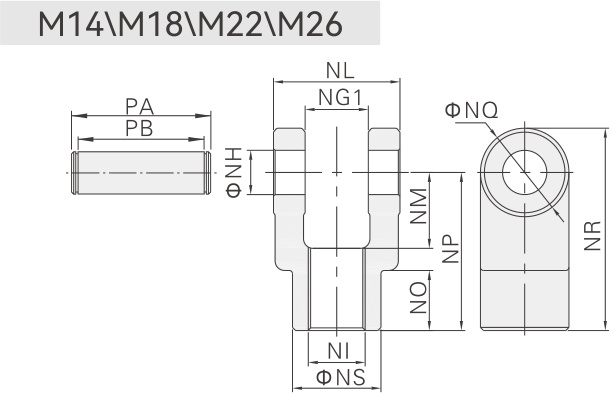

    Y-Joint-and-Cylinder-Matching-Table-2
    Model\Symbol NG1 NH NI NL NM
    F-M14x150Y 14.2 10 M14x1.5 27.8 19
    F-M18x150Y 20.5 14 M18×1.5 39.8 24
    F-M22x150Y 30.2 22 M22x1.5 59.8 34
    F-M26x150Y 30.2 22 M26×1.5 59.8 34
    Model\Symbol NO NP NQ NR NS PA PB
    F-M14x150Y 17 40 22 51 22 34.6 28.8
    F-M18x150Y 19 50 28 64 28 47 40.8
    F-M22x150Y 20 65 40 85 40 69.2 60.8
    F-M26x150Y 20 65 40 85 40 69.2 60.8

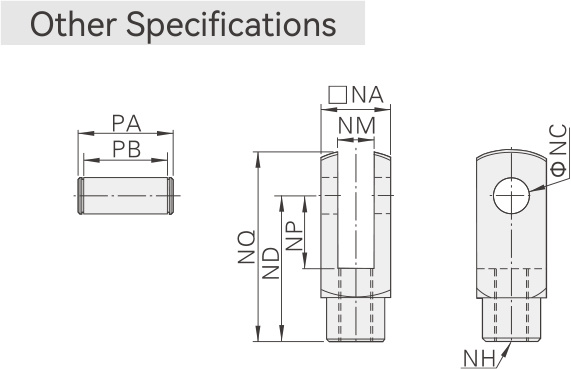

    Y-Joint-and-Cylinder-Matching-Table-3
    Model\Symbol NA NC ND NP NQ
    F-M12x125Y 25.4 12 48 24 62
    F-M16x150Y 32 16 64 32 80
    F-M20x150Y 44.4 20 80 40 101
    F-M27x200Y 54 30 110 55 139
    F-M36×200Y 70 35 144 73 179
    F-M42x200Y 85 40 168 86 211
    Model\Symbol NM NH PA PB
    F-M12x125Y 12 M12×1.25 32.4 26.2
    F-M16x150Y 16 M16×1.5 39 32.8
    F-M20x150Y 20 M20×1.5 53.4 45.2
    F-M27x200Y 30 M27x2.0 64.2 54.8
    F-M36×200Y 35 M36×2.0 80.2 70.8
    F-M42x200Y 40.3 M42x2.0 115 93

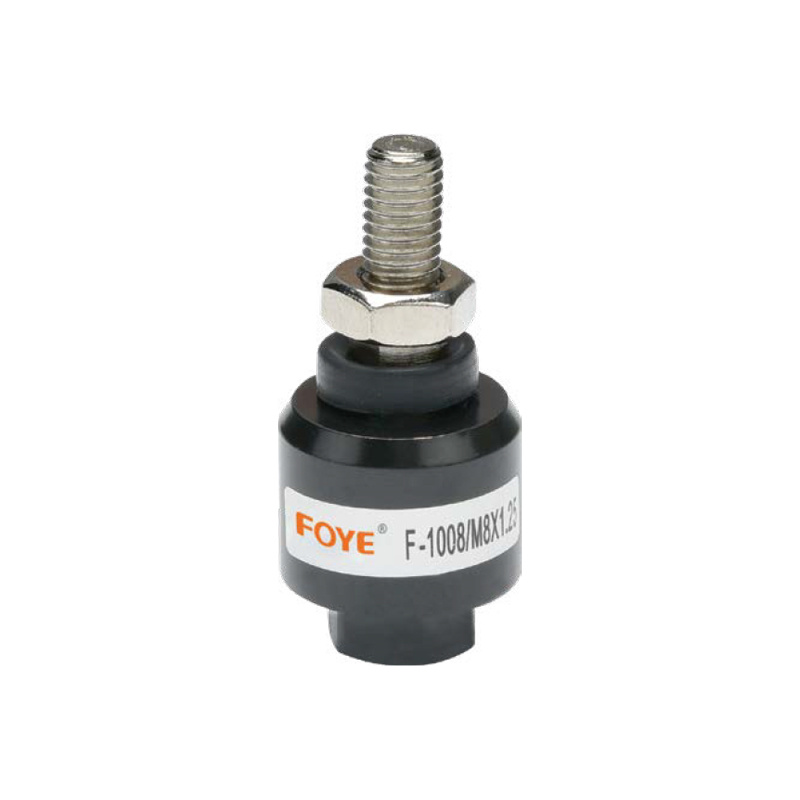

    Pneumatic Piston Rod End Connection Accessory-Floating Joint

    Pneumatic-Piston-Rod-End-Connection-Accessory-Floating-Joint

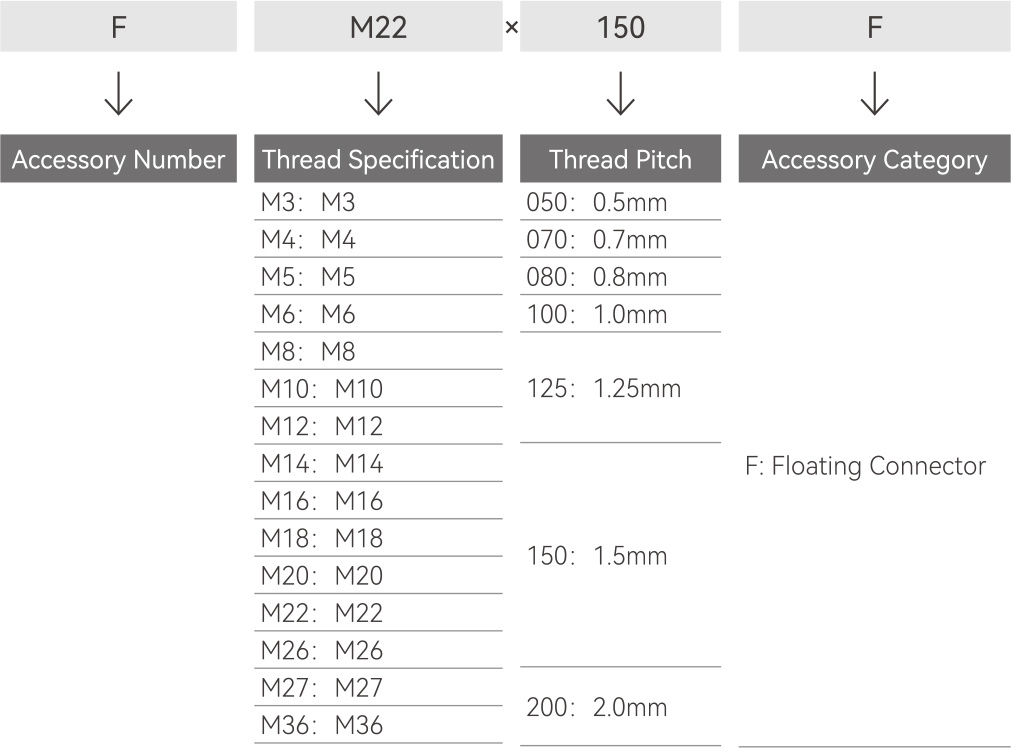

    Finished Product Order Code

    Finished-Product-Order-Code-3

    Floating Joint and Cylinder Matching Table

    Cylinder Series PB MI MA MF MB
    Accessory Name 4 6 10 12 16 8 10 12 16 20 25 32 40 16 20 25 32 40 50 63 20 25 32 40 20 25 32 40 50 63
    F-M3x050F   ●
    F-M4x070F     ●     ● ●
    F-M5x080F       ● ●
    F-M6x100F               ● ●         ●
    F-M8x125F                   ●         ●           ●       ●
    F-M10x125F                     ● ●       ● ●         ● ●     ● ●
    F-M12x125F                         ●         ●                   ●
    F-M14x150F                                     ● ●       ●         ● ●
    Cylinder Series ACQ
    Accessory Name 12 16 20 25 32 40 50 63 80 100
    F-M8x125F     ●
    F-M10x125F       ●
    F-M12x125F
    F-M14x150F         ● ●
    F-M16x150F
    F-M18x150F             ● ●
    F-M20x150F
    F-M22x150F                 ●
    F-M26x150F                   ●
    Cylinder Series SG/SGC SE SAI SAI/SC SC/SAU JSI
    Accessory Name 125 160 200 250 32 40 50 63 80 100 125 32 40 50 63 80 100 125 160 200 32 40 50 63 80 100 32 40 50 63 80 100 125
    F-M10x125F         ●             ●                 ●           ●
    F-M12x125F           ●             ●                 ●
    F-M14x150F                                                       ●
    F-M16x150F             ● ●           ● ●               ● ●
    F-M18x150F                                                         ● ●
    F-M20x150F                 ● ●           ● ●               ● ●
    F-M22x150F                                                             ●
    F-M26x150F                                                               ●
    F-M27x200F ●                   ●             ●                             ●
    F-M36x200F   ● ●                               ● ●

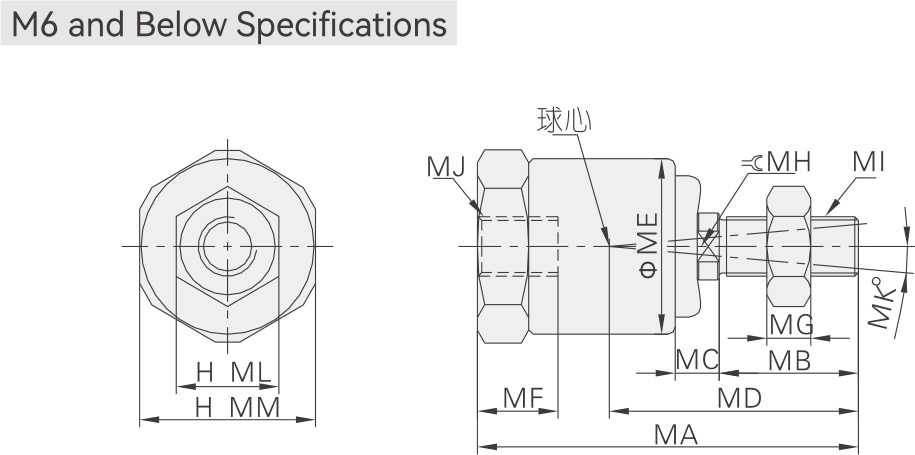

    Floating-Joint-and-Cylinder-Matching-Table
    Model\Symbol MA MB MC ME MF MG MH MI/MJ ML MM Angle Compensation Radial Compensation
    F-M3x050F 23.5 3 15 12.8 5.5 2.4 4 M3x0.5 5.5 13 ±5° 0.5
    F-M4x070F 26 3 17 12.8 6 3 4 M4×0.7 7 13 ±5° 0.5
    F-M5x080F 34.5 3.5 22.8 13.8 8 4 6 M5x0.8 8 14 ±5° 0.5
    F-M6x100F 34.5 3.5 22.8 13.8 8 4 6 M6×1.0 10 14 ±5° 0.5

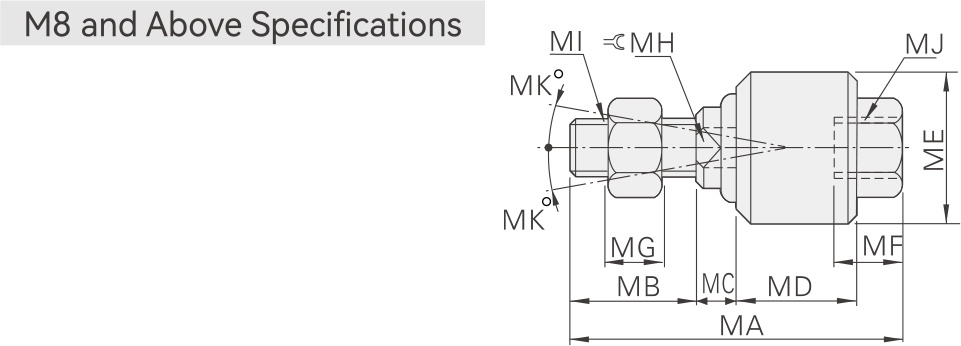

    Floating-Joint-and-Cylinder-Matching-Table-2
    Model\Symbol MA MB MC MD ME MF MG MH MI/MJ MK
    F-M8x125F 51 20 6 17 24 10.5 6 8 M8×1.25 13
    F-M10x125F 58 22 7 21 26 11 6 10 M10×1.25 12
    F-M12x125F 58 22 8 21 28 11.5 7 12 M12×1.25 12
    F-M14x150F 70 22.5 8.5 28 34.5 16 8 15 M14x1.5 12
    F-M16x150F 90 27 10 41 44.5 19 8 17 M16×1.5 7
    F-M18x150F 92 27 10 41 44.5 21 11 18 M18x1.5 7
    F-M20x150F 102 29 13 46 53 22 10 22 M20×1.5 10
    F-M22x150F 108 32 13 46 53 25 13 22 M22x1.5 5
    F-M26x150F 120 32 14.5 52.5 59.5 25 13 27 M26×1.5 5
    F-M27x200F 136.5 40 14.5 52.5 59.5 40 13.5 27 M27x2.0 5
    F-M36x200F 194.5 60 20.5 77.5 84 54 18 36 M36×2.0 5

    Pneumatic Piston Rod End Connection Accessory-Fisheye Conrector

    Pneumatic-Piston-Rod-End-Connection-Accessory-Fisheye-Conrector

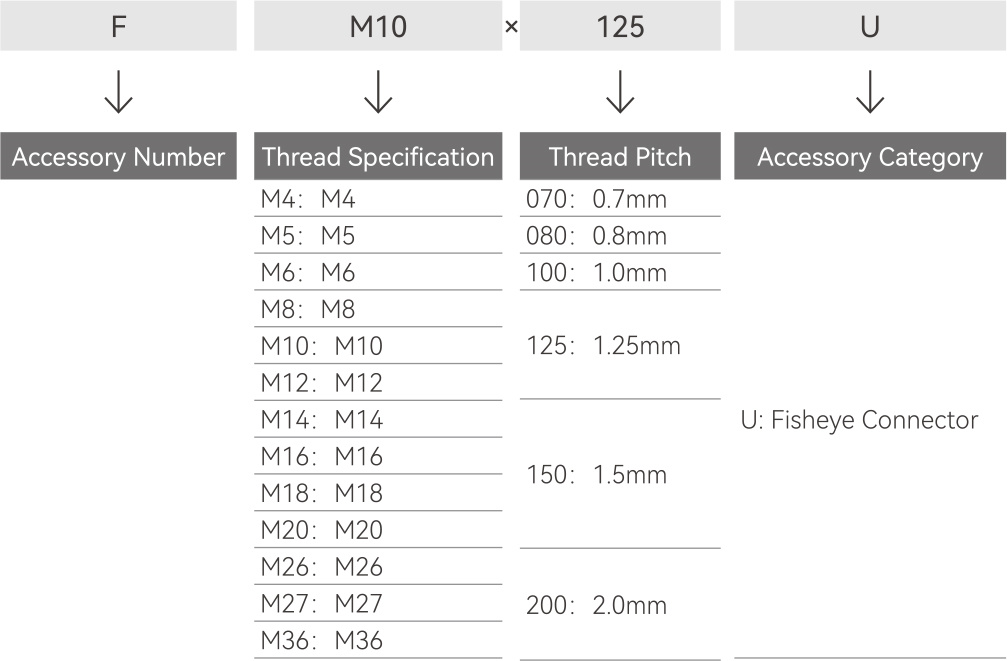

    Finished Product Order Code

    Finished-Product-Order-Code-4

    Fisheye Connector and Cylinder Matching Table

    Cylinder Series SE SAI SAI/SC
    Accessory Name 32 40 50 63 80 100 125 32 40 50 63 80 100 125 160 200
    F-M10x125U ●             ●
    F-M12x125U   ●             ●
    F-M16x150U     ● ●           ● ●
    F-M20x150U         ● ●           ● ●
    F-M27x200U             ●             ●
    F-M36x200U                             ● ●
    Cylinder Series ACQ
    Accessory Name 12 16 20 25 32 40 50 63 80 100
    F-M5x080U ●
    F-M6x100U   ●
    F-M8x125U     ●
    F-M10x125U       ●
    F-M14x150U         ● ●
    F-M18x150U             ● ●
    F-M26x150U                   ●
    Cylinder Series PB MI
    Accessory Name 4 6 10 12 16 8 10 12 16 20 25 32 40
    F-M4x070U     ●     ● ●
    F-M5x080U       ● ●
    F-M6x100U               ● ●
    F-M8x125U                   ●
    F-M10x125U                     ● ●
    F-M12x125U                         ●
    F-M36x200U
    Cylinder Series SG/SGC SC/SAU JSI
    Accessory Name 125 160 200 250 32 40 50 63 80 100 32 40 50 63 80 100 125
    F-M10x125U         ●           ●
    F-M12x125U           ●
    F-M14x150U                       ●
    F-M16x150U             ● ●
    F-M18x150U                         ● ●
    F-M20x150U                 ● ●
    F-M26x150U                               ●
    F-M27x200U ●                               ●
    F-M36x200U   ● ●
    Cylinder Series MA MF MBL
    Accessory Name 16 20 25 32 40 50 63 20 25 32 40 20 25 32 40 50 63
    F-M6x100U ●
    F-M8x125U   ●           ●       ●
    F-M10x125U     ● ●         ● ●     ● ●
    F-M12x125U         ●                   ●
    F-M14x150U           ● ●       ●         ● ●
    F-M36x200U

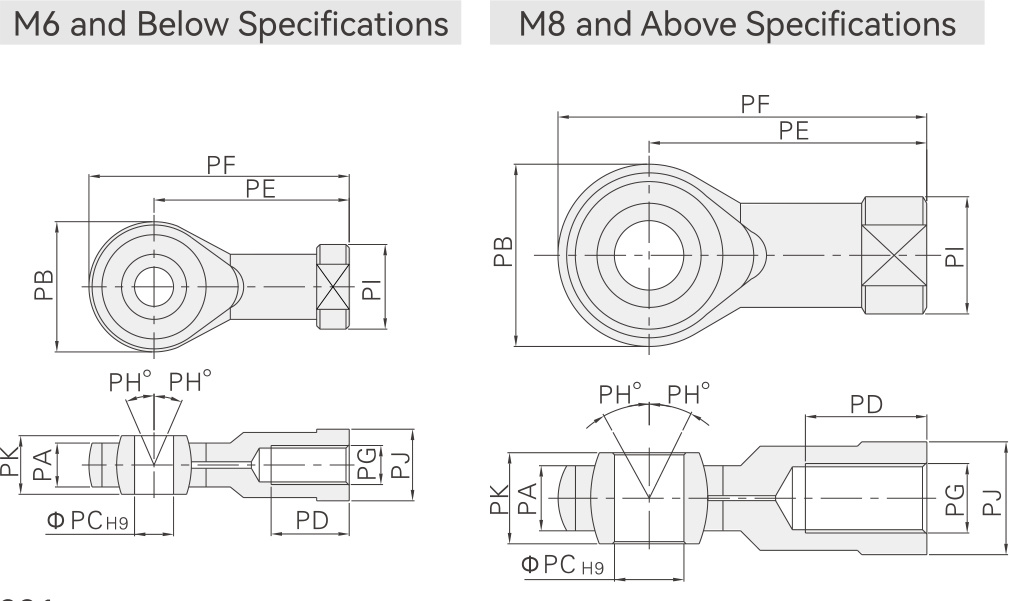

    Fisheye-Connector-and-Cylinder-Matching-Table
    Model\Symbol PA PB PC PD PE PF PG PH PI PJ PK
    F-M4x070U 6 18 5 10 27 36 M4x0.7 13 12.5 10 8
    F-M5x080U 6 18 5 10 27 36 M5x0.8 13 12.5 10 8
    F-M6x100U 3.8 20 6 12 30 40 M6x1.0 13 13 11 9
    F-M8x125U 9 24 8 16 36 48 M8×1.25 13 16 14 12
    F-M10x125U 11 26 10 20 43 56 M10×1.25 13 19 17 14
    F-M12x125U 12 32 12 22 50 66 M12×1.25 13 22 19 16
    F-M14x150U 14 36 14 28 57 75 M14x1.5 13 25 22 19
    F-M16x150U 15 40 16 28 64 84 M16×1.5 15 27 22 21
    F-M18x150U 16.5 46 18 30 71 94 M18×1.5 15 31 27 23
    F-M20x150U 18 46 20 33 77 100 M20×1.5 15 34 30 25
    F-M26x150U 22 60 25 48 94 124 M26×1.5 15 42 36 31
    F-M27x200U 25 70 30 51 110 145 M27x2.0 15 50 41 37
    F-M36x200U 27.5 80 35 56 125 165 M36×2.0 15 57.5 50 43
