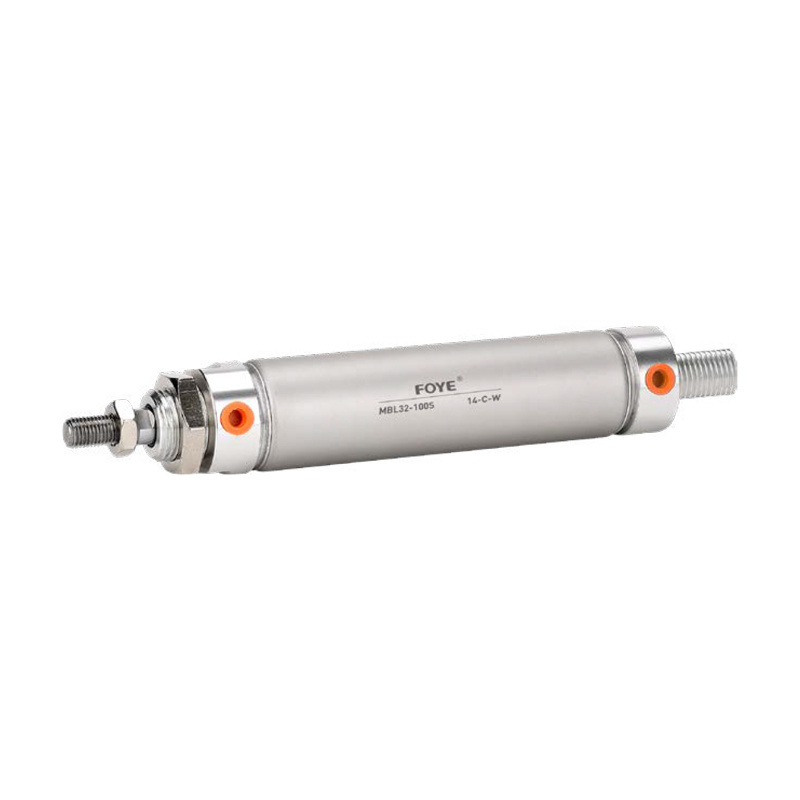

FPB Series Pen-Type Cylinder

·Implementing JIS standards.
·It belongs to a mini-type small cylinder, with a compact structure, small size, and light weight.
·The piston rod guide has high precision, and the guide bearing does not need to add lubricating oi.
·FPB4, FPB6 can only be installed on the front cover, FPB10, FPB12, FPB16 can be installed on the front and rear covers.
·Stainless steel piston rod and cylinder body make the cylinder adapt to the general corrosive working environment.
·A variety of cylinder specifications and cylinder installation accessories are available for customers to choose.
·The cylinder diameter is small, and the reaction is fast, for high-frequency working environment.

product details

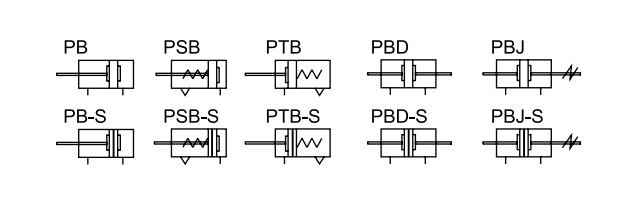

Symbols

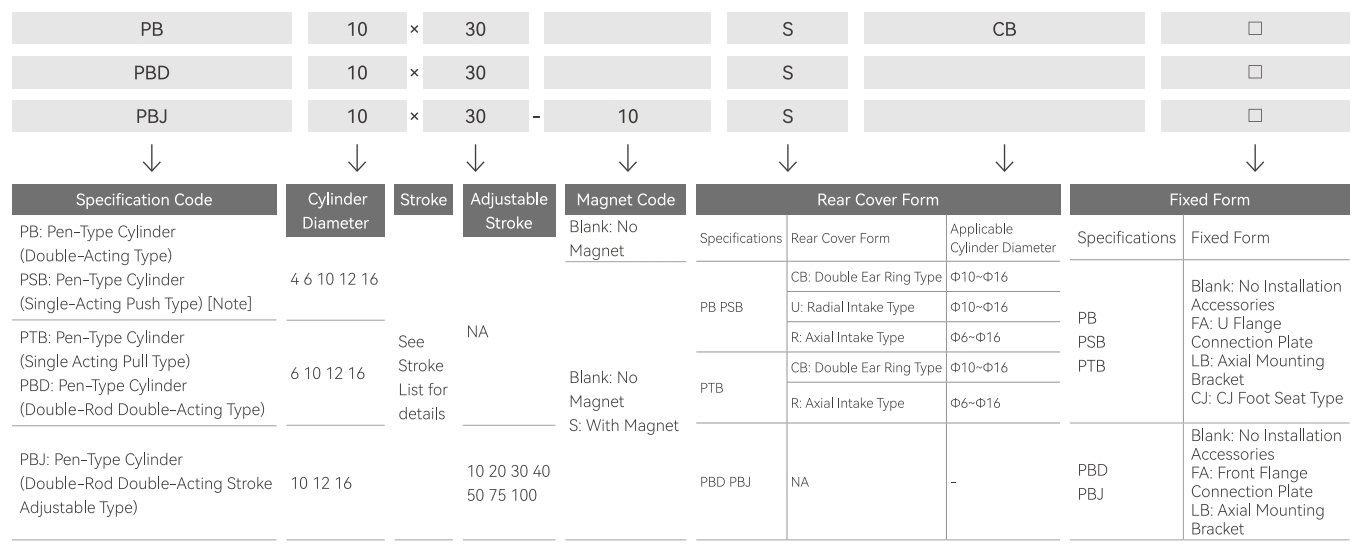

Finished Product Order Code

[Note]Single-acting push type refers to the piston rod extending when the air is on, the front spring is compressed,and when the air is off. the piston rod retracts to its original position under the reset force of the spring.

Single-acting pull type refers to the piston rod retracting when the air is on,the rear spring is compressed,and when the air is o,the piston rod extends to its original position under the reset force of the spring.

Specifications

Inner Diameter (mm)		4	6	10	12	16
Action Type		Double-Acting Type, Single-Acting Push Type	Double-Acting Type, Single-Acting Push Type, Single-Acting Pull Type
Working Medium		Air (filtered through a Filter Element with a pore size smaller than 40μm)
Operating Pressure Range	Double-Acting Type	0.2~0.7MPa(28~100psi)(2.0~7.0bar)	0.15~0.7MPa(22~100psi)(1.5~7.0bar)
	Single-Acting Type	0.3~0.7MPa(45~100psi)(3.0~7.0bar)	0.2~0.7MPa(28~100psi)(2.0~7.0bar)
Guaranteed Pressure Resistance		1.2MPa(175psi)(12bar)
Operating Temperature (℃ )		-20~70
Operating Speed Range(mm/s)		50~500		50~800
Stroke Tolerance Range		^{+0.5 0}		0-150^{+1.0 0}>150^{+1.5 0}
Cushion Type		No Buffer		Bumper Pad
Pipe Diameter		Pipe Connection Type		M5x0.8

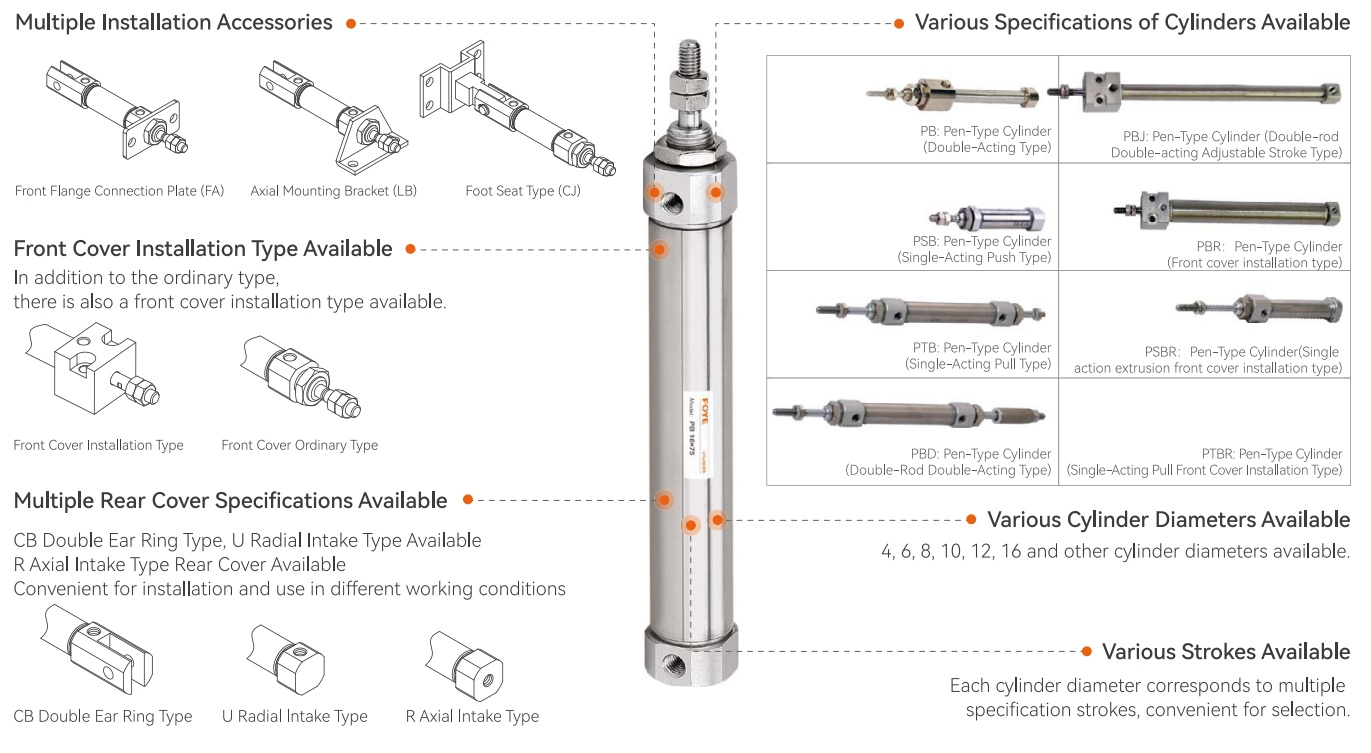

FPB Series Product Overview

Cylinder Theoretical Output Table

Cylinder Inner Diameter	Piston Rod Outer Diameter	Mode of Operation		Pressure Area(mm²)	Air Pressure(MPa)
Cylinder Inner Diameter	Piston Rod Outer Diameter	Mode of Operation		Pressure Area(mm²)	0.1	0.2	0.3	0.4	0.5	0.6	0.7
4	2	Push Single-Acting		12.6	-	0.3	1.6	2.8	4.1	5.3	6.6
		Double-Acting	Pull Side	12.6	1.3	2.5	3.8	5	6.3	7.6	8.8
		Double-Acting	Push Side	9.4	0.9	1.9	2.8	3.8	4.7	5.6	6.6
6	3	Push Single-Acting		28.3	-	2.2	5	7.8	10.6	13.5	16.3
		Pull Single-Acting		21.2	-	0.7	2.9	5	7.1	9.2	11.3
		Double-Acting	Pull Side	28.3	2.8	5.7	8.5	11.3	14.2	17	19.8
		Double-Acting	Push Side	21.2	2.1	4.2	6.4	8.5	10.6	12.7	14.8
8	4	Push Single-Acting		50.3	-	3.6	8.6	13.6	18.7	23.7	28.7
		Pull Single-Acting		37.7	-	1	4.8	8.6	12.4	16.1	19.9
		Double-Acting	Pull Side	50.3	5	10.1	15.1	20.1	25.2	30.2	35.2
		Double-Acting	Push Side	37.7	3.8	7.5	11.3	15.1	18.9	22.6	26.4
10	4	Push Single-Acting		78.5	-	6.2	14.1	21.9	29.8	37.6	45.5
		Pull Single-Acting		65.9	-	3.7	10.3	16.9	23.5	30.1	36.7
		Double-Acting	Pull Side	78.5	7.9	15.7	23.6	31.4	39.3	47.1	55
		Double-Acting	Push Side	65.9	6.6	13.2	19.8	26.4	33	39.5	46.2
12	5	Push Single-Acting		113	-	9	20.3	31.6	42.9	54.2	65.5
		Pull Single-Acting		93.4	-	5.1	14.4	23.8	33.1	42.4	51.8
		Double-Acting	Pull Side	113	11.3	22.6	33.9	45.2	56.5	67.8	79.1
		Double-Acting	Push Side	93.4	9.3	18.7	28	37.4	46.7	56	65.4
16	5	Push Single-Acting		201	-	14.5	34.6	54.7	74.8	94.9	115
		Pull Single-Acting		181.3	-	10.6	28.7	46.8	65	83.1	101.2
		Double-Acting	Pull Side	201	20.1	40.2	60.3	80.4	100.5	120.6	140.7
		Double-Acting	Push Side	181.3	18.1	36.3	54.4	72.5	90.7	108.8	126.9

Installation and Use (General Purpose)

·When the load changes during operation, a cylinder with ample output force should be selected.

·Under high temperature or corrosive conditions.a corresponding high-temperature resistant or corrosion-resistant cylinder should be selected.

·In environments with high humidity lots of dust., or presence of water droplets, oil dust, and welding slag, appropriate protective measures should be taken for the cylinder.

·Before the cylinder is connected to thee dirt inside the pipeline must be cleared to prevent foreign objects from entering the cylinder.

·The medium used in the cylinder should be filtered through a filter element with a pore size smaller than 40um before use.

·In low-temperature environments, anti-freezing measures should be taken to prevent the water in the system from freezing.

·For the Φ4 cylinder diameter cylinder,the load is coaxial with the cylinder to avid lateral load; otherwise, the piston rod will bend and deform and damage the rod end thread. The single acting type cannot be loaded during the return stroke.

·If the cylinder is disassembled and not used for a long time, attention should be paid to surface rust prevention,dust-prof caps should be added to the intake and exhaust ports,and special attention: the front and rear covers cannot be disassembled by the user independently.

Stroke

Inner Diameter(mm)		Standard Stroke(mm)	Maximum Stroke	Allowable Stroke
PB	4	5 10 15 20	20	20
	6	10 15 20 25 30 40 50 60	60	60
	10	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200	200	200
	12	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200	200	300
	16	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	300	300
PBD	6	5 10 15 20 25 30 40 50	50	-
PBD PBJ	10	10 15 20 25 30 40 50 60 75 80 100	100	-
	12	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200	200	-
	16	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200	200	-
PSB	4	5 10 15 20	-	-
PSB PTB	6	5 10 15 20 25 30 40 50 60	-	-
	10	5 10 15 20 25 30 40 50 60	-	-
	12	5 10 15 20 25 30 40 50 60	-	-
	16	5 10 15 20 25 30 40 50 60	-	-

[Note] For other special strokes, please contact our company.

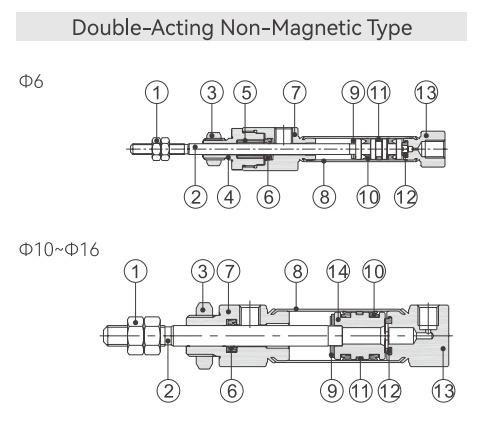

Internal Structure and Main Component Materials

No.	Part Name	Material	No.	Part Name	Material
1	Hex Nut	Carbon Steel	8	Cylinder Body	Bronze(Ф4)/SUS304(Others)
2	Piston Rod	SUS304	9	Bumper Pad (Ring)	TPU
3	Hex Nut	Carbon Steel Brass	10	Piston O-Ring	NBR
4	Outer Cover	(Ф4)/Aluminum Alloy (Others)	11	Wear-resistant Cup (Ring)	Wear-Resistant Material
5	Bushing	Wear-Resistant Material	12	Bumper Pad (Ring)	TPU
6	Front Cover0-Ring	NBR	13	Rear Cover	Brass(Ф4)/Aluminum Alloy(Others)
7	Front Cover	Brass(Ф4)/Aluminum Alloy (Others)	14	Piston	Stainless Steel(Ф16)/Aluminum Alloy(Others)

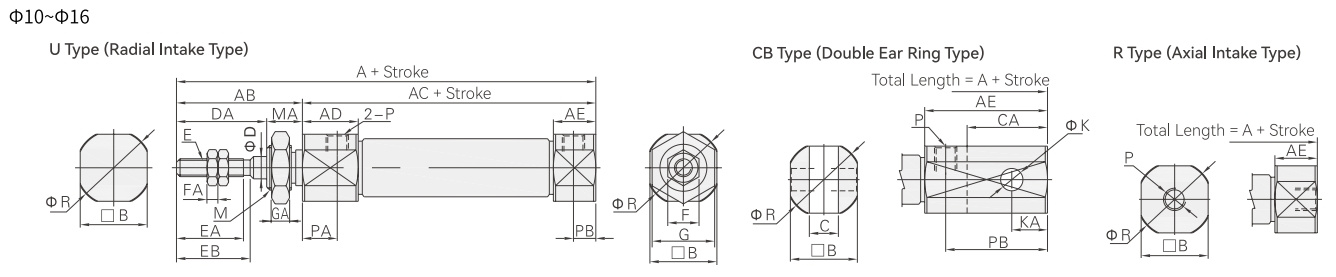

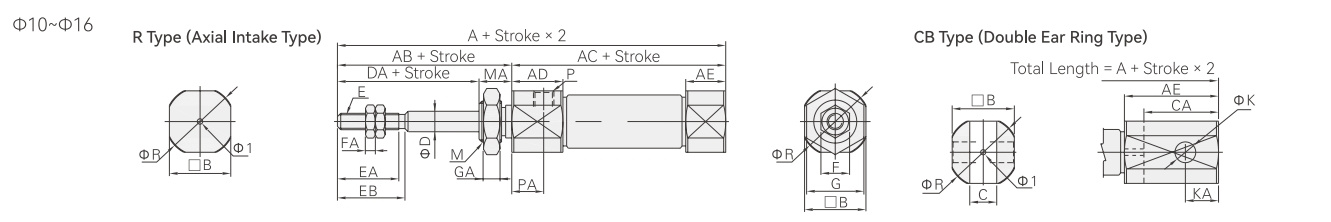

External Specifications

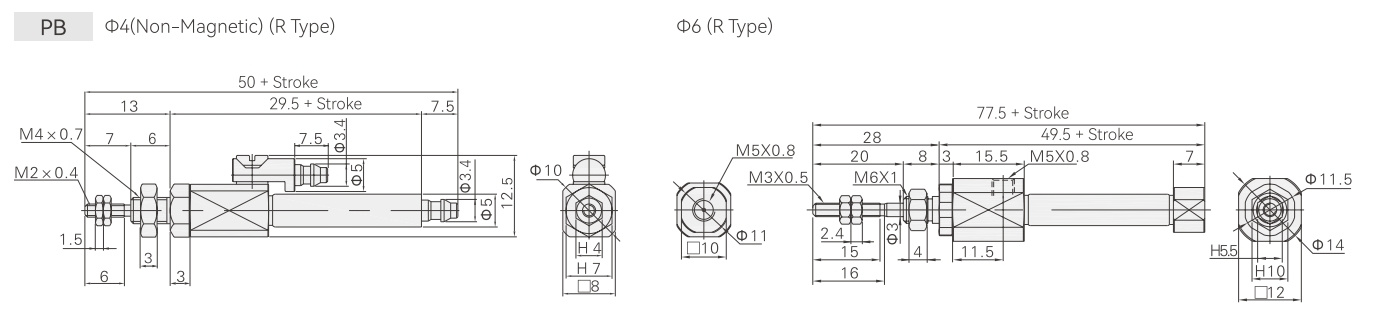

[Note] For Ф4, Ф6 cylinder diameter rear cover, only axial intake type (R type) is available.

Cylinder Diameter/Symbols	A			AB	AC	AD	AE		B	C	CA	D	DA	E	EA	EB	F	FA	G	GA	K	KA	M	MA	P	PA	PB		R
Rear Cover Form	U	CB	R	AB	AC	AD	U/R	CB	B	C	CA	D	DA	E	EA	EB	F	FA	G	GA	K	KA	M	MA	P	PA	U	CB	R
10	74	87	74	28	46	11.5	9.5	22.5	12	3.3	13	4	20	M4X0.7	15	16.5	7	3	11	4	3.3	5	M8X1.0	8	M5X0.8	7.5	5	18	14
12	74	92	74	28	46	11.5	9.5	27.5	15	6.6	18	5	20	M5X0.8	15	16.5	8	4	14	4	5	8	M10X1.0	8	M5X0.8	7.5	5	23	17
16	76	94	76	28	48	12	9.5	27.5	18	6.6	18	5	20	M5X0.8	15	16.5	8	4	14	4	5	8	M10X1.0	8	M5X0.8	7.5	5	23	20

[Note] The size of the magnetic type and the non-magnetic type is the same.

Stroke/Symbols	A	AC	Stroke/Symbols	A	AC
5	40	19.5	5~15	70	42
10	49	28.5	16~30	79	51
15	58	37.5	31~45	83	55
20	67	46.5	46~60	97	69

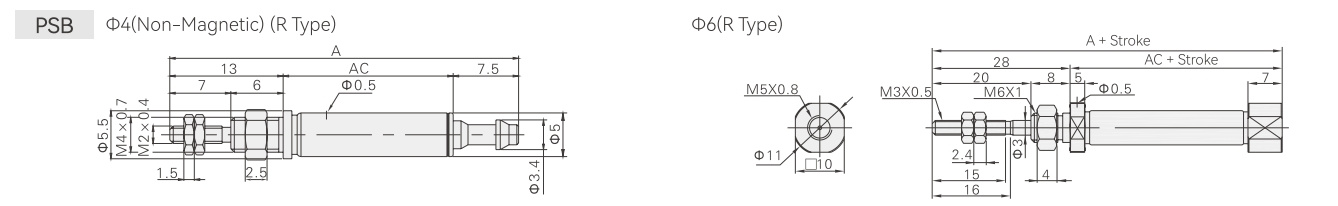

[Note] For Ф4, Ф6 cylinder diameter rear cover, only axial intake type (R type) is available.

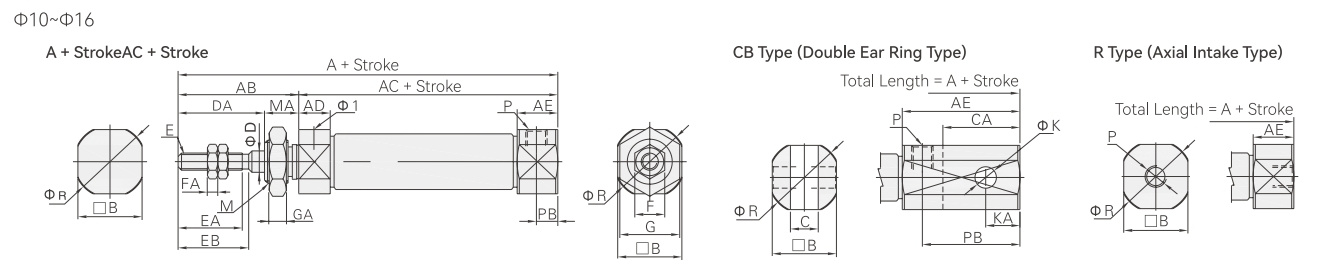

Cylinder Diameter/Symbols	A												AB	AC				AD	AE		B	C
Rear Cover Form	U				CB				R					AC					U/R	CB
Stroke	5~15	16~30	31~45	46~60	5~15	16~30	31~45	46~60	5~15	16~30	31~45	46~60		5~15	16~30	31~45	46~60		-	-
10	73.5	81	93	105	86.5	94	106	118	73.5	81	93	105	28	45.5	53	65	77	5	9.5	22.5	12	3.3
12	73.5	81	93	105	91.5	99	111	123	73.5	81	93	105	28	45.5	53	65	77	5	9.5	27.5	15	6.6
16	74.5	83	95	107	92.5	101	113	125	74.5	83	95	107	28	45.5	53	57	79	5	9.5	27.5	18	6.6

Cylinder Diameter/Symbols	CA	D	DA	E	EA	EB	F	FA	G	GA	K	KA	M	MA	P	PB		R
Rear Cover Form	CA	D	DA	E	EA	EB	F	FA	G	GA	K	KA	M	MA	P	U	CB	R
10	13	4	20	M4X0.7	15	16.5	7	3	11	4	3.5	5	M8X1.0	8	M5X0.8	5	18	14
12	18	5	20	M5X0.8	15	16.5	8	4	14	4	5	8	M10X1.0	8	M5X0.8	5	23	17
16	18	5	20	M5X0.8	15	16.5	8	4	14	4	5	8	M10X1.0	8	M5X0.8	5	23	20

Stroke/Symbols	A	AC
5~15	82	54
16~30	91	63
31~45	95	67
46~60	106	81

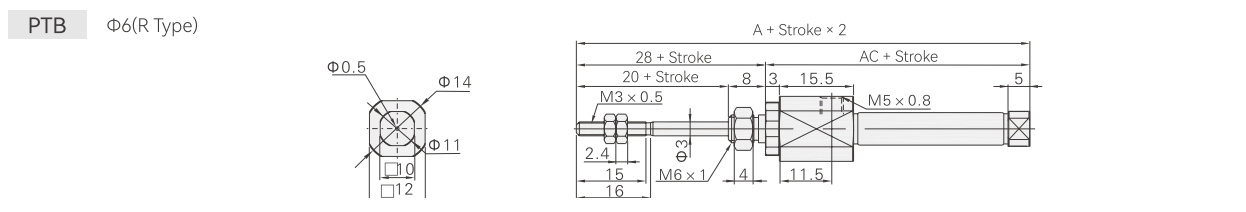

[Note] For Ф6 cylinder diameter rear cover, only axial exhaust type (R type) is available.

Cylinder Diameter/Symbols	A								AB	AC				AD
Rear Cover Form	R				CB					AC
Stroke	5~15	16~30	31~45	46~60	5~15	16~30	31~45	46~60		5~15	16~30	31~45	46~60
10	76.5	84	96	108	89.5	97	109	121	28	48.5	56	68	80	11.5
12	76.5	84	96	108	94.5	102	114	126	28	48.5	56	68	80	11.5
16	77.5	86	98	110	95.5	104	116	128	28	49.5	58	70	82	12

Cylinder Diameter/Symbols	AE		B	C	CA	D	DA	E	EA	EB	F	FA	G	GA	K	KA	M	MA	P	PA	R
Rear Cover Form	R	CB	B	C	CA	D	DA	E	EA	EB	F	FA	G	GA	K	KA	M	MA	P	PA	R
10	5	18	12	3.3	13	4	20	M4X0.7	15	16.5	7	3	11	4	3.3	5	M8X1.0	8	M5X0.8	7.5	14
12	5	23	15	6.6	18	5	20	M5X0.8	15	16.5	8	4	14	4	5	8	M10X1.0	8	M5X0.8	7.5	17
16	5	23	18	6.6	18	5	20	M5X0.8	15	16.5	8	4	14	4	5	8	M10X1.0	8	M5X0.8	7.58	20

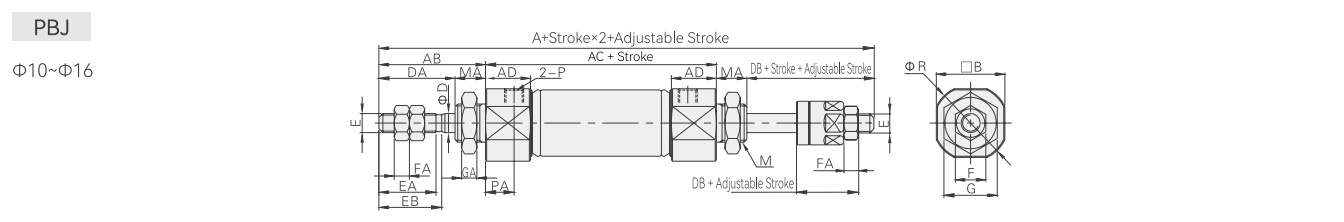

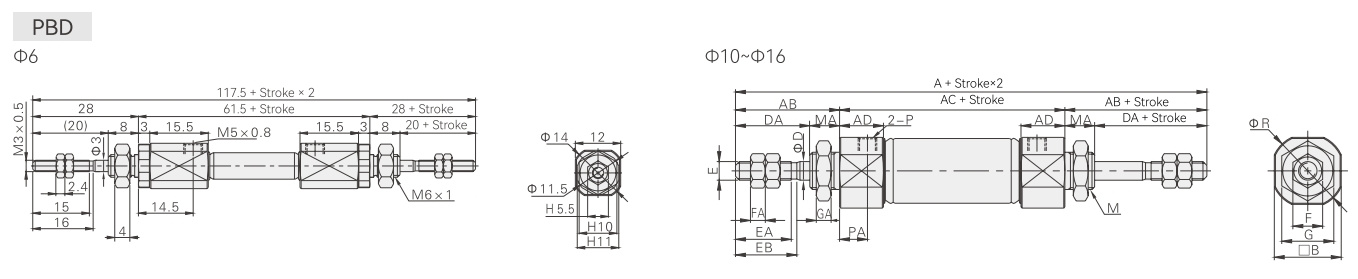

[Note] For Φ10~Φ16 cylinder diameter, there is no radial exhaust type (U type); the size of the magnetic type and the non-magnetic type is the same.

Cylinder Diameter/ Symbols	A		AB	AC	AD	B	D	DA	DB	E	EA	EB	F	FA	G	GA	M	MA	P	PA
Specification Code	PBD	PBJ	AB	AC	AD	B	D	DA	DB	E	EA	EB	F	FA	G	GA	M	MA	P	PA
10	104	99	28	48	11.5	12	4	20	15	M4X0.7	15	16.5	7	3	11	4	M8X1.0	8	M5X0.8	7.5
12	104	101	28	48	11.5	15	5	20	17	M5X0.8	15	16.5	8	4	14	4	M10X1.0	8	M5X0.8	7.5
16	107	104	28	51	12	18	5	20	17	M5X0.8	15	16.5	8	4	14	4	M10X1.0	8	M5X0.8	7.5

[Note] The size of the magnetic type and the non-magnetic type is the same.
