FMXS Series Pneumatic Slide Table

The FMXS Series pneumatic slides are designed to provide reliable and efficient linear motion, this innovative device is an essential component in assembly lines, packaging systems and robotic applications. With its rugged construction and advanced features, the MXS Series is tailored to meet the demands of modern manufacturing environments, ensuring optimal performance and long service life.

product details

Symbols

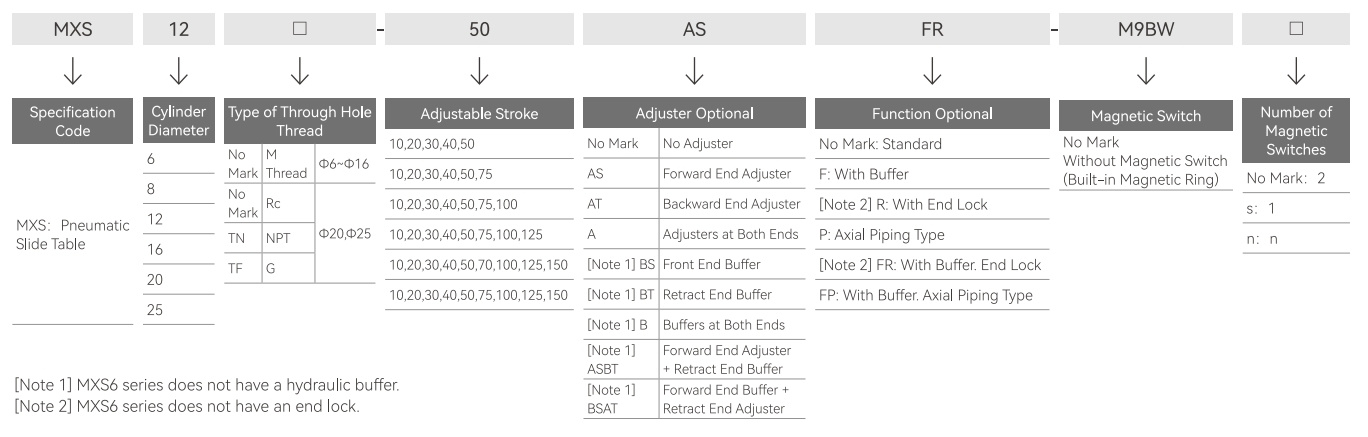

Finished Product Order Code

Specifications

Cylinder Diameter (mm)	6	8	12	16	20	25
Pipe Connection Diameter	M3x0.5	M5x0.8			Rc1/8-NPT1/8-G1/8
Fluid Used	Air
Action Mode	Double-Acting Type
Operating Pressure	0.15~07MPa
Guaranteed Pressure Resistance	1.05MPa
Environmental Temperature and Fluid Usage Temperature	/-10~60℃
Operating Speed Range (Average Action Speed)	50~500mm/s
Cushion	Pad Cushion (Standard, Stroke Adjuster) Hydraulic Shock Absorber (Optional)
Oil supply	No Oil Supply
Magnetic Switch (Optional)	Contact Magnetic Switch (2-wire, 3-wire) Non-contact Magnetic Switch (2-wire, 3-wire) 2-color Display Non-contact Magnetic Switch(2-wire,3-wire)
Allowable Tolerance of Stroke Length	mm

[Note] The average action speed is the speed obtained by dividing the stroke by the time from the start of the action to the end of the action.

Stroke

Model	Standard Stroke(mm)
MXS6	10,20,30,40,50
MXS8	10,20,30,40,50,75
MXS12	10.20.30.40.50.75.100
MXS16	10,20,30,40,50,75,100,125
MXS20	10,20,30,40,50,70,100,125,150
MXS25	10.20,30.40,50.75,100,125,150

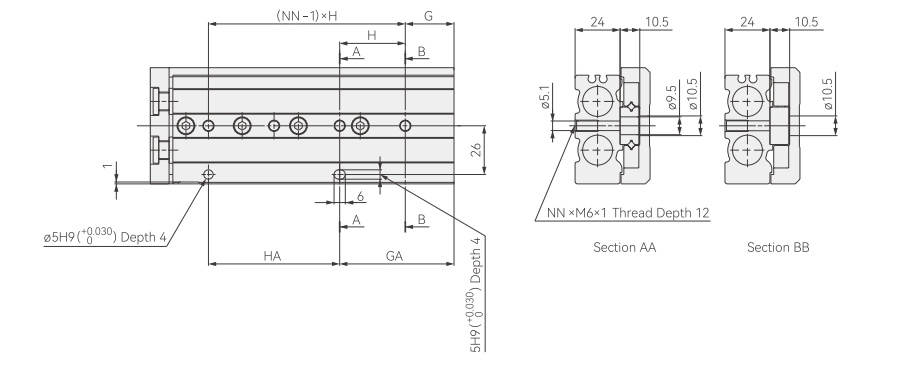

External Specifications

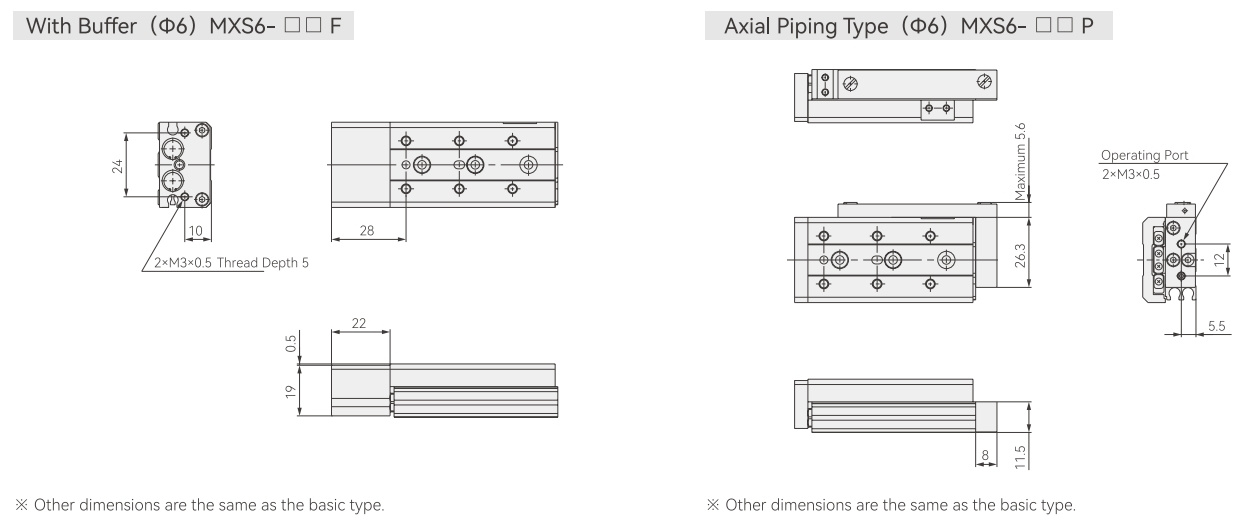

Model	F	N	G	H	NN	GA	HA	I	J	K	M	Z	ZZ
MXS6-10	20	4	6	25	2	11	20	10	17	22.5	42	41.5	48
MXS6-20	30	4	6	35	2	21	20	10	27	32.5	52	51.5	58
MXS6-30	20	6	11	20	3	31	20	7	40	42.5	62	61.5	68
MXS6-40	28	6	13	30	3	43	30	19	50	52.5	84	83.5	90
MXS6-50	38	6	17	24	4	41	48	25	60	62.5	100	99.5	106

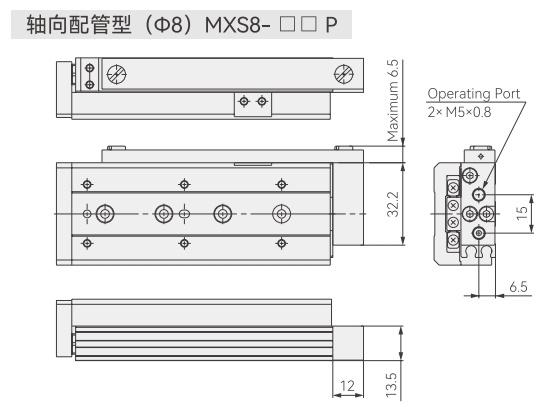

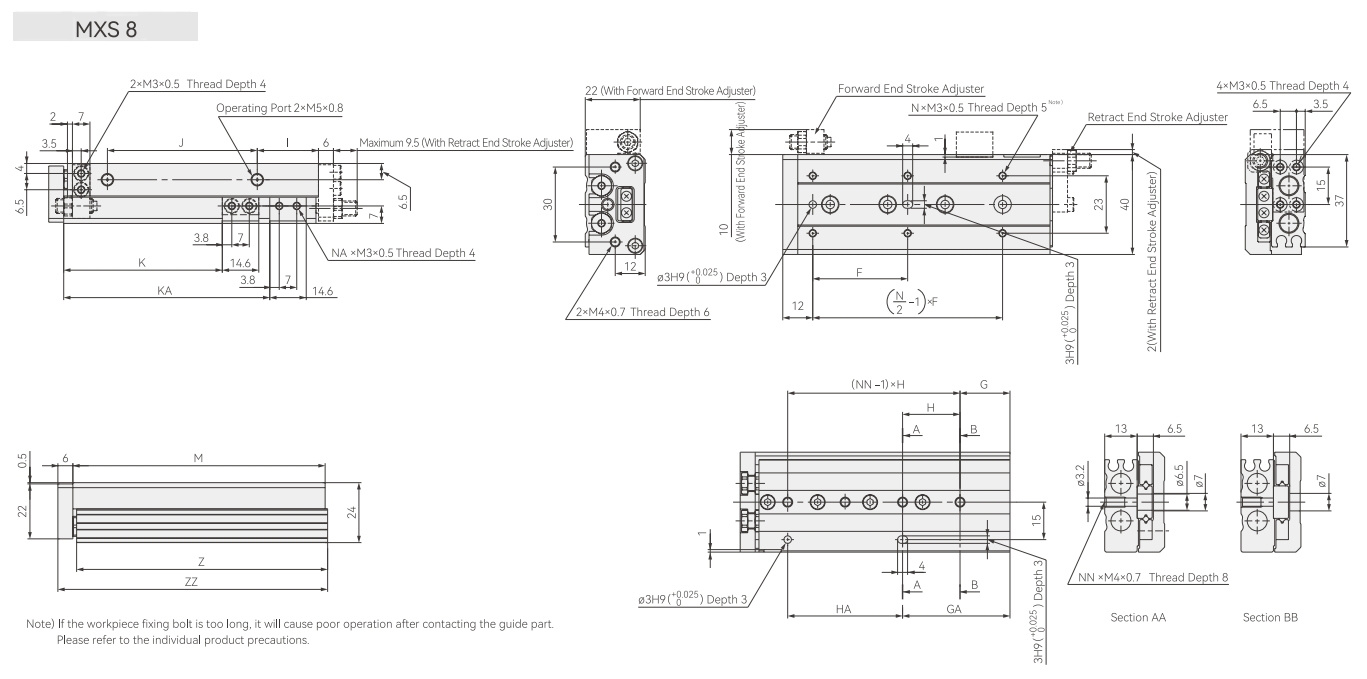

Model	F	N	G	H	NN	GA	HA	I	J	K	KA	NA	M	Z	ZZ
MXS8-10	25	4	9	28	2	17	20	13	19.5	23.5	-	2	49	48.5	56
MXS8-20	25	4	12	30	2	12	30	8.5	29	33.5	-	2	52	53.5	61
MXS8-30	40	4	13	20	3	33	20	9.5	39	43.5	-	2	65	64.5	72
MXS8-40	50	4	15	28	3	43	28	10.5	56	53.5	-	2	83	82.5	90
MXS8-50	38	6	20	23	4	43	46	24.5	60	63.5	82.5	4	101	100.5	108
MXS8-75	50	6	27	28	5	83	56	38.5	96	88.5	132.5	4	151	150.5	158

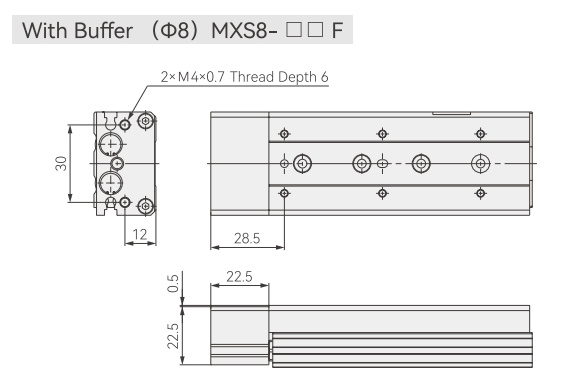

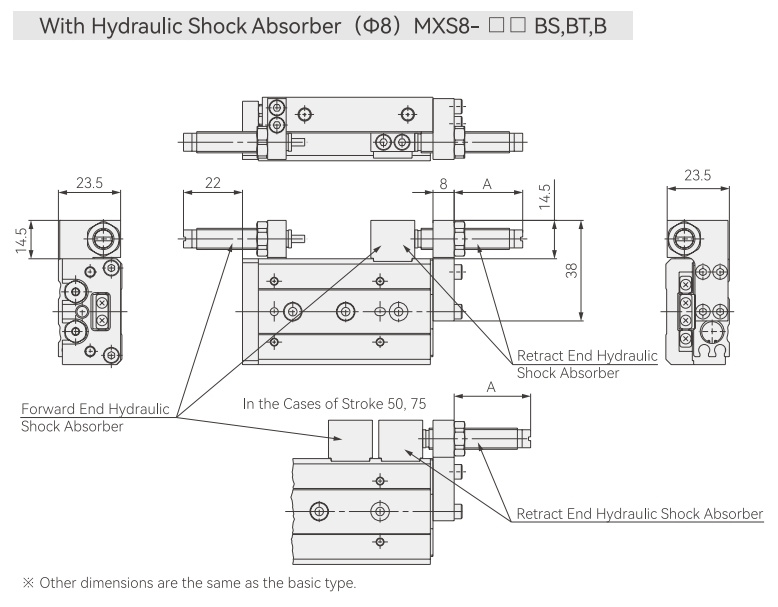

Model	Forming Adjustment Range		A Dimension(When Installed at the Retract End)
Model	Forward End	Backward End	A Dimension(When Installed at the Retract End)
MXS8-10	Maximum 20	5	22
MXS8-20		15	27
MXS8-30		15	26
MXS8-40		5	18
MXS8-50		20	29
MXS8-75		20	29

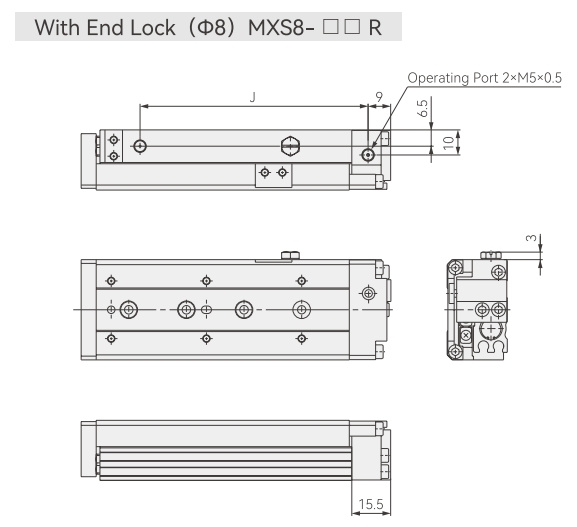

Model	J
MXS8-10R	39
MXS8-20R	44
MXS8-30R	55
MXS8-40R	73
MXS8-50R	91
MXS8-75R	141

※Other dimensions are the same as the basic type.

※Other dimensions are the same as the basic type

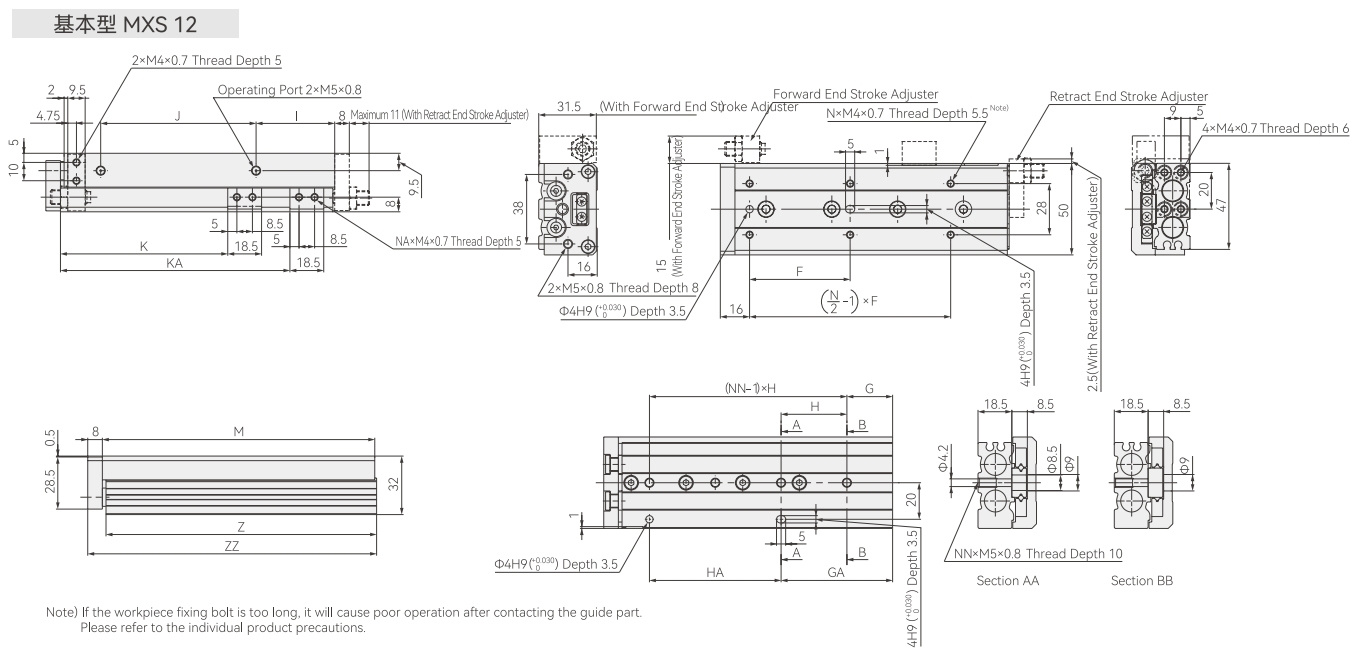

Model	F	N	G	H	NN	GA	HA	I	J	K	KA	NA	M	Z	ZZ
MXS12-10	35	4	15	40	2	15	40	10	40	26.5	-	2	71	70	80
MXS12-20	35	4	15	40	2	15	40	10	40	36.5	-	2	71	70	80
MXS12-30	35	4	15	40	2	15	40	10	40	46.5	-	2	71	70	80
MXS12-40	50	4	17	25	3	42	25	10	52	56.5	-	2	83	80	92
MXS12-50	35	6	15	36	3	51	36	22	60	66.5	-	2	103	102	112
MXS12-75	55	6	25	36	4	61	72	43	85	91.5	125.5	4	149	148	158
MXS12-100	65	6	35	38	5	111	76	52	130	116.5	179.5	4	203	202	212

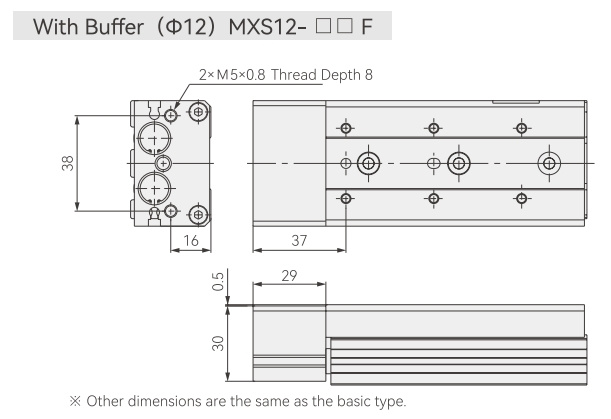

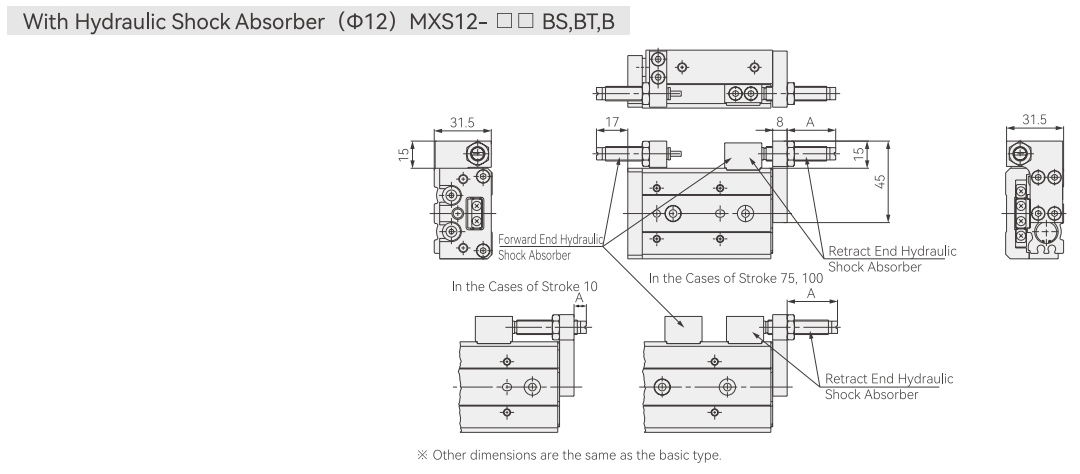

Model	Forming Adjustment Range		A Dimension(When Installed at the Retract End)
Model	Forward End	Backward End	A Dimension(When Installed at the Retract End)
MXS12-10	Maximum 20	2	7
MXS12-20		5	17
MXS12-30		15	27
MXS12-40		15	25
MXS12-50		5	15
MXS12-75		15	28
MXS12-100		15	28

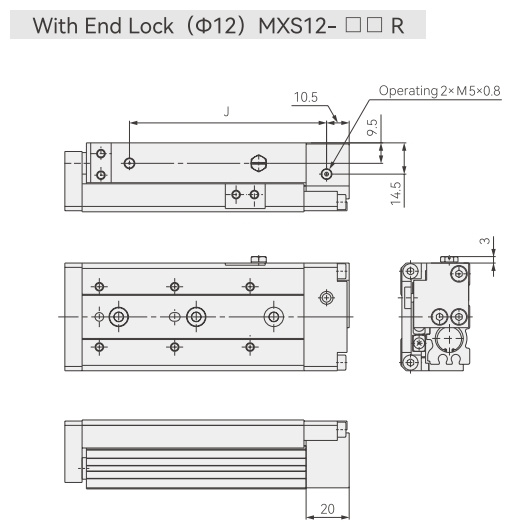

Model	J
MXS12-10R	59.5
MXS12-20R	59.5
MXS12-30R	59.5
MXS12-40R	71.5
MXS12-50R	91.5
MXS12-75R	137.5
MXS12-100R	191.5

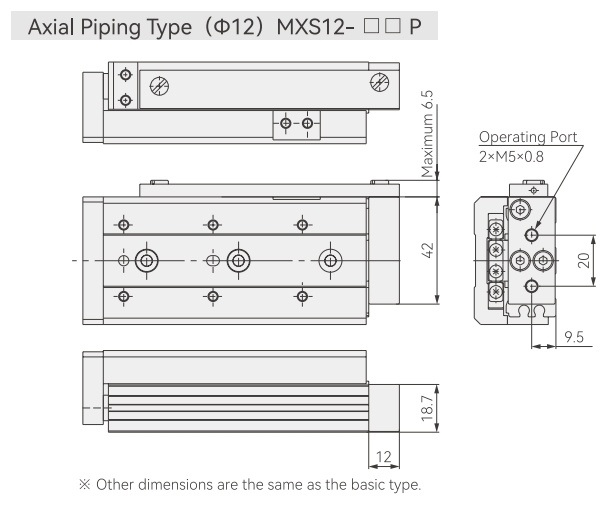

※Other dimensions are the same as the basic type

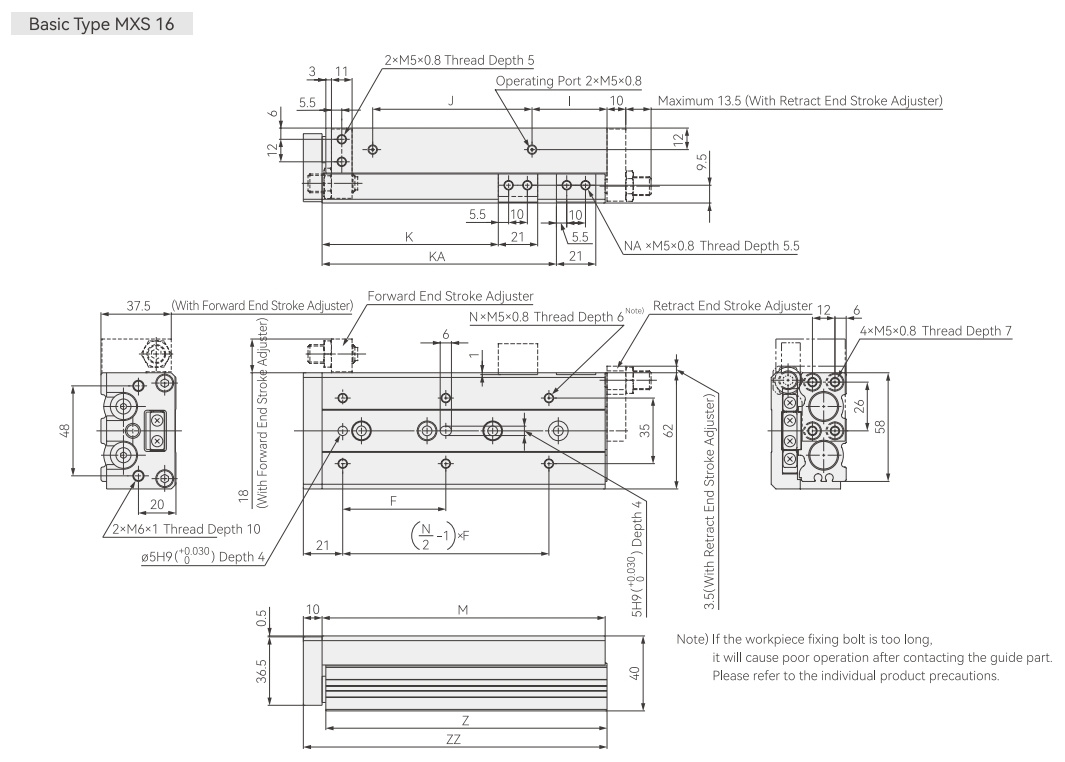

Model	F	N	G	H	NN	GA	HA	I	J	K	KA	NA	M	Z	ZZ
MXS16-10	35	4	16	40	2	16	40	10	40	29	-	2	76	75	87
MXS16-20	35	4	16	40	2	16	40	10	40	39	-	2	76	75	87
MXS16-30	35	4	16	40	2	16	40	10	40	49	-	2	76	75	87
MXS16-40	40	4	16	50	2	16	50	10	50	59	-	2	86	85	97
MXS16-50	50	6	21	30	3	51	30	15	60	69	-	2	101	100	112
MXS16-75	55	6	26	35	4	61	70	40	85	94	125	4	151	150	162
MXS16-100	65	6	39	35	5	109	70	55	118	119	173	4	199	198	210
MXS16-125	70	8	19	35	7	159	70	68	155	144	223	4	249	248	260

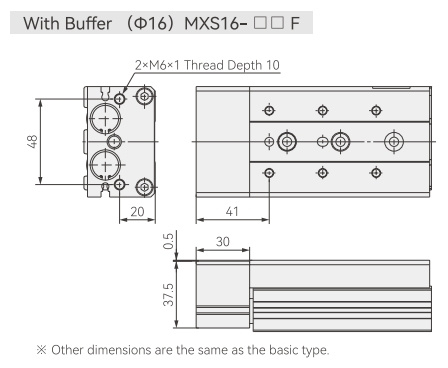

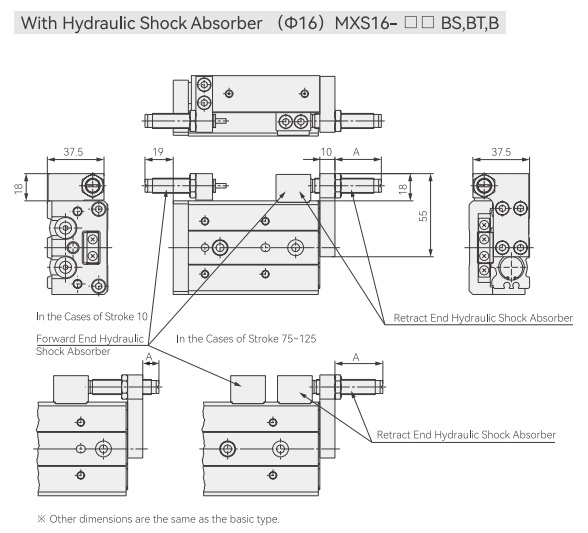

Model	Forming Adjustment Range		A Dimension(When Installed at the Retract End)
Model	Forward End	Backward End	A Dimension(When Installed at the Retract End)
MXS16-10	Maximum 25	5	11
MXS16-20		10	27
MXS16-30		20	31
MXS16-40		20	31
MXS16-50		15	26
MXS16-75		20	32
MXS16-100		20	32
MXS16-125		20	32

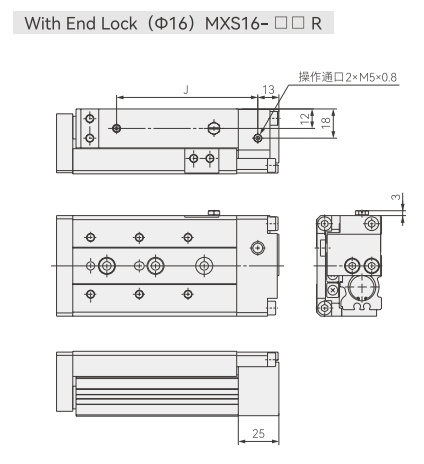

Model	J
MXS16-10R	62
MXS16-20R	62
MXS16-30R	62
MXS16-40R	72
MXS16-50R	87
MXS16-75R	137
MXS16-100R	185
MXS16-125R	235

※Other dimensions are the same as the basic type

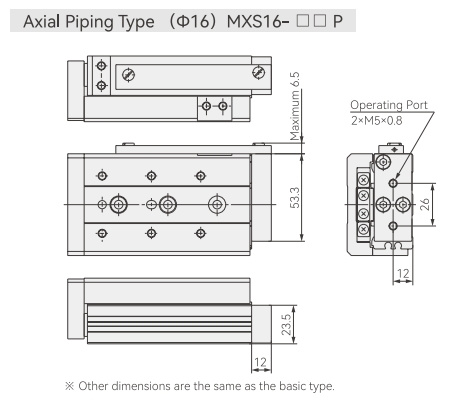

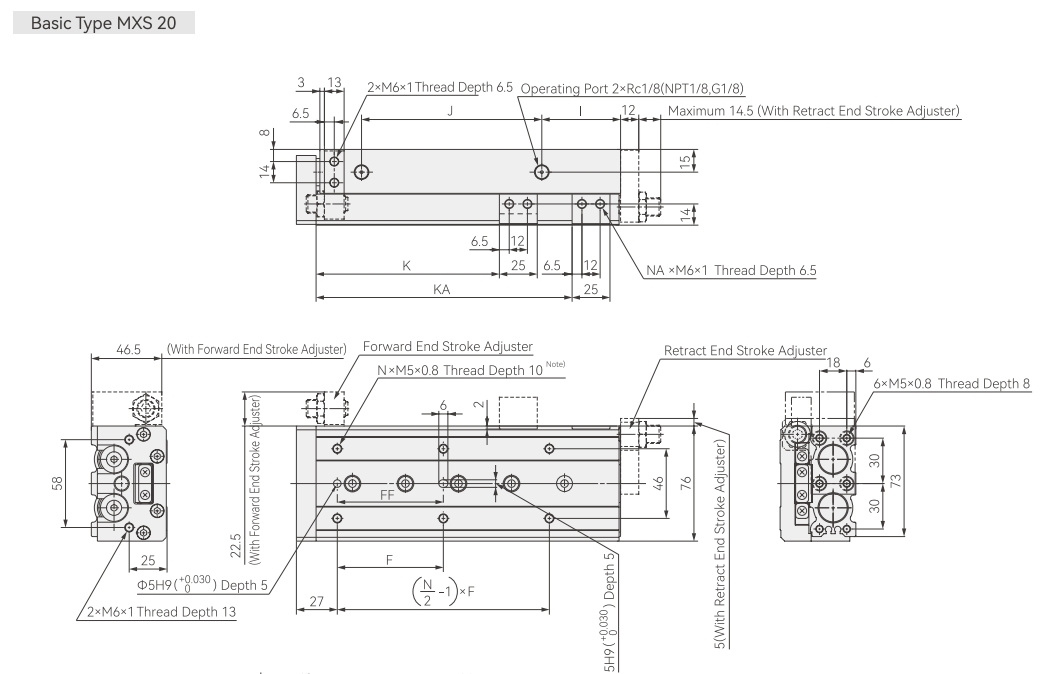

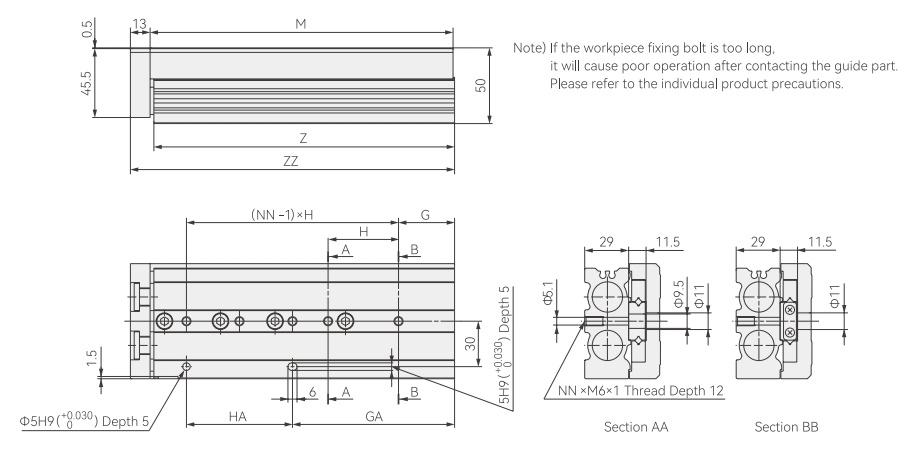

Model	F	FF	N	G	H	NN	GA	HA	I	J	K	KA	NA	M	Z	ZZ
MXS20-10	50	40	4	15	45	2	25	35	10	44	31	-	2	83	81.5	97
MXS20-20	50	40	4	15	45	2	25	35	10	44	41	-	2	83	81.5	97
MXS20-30	50	40	4	15	45	2	25	35	10	44	51	-	2	83	81.5	97
MXS20-40	60	50	4	15	55	2	35	35	10	54	61	-	2	93	91.5	107
MXS20-50	35	35	6	15	35	3	50	35	10	69	71	-	2	108	106.5	122
MXS20-75	60	60	6	19	35	4	54	70	10	108	96	-	2	147	145.5	161
MXS20-100	70	70	6	37	35	5	107	70	58	113	121	169	4	200	198.5	214
MXS20-125	70	70	8	41	38	6	155	76	70	155	146	223	4	254	252.5	268
MXS20-150	80	80	8	19	44	7	195	88	87	190	171	275	4	306	304.5	320

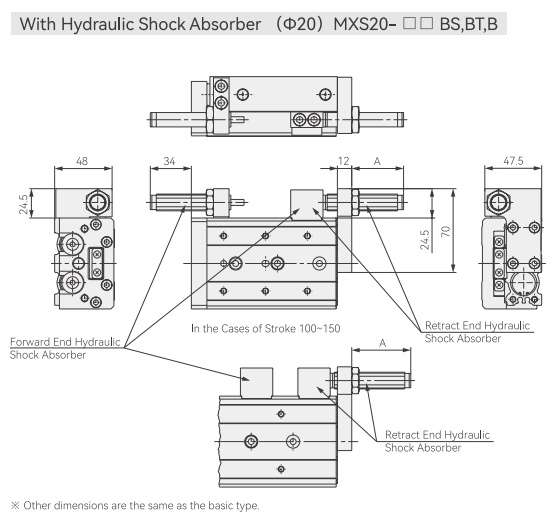

Model	Forming Adjustment Range		A Dimension(When Installed at the Retract End)
Model	Forward End	Backward End	A Dimension(When Installed at the Retract End)
MXS20-10	Maximum 40	5	28
MXS20-20		15	38
MXS20-30		25	48
MXS20-40		35	48
MXS20-50		30	43
MXS20-75		15	29
MXS20-100		35	49
MXS20-125		35	49
MXS20-150		35	49

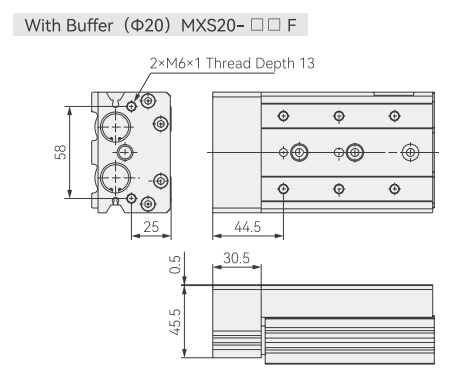

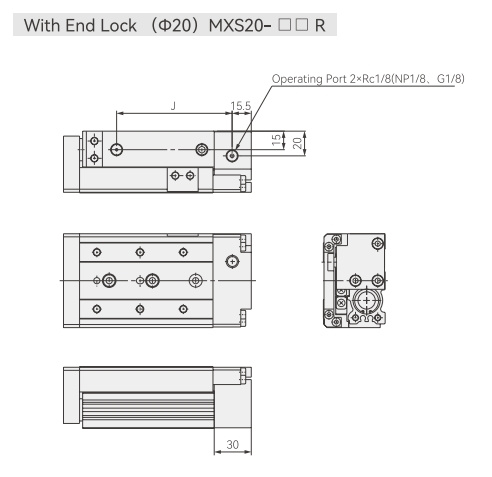

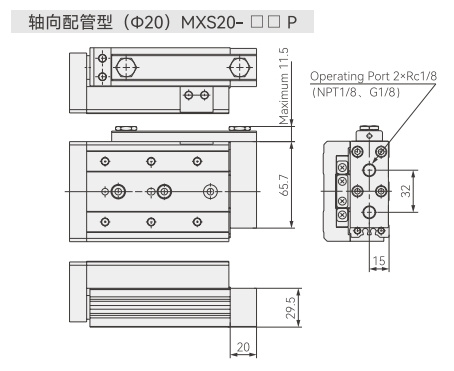

Model	J
MXS20-10R	68.5
MXS20-20R	68.5
MXS20-30R	68.5
MXS20-40R	78.5
MXS20-50R	93.5
MXS20-75R	132.5
MXS20-100R	185.5
MXS20-125R	239.5
MXS20-150R	291.5

※Other dimensions are the same as the basic type

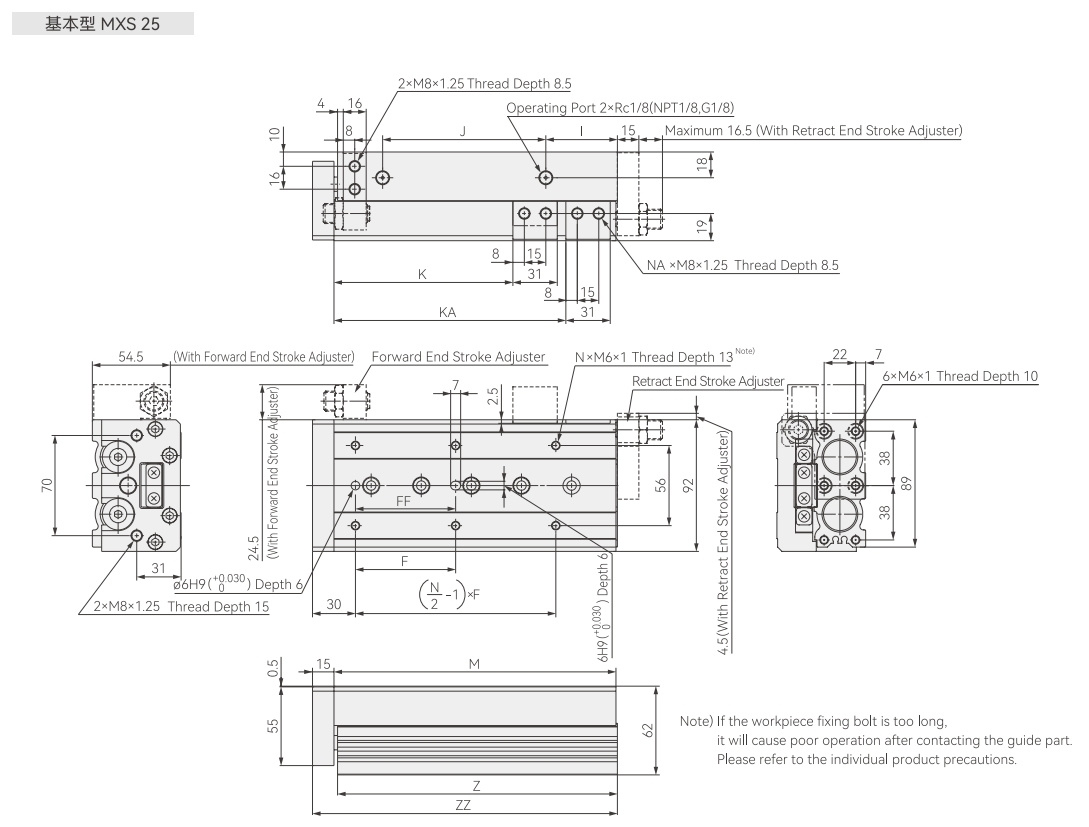

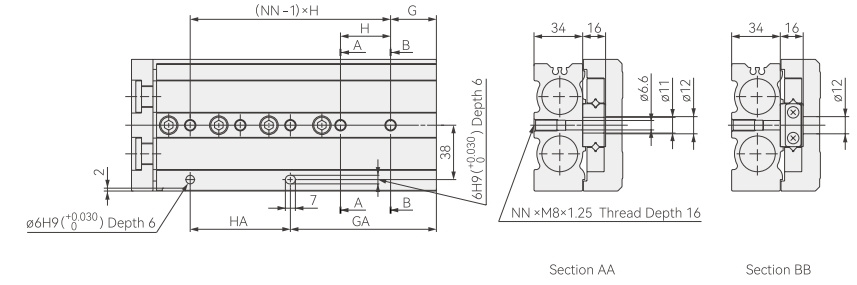

Model	F	FF	N	G	H	NN	GA	HA	I	J	K	KA	NA	M	Z	ZZ
MXS25-10	50	40	4	22	45	2	22	45	12	47	35	-	2	92	90.5	108
MXS25-20	50	40	4	22	45	2	22	45	12	47	45	-	2	92	90.5	108
MXS25-30	50	40	4	22	45	2	22	45	12	47	55	-	2	92	90.5	108
MXS25-40	60	50	4	22	55	2	22	55	12	57	65	-	2	102	110.5	118
MXS25-50	35	35	6	20	35	3	55	35	12	70	75	-	2	115	113.5	131
MXS25-75	60	60	6	26	35	4	61	70	33	90	100	-	2	156	154.5	172
MXS25-100	70	70	6	32	35	5	102	70	50	114	125	162	4	197	195.5	213
MXS25-125	75	75	8	40	38	6	154	76	67	155	150	218	4	255	253.5	271
MXS25-150	80	80	8	30	40	7	190	80	82	180	175	258	4	295	293.5	311

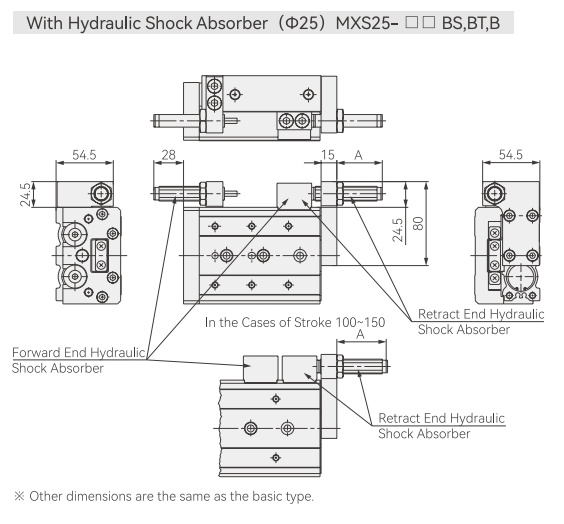

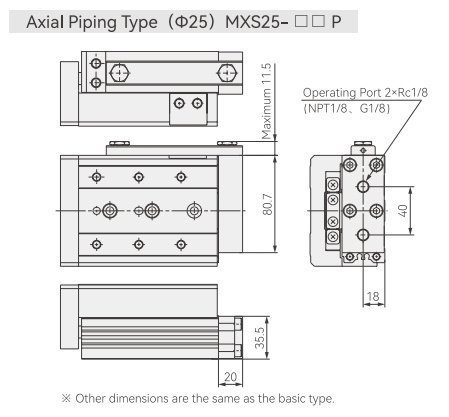

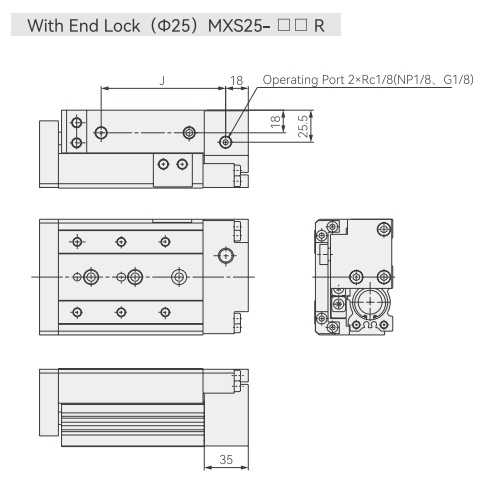

Model	Forming Adjustment Range		A Dimension(When Installed at the Retract End)
Model	Forward End	Backward End	A Dimension(When Installed at the Retract End)
MXS25-10	Maximum 35	5	26
MXS25-20		15	36
MXS25-30		25	46
MXS25-40		35	46
MXS25-50		30	43
MXS25-75		15	27
MXS25-100		35	48
MXS25-125		35	46
MXS25-150		35	46
