FMXQ Series Pneumatic Slide Table -Height Interchangeable Type

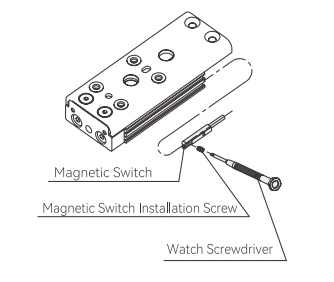

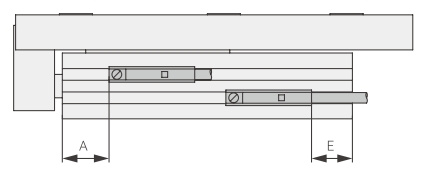

·When tightening the magnetic switch installation screw (accessory of the magnetic switch), please use a watch screwdriver with a grip diameter of about 5~6mm.
·Minimum operating pressure with buffer metal limit The minimum pressure used to completely retract the protruding part of the buffer and contact the metal part.For the hydraulic damper of cylinder diameter 20, the operating pressure is 0.15~0.6MPa.

product details

Symbols

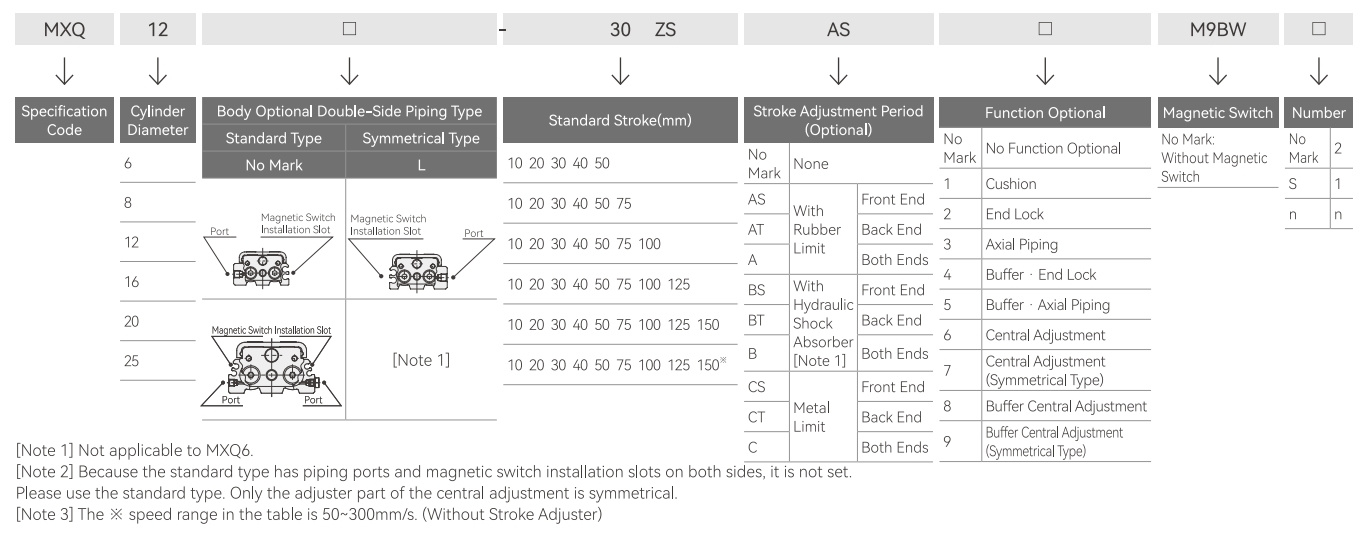

Finished Product Order Code

Specifications

Cylinder Diameter (mm)	6	8	12	16	20	25
Pipe Connection Diameter	M5x0.8
Fluid Used	Air
Action Mode	Double-Acting Type
Operating Pressure	0.15~0.7MPa Note)(End Lock: 0.35~0.7MPa)
Guaranteed Pressure Resistance	1.05MPa
Environmental Temperature and Fluid Usage Temperature	-10~60℃
Operating Speed Range (Average Action Speed)	50~500mm/s (With Buffer Metal Limit: 50~300mm/s) (Metal Limit: 50~200mm/s) p.83 Standard Stroke Table ※ is 50~300mm/s
Buffer (Without Stroke Adjuster)	Internal Rubber Buffer
Buffer (With Stroke Adjuster)	With Buffer Metal Limit, Rubber Limit, Hydraulic Shock Absorber, Metal Limit
Oil supply	No Oil Supply
Magnetic Switch	Non-contact Magnetic Switch (2-wire, 3-wire) 2-color Display Non-contact Magnetic Switch (2-wire, 3-wire)
Stroke Length Tolerance	+2~0mm

[Note] Minimum operating pressure with buffer metal limit The minimum pressure used to completely retract the protruding part of the buffer and contact the metal part.For the hydraulic damper of cylinder diameter 20, the operating pressure is 0.15~0.6MPa.

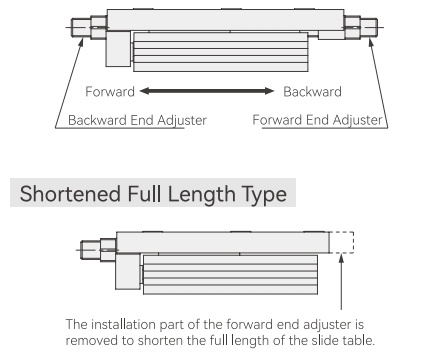

Adjuster Installation Position(Except Central Adjuster)

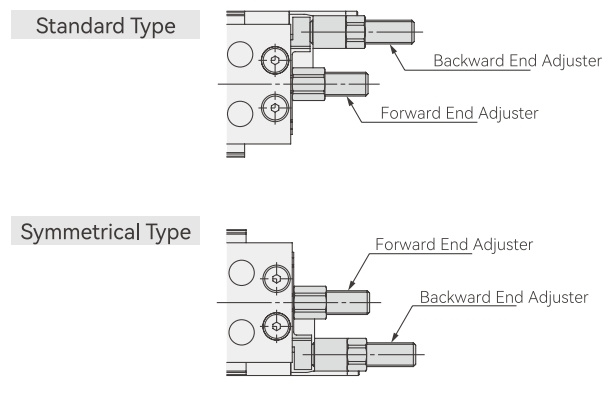

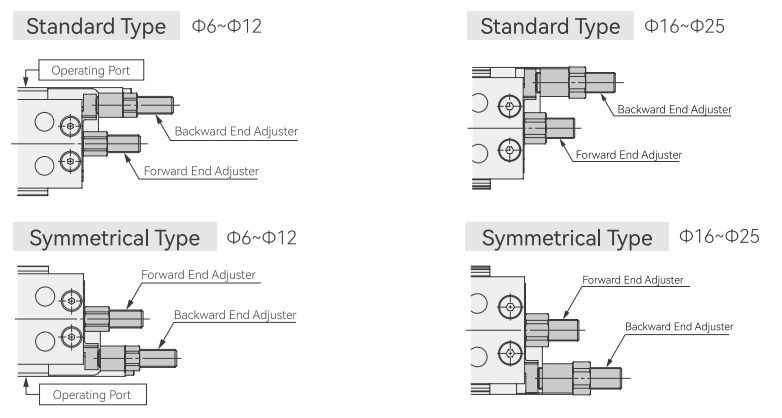

Central Adjuster Installation Position

Specification with End Lock

Model	FMXQ6	FMXQ8	FMXQ12	FMXQ16	FMXQ20	FMXQ25
Operating Pressure Range (MPa)	0.35~0.7
Holding Force (N)	12	12	23	45	70	110

Specification with Buffer Mechanism

Model		FMXQ6	FMXQ8	FMXQ12	FMXQ16	FMXQ20	FMXQ25
Operating Speed Range (mm/s)		50~500(Horizontal Use 50~300)
Buffer Stroke (mm)		5		10
Buffer Stroke Load(N)	Stroke 0mm	3	5	9	16	25	40
Buffer Stroke Load(N)	Maximum Stroke	6	8	15	24	38	59

Buffer Part Applicable Magnetic Switch

Type	Model	Specifications	Wire Lead Direction
Non-contact Magnetic Switch	D-M9BV	With Indicator, 2-Wire Type	Longitudinal
	D-M9NV	With Indicator, 3-Wire Type, Output Method: NPN
	D-M9PV	With Indicator, 3-Wire Type, Output Method: PNP

Adjuster Specification

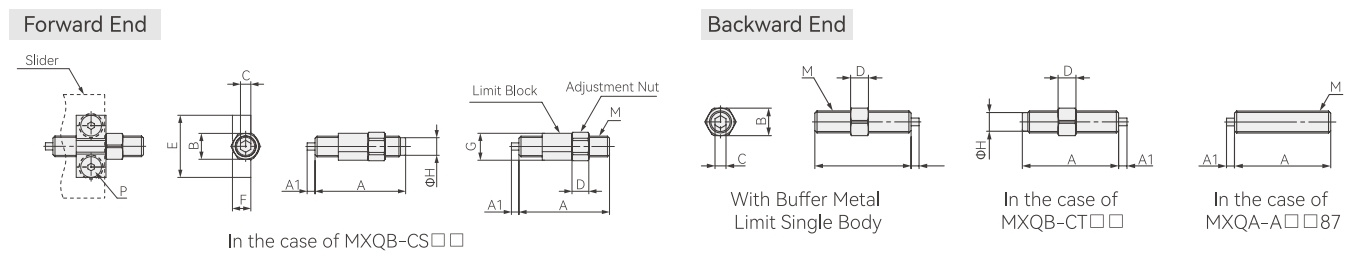

Specification with Buffer Metal Limit

Model	FMXQ8	FMXQ12	FMXQ16	FMXQ20	FMXQ25
Maximum Absorption Energy (J)	0.018	0.04	0.08	0.12	0.18
Absorption Stroke (mm)	2	2.8	3.6	4.4	5.5
Minimum Operating Pressure with Buffer Metal Limit ※(MPa)	0.3	0.3	0.2	0.2	0.2
Buffer Retraction Force (N)	20	42	65	97	154
Installation Screw Size (mm)	M6x0.75	M8x1	M10x1	M12x1	M14x1.5

※ The minimum pressure used to retract the protruding part of the buffer and contact he metal par. For positioning and other occasions,the pressure should be above the minimum operating pressure with buffer metal limit.

In the case of vertical installation, the weight of the workpiece must be considered.

※ ф6 is not set.

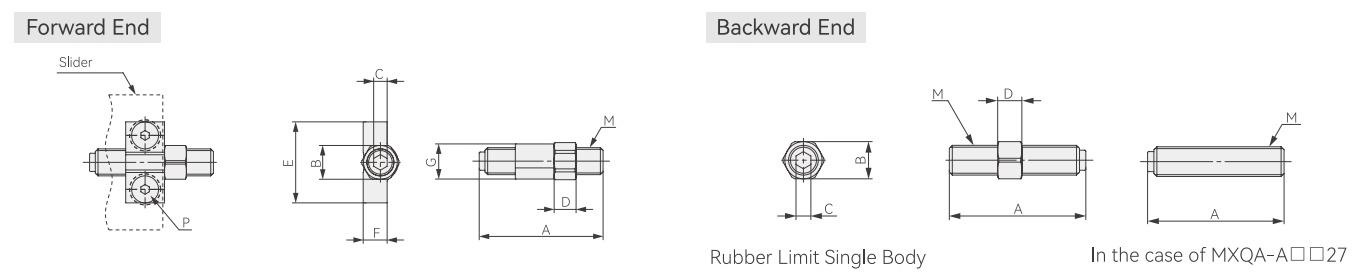

Rubber Buffer Specification

Model	FMXQ6	FMXQ8	FMXQ12	FMXQ16	FMXQ20	FMXQ25
Maximum Absorption Energy (J)	0.06		0.12	0.2	0.4	0.6
Installation Screw Size (mm)	M6x0.75		M8x1	M10x1	M12x1	M14x1.5

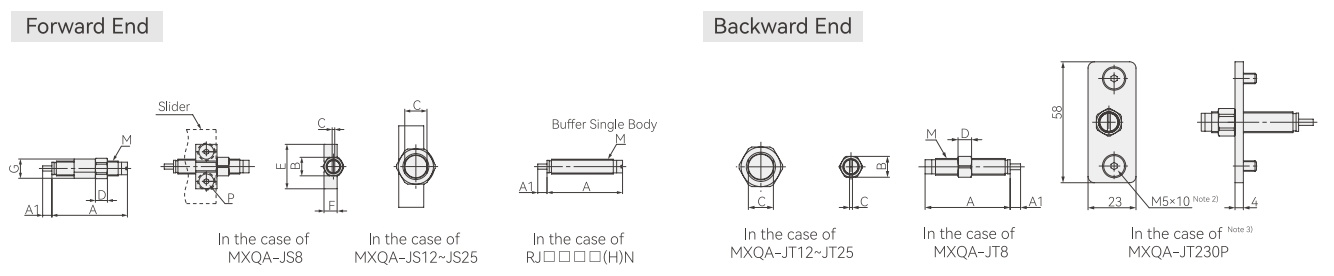

Buffer/RJ Specification

Model	FMXQ6	FMXQ8	FMXQ12	FMXQ16	FMXQ20	FMXQ25
Maximum Absorption Energy (J)	0.35		0.5	1.5	3	3.7
Absorption Stroke (mm)	3		5	6	7	10
Impact Speed (mm/s)	50~500
Maximum Operating Frequency(cycle/min)	80			80	70	45
Maximum Allowable Thrust (N)	150			245	422	814
Spring Force (Extended)(N)	1.3			2.8	5.4	6.4
Spring Force (Compressed)(N)	3.9			4.9	8	15
Installation Screw Size(mm)	M6x0.75			M8x1	M10x1	M14x1.5

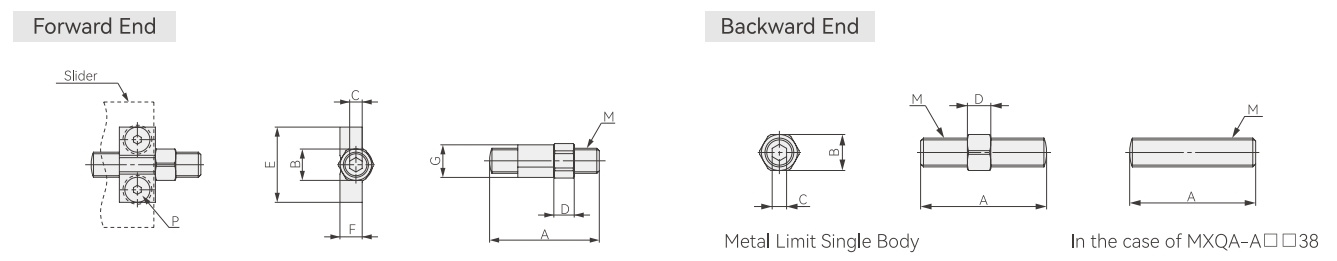

Metal Limit Specification

Model	FMXQ6	FMXQ8	FMXQ12	FMXQ16	FMXQ20	FMXQ25
Maximum Absorption Energy (J)	0.009		0.02	0.04	0.06	0.09
Installation Screw Size (mm)	M6x0.75		M8x1	M10x1	M12x1	M14x1.5

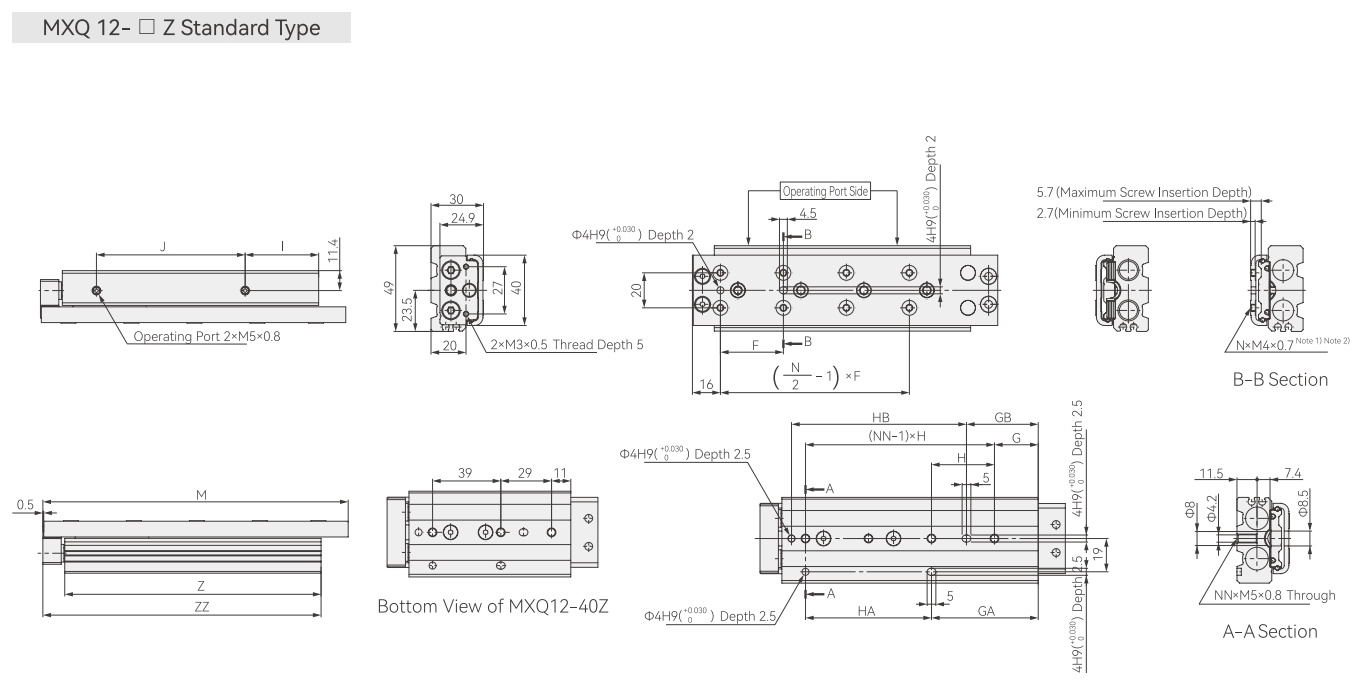

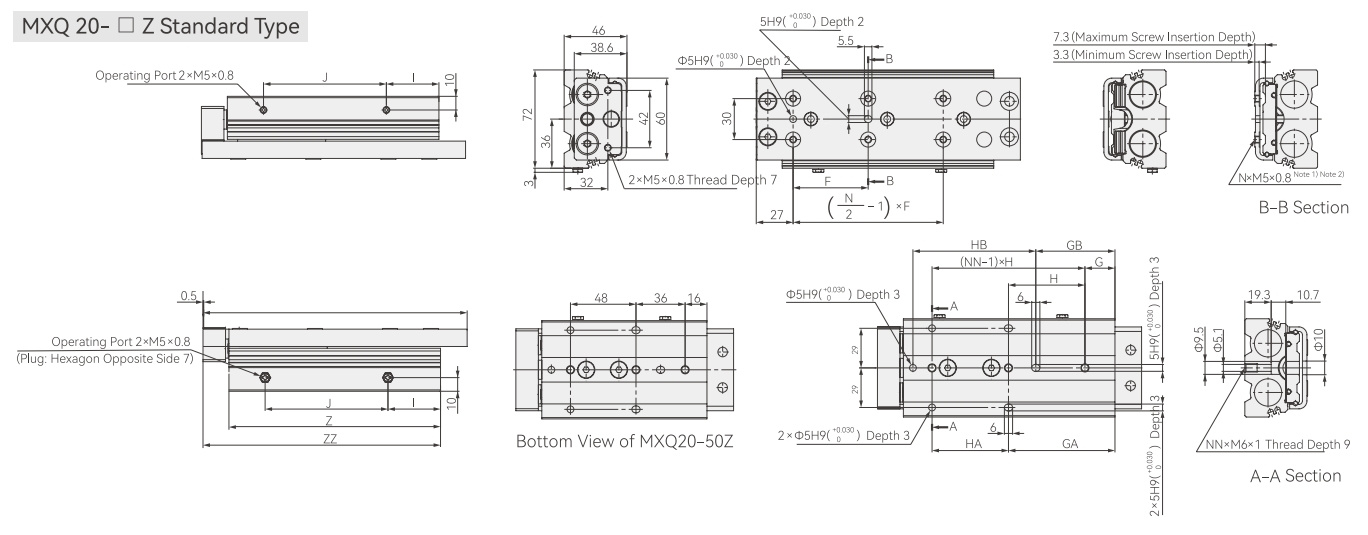

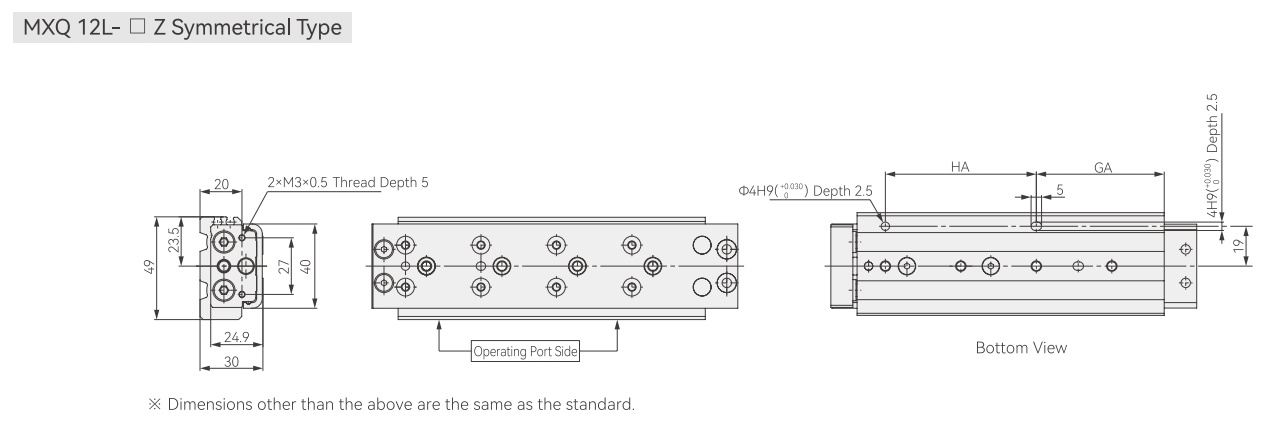

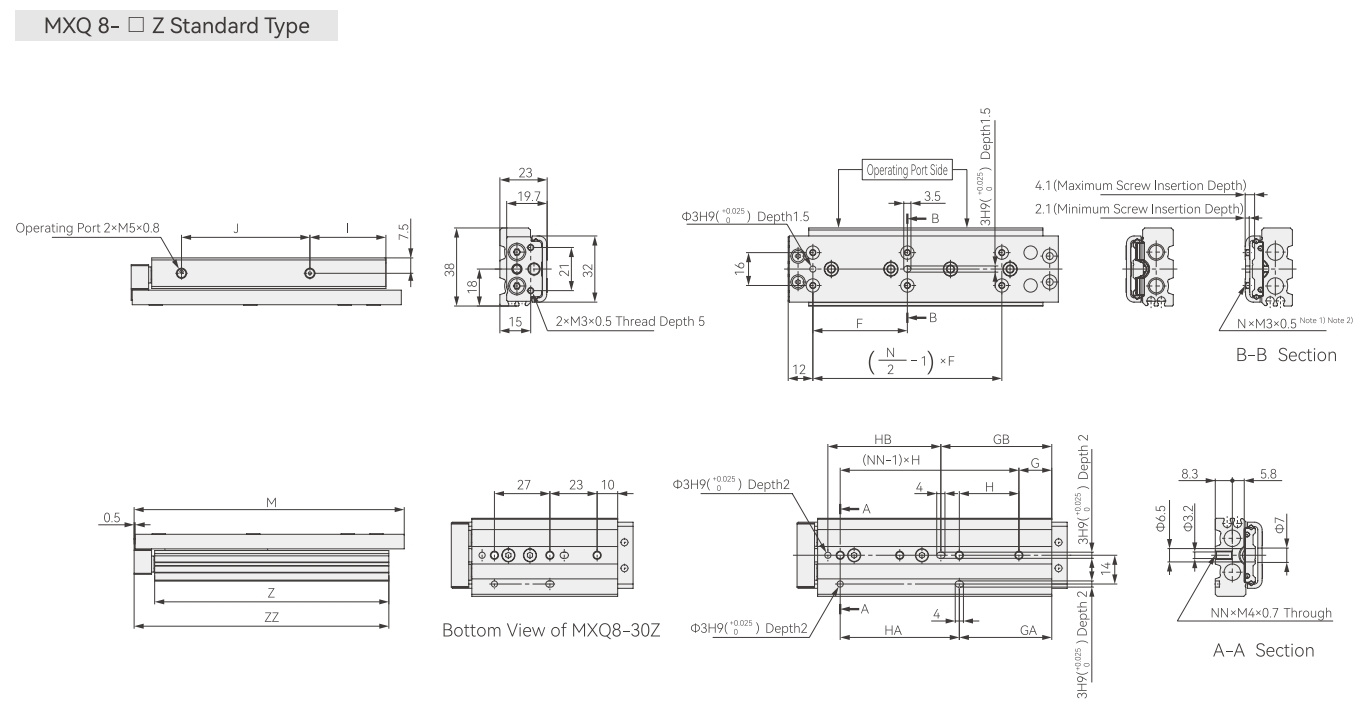

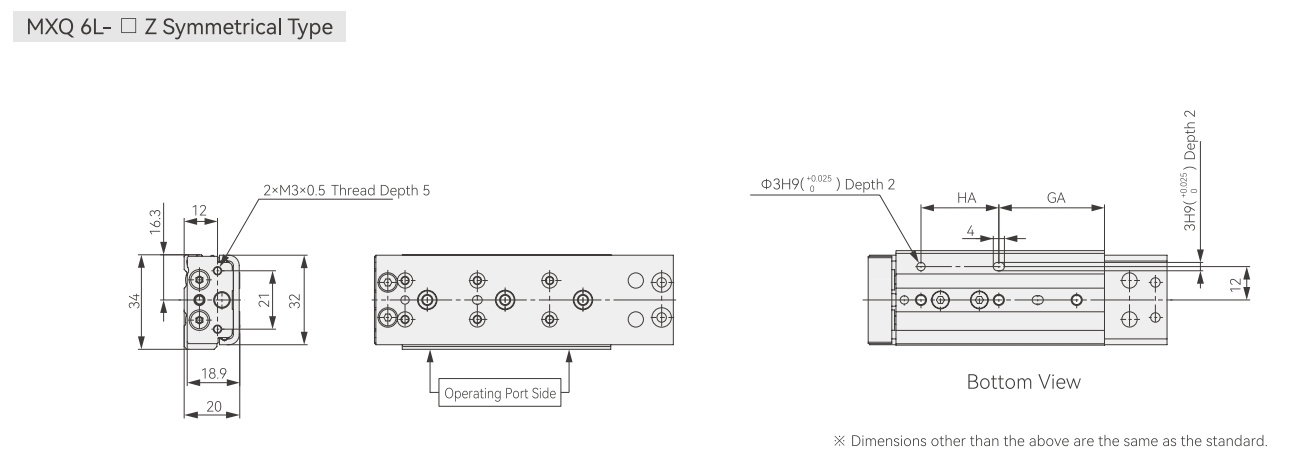

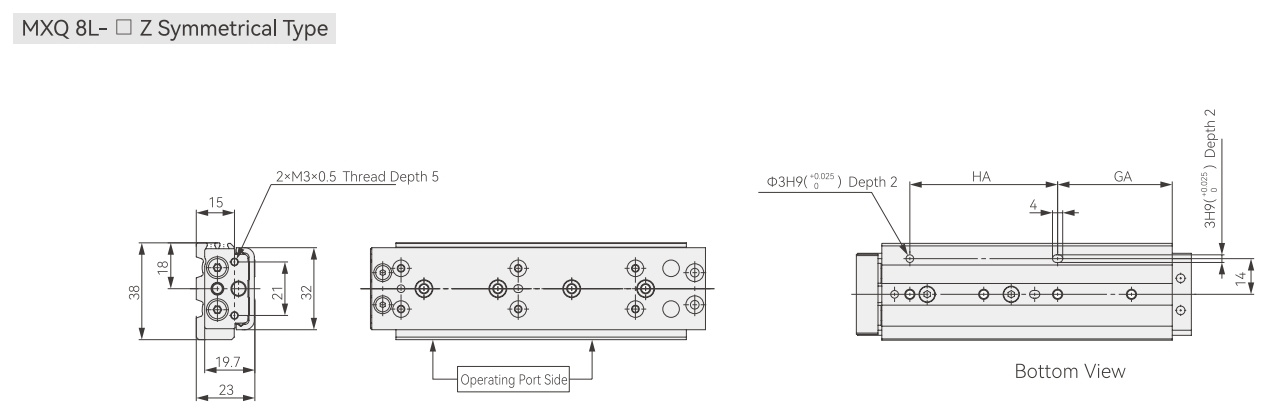

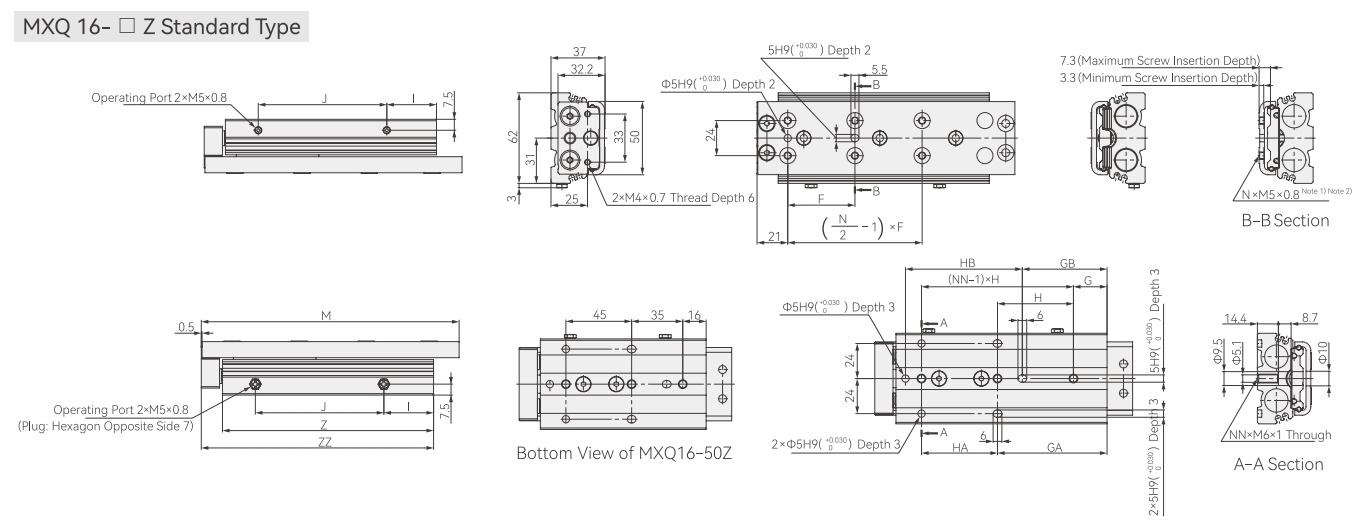

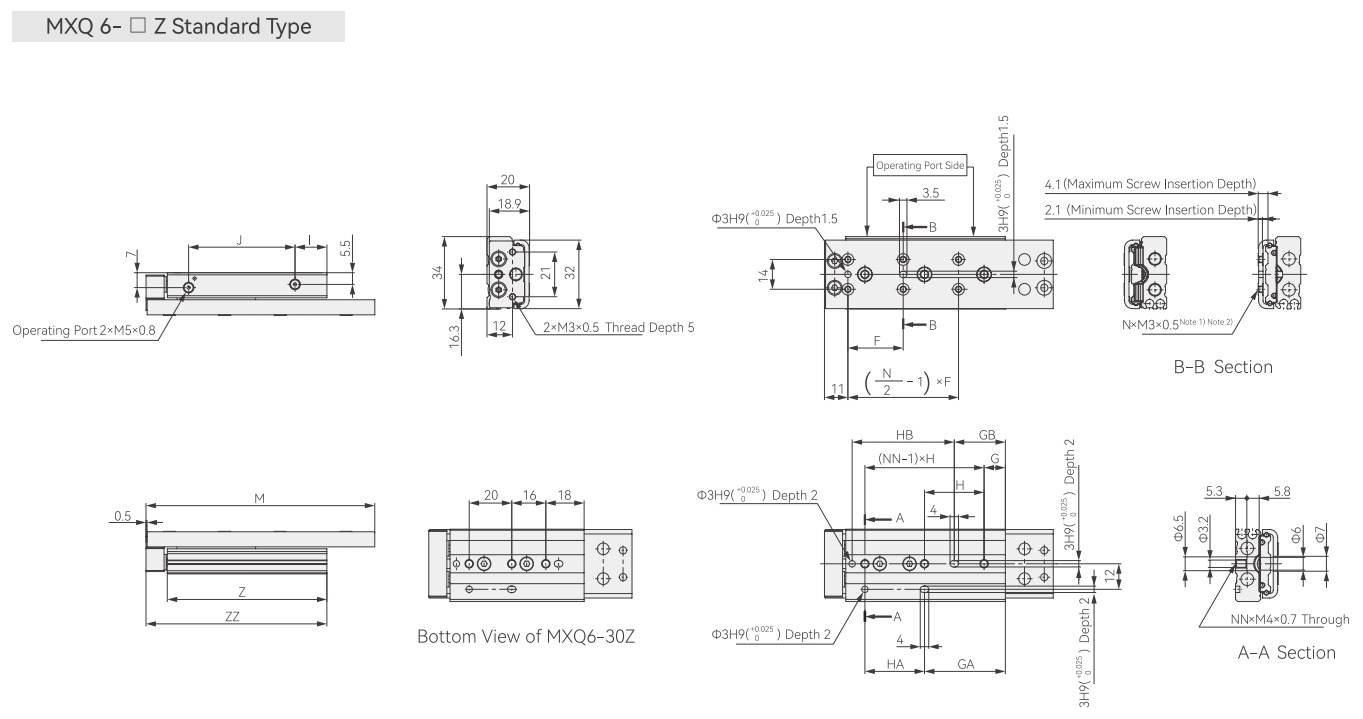

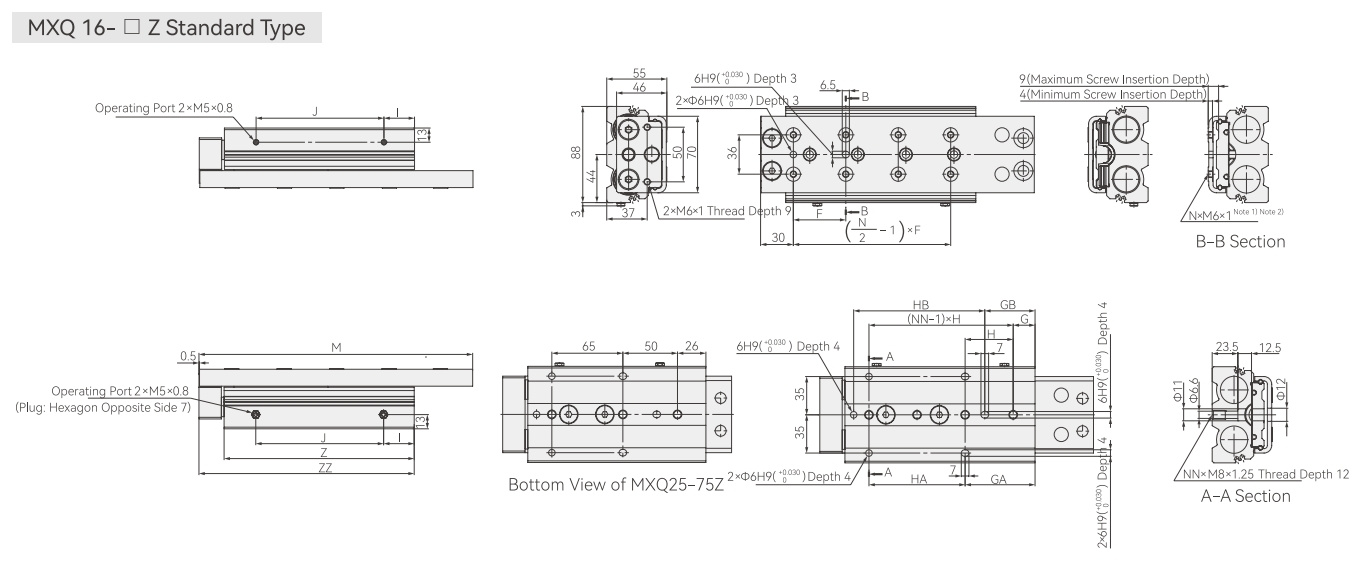

External Specifications

[Note 1] If the screw for fixing the workpiece is too long,it w hit the guide block and cause poor action. Please use screws with a length between the maximum screw insertion depth and the minimum screw insertion depth.
