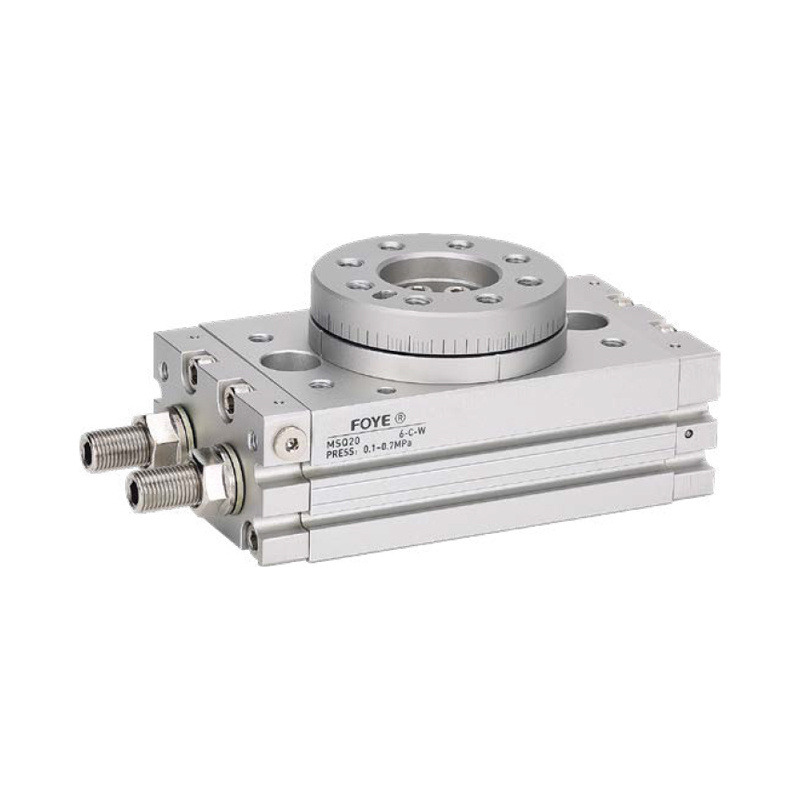

FMSQ Series Rotary Table - Rack and Pinion Type

The FMSQ Series Rotary Table - Rack and Pinion Type is the best solution for precision machining and workpiece handling. Designed for professionals who demand precision and reliability, the FMSQ Series Rotary Table - Rack and Pinion Type offers superior functionality that significantly improves operational efficiency.

At the heart of the FMSQ Series Rotary Table - Rack and Pinion Type lies its high precision design, using top-grade ball bearings to achieve an amazing ±0.01mm vertical and horizontal positioning accuracy. This high level of accuracy ensures that every project meets the highest standards, making the FMSQ Series Rotary Table - Rack and Pinion Type an indispensable tool for a wide range of industries from aerospace to automotive.

The rotary table is designed for easy workpiece mounting, streamlining workflow and minimizing downtime. The FMSQ Series Rotary Table - Rack and Pinion Type features a rolling bearing design with a load capacity 3 to 4 times greater than the CRQ Series, making it easy to handle even the most demanding tasks.

A highlight of the FMSQ Series Rotary Table - Rack and Pinion Type is the hollow shaft design, which allows for flexible introduction of wires or pipes, making it ideal for complex setups and applications. The standard angle adjustment device provides a wide adjustment range of 0 to 190°, allowing for precise positioning and flexible adjustments in your project.

To further enhance its functionality, the FMSQ Series Rotary Table - Rack and Pinion Type is equipped with a built-in magnetic ring that allows for easy installation of magnetic switches, bringing added convenience to users. This innovative feature integrates seamlessly with existing systems, ensuring maximum productivity without compromising quality.

The FMSQ Series Rotary Table - Rack and Pinion Type combines precision and performance to improve processing efficiency and increase operational effectiveness.

    Symbols

    Symbols

    Product Features

    •The high-precision type uses high-precision ball bearings, so the vertical and horizontal position accuracy is improved to ±0.01mm.
    •Rotary table type, convenient for workpiece installation.
    •Rolling bearing design, the load is 3 to 4 times larger than the CRQ series.
    •The swing is smooth and accurate.
    •The hollow shaft can be used to introduce wires or air pipes.
    •Standard with angle adjustment device; the adjustment angle range is large (0~190°)
    •Built-in magnetic ring; magnetic switch can be installed.

    Finished Product Order Code

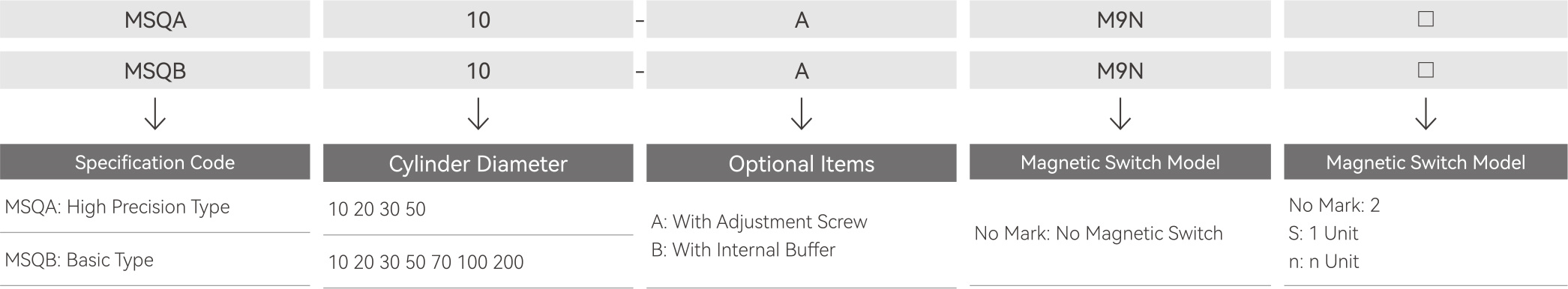

    Finished-Product-Order-Code

    Specifications

    Dimensions and Specifications 10 20 30 50 70 100 200
    Fluid Used Air (No Oil)
    Maximum Operating Pressure With Adjustment Screw 1MPa
    With Internal Buffer 0.6MPa [Note 1]
    Minimum Operating Pressure Basic Type 0.1 MPa
    High Precision Type 0.2MPa 0.1MPa -
    Environmental Temperature and Fluid Usage Temperature 0~60°C (But Not Frozen)
    Cushion With Adjustment Screw Cushion Pad
    With Internal Buffer
    Buffer Model RBA0805-X692 RBA1006-X692 RBA1411-X692 RBA2015-X821 RBA2725-X821
    Angle Adjustment Range 0~190°[Note 2]
    Maximum Swing Angle 190°
    Cylinder Inner Diameter Ф15 Ф18 Ф21 Ф25 Ф28 Ф32 Ф40

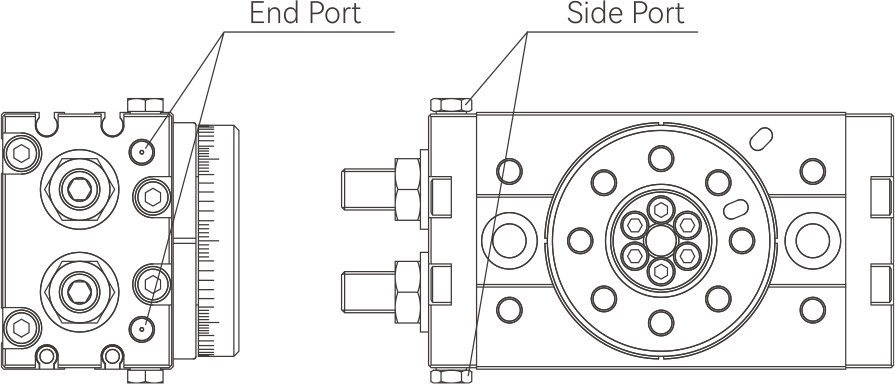

    Port Size End Piping M5x0.8 Rc1/8, G1/8, NPT1/8
    Side Piping M5x0.8
    [Note 1] The maximum allowable thrust of the buffer determines the highest operating pressure of the actuator.
    [Note 2] When setting the swing angle of the internal buffer, if it is less than the value in the table below, the effective stroke of the buffer and the effective stroke of the piston will be reduced,and the kinetic energy absorption capacity will decrease;please note.
    Dimensions and Specifications 10 20 30 50 70 100 200
    Minimum Swing Angle Without Decreasing Kinetic Energy Absorption Ability 52° 43° 40° 60° 71° 62° 82°
    The life of the hydraulic buffer varies with the use conditions and the swing table body. Please refer to the separate note column for replacement standards.
    Specifications
    Allowable Kinetic Energy and Swing Time Adjustment Range
    Dimensions and Specifications Allowable Kinetic Energy (J) [Note 1] Stable Swing Time Adjustment Range in Action (s/90°)
    With Adjustment Screw With Internal Buffer With Adjustment Screw With Internal Buffer[Note 2]
    10 0.007 0.039 0.2~1.0 0.2~0.7
    20 0.025 0.116
    30 0.048 0.116
    50 0.081 0.294
    70 0.24 1.1 0.2~1.5 0.2~1.0
    100 0.32 1.6 0.2~2.0
    200 0.56 2.9 0.2~2.5
    [Note 1] In the case of kinetic energy action exceeding the allowable value, the product interior may be damaged and cannot be used, so special attention should be paid not to exceed the allowable value of kinetic energy during design and operation.
    [Note 2] In the case where the swing time setting of the internal buffer is longer than the value in the table;the kinetic energy absorption ability of the hydraulic buffer is significantly reduced; please note.

    Swing Direction and Swing Angle

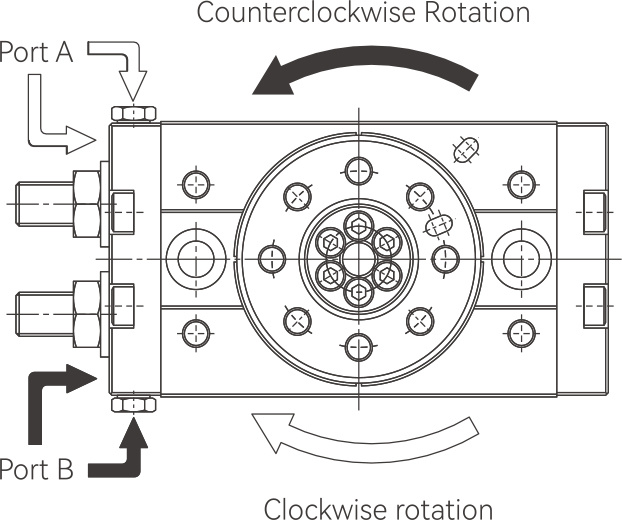

    When pressurized from port A, the swing table rotates clockwise, and when pressurized from port B, the swing table rotates counterclockwise.

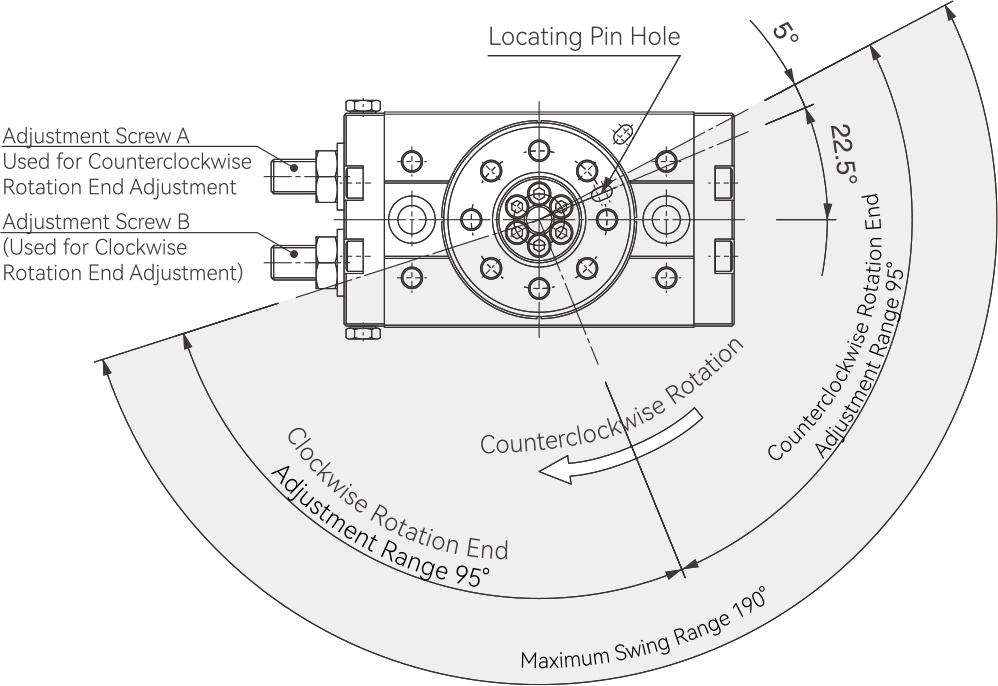

    By adjusting the adjustment screw, the rotation end can be set within the range shown in the figure below to obtain any swing angle.
    In the case of an internal hydraulic buffer, the swing angle can also be set.
    Swing-Direction-and-Swing-Angle
    Dimensions and Specifications Angle adjustment screw adjusts angle per revolution.
    10 10.2°
    20 7.2°
    30 6.5°
    50 8.2°
    70 7.0°
    100 6.1°
    200 4.9°
    Swing-Direction-and-Swing-Angle-2
    [Note]•This figure shows the swing range of the positioning pin hole.
    •The position of the pin hole in this figure represents the counterclockwise rotation end when the adjustment screws A and B are equally rotated to adjust the swing angle to 180°.

    Example of Swing Angle Range Setting

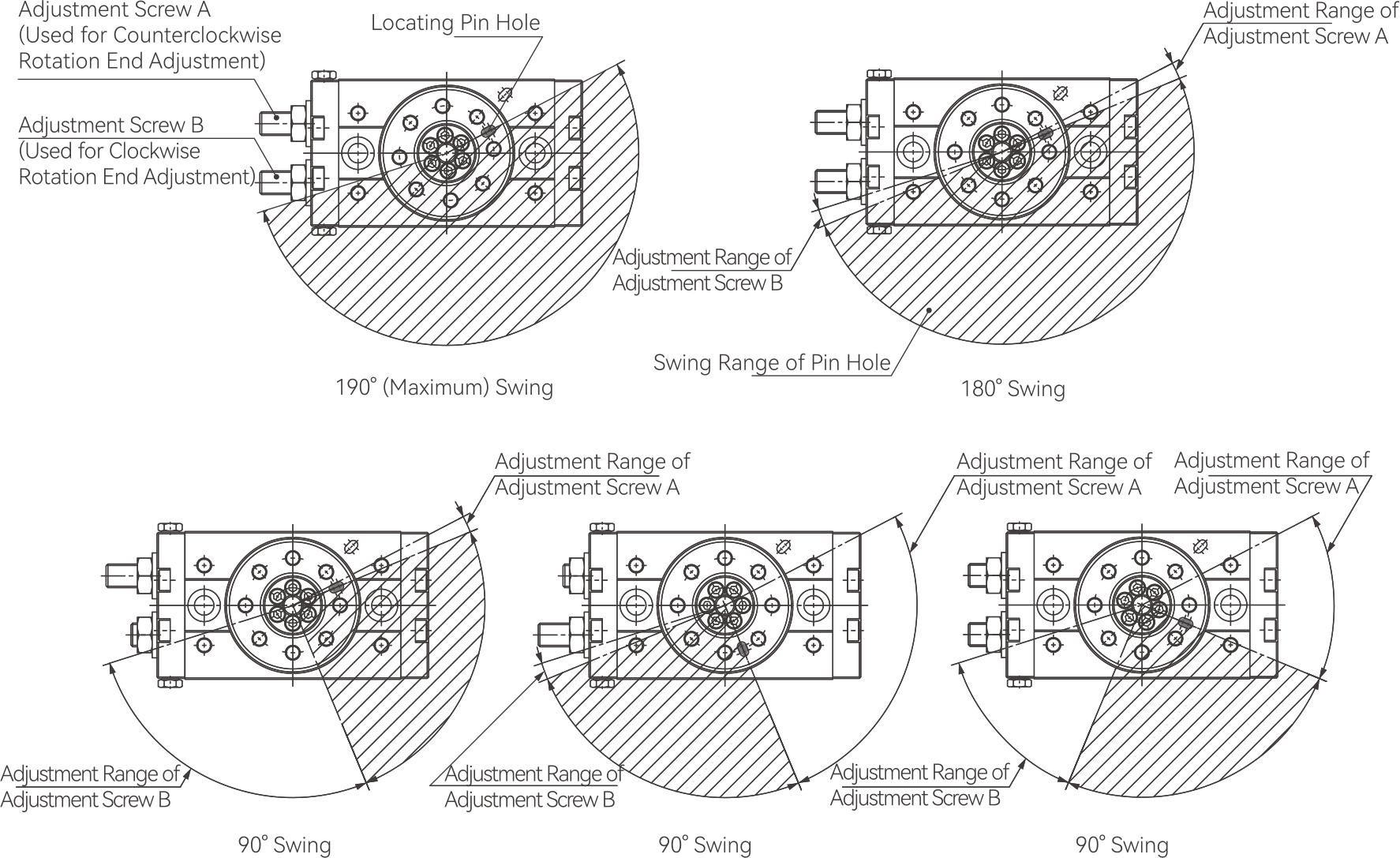

    By adjusting the adjustment screws A and B, different swing ranges can be set as shown in the figure below.
    (The figure shows the swing range of the positioning pin hole)
    In the case of an internal hydraulic buffer, the swing angle can also be set.
    Example-of-Swing-Angle-Range-Setting
    [Note] For other special strokes, please contact our company.

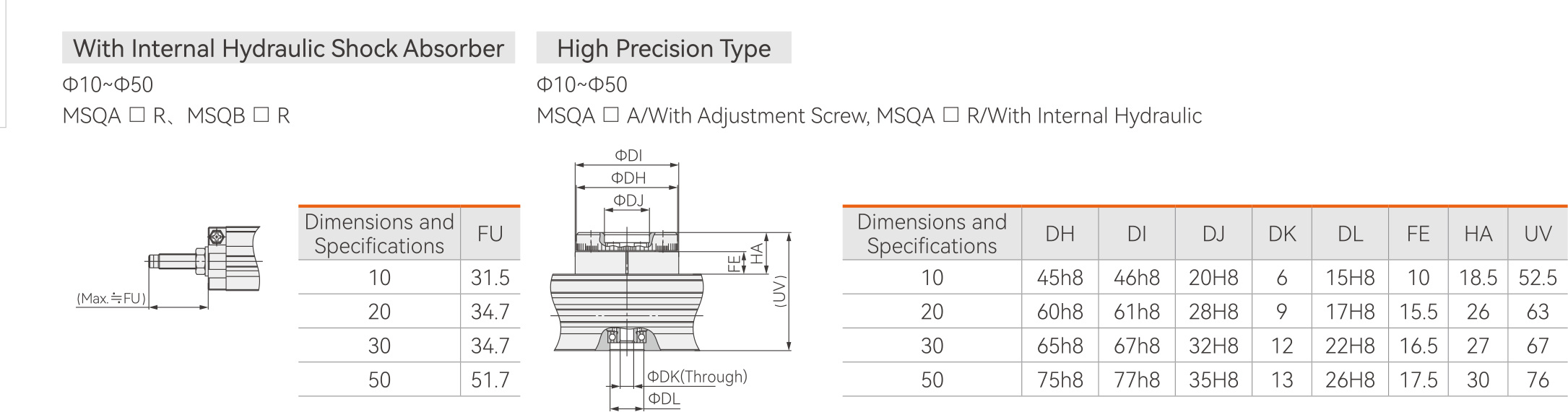

    External Specifications

    External-Specifications
    External-Specifications-2

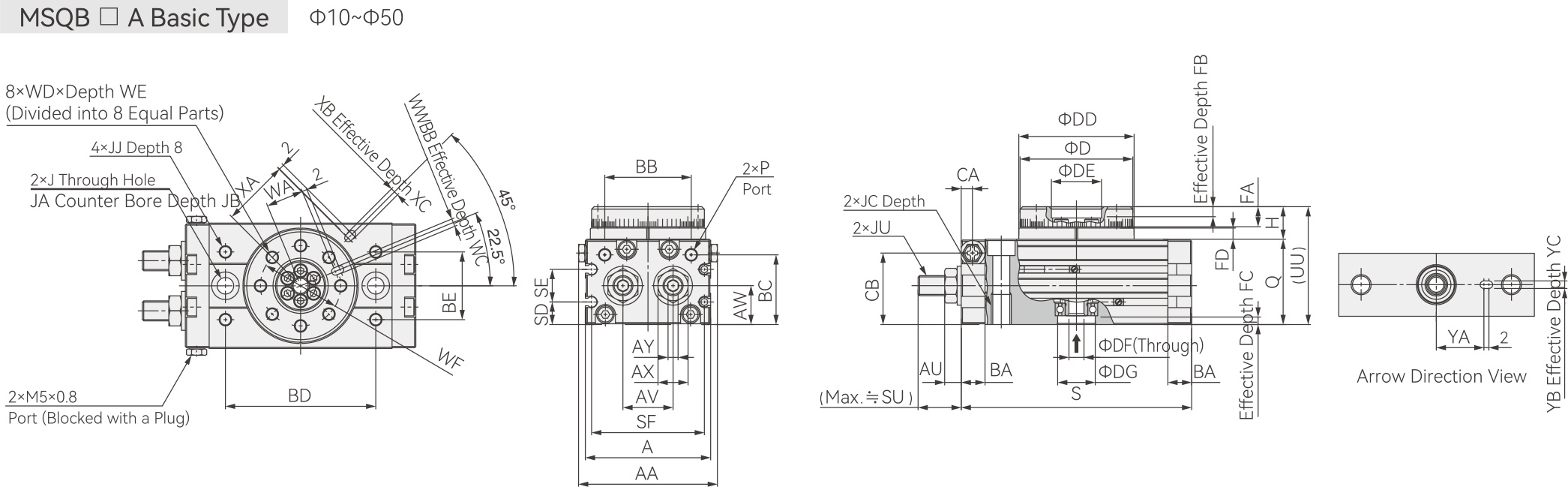

    Dimensions and Specifications AA A AU AV AW AX AY BA BB BC BD BE CA C 日 D DD DE DF DG FA FB FC FD H J JA JB
    10 55.4 50 6.6 20 15.5 12 4 9.5 34.5 27.8 60 27 4.5 28.5 45h9 46h9 20H9 6 15H9 8 4 3 4.5 13 6.8 11 6.5
    20 70.8 65 7.6 27.5 16 14 5 12 46 29 76 34 6 30.5 60h9 61h9 28H9 9 17H9 10 6 2.5 6.5 17 8.6 14 8.5
    30 75.4 70 7.6 29 18.5 14 5 12 50 32 84 37 6.5 33.5 65h9 67h9 32H9 12 22H9 10 4.5 3 6.5 17 8.6 14 8.5
    50 85.4 80 10 38 22 19 6 15.5 63 37.5 100 50 10 37.5 75h9 77h9 35H9 13 26H9 12 5 3 7.5 20 10.5 18 10.5
    Dimensions and Specifications JC JD JJ JU P Q S SD SE SF SU UU WA WB WC WD WE WF XA XB XC YA YB YC
    10 M8x1.25 12 M5x0.8 M8x1 M5x0.8 34 92 9 13 45 17.7 47 15 3H9 3.5 M5x0.8 8 32 27 3H9 3.5 19 3H9 3.5
    20 M10x1.5 15 M6x1 M10x1 M5x0.8 37 117 10 12 60 25 54 20.5 4H9 4.5 M6x1 10 43 36 4H9 4.5 24 4H9 4.5
    30 M10x1.5 15 M6x1 M10x1 Rc1/8※ 40 127 11.5 14 65 25 57 23 4H9 4.5 M6x1 10 48 39 4H9 4.5 28 4H9 4.5
    50 M12x1.75 18 M8x1.25 M14x1.5 Rc1/8※ 46 152 14.5 15 75 31.4 66 26.5 5H9 5.5 M8x1.25 12 55 45 5H9 5.5 33 5H9 5.5
    ※In addition to Rc1/8, you can also choose G1/8, NPT1/8.
    External-Specifications-3

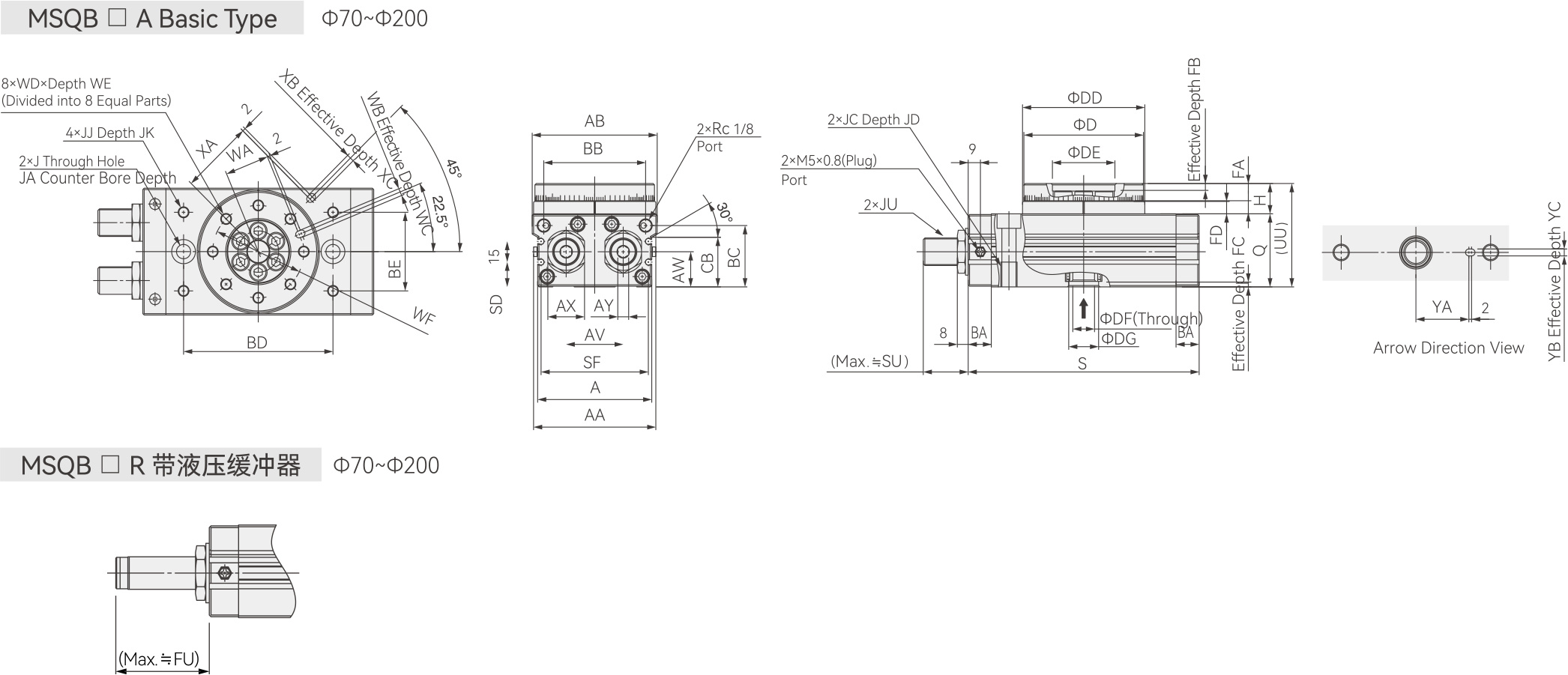

    Dimensions and Specifications AA AB A AV AW AX AY BA BB BC BD BE CB D DD DE DF DG FA FB FC FD H J JA JB FU
    70 90 92 84 42 25.5 27 8 17 75 44.5 110 57 36 88h9 90h9 46H9 16 22H9 12.5 5 3.5 9 22 10.4 17.5 10.5 55.4
    100 101 101 95 50 29.5 27 8 17 85 50.5 130 66 42 98h9 100h9 56H9 19 24H9 14.5 6 3.5 12 27 10.4 17.5 10.5 55.5
    200 119 119 113 60 36.5 36 10 24 103 65.5 150 80 57 116h9 118h9 64H9 24 32H9 16.5 9 5.5 15 32 14.2 20 12.5 79.5
    Dimensions and Specifications JC JD JJ JK JU Q S SD SF SU UU WA WB WC WD WE WF XA XB XC YA YB YC
    70 M12x1.75 18 M8x1.25 10 M20x1.5 53 170 18 79 34.2 75 32.5 5H9 5.5 M8x1.25 12.5 67 54 5H9 3.5 39 5H9 3.5
    100 M12x1.75 18 M8x1.25 10 M20x1.5 59 189 22 90 34.3 86 37.5 6H9 6.5 M10x1.5 14.5 77 59 6H9 4.5 49 6H9 4.5
    200 M16x2 25 M12x1.75 13 M27x1.5 74 240 29 108 40.2 106 44 8H9 8.5 M12x1.75 16.5 90 69 8H9 4.5 54 8H9 6.5
