Ml Series Stainless Steel Mini Cylinder.jpg

FMl Series Stainless Steel Mini Cylinder

Designed to meet the diverse needs of modern industrial applications, the FMI series of stainless steel mini cylinders combine precision engineering with superior performance to ensure reliability and efficiency in every operation.

FMI series stainless steel mini cylinders are available in a variety of specifications to meet various operating needs. The inner diameters are 8 mm, 10 mm, 12 mm, 16 mm, 20 mm, 25 mm, 32 mm and 40 mm, and the appropriate size can be selected according to the application. The cylinders are available in double-acting and single-acting configurations, including thrust and pulling types, which can be flexibly applied to different mechanical configurations.

With an operating pressure range of 0.15 to 1.0 MPa (22 to 145 psi) (1.5 to 10.0 bar) for double-acting cylinders and 0.2 to 1.0 MPa (28 to 145 psi) (2.0 to 10.0 bar) for single-acting cylinders, they can easily handle demanding tasks. Pressure resistance up to 1.5 MPa (215 psi) ensures that they can withstand the most severe working conditions without compromising performance.

High temperature resistance is another key feature of the FMI Series Stainless Steel Mini Cylinders. With an operating temperature range of -20°C to 70°C, the FMI Series Stainless Steel Mini Cylinders are suitable for a wide range of environments. The operating speed range is 30 to 800 mm/s for double-acting cylinders and 50 to 800 mm/s for single-acting cylinders, allowing for precise motion control.

FMI series stainless steel mini cylinders include adjustable buffers for MIC series and anti-collision pads for other series, which can improve safety and reduce wear during operation. The pipe diameters are M5x0.8, PT1/8 and PT1/4, which are easy to install and compatible with existing systems.

The FMI Series stainless steel mini cylinders combine durability and performance to enhance automated processes and keep operations running smoothly and efficiently.

    Contact us
    product details

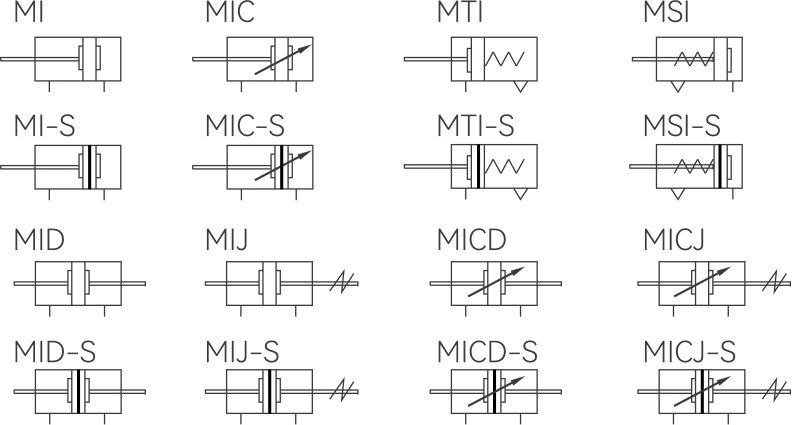

    Symbols

    Symbols

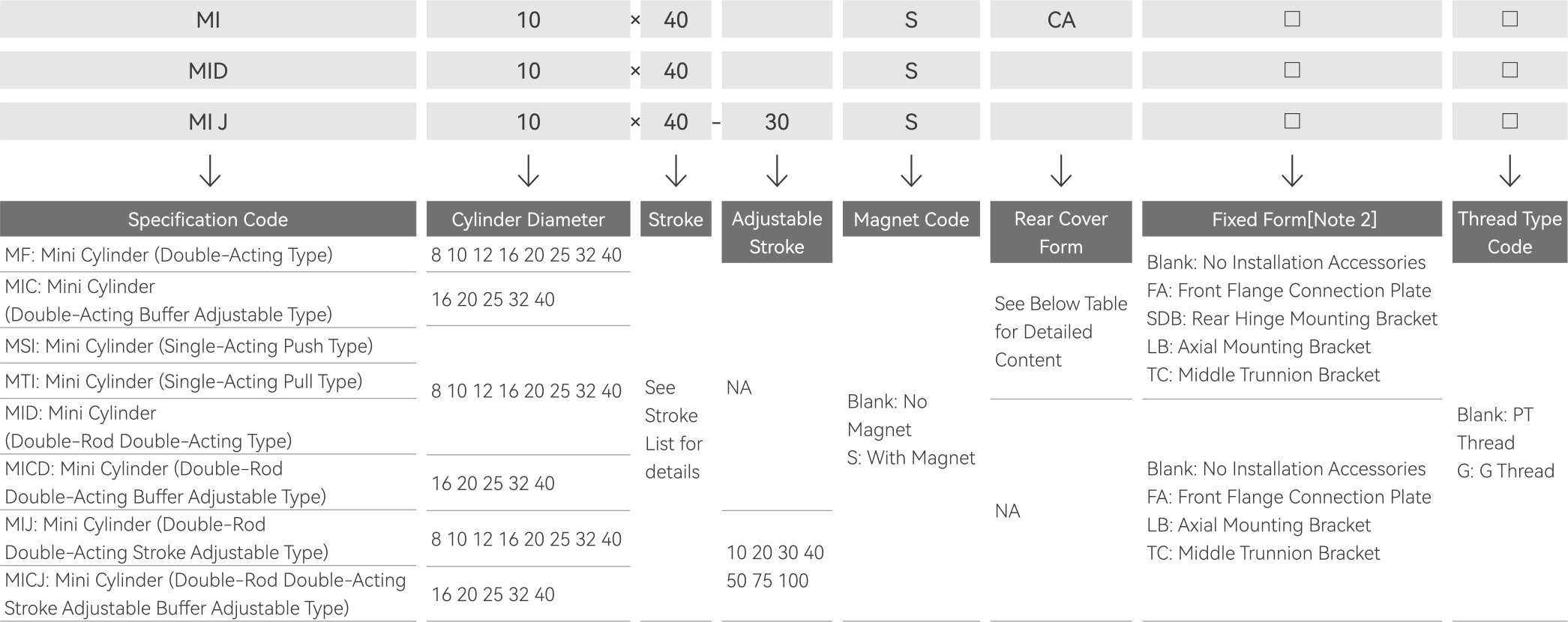

    Finished Product Order Code

    Finished-Product-Order-Code
    Specifications Rear Cover Form Applicable Cylinder Diameter
    M MSI MTI CA: Swing Tail Type Φ8~Φ25
    U: Radial Intake Type Φ8~Φ40
    R: Axial Intake Type Φ16~Φ40
    CM: Round Tail Type Φ16~Φ40
    MIC CA: Swing Tail Type Φ16~Φ25
    U: Radial Intake Type Φ16~Φ40
    CM: Round Tail Type Φ16~Φ40
    Others NA
    [Note 1] Single-acting push type refers to the piston rod exending when the air is on,the front spring is compressed,and when the air is off,the piston rod retacts to its original position under the reset force of the spring.
    Single-acting pull type refers to the piston rod retracting when the air is on,the rear spring is compresed,and when the air is off,the piston rod extends to its original position under the reset force of the spring.

    Specifications

    Inner Diameter (mm) 8 10 12 16 20 25 32 40
    Action Type Double-Acting Type, Single-Acting Push Type, Single-Acting Pull Type
    - Double-Acting Buffer Type
    Working Medium Air (filtered through a Filter Element with a pore size smaller than 40µm)
    Operating Pressure Range Double-Acting Type 0.15~1.0Mpa(22~145psi)(1.5~10.0bar)
    Single-Acting Type 0.2~1.0MPa(28~145psi)(2.0~10.0bar)
    Guaranteed Pressure Resistance 1.5MPa(215psi)(15bar)
    Operating Temperature℃ -20~70
    Operating Speed Range (mm/s) Double-ActingType:30~800 Single-ActingType:50~800
    Stroke Tolerance Range

    >
    Cushion Type MlC Series: Adjustable Buffer Other Series: Anti-Collision Pad
    Pipe Diameter[Note 1] M5x0.8 PT1/8 PT1/4

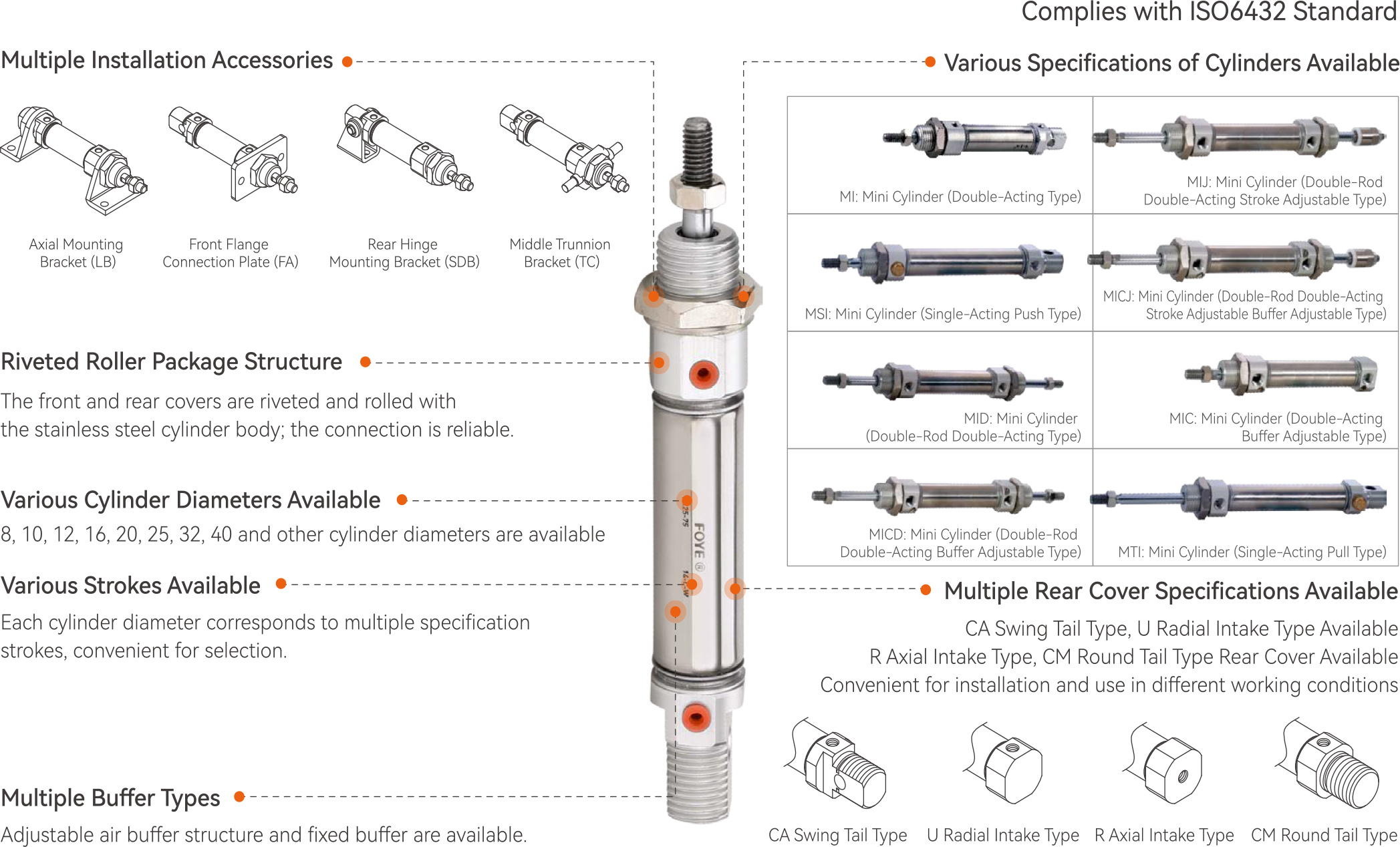

    Overview of Ml Series Products

    Overview-of-Ml-Series-Products

    Cylinder Theoretical Output Table

    Cylinder Inner Diameter Piston Rod Outer Diameter Mode of Operation Pressure Area(mm') Air Pressure(MPa)
    0.1 0.2 0.3 0.4 0.5 0.6 0.7
    8 4 Push Single-Acting 50.2 - 3.6 8.6 13.6 18.6 23.6 28.7
    Pull Single-Acting 37.7 - 1 4.8 8.6 12.3 16.1 19.9
    Double- Acting Push Side 50.2 5.0 10.1 15.1 20.1 25.1 30.1 35.2
    Pull Side 37.7 3.7 7.5 11.3 15.1 18.8 22.6 26.4
    10 4 Push Single-Acting 78.5 - 5.9 13.8 21.6 29.5 37.3 45.2
    Pull Single-Acting 65.9 - 3.4 10.0 16.6 23.2 29.8 36.4
    Double- Acting Push Side 78.5 7.9 15.7 23.6 31.4 39.3 47.1 55
    Pull Side 65.9 6.6 13.2 19.8 26.4 33 39.5 46.1
    12 6 Push Single-Acting 113.0 - 10.1 21.4 32.7 44 55.3 66.6
    Pull Single-Acting 84.8 - 4.5 12.9 21.4 29.9 38.4 46.9
    Double- Acting Push Side 113.0 11.3 22.6 33.9 45.2 56.5 67.8 79.1
    Pull Side 84.8 8.5 17 25.4 33.9 42.4 50.9 59.4
    16 6 Push Single-Acting 201.0 - 14.6 34.7 54.8 74.9 95.0 115.1
    Pull Single-Acting 172.7 - 8.9 26.2 43.5 60.8 78.0 95.3
    Double- Acting Push Side 201.0 20.1 40.2 60.3 80.4 100.5 120.6 140.7
    Pull Side 172.7 17.3 34.5 51.8 69.1 86.4 103.6 120.9
    20 8 Push Single-Acting 314.0 - 25.3 56.7 88.1 119.5 150.9 182.3
    Pull Single-Acting 263.8 - 15.3 41.6 68.0 94.4 120.8 147.1
    Double- Acting Push Side 314.0 31.4 62.8 94.2 125.6 157.0 188.4 219.8
    Pull Side 263.8 26.4 52.8 79.1 105.5 131.9 158.3 184.7
    25 10 Push Single-Acting 490.6 - 43.1 92.2 141.3 190.3 239.3 288.4
    Pull Single-Acting 412.1 - 27.4 68.6 109.8 151.1 192.3 233.5
    Double- Acting Push Side 490.6 49.1 98.1 147.2 196.2 245.3 294.4 343.4
    Pull Side 412.1 41.2 82.4 123.6 164.8 206.1 247.3 288.5
    32 12 Push Single-Acting 804.3 30.2 110.9 191.3 277.1 352.1 432.6 513.0
    Pull Single-Acting 691.2 19.1 88.2 157.4 226.5 295.6 364.7 388.8
    Double- Acting Push Side 804.3 80.4 160.9 241.3 321.7 402.2 482.6 563.0
    Pull Side 691.2 69.1 138.2 207.4 276.5 345.6 414.7 483.8
    40 16 Push Single-Acting 1256.6 64.7 190.3 316.0 441.7 567.3 693.0 818.7
    Pull Single-Acting 1055.6 44.6 150.1 255.7 361.2 466.8 572.4 677.9
    Double- Acting Push Side 1256.6 125.7 251.3 377.0 502.6 628.3 754.0 879.6
    Pull Side 1055.6 105.6 211.1 316.7 422.2 527.8 633.4 738.9

    Installation and Use (General Purpose)

    •When the load changes during operation, a cylinder with ample output force should be selected.
    •Under high temperature or corrosive conditions,a corresponding high-temperature resistant or
    corrosion-resistant cylinder should be selected.
    •In environments with high humidity, lots of dust,or presence of water droplets, oil dust, and welding slag,appropriate protective measures should be taken for the cylinder.
    •Before the cylinder is connected to the pipeline, the dirt inside the pipeline must be cleared to prevent foreign objects from entering the cylinder.
    •The medium used in the cylinder should be filtered through a filter element with a pore size smaller than 40µm before use.
    •In low-temperature environments, anti-freezing measures should be taken to prevent the water in the system from freezing.
    •Before using the cylinder, it should be run under no load. Before running, the buffer should be minimized and gradually relaxed to avoid damaging the cylinder due to excessive impact.
    •During the operation of the cylinder, avoid lateral loads as much as possible to maintain the normal operation of the cylinder and extend its service life.
    •lf the cylinder is disassembled and not used for a long time,attention should be paid to surface rust prevention,dust-proof caps should be added to the intake and exhaust ports, and special attention: the front and rear covers cannot be disassembled by the user independently.

    Product Features

    •Complies with lS06432 standard (Ф8 ~ Ф25).
    •The front and rear covers have a fixed anti-collision pad to reduce the switching impact of the cylinder;
    •Multiple rear cover forms make the cylinder installation more convenient;
    •The front and rear covers are riveted and rolled with the stainless steel cylinder body, the connection is reliable
    •Stainless steel piston rod and cylinder body make the cylinder adapt to the general corrosive working environment.
    •A variety of cylinder specifications and cylinder installation accessories are available for customers to choose.

    Stroke

    Inner Diameter(mm)   Standard Stroke (mm) Maximum Stroke Allowable Stroke
    MI 8 10 15 20 25 30 40 50 60 75 80 100 125 150 150 200
    10 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 200 200
    12 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 250 500
    MI MIC 16 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500 500 600
    20/25/32/40 500 800
    MID MIJ 8 10 15 20 25 30 40 50 60 75 80 100 100 -
    10 10 15 20 25 30 40 50 60 75 80 100 100 -
    12 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 200 -
    MID MIJ MICD MICJ 16/20 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 300 -
    25 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 300 -
    32 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500 500 -
    40 500 -
    MSI MTI 8/10/12 10 15 20 25 30 40 50 - -
    16 10 15 20 25 30 40 50 60 75 80 100 - -
    20/25/32/40 10 15 20 25 30 40 50 60 75 80 100 125 150 - -
    [Note] For other special strokes, please contact our company.

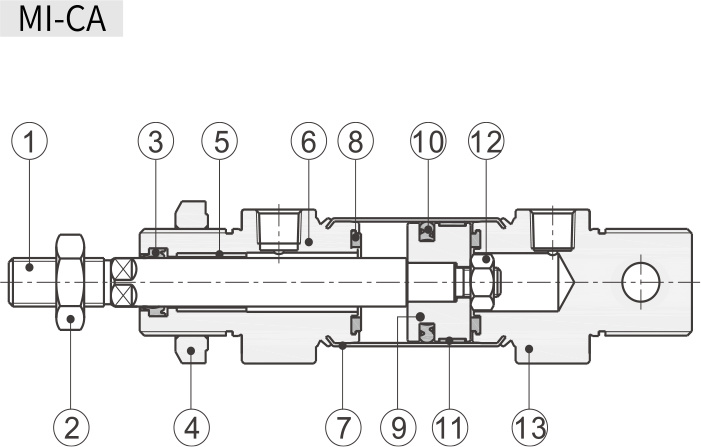

    Internal Structure and Main Component Materials

    Internal-Structure-and-Main-Component-Materials
    NO. Name Material
    1 Piston Rod SUS304
    2 Hex Nut Carbon Steel
    3 Front Cover O-Ring NBR
    4 Hex Nut Carbon Steel
    5 Bushing Wear-Resistant Material
    6 Front Cover Aluminum Alloy
    7 Cylinder Body SUS304(Ф8~Ф12)/ SUS316L(Ф16~Ф40)
    No. Name Material
    8 Bumper Pad TPU
    9 Piston SUS303(Ф8~Ф12)// Aluminum Alloy(Others)
    10 Piston O-Ring NBR
    11 Wear- Resistant Pad Wear-Resistant Material
    12 Hex Nut Carbon Steel
    13 Rear Cover Aluminum Alloy

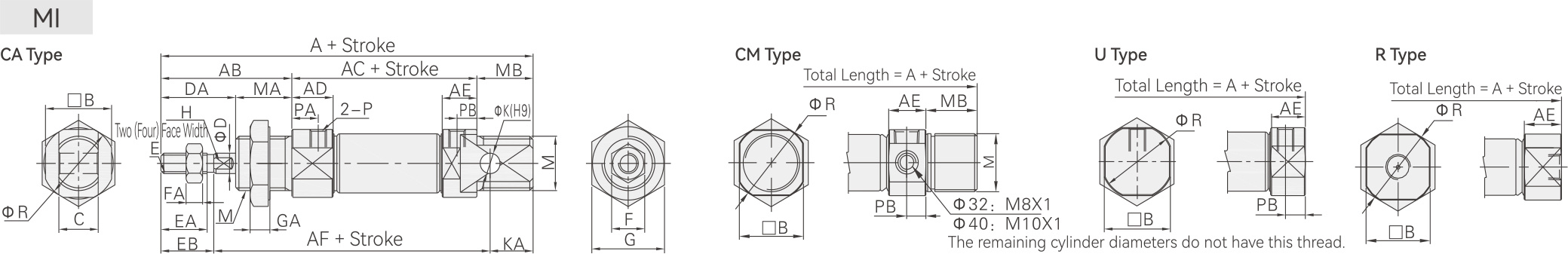

    External Specifications

    External-Specifications
    Cylinder Diameter/ Symbols A AB AC AD AE AF B C D DA E EA EB F FA G GA H K KA M MA MB P PA PB R
    Rear Cover Form CA U R CM CA U/R/CM CA U/CM
    8 86 74 - - 28 46 11.5 9.5 9.5 64 15 8 4 16 M4×0.7 10.5 12 7 3 17 6 - 4 10 M12×1.25 12 12 M5×0.8 7 5 5 17
    10 86 74 - - 28 46 11.5 9.5 9.5 64 15 8 4 16 M4×0.7 10.5 12 7 3 17 6 - 4 10 M12×1.25 12 12 M5×0.8 7 5 5 17
    12 105 88 - - 38 50 12.5 10.5 10.5 75 18 12 6 21 M6×1.0 14.5 16 10 5 22 6 5㈡ 6 14 M16×1.5 17 17 M5×0.8 8 6 6 20
    16 111 94 94 111 38 56 12.5 10.5 10.5 82 20 12 6 21 M6×1.0 14.5 16 10 5 22 6 5㈡ 6 13 M16×1.5 17 17 M5×0.8 8 6 6 22
    20 126 106 106 126 44 62 14.5 14.5 14.5 95.5 25 16 8 24 M8×1.25 18 19.5 12 6 29 7 6㈡ 8 11 M22×1.5 20 20 RT1/8 7.5 7.5 7.5 29
    25 137 114.5 115 137 50 65 16 16 16 104.5 30 16 10 28 M10×1.25 20 21.5 17 6 29 7 8㈣ 8 11 M22×1.5 22 22 RT1/8 8 8 8 33.5
    32 - 125 126 140 58 - 16.5 - 16.5 - 34.5 - 12 28 M10×1.25 18.5 20 17 6 36 7 10㈣ - - M30×1.5 30 14 RT1/8 9 - 8/9 37.5
    40 - 158 158 174 69 - 22 - 22 - 42.5 - 16 34 M12×1.25 22.5 24 17 7 46 8 14㈣ - - M38×1.5 35 16 RT1/8 12 - 11.5/12 46.5
    [Note] The size of the magnetic type and the non-magnetic type is the same.

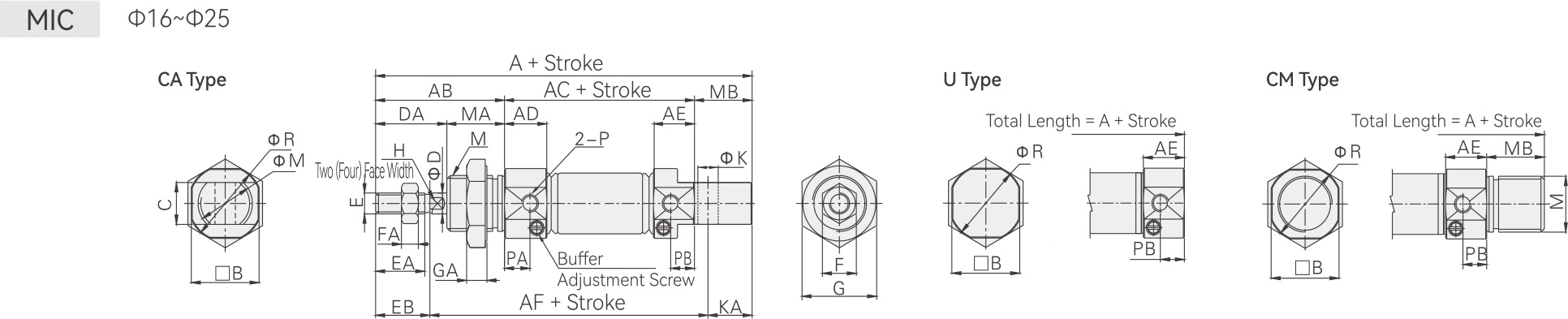

    External-Specifications-2
    Cylinder Diameter/ Symbols A AB AC AD AE AF B C D DA E EA EB F FA G GA H K KA M MA MB P PA PB R
    Rear Cover Form CA/CM U CA/CM U
    16 111 94 38 56 12.5 12 12 82 20 12 6 21 M6×1.0 14.5 16 10 5 22 6 5㈡ 6 13 M16×1.5 17 17 M5×0.8 7.5 7 22
    20 126 106 44 62 14.5 14.5 14.5 95.5 25 16 8 24 M8×1.25 18 19.5 12 6 29 7 6㈡ 8 11 M22×1.5 20 20 PT1/8 7.5 7.5 29
    25 137 114.5 50 65 16 16 14.5 140.5 30 16 10 28 M10×1.25 20 21.5 17 6 29 7 8㈣ 8 11 M22×1.5 22 22 PT1/8 8 8 33.5
    [Note] The size of the magnetic type and the non-magnetic type is the same.
    External-Specifications-3

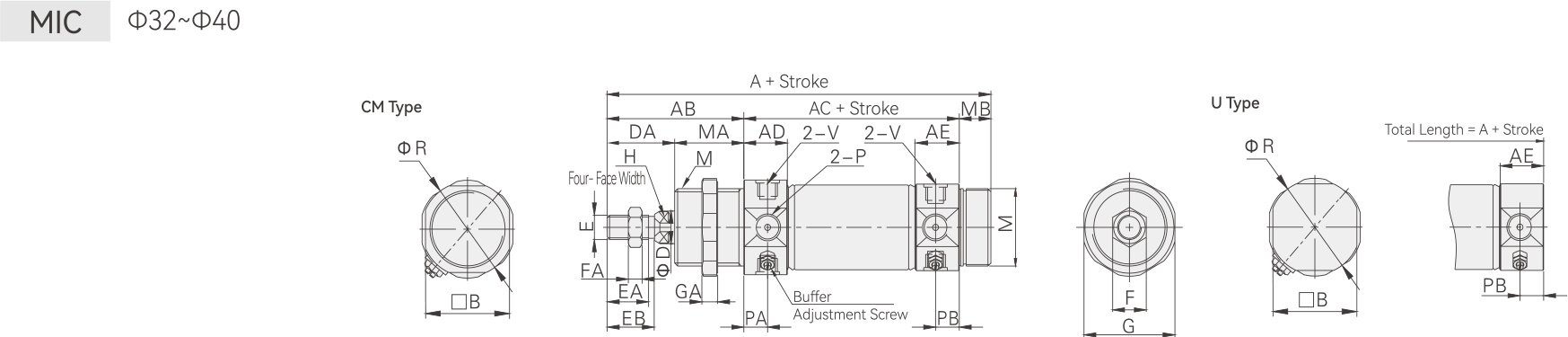

    Cylinder Diameter/ Symbols A AB AC AD AE B D DA E EA EB F FA G GA H M MA MB P PA PB R V
    Rear Cover Form U CM U CM U CM
    32 124 140 58 68 16.5 14.5 16.5 34.5 12 28 M10×1.25 18.5 20 17 6 36 7 10(Four) M30×1.5 30 14 PT1/8 9 7.5 9 37.5 M8×1
    40 157.5 174 69 89 22 21.5 22 42.5 16 34 M12×1.25 22.5 24 17 7 46 8 14(Four) M38×1.5 35 16 PT1/4 12 11.5 12 46.5 M10×1
    [Note] The size of the magnetic type and the non-magnetic type is the same.
    External-Specifications-4

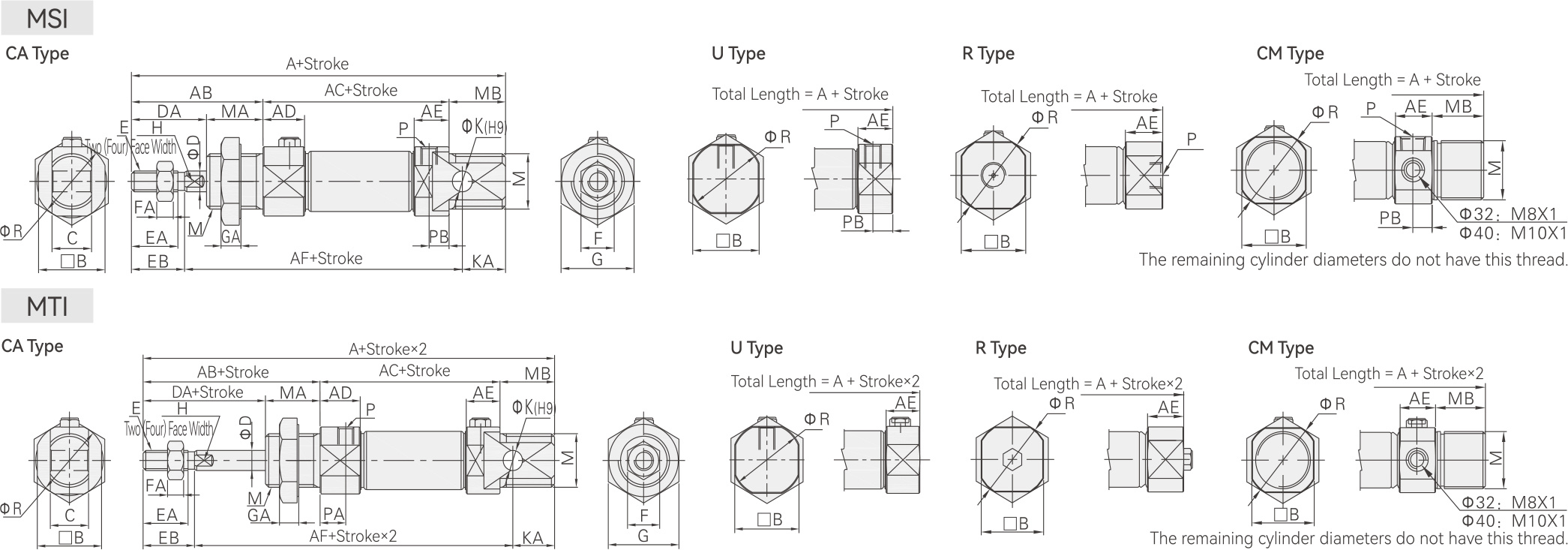

    Symbols A AB AC AD AF
    Rear Cover Form CA U R CM - - - -
    Cylinder Diameter/ Stroke 0～50 51～100 101～150 0～50 51～100 101～150 0～50 51～100 101～150 0～50 51～100 101～150 - 0～50 51～100 101～150 - 0～50 51～100 101～150
    8 111 - - 99 - - - - - - - - 28 71 - - 11.5 89 - -
    10 111 - - 99 - - - - - - - - 28 71 - - 11.5 89 - -
    12 130 - - 113 - - - - - - - - 38 75 - - 12.5 100 - -
    16 136 161 - 119 144 - 119 144 - 136 161 - 38 81 106 - 12.5 107 132 -
    20 151 176 201 131 156 181 131 156 181 151 176 201 44 87 112 137 14.5 120.5 145.5 170.5
    25 162 187 212 139.5 164.5 189.5 140 165 190 162 187 212 50 90 115 140 16 129.5 154.5 179.5
    32 - - - 150 175 200 151 176 201 165 190 215 58 - - - 16.5 - - -
    40 - - - 183 208 233 183 208 233 199 224 249 69 - - - 22 - - -
    Cylinder Diameter/ Symbols AE B C D DA E EA EB F FA G GA H K KA M MA MB P PA PB
    Rear Cover Form CA U/R/CM CA U/CM
    8 9.5 9.5 15 8 4 16 M4×0.7 10.5 12 7 3 17 6 - 4 10 M12×1.25 12 12 M5×0.8 7 5 17
    10 9.5 9.5 15 8 4 16 M4×0.7 10.5 12 7 3 17 6 - 4 10 M12×1.25 12 12 M5×0.8 7 5 17
    12 10.5 10.5 18 12 6 21 M6×1.0 14.5 16 10 5 22 6 5(Two) 6 14 M16×1.5 17 17 M5×0.8 8 6 20
    16 10.5 10.5 20 12 6 21 M6×1.0 14.5 16 10 5 22 6 5(Two) 6 13 M16×1.5 17 17 M5×0.8 8 6 22
    20 14.5 14.5 25 16 8 24 M8×1.25 18 19.5 12 6 29 7 6(Two) 8 11 M22×1.5 20 20 PT1/8 7.5 7.5 29
    25 16 16 30 16 10 28 M10×1.25 20 21.5 17 6 29 7 8(Four) 8 11 M22×1.5 22 22 PT1/8 8 8 33.5
    32 - 16.5 34.5 - 12 28 M10×1.25 18.5 20 17 6 36 7 10(Four) - - M30×1.5 30 14 PT1/8 9 - 37.5
    40 - 22 42.5 - 16 34 M12×1.25 22.5 24 17 7 46 8 14(Four) - - M38×1.5 35 16 PT1/4 12 - 46.5
    [Note] The size of the magnetic type and the non-magnetic type is the same.
    External-Specifications-5

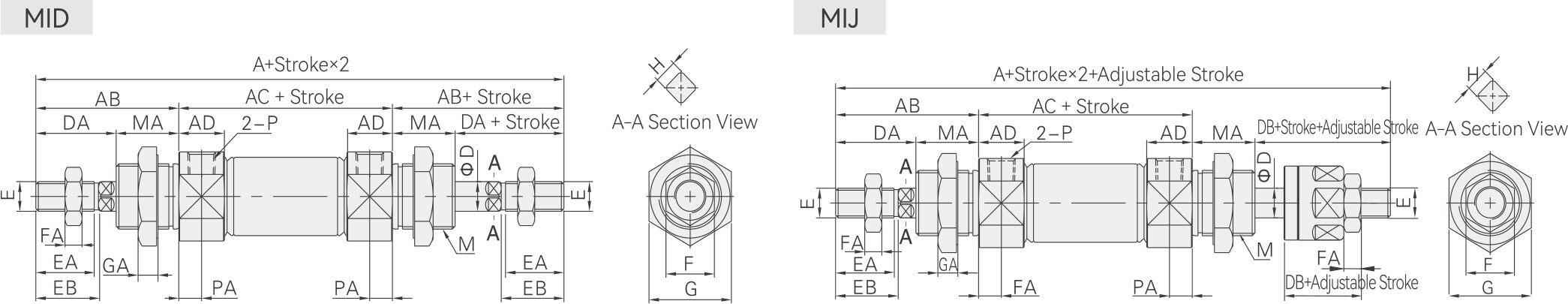

    Cylinder Diameter/ Symbols A(MID) A(MIJ) AB AC AD D DA DB E EA EB F FA G GA H M MA P PA
    8 104 103 28 48 11.5 4 16 15 M4×0.7 10.5 12 7 3 17 6 - M12×1.25 12 M5×0.8 7
    10 104 103 28 48 11.5 4 16 15 M4×0.7 10.5 12 7 3 17 6 - M12×1.25 12 M5×0.8 7
    12 128 128 38 52 12.5 6 21 21 M6×1.0 14.5 16 10 5 22 6 5(Two) M16×1.5 17 M5×0.8 8
    16 134 134 38 58 12.5 6 21 21 M6×1.0 14.5 16 10 5 22 6 5(Two) M16×1.5 17 M5×0.8 8
    20 150 151 44 62 14.5 8 24 25 M8×1.25 18 19.5 12 6 29 7 6(Two) M22×1.5 20 PT1/8 7.5
    25 165 164 50 65 16 10 28 27 M10×1.25 20 21.5 17 6 29 7 8(Four) M22×1.5 22 PT1/8 8
    32 184 183 58 68 16.5 12 28 27 M10×1.25 18.5 20 17 6 36 7 10(Four) M30×1.5 30 PT1/8 9
    40 227 222 69 89 22 16 34 29 M12×1.25 22.5 24 17 7 46 8 14(Four) M38×1.5 35 PT1/4 12
    [Note] The size of the magnetic type and the non-magnetic type is the same.
    External-Specifications-6

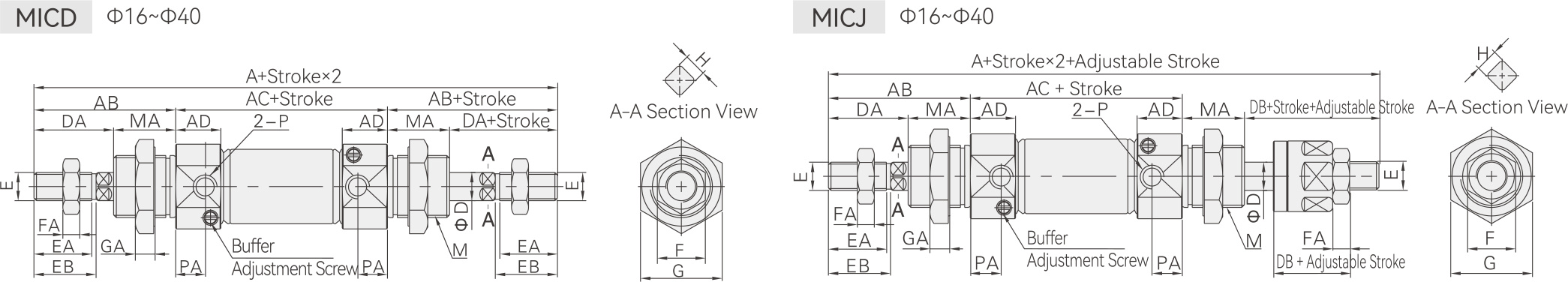

    Cylinder Diameter/ Symbols A(MICD) A(MICJ) AB AC AD D DA DB E EA EB F FA G GA H M MA P PA
    16 132.5 132.5 38 56.5 12.5 6 21 21 M6×1.0 14.5 16 10 5 22 6 5 M16×1.5 17 M5×0.8 7.5
    20 150 151 44 62 14.5 8 24 25 M8×1.25 18 19.5 12 6 29 7 6 M22×1.5 20 PT1/8 7.5
    25 165 164 50 65 16 10 28 27 M10×1.25 20 21.5 17 6 29 7 8 M22×1.5 22 PT1/8 8
    32 184 183 58 68 16.5 12 28 27 M10×1.25 18.5 20 17 6 36 7 10 M30×1.5 30 PT1/8 9
    40 227 222 69 89 22 16 34 29 M12×1.25 22.5 24 17 7 46 8 14 M38×1.5 35 PT1/4 12
    [Note] The size of the magnetic type and the non-magnetic type is the same.

    Accessory Order Code List

    Cylinder Diameter / Accessory Category Installation Accessories Piston Rod End Joint Sensor
    LB FA SDB TC I Joint Y Joint Floating Joint Fisheye Connector CMSG DMSG
    8 F-MI10LB F-MI8FA F-MI8SDB F-MI10TC F-M4X070I F-M4X070Y F-M4X070F F-M4X070U CMSG DMSG
    10
    12 F-MI12LB F-MA16FA F-MI12SDB F-MI12TC F-M6X100I F-M6X100Y F-M6X100F F-M6X100U
    16
    20 F-MI20LB F-MA20FA F-MI20SDB F-MI20TC F-M8X125I F-M8X125Y F-M8X125F F-M8X125U
    25 F-M10X125I F-M10X125Y F-M10X125F F-M10X125U
    32 F-MI32LB - F-MI32SDB F-MI32TC
    40 F-MI40LB - F-MI40SDB F-MI40TC F-M12X125I F-M12X125Y F-M12X125F F-M12X125U

    Accessory Selection

    Cylinder Series Accessory Category Installation Accessories Piston Rod End Connector[Note 1] Sensor
    LB FA SDB TC I Y U F CMSG DMSG
    MI MIC Standard Type ● ● ● ● ● ● ● ● × ×
    With-Magnet Type ● ● ● ● ● ● ● ● ● ●
    MSI MTI Standard Type ● ● ● ● ● ● ● ● × ×
    With-Magnet Type ● ● ● ● ● ● ● ● ● ●
    MID MICD Standard Type ● ● × ● ● ● ● ● × ×
    With-Magnet Type ● ● × ● ● ● ● ● ● ●
    MIJ MICJ Standard Type ● ● × ● ● ● ● ● × ×
    With-Magnet Type ● ● × ● ● ● ● ● ● ●

    Accessory Material

    Cylinder Diameter / Accessory Category Installation Accessories Piston Rod End Joint
    LB FA SDB TC I Y F U
    8～40 △ △ △ ▲ □ □ □ □
    ▲--SUS304;△--SPCC;□--Carbon Steel

    Accessory External Specifications

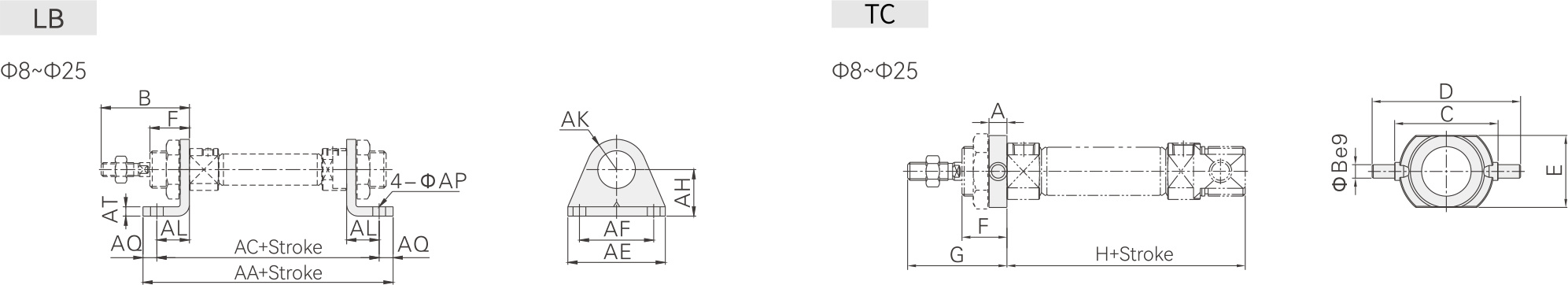

    Accessory-External-Specifications

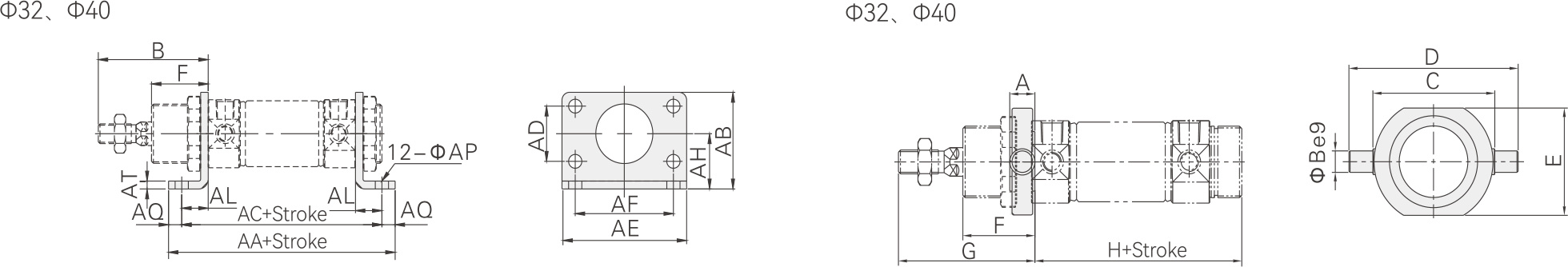

    Accessory-External-Specifications-2
    Cylinder Diameter/ Symbols AA AB AC AD AE AF AH AK AL AP AQ AT B F
    8 78 - 68 - 35 25 16 10 11 4.5 5 2 28 12
    10 78 - 68 - 35 25 16 10 11 4.5 5 2 28 12
    12 90 - 78 - 42 32 20 13 14 5.5 6 2.5 38 17
    16 96 - 84 - 42 32 20 13 14 5.5 6 2.5 38 17
    20 112 - 96 - 54 40 25 20 17 7 8 3 44 20
    25 115 - 99 - 54 40 25 20 17 7 8 3 50 22
    32 110 49 96 28 66 52 28 - 14 7 7 3.5 58 30
    40 149 58 129 30 80 60 33 - 20 9 9 3.5 69 35
    Cylinder Diameter/ Symbols A B C D E F G H
    8 6 4 26 38 20 12 28 58
    10 6 4 26 38 20 12 28 58
    12 8 6 38 58 25 17 38 67
    16 8 6 38 58 25 17 38 73
    20 8 6 46 66 32 20 44 82
    25 8 6 46 66 32 22 50 87
    32 11 9 54 74 45 31.5 59.5 80.5
    40 12 10 64 84 55 36.5 70.5 103.5

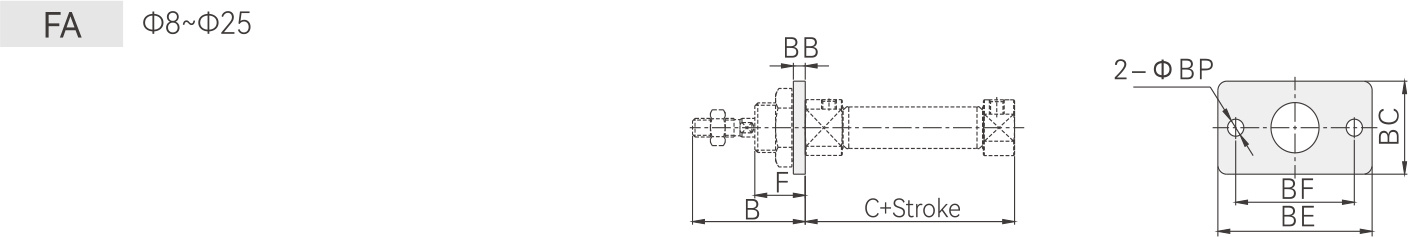

    Accessory-External-Specifications-3
    Cylinder Diameter/ Symbols B C BB BC BE BF BP F
    8 28 46 2 22 40 30 4.5 12
    10 28 46 2 22 40 30 4.5 12
    12 38 50 3 26 52 40 5.5 17
    16 38 56 3 26 52 40 5.5 17
    20 44 62 3.5 38 64 50 7 20
    25 50 65 3.5 38 64 50 7 22

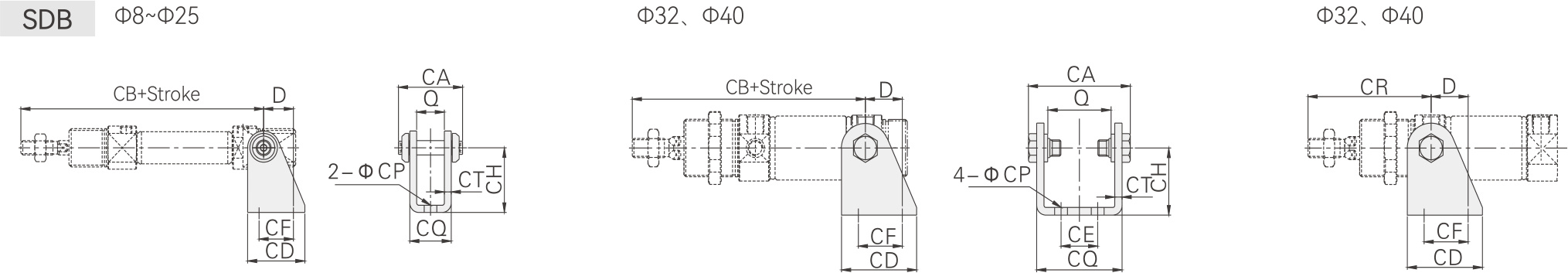

    Accessory-External-Specifications-4
    Cylinder Diameter/ Symbols D Q CA CB CD CE CF CH CP CQ CT CR
    8 11 8.1 16.4 76 20 - 12.5 24 4.5 12.1 2 -
    10 11 8.1 16.4 76 20 - 12.5 24 4.5 12.1 2 -
    12 13 12.1 26 91 25 - 15 27 5.5 16.1 2 -
    16 13 12.1 26 98 25 - 15 27 5.5 16.1 2 -
    20 16 16.1 35 115 32 - 20 30 7 21.1 2.5 -
    25 16 16.1 35 126 32 - 20 30 7 21.1 2.5 -
    32 20 34.6 53.6 117 41 20 24 35 7 44.6 3 67
    40 27 42.6 65.6 146 52 28 30 40 9 54.6 3 81
    [Note] SDB Rear Hinge Mounting Bracket with Corresponding PlN

    Leave Your Message
