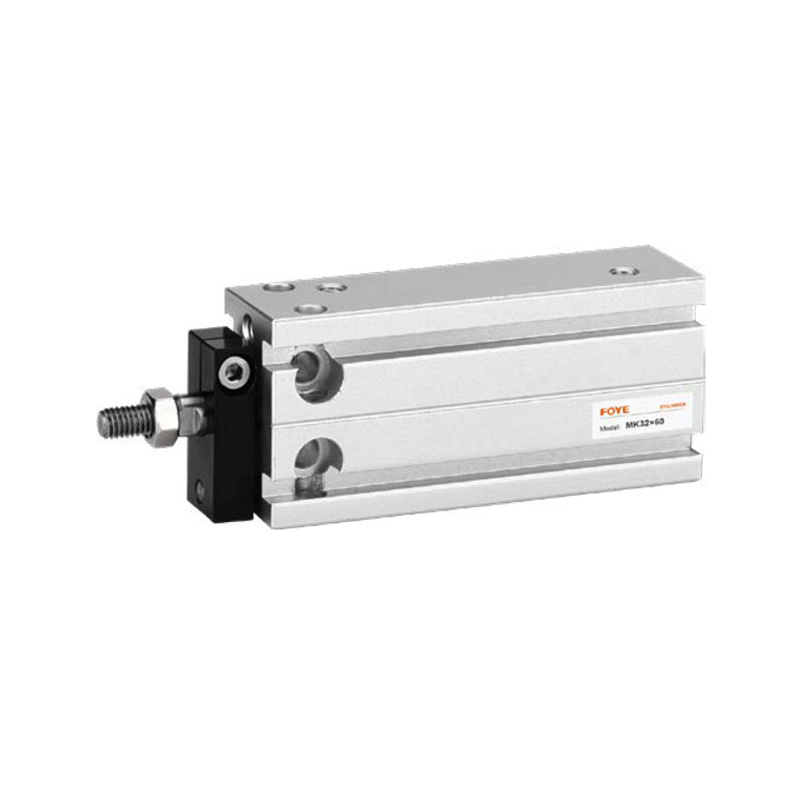

FMK Multi-Position Fixed-Type Cylinder

·Implementing corporate standards.
·Various body fixation methods make it easy to install and use.
·Multiple cylinders can be fixed in parallel, effectively saving installation space.
·Precision-guided piston rod requires no other lubrication.
·Equipped with a piston rod fixing block to ensure non-rotation of the piston rod;
·Multiple specifications of cylinders are available for customer selection.
·Selection of high-temperature resistant sealing materials ensures the cylinder operating normally even at 150℃.(This is an optional item)

product details

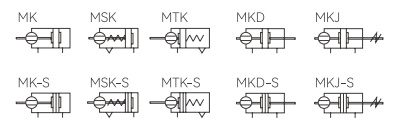

Symbols

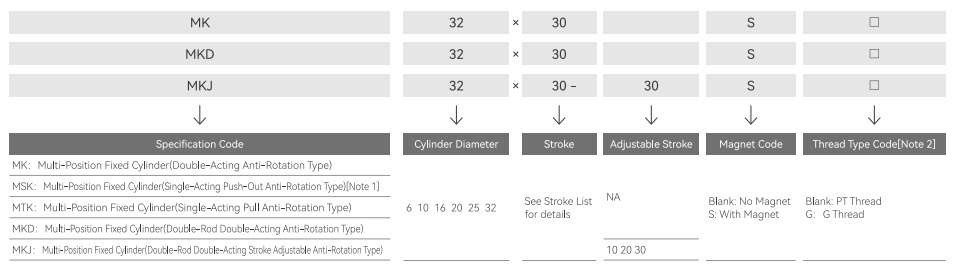

Finished Product Order Code

[Note 1] single-acting push type refers to the piston rod extending when the air ls on, the front spring is compressed, and when the it is off. the piston rod extends to its original position under the reset force of the spring, single-acting pull type refers to the piston rod retracting when the air is on, the rear spring is compressed, and when the air is of, the piston rod extends to its original position under the reset force of the spring.

[Note 2] when the pipe joint is of M5 thread, this code is blank.

Specifications

Inner Diameter (mm)		6	10	16	20	25	32
Mode of Operation	MK/MKD/MKJ	Double-Acting Type
	MSK/MTK	Single-Acting Push Type, Single-Acting Pull Type
Working Medium		Air (filtered through a Filter Element with a pore size smaller than 40μm)
Operating Pressure Range	Double-Acting Type	0.15~10MPa(22~145psi)
	Single-Acting Type	0.2-1.0MPa(28~145psi)
Guaranteed Pressure Resistance		1.5MPa(215psi)
Operating Temperature (℃ )		-20~70
Operating Speed Range (mm/s)		Double-Acting Type:30-500 Single-ActingType50~500
Stroke Tolerance Range		+1.0 0
Cushion Type		Bumper Pad
Pipe Diameter [Note]		M5x0.8					PT1/8

[Note] PT Thread and G Thread are available for Pipe Thread.

Stroke

Inner Diameter (mm)		Standard Stroke(mm)	Maximum Stroke
6	Double-Acting	5 10 15 20 25 30 35	35
6	Single-Acting	5 10 15 20	20
10	Double-Acting	5 10 15 20 25 30 35	35
10	Single-Acting	5 10 15 20	20
16	Double-Acting	5 10 15 20 25 30 40 50	50
16	Single-Acting	5 10 15 20	20
20	Double-Acting	5 10 15 20 25 30 40 50 60	60
20	Single-Acting	5 10 15 20	20
25	Double-Acting	5 10 15 20 25 30 40 50 60	60
25	Single-Acting	5 10 15 20	20
32	Double-Acting	5 10 15 20 25 30 40 50 60	60
32	Single-Acting	5 10 15 20	20

[Note] 1. Within the allowable stroke range, when the stroke > maximum stroke,it is treated as non-standard; for other special strokes, please contact our company.

Non-standard strokes within the max mum stoke range are modified from the previous standard stoke, and their dimensions are the same as those of the previous standard stroke cylinder, for example, a non-standard stroke cylinder with a stroke of 23 is modified from a standard cylinder with a standard stoke of 25, and its dimensions are the same.

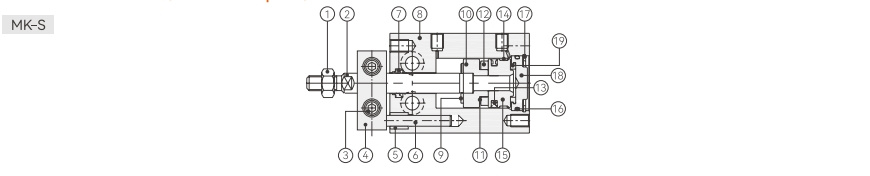

Installation and Use (General Purpose)

No.	Name	Material
1	Hex Nut	Low Carbon Steel or Stainless Steel
2	Piston Rod	Stainless Steel or S45C Hard Chrome Plated Grinding Rod
3	Hexagon Socket Screw	Alloy Steel
4	Non-Rotating Fixing Block	Aluminum Alloy
5	Bushing	Brass
6	Fixing Rod	Stainless Steel
7	Piston Rod O-Ring	NBR
8	Body	Aluminum Alloy
9	Bumper Pad (Ring)	TPU
10	Magnet Seat	Aluminum Alloy
11	Magnet	Sintered Neodymium iron Boron
12	Magnet Shim	NBR
13	Piston 0-Ring	NBR
14	Wear-Resistant Pad (Ring)	Wear-Resistant Material
15	Piston	Aluminum Alloy
16	O-Ring	NBR
17	C-shaped Retaining Ring	Spring Steel
18	Rear Cover	Aluminum Alloy
19	Bumper Pad (Ring)	TPU

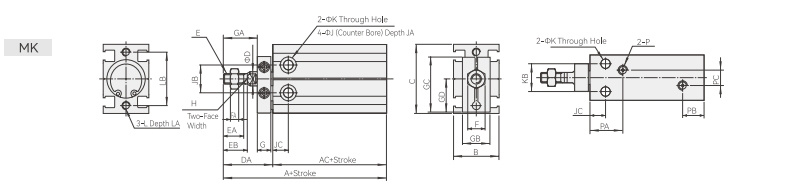

External Specifications

Cylinder Diameter/Symbol	A(without Magnet)	A(with Magnet)	AC(without Magnet)	AC(with Magnet)	B	C	D	DA	E	EA	EB	F	FA	G	GA	GB	GC	GD	H	J	JA	JB	JC	K	KB	L	LA	LB	P	PA	PB	PC
6	51	51	33	33	16.5	22	3	18	M3x0.5	7	8	5.5	2.5	8	9	11	19	10.7	-	6	5	10	7	3.3	7	M3x0.5	5	17	M5x0.8	14	10	-
10	57	57	36	36	16.5	24	4	21	M4x0.7	10	11	7	2	8	12	13	20.5	11.6	-	6	5.5	11	7	3.3	9	M3x0.5	5	18	M5x0.8	15.5	10	-
16	56	66	40	40	20	32	6	26	M5x0.8	11	12.5	8	4	8	17	13	26.5	15.6	5	7.5	6.5	14	7	4.5	12	M4x0.7	5	25	M5x0.8	14.5	10	3
20	65	75	46	46	26	40	8	29	M6x1.0	12	14	10	5	8	20	16	32	19.5	6	9.5	8	16	9	5.5	16	M5x0.8	7.5	30	M5x0.8	19.3	9.5	9
25	73	83	50	50	32	50	10	33	M8x1.25	15.5	18	12	6	10	22	19	40	24.5	8	9.5	9	20	10	5.5	20	M5x0.8	8	38	M5x0.8	20.5	8.5	12
32	84	94	52	52	40	62	12	42	M10x1.25	19.5	22	17	6	12	29	24	49	30.5	10	11	11.5	24	11	6.5	24	M6x1.0	9	48	PT1/8	22	12.5	13

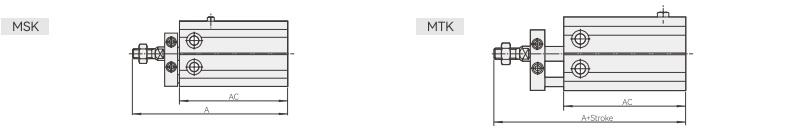

Symbols	A(without Magnet)				A(with Magnet)				AC(without Magnet)				AC(with Magnet)
Cylinder Diameter\ Symbol	5St	10St	15St	20St	5St	10St	15St	20St	5St	10St	15St	20St	5St	10St	15St	20St
6	61	66	76	81	61	66	76	81	43	48	58	63	43	48	58	63
10	67	72	82	87	67	72	82	87	46	51	61	66	46	51	61	66
16	71	76	91	96	81	86	101	106	45	50	65	70	55	60	75	80
20	80	85	100	105	90	95	110	115	51	56	71	76	61	66	81	86
25	88	93	108	113	98	103	118	123	55	60	75	80	65	70	85	90
32	99	104	119	124	109	114	129	134	57	62	77	82	67	72	87	92

[Note] The dimensions not specified are the same as the standard type.

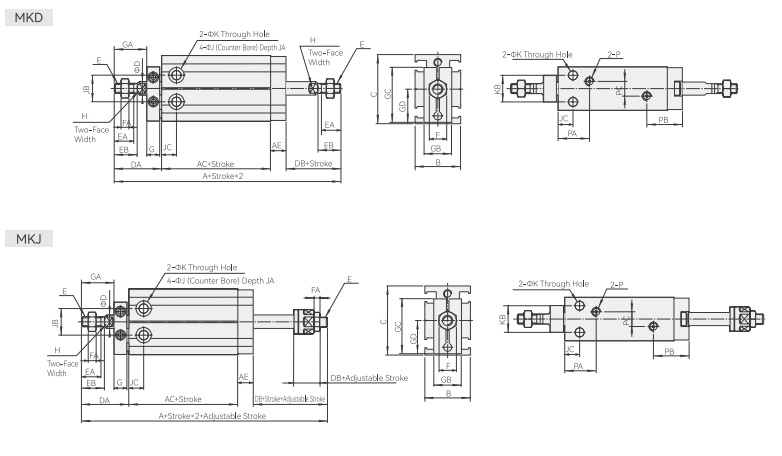

Cylinder Diameter\ Symbol	A(without Magnet)		A(with Magnet)		AC(without Magnet)	AC(with Magnet)	AE	B	C	D	DA	DB		E
Cylinder Diameter\ Symbol	MKD	MKJ	MKD	MKJ	AC(without Magnet)	AC(with Magnet)	AE	B	C	D	DA	MKD	MKJ	E
6	75	75	75	75	38	38	6	16.5	22	3	18	13	13	M3x0.5
10	79	78	79	78	36	36	6	16.5	24	4	21	16	14.7	M4x0.7
16	79.5	80.5	89.5	90.5	30	40	7.5	20	32	6	26	16	17	M5x0.8
20	93	95	103	105	36	46	9	26	40	8	29	19	21	M6x1.0
25	105	107	115	117	40	50	9	32	50	10	33	23	25	M8x1.25
32	121	121	131	131	42	52	10	40	62	12	42	27	27	M10x1.25

Cylinder Diameter\ Symbol	EA	EB	F	FA	G	GA	GB	GC	GD	H	J	JA	JB	JC	K	KB	P	PA	PB	PC
6	7	8	5.5	2.5	8	9	11	10.7	10.7	-	6	5	10	7	3.3	7	M5x0.8	14	16	-
10	10	11	7	2	8	12	13	11.6	11.6	-	6	5.5	11	7	3.3	9	M5x0.8	15.5	16	-
16	11	12.5	8	4	8	17	13	15.6	15.6	5	7.5	6.5	14	7	4.5	12	M5x0.8	14.5	17.5	3
20	12	14	10	5	8	20	16	19.5	19.5	6	9.5	8	16	9	5.5	16	M5x0.8	19.3	18.5	9
25	15.5	18	12	6	10	22	19	24.5	24.5	8	9.5	9	20	10	5.5	20	M5x0.8	20.5	17.5	12
32	19.5	22	17	6	12	29	24	30.5	30.5	10	11	11.5	24	11	6.5	24	PT1/8	22	22.5	13
