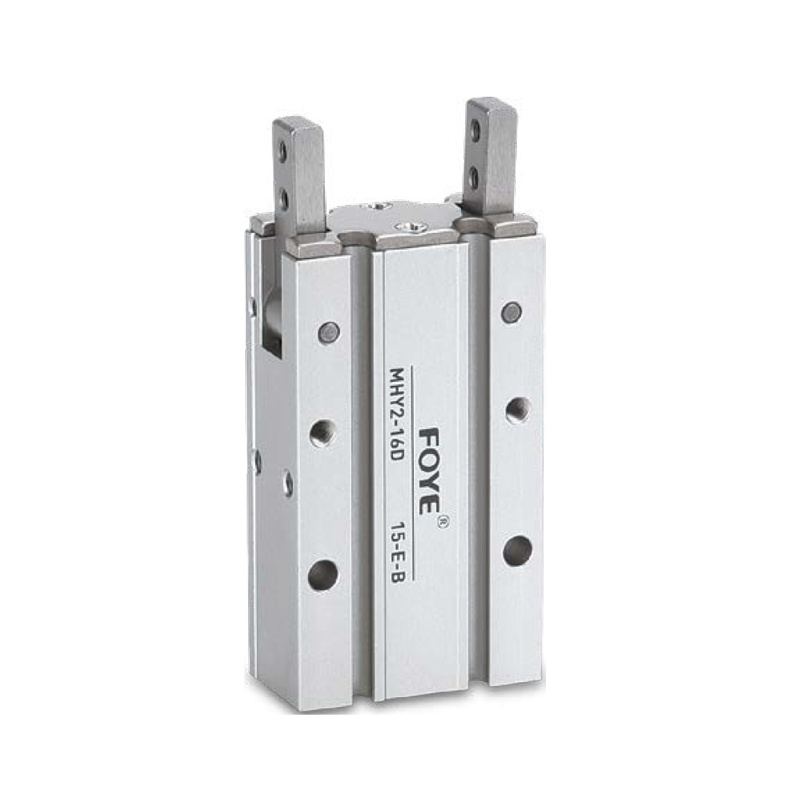

FMHY2 Series 180°Open-Close Type Cam Pneumatic Claw
Symbols

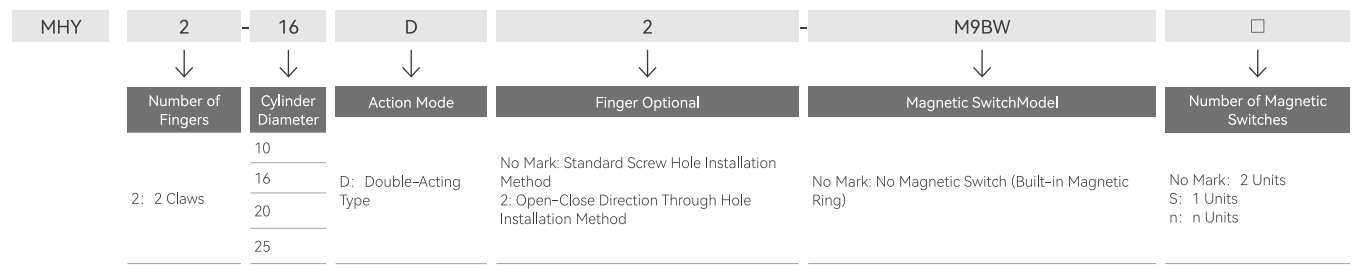

Finished Product Order Code
Specifications
|
Fluid Used |
Air |
|
Operating Pressure |
0.1~0.6MPa |
|
Environmental Temperature and Fluid Usage Temperature |
-10~60℃ |
|
Repeated Accuracy |
±0.2mm |
|
Maximum Usage Frequency |
60c.p.m |
|
Oil Supply |
No Oil Supply |
|
Action Mode |
Double-Acting |
|
Magnetic Switch (Optional) |
Non-contact Magnetic Switch (3-wire, 2-wire) |
Model
|
Model |
Cylinder Diametermm |
[Note 1] Clamping Torque(Effective Value)N.m |
Open-Close Angle (Both Sides) |
[Note 2] Weight g |
|
|
Open Side |
Close Side |
||||
|
FMHY2-10D |
10 |
0.16 |
180° |
-3° |
70 |
|
FMHY2-16D |
76 |
0.54 |
150 |
||
|
FMHY2-20D |
20 |
1.1 |
320 |
||
|
FMHY2-25D |
25 |
2.28 |
560 |
||

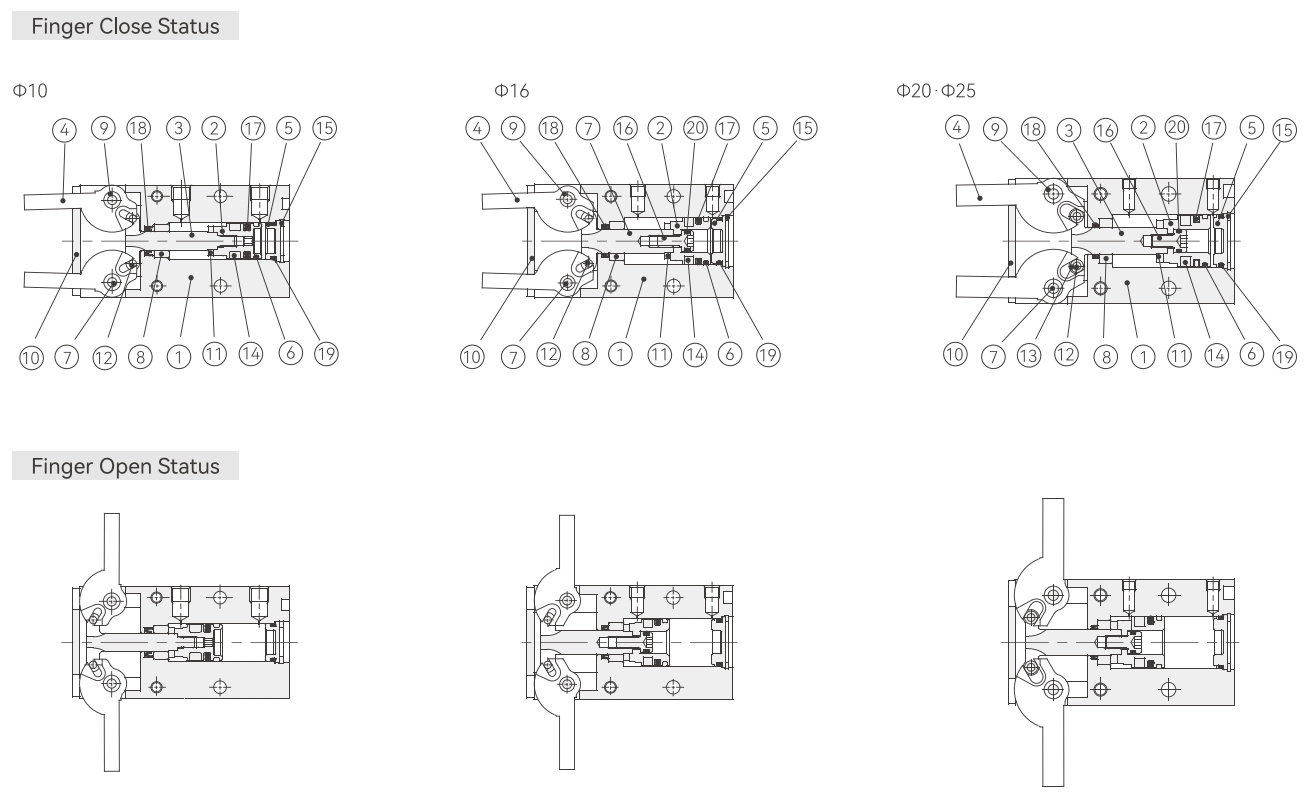

Internal Structure and Main Component Materials
|
No. |
Part Name |
Material |
Notes |
No. |
Part Name |
Material |
Notes |
|
1 |
Body |
Aluminum Alloy |
Hard Anodizing |
9 |
Guide Sleeve B |
Sintered Alloy Steel |
|
|
2 |
Piston |
Ф10: Stainless SteelФ16~25: Aluminum Alloy |
Ф16~25: Chromate Treatment |
10 |
End Plate |
Stainless Steel |
|
|
3 |
Connector |
Stainless Steel |
Heat Treatment |
11 |
Cushion Pad |
Polyurethane Rubber |
|
|
4 |
Finger |
Stainless Steel |
Heat Treatment |
12 |
Roller Needle |
High Carbon Chromium BearingSteel |
|
|
5 |
End Cap |
Resin |
13 |
Connector wheel |
Carbon Steel |
Nitriding |
|
|
6 |
Wear Ring |
Resin |
14 |
Rubber Magnet Ring |
Synthetic Rubber |
||
|
7 |
Shaft |
Stainless Steel |
Nitriding |
15 |
C-Shaped Elastic Retaining Ring |
Carbon Steel |
Phosphate Coating |
|
8 |
Guide Sleeve A |
Sintered Alloy Steel |
16 |
Piston Screw |
Stainless Stee |

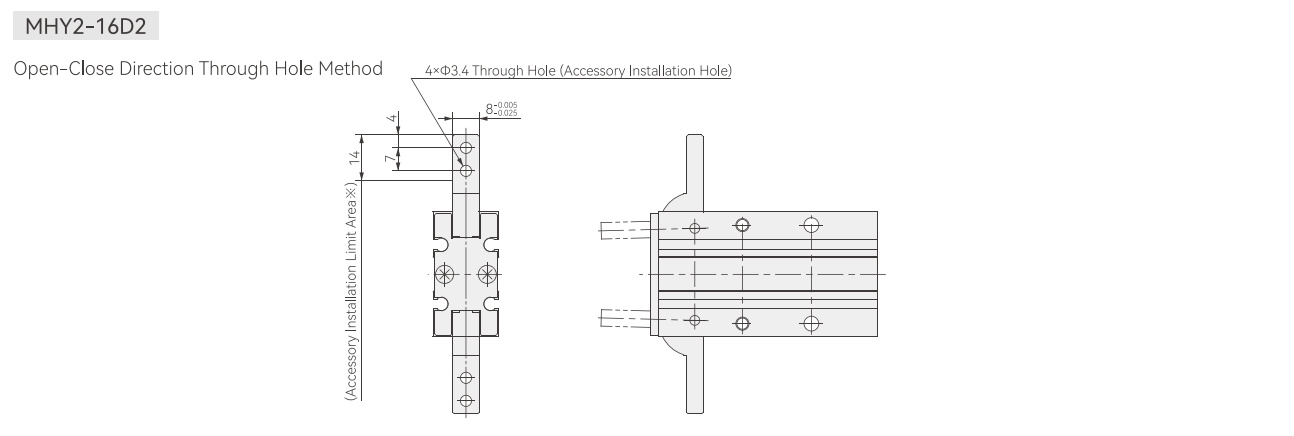

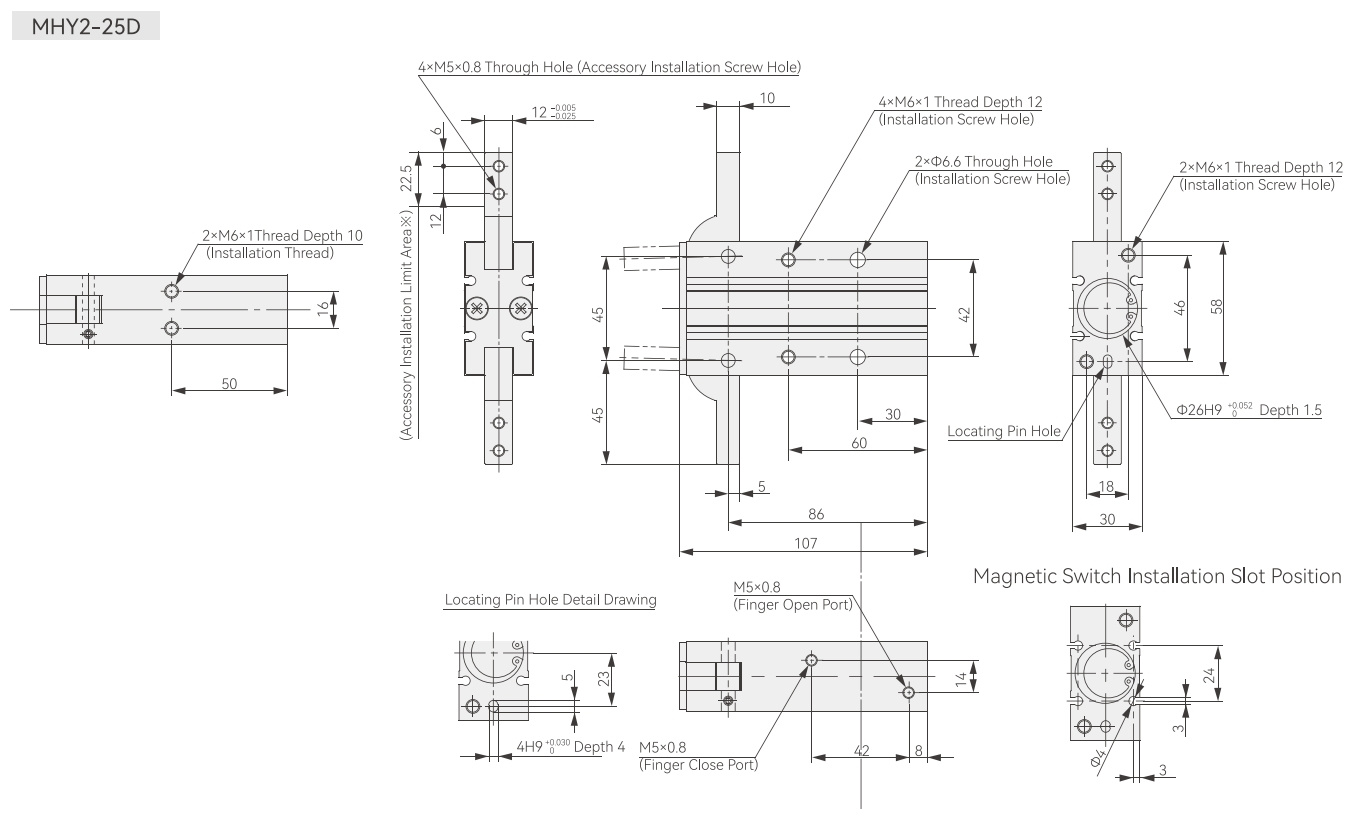

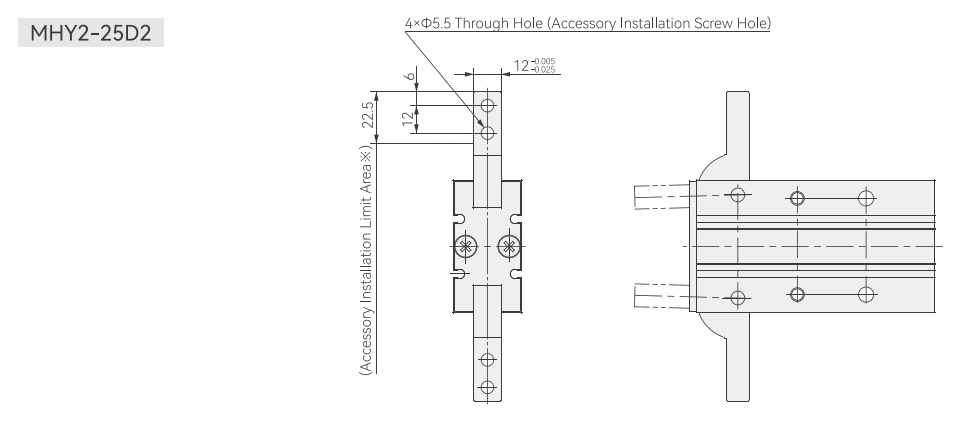

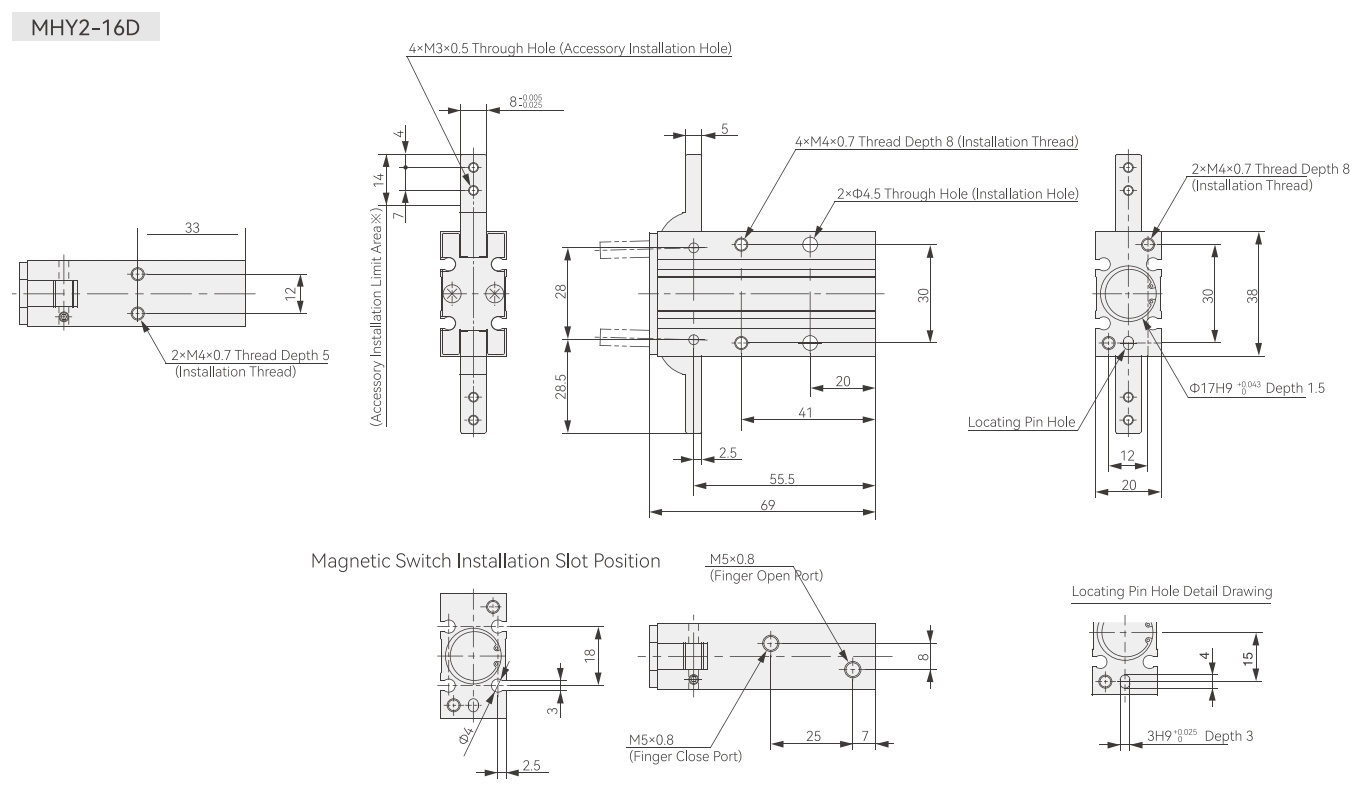

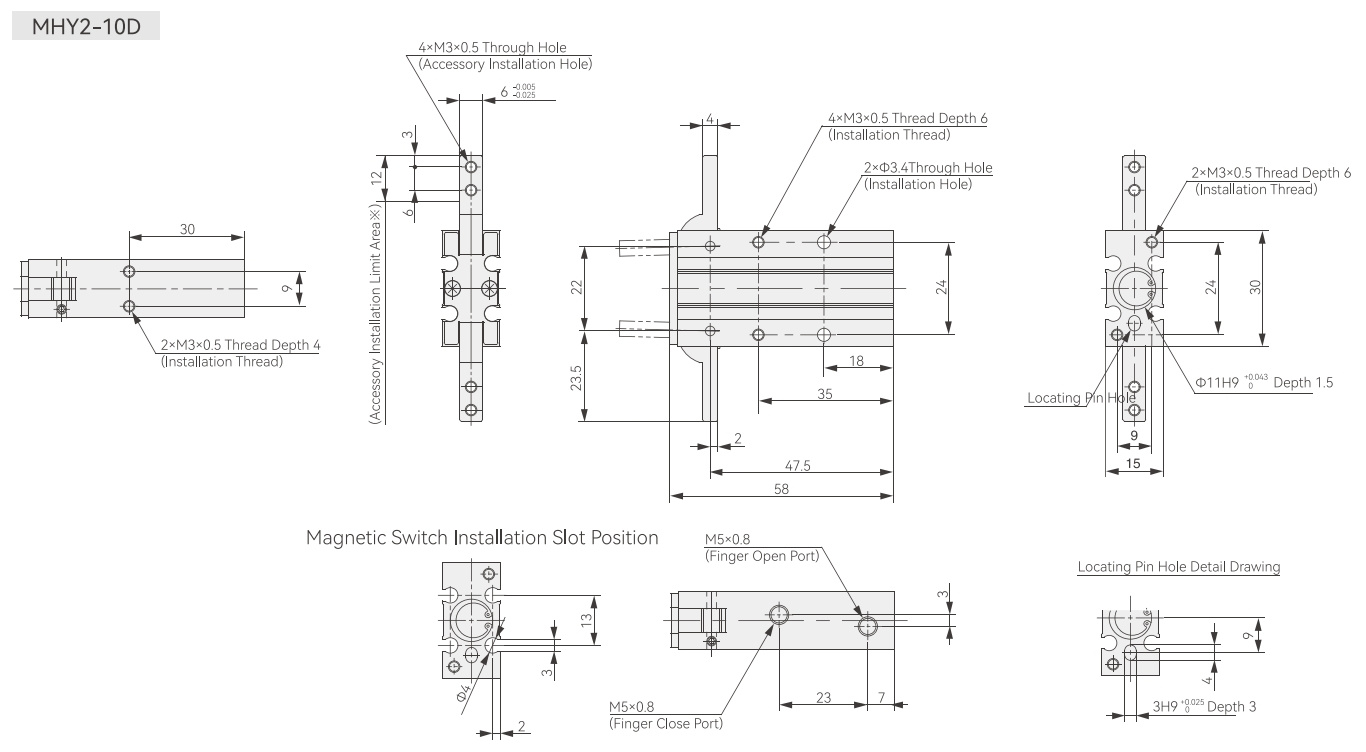

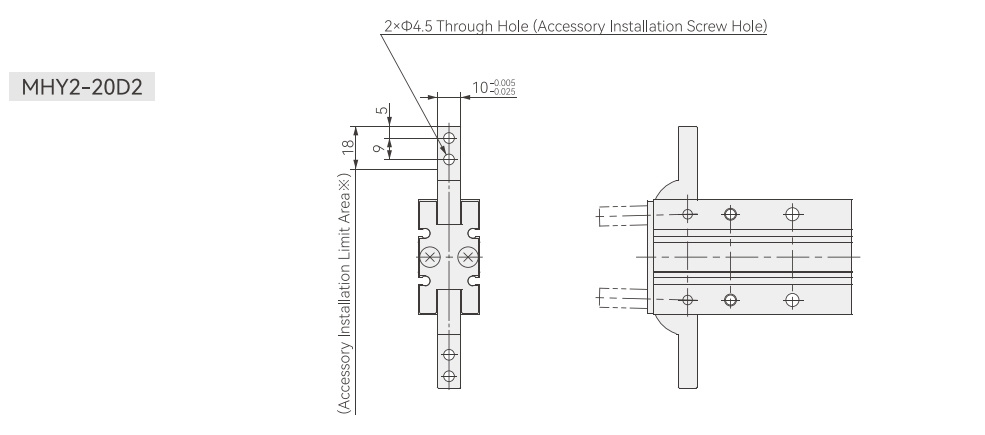

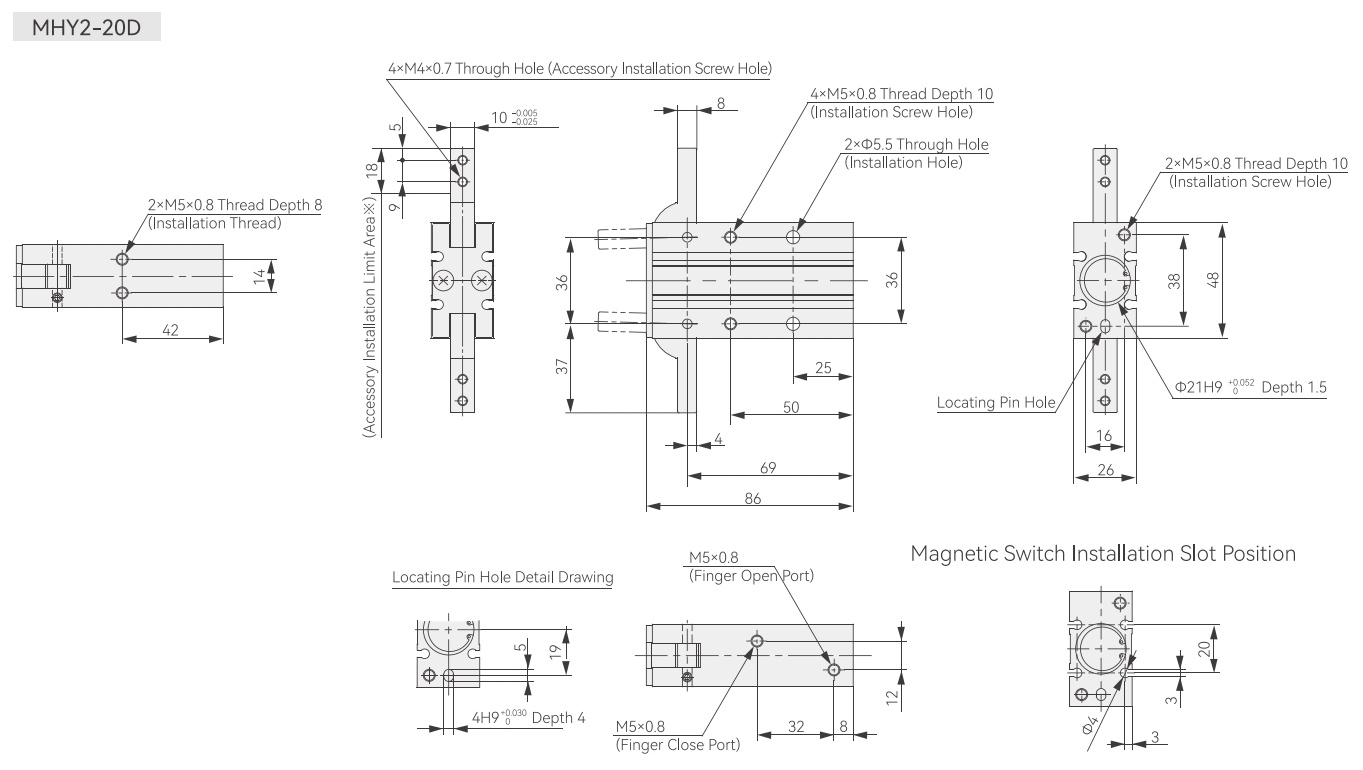

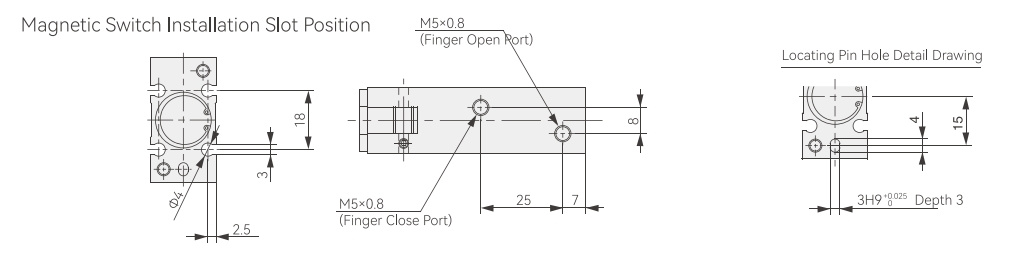

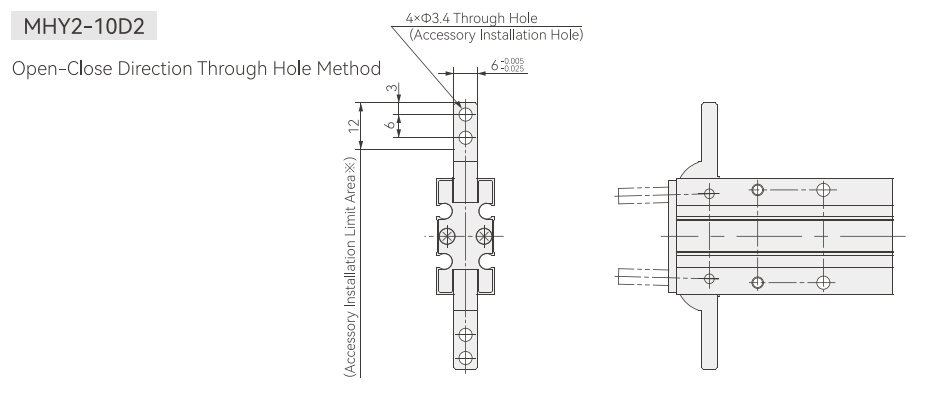

External Specifications
