FMHS3 Series Parallel Open-Close Type Pneumatic Claw/3-Claw
Symbols

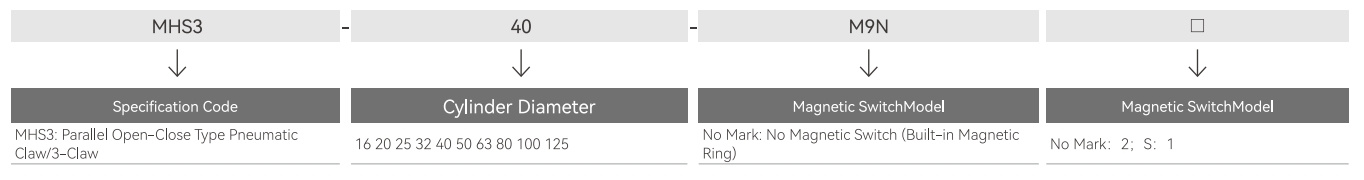

Finished Product Order Code
Specifications
|
Cylinder Diameter mm |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
|
|
Fluid Used |
Air |
||||||||||
|
Operating Pressure MPa |
0.2~0.6 |
0.1~0.6 |
|||||||||
|
Environmental Temperature and Operating Fluid TemperatureºC |
-10~60 |
||||||||||
|
Repeated Accuracy mm |
±0.01 |
||||||||||
|
Maximum Usage Frequency c.p.m |
120 |
60 |
30 |
||||||||
|
Oil Supply |
No Oil Supply |
||||||||||
|
Action Mode |
Double-Acting |
||||||||||
|
[Note 1l Effective Clamping Force N at 0.5MPa Pressure |
Outer Diameter Clamping Force |
14 |
25 |
42 |
74 |
118 |
187 |
335 |
500 |
750 |
1270 |
|
Inner Diameter Clamping Force |
16 |
28 |
47 |
82 |
130 |
204 |
359 |
525 |
780 |
1320 |
|
|
Open-Close Stroke (Both Sides) mm |
4 |
4 |
6 |
8 |
8 |
12 |
16 |
20 |
24 |
32 |
|
|
Weight g |
60 |
100 |
140 |
237 |
351 |
541 |
992 |
1850 |
3340 |
6460 |
|

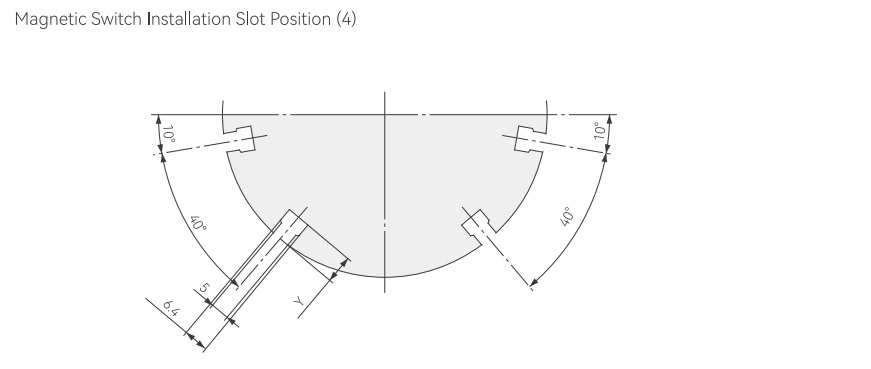

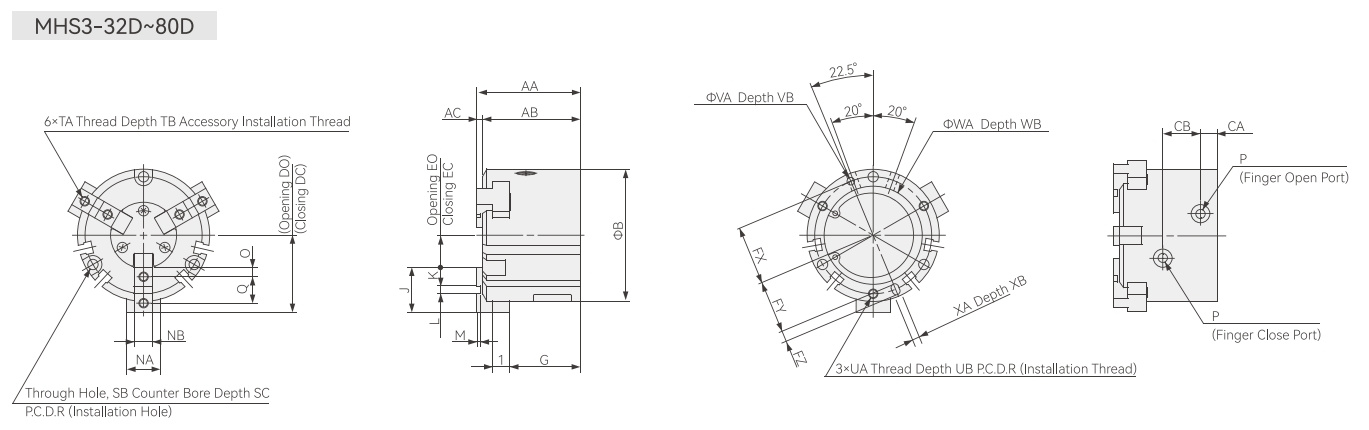

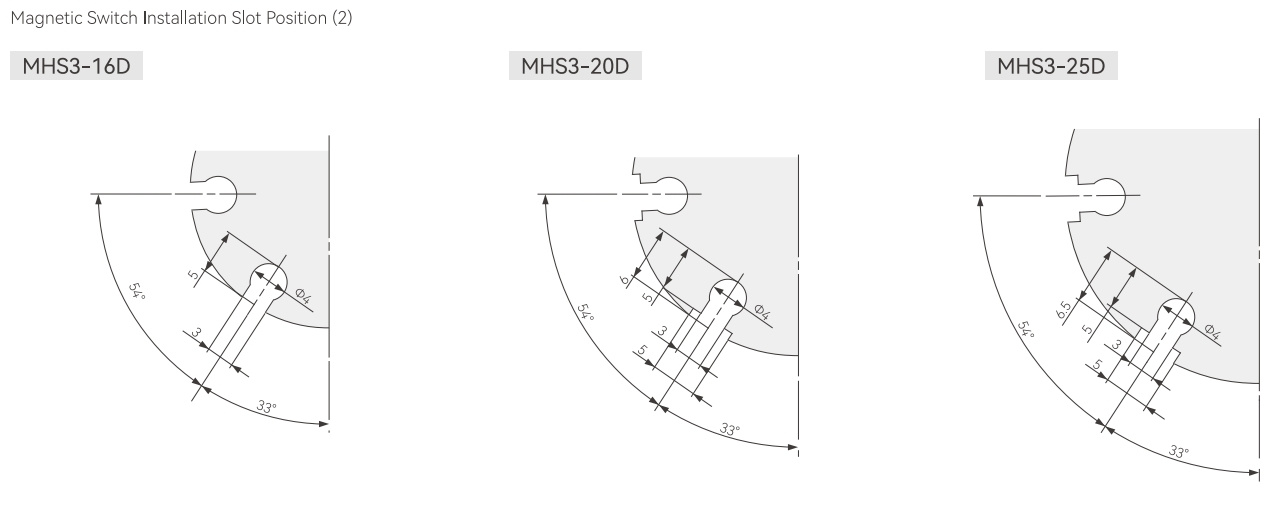

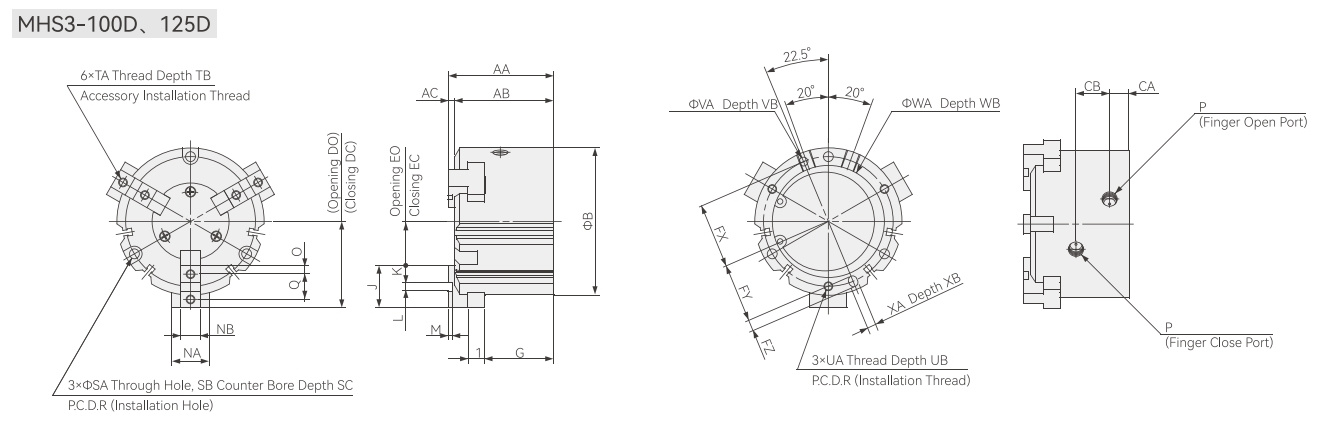

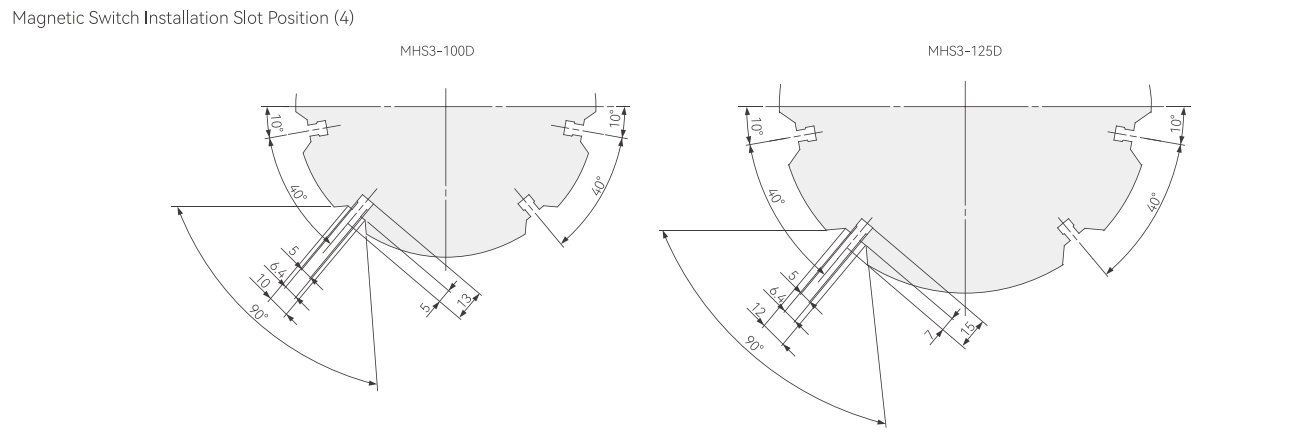

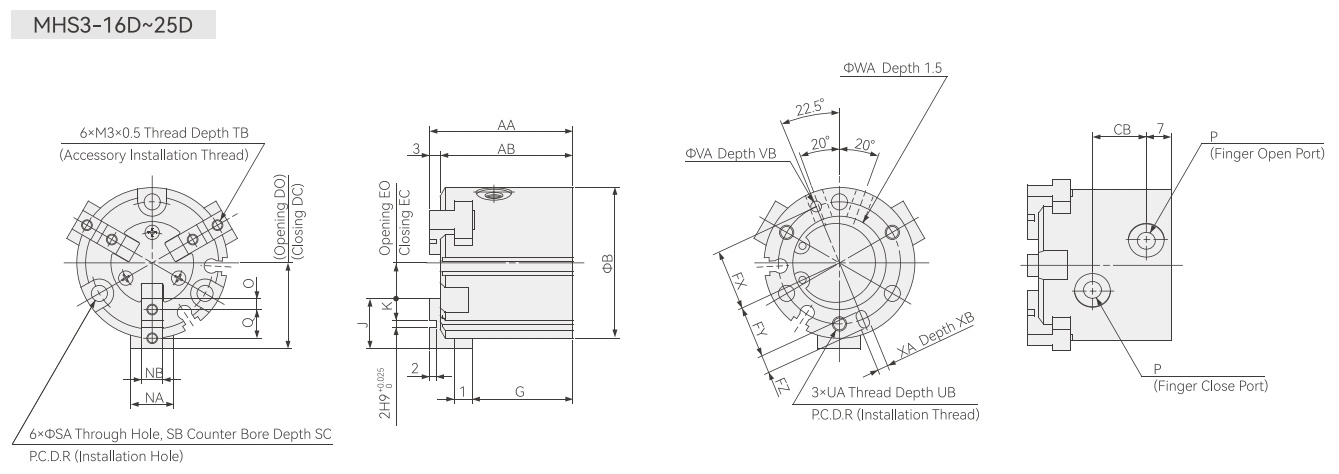

External Specifications
|
Model |
AA |
AB |
B |
CB |
DC |
DO |
EC |
E0 |
FX |
FY |
FZ |
G |
I |
J |
K |
NA |
NB |
O |
P |
Q |
R |
|
FMHS3-16D |
35 |
32 |
30 |
11 |
15 |
17 |
5 |
7 |
12.5 |
11 |
3 |
25 |
4 |
10 |
4 |
8 |
5h9 |
2 |
M3x0.5 |
6 |
25 |
|
FMHS3-20D |
38 |
35 |
36 |
13 |
18 |
20 |
6 |
8 |
14.5 |
13 |
3 |
27 |
5 |
12 |
5 |
10 |
6h9 |
2.5 |
M5x0.8 |
7 |
29 |
|
FMHS3-25D |
40 |
37 |
42 |
15 |
21 |
24 |
7 |
10 |
17 |
14.5 |
5 |
28 |
5 |
14 |
6 |
12 |
6h9 |
3 |
M5x0.8 |
8 |
34 |
|
Model |
SA |
SB |
SC |
TB |
UA |
UB |
VA |
VB |
WA |
XA |
XB |
|
FMHS3-16D |
3.4 |
6.5 |
8 |
5 |
M3x0.5 |
4.5 |
2h9 |
2 |
17h9 |
2h9 |
2 |
|
FMHS3-20D |
3.4 |
6.5 |
9.5 |
6 |
M3x0.5 |
6 |
2h9 |
2 |
21h9 |
2h9 |
2 |
|
FMHS3-25D |
4.5 |
8 |
10 |
6 |
M4x0.7 |
6 |
3h9 |
3 |
26h9 |
3h9 |
3 |
|
Model |
AA |
AB |
B |
CA |
CB |
DC |
DO |
EC |
E0 |
FX |
FY |
FZ |
G |
I |
J |
K |
L |
M |
NA |
NB |
|
FMHS3-32D |
44 |
41 |
52 |
8 |
16 |
28 |
32 |
8 |
12 |
22 |
19.5 |
5 |
30.5 |
6 |
20 |
9 |
2H9 |
2 |
14 |
8h9 |
|
FMHS3-40D |
47 |
44 |
62 |
9 |
17 |
31 |
35 |
10 |
14 |
26.5 |
23.5 |
6 |
32 |
7 |
21 |
9 |
3H9 |
2 |
16 |
8h9 |
|
FMHS3-50D |
55 |
54 |
70 |
9 |
20 |
35 |
41 |
11 |
17 |
31 |
28 |
6 |
37.5 |
9 |
24 |
10 |
4H9 |
2 |
18 |
10h9 |
|
FMHS3-63D |
66 |
62 |
86 |
12 |
22 |
43 |
51 |
15 |
23 |
38 |
34.5 |
7 |
44 |
11 |
28 |
11 |
6H9 |
3 |
24 |
12h9 |
|
FMHS3-80D |
82 |
77 |
106 |
13.5 |
27 |
53.5 |
63.5 |
21.5 |
31.5 |
47.5 |
43.5 |
8 |
56 |
12 |
32 |
12 |
8H9 |
4 |
28 |
14h9 |
|
Model |
O |
P |
Q |
R |
SA |
SB |
SC |
TA |
TB |
UA |
UB |
VA |
VB |
WA |
WB |
XA |
|
FMHS3-32D |
4.5 |
M5x0.8 |
11 |
44 |
4.5 |
8 |
9 |
M4x0.7 |
8 |
M4x0.7 |
6 |
3H9 |
6 |
34H9 |
2 |
3H9 |
|
FMHS3-40D |
4.5 |
M5x0.8 |
12 |
53 |
5.5 |
9.5 |
9 |
M4x0.7 |
8 |
M5x0.8 |
7.5 |
4H9 |
7.5 |
42H9 |
2 |
4H9 |
|
FMHS3-50D |
5 |
M5x0.8 |
14 |
62 |
5.5 |
9.5 |
12 |
M5x0.8 |
10 |
M5x0.8 |
10 |
4H9 |
10 |
52H9 |
2 |
4H9 |
|
FMHS3-63D |
5.5 |
M5x0.8 |
17 |
76 |
6.6 |
11 |
14 |
M5x0.8 |
10 |
M6x1 |
9 |
5H9 |
9 |
65H9 |
2.5 |
5H9 |
|
FMHS3-80D |
6 |
Rc1/8(G1/8,NPT1/8) |
20 |
95 |
6.6 |
11 |
19 |
M6x1 |
12 |
M6x1 |
12 |
6H9 |
12 |
82H9 |
3 |
6H9 |
|
Model |
AA |
AB |
AC |
B |
CA |
CB |
DC |
DO |
EC |
EO |
FX |
FY |
FZ |
G |
I |
J |
K |
L |
M |
NA |
NB |
|
FMHS3-100D |
96 |
90 |
6 |
134 |
18 |
30.6 |
66 |
78 |
28 |
40 |
59 |
54 |
10 |
63 |
15 |
38 |
15 |
8H9 |
4 |
34 |
34 |
|
FMHS3-125D |
122 |
114 |
8 |
166 |
23.5 |
38 |
82 |
98 |
30 |
46 |
74 |
68 |
12 |
84 |
18 |
52 |
21 |
10H9 |
6 |
40 |
40 |
|
Model |
O |
P |
Q |
R |
SA |
SB |
SC |
TA |
TB |
UA |
UB |
VA |
VB |
WA |
WB |
XA |
XB |
|
FMHS3-100D |
7.5 |
RC1/4(G1/4,NPT1/4) |
23 |
118 |
9 |
14 |
21 |
M8x1.25 |
16 |
M8x1.25 |
16 |
8H9 |
6 |
102H9 |
4 |
8H9 |
6 |
|
FMHS3-125D |
10.5 |
Rc3/8(G3/8,NPT3/8) |
31 |
148 |
11 |
17.5 |
34 |
M10x1.5 |
20 |
M10x1.5 |
20 |
10H9 |
8 |
130H9 |
6 |
10H9 |
8 |

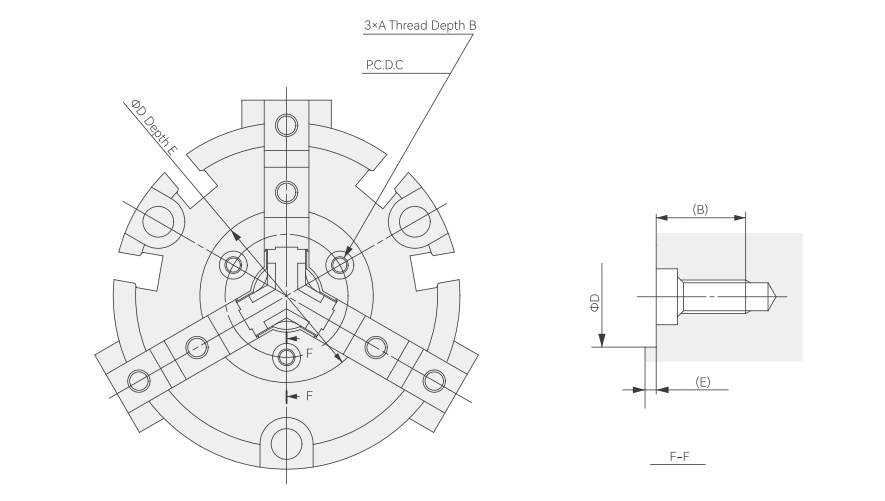

End Plate Installation Part Detailed Dimension Drawing
|
Model |
A |
B |
C |
ΦD |
E |
|
FMHS3-16D |
M2x0.4 |
5.5 |
12.5 |
18H8 |
0.5 |
|
FMHS3-20D |
5.4 |
15 |
21H8 |
0.6 |
|
|
FMHS3-25D |
17 |
23H8 |
|||
|
FMHS3-32D |
5.2 |
21 |
27H8 |
0.8 |
|
|
FMHS3-40D |
M3x0.5 |
8 |
22 |
31H8 |
1 |
|
FMHS3-50D |
26 |
35H8 |
|||
|
FMHS3-63D |
33 |
42H8 |
|||
|
FMHS3-80D |
M4x0.7 |
9.5 |
40 |
52H8 |
1.5 |
|
FMHS3-100D |
54 |
70H8 |
|||
|
FMHS3-125D |
62 |
82H8 |
