FMHL2 Series Parallel Open-Close Type Pneumatic Claw/Wide Type

FMHL2 Series Parallel Open-Close Type Pneumatic Claw for a variety of industrial applications that require precise handling and manipulation of materials. The pneumatic gripper uses a double-acting mechanism to ensure efficient and reliable operation in harsh environments. The FMHL2 Series is ruggedly constructed and engineered to meet the needs of industries that value operational accuracy and repeatability.

product details

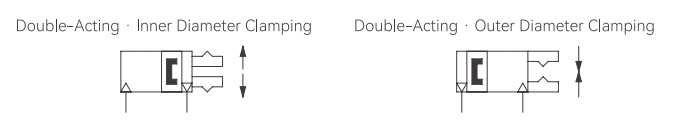

Symbols

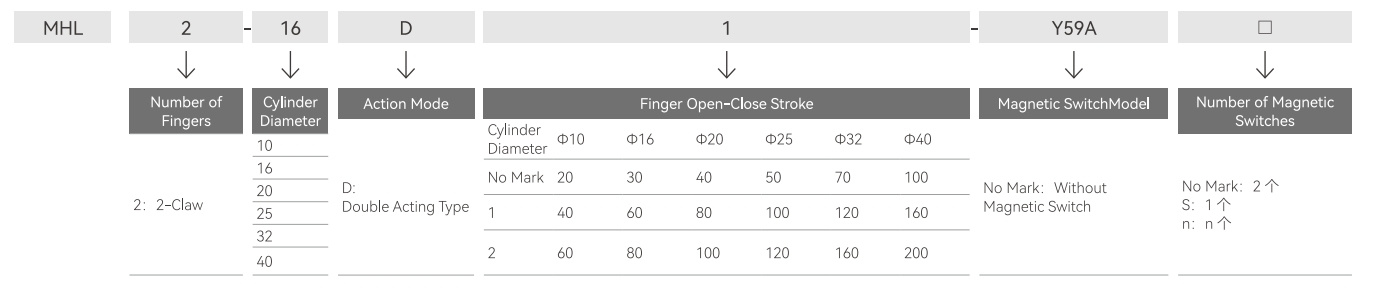

Finished Product Order Code

Specifications

Cylinder Diameter (mm)	10	16	20	25	32	40
Fluid Used	Air
Action Mode	Double-Acting Type
Operating Pressure MPa	0.15~0.6	0.1~0.6
Environmental Temperature and Fluid Usage Temperature	-10~60'℃ (But Not Frozen)
Repeated Accuracy	±0.1
Oil Supply	No Oil Supply
[Note 1] Effective Clamping Force N at0.5MPa Pressure	14	45	74	131	228	396

[Note 1] This is the value when no bias load is applied to the finger. When a bias load is applied to the finger, the maximum value is +015mm due to the influence of the rack and pinion backlash.

Model/Stroke Table

Model	Cylinder Diameter mm	Maximum Usage Frequency c.p.m	Open-Close Stroke mm(L2-L1)	Closing Width mm(L1)	Opening Width mm(L2)	Weight g

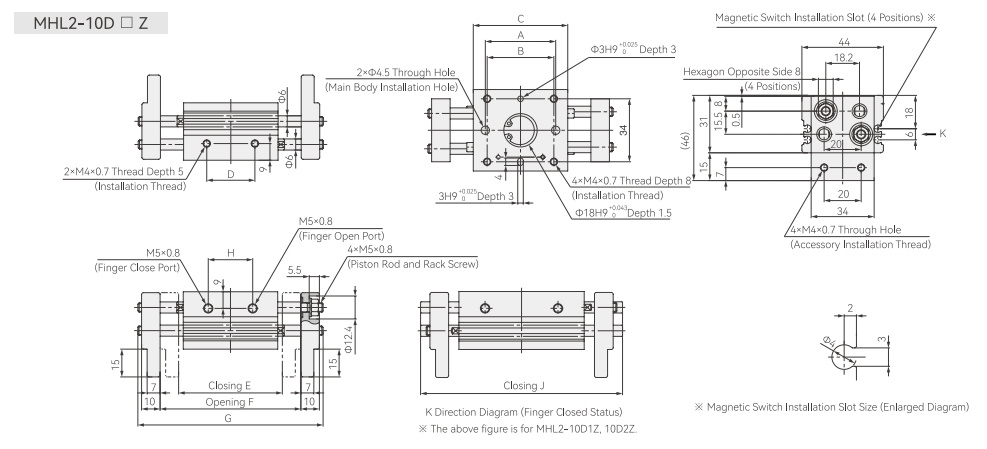

MHL2-10DZ	10	60	20	56	76	280
MHL2-10D1Z		40	40	78	118	355
MHL2-10D2Z		40	60	96	156	430

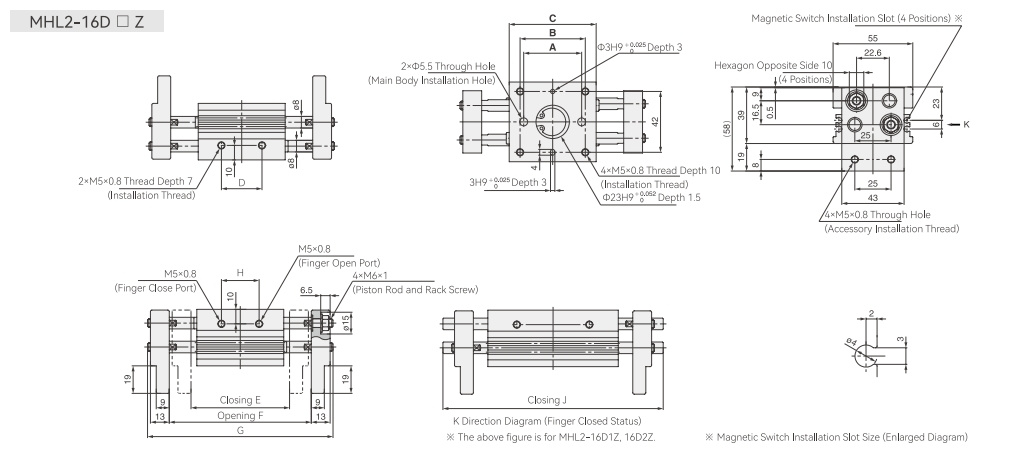

MHL2-16DZ	16	60	30	68	98	525
MHL2-16D1Z		40	60	110	170	725
MHL2-16D2Z		40	80	130	210	845

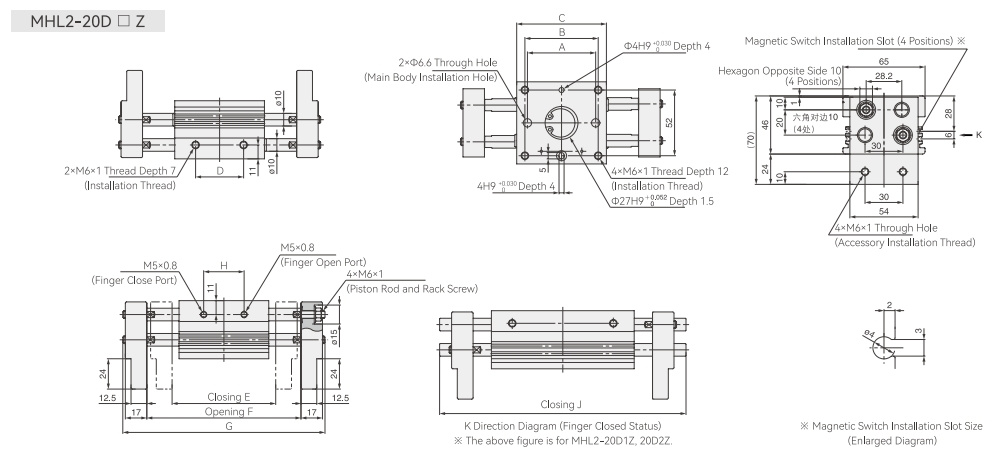

MHL2-20DZ	20	60	40	82	122	940
MHL2-20D1Z		40	80	142	222	1335
MHL2-20D2Z		40	100	162	262	1520

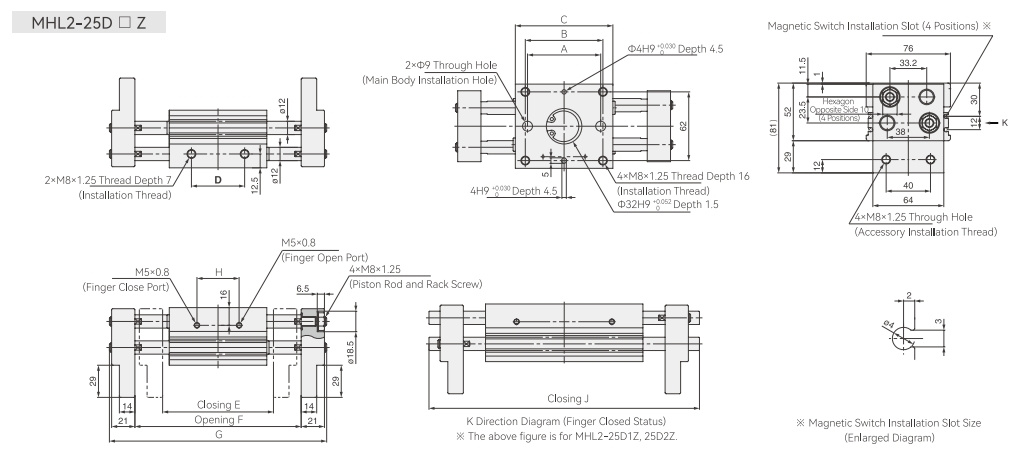

MHL2-25DZ	25	60	50	100	150	1565
MHL2-25D1Z		40	100	182	282	2295
MHL2-25D2Z		40	120	200	320	2525

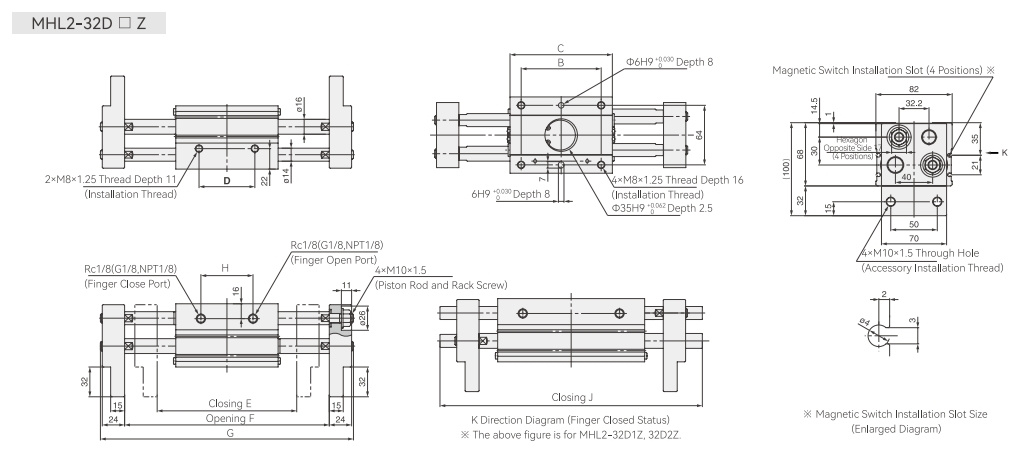

MHL2-32DZ	32	30	70	150	220	2875
MHL2-32D1Z		20	120	198	318	3770
MHL2-32D2Z		20	160	242	402	4585

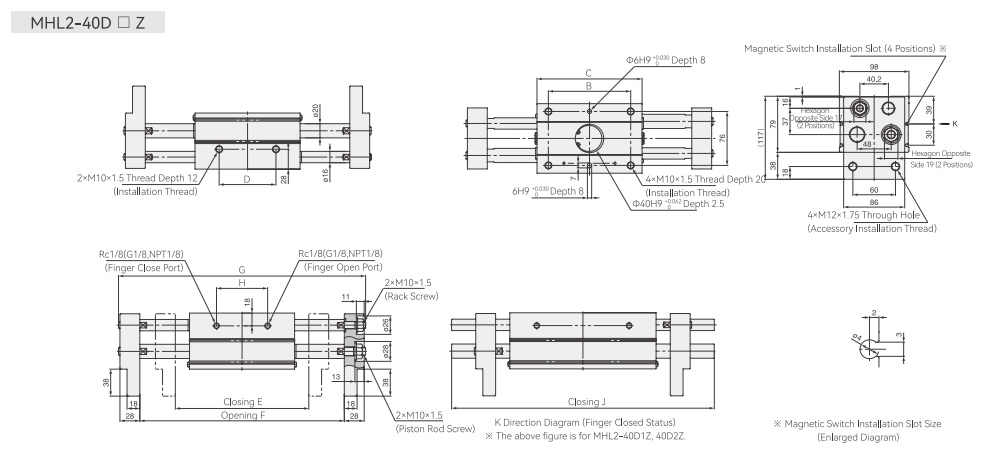

MHL2-40DZ	40	30	100	188	288	5230
MHL2-40D1Z		20	160	246	406	6760
MHL2-40D2Z		20	200	286	486	7825

[Note]: The open and close width refers to the value when clamping the outer diameter of the workpiece.

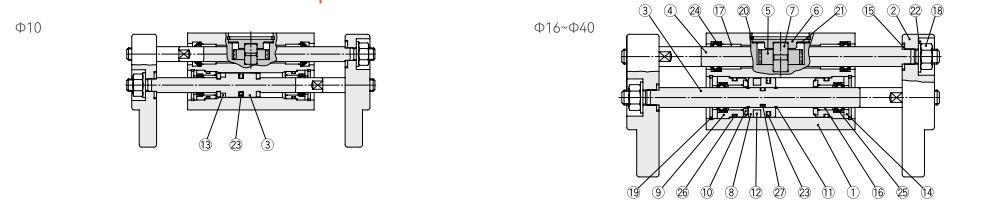

Internal Structure and Main Component Materials

No.	Part Name	Material	Notes	No.	Part Name	Material	Notes
1	Body	Aluminum Alloy	Hard Anodizing	15	Gasket	Stainless Steel
2	Finger	Aluminum Alloy	Hard Anodizing	16	Bearing	Oil-Containing Polyoxymethylene
3	Piston Rod	Stainless Steel		17	Bearing	Oil-Containing Polyoxymethylene
4	Rack	Stainless Steel		18	U-Shaped Nut	Carbon Steel	Trivalent Chromate Treatment
5	Gear	Carbon Steel		19	R-Shaped Elastic Retaining Ring	Carbon Steel	Phosphate Film
6	Gear Cover	Carbon Steel	Electroless Nickel Plating	20	C-Shaped Elastic Retaining Ring	Carbon Steel	Phosphate Film
7	Gear Shaft	Stainless Steel		21	Wave Washer	Spring Steel	Phosphate Film
8	Piston	Aluminum Alloy	Hard Anodizing	22	Butterfly Spring Washer	Carbon Steel
9	Buffer	Aluminum Alloy	Trivalent Chromate Treatment	23	Piston Seal Ring	NBR
10	Buffer	Polyurethane Rubber		24	Rod Seal Ring	NBR
11	Circlip	Spring Stainless Steel wire		25	Rod Seal Ring	NBR
12	Rubber Magnet Ring	Synthetic Rubber		26	Seal Ring	NBR
13	Magnetic Ring	-	Nickel Plating	27	Seal Ring	NBR
14	Rod Seal Ring B	Cold Rolled Steel Plate	Electroless Nickel Plating	27	Seal Ring	NBR
