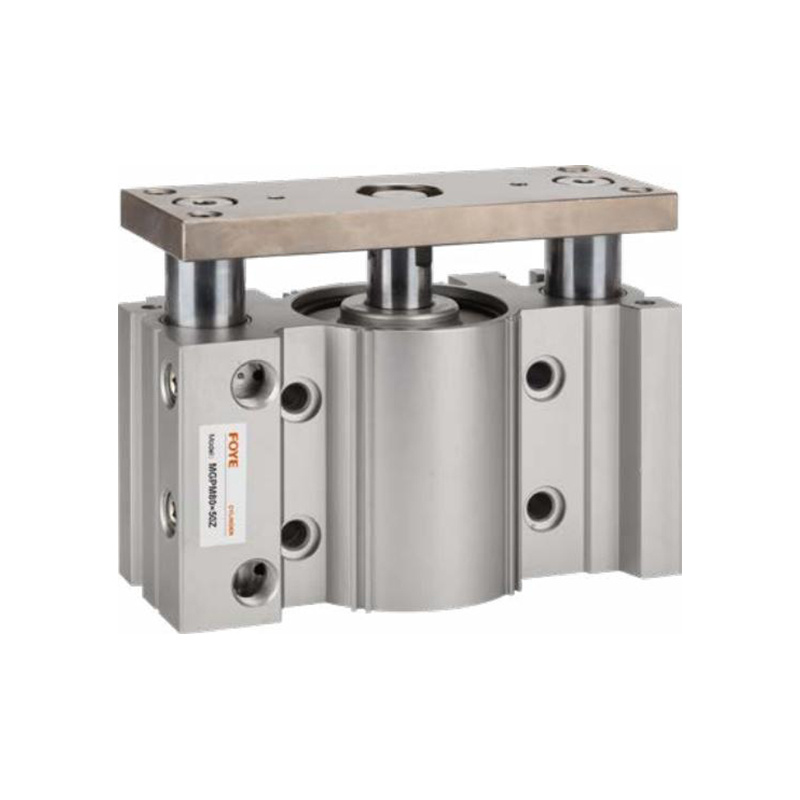

FMGP Series Thin Cylinder with Guide Rod

· The guide rod is shortened and the front end plate thickness is changed , reducing the weight by up to 24% .
·space-saving guide rod is shortened by up to 22mm , reducing the amount of avoidance hole machining during cylinder installation.
·circular magnetic switch , strong magnetic switch can be directly installed , no need for partition.

product details

Symbols

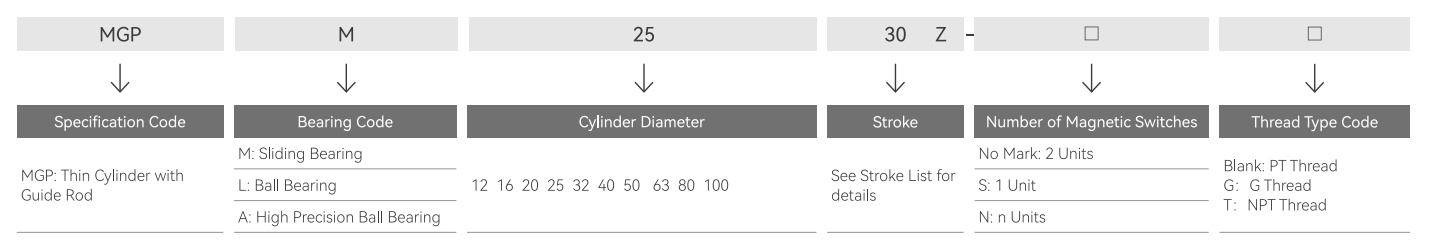

Finished Product Order Code

[Note]: Those with cylinder diameter 12 and 16 only have M5x0.8.

Specifications

Inner Diameter(mm)		12	16	20	25	32	40	50	63	80	100
Mode of operation		Double-Acting Type
working Medium		Air (filtered through a Filter Element with a pore size smaller than 40μm)
operating pressure Range		0 . 1 ~ 1 . OM pa(22 ~ 145psi)
Guaranteed pressure Resistance		1 . 5Mpa(215psi)
operating Temperature		- 10 ~ 60℃
operating speed Range		50 ~ 500mm/s								50 ~ 400mm/s
stroke Tolerance Range		≤100 >100
cushion Type		Bumper pad
Non - Rotation Accuracy[Note 1]	Linear Bearing	±0.08°		±0.07°		±0.06°		±0.05°		±0.04°
	copper sleeve Bearing	±0.1°		±0.09°		±0.09°		±0.06°		±0.05°
pipe Diameter[Note 2]		M5X0. 8		PT1/8				PT1/4		PT3/8

[Note 1] Non-rotation accuracy refers to the angle that the cylinder fixing plate can rotate when the cylinder is fully retracted.

[Note 2] PT Thread , G Thread and NPT Thread are available for pipe Thread.

Stroke

cylinder Diameter (mm)	standard stroke (mm)
12 16	10 20 30 40 50 75 100 125 150 175 200 250
20 25	20 30 40 50 75 100 125 150 175 200 250 300 350 400
32 40 50 63 80 100	25 50 75 100 125 150 175 200 250 300 350 400

Suitable for Magnetic Switch

Type

Special Features

Wire Lead Out

Indicator

Wiring (Output)

Load Voltage

Magnetic Switch Model

Wire Length(m)

Wire Front Plug

Suitable Load

Longitudinal Lead Out

Transverse Lead Out

0.5(No Mark)

1(M)

3(L)

5(Z)

No Contact Magnetic Switch

Direct Wire Out

Yes

3-Wire (NPN)

24V

5V,12V

M9NV

M9N

●

○

IC Circuit

Relay.PLC

3-Wire(PNP)

M9PV

M9P

●

○

2-Wire

12V

M9BV

M9B

●

○

Diagnostic Display(2-ColorDisplay)

3-Wire (NPN)

5V,12V

M9NWV

M9NW

●

○

IC Circuit

3-Wire(PNP)

M9PWV

M9PW

●

○

2-Wire

12V

M9BWV

M9BW

●

○

High Water Resistan(2-ColorDisplay)

3-Wire (NPN)

5V,12V

※1M9NAV

※1M9NA

○

●

○

IC Circuit

3-Wire(PNP)

※1M9PAV

※1M9PA

○

●

○

2-Wire

12V

※1M9BAV

※1M9BA

○

●

○

Strong Magnetic Field Resistance (2-Color Display)

2-Wire（No Polarity

※※P3DWA

●

○

With Contact Magnetic Switch

Direct Wire Out

Yes

3-Wire(Equivalent to NPN)

A96V

A96

●

IC Circuit

2-Wire

24V

12V

100V

※2A93V

A93

●

Relay.PLC

None

100V以下

A90V

A90

●

IC Circuit

※ The strong water-resistant magnetic switch can be installed on the above-mentioned models, but the overall water resistance of the product cannot be guaranteed.When used in a water-resistant environment it is recommended to use a strong water-resistant product, However for the strong water-resistant products of medium 12 medium 16 please consult our company.

※The 1m wire length type only corresponds to D-A93.

※Wire length mark 0.5... No mark (Example) M9NW

1m......M(Example)M9NWM

3m......L(Example) M9NWL

5m......Z(Example) M9NWZ

※※ The no-contact magnetic switch with the O symbol is produced according to the order.

※※ The D-P3DWA port type corresponds to the cylinder diameter medium 25~medium 100.

※ In addition to the models recorded above, there are other suitable magnetic switches.

※ The magnetic switch is shipped with the package (unassembled)

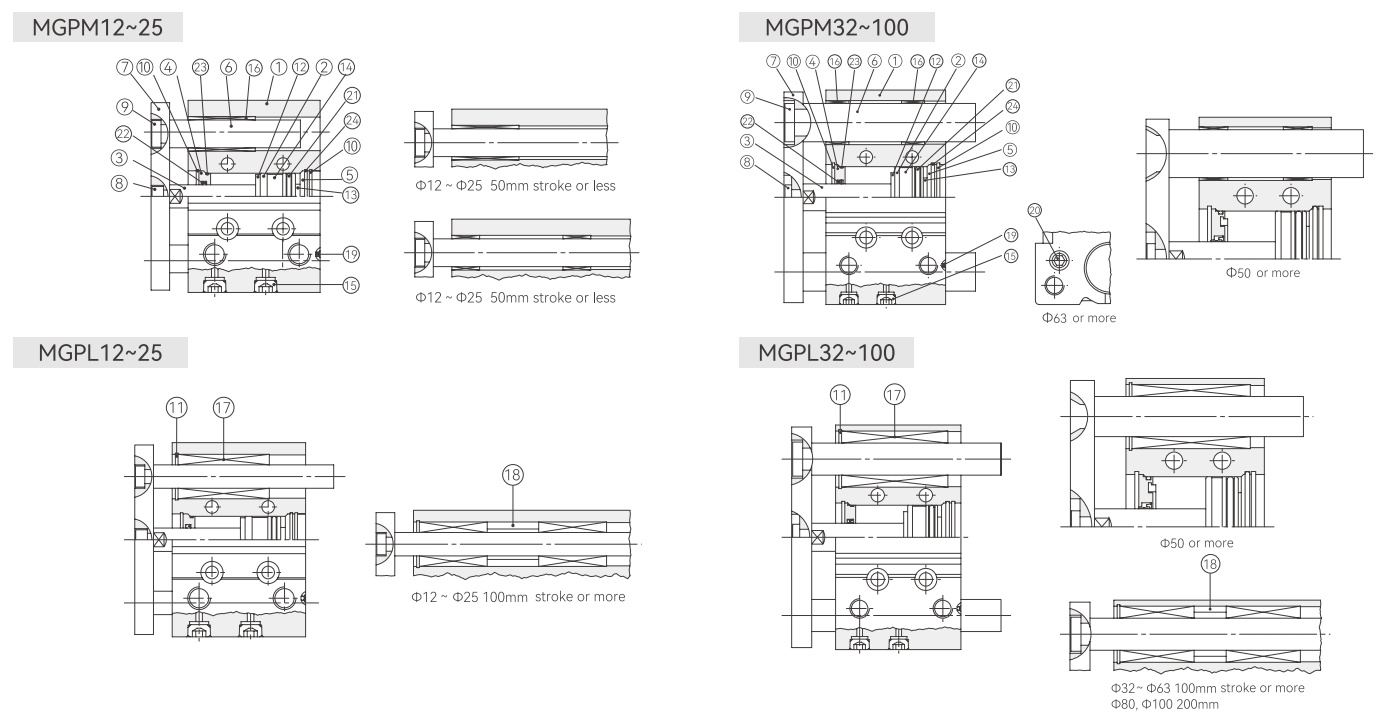

Internal Structure and Main Component Materials

NO.	Part Name	Material	NO.	Part Name	Material
1	Body	Aluminum Alloy	13	Cushion Pad B	Polyurethane
2	Piston	Aluminum Alloy	14	Magnetic Ring	-
3	Piston Rod	Stainless Steel	15	Plug Screw	Carbon Steel
3	Piston Rod	Carbon Steel	15	Hex Socket Plug Screw	Carbon Steel
4	Ring	Aluminum Alloy	16	Sliding Bearing	Bearing Alloy
5	Cylinder Cover at No Rod Sid	Aluminum Alloy	17	Ball Bearing
6	Guide Rod	Carbon Steel	18	Partition	Aluminum Alloy
7	End Plate	Carbon Steel	19	Steel Ball	Carbon Steel
8	End Plate Mounting Screw	Carbon Steel	20	Plug	Carbon Steel
9	Guide Rod Screw	Carbon Steel	21	Piston Seal Ring	NBR
10	Stop Ring	Carbon Tool Steel	22	Rod Seal Ring	NBR
11	Stop Ring	Carbon Tool Steel	23	Static Seal Ring A	NBR
12	Cushion Pad A	Polyurethane	24	Static Seal Ring B	NBR

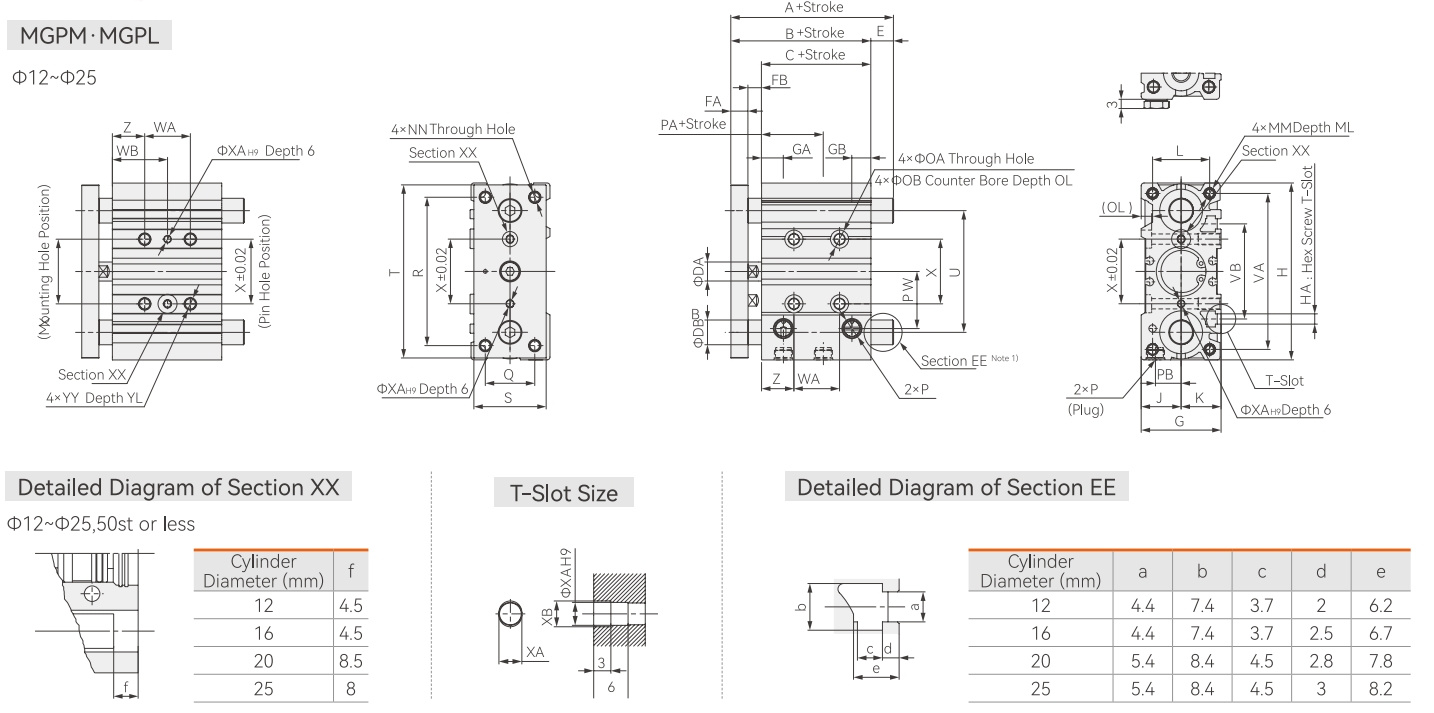

External Specifications

[Note 1] For ф12 ~ф25 with 50 stroke or less, please refer to Section EE.

※Based on the pin hole (фXAH9 depth 6), section XX uses a long hole (width XA,length X, depth 3), which can alleviate the machining accuracy requirements between the two pins.

※Cylinder diameter ф12, ф16 only have M5x0.8 ports, Cylinder diameter medium 20 or above can choose Rc , NPT. G ports.

Cylinder Diameter (mm)	Standard Stroke(mm)	B	C	DA	FA	FB	G	GA	GB	H	HA	J	K	L	MM	ML	NN	OA	OB	OL	P
Cylinder Diameter (mm)	Standard Stroke(mm)	B	C	DA	FA	FB	G	GA	GB	H	HA	J	K	L	MM	ML	NN	OA	OB	OL	No Mark	TN	TF
12	10，20/30，40，50，75/100，125，150，175，200，250	42	29	6	7	6	26	10	7	58	M4	13	13	18	M4x0.7	10	M4x0.7	4.3	8	4.5	M5x0.8	-	-
16	10，20/30，40，50，75/100，125，150，175，200，250	46	33	8	7	6	30	10.5	7.5	64	M4	15	15	22	M5x0.8	12	M5x0.8	4.3	8	4.5	M5x0.8	-	-
20	20，30，40，50，75，100，125，150，175，200，250，300，350，400	53	37	10	8	8	36	11.5	9	83	M5	18	18	24	M5x0.8	13	M5x0.8	5.4	9.5	5.5	Rc1/8	NPT1/8	G1/8
25	20，30，40，50，75，100，125，150，175，200，250，300，350，400	53.5	37.5	10	9	7	42	11.5	10	93	M5	21	21	30	M6x1.0	15	M6x1.0	5.4	9.5	5.5	Rc1/8	NPT1/8	G1/8

Cylinder Diameter(mm)	PA	PB	PW	Q	R	S	T	U	VA	VB	WA					WB					X	XA	XB	YY	YL	Z
Cylinder Diameter(mm)	PA	PB	PW	Q	R	S	T	U	VA	VB	30st or less	30st or more 100st or less	100st or more 200st or less	200st or more 300st or less	300st or less	30st or less	30st or more 100st or less	100st or more 200st or less	200st or more 300st or less	300st or less	X	XA	XB	YY	YL	Z
12	13	8	18	14	14	22	56	41	50	37	20	40	110	200	-	15	25	60	105	-	23	3	3.5	M5x0.8	10	5
16	14.5	10	19	16	16	25	62	46	56	38	24	44	110	200	-	17	27	60	105	-	24	3	3.5	M5x0.8	10	5
20	13.5	10.5	25	25	18	30	81	54	72	44	24	44	120	200	300	29	39	77	117	167	28	3	3.5	M6x1.0	12	17
25	12.5	13.5	30	30	26	38	91	64	82	50	24	44	120	200	300	29	39	77	117	167	34	4	4.5	M6x1.0	12	17

MGPM (Sliding Bearing)

A, DB, E Dimensions

Cylinder Diameter(mm)	A				DB	E
Cylinder Diameter(mm)	50st or less	50st or more, and less than 100st	100st or more, and than less 200st	200st or less	DB	Note 1) 50st or less	50st or more, and less than 100st	100st or more, and less than 200st	200st or less
12	42	60.5	82.5	82.5	8	0	18.5	40.5	40.5
16	46	64.5	92.5	92.5	10	0	18.5	46.5	46.5
20	53	77.5	77.5	110	12	0	24.5	24.5	57
25	53.5	77.5	77.5	109.5	16	0	24	24	56

MGPL(Ball Bearing)

A, DB,E Dimensions

Cylinder Diameter(mm)	A				DB	E
Cylinder Diameter(mm)	30st or less	30st or more, and less than 100st	100st or more, and than less 200st	200st or less	DB	30st or less	30st or more, and less than 100st	100st or more, and than less 200st	200st or less
12	43	55	84.5	84.5	6	1	13	42.5	42.5
16	49	65	94.5	94.5	8	3	19	48.5	48.5
20	59	76	100	117.5	10	6	23	47	64.5
25	65.5	81.5	100.5	117.5	13	12	28	47	64

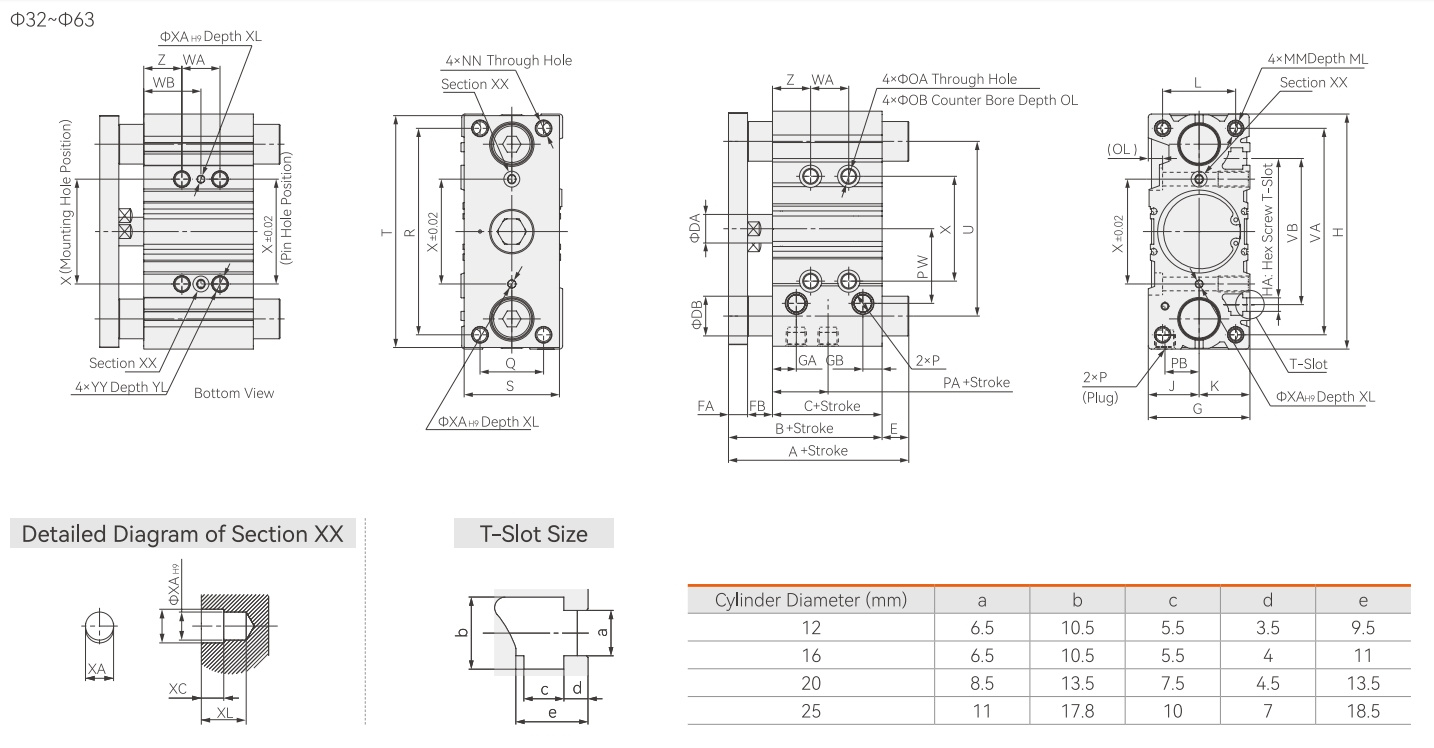

※Based on the pin hole ($XAH9 depth XL), Section XX uses a long hole (width XA,length XB, depth XC) to alleviate the machining accuracy requirements between the two pins.

※ Rc, NPT, G ports can be selected.

Cylinder Diameter(mm)	Standard Stroke(mm)	B	C	DA	FA	FB	G	GA	GB	H	HA	J	K	L	MM	ML	NN	OA	OB	OL	P
Cylinder Diameter(mm)	Standard Stroke(mm)	B	C	DA	FA	FB	G	GA	GB	H	HA	J	K	L	MM	ML	NN	OA	OB	OL	No Mark	TN	TF
32	25,50,75,100,125,150,175,200,250,300,350,400	59.5	37.5	14	10	12	48	12	9	112	M6	24	24	34	M8x1.25	20	M8x1.25	6.7	11	7.5	Rc1/8	NPT1/8	G1/8
40		66	44	14	10	12	54	15	12	120	M6	27	27	40	M8x1.25	20	M8x1.25	6.7	11	7.5	Rc1/8	NPT1/8	G1/8
50		72	44	18	12	16	64	15	12	148	M8	32	32	46	M10x1.5	22	M10x1.5	8.6	14	9	Rc1/4	NPT1/4	G1/4
63		77	49	18	12	16	78	15.5	13.5	162	M10	39	39	58	M10x1.5	22	M10x1.5	8.6	-	9	Rc1/4	NPT1/4	G1/4

Cylinder Diameter(mm)	PA	PB	PW	Q	R	S	T	U	VA	VB	WA					WB					X	XA	XB	XC	XL	YY	YL	Z
Cylinder Diameter(mm)	PA	PB	PW	Q	R	S	T	U	VA	VB	25st or Less	25st or more 100st or less	100st or more 200st or less	200st or more 300st or less	300st or less	25st or Less	25st or more 100st or less	100st or more 200st or less	200st or more 300st or less	300st or less	X	XA	XB	XC	XL	YY	YL	Z
32	6.5	16	35.5	30	96	44	110	78	98	63	24	48	124	200	300	33	45	83	121	171	42	4	4.5	3	6	M8x1.25	16	21
40	13	18	39.5	30	104	44	118	86	106	72	24	48	124	200	300	34	46	84	122	172	50	4	4.5	3	6	M8x1.25	16	22
50	9	21.5	47	40	130	60	146	110	130	92	24	48	124	200	300	36	48	86	124	174	66	5	6	4	8	M10x1.5	20	24
63	13	28	58	50	130	70	158	124	142	110	28	52	128	200	300	38	50	88	124	174	80	5	6	4	8	M10x1.5	20	24

MGPM (Sliding Bearing)

A, DB, E Dimensions

Cylinder Diameter (mm)	A			DB	E
Cylinder Diameter (mm)	50st or less	50st or more, and less than 200st	200st or more	DB	50st or less	50st or more, and less than 200st	200st or more
32	75	93.5	129.5	20	15.5	34	70
40	75	93.5	129.5	20	9	27.5	63.5
50	88.5	109.5	150.5	25	16.5	37.5	78.5
63	88.5	109.5	150.5	25	11.5	32.5	73.5

MGPL(Ball Bearing)

A, DB, E Dimensions

Cylinder Diameter (mm)	A				DB	E
Cylinder Diameter (mm)	50st or less	50st or more, and less than 100st	100st or more, and less than 200st	200st or more	DB	50st or less	50st or more, and less than 100st	100st or more, and less than 200st	200st or more
32	79.5	96.5	116.5	138.5	16	20	37	57	79
40	79.5	96.5	116.5	138.5	16	13.5	30.5	50.5	72.5
50	91.5	112.5	132.5	159.5	20	19.5	40.5	60.5	87.5
63	91.5	112.5	132.5	159.5	20	14.5	35.5	55.5	82.5

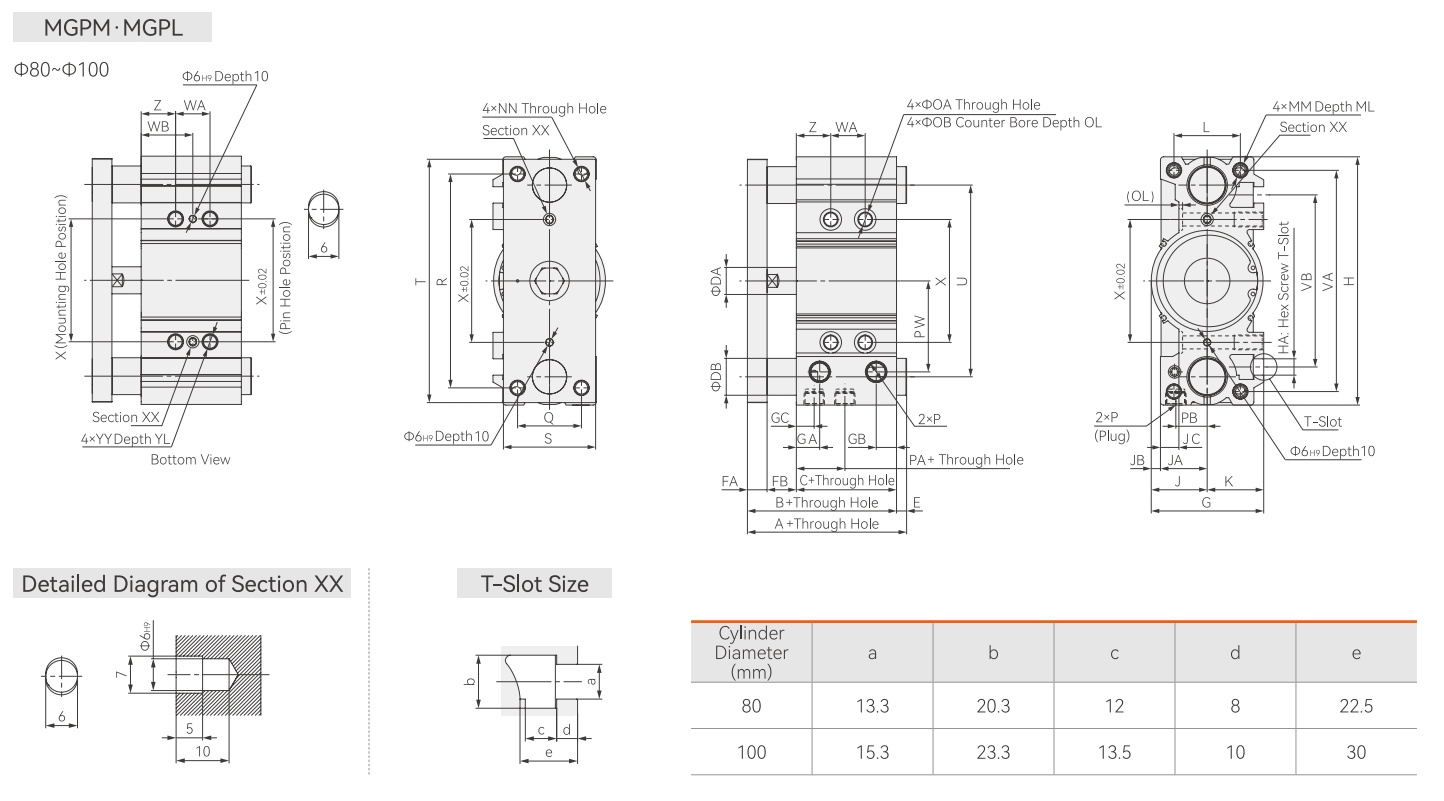

※ Based on the pin hole (φ6H9 depth 10), Section XX uses a long hole (width X6,length 7, depth 5) to alleviate the machining accuracy requirements between the two pins.

※ Rc, NPT, G ports can be selected.

Cylinder Diameter(mm)	Standard Stroke(mm)	B	C	DA	FA	FB	G	GA	GB	H	HA	J	JA	JB	JC	K	L	MM	ML	NN	OA	OB	OL	P
																								No Mark	TN	TF
80	25.50.75.100.125.150.175200,250,300.350,400	96.5	56.5	22	16	24	91.5	19	16.5	202	M12	45.5	38	7.5	15	46	54	M12x1.75	25	M12x1.75	10.6	17.5	3	RC3/8	NPT3/8	G3/8
100		116	66	26	19	31	111.5	22.5	20.5	240	M14	55.5	45	10.5	10	56	62	M14x2.0	31	M14x2.0	12.5	20	8	RC3/8	NPT3/8	G3/8

Cylinder Diameter(mm)	PA	PB	PW	Q	R	S	T	U	VA	VB	WA					WB					X	YY	YL	Z
Cylinder Diameter(mm)	PA	PB	PW	Q	R	S	T	U	VA	VB	25st or Less	25st or more 100st or less	100st or more 200st or less	200st or more 300st or less	300st or less	25st or Less	25st or more 100st or less	100st or more 200st or less	200st or more 300st or less	300st or less	X	YY	YL	Z
80	14.5	25.5	74	52	174	75	198	156	180	140	28	52	128	200	300	42	54	92	128	178	100	M12x1.75	24	28
100	17.5	32.5	89	64	210	90	236	188	210	166	48	72	148	200	320	35	47	85	121	171	124	M14x2.0	28	11

MGPM (Sliding Bearing)

A, DB, E Dimensions

Cylinder Diameter (mm)	A			DB	E
Cylinder Diameter (mm)	50st or less	50st or more, and less than 200st	200st or more	DB	50st or less	50st or more, and less than 200st	200st or more
80	104.5	131.5	180.5	30	8	35	84
100	126.5	151.5	190.5	36	10.5	35.5	74.5

MGPL (Ball Bearing)

A, DB, E Dimensions

Cylinder Diameter (mm)	A				DB	E
Cylinder Diameter (mm)	25st or less	25st or more, and less than 50st	50st or more, and less than 200st	200st or more	DB	25st or less	25st or more, and less than 50st	50st or more, and less than 200st	200st or more
80	104.5	128.5	158.5	191.5	25	8	32	62	95
100	119.5	145.5	178.5	201.5	30	3.5	29.5	62.5	85.5

End Plate Allowable Torque

Cylinder Diameter (mm)	Types of Bearings	Stroke(mm)
Cylinder Diameter (mm)	Types of Bearings	10	20	25	30	40	50	75	100	125	150	175	200	250	300	350	400
Allowable Maximum Torque Unit: Newton Meter (N·m)

12	FMGPM	0.39	0.32	-	0.27	0.24	0.21	0.43	0.36	0.31	0.27	0.24	0.22	0.19	-	-
12	FMGPL	0.61	0.45	-	0.35	0.58	0.5	0.37	0.29	0.24	0.2	0.18	0.16	0.12	-	-
16	FMGPM	0.69	0.58	-	0.49	0.43	0.38	0.69	0.58	0.5	0.44	0.4	0.36	0.3	-	-	-
16	FMGPL	0.99	0.74	-	0.59	0.99	0.86	0.65	0.52	0.43	0.37	0.32	0.28	0.23	-
20	FMGPM	-	1.05	-	0.93	0.83	0.75	1.88	1.63	1.44	1.28	1.16	1.06	0.9	0.78	0.69	0.62
20	FMGPL	-	1.26	-	1.03	2.17	1.94	1.52	1.25	1.34	1.17	1.03	0.93	0.76	0.65	0.56	0.49
25	FMGPM	-	1.76	-	1.55	1.38	1.25	2.96	2.57	2.26	2.02	1.83	1.67	1.42	1.24	1.09	0.98
25	FMGPL	-	2.11	-	1.75	3.37	3.02	2.38	1.97	2.05	1.78	1.58	1.41	1.16	0.98	0.85	0.74
32	FMGPM	-	-	6.35	-	-	5.13	5.69	4.97	4.42	3.98	3.61	3.31	2.84	248	2.2	1.98
32	FMGPL	-	-	5.95	-	-	4.89	5.11	4.51	6.34	5.79	5.33	4.93	4.29	3.78	3.38	3.04
40	FMGPM	-	-	7	-	-	5.66	6.27	5.48	4.87	4.38	3.98	3.65	3.13	2.74	2.43	2.19
40	FMGPL	-	-	6.55	-	-	5.39	5.62	4.96	6.98	6.38	5.87	5.43	4.72	4.16	3.71	3.35
50	FMGPM	-	-	13	-	-	10.8	12	10.6	9.5	8.6	7.86	7.24	6.24	5.49	4.9	4.43
50	FMGPL	-	-	9.17	-	-	7.62	9.83	8.74	11.6	10.7	9.83	9.12	7.95	7.02	6.26	5.63
63	FMGPM	-	-	14.7	-	-	12.1	13.5	11.9	10.7	9.69	8.86	8.16	7.04	6.19	5.52	4.99
63	FMGPL	-	-	10.2	-	-	8.48	11	9.74	13	11.9	11	10.2	8.84	7.8	6.94	6.24
80	FMGPM	-	-	21.9	-	-	18.6	22.9	20.5	18.6	17	15.6	14.5	12.6	11.2	10.0	9.11
80	FMGPL	-	-	15.1	-	-	23.3	22.7	20.6	18.9	17.3	16	14.8	12.9	11.3	10.0	8.94
100	FMGPM	-	-	38.8	-	-	33.5	37.5	33.8	30.9	28.4	26.2	24.4	21.4	19.1	17.2	15.7
100	FMGPL	-	-	27.1	-	-	30.6	37.9	34.6	31.8	29.3	27.2	25.3	22.1	19.5	17.3	15.5

End Plate Non-Rotation Accuracy

Cylinder Diameter(mm)	Non-Rotation Accuracy Θ
	10	125
Allowable Maximum Torque Unit: Newton Meter (N·m)

The non-rotation accuracy 0 of the retraction end without load should be below the value in the following table.
12	±0.07°	±0.05°
16
20	±0.06°	±0.04°
25
32	±0.05°	±0.03°
40
50	±0.04°	±0.03°
63
80	±0.03°	±0.03°
100
