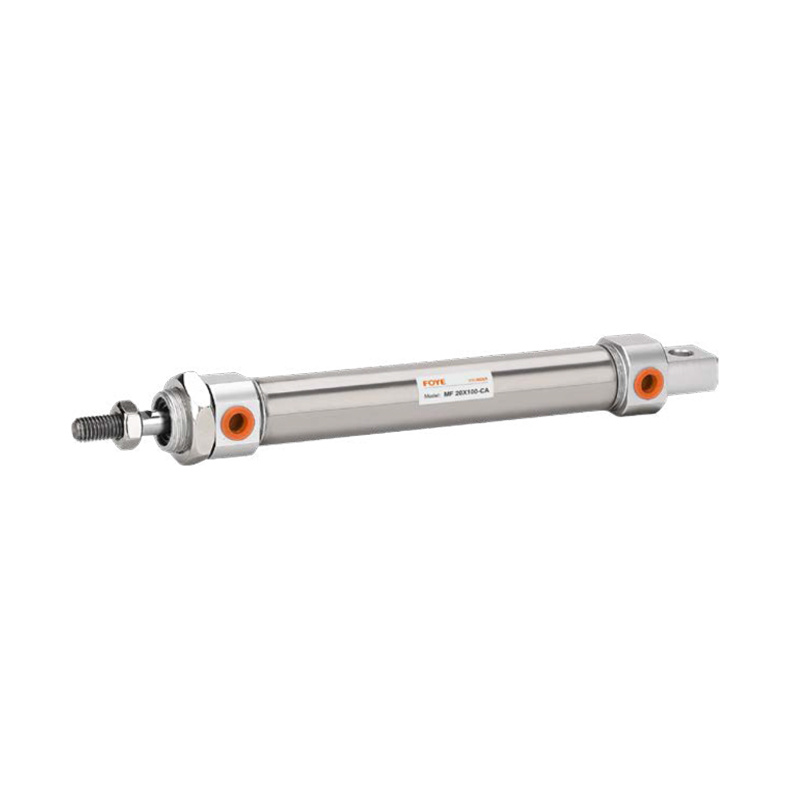

1.MF Series Stainless Steel Mini Cylinder.jpg

FMF Series Stainless Steel Mini Cylinder

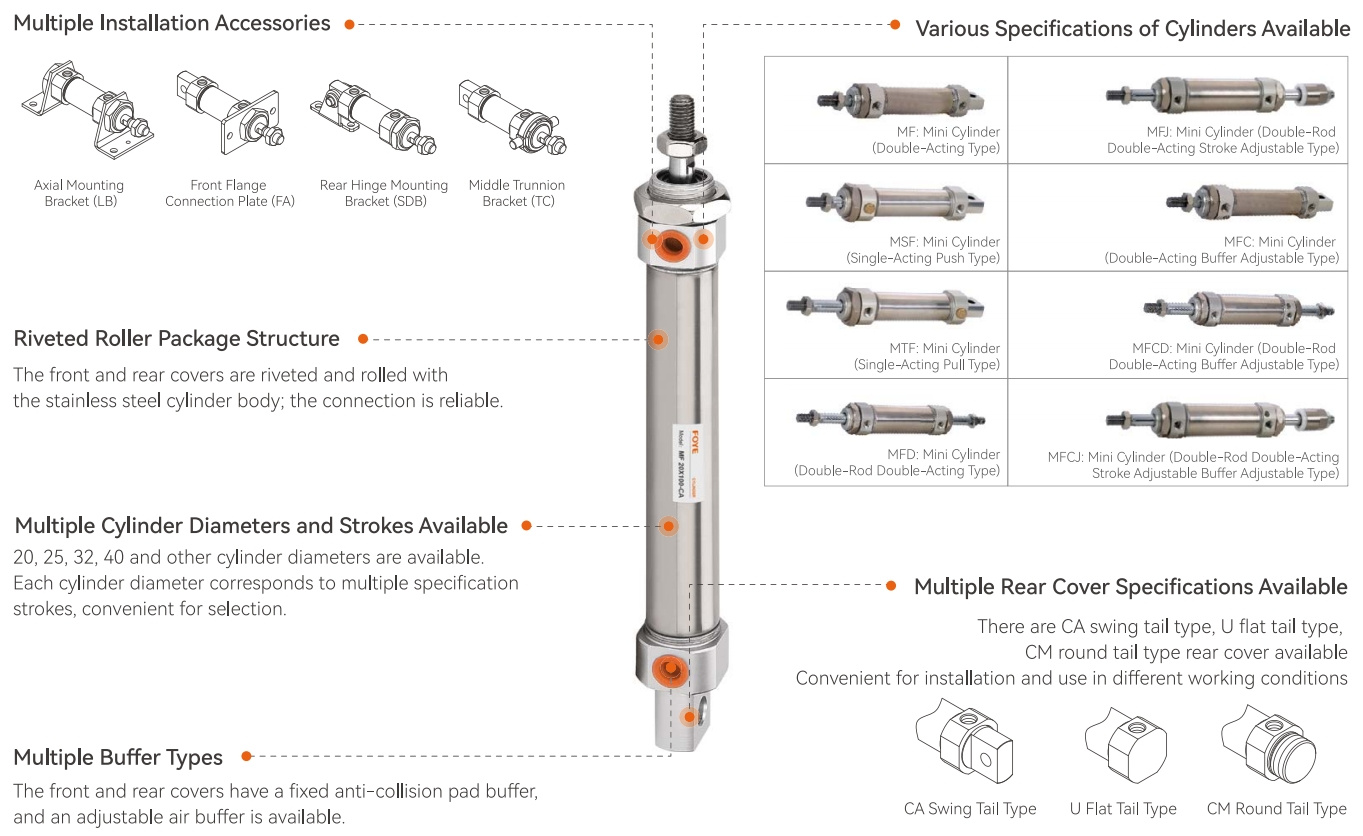

·Implementing JIS standards.
·The piston seal adopts an asymmetric compact bidirectional sealing structure, with oil storage function.
·The front and rear covers have a fixed anti-collision pad to reduce the switching impact of the cylinder;
·Multiple rear cover forms make the cylinder installation more convenient;
·The front and rear covers are riveted and rolled with the stainless steel cylinder body, the connection is reliable
·The cylinder body is made of high-precision stainless steel tube, with high strength and corrosion resistance.
·For the same cylinder diameter and stroke, the MF series cylinder is smaller than the lS06432 standard cylinder.
·A variety of cylinder specifications and cylinder installation accessories are available for customers to choose.

product details

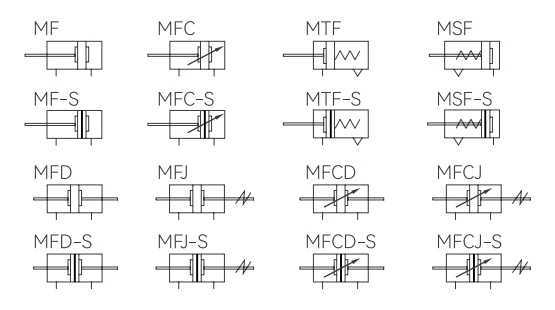

Symbols

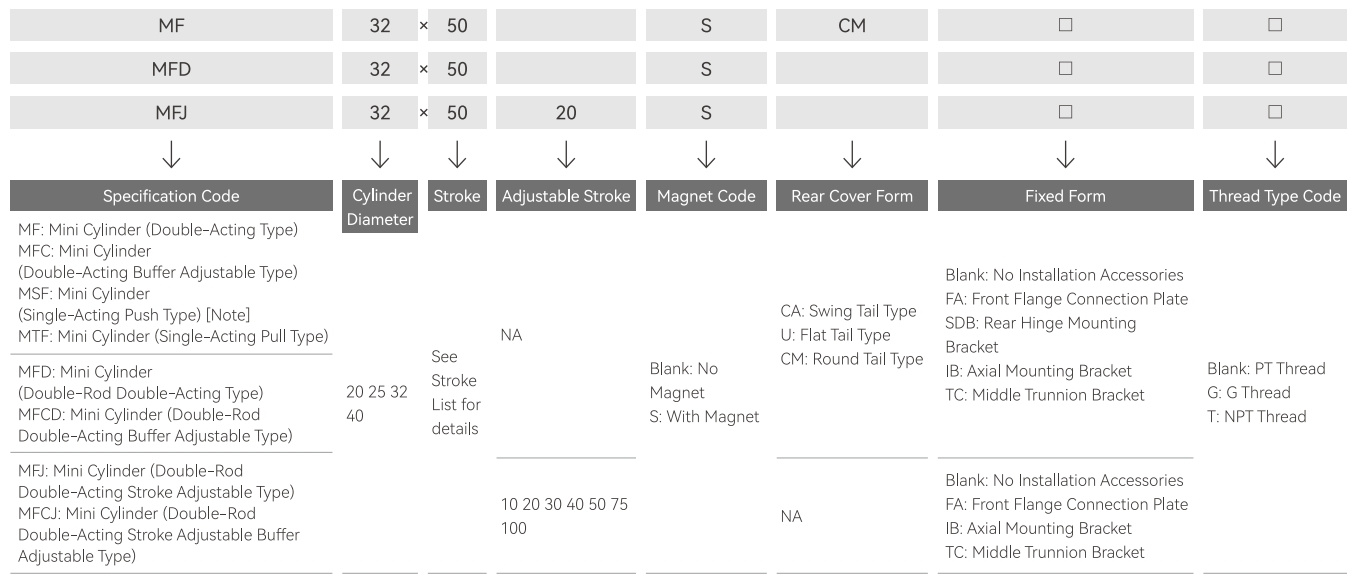

Finished Product Order Code

[Note] Single-acting push type refers to the piston rod extending when the air is on.the front spring is compressed. and when the air is of.the piston rod retracts to its original position under the reset force of the spring.

Single-acting pull type refers to the piston rod retracting when the air is on.the rear spring is compressed. and when the air is oft the piston rod extends to its original position under the reset force of the spring.

Specifications

Inner Diameter (mm)		20	25	32	40
Action Type		Double-Acting Type, Double-Acting Buffer Type, Single-Acting Push Type, Single-Acting Pull Type
Working Medium		Air (filtered through a Filter Element with a pore size smaller than 40μm)
Operating Pressure Range	Double-Acting Type	0.15~1.0Mpa(22~145psi)(1.5~10.0bar)
	Single-Acting Type	0.2~1.0MPa(28~145psi)(2.0~10.0bar)
Guaranteed Pressure Resistance		1.5MPa(215psi)(15bar)
Operating Temperature (℃ )		-20~70
Operating Speed Range(mm/s)		Double-Acting Type:30~800 Single-Acting Type:50~800
Stroke Tolerance Range		0-150^{+1.0 0}>150^{+1.5 0}
Cushion Type		MBLC,MBLCD, MBLCJ Series: Adjustable Buffer Other Types: Anti-collision Pad
Pipe Diameter[Note 1]		PT1/8		PT1/4

[Note 1] G Thread and NPT Thread are available for Pipe Thread.

Overview of MF Series Products

Cylinder Theoretical Output Table

Cylinder Inner Diameter	Piston Rod Outer Diameter	Mode of Operation		Pressure Area(mm²)	Air Pressure(MPa)
Cylinder Inner Diameter	Piston Rod Outer Diameter	Mode of Operation		Pressure Area(mm²)	0.1	0.2	0.3	0.4	0.5	0.6	0.7
20	8	Push Single-Acting		314.0	-	24.3	55.7	87.1	117.5	149.9	181.3
		Pull Single-Acting		263.8	-	14.3	40.6	67.0	93.4	119.8	146.1
		Double-Acting	Pull Side	314.0	31.4	62.8	94.2	125.6	157.0	188.4	219.8
		Double-Acting	Push Side	263.8	26.4	52.8	79.1	105.5	131.9	158.3	184.7
25	10	Push Single-Acting		490.6	-	45.6	94.7	143.8	192.8	241.9	290.9
		Pull Single-Acting		412.1	-	29.9	71.1	112.4	153.6	194.8	236.0
		Double-Acting	Pull Side	490.6	49.1	98.1	147.2	196.2	245.3	294.4	323.4
		Double-Acting	Push Side	412.1	41.2	82.4	123.6	164.8	206.1	247.3	288.5
32	12	Push Single-Acting		804.3	-	82.2	162.6	242.9	323.3	403.7	484.1
		Pull Single-Acting		691.2	-	59.6	128.6	197.7	266.8	335.9	405.0
		Double-Acting	Pull Side	804.3	80.4	160.9	241.3	321.7	402.2	482.6	563.0
		Double-Acting	Push Side	691.2	69.1	138.2	207.4	276.5	345.6	414.7	483.8
40	16	Push Single-Acting		1256.6	-	158.5	284.1	409.7	535.3	60.9	786.5
		Pull Single-Acting		1055.6	-	118.3	223.8	329.3	434.8	540.3	645.8
		Double-Acting	Pull Side	1256.6	125.7	251.3	377.0	502.6	628.3	754.0	879.6
		Double-Acting	Push Side	1055.6	105.6	211.1	316.7	422.2	527.8	633.4	738.9

Installation and Use (General Purpose)

·When the load changes during operation, a cylinder with ample output force should be selected.

·Under high temperature or corrosive conditions, a corresponding high-temperature resistant or corrosion-resistant cylinder should be selected.

·In environments with high humidity,lots of dust,or presence of water droplets, oil dust, and welding slag,appropriate protective measures should be taken for the cylinder.

·Before the cylinder is connected to the pipeline, the dirt inside the pipeline must be cleared to prevent foreign objects from entering the cylinder.

·The medium used in the cylinder should be filtered through a filter element with a pore size smaller than 40um before use.

·In low-temperature environments, anti-freezing measures should be taken to prevent the water in the system from freezing.

·Before using the cylinder,it should be run under no load. Before running, the buffer should be minimized and gradually relaxed to avoid damaging the cylinder due to excessive impact.

·Avoid lateral loads. otherwise the piston rod will bend and deform and damage the rod end thread. The single acting type cannot be loaded during the return stroke.

·If the cylinder disassembled and not used for a long time ,attention should be paid to surface rust prevention dust-proof caps should be added to the intake and exhaust ports and special attention: the front and rear covers cannot be disassembled be the user independently.

Stroke

Inner Diameter(mm)		Standard Stroke(mm)	Maximum Stroke	Allowable Stroke
MF MFC	20	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	800
	25	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	800
	32	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	800
	40	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	800
MFD	20	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	300	-
MFCD	25	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	300	-
MEJ	32	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	-
MFCJ	40	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	-
MSF MTF	20	10 15 20 25 30 40 50 60 75 80 100 125 150	-	-
	25	10 15 20 25 30 40 50 60 75 80 100 125 150	-	-
	32	10 15 20 25 30 40 50 60 75 80 100 125 150	-	-
	40	10 15 20 25 30 40 50 60 75 80 100 125 150	-	-

[Note] For other special strokes, please contact our company.

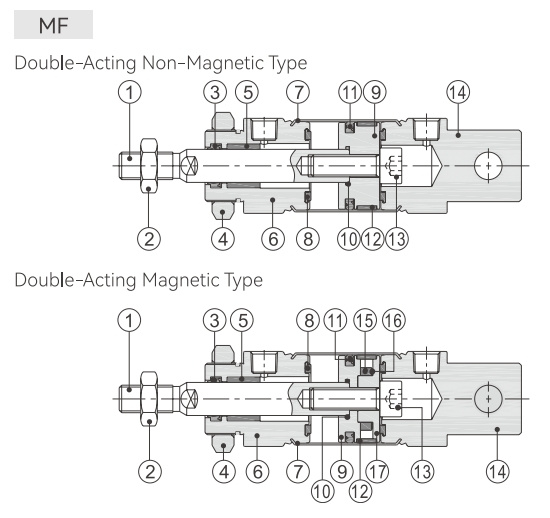

Internal Structure and Main Component Materials

No.	Part Name	Material	No.	Part Name	Material
1	Piston Rod	S45C Hard Chrome Grinding Rod	10	O-Ring	NBR
2	Hex Nut	Carbon Steel	11	Piston O-Ring	NBR
3	Front Cover0-Ring	NBR	12	Wear-resistant Cup (Ring)	Wear-Resistant Material
4	Hex Nut	Carbon Steel	13	Hexagon Socket Nut	Carbon Steel
5	Bushing	Wear-Resistant Material	14	Rear Cover	Aluminum Alloy
6	Front Cover	Aluminum Alloy	15	Magnet	Sintered Iron Boron
7	Cylinder Body	SUS304	16	Magnet Shim	NBR
8	Bumper Pad	TPU	17	Magnet Seat	Aluminum Alloy
9	Piston	Aluminum Alloy

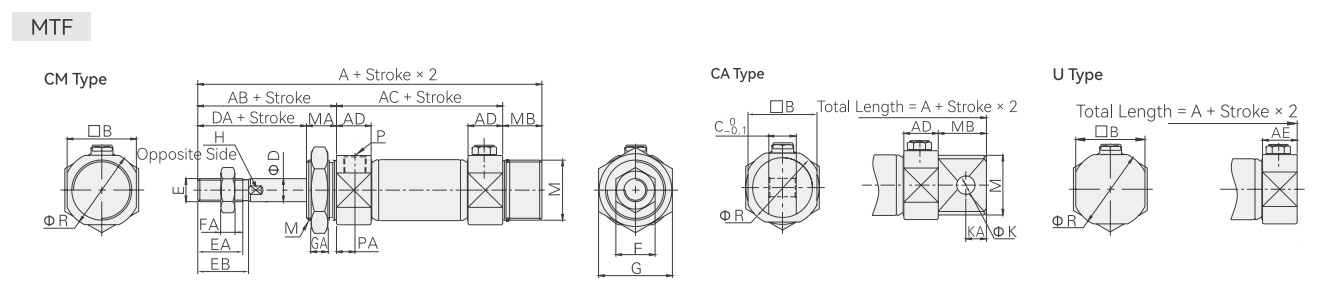

External Specifications

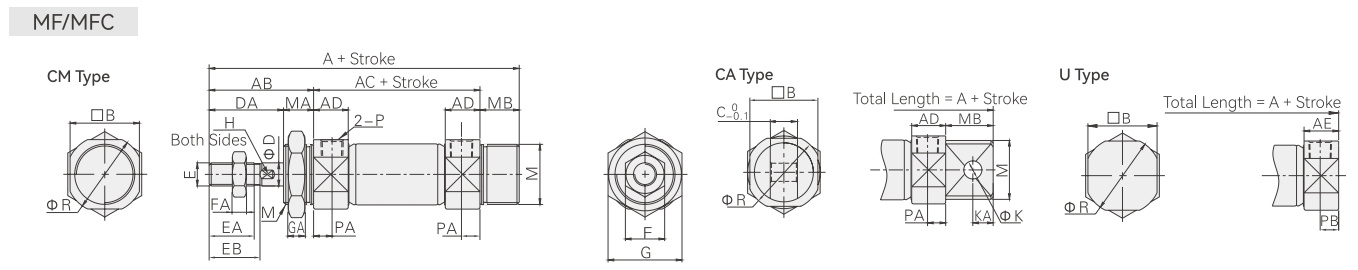

Cylinder Diameter/Symbols	A			AB	AC	AD	AE	B	C	M		MA	MB		D	DA	E	EA	EB	F	FA	G	GA	H	K	KA	P	PB	PA	R
Rear Cover Form	CM	CA	U	AB	AC	AD	AE	B	C	CM	CA	MA	CA	CM	D	DA	E	EA	EB	F	FA	G	GA	H	K	KA	P	PB	PA	R
20	116	124	103(103)	41	62	14.5	14.5(14.5)	25	12	M20X1.5	20	14	21	13	8	27	M8X1.25	16.5	18	12	6	26	8	6	8	9	PT1/8	7.5	7.5	29
25	120	128	108(107)	45	62	14.5	15.5(14.5)	30	12	M26X1.5	16	14	21	13	10	31	M10X1.25	20.5	22	17	6	32	8	8	8	9	PT1/8	7.5	8	33.5
32	122	136	110(109)	45	64	14.5	15.5(14.5)	34.5	20	M26X1.5	26	14	27	13	12	31	M10X1.25	20.5	22	17	6	32	8	10	10	12	PT1/8	7.5	8	37.5
40	154	165	138.5(138)	50	88	21.5	22(21.5)	42.5	20	M32X2.0	32	16	27	16	16	34	M14X1.5	22.5	24	19	8	41	10	14	10	12	PT1/4	11	11.5	46.5

[Note] 1. The size of the magnetic type and the non-magnetic type is the same.

2. The size in "( )" is the size of the MFC series.

Cylinder Diameter/Symbols	A									AC
Rear Cover Form	CM			CA			U			-
Stroke	1~50	51~100	101~150	1~50	51~100	101~150	1~50	51~100	101~150	1~50	51~100	101~150
20	141	166	191	149	174	199	128	153	178	87	112	137
25	145	170	195	153	178	203	133	158	183	87	112	137
32	147	172	197	161	186	211	135	160	185	89	114	139
40	179	204	229	190	215	240	163.5	188.5	213.5	113	138	163

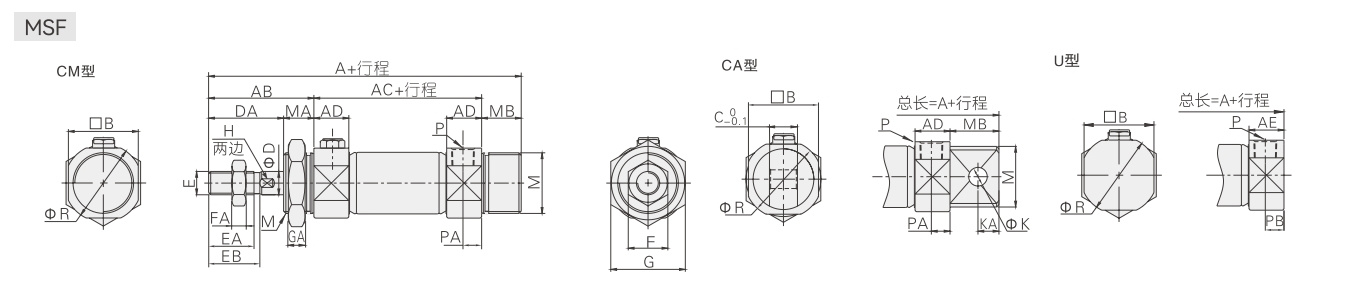

Cylinder Diameter/Symbols	AB	AD	AE	B	C	D	DA	E	EA	EB	F	FA	G	GA	H	KA	KA	M		MA	MB		P	PA	PB	R
Rear Cover Form	AB	AD	AE	B	C	D	DA	E	EA	EB	F	FA	G	GA	H	KA	KA	CM	CA	MA	CA	CM	P	PA	PB	R
20	41	14.5	14.5	25	12	8	27	M8X1.25	16.5	18	12	6	26	8	6	8	9	M20X1.5	20	14	21	13	PT1/8	7.5	7.8	29
25	45	14.5	15.5	30	12	10	31	M10X1.25	20.5	22	17	6	32	8	8	8	9	M26X1.5	26	14	21	13	PT1/8	7.5	8	33.5
32	45	14.5	15.5	34.5	20	12	31	M10X1.25	20.5	22	17	6	32	8	10	10	12	M26X1.5	26	14	27	13	PT1/8	7.5	8	37.5
40	50	21.5	22	42.5	20	16	34	M14X1.5	22.5	24	19	8	41	10	14	10	12	M32X2.0	32	16	27	16	PT1/4	11	11.5	46.5

[Note] The size of the magnetic type and the non-magnetic type is the same.

Cylinder Diameter/Symbols	A									AC			M		MA	MB
Rear Cover Form	CM			CA			U			-			CM	CA	-	CA	CM
Stroke	1~50	51~100	101~150	1~50	51~100	101~150	1~50	51~100	101~150	1~50	51~100	101~150	-	-	-	-	-
20	141	166	191	149	174	199	128	153	178	87	112	137	M20X1.5	20	14	21	13
25	145	170	195	153	178	203	133	158	183	87	112	137	M26X1.5	26	14	21	13
32	147	172	197	161	186	211	135	160	185	89	114	139	M26X1.5	26	14	27	13
40	179	204	229	190	215	240	163.5	188.5	213.5	113	138	163	M32X2.0	32	16	27	16

Cylinder Diameter/Symbols	AB	AD	AE	B	C	D	DA	E	EA	EB	F	FA	G	GA	H	KA	KA	P	PA	R
20	41	14.5	14.5	25	12	8	27	M8X1.25	16.5	18	12	6	26	8	6	8	9	PT1/8	7.5	29
25	45	14.5	15.5	30	12	10	31	M10X1.25	20.5	22	17	6	32	8	8	8	9	PT1/8	7.5	33.5
32	45	14.5	15.5	34.5	20	12	31	M10X1.25	20.5	22	17	6	32	8	10	10	12	PT1/8	7.5	37.5
40	50	21.5	22	42.5	20	16	34	M14X1.5	22.5	24	19	8	41	10	14	10	12	PT1/4	11	46.5

[Note] The size of the magnetic type and the non-magnetic type is the same.

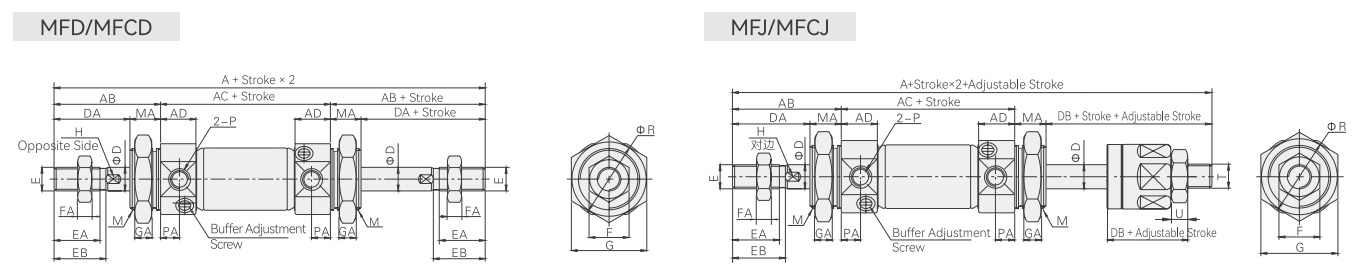

Cylinder Diameter/ Symbols	A		AB	AC	AD	D	DA	DB	E	EA	EB	F	FA	G	GA	H	M	MA	P	PA	R
Specification Code	MFD/MFCD	MEJ/MFCJ	AB	AC	AD	D	DA	DB	E	EA	EB	F	FA	G	GA	H	M	MA	P	PA	R
20	144	141	41	62	14.5	8	27	24	M8X1.25	16.5	18	12	6	26	8	6	M20X1.5	14	PT1/8	7.5	29
25	152	148	45	62	14.5	10	31	27	M10X1.25	20.5	22	17	6	32	8	8	M26X1.5	14	PT1/8	7.5	33.5
32	154	150	45	64	14.5	12	31	27	M10X1.25	20.5	22	17	6	32	8	10	M26X1.5	14	PT1/8	7.5	37.5
40	188	182	50	88	21.5	16	34	28	M14X1.5	22.5	24	19	8	41	10	14	M32X2.0	16	PT1/4	11	46.5

[Note] The size of the magnetic type and the non-magnetic type is the same.

Accessory Order Code List

Cylinder Diameter /Accessory Name	Installation Accessories				Piston Rod End Joint				Sensor
	LB	FA	TC	SDB	I:I Joint	Y:Y Joint	F: Floating Connector	U: Fisheye Connector	CMSG	DMSG
20	F-MF20LB	F-MF20FA	F-MF20TC	F-MF20SDB	F-MF20I	F-MF20Y	F-M8X125F	F-M8X125U	CMSG	DMSG
25	F-MF32LB	F-MF32FA	F-MF32TC		F-MF25I	F-MF25Y	F-M10X125F	F-M10X125U
32				F-MF32SDB
40	F-MF40LB	F-MF40FA	F-MF40TC		F-MF40I	F-MF40Y	F-M14X150F	F-M14X150U

Accessory Selection

Cylinder Series/ Accessory Category		Installation Accessories				Piston Rod End ConnectorlNote 1]				Sensor
Cylinder Series/ Accessory Category		LB	FA	SDB	TC	I	Y	U	F	CMSG	DMSG
FMF FMFC	Standard Type	●	●	●	●	●	●	●	●	×	×
FMF FMFC	With-Magnet Type	●	●	●	●	●	●	●	●	●	●
FMSF FMTF	Standard Type	●	●	●	●	●	●	●	●	×	×
FMSF FMTF	With-Magnet Type	●	●	●	●	●	●	●	●	●	●
FMBD FMBJ	Standard Type	●	●	×	●	●	●	●	●	×	×
FMBD FMBJ	With-Magnet Type	●	●	×	●	●	●	●	●	●	●
FMEJ FMFCJ	Standard Type	●	●	×	●	●	●	●	●	×	×
FMEJ FMFCJ	With-Magnet Type	●	●	×	●	●	●	●	●	●	●

Accessory Material

Cylinder Series/ Accessory Category	Installation Accessories				Piston Rod End Connector [Note 1]
Cylinder Series/ Accessory Category	LB	FA	SDB	TC	I	Y	F	U
20~40	△	△	△	■	□	□	□	□

[Note 1] Floating Connector (F) and Fisheye Connector (U) are universal parts.

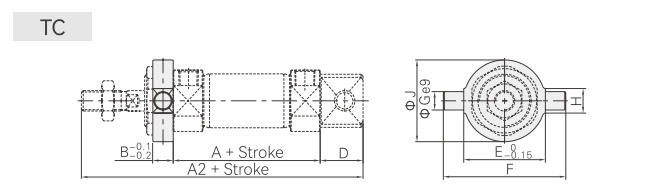

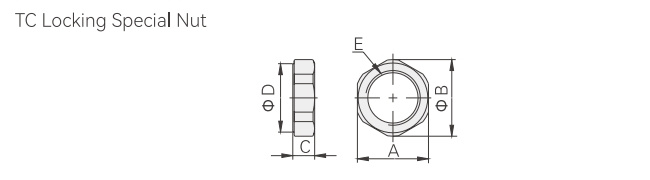

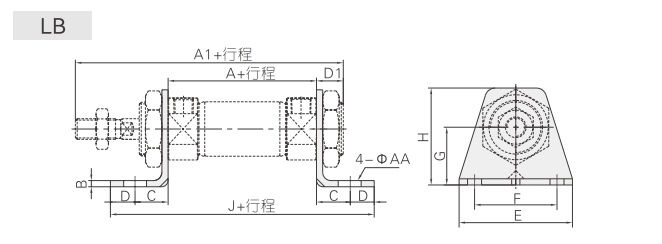

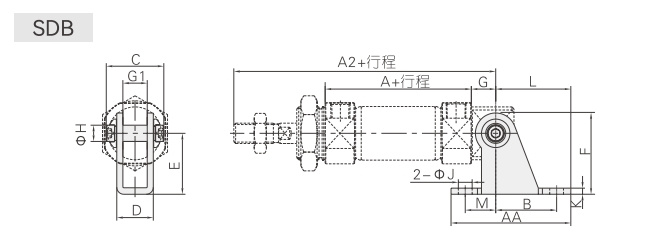

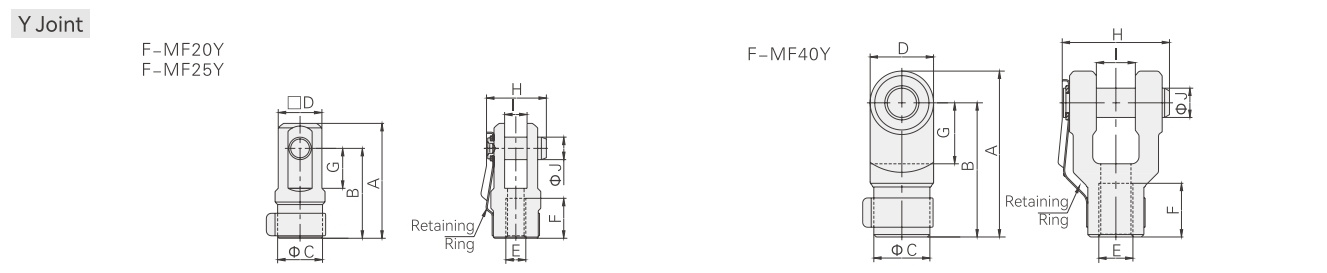

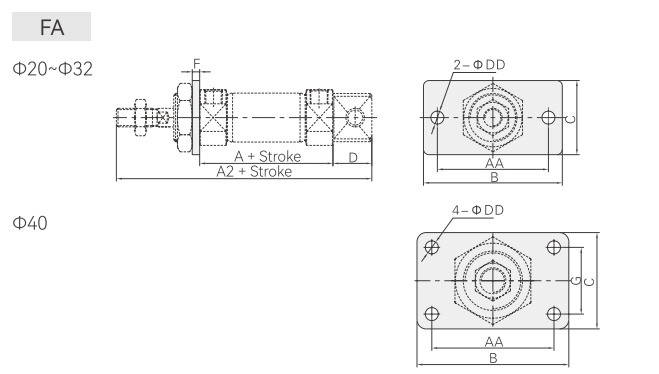

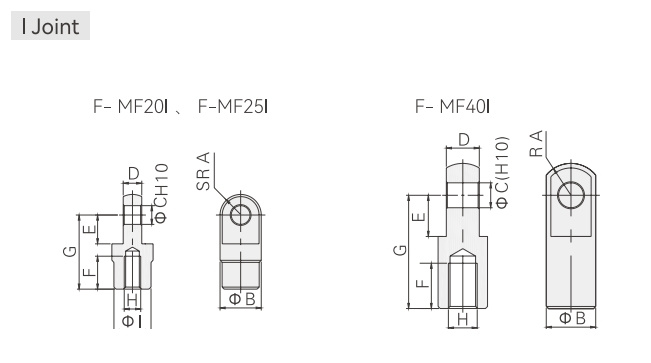

Accessory External Specifications

Cylinder Diameter/Symbols	A	A1	AA	B	C	D	D1	E	F	G	H	J
20	62	116	7	3	20	8	13	55	40	25	40	118
25	62	120	7	3.5	20	8	13	55	40	28	47	118
32	64	122	7	3.5	20	8	13	55	40	28	47	120
40	88	154	7	3.5	23	10	16	75	55	30	54	154

Cylinder Diameter/Symbols	A	A2	AA	B	C	D	E	F	G	G1	H	K	J	L	M
20	62	115	59	30	22.7	17.1	30	40	12	12.1	8	2.5	7	37	15
25	62	119	59	30	22.7	17.1	30	40	12	12.1	8	2.5	7	37	15
32	64	124	75	40	32.7	26.1	40	53	15	20.1	10	3	9	50	15
40	88	153	75	40	32.7	26.1	40	53	15	20.1	10	3	9	50	15
