FMBL Series Aluminum Alloy Mini Cylinder

·Implement enterprise standard, and adopt aluminum round tube cylinder body.
·The front and rear covers are riveted and rolled with the aluminum alloy cylinder body, the connection is reliable.
·The piston seal adopts an asymmetric compact bidirectional sealing structure, with oi storage function.
·Multiple rear cover forms make the cylinder installation more convenient.
·A variety of cylinder specifications and cylinder installation accessories are available for customers to choose.

product details

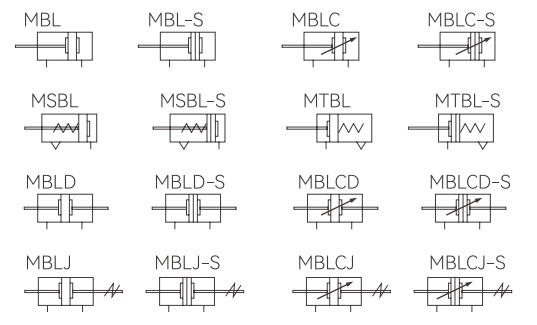

Symbols

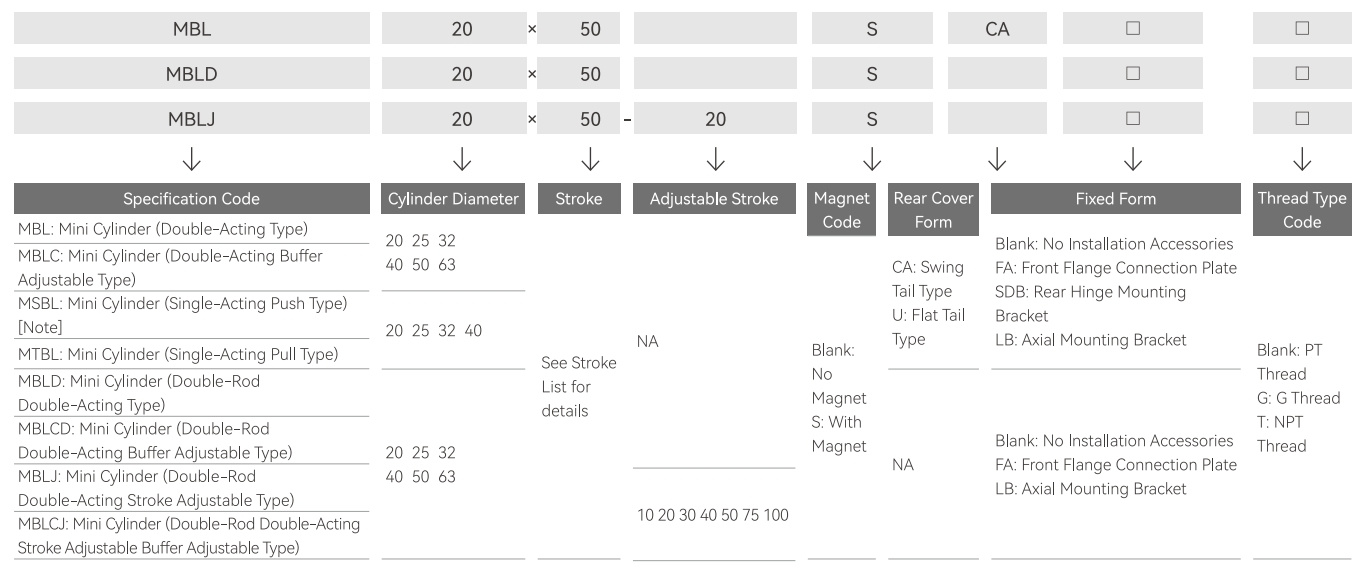

Finished Product Order Code

[Note] single-acing push type refers to the piston rod extending when the air is on,the front spring is compressed,and when the air is of,the piston rod retracts to its original position under the reset force of the spring.

Single-acting pull type refers to the piston rod retracting when the air is on,the rear spring is compressed,and when the air is of, the piston rod extends to its original position under the reset force of the spring.

Specifications

Inner Diameter (mm)		20	25	32	40	50	63
Action Type	MSBL/MTBL	Single-Acting Type				-
	MBL/MBLD/MBLJ	Double-Acting Type
	MBLC/MBLCD/MBLCJ	Double-Acting Buffer Type
Working Medium		Air (filtered through a Filter Element with a pore size smaller than 40μm)
Operating Pressure Range	Double-Acting Type/Double-Acting	0.15~1.0MPa(22~145psi)(1.5~10.0bar)
	Single-Acting Type	0.2~1.0MPa(28~145psi)(2.0~10.0bar)
Guaranteed Pressure Resistance		1.5MPa(215psi)(15bar)
Operating Temperature (℃ )		-20~70
Operating Speed Range (mm/s)		Double-Acting Type:30~800Single-Acting Type:50~800
Stroke Tolerance Range		0-150^{+1.0 0}>150^{+1.5 0}
Cushion Type		MBLC, MBLCD, MBLCJ Series: Adjustable Buffer Other Types: Anti-collision Pad
Pipe Diameter[Note 1]		PT1/8			PT1/4

[Note 1]G Thread and NPT Thread are available for Pipe Thread.

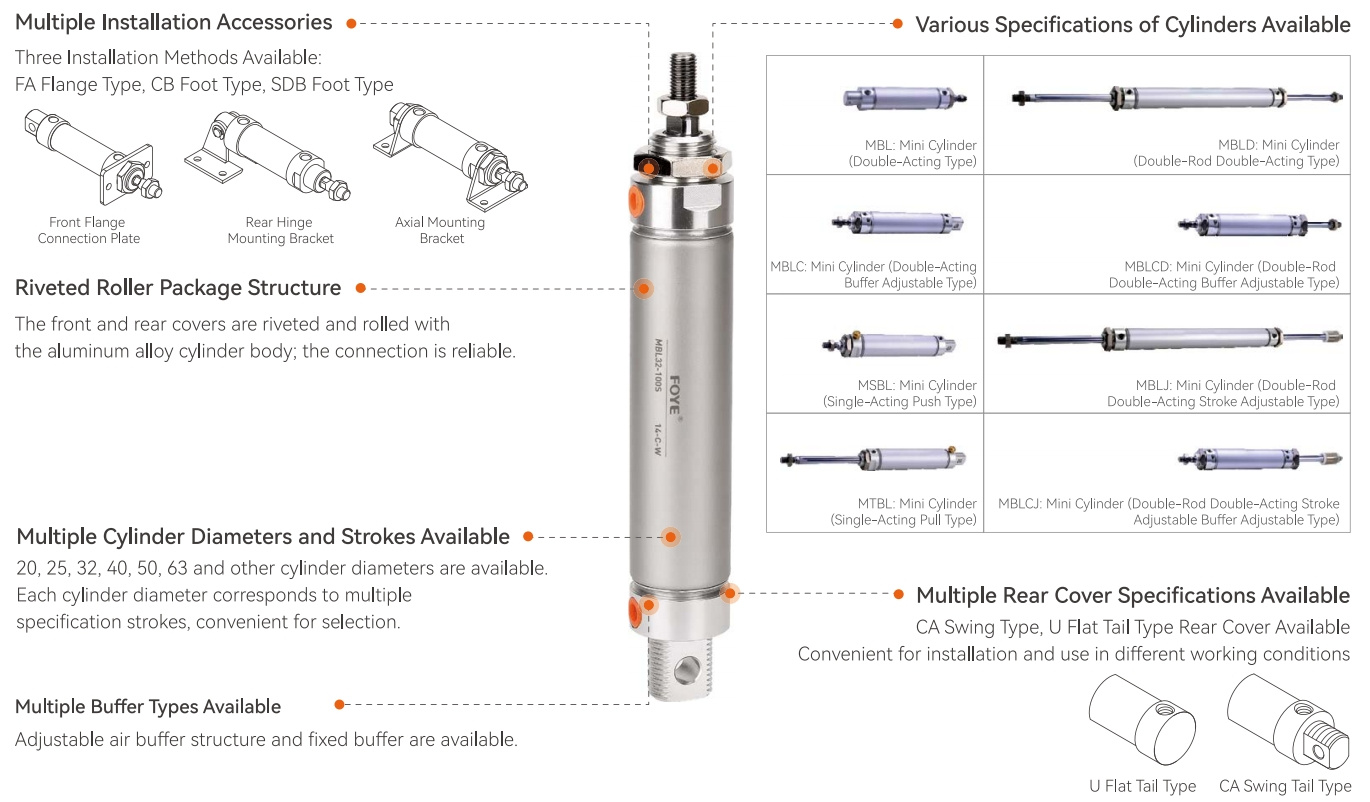

Overview of MBL Series Products

Cylinder Theoretical Output Table

Cylinder Inner Diameter	Piston Rod Outer Diameter	Mode of Operation		Pressure Area(mm²)	Air Pressure(MPa)
Cylinder Inner Diameter	Piston Rod Outer Diameter	Mode of Operation		Pressure Area(mm²)	0.1	0.2	0.3	0.4	0.5	0.6	0.7
20	8	Push Single-Acting		314.0	-	15.7	47.1	78.5	109.9	141.3	172.7
		Pull Single-Acting		263.8	-	5.7	32.0	58.4	84.8	711.2	137.5
		Double-Acting	Pull Side	314.0	31.4	62.8	94.2	125.6	157.0	188.4	219.8
		Double-Acting	Push Side	263.8	26.4	52.8	79.1	105.5	131.9	158.3	184.7
25	10	Push Single-Acting		490.6	-	24.6	73.7	122.8	171.8	220.9	269.9
		Pull Single-Acting		412.1	-	8.9	50.1	91.4	132.6	173.8	215.0
		Double-Acting	Pull Side	490.6	49.1	98.1	147.2	196.2	245.3	294.4	343.4
		Double-Acting	Push Side	472.1	41..2	82.4	123.6	164.8	206.1	247.3	288.5
32	12	Push Single-Acting		804.3	-	40.2	120.6	200.9	281.3	361.7	442.1
		Pull Single-Acting		691.2	-	17.6	86.6	155.7	224.8	293.9	363.0
		Double-Acting	Pull Side	804.3	80.4	160.9	241.3	321.7	402.2	482.6	563.0
		Double-Acting	Push Side	691.2	69.1	138.2	207.4	276.5	345.6	414.7	483.8
40	16	Push Single-Acting		1256.6	-	62.8	188.4	314.0	439.6	565.2	690.8
		Pull Single-Acting		1055.6	-	22.6	128.1	233.6	339.1	444.6	550.1
		Double-Acting	Pull Side	1256.6	125.7	251.3	377.0	502.6	628.3	754.0	879.6
		Double-Acting	Push Side	1055.6	105.6	277.7	316.7	422.2	527.8	633.4	738.9
50	16	Double-Acting	Pull Side	1962.5	196.3	392.5	588.8	785.0	981.3	1177.5	1373.8
50	16	Double-Acting	Push Side	1761.5	176.2	352.3	528.5	704.6	880.8	1056.9	1233.1
63	16	Double-Acting	Pull Side	3115.7	311.6	623.1	934.7	1246.3	1557.9	1869.4	2181.0
63	16	Double-Acting	Push Side	2914.7	291.5	582.9	874.4	1165.9	1457.4	1748.8	2040.3

Installation and Use (General Purpose)

·When the load changes during operation,a cylinder with ample output force should be selected.

·Under high temperature or corrosive conditions, a corresponding high-temperature resistant or corrosion-resistant cylinder should be selected.

·In environments with high humidity, lots of dust, or presence of water droplets, oil dust, and welding slag, appropriate protective measures should be taken for the cylinder.

· Before the cylinder is connected to the pipeline, the dirt inside the pipeline must be cleared to prevent foreign objects from entering the cylinder.

·The medium used in the cylinder should be filtered through a filter element with a pore size smaller than 40μm before use.

·In low-temperature environments, anti-freezing measures should be taken to prevent the water in the system from freezing.

·Avoid lateral loads, otherwise the piston rod will bend and deform and damage the rod end thread. The single acting type cannot be loaded during the return stroke.

·If the cylinder is disassembled and not used for a long time, attention should be paid to surface rust prevention, dust-proof caps should be added to the intake and exhaust ports, and special attention: the front and rear covers cannot be disassembled by the user independently.

Stroke

Inner Diameter(mm)		Standard Stroke(mm)	Maximum Stroke	Allowable Stroke
MBL MBLC	20/25	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	800
	32/40	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	800
	50/63	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	800
MBLD MBLJ MBLCD MBLCJ	20/25	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	300	-
	32/40	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	-
	50/63	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	-
MSBL	20/25	10 15 20 25 30 40 50 60 75 80 100 125 150	-	-
MSBL	32/40	10 15 20 25 30 40 50 60 75 80 100 125 150	-	-
MTBL	20/25	10 15 20 25 30 40 50 60 75 80 100	-	-
MTBL	32/40	10 15 20 25 30 40 50 60 75 80 100	-	-

[Note] For other special strokes, please contact our company.

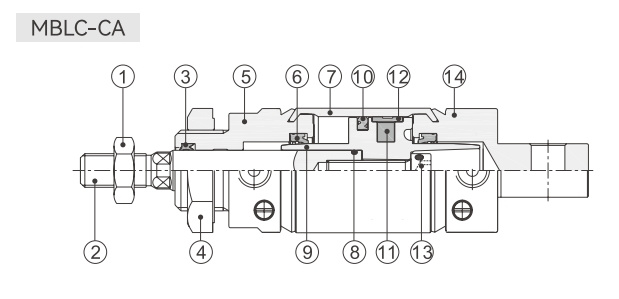

Internal Structure and Main Component Materials

No.	Part Name	Material	No.	Part Name	Material
1	Hex Nut	Carbon Steel	8	0-Ring	NBR
2	Piston Rod	S45C Hard Chrome Grinding Rod	9	Piston	Aluminum Alloy
3	Front Cover O-Ring	NBR	10	Piston0-Ring	NBR
4	Front Cover Nut	Carbon Steel	11	Magnet	Plastic
5	Front Cover	Aluminum Alloy	12	Wear Ring	Wear-Resistant Material
6	Buffer0-Ring	TPU	13	Screw	Alloy Steel
7	Cylinder Body	Aluminum Alloy	14	Rear Cover	Aluminum Alloy

External Specifications

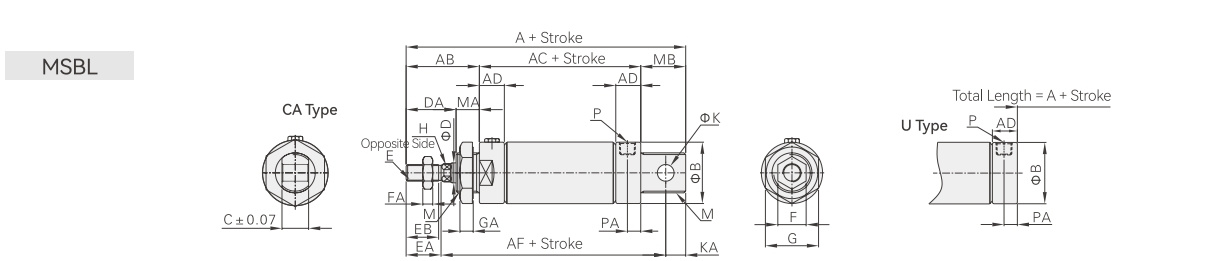

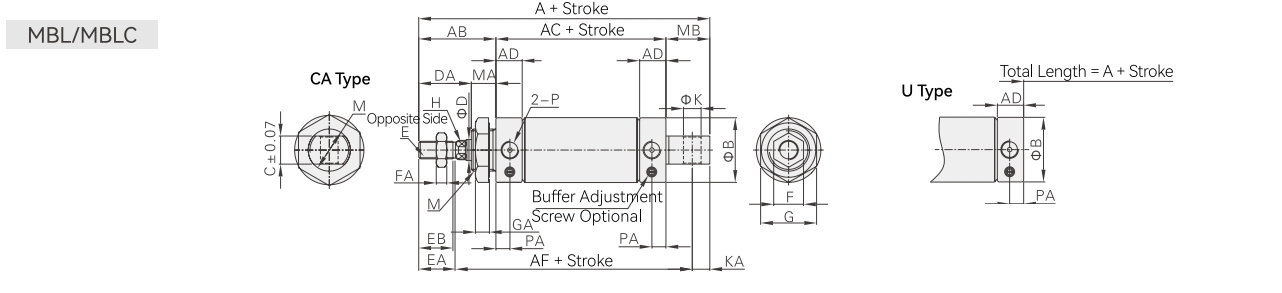

Cylinder Diameter \Symbol	A		AB	AC	AD	B	C	D	DA	M	MA	MB
Rear Cover Form	CA	U	AB	AC	AD	B	C	D	DA	M	MA	MB
20	131	110	40	70	102	27	16	8	26	M22X1.5	14	21
25	135	114	44	70	105	30	16	10	30	M22X1.5	14	21
32	141	114	44	70	108	37	16	12	28	M24X2.0	16	27
40	165	138	46	92	130.5	4	20	16	30	M30X2.0	16	27
50	173	146	54	92	138	55	20	16	32	M36X2.0	22	27
63	173	146	54	92	138	68	20	16	32	M36X2.0	22	27

Cylinder Diameter/Symbols	E	EA	EB	F	FA	G	GA	H	K	KA	P	PA
20	M8X1.25	20	18.5	12	6	29	7	6	8	9	PT1/8	7.5
25	M10X1.25	21	19.5	17	6	29	7	8	8	9	PT1/8	7.5
32	M10X1.25	21	19.5	17	6	32	8	10	10	12	PT1/8	7.5
40	M12X1.25	22.5	21	17	7	41	8	14	12	12	PT1/4	11
50	M14X1.5	24	22.5	19	8	46	11	14	12	11	PT1/4	11
63	M14X1.5	24	22.5	19	8	46	11	14	12	11	PT1/4	11

[Note] The size of the magnetic type and the non-magnetic type is the same.

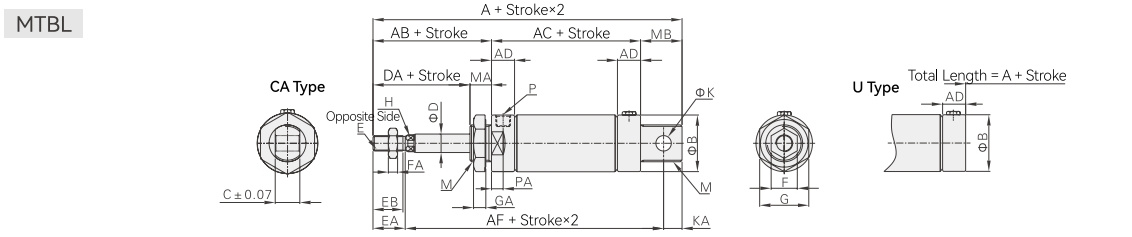

Symbols	A						AB	AC			AD	AF			B	C
Rear Cover Form	CA			U				AC				AF
Cylinder Diameter/Stroke	≤50	51~100	≥101	≤50	51~100	≥101		≤50	51~100	≥101		≤50	51~100	≥101
20	156	181	206	135	160	185	40	95	120	145	15.5	127	152	177	27	16
25	160	185	210	139	164	189	44	95	120	145	15.5	130	155	180	30	16
32	166	191	216	139	164	189	44	95	120	145	15.5	133	158	183	37	16
40	190	215	240	163	188	213	46	117	142	167	22	155.5	180.5	205.5	45	20

Cylinder Diameter/Symbols	D	DA	E	EA	EB	F	FA	G	GA	H	K	KA	M	MA	MB	P	PA
20	8	26	M8X1.25	20	18.5	12	6	29	7	6	8	9	M22X1.5	14	21	PT1/8	7.5
25	10	30	M10X1.25	21	19.5	17	6	29	7	8	8	9	M22X1.5	14	21	PT1/8	7.5
32	12	28	M10X1.25	21	19.5	17	6	32	8	10	10	12	M24X2.0	16	27	PT1/8	7.5
40	16	30	M12X1.25	22.5	21	17	7	41	8	14	12	12	M30X2.0	16	27	PT1/4	11

Symbols	A				AB	AC		AD	AF		B	C	D	DA
Rear Cover Form	CA		U			AC			AF
Cylinder Diameter/Stroke	≤50	51~100	≤50	51~100		≤50	51~100		≤50	51~100
20	156	181	135	160	40	95	120	15.5	127	152	27	16	8	26
25	160	185	139	164	44	95	120	15.5	130	155	30	16	10	30
32	166	191	139	164	44	95	120	15.5	133	158	37	16	12	28
40	190	215	163	188	46	117	142	22	155.5	180.5	45	20	16	30

Cylinder Diameter/Symbols	E	EA	EB	F	FA	G	GA	H	K	KA	MA	MB	P	PA
20	M8X1.25	20	18.5	12	6	29	7	6	8	9	14	21	PT1/8	7.5
25	M10X1.25	21	19.5	17	6	29	7	8	8	9	14	21	PT1/8	7.5
32	M10X1.25	21	19.5	17	6	32	8	10	10	12	16	27	PT1/8	7.5
40	M12X1.25	22.5	21	17	7	41	8	14	12	12	16	27	PT1/4	11

[Note]The size of the magnetic type and the non-magnetic type is the same.

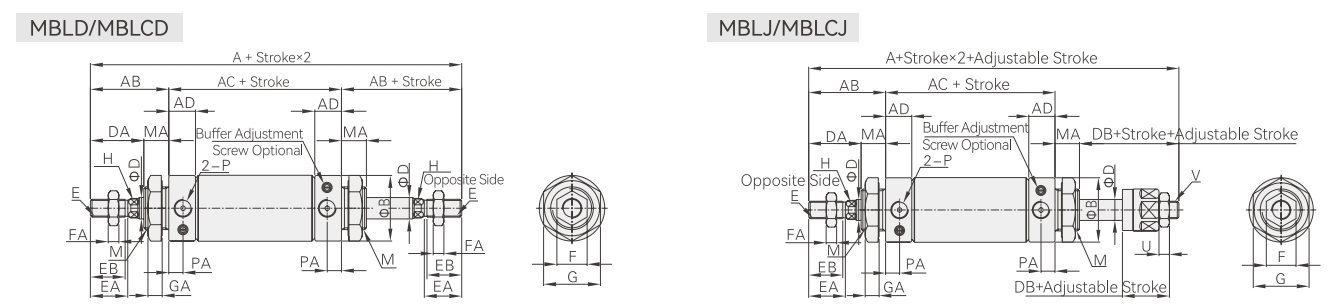

Cylinder Diameter \Symbol	A				AB	AC	AD	B	D	DA	DB	E	EA	EB	F	FA	G	GA	H	M	MA	P	PA	U	V
Specification Code	MBLD	MBLCD	MBLJ	MBLCJ	AB	AC	AD	B	D	DA	DB	E	EA	EB	F	FA	G	GA	H	M	MA	P	PA	U	V
20	150		149		40	70	15.5	27	8	26	25	M8X1.25	20	18.5	12	6	29	7	6	M22X1.5	14	PT1/8	7.5	6	M8X1.25
25	158		155		44	70	15.5	30	10	30	27	M10X1.25	21	19.5	17	6	29	7	8	M22X1.5	14	PT1/8	7.5	6	M10X1.25
32	158		157		44	70	15.5	37	12	28	27	M10X1.25	21	19.5	17	6	32	8	10	M24X2.0	16	PT1/8	7.5	6	M10X1.25
40	184		182		46	92	22	45	16	30	28	M12X1.25	22.5	21	17	7	41	8	14	M30X2.0	16	PT1/4	11	7	M12X1.25
50	200		196		54	92	22	55	16	32	28	M14x1.5	24	22.5	19	8	46	11	14	M36X2.0	22	PT1/4	11	7	M12X1.25
63	200		196		54	92	22	68	16	32	28	M14x1.5	24	22.5	19	8	46	11	14	M36X2.0	22	PT1/4	11	7	M12X1.25

[Note] The size of the magnetic type and the non-magnetic type is the same.

Accessory Order Code List

Cylinder Diameter /Accessory Category	Installation Accessories			Piston Rod End Joint				Sensor
	LB	FA	SDB	I:I Joint	Y:Y Joint	F:Floating Connector	U: Fisheye Connector	CMSG	DMSG
20	F-MA20LB	F-MA20FA	F-MA20SDB	F-MA201	F-MA20Y	F-M8X125F	F-M8X125U	CMSG	DMSG
25				F-MA25I	F-MA25Y	F-M10X125F	F-M10X125U
32	F-MA32LB	F-MA32FA	F-MA32SDB
40	F-MA40LB	F-MA40FA	F-MA40SDB		F-MA40Y	F-M12X125F	F-M12X125U
50	F-MA50LB	F-MA50FA		F-MA40I	F-MAC50Y	F-M14X150F	F-M14X150U
63	F-MA63LB			F-MAC50I

Accessory Selection

Cylinder Series/ Accessory Category		Installation Accessories			Piston Rod End Joint[Note 1]				Sensor
Cylinder Series/ Accessory Category		LB	FA	SDB	I	Y	U	F	CMSG	DMSG
FMBL FMBLC	Standard Type	●	●	●	●	●	●	●	×	×
FMBL FMBLC	With-Magnet Type	●	●	●	●	●	●	●	●	●
FMSBL FMTBL	Standard Type	●	●	●	●	●	●	●	×	×
FMSBL FMTBL	With-Magnet Type	●	●	●	●	●	●	●	●	●
FMBLD FMBLCD	Standard Type	●	●	×	●	●	●	●	×	×
FMBLD FMBLCD	With-Magnet Type	●	●	×	●	●	●	●	●	●
FMBLJ FMBLCJ	Standard Type	●	●	×	●	●	●	●	×	×
FMBLJ FMBLCJ	With-Magnet Type	●	●	×	●	●	●	●	●	●

Accessory Material

Cylinder Series/ Accessory Category	Installation Accessories			Piston Rod End Joint[Note 1]
Cylinder Series/ Accessory Category	LB	FA	SDB	I	Y	U	F
20~63	○	○	○	□	□	□	□
○-Low Carbon Steel;□--Carbon Steel

[Note 1] Floating Connector (F) and Fisheye Connector (U) are universal parts.

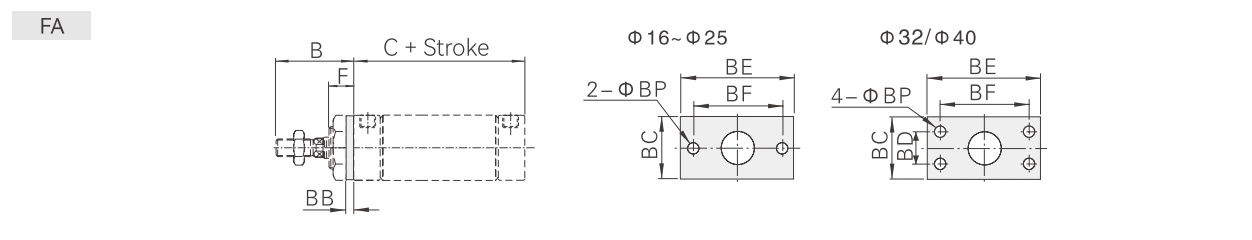

Accessory External Specifications

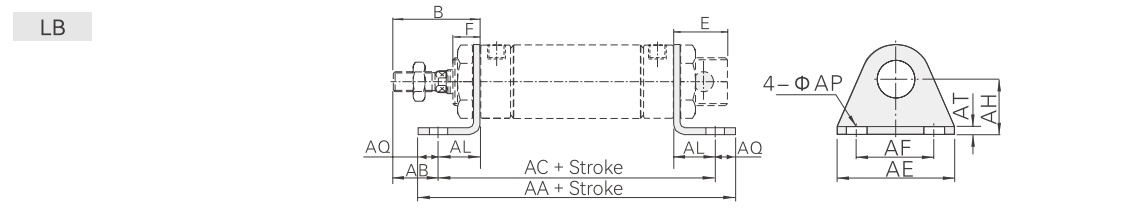

Cylinder Diameter/Symbols	AA(MBL)	AA(MSBL)			AC(MBL)	AC(MSBL)			B	E	F	AB	AE	AF	AL	AQ	AP	AT	AH
Stroke	AA(MBL)	0~50	51~100	101~150	AC(MBL)	0~50	51~100	101~150	B	E	F	AB	AE	AF	AL	AQ	AP	AT	AH
20	116	141	166	191	100	125	150	175	40	21	14	25	40	40	15	8	6.5	3	25
25	116	141	166	191	100	125	150	175	44	21	14	29	40	40	15	8	6.5	3	25
32	136	161	186	211	120	145	170	195	44	27	16	19	45	45	25	8	7	3.5	32
40	158	183	208	233	142	167	192	217	46	27	16	21	50	50	25	8	7	3.5	36
50	172	-	-	-	148	-	-	-	54	27	22	26	66	66	28	12	11	4.5	40
63	180	-	-	-	154	-	-	-	54	27	22	23	82	82	31	13	11	4.5	45

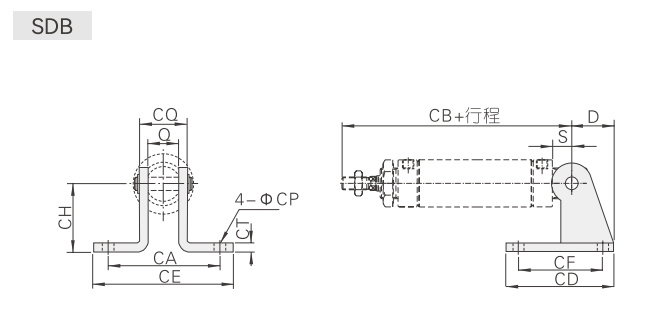

Cylinder Diameter/Symbols	B	C(MBL)	C(MSBL)			BB	BC	BD	BE	BF	BP	F
Stroke	B	C(MBL)	0~50	51~100	101~150	BB	BC	BD	BE	BF	BP	F
20	40	70	95	120	145	3.5	38	-	64	50	7	14
25	44	70	95	120	145	3.5	38	-	64	50	7	14
32	44	70	95	120	145	4	47	33	72	58	6.5	16
40	46	92	117	142	167	4	50	36	84	70	6.5	16
50	54	92	-	-	-	4.5	65	47	104	86	9	22
63	54	92	-	-	-	4.5	65	47	104	86	9	22

Cylinder Diameter/Symbols	D	S	Q	CA	CB(MBL)	CB(MSBL)			CD	CE	CF	CH	CT	CP	CQ
Stroke	D	S	Q	CA	CB(MBL)	0~50	51~100	101~150	CD	CE	CF	CH	CT	CP	CQ
20	21	12	16	51	122	147	172	197	48	67	32	32	2.5	7	22
25	21	12	16	51	126	151	176	201	48	67	32	32	2.5	7	22
32	27	15	16	51	129	154	179	204	52	67	36	36	3	7	24
40	27	15	20	55	153	178	203	228	56	71	40	40	3	7	28

[Note] SDB Rear Hinge Mounting Bracket with Corresponding PIN.

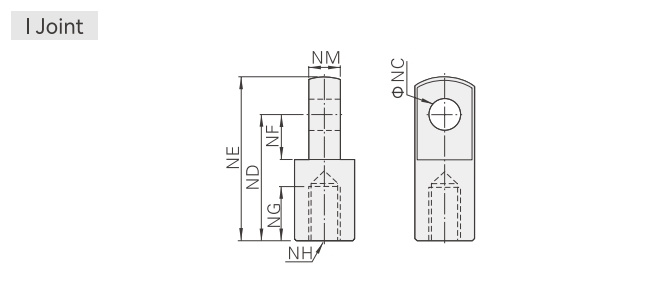

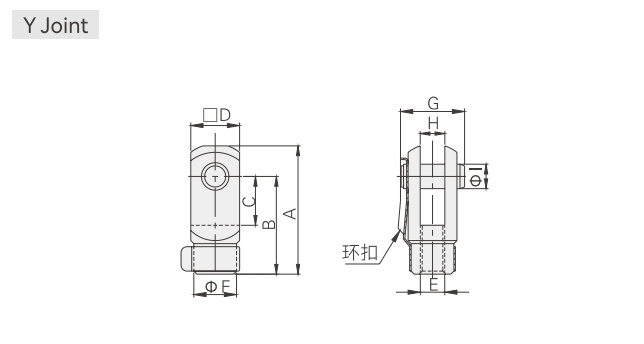

Model/Symbol	A	B	C	D	E	F	G	H	I
F-MA20Y	42	32	16	16	M8X1.25	14	21	8	8
F-MA25Y	52	40	20	19	M10X1.25	18	25	10	10

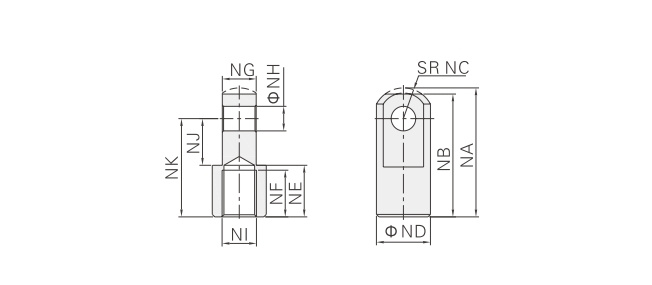

Model/Symbol	NC	ND	NE	NF	NG	NH	NM
F-MA20I	8	30	40	11	15	M8X1.25	8
F-MA25I	10	40	50	15	20	M10X1.25	10
F-MA40I	10	45	57	16	23	M10X1.25	14

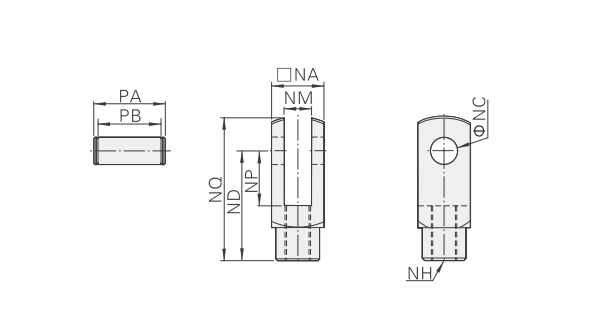

Model/Symbol	NA	NC	ND	NP	NQ	NM	NH	PA	PB
F-MA40Y	25.4	10	45	20	57	14	M12X1.25	32	26.2

Model/Symbol	NA	NB	NC	ND	NE	NF	NG	NH	NJ	NK	NI
F-MAC50I	52.5	50	12.5	22	21	19	13.8	10	19	40	M14X1.5

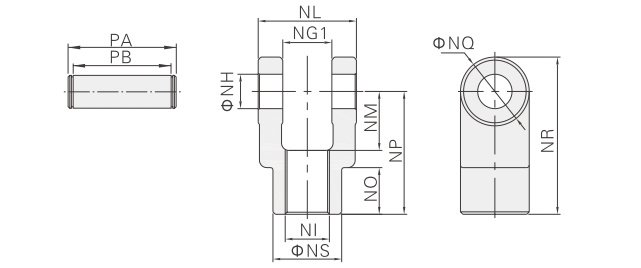

Model/Symbol	NG1	NH	NI	NL	NM	NO	NP	NQ	NR	NS	PA	PB
F-MAC50Y	14.2	10	M14X1.5	27.8	19	17	40	22	51	22	34.6	28.8
