FMA Series Stainless Steel Mini Cylinder

·lmplementing corporate standards:
·The piston seal adopts an asymmetric compact bidirectional sealing structure, with oil storage function.
·The front and rear covers have a fixed anti-collision pad to reduce the switching impact of the cylinder;
·Multiple rear cover forms make the cylinder installation more convenient；
·The front and rear covers are riveted and rolled with the stainless steel cylinder body, the connection is reliable
·The cylinder body is made of high-precision stainless steel tube, with high strength and corrosion resistance.
·A variety of cylinder specifications and cylinder installation accessories are available for customers to choose.
·This series of cylinders are all magnetic.

product details

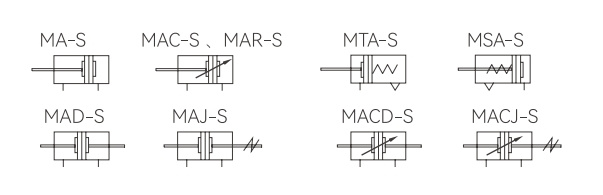

Symbols

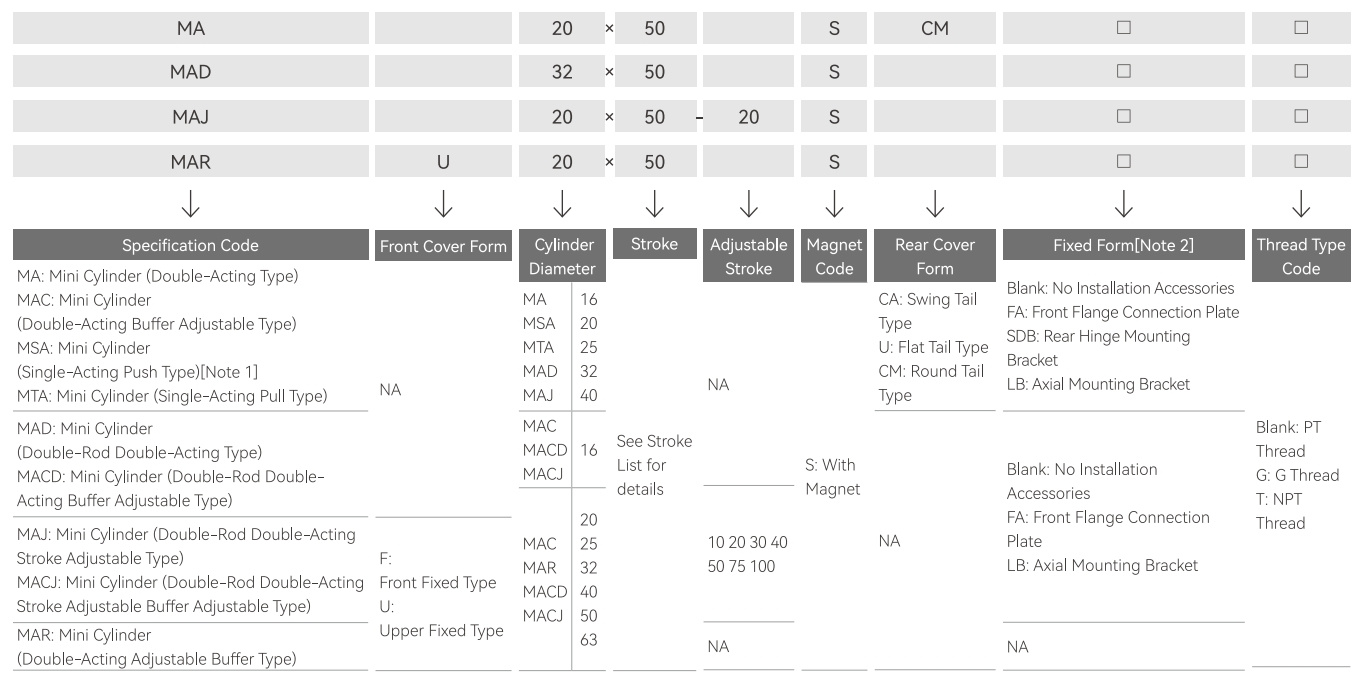

Finished Product Order Code

[Note 1] Single-acting push type refers to the piston rod extending when the air is on, the front spring is compressed, and when the air is of the piston rod retracts to its original position under the reset force of the spring.

Single-acting pull type refers to the piston rod retracing when the air is on,the rear spring is compressed, and when the air is of. the piston rod extends to its original position under the reset force of the spring.

[Note 2] When the pipe joint is of M5 thread, this code is blank.

Overview of MA Series Products

Cylinder Theoretical Output Table

Cylinder Inner Diameter	Piston Rod Outer Diameter	Mode of Operation		Pressure Area(mm²)	Air Pressure(MPa)
Cylinder Inner Diameter	Piston Rod Outer Diameter	Mode of Operation		Pressure Area(mm²)	0.1	0.2	0.3	0.4	0.5	0.6	0.7
16	6	Push Single-Acting		201.0	-	-	20.1	40.2	60.3	80.4	100.5
		Pull Single-Acting		172.7	-	-	11.6	28.9	46.2	63.4	80.7
		Double-Acting	Pull Side	201.0	20.1	40.2	60.3	80.4	100.5	120.6	140.7
		Double-Acting	Push Side	172.7	17.3	34.5	51.8	69.1	86.4	103.6	120.9
20	8	Push Single-Acting		314.0	-	15.7	47.1	78.5	109.9	141.3	172.7
		Pull Single-Acting		263.8	-	5.7	32.0	58.4	84.8	117.2	137.5
		Double-Acting	Pull Side	314.0	31.4	62.8	94.2	125.6	157.0	188.4	219.8
		Double-Acting	Push Side	263.8	26.4	52.8	79.1	105.5	131.9	158.3	184.7
25	10	Push Single-Acting		490.6	-	24.6	73.7	122.8	171.8	220.9	269.9
		Pull Single-Acting		412.1	-	8.9	50.1	91.4	132.6	173.8	215.0
		Double-Acting	Pull Side	490.6	49.1	98.1	147.2	196.2	245.3	294.4	343.4
		Double-Acting	Push Side	412.1	41.2	82.4	123.6	164.8	206.1	247.3	288.5
32	12	Push Single-Acting		804.3	-	40.2	120.6	200.9	281.3	361.7	4421
		Pull Single-Acting		691.2	-	17.6	86.6	155.7	224.8	293.9	363.0
		Double-Acting	Pull Side	804.3	80.4	160.9	241.3	321.7	402.2	482.6	563.0
		Double-Acting	Push Side	691.2	69.1	138.2	207.4	276.5	345.6	4147	483.8
40	16	Push Single-Acting		1256.6	-	62.8	188.4	314.0	439.6	565.2	690.8
		Pull Single-Acting		1055.6	-	22.6	128.1	233.6	339.1	4446	550.1
		Double-Acting	Pull Side	1256.6	125.7	251.3	377.0	502.6	628.3	754.0	879.6
		Double-Acting	Push Side	1055.6	105.6	211.1	316.7	422.2	527.8	633.4	738.9
50	16	Double-Acting	Pull Side	1962.5	196.3	392.5	588.8	785.0	981.3	1177.5	1373.8
50	16	Double-Acting	Push Side	1761.5	176.2	352.3	528.5	704.6	880.8	1056.9	1233.1
63	16	Double-Acting	Pull Side	3115.7	311.6	623.1	934.7	1246.3	1557.9	1869.4	2181.0
63	16	Double-Acting	Push Side	2914.7	291.5	582.9	874.4	1165.9	1457.4	1748.8	2040.3

Installation and Use (General Purpose)

·When the load changes during operation, a cylinder with ample output force should be selected.

·Under high temperature or corrosive conditions, a corresponding high-temperature resistant or corrosion-resistant cylinder should be selected.

·In environments with high humidity, lots of dust, or presence of water droplet soil dust, and welding slag, appropriate protective measures should be taken for the cylinder.

·Before the cylinder is connected to the pipeline, the dirt inside the pipeline must be cleared to prevent foreign objects from entering the cylinder.

·The medium used in the cylinder should be filtered through a filter element with a pore size smaller than 40μm before use.

·In low-temperature environments, anti-freezing measures should be taken to prevent the water in the system from freezing.

·Before using the cylinder, it should be run under no load. Before running the buffer should be minimized and gradually relaxed to avoid damaging the cylinder due to excessive impact.

·During the operation of the cylinder, avoid lateral loads as much as possible to maintain the normal operation of the cylinder and extend its service life.

·If the cylinder is disassembled and not used for a long time, attention should be paid to surface rust prevention, dust-proof caps should be added to the intake and exhaust ports.

Specifications

Inner Diameter (mm)		16	20	25	32	40	50	63
Action Type	MSA/MTA	Single-Acting Type					-
	MA/MAD/MAJ	Double-Acting Type					-
	MAR	-	Double-Acting Type
	MAC/MACD/MACJ	Double-Acting Buffer Type
Working Medium		Air (filtered through a Filter Element with a pore size smaller than 40μm)
Operating Pressure Range	Double-Acting Type	0.15~1.0MPa(22~145psi)(1.5~10.0bar)
	Single-Acting Type	0.2~1.0MPa(28~145psi)(2.0~10.0bar)
Guaranteed Pressure Resistance		1.5MPa(215psi)(15bar)
Operating Temperature (℃ )		-20~70D
Operating Speed Range (mm/s)		Double-Acting Type:30~800 Single-Acting Type: 50~800
Stroke Tolerance Range		0-150^{+1.0 0}>150^{+1.5 0}
Cushion Type		MAC, MACD, MACJ Series: Adjustable Buffer Other Types: Anti-collision Pad
Pipe Diameter[Note 1]		M5×0.8	PT1/8				PT1/4

[Note 1] G Thread and NPT Thread are available for Pipe Thread.

Stroke

Inner Diameter(mm)		Standard Stroke(mm)	Maximum Stroke	Allowable Stroke
FMA/FMAC	16	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	600
FMA FMAC FMAR	20	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	800
	25	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	800
	32	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	800
	40	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	800
FMAC FMAR	50	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	800
FMAC FMAR	63	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	800
FMAD FMAJ FMACD FMACJ	16	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	300	-
	20	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	300	-
	25	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	300	-
	32	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	-
	40	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	-
FMACD FMACJ	50	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	-
FMACD FMACJ	63	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	-
FMSA	16	10 15 20 25 30 40 50 60 75 80 100	-	-
	20	10 15 20 25 30 40 50 60 75 80 100 125 150	-	-
	25	10 15 20 25 30 40 50 60 75 80 100 125 150	-	-
	32	10 15 20 25 30 40 50 60 75 80 100 125 150	-	-
	40	10 15 20 25 30 40 50 60 75 80 100 125 150	-	-
FMTA	16	10 15 20 25 30 40 50 60 75 80 100	-	-
	20	10 15 20 25 30 40 50 60 75 80 100	-	-
	25	10 15 20 25 30 40 50 60 75 80 100	-	-
	32	10 15 20 25 30 40 50 60 75 80 100	-	-
	40	10 15 20 25 30 40 50 60 75 80 100	-	-

[Note] For other special strokes, please contact our company.

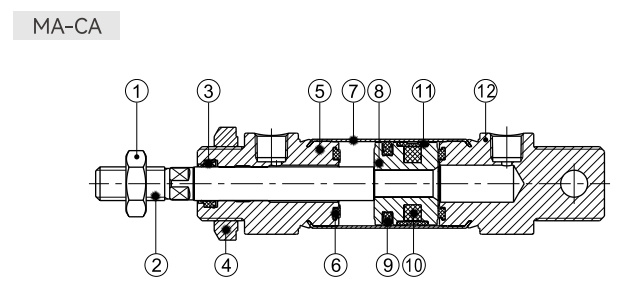

Internal Structure and Main Component Materials

No.	Part Name	Material	No.	Part Name	Material
1	Nut	Stainless Steel\Carbon Steel	7	Cylinder Body	Stainless Steel
2	Piston Rod	S45C Hard Chrome Grinding Rod	8	Piston	Aluminum Alloy
3	Front Cover0-Ring	NBR	9	Piston O-Ring	NBR
4	Front Cover Nut	Carbon Steel	10	Magnet	Plastic
5	Front Cover	Aluminum Alloy	11	Wear-resistant Cup (Ring)	Wear-Resistant Material
6	Anti-collision Pad	TPU	12	Rear Cover	Aluminum Alloy

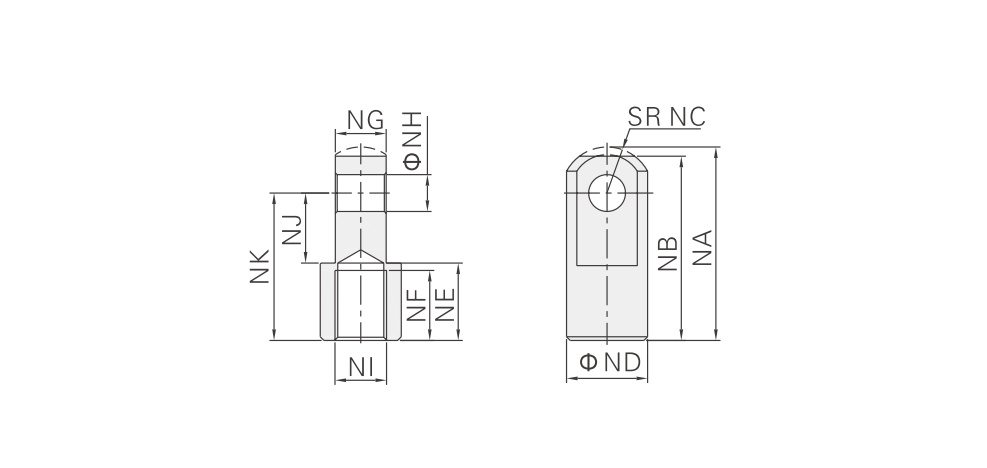

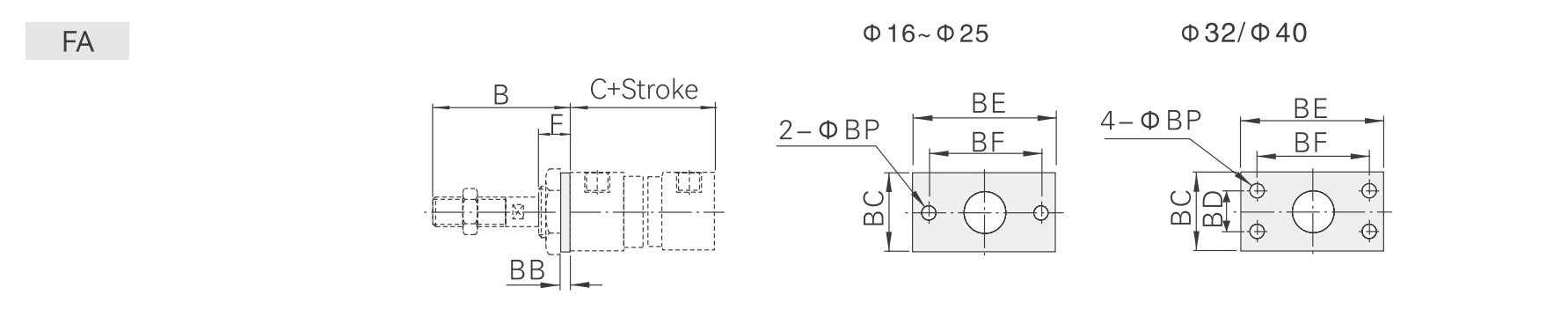

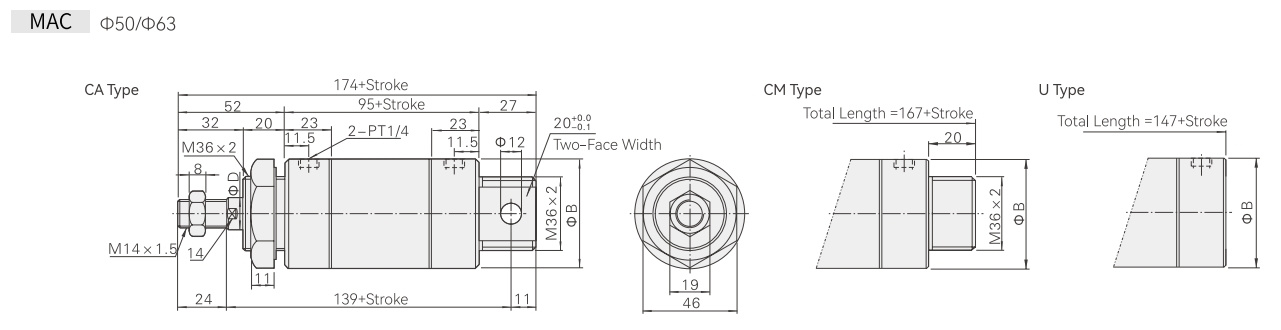

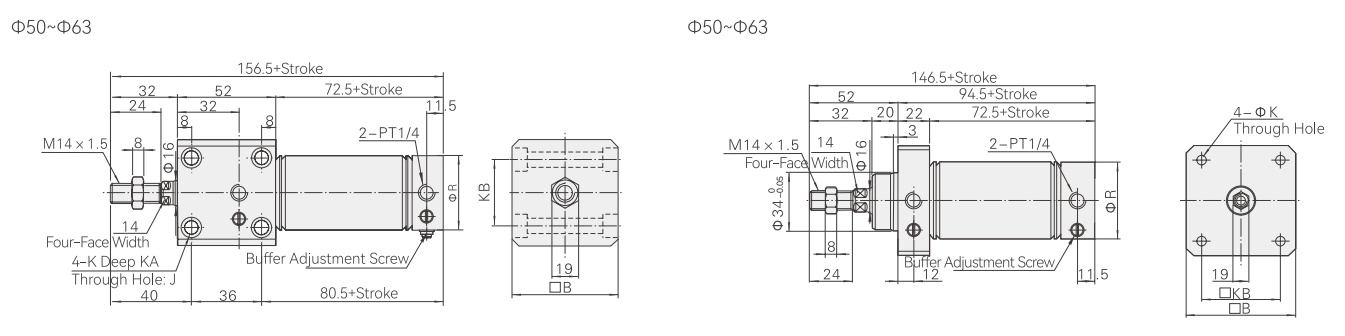

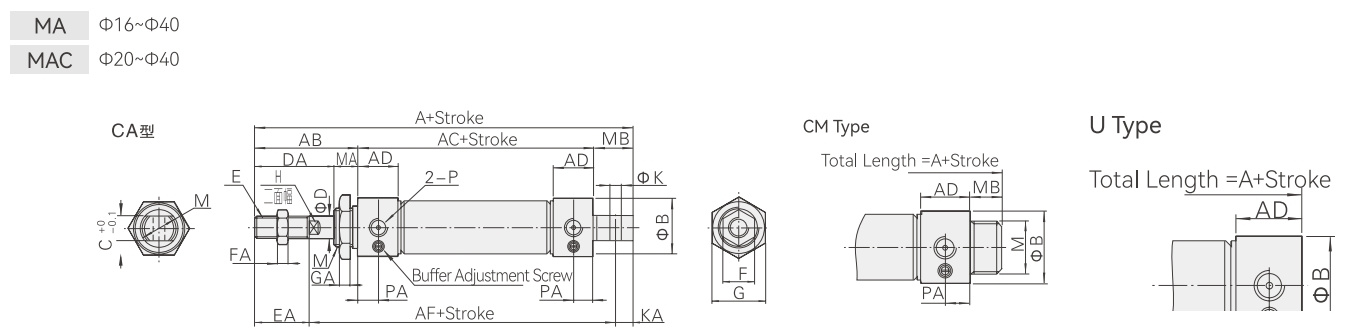

External Specifications

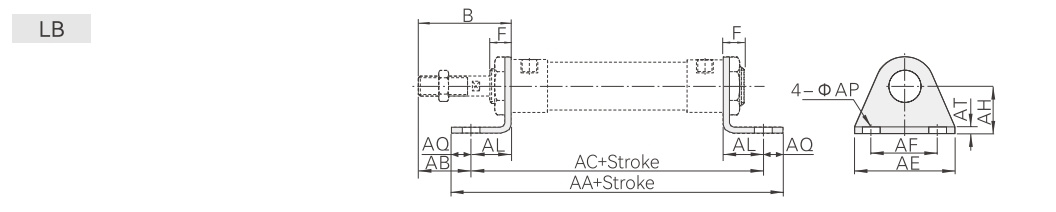

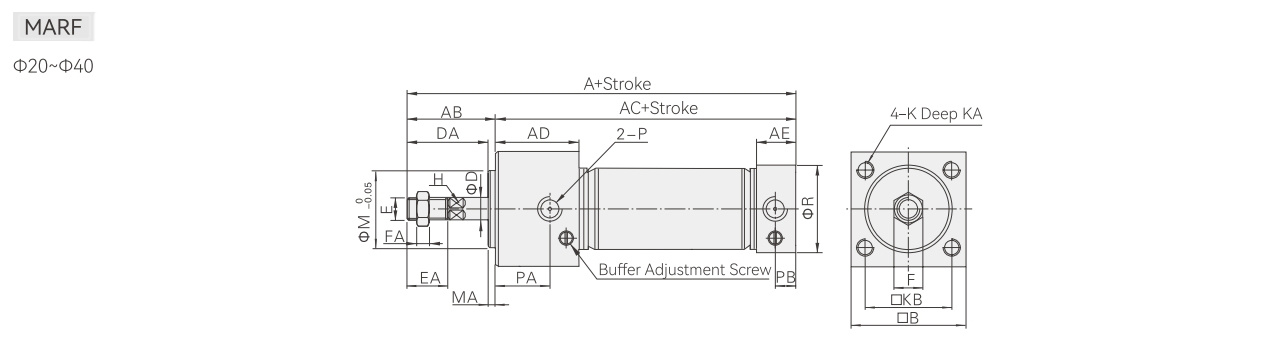

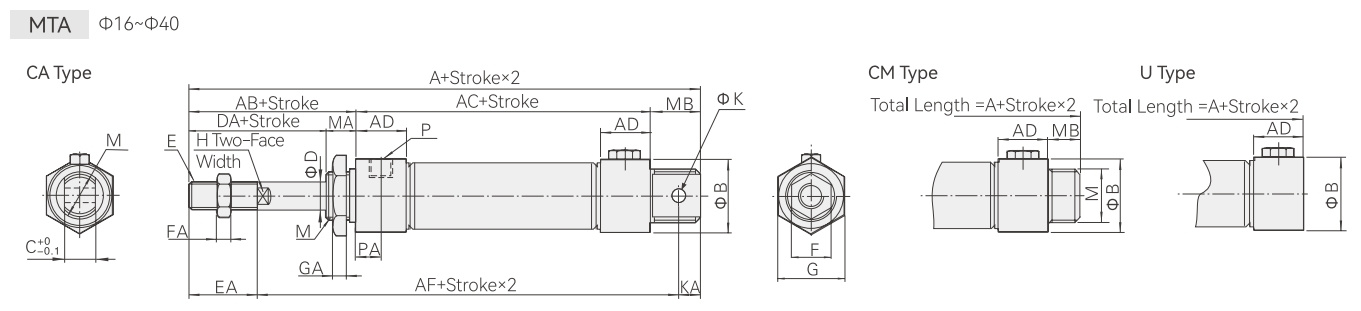

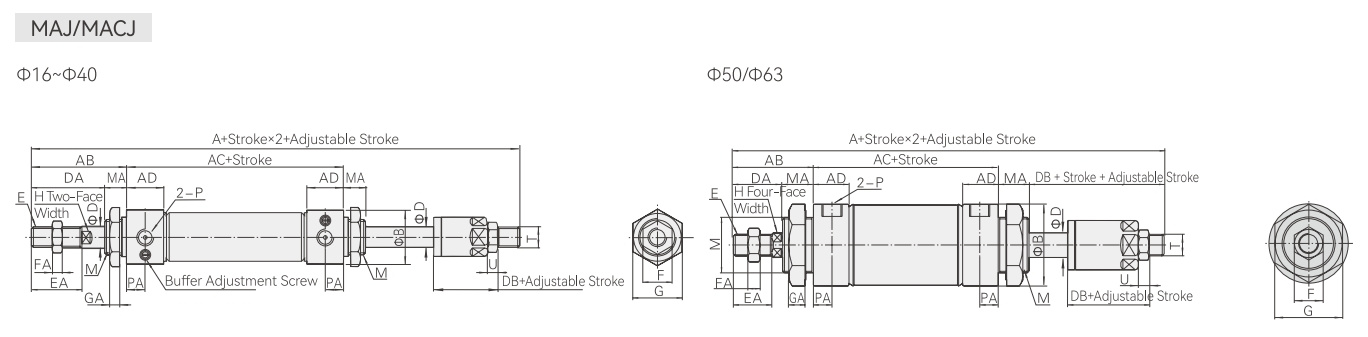

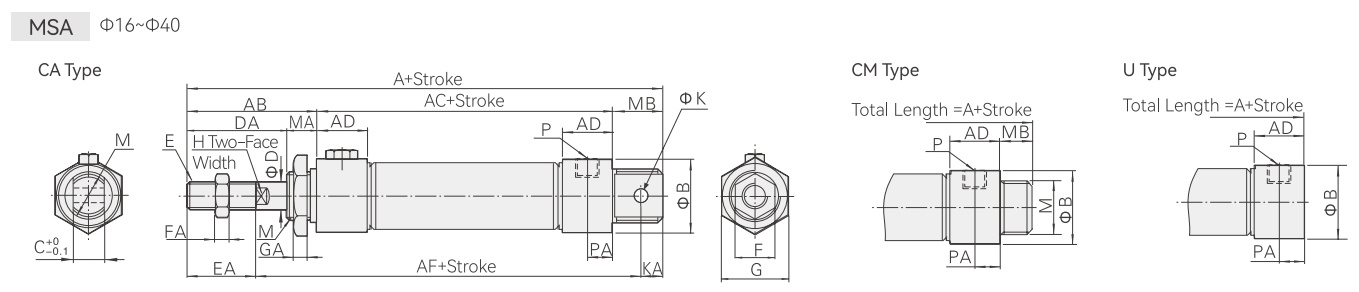

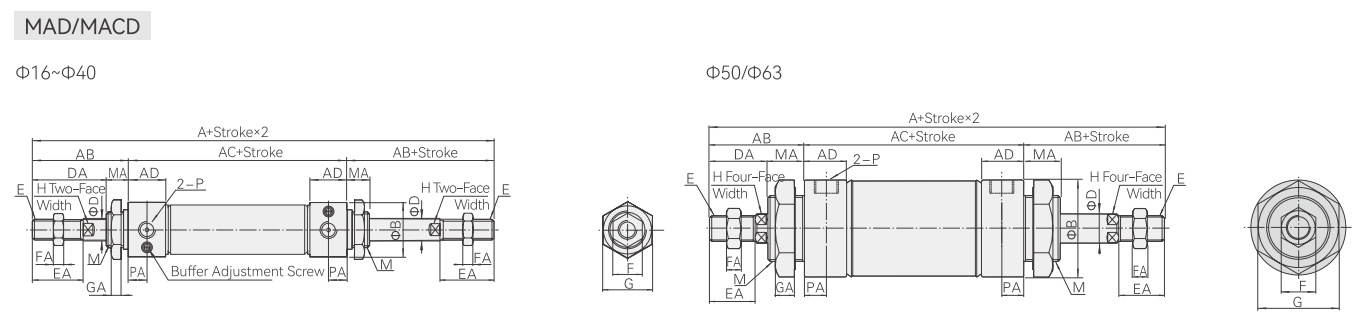

Cylinder Diameter \Symbol	A			AB	AC	AD	AF	B	C	D	DA	E	EA	F	FA	G	GA	H	K	KA	M	MA	MB		P	PA
Rear Cover Form	CA	CM	U	AB	AC	AD	AF	B	C	D	DA	E	EA	F	FA	G	GA	H	K	KA	M	MA	CA	CM	P	PA
16	114	114	98	38	60	12.5	91	21	12	6	22	M6X1.0	16	10	5	22	6	5	6	7	M16X1.5	16	16	16	M5X0.8	7.5
20	137	128	116	40	76	16	108	27	16	8	28	M8X1.25	20	12	6	29	7	6	8	9	M22X1.5	12	21	12	PT1/8	8
25	141	134	120	44	76	16	110	30	16	10	30	M10X1.25	22	17	6	29	7	8	8	9	M22X1.5	14	21	14	PT1/8	8
32	147	134	120	44	76	16	113	35	16	12	30	M10X1.25	22	17	6	32	8	10	10	12	M24X2.0	14	27	14	PT1/8	8
40	149	136	122	46	76	16.5	113	41.5	20	16	32	M12X1.25	24	17	7	41	8	14	12	12	M30X2.0	14	27	14	PT1/8	9

Cylinder Diameter/Symbols	B	D
50	53	16
63	67	16

Symbols	A									AB	AC			AD	AF
Rear Cover Form	CA			CM			U			-	-			-	-
Cylinder Diameter/Stroke	≤ 50	51~100	≥101	≤ 50	51~100	≥101	≤ 50	51~100	≥101	-	≤ 50	51~100	≥101	-	≤ 50	51~100	≥101
16	139	164	-	139	164	-	123	148	-	38	85	110	-	12.5	116	141	-
20	162	187	212	153	178	203	141	166	191	40	101	126	151	16	133	158	183
25	166	191	216	159	184	209	145	170	195	44	101	126	151	16	135	160	185
32	172	197	222	159	184	209	145	170	195	44	101	126	151	16	138	163	188
40	174	199	224	161	186	211	147	172	197	46	101	126	151	16.5	138	163	188

Cylinder Diameter/Symbols	B	C	D	DA	E	EA	F	FA	G	GA	H	K	KA	M	MA	MB		P	PA
Rear Cover Form	B	C	D	DA	E	EA	F	FA	G	GA	H	K	KA	M	MA	CA	CM	P	PA
16	21	12	6	22	M6X1.0	16	10	5	22	6	5	6	7	M16X1.5	16	16	16	M5X0.8	7.5
20	27	16	8	28	M8X1.25	20	12	6	29	7	6	8	9	M22X1.5	12	21	12	PT1/8	8
25	30	16	10	30	M10X1.25	22	17	6	29	7	8	8	9	M22X1.5	14	21	14	PT1/8	8
32	35	16	12	30	M10X1.25	22	17	6	32	8	10	10	12	M24X2.0	14	27	14	PT1/8	8
40	41.5	20	16	32	M12X1.25	24	17	7	41	8	14	12	12	M30X2.0	14	27	14	PT1/8	3

Symbols	A												AC				AF
Rear Cover Form	CA				CM				U				-				-
Cylinder Diameter/Stroke	≤25	≤50	≤75	≤100	≤25	≤50	≤75	≤100	≤25	≤50	≤75	≤100	≤25	≤50	≤75	≤100	≤25	≤50	≤75	≤100
16	129	139	154	164	129	139	154	164	113	123	138	148	75	85	100	110	106	116	131	141
20	152	162	177	187	143	153	168	178	131	141	156	166	91	101	116	126	123	133	148	158
25	156	166	181	191	149	159	174	184	135	145	160	170	91	101	116	126	125	135	150	160
32	162	172	192	202	149	159	179	189	135	145	165	175	91	101	121	131	128	138	158	168
40	164	174	194	204	151	161	181	191	137	147	167	177	91	101	121	131	128	138	158	168

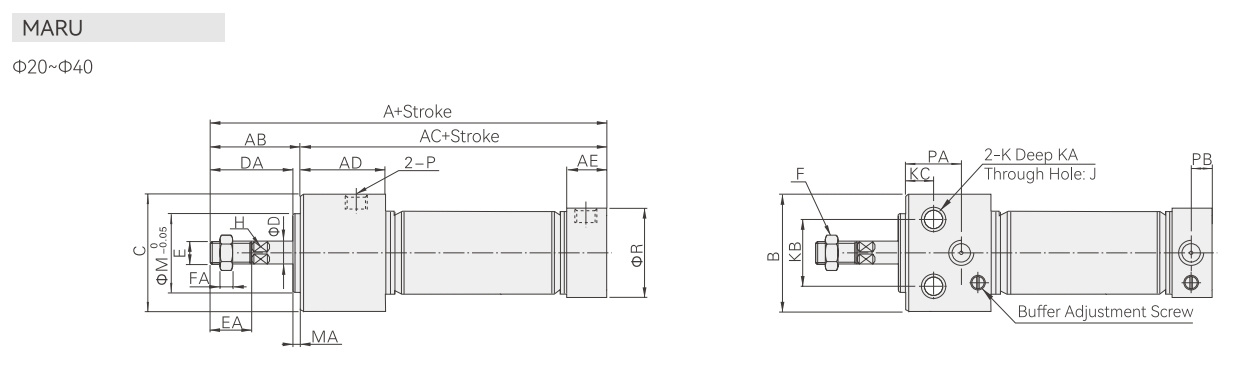

Cylinder Diameter/Symbols	AB	AD	B	C	D	DA	E	EA	F	FA	G	GA	H	K	KA	M	MA	MB		P	PA
Rear Cover Form	AB	AD	B	C	D	DA	E	EA	F	FA	G	GA	H	K	KA	M	MA	CA	CM	P	PA
16	38	12.5	21	12	6	22	M6X1.0	16	10	5	22	6	5	6	7	M16X1.5	16	16	16	M5X0.8	7.5
20	40	16	27	16	8	28	M8X1.25	20	12	6	29	7	6	8	9	M22X1.5	12	21	12	PT1/8	8
25	44	16	30	16	10	30	M10X1.25	22	17	6	29	7	8	8	9	M22X1.5	14	21	14	PT1/8	8
32	44	16	35	16	12	30	M10X1.25	22	17	6	32	8	10	10	12	M24X2.0	14	27	14	PT1/8	8
40	46	16.5	41.5	20	16	32	M12X1.25	24	17	7	41	8	14	12	12	M30X2.0	14	27	14	PT1/8	9

Cylinder Diameter‌/Symbols‌	‌A‌	‌AB‌	‌AC‌	‌AD‌	‌B‌	‌D‌	‌DA‌	‌E‌	‌EA‌	‌F‌	‌FA‌	‌G‌	‌GA‌	‌H‌	‌M‌	‌MA‌	‌P‌	‌PA‌	‌DA‌	‌E‌	‌EA‌	‌F‌	‌FA‌	‌G‌	‌GA‌	‌H‌	‌M‌	‌MA‌	‌P‌	‌PA‌
16‌	136	38	60	12.5	21	6	22	M6X1.0	16	10	5	22	6	5	M16X1.5	16	M5X0.8	7.5	22	M6X1.0	16	10	5	22	6	5	M16X1.5	16	M5X0.8	7.5
20‌	156	40	76	16	27	8	28	M8X1.25	20	12	6	29	7	6	M22X1.5	12	PT1/8	8	28	M8X1.25	20	12	6	29	7	6	M22X1.5	12	PT1/8	8
25‌	164	44	76	16	30	10	30	M10X1.25	22	17	6	29	7	8	M22X1.5	14	PT1/8	8	30	M10X1.25	22	17	6	29	7	8	M22X1.5	14	PT1/8	8
32‌	164	44	76	16	35	12	30	M10X1.25	22	17	6	32	8	10	M24X2.0	14	PT1/8	8	30	M10X1.25	22	17	6	32	8	10	M24X2.0	14	PT1/8	8
40‌	168	46	76	16.5	41.5	16	32	M12X1.25	24	17	7	41	8	14	M30X2.0	14	PT1/8	9	32	M12X1.25	24	17	7	41	8	14	M30X2.0	14	PT1/8	9
50‌	199	52	95	23	53	16	32	M14X1.5	24	19	8	46	11	14	M36X2.0	20	PT1/4	11.5	32	M14X1.5	24	19	8	46	11	14	M36X2.0	20	PT1/4	11.5
63‌	199	52	95	23	67	16	32	M14X1.5	24	19	8	46	11	14	‌M36X2.0‌	‌20‌	‌PT1/4‌	‌11.5‌	32	M14X1.5	24	19	8	46	11	14	‌M36X2.0‌	‌20‌	‌PT1/4‌	‌11.5‌

Cylinder Diameter‌/Symbols‌	‌A‌	‌AB‌	‌AC‌	‌AD‌	‌B‌	‌D‌	‌DA‌	‌DB‌	‌E‌	‌EA‌	‌F‌	‌FA‌	‌H‌	‌M‌	‌MA‌	‌P‌	‌PA‌	‌G‌	‌GA‌	‌T	U
16‌	135	38	60	12.5	21	6	22	21	M6X1.0	16	10	5	5	M16X1.5	16	M5X0.8	7.5	22	6	M6X1.0	5
20‌	153	40	76	16	27	8	28	25	M8X1.25	20	12	6	6	M22X1.5	12	PT1/8	8	29	7	M8X1.25	6
25‌	161	44	76	16	30	10	30	27	M10X1.25	22	17	6	8	M22X1.5	14	PT1/8	8	29	7	M10X1.25	6
32‌	161	44	76	16	35	12	30	27	M10X1.25	22	17	6	10	M24X2.0	14	PT1/8	8	32	8	M10X1.25	6
40‌	164	46	76	16.5	41.5	16	32	28	M12X1.25	24	17	7	14	M30X2.0	14	PT1/8	9	41	8	M12X1.25	7
50‌	195	52	95	23	53	28	32	28	M14X1.5	24	19	8	14	M36X2.0	20	PT1/4	11.5	46	11	M12X1.25	7
63‌	195	52	95	23	67	28	32	28	M14X1.5	24	19	8	14	M36X2.0	20	PT1/4	11.5	46	11	M12X1.25	7

Cylinder Diameter‌/Symbols‌	‌A‌	‌AB‌	‌AC‌	‌AD‌	‌B‌	C	‌D‌	‌DA‌	‌E‌	‌EA‌	‌F‌	‌FA‌	‌H‌	J	K	KA	KB	KC	M	MA	P	PA	PB	R
20	120	31	89	29	16	30.5	8	28	M8X1.25	20	13	5	6	Φ5.5	Φ9.5	M5X0.8	21	12	20	3	PT1/8	22	8	27
25	122	33	89	29	16	36.5	10	30	M10X1.25	22	17	6	8	Φ6.5	Φ11.0	PT1/8	25	12	26	3	PT1/8	22	8	30
32	122	33	89	29	16	42.5	12	30	M10X1.25	22	17	6	10	Φ9.0	Φ14.0	PT1/8	30	12	26	3	PT1/8	22	8	35
40	132.5	35	97.5	37.5	16.5	52.5	16	32	M14X1.5	24	19	8	14	Φ11	Φ17.5	PT1/8	38	15	32	3	PT1/8	27	9	41.5

Cylinder Diameter‌/Symbols‌	‌A‌	‌AB‌	‌AC‌	‌AD‌	‌B‌	C	‌D‌	‌DA‌	‌E‌	‌EA‌	‌F‌	‌FA‌	‌H‌	J	K	KA	KB	KC	M	MA	P	PA	PB	R
20	120	31	89	29	16	30.5	8	28	M8X1.25	20	13	5	6	Φ5.5	Φ9.5	M5X0.8	21	12	20	3	PT1/8	22	8	27
25	122	33	89	29	16	36.5	10	30	M10X1.25	22	17	6	8	Φ6.5	Φ11.0	PT1/8	25	12	26	3	PT1/8	22	8	30
32	122	33	89	29	16	42.5	12	30	M10X1.25	22	17	6	10	Φ9.0	Φ14.0	PT1/8	30	12	26	3	PT1/8	22	8	35
40	132.5	35	97.5	37.5	16.5	52.5	16	32	M14X1.5	24	19	8	14	Φ11	Φ17.5	PT1/8	38	15	32	3	PT1/8	27	9	41.5

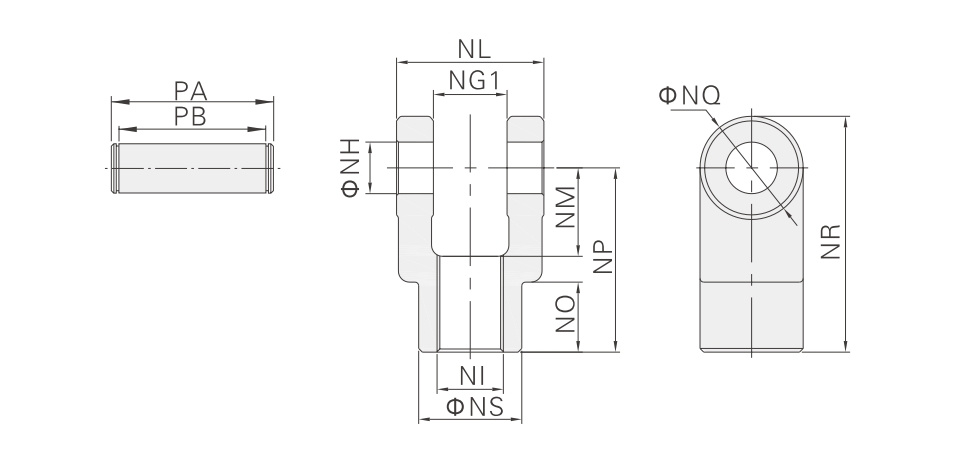

Cylinder Diameter/Symbols	B	J	K	KA	KB	R	Cylinder Diameter/Symbols	B	K	KA	R
50	62	Φ6.5	Φ11.0	6.5	44	53	50	62	6.5	48	53
63	74	Φ9.0	Φ14.0	8.5	48	67	63	74	9.0	58	67

Accessory Order Code List

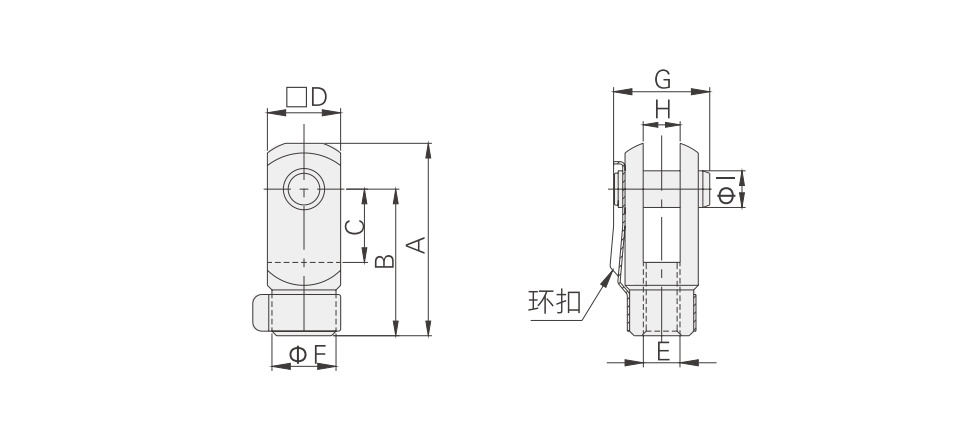

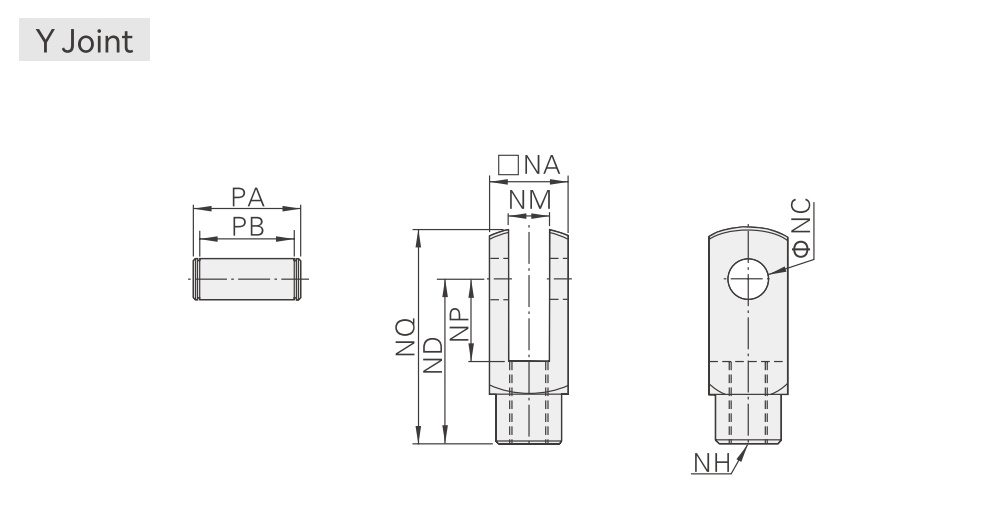

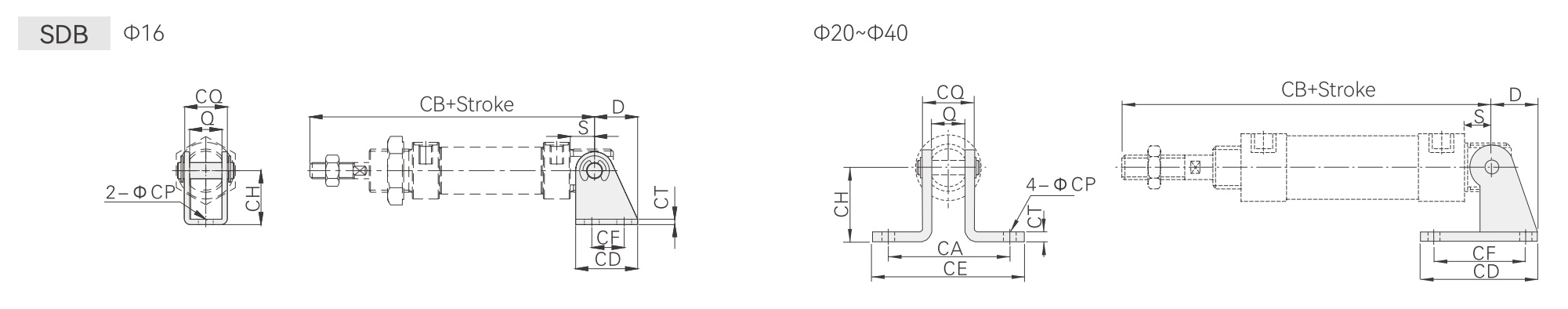

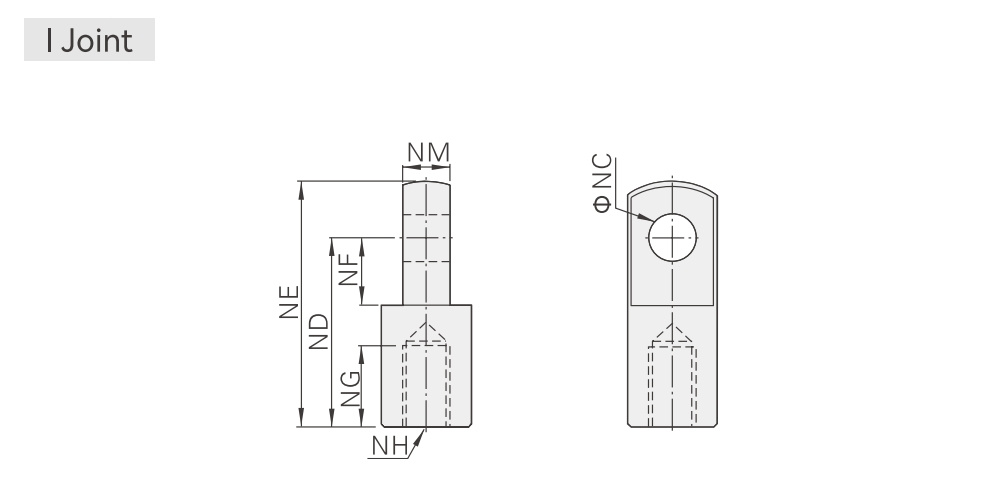

Cylinder Diameter /Accessory Category	Installation Accessories			Piston Rod End Joint				Sensor
	LB	FA	SDB	I:I Connector	Y: Y Connector	F:Floating Connector	U: Fisheye Connector	CMSG	DMSG
16	F-MA16LB	F-MA16FA	F-MA16SDB	F-MA16I	F-MA16Y	F-M6X100F	F-M6X100U	CMSG	DMSG
20	F-MA20LB	F-MA20FA	F-MA20SDB	F-MA20I	F-MA20Y	F-M8X125F	F-M8X125U
25				F-MA25I	F-MA25Y	F-M10X125F	F-M10X125U
32	F-MA32LB	F-MA32FA	F-MA32SDB
40	F-MA40LB	F-MA40FA	F-MA40SDB	F-MA40I	F-MA40Y	F-M12X125F	F-M12X125U
50	F-MA50LB	F-MA50FA		F-MAC50I	F-MAC50Y	F-M14X125F	F-M14X150U
63	F-MA63LB

Accessory Selection

Cylinder Series/ Accessory Category	Installation Accessories			Piston Rod End Connector[Note 1]				Sensor
Cylinder Series/ Accessory Category	LB	FA	SDB	I	Y	U	F	CMSG	DMSG
MA/MAC	●	●	●	●	●	●	●	●	●
MSA/MTA	●	●	●	●	●	●	●	●	●
MAD/MACD	●	●	×	●	●	●	●	●	●
MAJ/MACJ	●	●	×	●	●	●	●	●	●
MARF/MARU	×	×	×	●	●	●	●	●	●

Accessory Material

Cylinder Series/ Accessory Category	Installation Accessories			Piston Rod End Joint[Note 1]
Cylinder Series/ Accessory Category	LB	FA	SDB	I	Y	U	F
20~63	○	○	○	□	□	□	□
○-Low Carbon Steel;□--Carbon Steel

[Note 1] Floating Connector (F) and Fisheye Connector (U) are universal parts.

Accessory External Specifications

Cylinder Diameter/Symbols	AA(MA/MAC)	AA(MSA)			MC(MA/MAC)	AC(MSA)			B	F	AB	AE	AF	AL	AQ	AP	AT	AH
Stroke	AA(MA/MAC)	0~50	51~100	101~150	MC(MA/MAC)	0~50	51~100	101~150	B	F	AB	AE	AF	AL	AQ	AP	AT	AH
16	98	123	148	-	86	111	136	-	38	16	25	44	32	13	6	5.5	2.5	20
20	122	147	172	197	106	131	156	181	40	12	25	54	40	15	8	6.5	3	25
25	122	147	172	197	106	131	156	181	44	14	29	54	40	15	8	6.5	3	25
32	142	167	192	217	126	151	176	201	44	14	19	59	45	25	8	7	3.5	32
40	142	167	192	217	126	151	176	201	46	14	21	64	50	25	8	7	3.5	36
50	175	-	-	-	151	-	-	-	52	20	24	86	66	28	12	11	4.5	40
63	183	-	-	-	157	-	-	-	52	20	21	106	82	31	13	11	4.5	45

Cylinder Diameter/Symbols	B	C(MA/MAC)	C(MSA)			BB	BC	BD	BE	BF	BP	F
Stroke	B	C(MA/MAC)	0~50	51~100	101~150	BB	BC	BD	BE	BF	BP	F
16	38	60	85	110	-	3	26	-	52	40	5.5	16
20	40	76	101	126	151	3.5	38	-	64	50	7	12
25	44	76	101	126	151	3.5	38	-	64	50	7	14
32	44	76	101	126	151	4	47	33	72	58	6.5	14
40	46	76	101	126	151	4	50	36	84	70	6.5	14
50	52	147				4.5	65	47	104	86	9	22
63	52	147				4.5	65	47	104	86	9	22

Cylinder Diameter/Symbols	D	S	Q	CA	CB(MA)	CB(MSA)			CD	CE	CF	CH	CT	CP	CQ
Stroke	D	S	Q	CA	CB(MA)	0~50	51~100	101~150	CD	CE	CF	CH	CT	CP	CQ
16	16	9	12	-	107	132	157	-	23	-	12	20	2	5.5	16
20	21	12	16	51	128	153	178	203	48	67	32	32	2.5	7	21
25	21	12	16	51	132	157	782	207	48	67	32	32	2.5	7	21
32	27	15	16	51	135	160	185	210	52	67	36	36	3	7	22
40	27	15	20	55	137	162	187	212	56	71	40	40	3	7	26

[Note] The SDB rear hinge fixing bracket is attached with the corresponding PIN.

Model/Symbol	NC	ND	NE	NF	NG	NH	NM
F-MA16I	5	21	28	8.5	8	M6X1.0	6
F-MA20I	8	30	40	11	15	M8X1.25	8
F-MA25I	10	40	50	15	20	M10X1.25	10
F-MA401	10	45	57	16	23	M12X1.25	14

Model/Symbol	NA	NB	NC	ND	NE	NF	NG	NH	NJ	NK	NI
F-MAC50I	52.5	50	12.5	22	21	19	13.8	10	19	40	M14x1.5

Model/Symbol	NA	NC	ND	NP	NQ	NM	NH	PA	PB
F-MA16Y	12	5	21	8.5	27.4	6	M6X1.0	16.8	12.4
F-MA40Y	25.4	10	45	20	57	14	M12X1.25	32	26.2

Model/Symbol	A	B	C	D	E	F	G	H	I
F-MA20Y	42	32	16	16	M8X1.25	14	21	8	8
F-MA25Y	52	40	20	19	M10X1.25	18	25	10	10

Model/Symbol	NG1	NH	NI	NL	NM	NO	NP	NQ	NR	NS	PA	PB
F-MAC50Y	14.2	10	M14X1.5	27.8	19	17	40	22	51	22	34.6	28.8

FAT1.5-M8 Series

FDT3-M8 Series

FBT0.5-MM3 Series

FHSV Series Manual Slide Valve

F4H Series Manual Valve
