HS100M1/M2-NQ level/HS100M1/M2-NQS level
Product Overview
Core Performance and Technology
At the heart of the M1/M2 series is an advanced control algorithm optimized for incremental encoder feedback. This ensures high-precision positioning even during rapid acceleration and deceleration cycles. The drives excel in environments where stability is critical; their strong anti-disturbance performance means they automatically compensate for load fluctuations and mechanical vibrations, maintaining consistent torque output. Furthermore, the low-speed smoothness eliminates the "jerking" motion often found in standard drives, making the M1/M2 ideal for applications requiring delicate handling.
User-Centric Design
We understand that time is money on the factory floor. The M1/M2 series is engineered for true plug-and-play simplicity. Featuring an intuitive commissioning interface and straightforward installation, the setup process is drastically simplified. There is no need to hire specialized technicians; your existing maintenance team can have the system operational in minutes. This reduction in complexity translates directly to lower labor costs and faster time-to-market for your equipment.
Industrial-Grade Reliability
As a source factory direct supplier, we maintain strict control over every aspect of the manufacturing process. This vertical integration guarantees stable product quality, consistent performance across batches, and a robust Mean Time Between Failures (MTBF) rating. By eliminating middlemen, we offer a strong cost-performance ratio that does not compromise on durability.
Specifications
|
Specifications |
HS100M1-NQ/NQS level |
HS100M2-NQ/NQS level |
|
Rated voltage |
Single-phase 220V/ three-phase 220V |
Single-phase 220V/ three-phase 220V |
|
Drive series |
HS100 Series Double-board |
HS100 Series Double-board |
|
Volume |
M1 |
M2 |
|
Installable module dimensions |
15A/20A |
20A/30A/50A |
|
Radiator fan |
Not equipped by default, optional. |
Not equipped by default, optional. |
|
Adaptive encoder type |
Incremental wired encoder |
Incremental wired encoder |
|
Communication function |
485 |
485 |
|
Number of DI custom input terminals |
5 |
5 |
|
Number of D0 custom input terminals |
4 |
4 |
|
Number of analog input channels |
1 |
1 |
|
Number of analog output channels |
No |
No |
|
AB differential signal |
Yes |
Yes |
|
AB frequency division differential signal |
No |
No |
Product Size

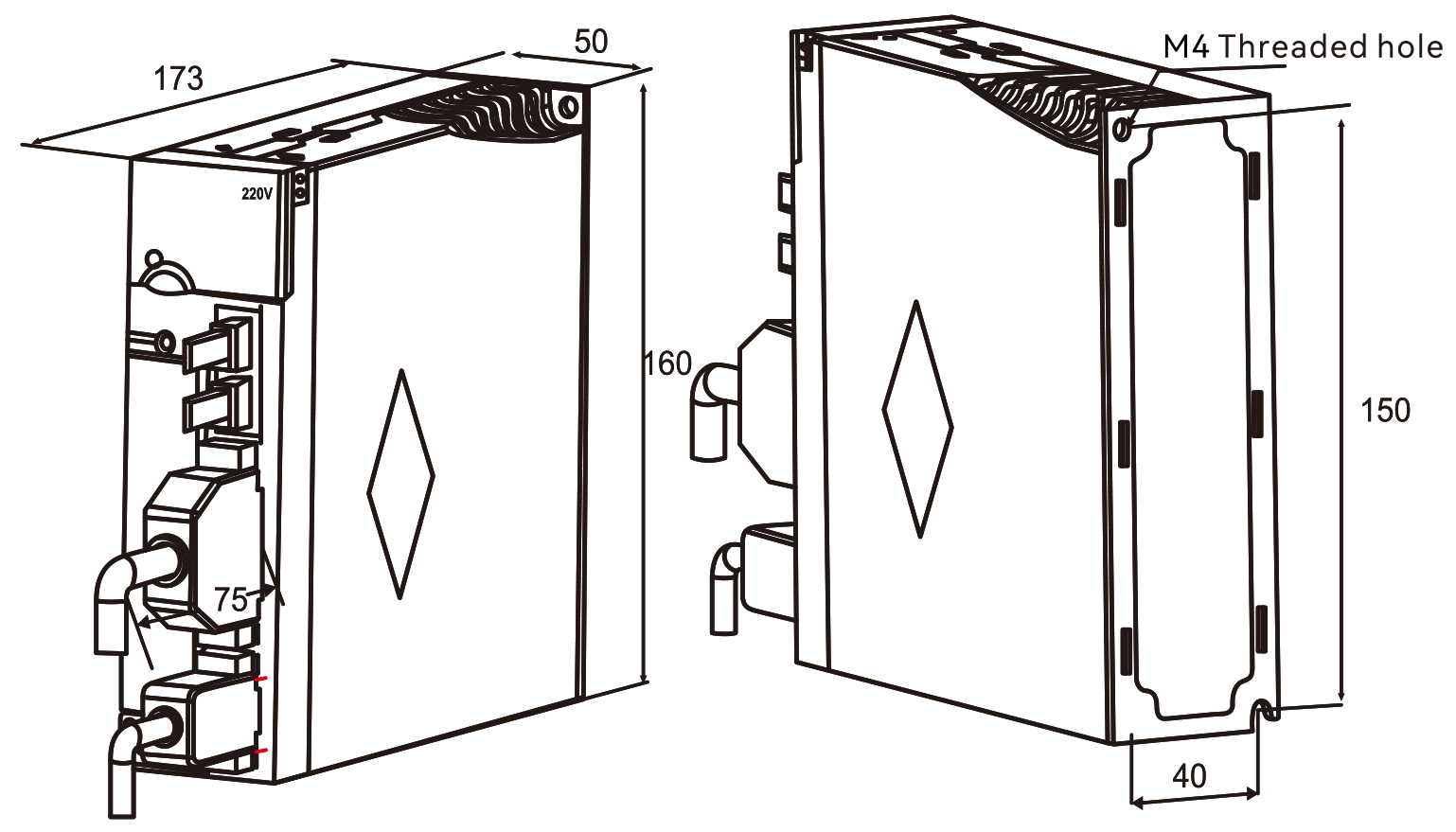

M1

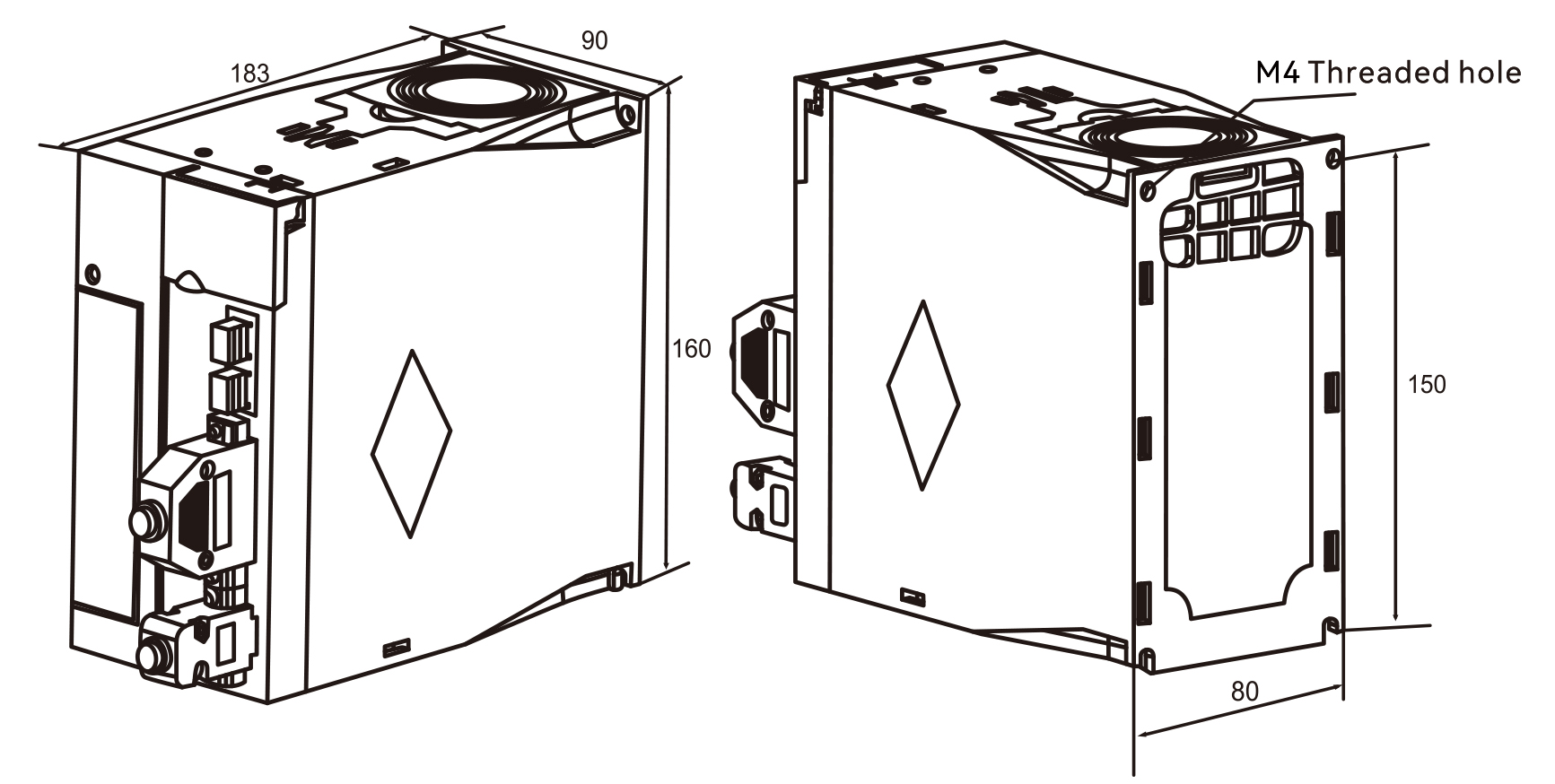

M2
