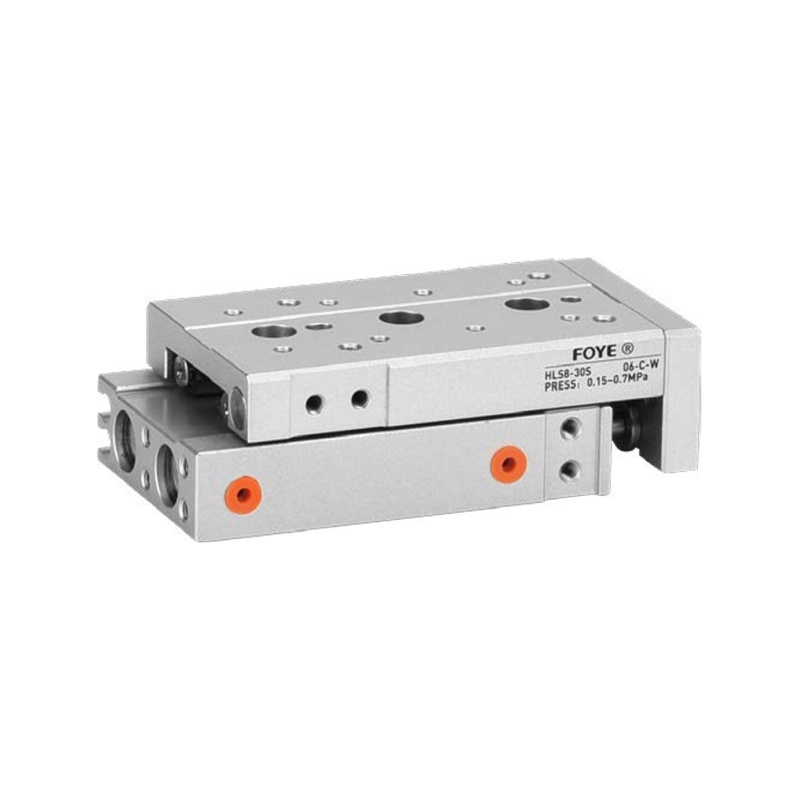

FHLS, FHLSL Series Double Shaft Precision Slide Cylinder (Roller Type)

·Before the cylinder is connected to the pipeline, the dirt inside: the pipeline must be cleared to prevent foreign objects from entering the cylinder.
·The medium used in the cylinder should be filtered through a filter element with a pore size smaller than 40um before use.
·In low-temperature environments, anti-freezing measures should be taken to prevent the water in the system from freezing.
·If the cylinder is disassembled and not used for a long time, pay attention to surface rust prevention,the inlet and outlet ports should be added with dust-proof plugs and the piston rod and moving parts should be coated with anti-rust oil.

product details

Symbols

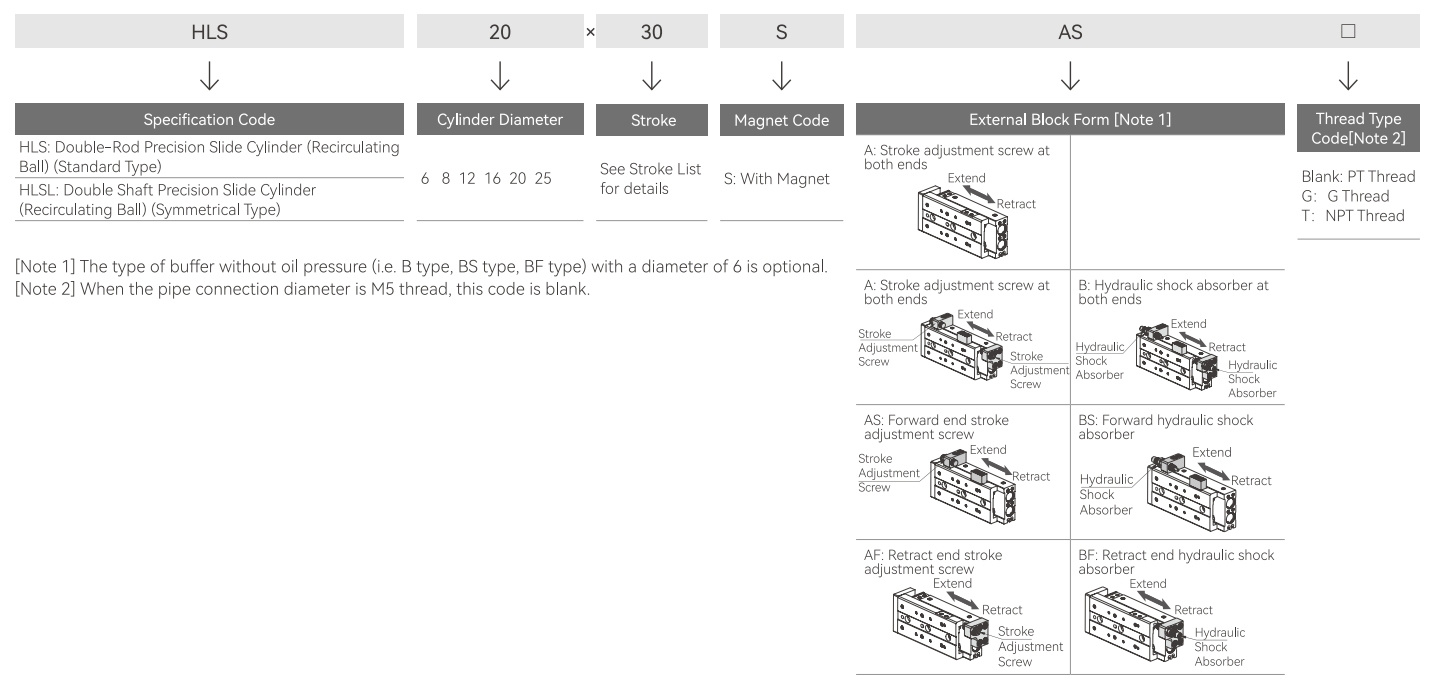

Finished Product Order Code

Specifications

Inner Diameter(mm)	6	8	12	16	20	25
Mode of Operation	Double-Acting Type
Working Medium	Air (filtered through a Filter Element with a pore size smaller than 40μm)
Operating Pressure Range	0.15~0.7MPa(22~100psi)(1.5~7.0bar)
Guaranteed Pressure Resistance	1.2MPa(175psi)(12.0bar)
Operating Temperature(℃)	-20~70
Operating Speed Range(mm/s)	50~500
Stroke Tolerance Range	Stroke≤100 >100
Cushion Type	Buffering at both ends, hydraulic shock absorber buffering
Applicable Sensor	CMSH、DMSH(S)
Pipe Diameter[Note ]	M5X0.8				PT1/8

[Note 1] PT Thread, G Thread and NPT Thread are available for Pipe Thread.

Stroke

Inner Diameter(mm)	Standard Stroke	Maximum Stroke
6	10 20 30 40 50	50
8	10 20 30 40 50 75	75
12	10 20 30 40 50 75 100	100
16	10 20 30 40 50 75 100 125	125
20	10 20 30 40 50 75 100 125 150	150
25	10 20 30 40 50 75 100 125 150	150

[Note]: For other special strokes, please contact our company.

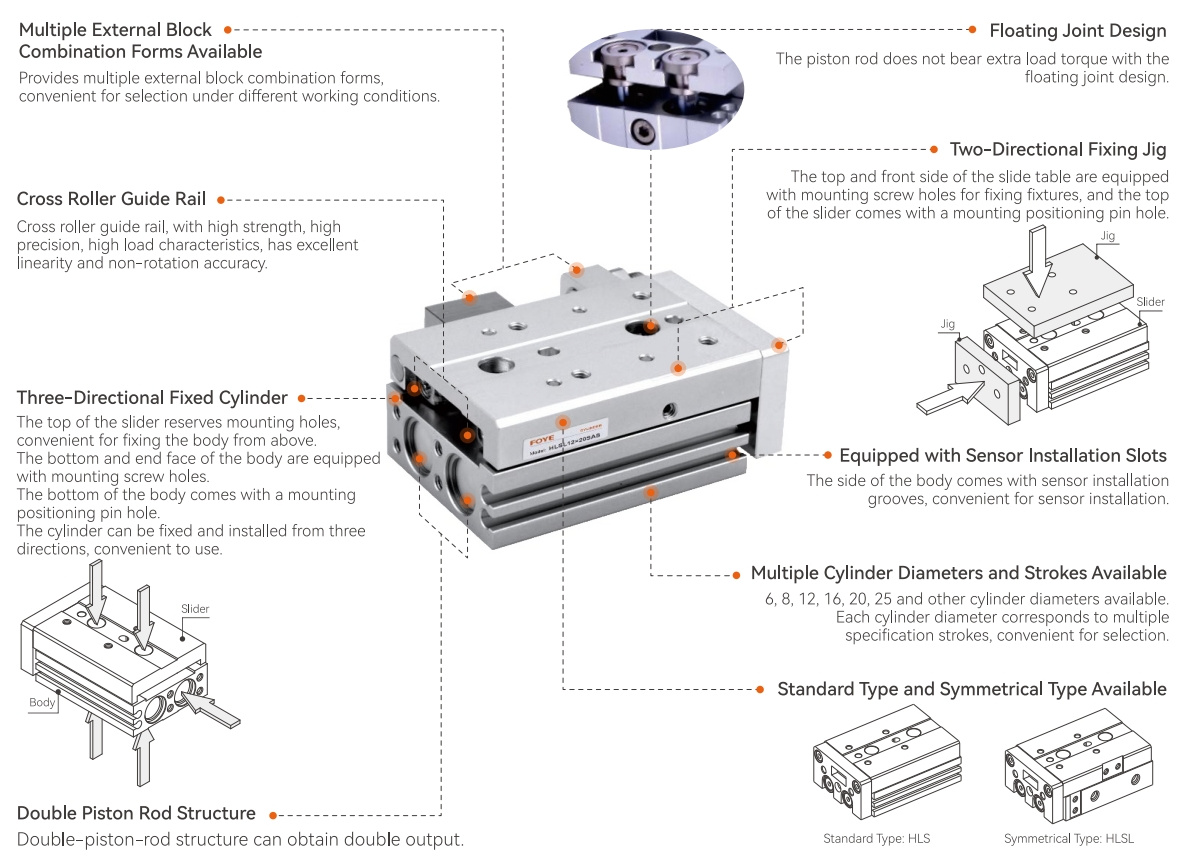

Overview of HLS/HLSL Series Products

Cylinder Theoretical Output Table

Cylinder Inner Diameter	Piston Rod Outer Diameter	Mode of Operation		Pressure Area(mm²)	Air Pressure(MPa)
Cylinder Inner Diameter	Piston Rod Outer Diameter	Mode of Operation		Pressure Area(mm²)	0.2	0.3	0.4	0.5	0.6	0.7
6	3	Double-Acting	Pull Side	42	8	13	17	21	25	29
6	3	Double-Acting	Push Side	57	11	17	23	29	34	40
8	4	Double-Acting	Pull Side	75	15	23	30	38	45	53
8	4	Double-Acting	Push Side	101	20	30	40	51	61	71
12	6	Double-Acting	Pull Side	170	34	51	68	85	102	119
12	6	Double-Acting	Push Side	226	45	68	90	113	136	158
16	8	Double-Acting	Pull Side	302	60	91	121	151	181	211
16	8	Double-Acting	Push Side	402	80	121	161	201	241	281
20	10	Double-Acting	Pull Side	471	94	141	188	236	283	330
20	10	Double-Acting	Push Side	628	126	188	251	314	377	440
25	12	Double-Acting	Pull Side	756	151	227	302	378	454	529
25	12	Double-Acting	Push Side	982	186	295	393	491	589	687

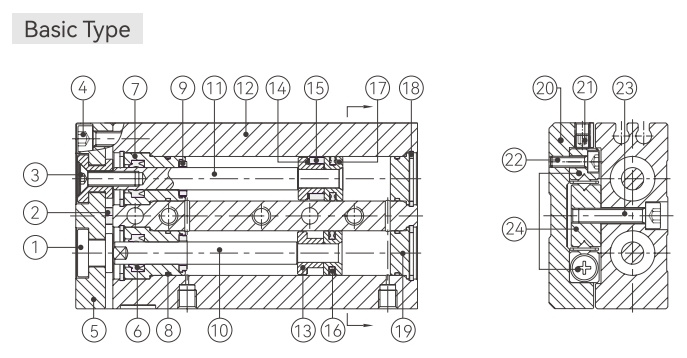

Internal Structure and Main Component Materials

No.	Name	Material	No.	Name	Material
1	Floating Joint	Free Cutting Steel	13	Magnet Seat	Brass
2	Bumper Pad	TPU	14	Magnet Shim	NBR
3	Hex Socket Counter Bore Screw	Medium Carbon Steel	15	Magnet	Sintered Neodymium Iron Boron
4	Hexagon Socket Bearing Cap Screw	Medium Carbon Steel	16	Piston 0-Ring	NBR
5	Fixed Plate	Aluminum Alloy	17	Piston	Brass
6	Rod Core O-Ring	NBR	18	C-shaped Retaining Ring	Spring Steel
7	Front Cover	Aluminum Alloy	19	Rear Cover	Aluminum Alloy
8	O-Ring	NBR	20	Slider	Aluminum Alloy
9	Bumper Pad	TPU	21	Set Screw	Medium Carbon Steel
10	Piston Rod A	Medium Carbon Steel	22	Hexagon Socket Bearing Cap Screw	Medium Carbon Steel
11	Piston Rod B	Stainless Steel	23	Hexagon Socket Bearing Cap Screw	Medium Carbon Steel
12	Body	Aluminum Alloy	24	Cross Roller Guide Rail Combination	Component

Product Selection

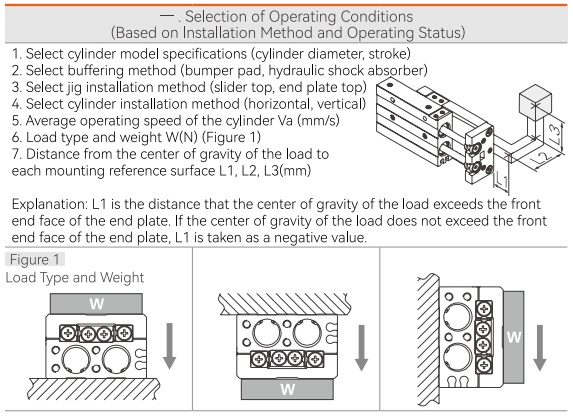

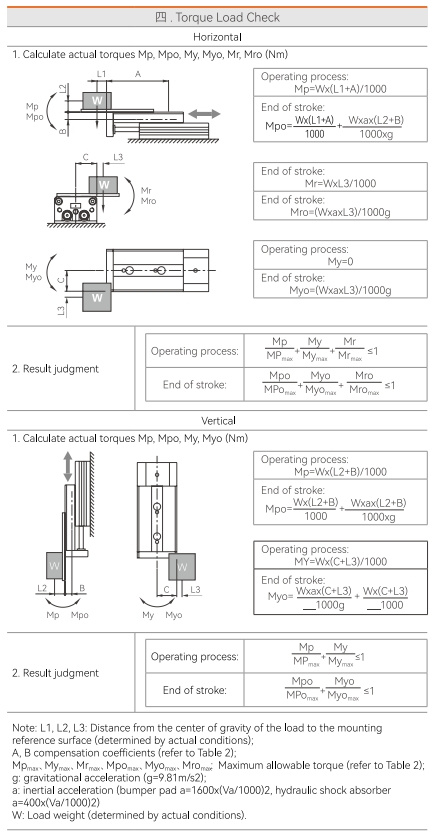

Follow the steps below, combined with the actual situation, to select the specific model and specification of the cylinder and perform verification.

Note:

Code Description and Units

No.	Description	Units
A、B、C	Compensation Coefficient	mm
a	Inertial Acceleration	-
E	Load Kinetic Energy	J
Ea	Allowable Kinetic Energy	J
Emax	Maximum Allowable Kinetic Energy	J
g	Gravitational Acceleration g=9.81	m/s²
K	Jig Installation Method Correction Factor	-
L1、L2、L3	Distance from the Center of Gravity of the Load to the Mounting Reference Surface	mm
Mp、My、Mr	Torque (pitch, yaw, roll)	Nm
Mpmax、Mymax、Mrmax	Maximum Allowable Torque (pitch,yaw, roll)	Nm
Mpo、Myo、Mro	End of Stroke Torque (pitch, yaw, roll)	Nm
Mpomax、Myomax、Mromax	End of Stroke Maximum Allowable Torque(pitch, yaw, roll)	Nm
Va	Average Speed	mm/s²
W	Load Weight	N
Wmax	Maximum Allowable Load	N

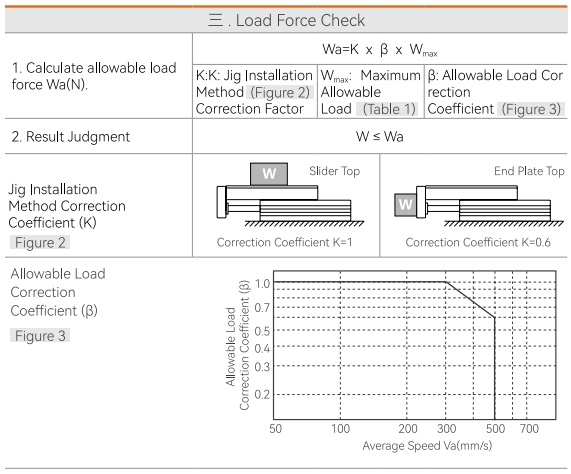

β	Allowable Load Correction Factor	-

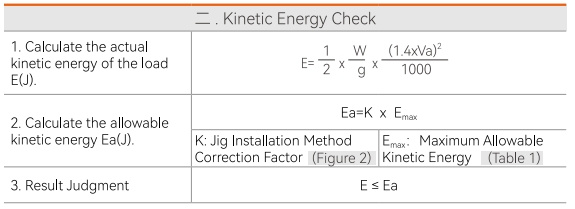

Table 1

:Maximum Allowable Kinetic Energy(Emax),Maximum Allowable Load ( Wmax)

Model	Maximum Allowable Kinetic Energy Emax (J)			Maximum Allowable Load Wmax(N)
Model	Basic Type	Adjust Screw Buffer	Hydraulic Shock Absorber Buffer	Maximum Allowable Load Wmax(N)
FHLS6	0.01	0.01	-	4
FHLS8	0.024	0.024	0.048	8
FHLS12	0.05	0.05	0.1	15
FHLS16	0.1	0.1	0.2	30
FHLS20	0.13	0.13	0.26	40
FHLS25	0.22	0.22	0.44	70

Table 2:

Maximum Allowable Kinetic Energy (Nm),Maximum Allowable Load (mm)

Cylinder Diameter	Stroke	End of Stroke			In Operation			Compensation Coefficient
Cylinder Diameter	Stroke	Mpomax	Myomax	Mromax	Mpomax	Myomax	Mromax	A	B	C
6	10	3.3	3.8	2.6	0.7	0.7	0.6	27	7.3	16
	20	3.3	3.8	2.6	0.7	0.8	0.6	42
	30	3.3	3.8	2.6	0.7	0.8	0.6	52
	40	7.2	7.9	3.6	1.3	1.3	0.6	72
	50	12.4	12.7	4.7	1.8	1.8	0.6	87
8	10	10.1	9.1	8.8	2.5	2.5	2.0	32	8.5	20
	20	10.1	9.1	8.8	2.6	2.6	2.0	42
	30	10.1	9.1	8.8	2.8	2.8	2.0	57
	40	12.4	10.8	10.1	3.4	3.4	2.3	72
	50	23.6	24.8	13.9	4.4	4.4	2.1	92
	75	32.8	35.3	16.4	4.6	4.6	1.8	132
12	10	33	34.3	30.9	7.3	7.3	5.8	48	10	25
	20	33	34.3	30.9	7.6	7.6	5.8	58
	30	33	34.3	30.9	7.8	7.8	5.8	68
	40	33	34.3	30.9	8.0	8.0	5.8	78
	50	53.4	49.6	39.7	9.8	9.8	5.8	88
	75	78.8	71.9	48.6	14.2	14.2	6.8	125
	100	78.8	71.9	48.6	14.7	14.7	6.8	160
16	10	33	34.3	30.9	8.8	8.8	7.6	43	11	30
	20	33	34.3	30.9	9.2	9.2	7.6	53
	30	33	34.3	30.9	9.5	9.5	7.6	63
	40	33	34.3	30.9	10.0	10.0	7.6	78
	50	53.4	49.6	39.7	12.2	12.2	7.6	93
	75	78.8	71.9	48.6	17.6	17.6	8.9	130
	100	78.8	71.9	48.6	18.2	18.2	8.9	165
	125	143.7	144.5	53.3	24.8	24.8	7.8	204
20	10	60.1	50.5	72.8	14.5	14.5	15.2	47	16.5	35
	20	60.1	50.5	72.8	15.2	15.2	15.2	57
	30	60.1	50.5	72.8	15.7	15.7	15.2	67
	40	60.1	50.5	72.8	16.3	16.3	15.2	82
	50	60.1	50.5	72.8	16.6	16.6	15.2	92
	75	169.3	154.3	114.4	41.2	41.2	22.0	136
	100	169.3	154.3	114.4	42.8	42.8	22.0	176
	125	169.3	154.3	114.4	43.6	43.6	22.0	205
	150	267.5	286.6	145.6	49.0	49.0	20.5	249
25	10	60.1	50.5	72.8	16.3	16.3	17.6	52	20.3	42
	20	60.1	50.5	72.8	17.0	17.0	17.6	62
	30	60	50.5	72.8	17.4	17.4	17.6	72
	40	60.1	50.5	72.8	17.8	17.8	17.6	82
	50	60.1	50.5	72.8	18.2	18.2	17.6	96
	75	169.3	154.3	114.4	45.2	45.2	25.3	141
	100	169.3	154.3	114.4	46.2	46.2	25.3	165
	125	169.3	154.3	114.4	48.0	48.0	25.3	210
	150	267.5	286.6	145.6	65.0	65.0	28.3	254

Installation and Use

1.Cylinder Fixation

1.1 Please refer to the table below to select the appropriate length of fixing screws and fix the cylinder according to the standard specified tightening torque. Too much tightening torque will cause poor action, too little tightening toque will cause position offset or parts falling of.

Model	Fixing Screw Specification	Maximum Tightening Torque (Nm)	Maximum Tightening Depth(mm)	Model	Fixing Screw Specification	Maximum Tightening Torque (Nm)	Maximum Tightening Depth(mm)	Model	Fixing Screw Specification	Maximum Tightening Torque (Nm)	Maximum Tightening Depth(mm)
FHLS6	M4X0.7	2.1	8	FHLS6	M3X0.5	1.2	11.0	FHLS6	M2.5X0.45	0.5	3.5
FHLS8	M4X0.7	2.1	8	FHLS8	M3X0.5	1.2	12.5	FHLS8	M3X0.5	0.9	4.0
FHLS12	M5X0.8	4.4	10	FHLS12	M4X0.7	2.8	18.0	FHLS12	M4X0.7	2.1	6.0
FHLS16	M6X1.0	4.4	10	FHLS16	M5X0.8	5.7	25.0	FHLS16	M5X0.8	4.4	7.0
FHLS20	M6X1.0	7.4	12	FHLS20	M5X0.8	5.7	28.0	FHLS20	M5X0.8	4.4	8.0
FHLS25	M8X1.25	18.0	16	FHLS25	M6X1.0	10.0	36.2	FHLS25	M6X1.0	7.4	10.0

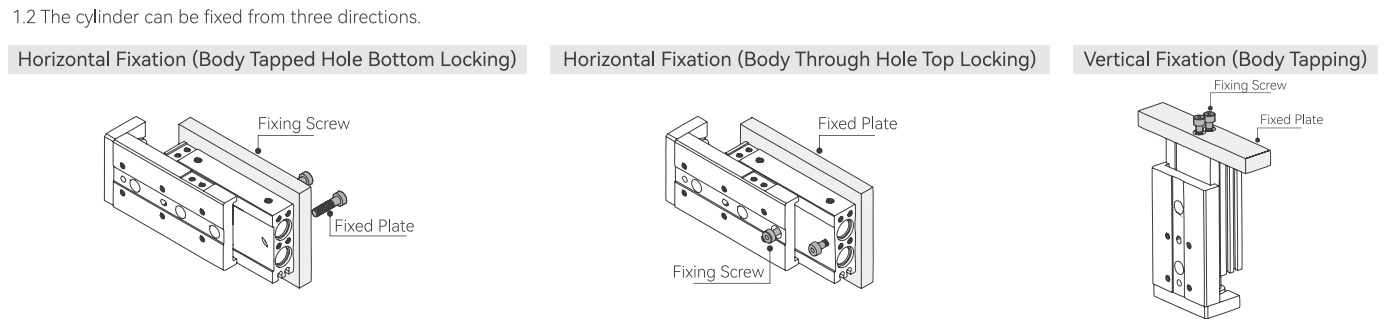

1.2 The cylinder can be fixed from three directions.

2. Jig Fixation

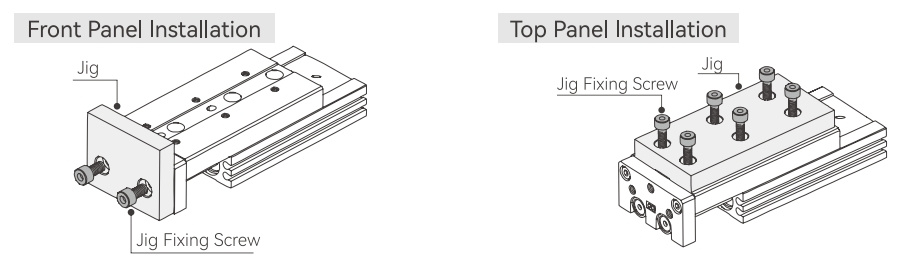

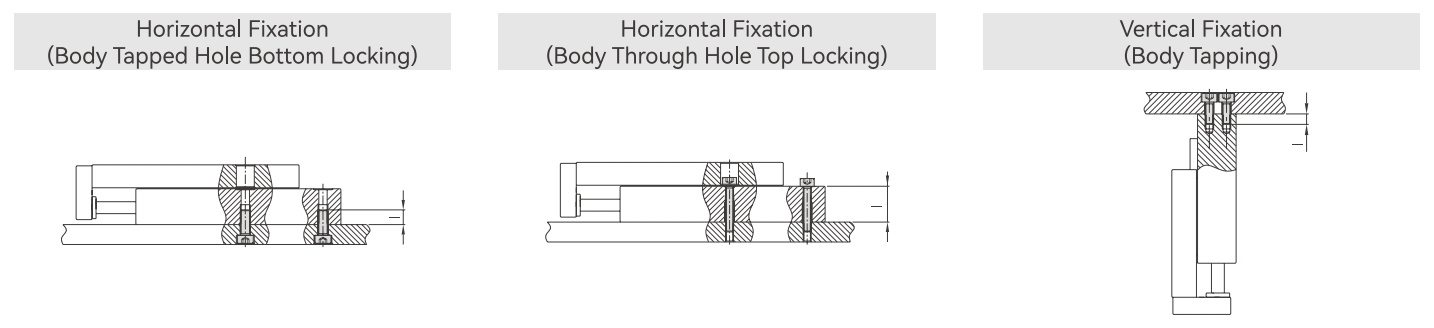

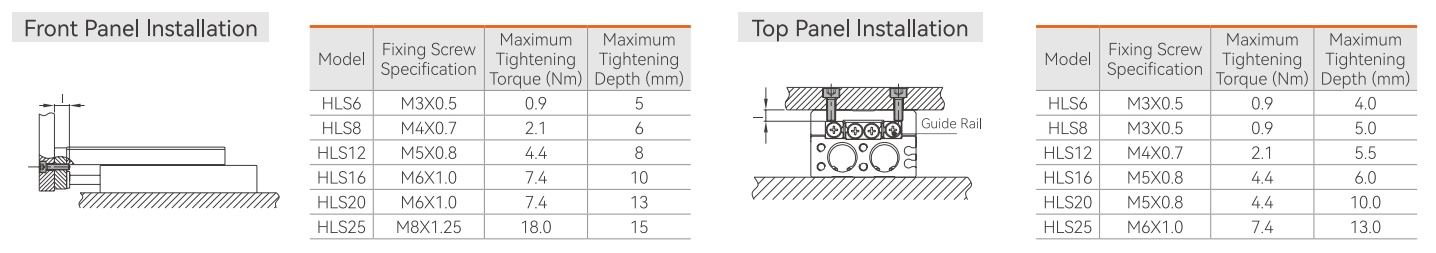

2.1 The jig can be installed on the front panel or top panel, which is convenient and flexible.

2.2 Please refer to the table below to select the appropriate length of jig fixing screws and fix the jig according to the tightening torque specified in the table.Generally, the length of the jig fixing screw should be shorter than the maximum tightening depth by more than 0.5mm to avoid hitting the guide rail and causing poor action.

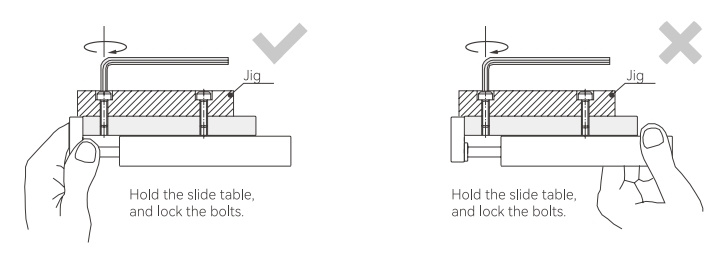

2.3 When using linear guide rails as the support platform to fix the jig, please be careful not to apply strong impact force and excessive torque.2.4 When locking the jig to the slide table with bolts and others, please hold the slide table. Holding the body and locking it will apply excessive torque to the guide rail, causing a decrease in accuracy.

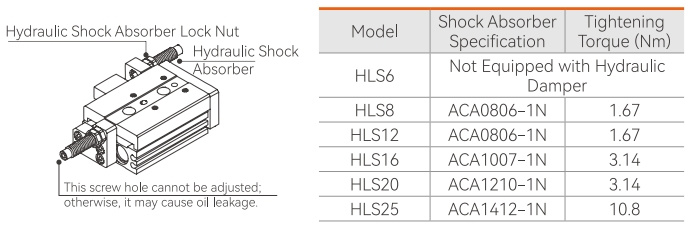

3.Hydraulic Shock Absorber Buffer3.1 The hydraulic shock absorber is a consumable item. When the energy absorption capacity decreases, it should be replaced in time. The table below is a comparison table of the hydraulic shock absorber models equipped with cylinders of various diameters.3.2 The screw hole at the end of the hydraulic shock absorber is not for adjustment.and random adjustment will cause oil leakage.3.3 Please use the tightening torque specified in the table below to tighten the hydraulic shock absorber lock nut.

4.Sensor Installation

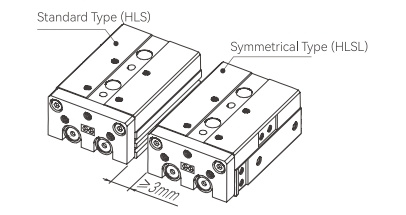

4.1 All HLS series are magnetic, and the sensors are CMSH and DMSH series.For specific ordering methods and detailed parameters, please refer to the corresponding content.4.2 When installing the slide cylinder with the sensor, the minimum interval be tween the two adjacent cylinders must meet the requirements shown in the right figure.otherwise the sensor may sense poorly and produce misoperation.

5. Be sure to use the speed control valve and reduce the speed to below 500mm/s.

6. The actual lad and torque received by the cylinder must be within the check requirement range. Different types of torque acting on the cylinder will produce different degrees of displacement, and the specific displacement range refers to the table below.

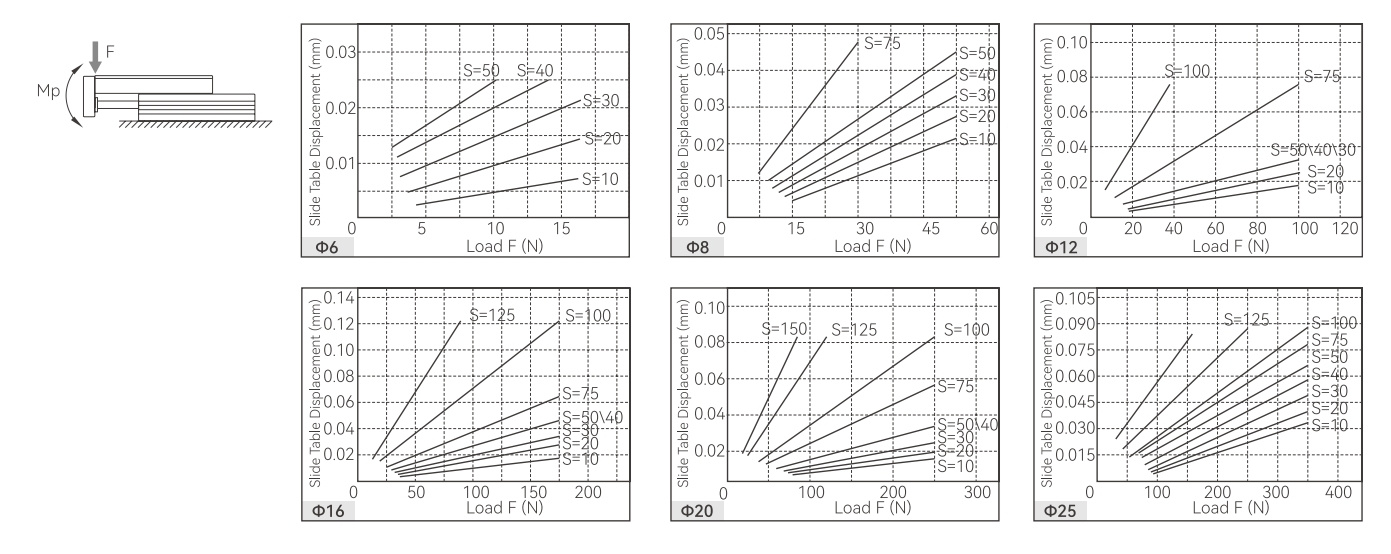

6.1 Pitch torque changes the displacement of the slide table.

Within the full stroke range of the cylinder,the load acting on the arrow part will change the displacement of the side table (arrow part).

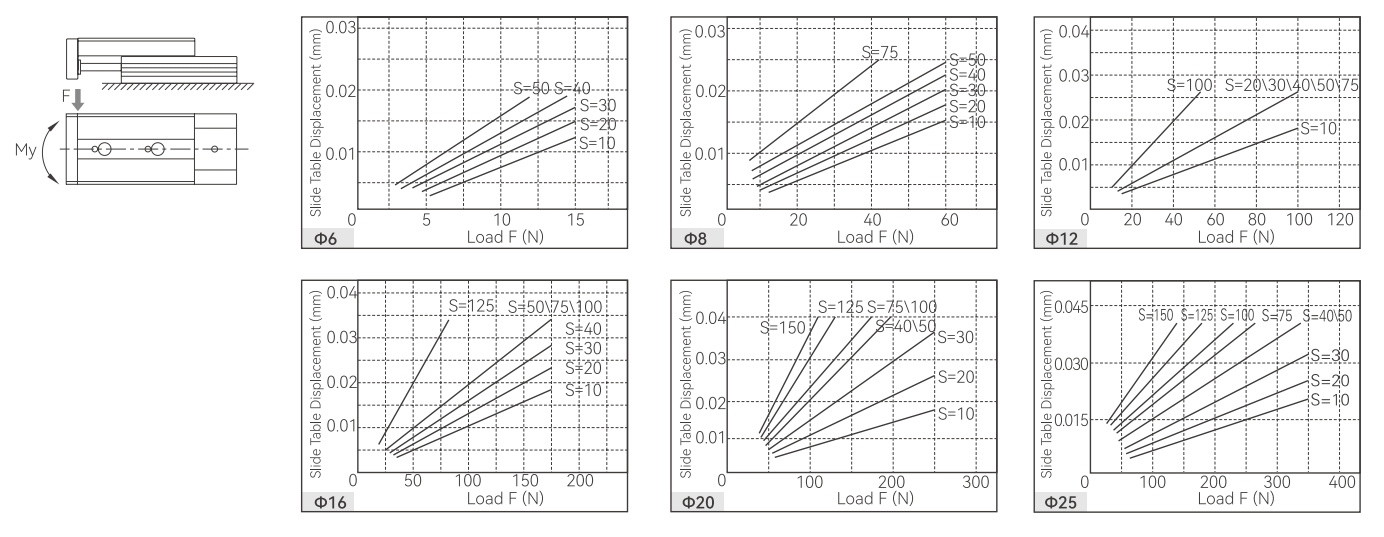

6.2 Swing torque changes the displacement of the slide table.

Within the full stroke range of the cylinder, the load acting on the arrow part will change the displacement of the slide table (arrow part).

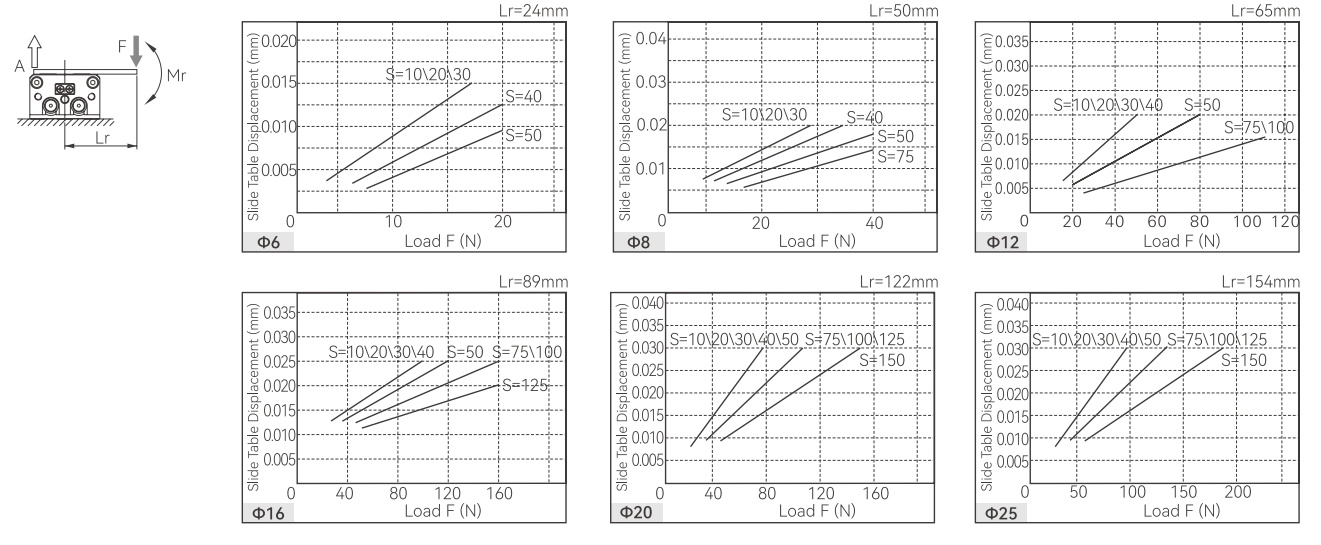

7. Rolling torque changes the displacement of the slide table.

The load acting on part F will change the displacement of the slide table (part A).

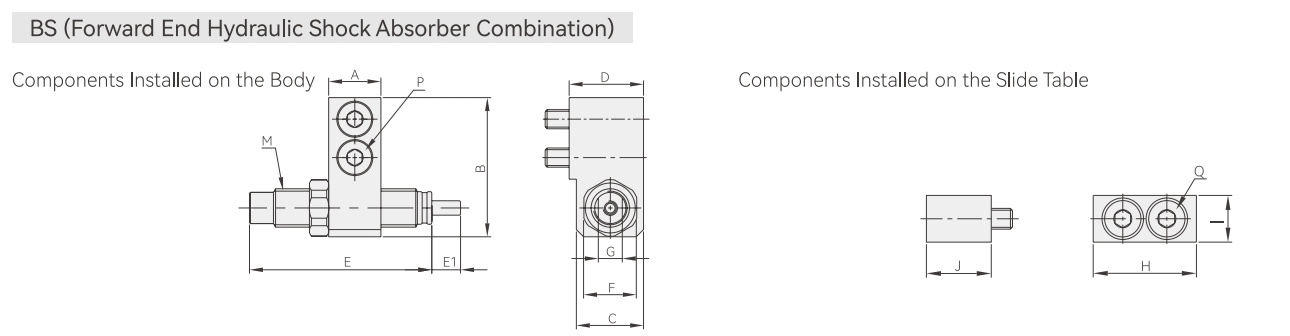

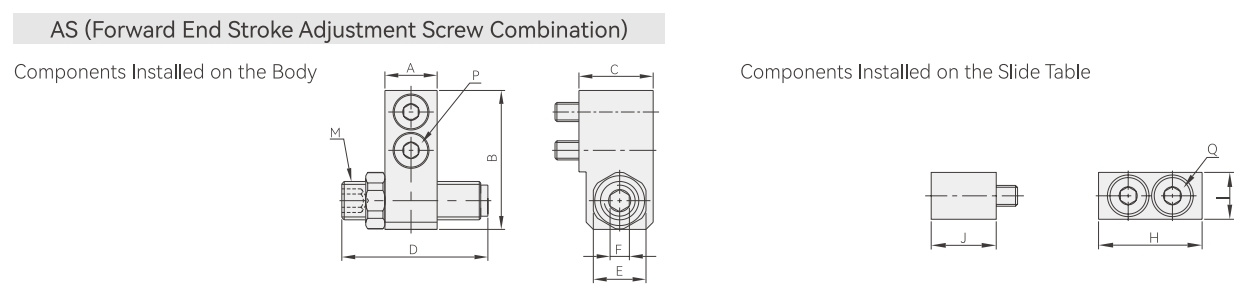

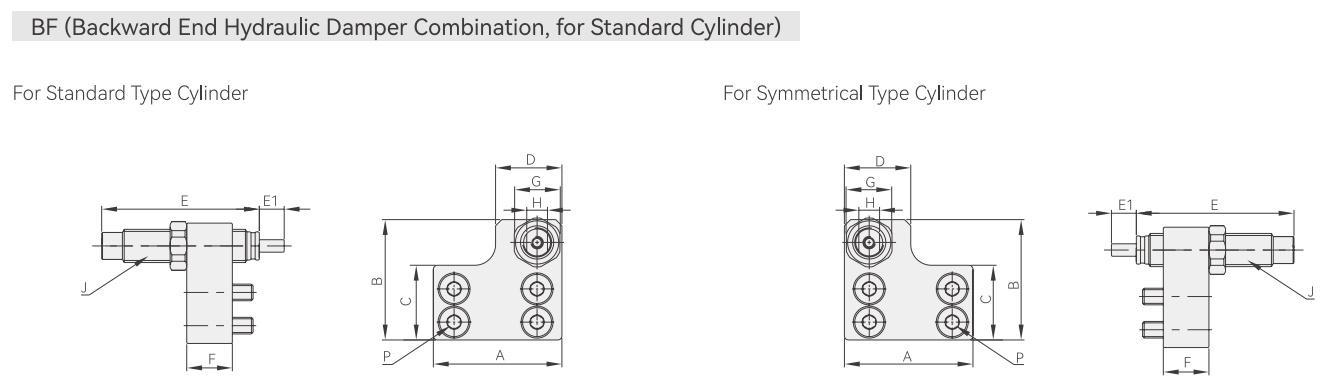

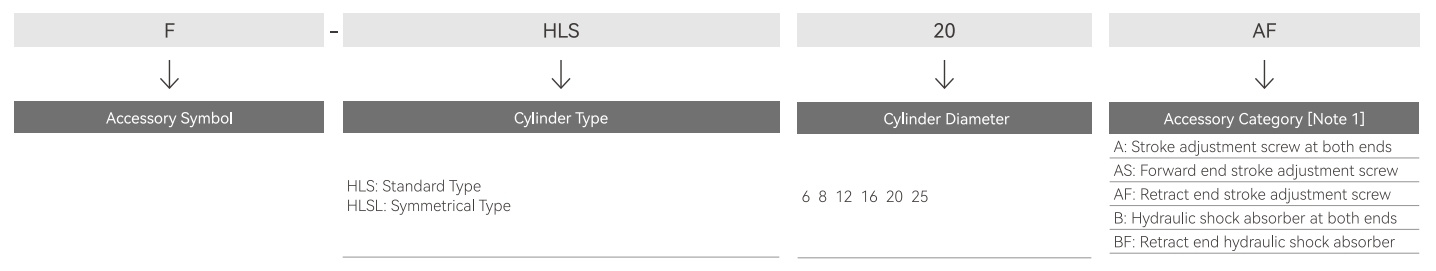

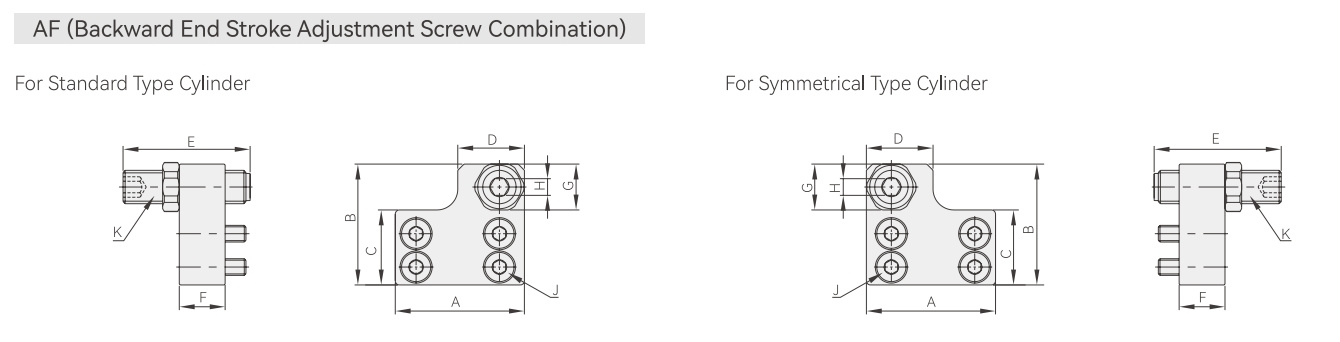

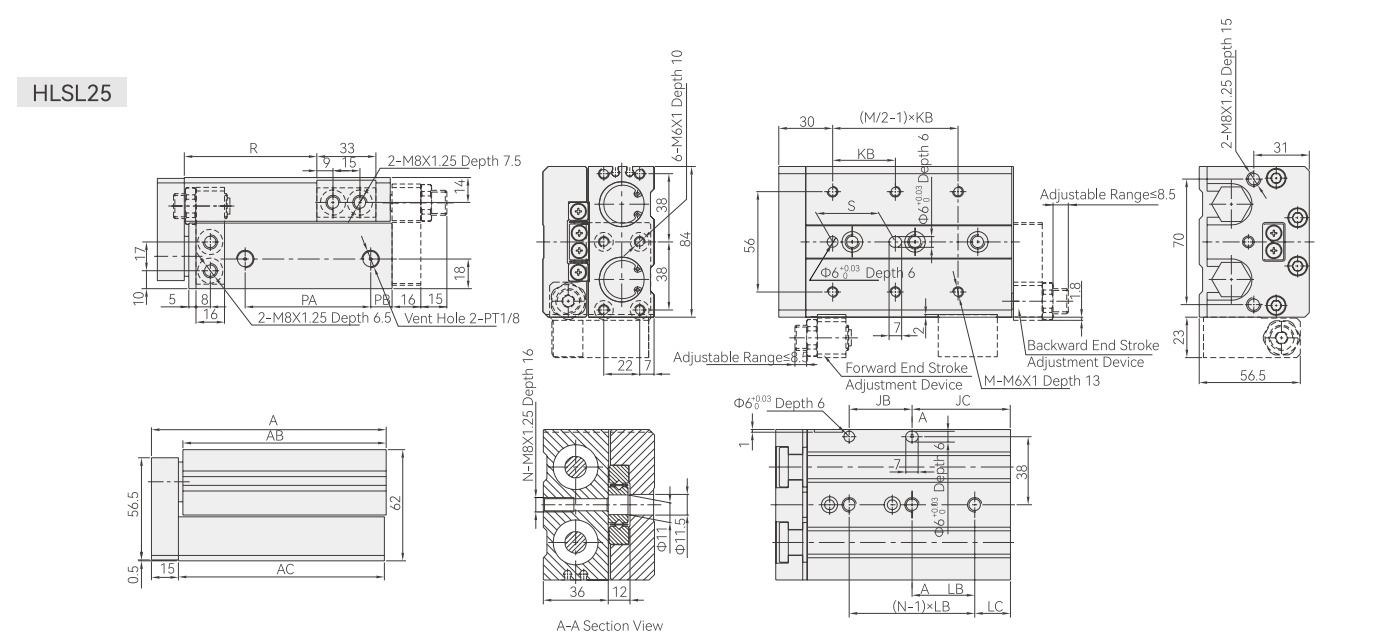

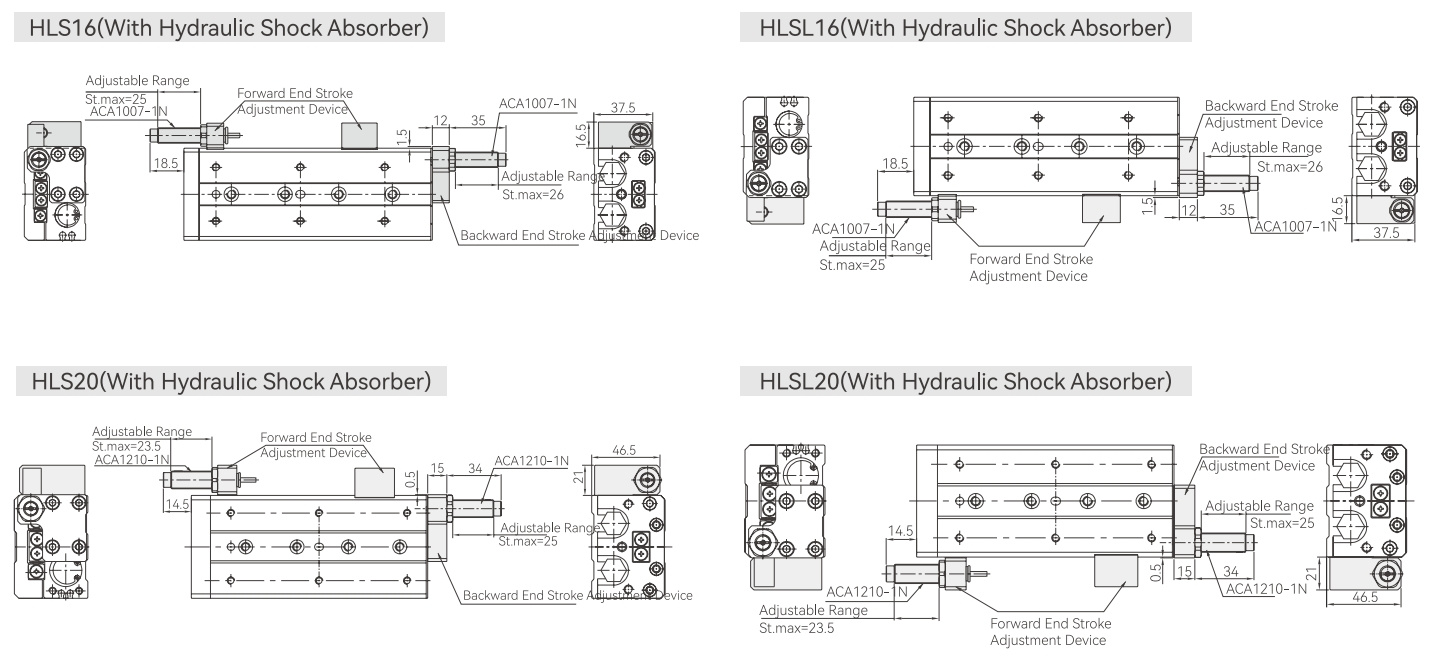

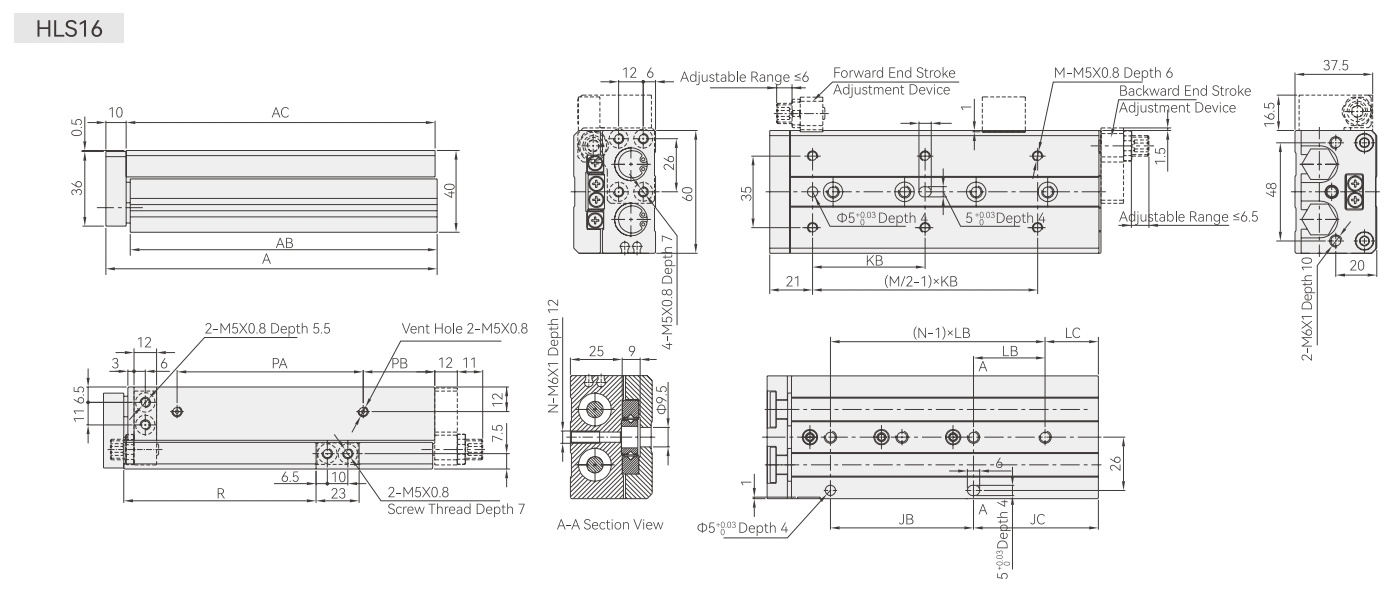

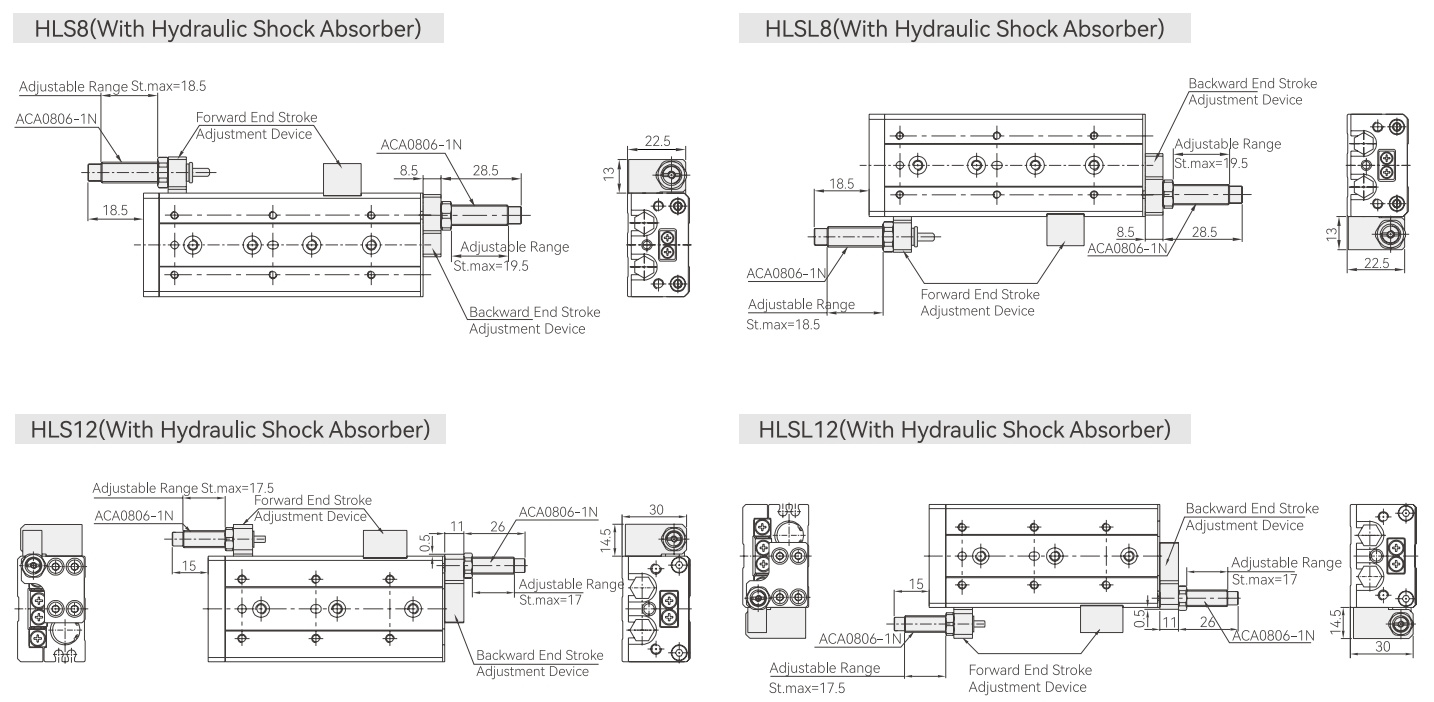

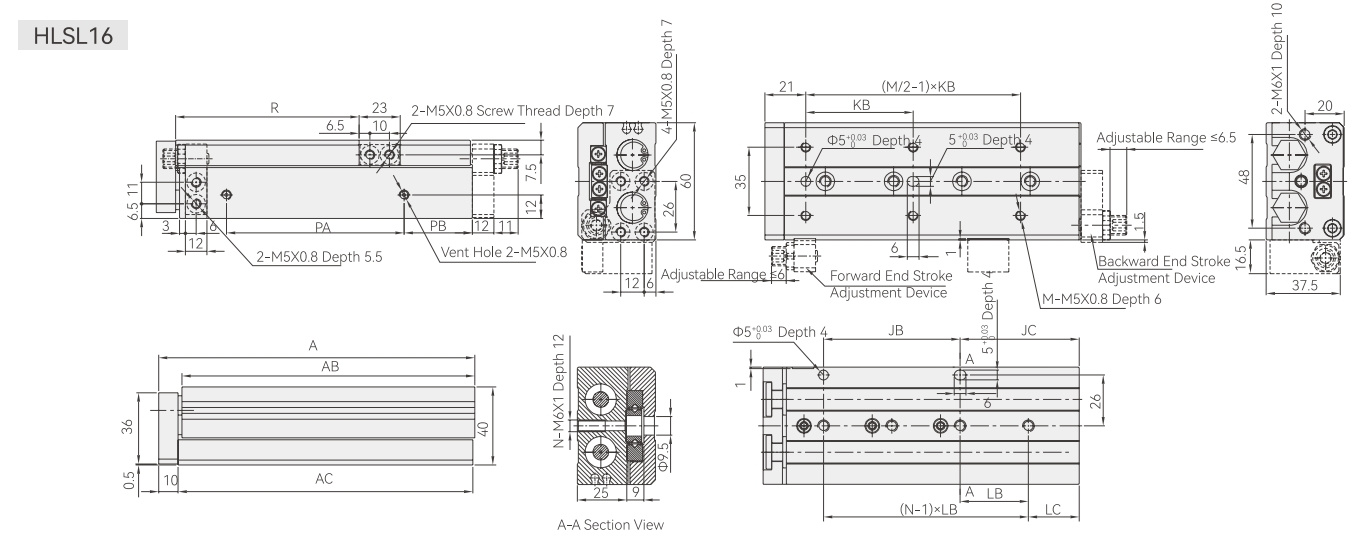

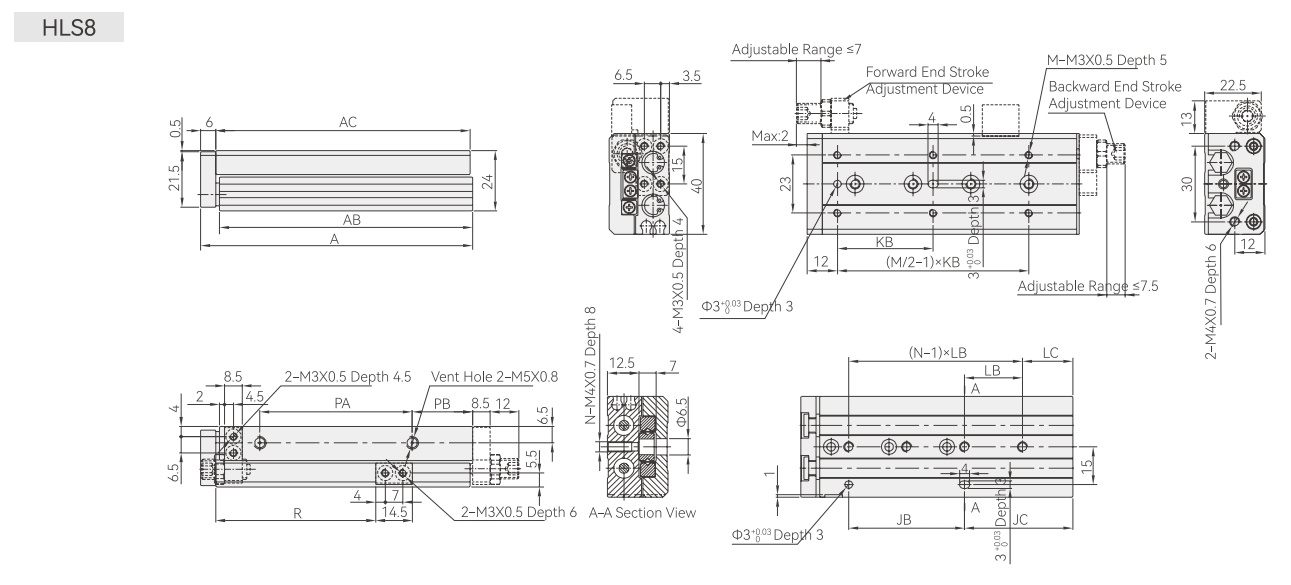

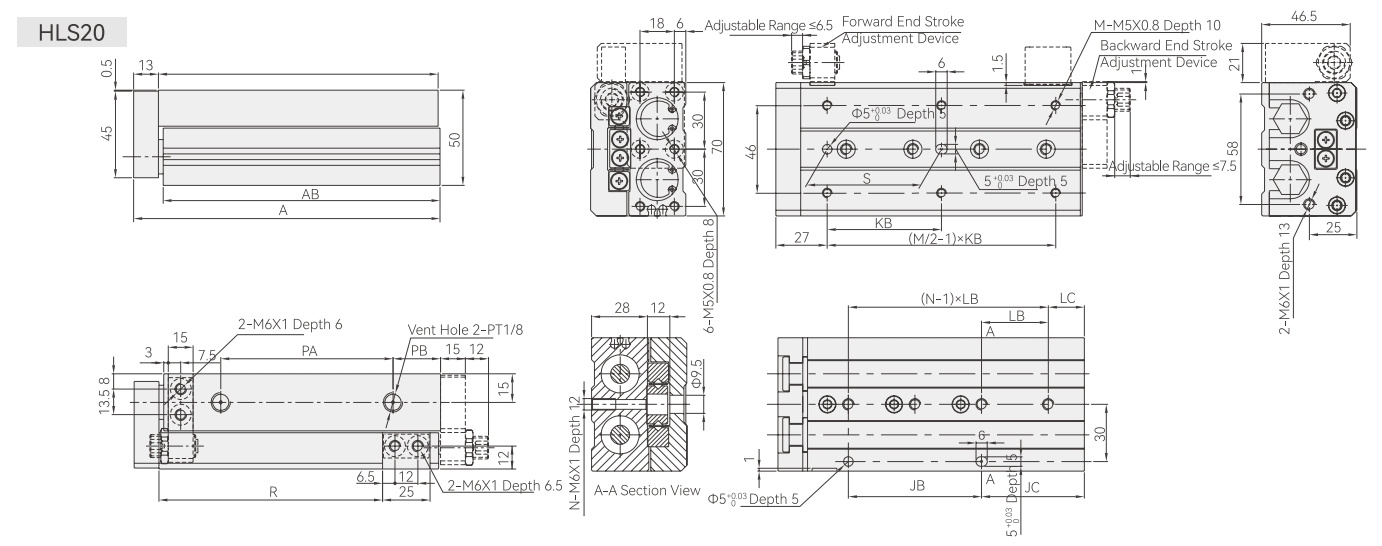

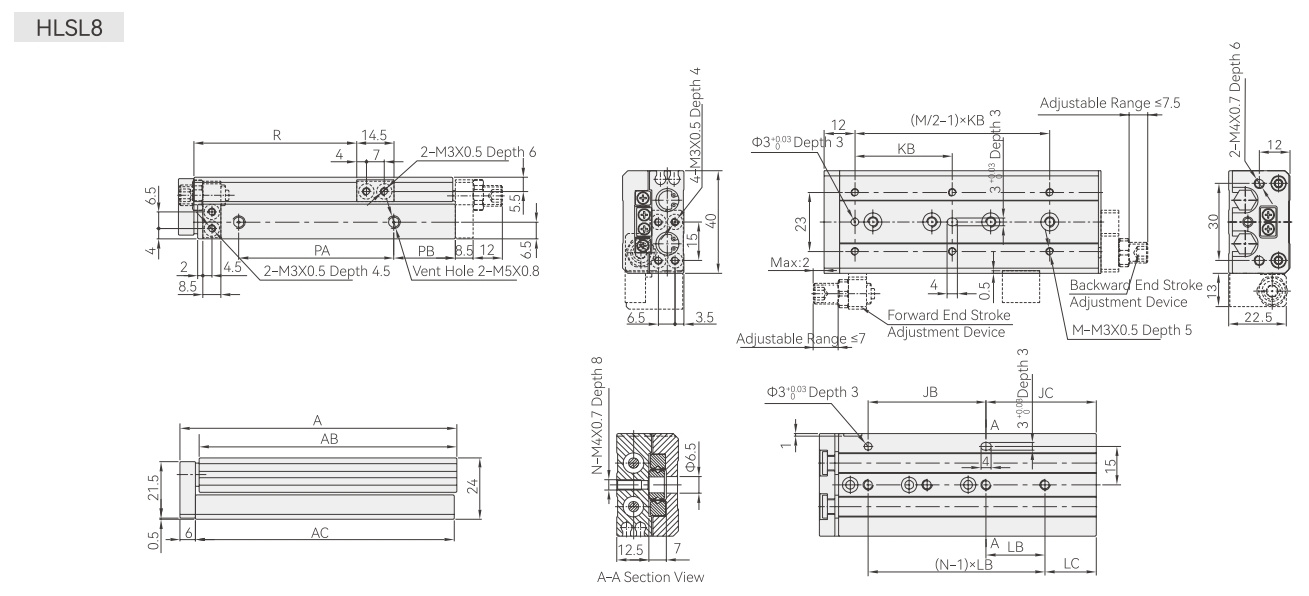

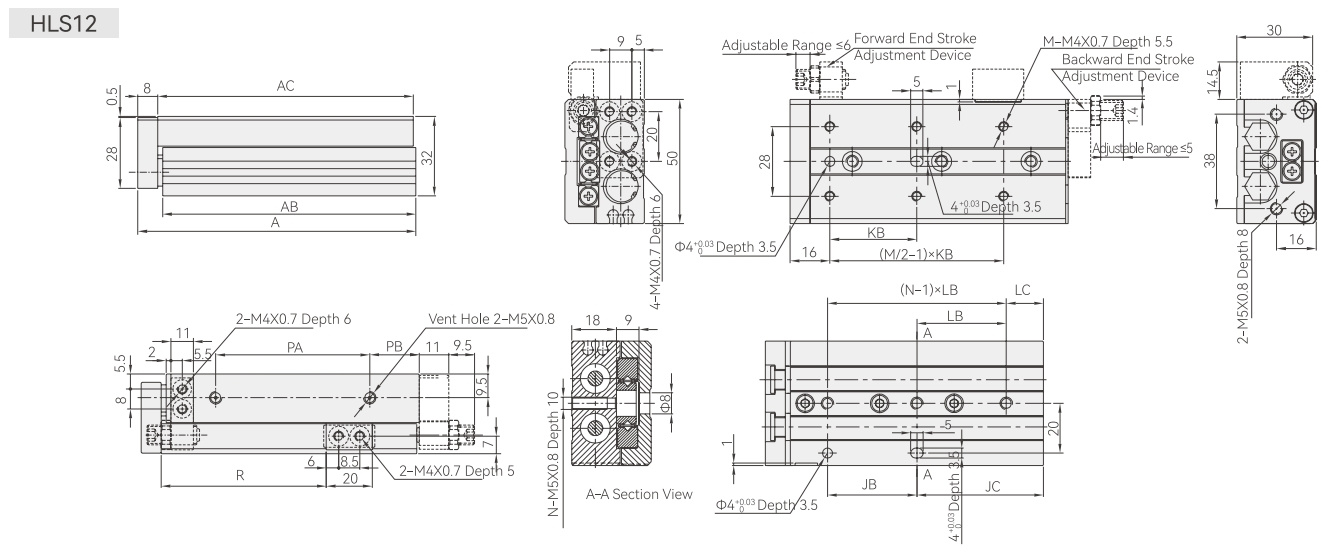

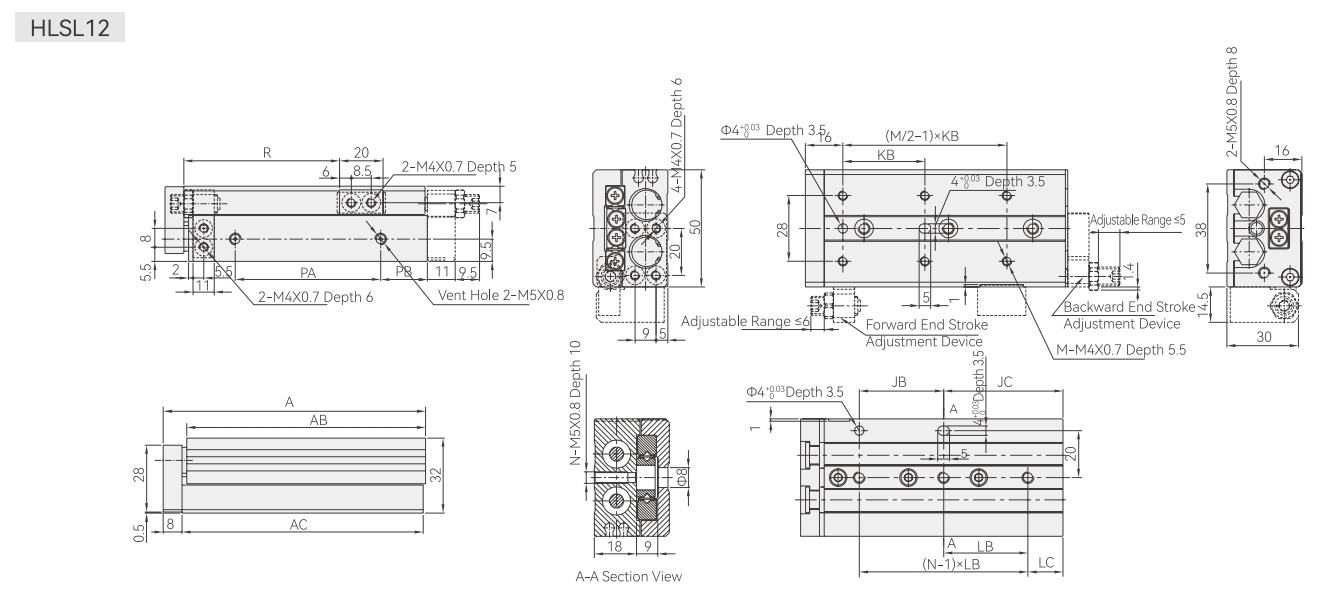

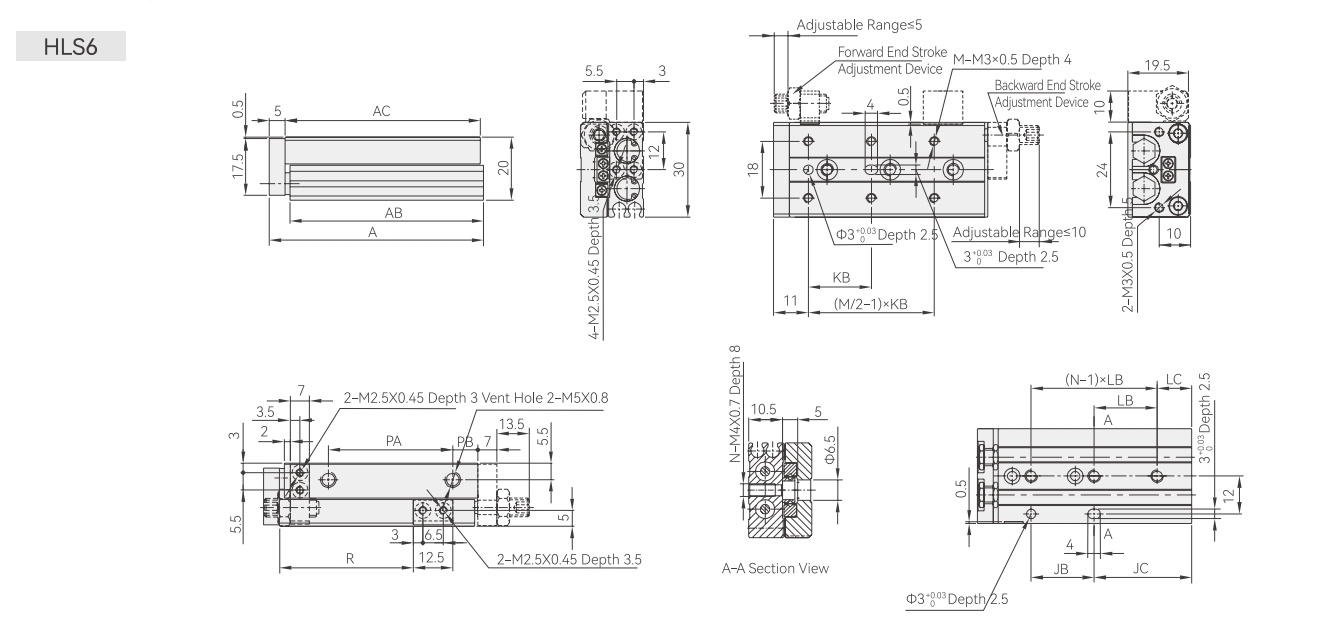

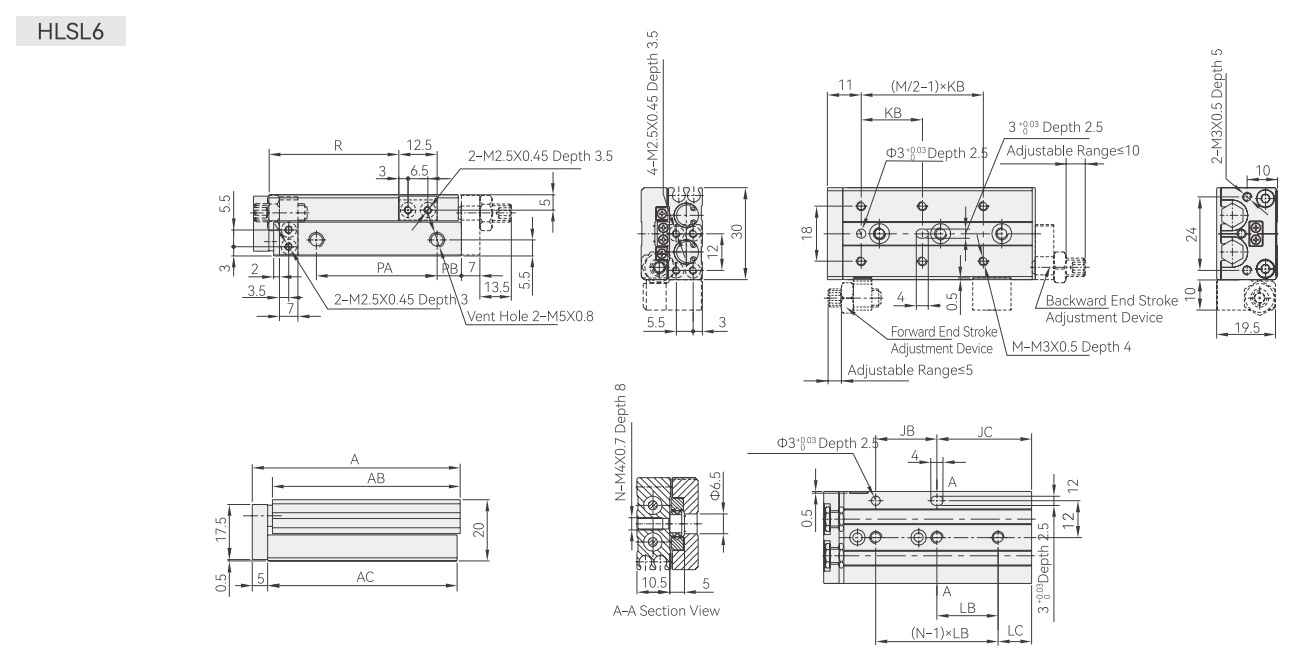

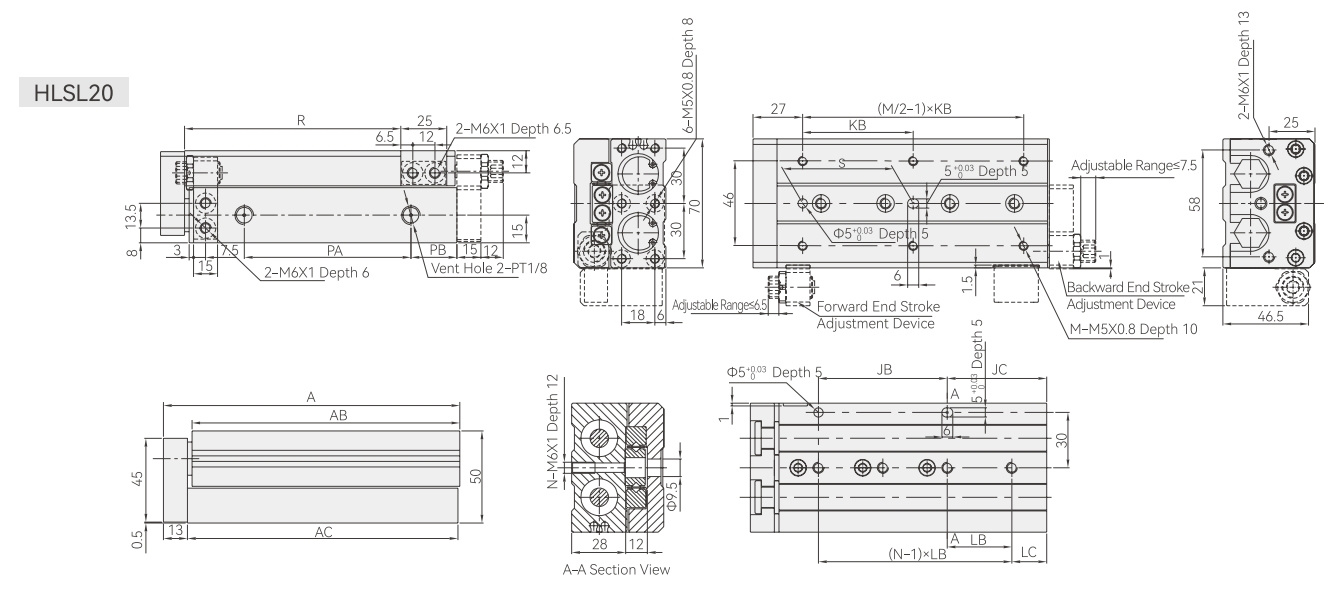

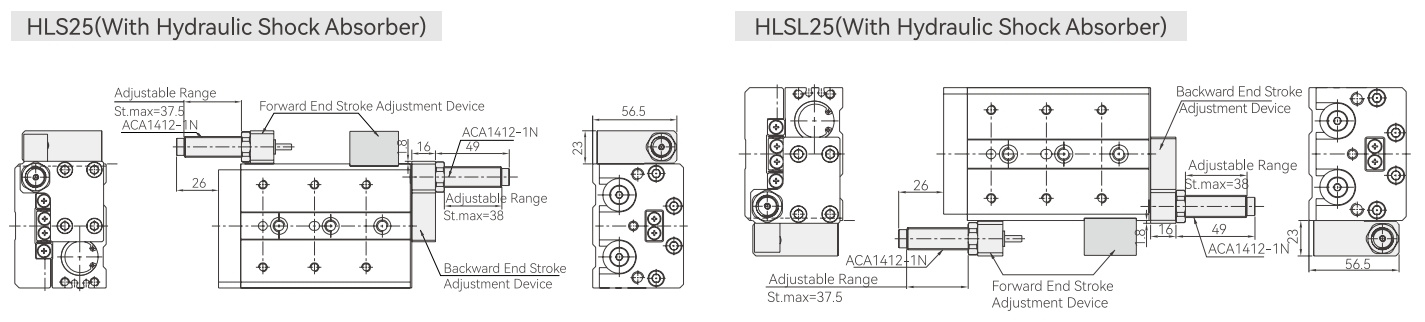

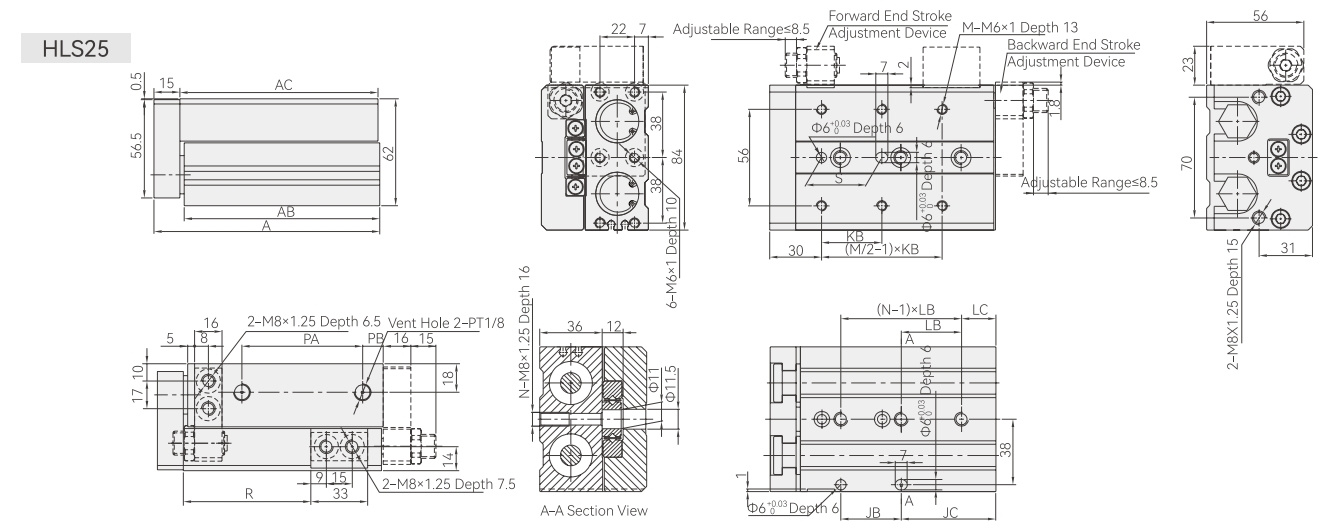

External Specifications

Stroke/Symbols	A	AB	AC	JB	JC	KB	LB	LC	M	N	PA	PB	R
10	48	41.5	42	20	11	20	25	6	4	2	19	8	21.5
20	58	51.5	52	20	21	30	35	6	4	2	28	9	31.5
30	68	61.5	62	20	31	20	20	11	6	3	39	8	41.5
40	90	83.5	84	30	43	28	30	13	6	3	51	18	51.5
50	106	99.5	100	48	41	38	24	17	6	4	61	24	61.5
