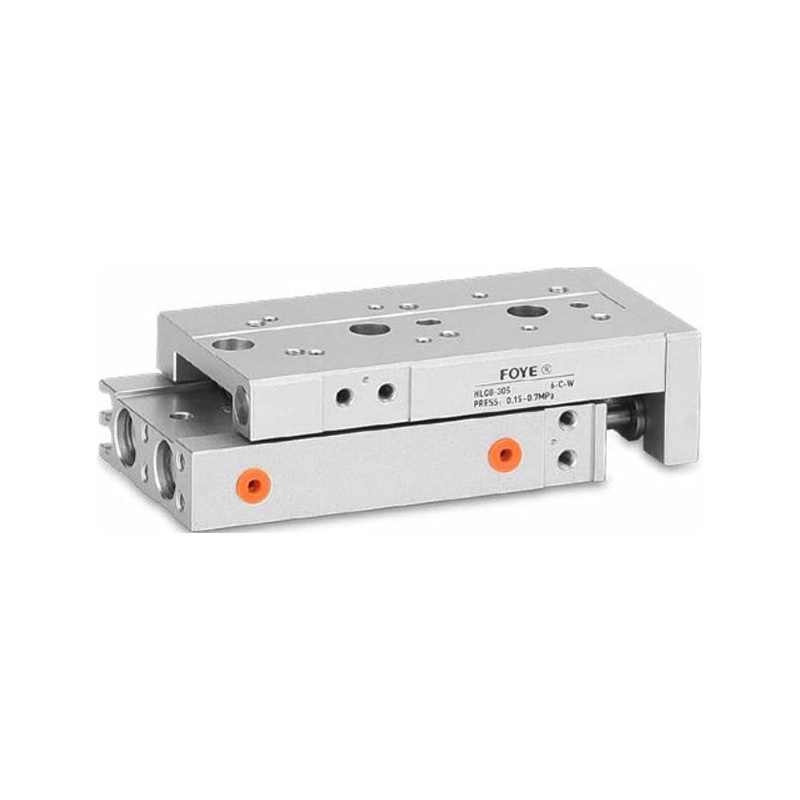

FHLQ, FHLQL Series Double-Rod Precision Slide Cylinder (Recirculating Ball)

Before using the cylinder, the cleanliness of the pipeline system must be ensured. All connecting pipes must be thoroughly cleaned to prevent impurities from entering the cylinder. The working medium must be filtered through a filter with a precision of 40 microns or more. When used in a low-temperature environment, antifreeze measures should be taken to prevent the system from freezing. When stored for a long time, the outer surface of the cylinder needs to be rust-proofed, all interfaces need to be equipped with protective plugs, and anti-rust oil should be applied to the piston rod and other moving parts for protection.

product details

Symbols

Core Features

◆Dual guide structure: integrated dual linear guides to achieve high-precision and high-rigidity motion.

◆Easy installation: Slide table with screw holes (top/front) and dowel pin holes (top).

◆Durable design: rust-proof and dust-proof, working temperature -20~70℃.

◆Smart Detection: Supports magnetic switch position feedback.

◆Industrial applications: Suitable for precision positioning scenarios such as automation equipment and medical devices.

Application Scenario

1. Automated manufacturing

Electronic assembly line: high-speed PCB grabbing (±0.05mm repeatability), integrated magnetic switch for real-time position feedback.

Material transfer: Double piston rods provide double output and are suitable for the end effector of the robot arm.

2. High-precision equipment

Semiconductor processing: The dust-proof design meets the requirements of clean rooms, and the recirculating ball guide ensures the stability of wafer cutting.

Testing instrument: The top positioning pin hole fixes the probe, and the double guide rails eliminate eccentric load errors.

3. Harsh industrial scenarios

Automotive welding: Hard anodized cylinder block is resistant to oil/vibration and supports a wide temperature range of -20~70℃.

4. Medical equipment

Diagnostic instruments: Low friction seals enable silent motion, ideal for sample stage translation.

Surgical instruments: The compact structure saves space, and the double guide rails resist lateral loads to ensure operational accuracy.

Summary of technical points

Structural design
M4/M5 mounting holes + Φ4H7 positioning pin holes on the top/front
Double-circulation ball linear guide structure
Modular installation design
Performance parameters
Working mode: double acting
Working medium: filtered air (40μm filter element)
Pressure range: 0.15-0.7MPa (pressure resistance 1.2MPa)
Speed range: 50-500mm/s
Stroke tolerance: ±0.1mm(≤100mm)/±0.15mm(＞100mm)
Environmental adaptability
Working temperature: -20~70℃
IP65 protection level (dust and rust proof)
Function Configuration‌
Double ended hydraulic buffer
Compatible with CMSH/DMSH(S) magnetic switches

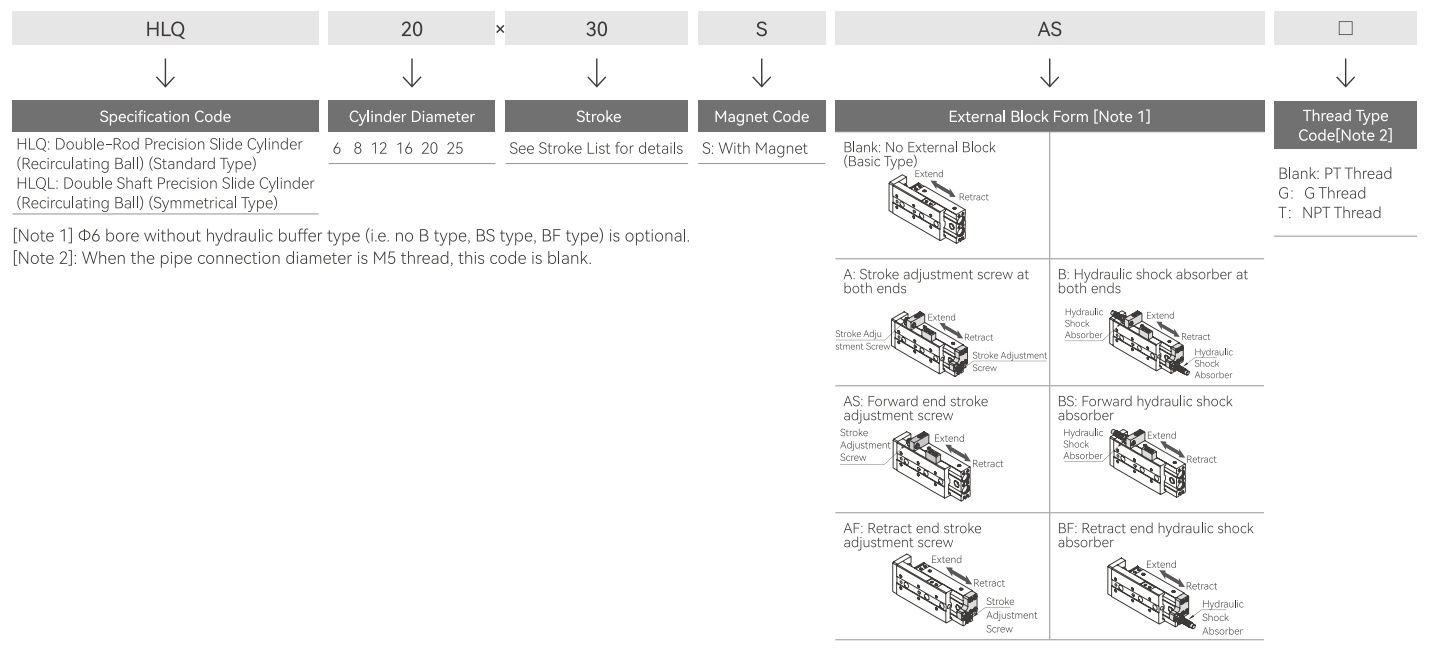

Finished Product Order Code

Specifications

Inner Diameter(mm)	6	8	12	16	20	25
Mode of Operation	Double-Acting Type
Working Medium	Air (filtered through a Filter Element with a pore size smaller than 40μm)
Operating Pressure Range	0.15~0.7MPa(22~100psi)(1.5~7.0bar)
Guaranteed Pressure Resistance	1.2MPa(175psi)(12.0bar)
Operating Temperature(℃)	-20~70
Operating Speed Range(mm/s)	50~500
Stroke Tolerance Range	Stroke≤100 Stroke>100
Cushion Type	Buffering at both ends, hydraulic shock absorber buffering
Applicable Sensor	CMSH、DMSH(S) ①
Pipe Diameter[Note 1]	M5X0.8				PT1/8

[Note 1] PT Thread, G Thread and NPT Thread are available for Pipe Thread.

Stroke

Inner Diameter(mm)	Standard Stroke	Maximum Stroke
6	10 20 30 40 50	50
8	10 20 30 40 50 75	75
12	10 20 30 40 50 75 100	100
16	10 20 30 40 50 75 100 125	125
20	10 20 30 40 50 75 100 125 150	150
25	10 20 30 40 50 75 100 125 150	150

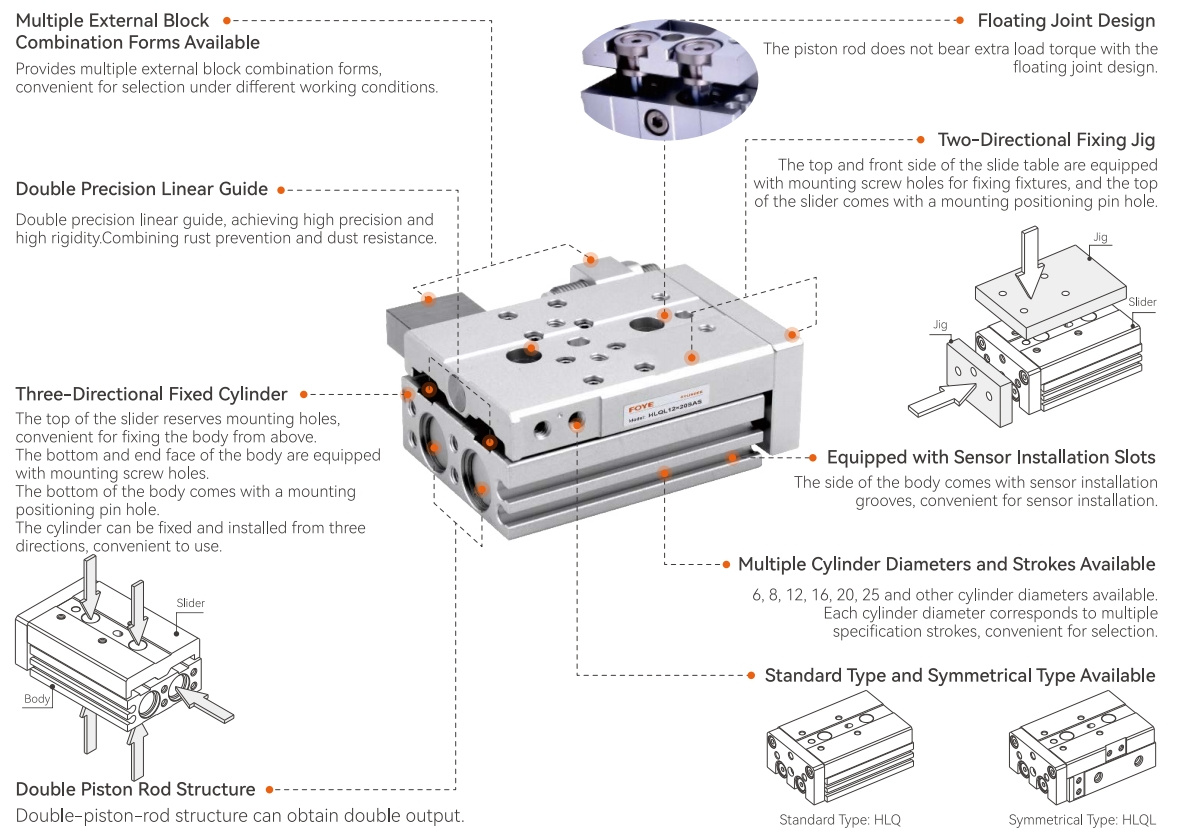

Overview of HLQ/HLQL Series Products

Cylinder Theoretical Output Table

Cylinder Inner Diameter	Piston Rod Outer Diameter	Mode of Operation		Pressure Area(mm²)	Air Pressure(MPa)
Cylinder Inner Diameter	Piston Rod Outer Diameter	Mode of Operation		Pressure Area(mm²)	0.2	0.3	0.4	0.5	0.6	0.7
6	3	Double-Acting	Pull Side	42	8	13	17	21	25	29
6	3	Double-Acting	Push Side	57	11	17	23	29	34	40
8	4	Double-Acting	Pull Side	75	15	23	30	38	45	53
8	4	Double-Acting	Push Side	101	20	30	40	51	61	71
12	6	Double-Acting	Pull Side	170	34	51	68	85	102	119
12	6	Double-Acting	Push Side	226	45	68	90	113	136	158
16	8	Double-Acting	Pull Side	302	60	91	121	151	181	211
16	8	Double-Acting	Push Side	402	80	121	161	201	241	281
20	10	Double-Acting	Pull Side	471	94	141	188	236	283	330
20	10	Double-Acting	Push Side	628	126	188	251	314	377	440
25	12	Double-Acting	Pull Side	756	151	227	302	378	454	529
25	12	Double-Acting	Push Side	982	186	295	393	491	589	687

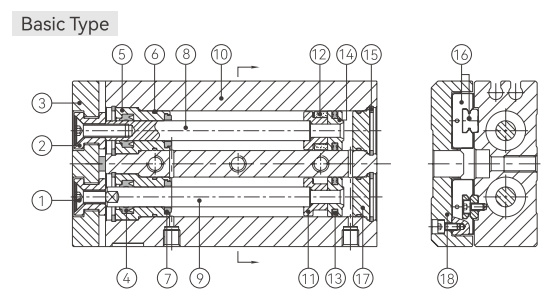

Internal Structure and Main Component Materials

No.	Name	Material	No.	Name	Material
1	Hex Socket Counter Bore Screw	Medium Carbon Steel or Low Alloy Steel	10	Body	Aluminum Alloy
2	Floating Joint	Free Cutting Steel	11	Magnet Seat	Brass
3	Fixed Plate	Aluminum Alloy	12	Magnet	Sintered Neodymium Iron Boron
4	Shaft O-Ring	NBR	13	Piston O-Ring	NBR
5	Front Cover	Aluminum Alloy	14	Piston	Brass
6	O-Ring	NBR	15	Hole Retaining Ring	Spring Steel
7	Bumper Pad	TPU	16	Linear Guide Combination
8	Piston Rod A	Stainless Steel	17	Rear Cover	Brass
9	Piston Rod B	Medium Carbon Steel	18	Slider	Aluminum Alloy

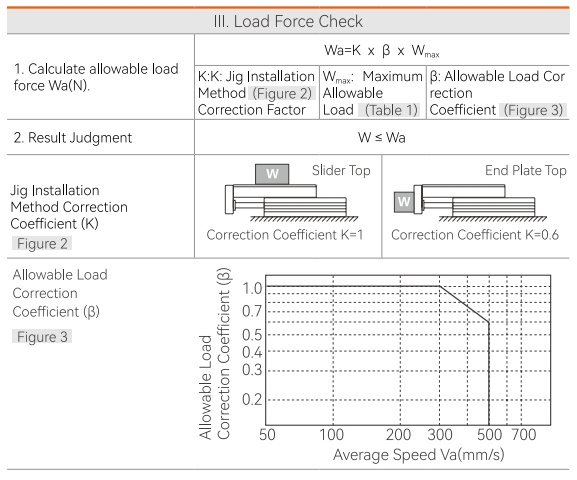

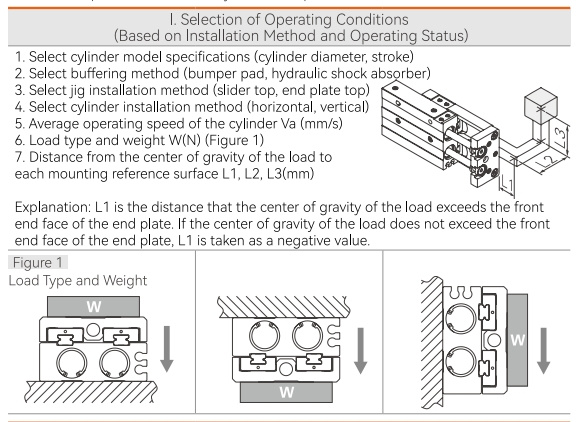

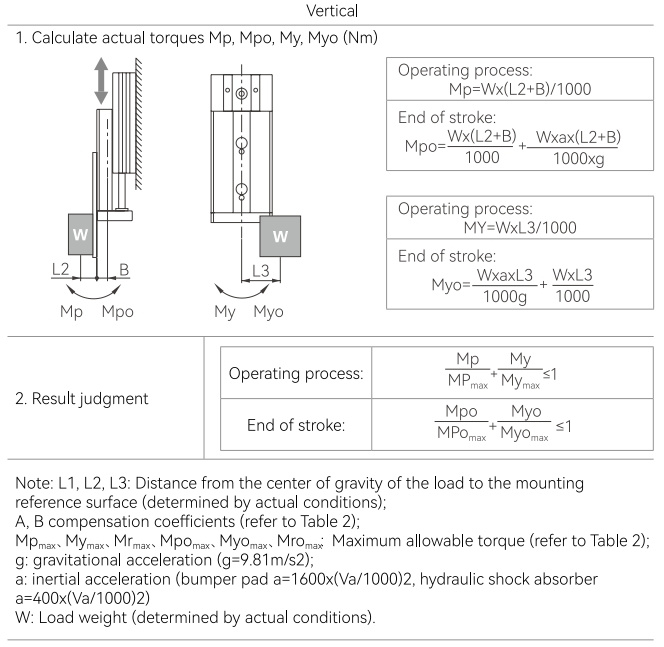

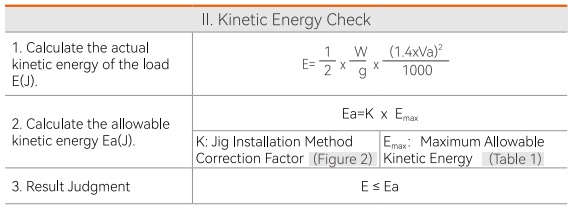

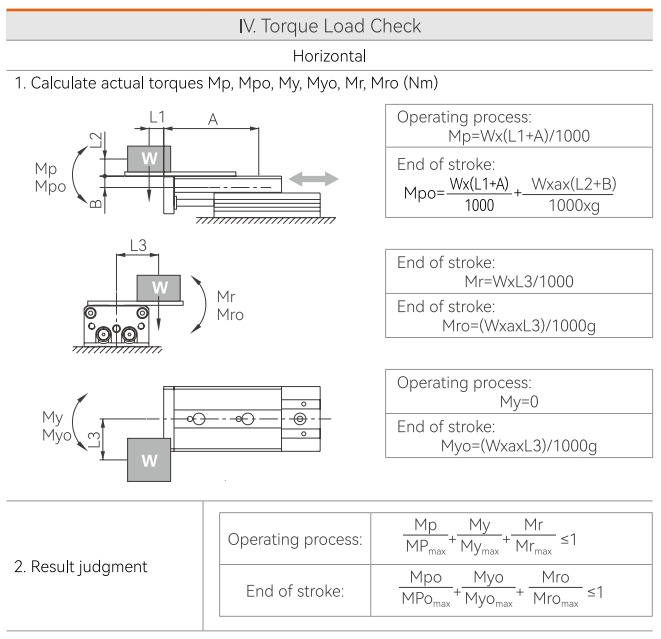

Product Selection

Note:Code Description and Units

No.	Description	Units
A、B	Compensation Coefficient	mm
a	Inertial Acceleration	-
E	Load Kinetic Energy	J
Ea	Allowable Kinetic Energy	J
Emax	Maximum Allowable Kinetic Energy	J
g	Gravitational Acceleration g=9.81	m/s²
K	Jig Installation Method Correction Factor	-
L1、L2、L3	Distance from the Center of Gravity of the Load to the Mounting Reference Surface	mm
Mp、My、Mr	Torque (pitch, yaw, roll)	Nm
Mpmax、Mymax、Mrmax	Maximum Allowable Torque (pitch,yaw, roll)	Nm
Mpo、Myo、Mro	End of Stroke Torque (pitch, yaw, roll)	Nm
Mpomax、Myomax、Mromax	End of Stroke Maximum Allowable Torque(pitch, yaw, roll)	Nm
Va	Average Speed	mm/s²
W	Load Weight	N
Wmax	Maximum Allowable Load	N
β	Allowable Load Correction Factor	-

Table 1:

Maximum Allowable Kinetic Energy(Emax).Maximum Allowable Load (Wmax)

Model	Maximum Allowable Kinetic Energy Emax (J)			Maximum Allowable Load Wmax(N)
Model	Basic Type	Adjust Screw Buffer	Hydraulic Shock Absorber Buffer	Maximum Allowable Load Wmax(N)
FHLQ6	0.01	0.01	-	4
FHLQ8	0.024	0.024	0.048	8
FHLQ12	0.05	0.05	0.1	15
FHLQ16	0.1	0.1	0.2	30
FHLQ20	0.13	0.13	0.26	40
FHLQ25	0.22	0.22	0.44	70

Table 2:

Maximum Allowable Kinetic Energy(Emax)Maximum Allowable Load (Wmax)

Cylinder Diameter	Stroke	End of Stroke			In Operation			Compensation Coefficient
Cylinder Diameter	Stroke	Mpomax	Myomax	Mromax	Mpomax	Myomax	Mromax	A	B
6	10	3.3	3.8	2.6	0.7	0.7	0.6	30	7
	20	3.3	3.8	2.6	0.7	0.8	0.6	40
	30	3.3	3.8	2.6	0.7	0.8	0.6	50
	40	7.2	7.9	3.6	1.3	1.3	0.6	60
	50	12.4	12.7	4.7	1.8	1.8	0.6	70
8	10	10.1	9.1	8.8	2.5	2.5	2.0	30	7
	20	10.1	9.1	8.8	2.6	2.6	2.0	40
	30	10.1	9.1	8.8	2.8	2.8	2.0	50
	40	12.4	10.8	10.1	3.4	3.4	2.3	60
	50	23.6	24.8	13.9	4.4	4.4	2.1	70
	75	32.8	35.3	16.4	4.6	4.6	1.8	95
12	10	8.5	8.5	13.6	2.5	2.5	4	32	11
	20	8.5	8.5	13.6	2.5	2.5	4	44
	30	8.5	8.5	13.6	2.5	2.5	4	54
	40	8.5	8.5	13.6	2.5	2.5	4	62
	50	8.5	8.5	13.6	2.5	2.5	4	72
	75	52.3	52.3	85.6	18.9	18.9	13	115
	100	53.9	53.9	86.9	19.5	19.5	13	142
16	10	33.6	33.6	35.2	8.4	8.4	8.8	49	12
	20	33.6	33.6	35.2	8.4	8.4	8.8	49
	30	33.6	33.6	35.2	8.4	8.4	8.8	59
	40	33.6	33.6	35.2	8.4	8.4	8.8	69
	50	33.6	33.6	35.2	8.4	8.4	8.8	79
	75	70.2	70.2	62.5	28.1	28.1	25	120
	100	76.6	76.6	62.5	38.3	38.3	25	150
	125	78	78	62.5	39	39	25	175
20	10	34.8	34.8	36.8	8.7	8.7	9.2	53	14
	20	34.8	34.8	36.8	8.7	8.7	9.2	53
	30	34.8	34.8	36.8	8.7	8.7	9.2	63
	40	34.8	34.8	36.8	8.7	8.7	9.2	73
	50	34.8	34.8	36.8	8.7	8.7	9.2	83
	75	70.2	70.2	74.5	28.1	28.1	29.7	123
	100	76.6	76.6	74.5	38.3	38.3	29.7	157
	125	78	78	74.5	39	39	29.7	178
	150	98.4	98.4	74.5	49.2	49.2	29.7	210
25	10	56.7	56.7	51	16.2	16.2	17	60	17
	20	56.7	56.7	51	16.2	16.2	17	60
	30	56.7	56.7	51	16.2	16.2	17	70
	40	56.7	56.7	51	16.2	16.2	17	80
	50	56.7	56.7	51	16.2	16.2	17	90
	75	122.5	122.5	138.5	49	49	55.4	130
	100	173.8	173.8	138.5	79	79	55.4	168
	125	217	217	138.5	108.6	108.6	55.4	205
	150	221.8	221.8	138.5	110.9	110.9	55.4	230

Installation and Use

1.Cylinder Fixation

1.1 Please refer to the table below to select the appropriate length of fixing screws and fix the cylinder according to the standard specified tightening torque. Too much

tightening torque will cause poor action;, too little tightening torque will cause position offset or parts falling off.

Model	Fixing Screw Specification	Maximum Tightening Torque (Nm)	Maximum Tightening Depth(mm)	Model	Fixing Screw Specification	Maximum Tightening Torque (Nm)	Maximum Tightening Depth(mm)
FHLQ6	M4X0.7	2.1	8	FHLQ6	M3X0.5	1.2	8.0
FHLQ8	M4X0.7	2.1	8	FHLQ8	M3X0.5	1.2	9.6
FHLQ12	M5X0.8	4.4	10	FHLQ12	M4X0.7	2.8	13.4
FHLQ16	M6X1.0	4.4	10	FHLQ16	M5X0.8	5.7	16.7
FHLQ20	M6X1.0	7.4	12	FHLQ20	M5X0.8	5.7	22.0
FHLQ25	M8X1.25	18	16	FHLQ25	M6X1.0	10.0	27.0

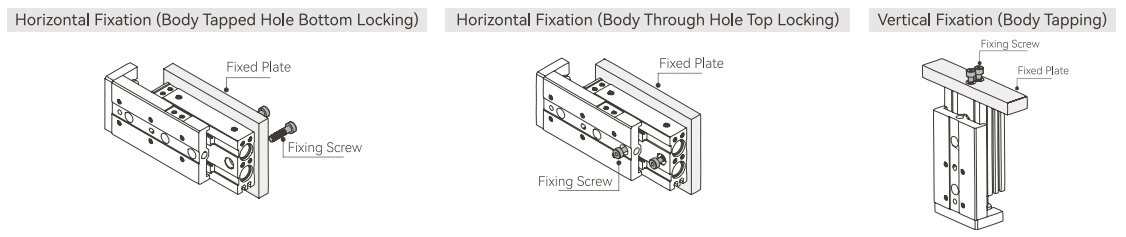

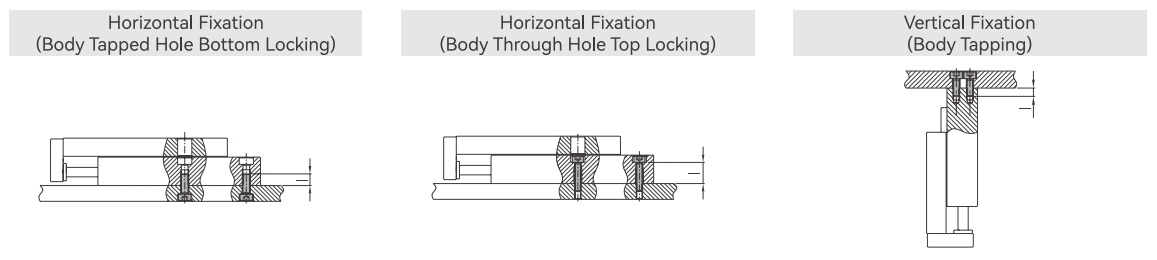

1.2 The cylinder can be fixed from three directions.

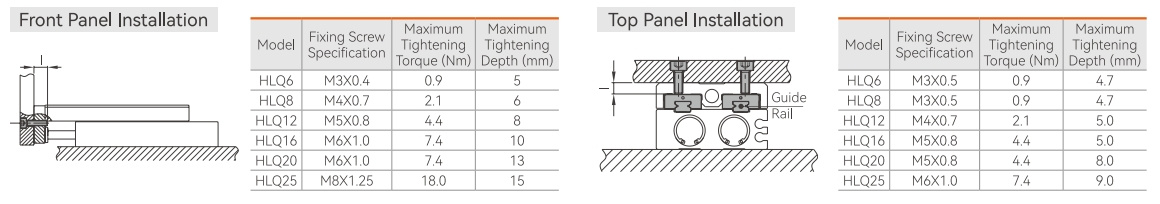

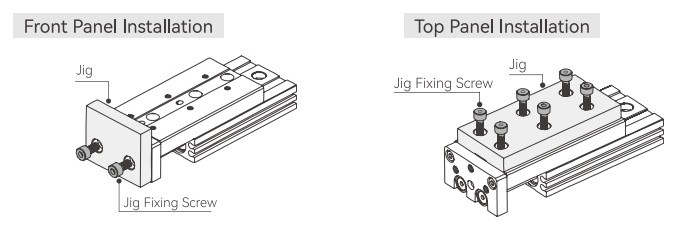

2. Jig Fixation

2.1 The jig can be installed on the front panel or top panel, which is convenient and flexible.

2.2 Please refer to the table below to select the appropriate length of jig fixing screws and fix the jig according to the tightening torque specified in the table.Generally, the length of the jig fixing screw should be shorter than the maximum tightening depth by more than 0.5mm to avoid hitting the guide rail and causing poor action.

2.3 When using linear guide rails as the support platform to fix the jig, please be careful not to apply strong impact force and excessive torque.

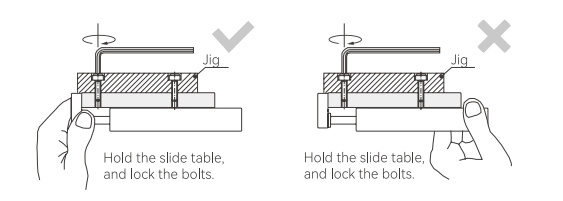

2.4 When locking the jig to the slide table with bolts and others, please hold the slide table. Holding the body and locking it will apply excessive torque to the guide rail, causing a decrease in accuracy.

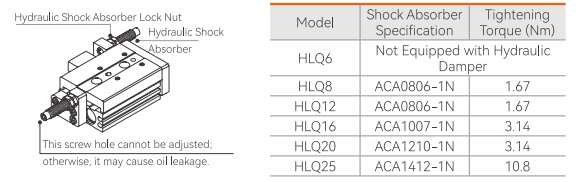

3. Hydraulic Shock Absorber Buffer

3.1 The hydraulic shock absorber is a consumable item. When the energy absorption capacity decreases, it should be replaced in time. The table below is a comparison table of the hydraulic shock absorber models equipped with cylinders of various diameters.

3.2 The screw hole at the end of the hydraulic shock absorber is not for adjustment.and random adjustment will cause oil leakage.

Please use the tightening torque specified in the table below to tighten the hydraulic shock absorber lock nut.

4. Sensor Installation

4.1 All HLQ series are magnetic, and the sensors are CMSH and DMSH series.For specific ordering methods and detailed parameters, please refer to the corresponding content.

4.2 When installing the slide cylinder with the sensor, the minimum interval be tween the two adjacent cylinders must meet the requirements shown in the right figure.otherwise the sensor may sense poorly and produce misoperation.

5. Be sure to use the speed control valve and reduce the speed to below 500mm/s.

6. The actual load and torque received by the cylinder must be within the check requirement range. Different types of torque acting on the cylinder will produce different degrees of displacement, and the specific displacement range refers to the table below.

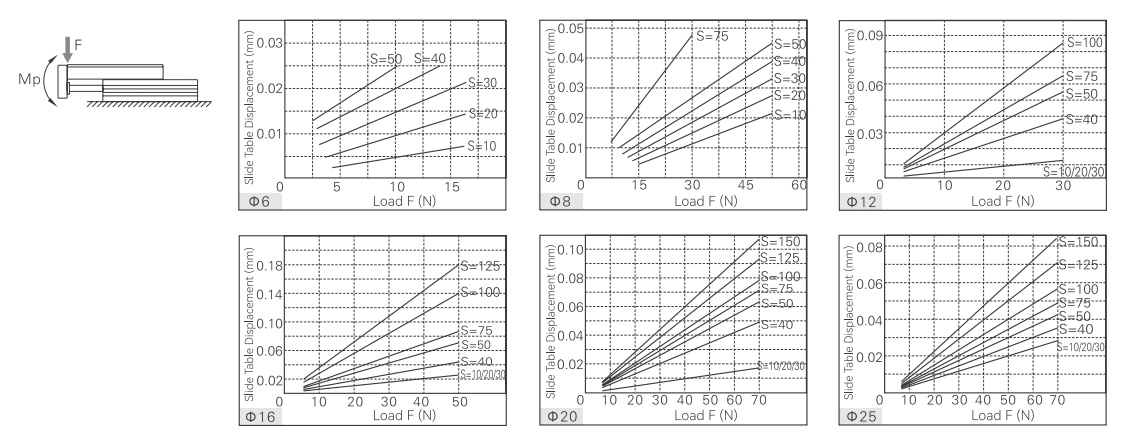

6.1 Pitch torque changes the displacement of the slide table.

Within the full stroke range of the cylinder,the load acting on the arrow part will change the displacement of the side table (arrow part).

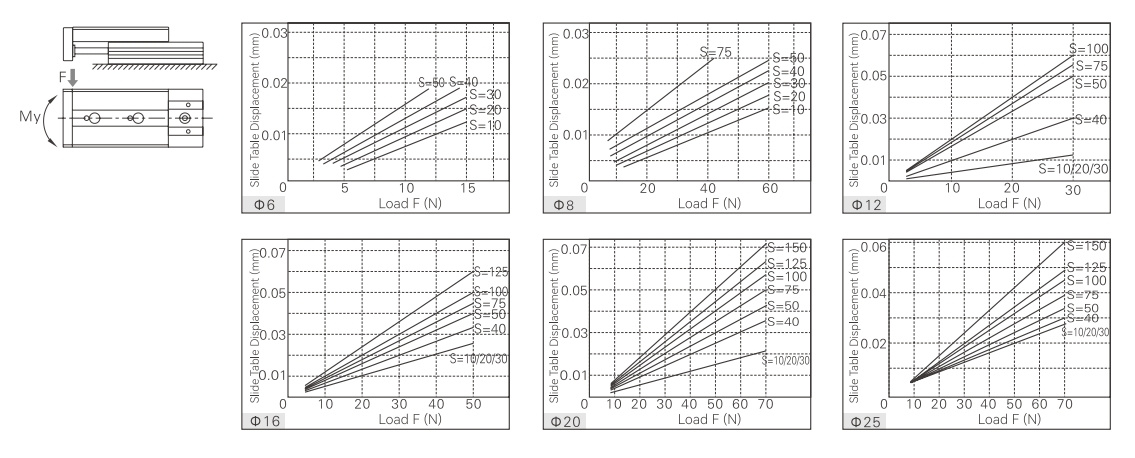

6.2 Swing torque changes the displacement of the slide table.

Within the full stroke range of the cylinder, the load acting on the arrow part will change the displacement of the slide table (arrow part).

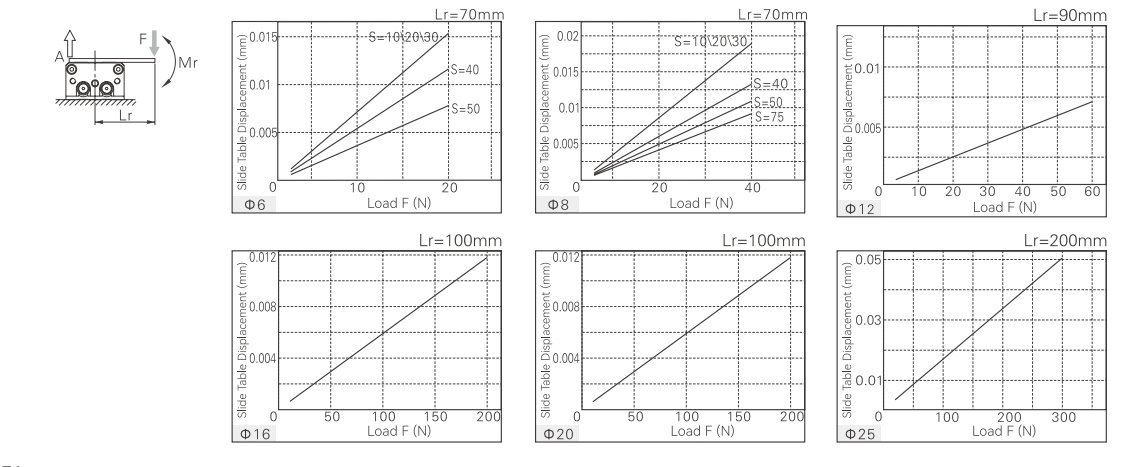

7. Rolling torque changes the displacement of the slide table.The load acting on part F will change the displacement of the slide table (part A)

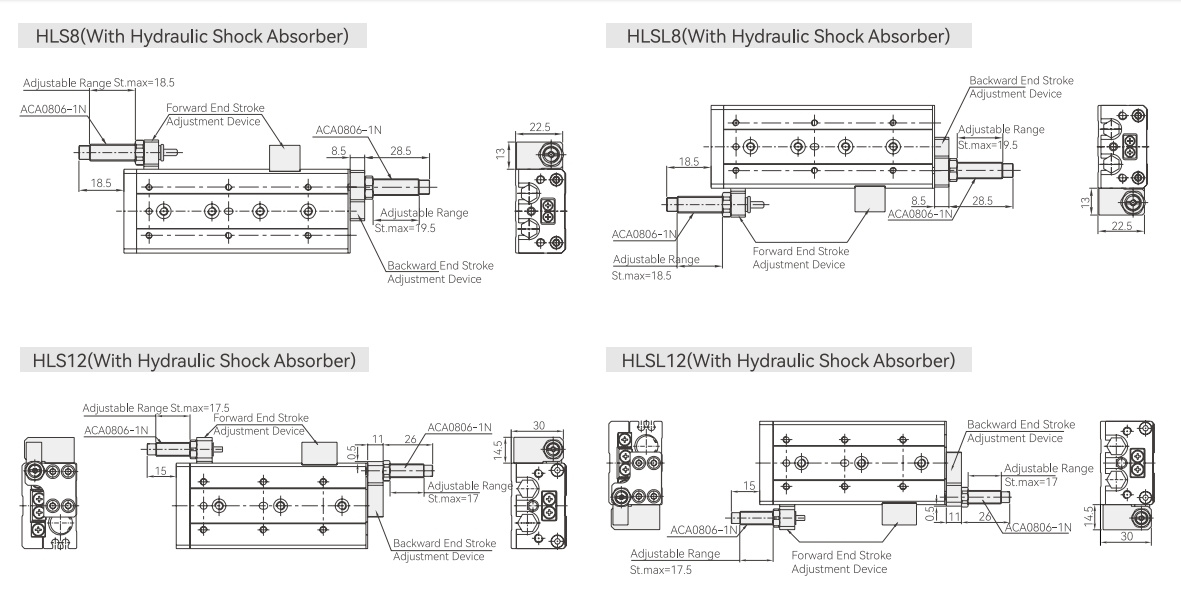

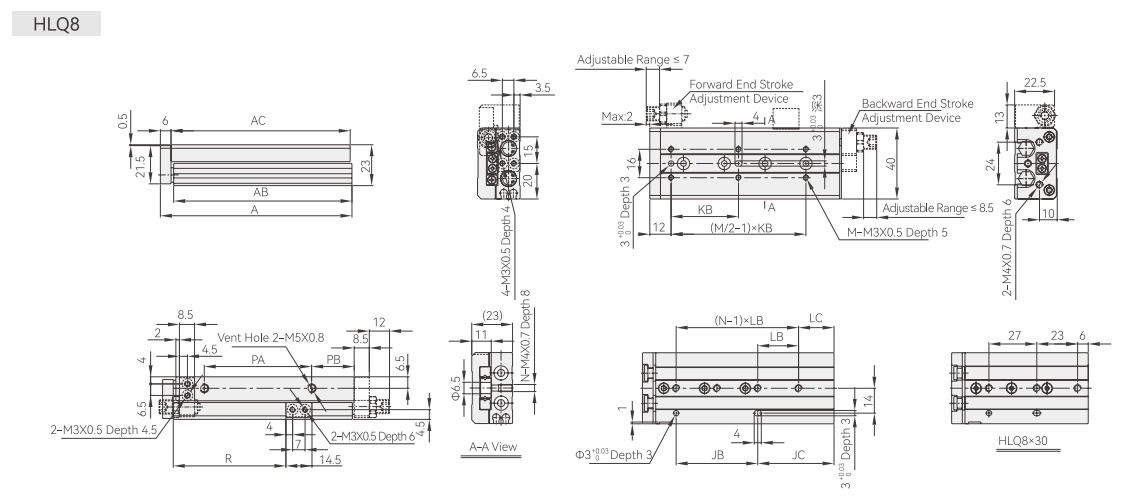

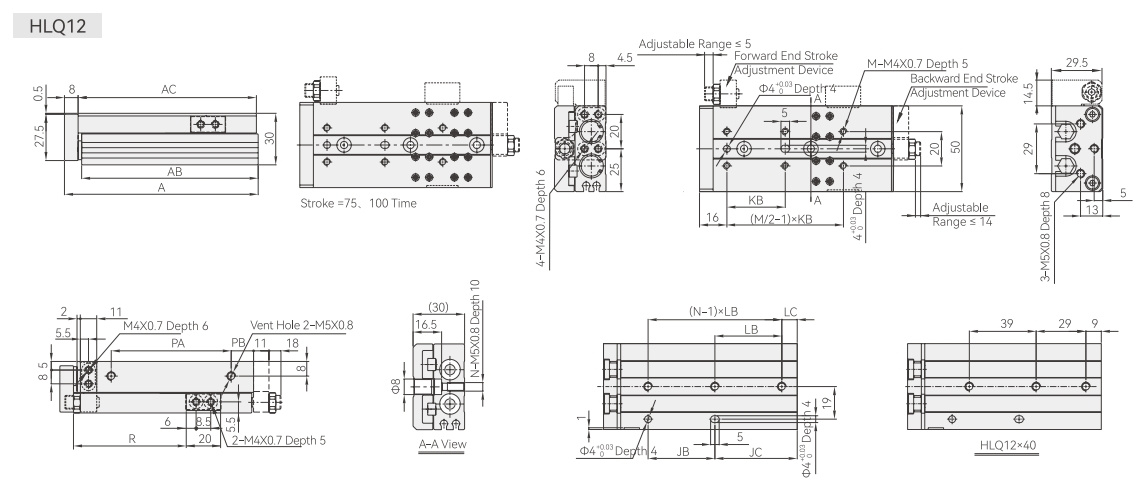

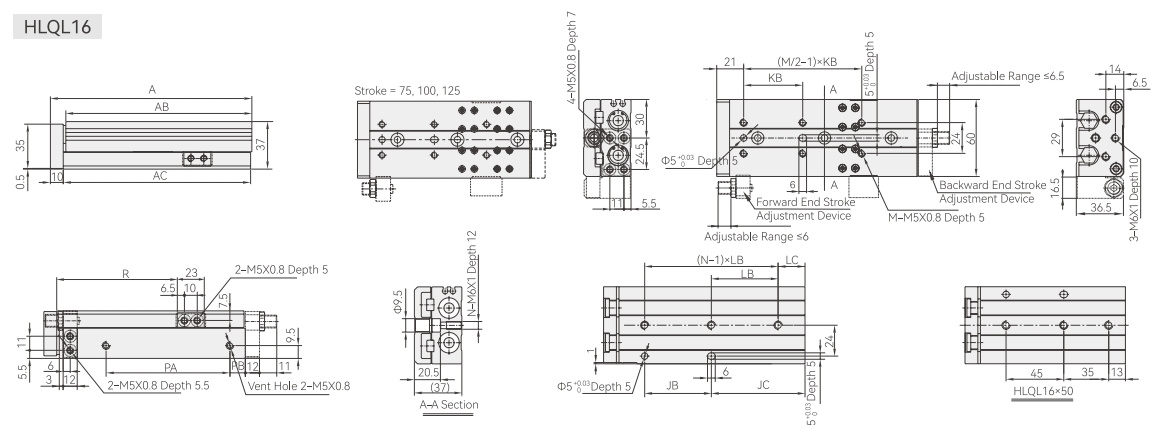

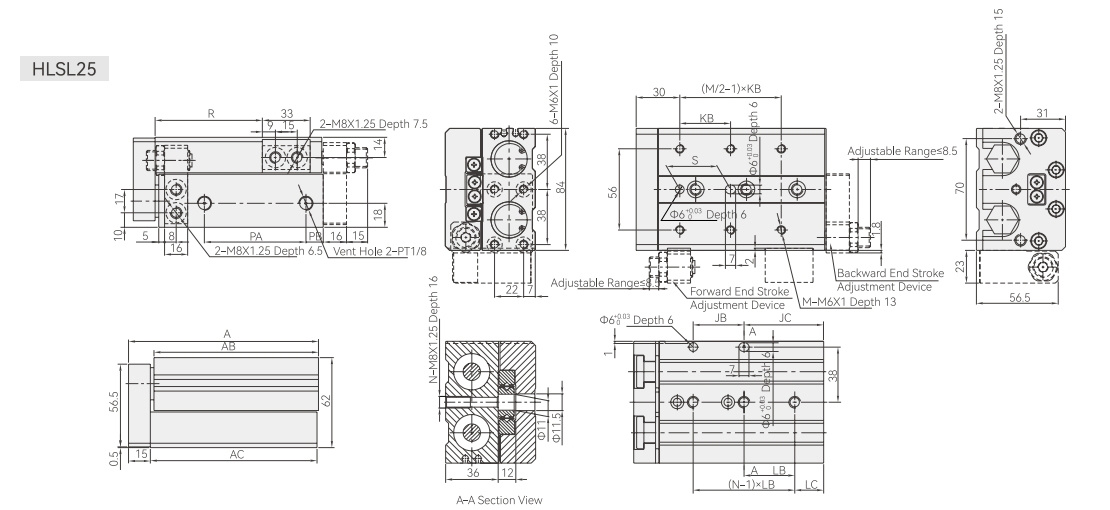

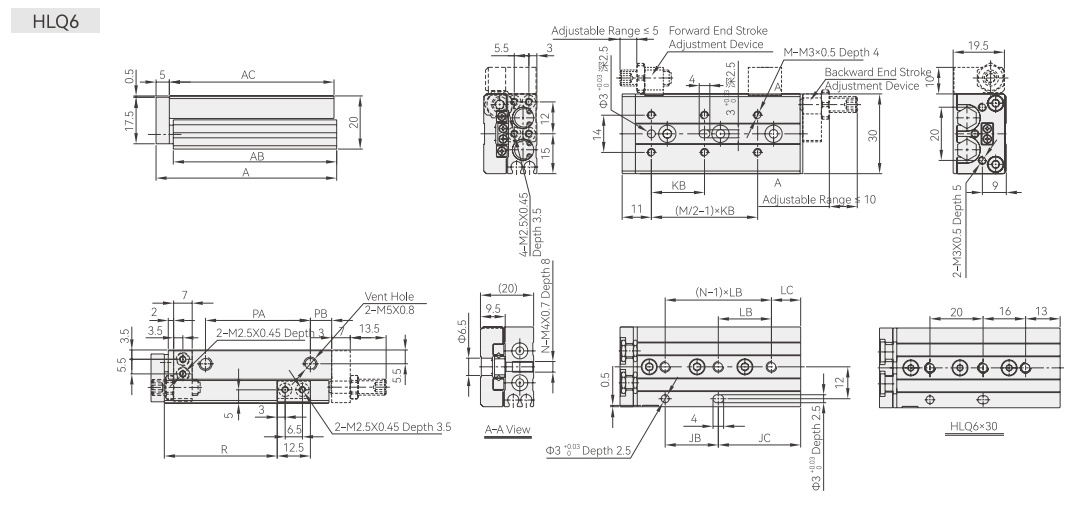

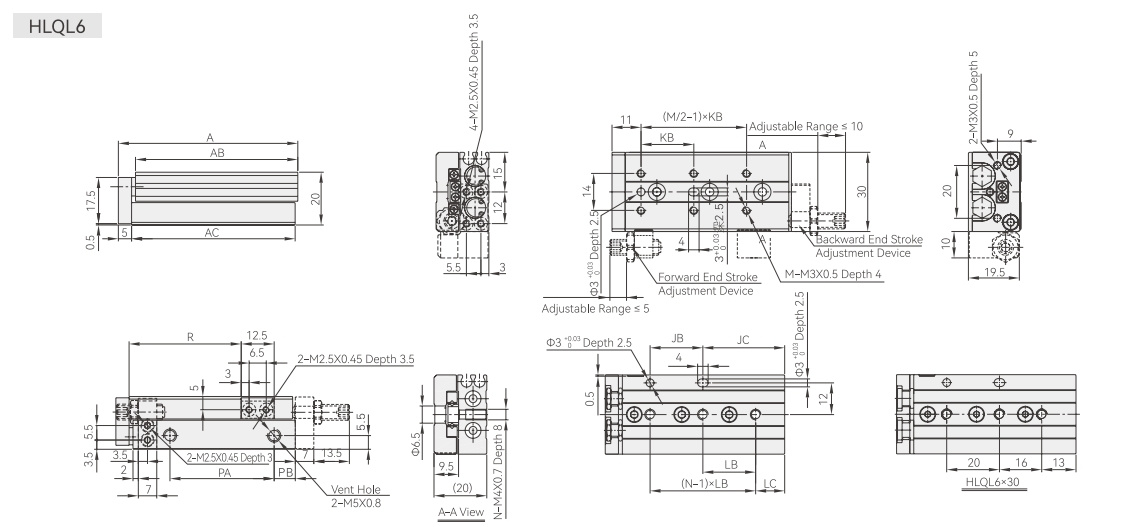

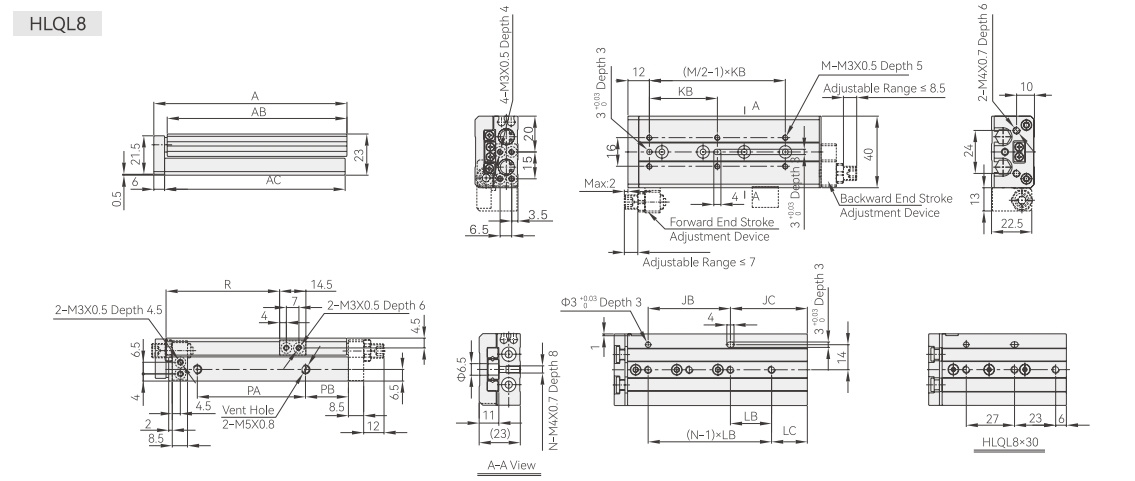

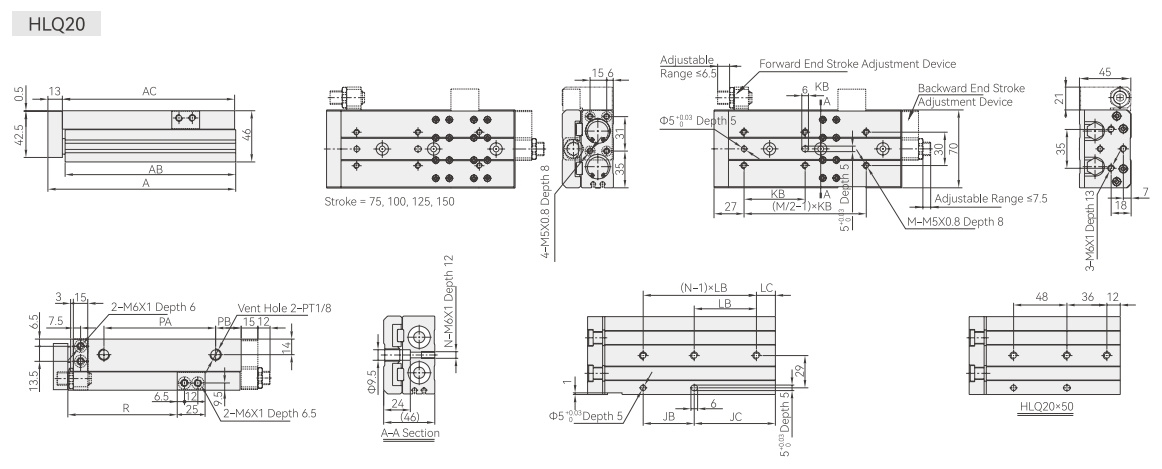

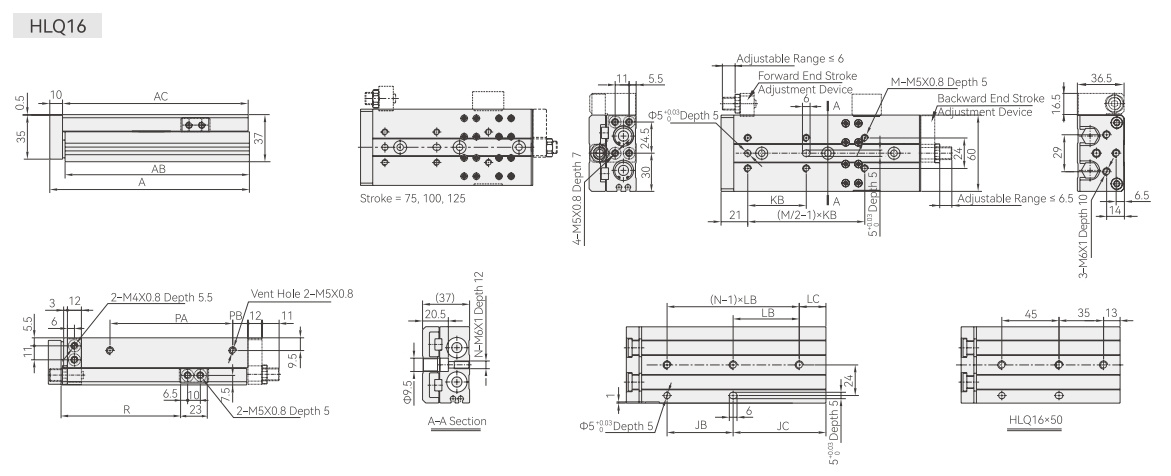

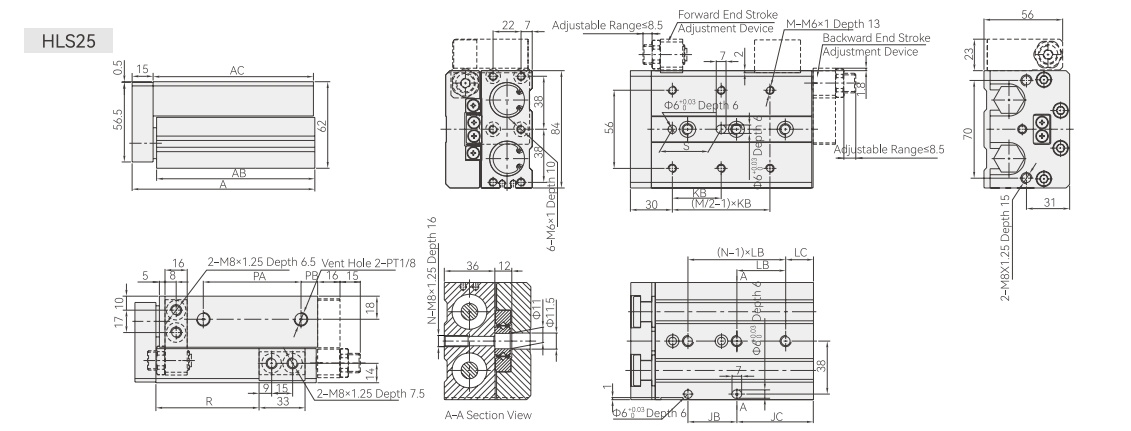

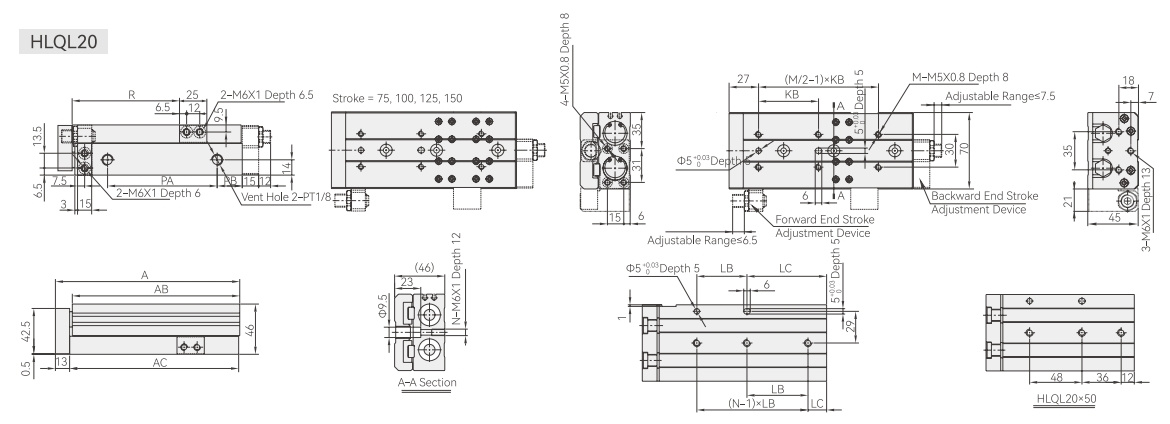

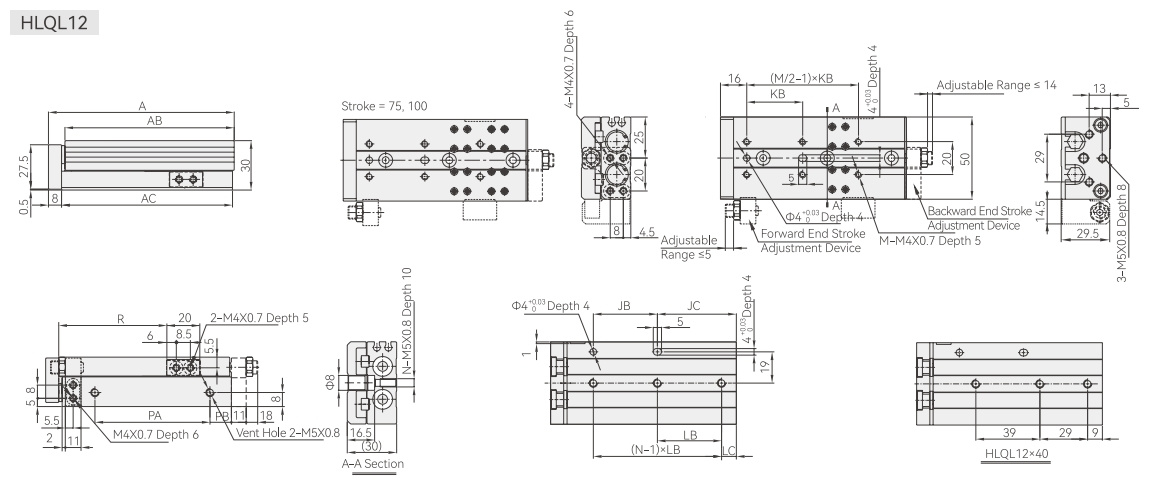

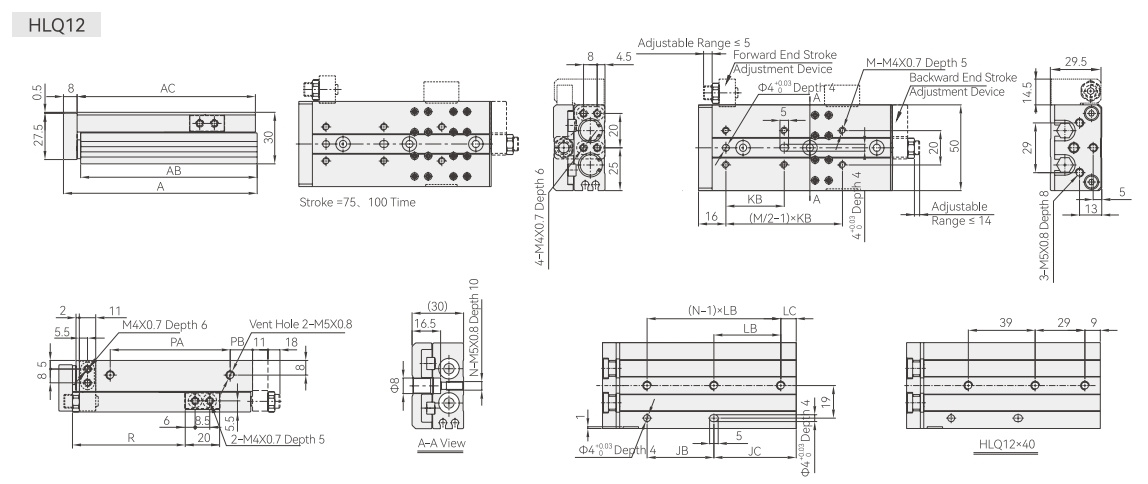

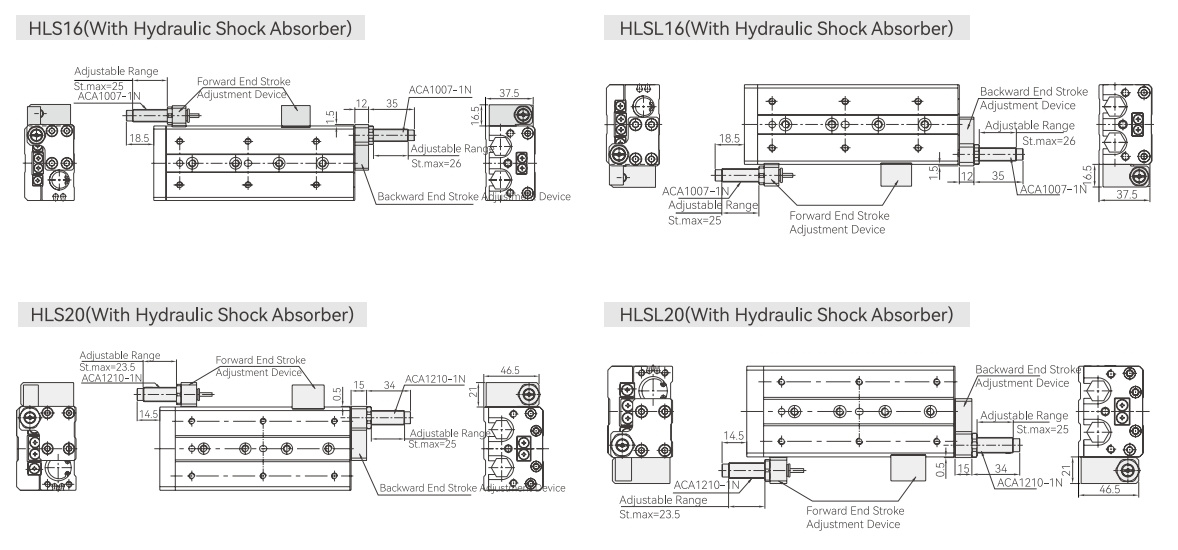

External Specifications

Stroke/Symbols	A	AB	AC	JB	JC	KB	LB	LC	M	N	PA	PB	R
10	48	41.5	42	16	13	22	23	6	4	2	16	9	21.5
20	58	51.5	52	26	33	25	26	13	4	2	26	9	31.5
30	68	61.5	62	20	29	21	See Figure	See Figure	6	3	36	9	41.5
40	86	79.5	80	28	39	26	28	11	6	3	47	16	51.5
50	96	89.5	90	28	49	27	28	21	6	3	64	9	61.5

Stroke/Symbols	A	AB	AC	JB	JC	KB	LB	LC	M	N	PA	PB	R
10	48	41.5	42	16	13	22	23	6	4	2	16	9	21.5
20	58	51.5	52	26	33	25	26	13	4	2	26	9	31.5
30	68	61.5	62	20	29	21	See Figure	See Figure	6	3	36	9	41.5
40	86	79.5	80	28	39	26	28	11	6	3	47	16	51.5
50	96	89.5	90	28	49	27	28	21	6	3	64	9	61.5

Stroke/Symbols	A	AB	AC	JB	JC	KB	LB	LC	M	N	PA	PB	R
10	53	45.5	46	19	13	25	25	7	4	2	17.5	10.5	23.5
20	63	55.5	56	28	14	25	28	14	4	2	28	10	33.5
30	77	69.5	70	27	29	26	See Figure	See Figure	6	3	42	10	43.5
40	91	83.5	84	31	39	32	31	8	6	3	54	12	53.5
50	116	108.5	109	58	37	46	29	8	6	4	79	12	63.5
75	144	136.5	137	60	63	50	30	33	6	4	109	10	88.5

Stroke/Symbols	A	AB	AC	JB	JC	KB	LB	LC	M	N	PA	PB	R
10	53	45.5	46	19	13	25	25	7	4	2	17.5	10.5	23.5
20	63	55.5	56	28	14	25	28	14	4	2	28	10	33.5
30	77	69.5	70	27	29	26	See Figure	See Figure	6	3	42	10	43.5
40	91	83.5	84	31	39	32	31	8	6	3	54	12	53.5
50	116	108.5	109	58	37	46	29	8	6	4	79	12	63.5
75	144	136.5	137	60	63	50	30	33	6	4	109	10	88.5

Stroke/Symbols	A	AB	AC	JB	JC	KB	LB	LC	M	N	PA	PB	R
10	76	66	67	32	18	28	32	18	4	2	32.5	13	35
20	76	66	67	32	18	28	32	18	4	2	32.5	13	45
30	86	76	77	40	20	38	40	20	4	3	42.5	13	55
40	103	93	94	39	38	34	See Figure	See Figure	6	3	59.5	13	65
50	113	103	104	39	48	34	39	9	6	3	69.5	13	75
75	157	147	148	72	59	36	36	23	8	4	113.5	13	99
100	182	172	173	72	84	36	36	12	10	5	134.5	17	124

Stroke/Symbols	A	AB	AC	JB	JC	KB	LB	LC	M	N	PA	PB	R
10	76	66	67	32	18	28	32	18	4	2	32.5	13	35
20	76	66	67	32	18	28	32	18	4	2	32.5	13	45
30	86	76	77	40	20	38	40	20	4	3	42.5	13	55
40	103	93	94	39	38	34	See Figure	See Figure	6	3	59.5	13	65
50	113	103	104	39	48	34	39	9	6	3	69.5	13	75
75	157	147	148	72	59	36	36	23	8	4	113.5	13	99
100	182	172	173	72	84	36	36	12	10	5	134.5	17	124

Stroke/Symbols	A	AB	AC	JB	JC	KB	LB	LC	M	N	PA	PB	R
10	89	77	78	39	18	38	39	18	4	2	40.5	12	28.5
20	89	77	78	39	18	38	39	18	4	2	40.5	12	38.5
30	99	87	88	48	19	48	48	19	4	2	50.5	12	48.5
40	109	97	98	58	19	58	58	19	4	2	60.5	12	58.5
50	125	113	114	45	48	40	See Figure	See Figure	6	3	70.5	18	68.5
75	157	145	146	52	73	46	52	21	6	3	108.5	12	93.5
100	200	188	189	88	80	44	44	36	8	4	151.5	12	118.5
125	225	213	214	88	105	44	44	17	10	5	176.5	12	143.5

Stroke/Symbols	A	AB	AC	JB	JC	KB	LB	LC	M	N	PA	PB	R
10	89	77	78	39	18	38	39	18	4	2	40.5	12	28.5
20	89	77	78	39	18	38	39	18	4	2	40.5	12	38.5
30	99	87	88	48	19	48	48	19	4	2	50.5	12	48.5
40	109	97	98	58	19	58	58	19	4	2	60.5	12	58.5
50	125	113	114	45	48	40	See Figure	See Figure	6	3	70.5	18	68.5
75	157	145	146	52	73	46	52	21	6	3	108.5	12	93.5
100	200	188	189	88	80	44	44	36	8	4	151.5	12	118.5
125	225	213	214	88	105	44	44	17	10	5	176.5	12	143.5

Stroke/Symbols	A	AB	AC	JB	JC	KB	LB	LC	M	N	PA	PB	R
10	108	92.5	94	50	18	45	46	22	4	2	46.5	16	32.5
20	108	92.5	94	50	18	40	46	22	4	2	46.5	16	42.5
30	108	92.5	94	50	18	48	46	22	4	2	46.5	16	52.5
40	118	102.5	104	56	22	58	56	22	4	2	56.5	16	62.5
50	136	120.5	122	48	48	42	See Figure	See Figure	6	3	72.5	18	72.5
75	169	153.5	155	56	73	55	56	17	6	3	98.5	25	97.5
100	226	210.5	212	112	74	50	56	18	8	4	155.5	25	122.5
125	254	238.5	240	118	96	55	59	37	8	4	183.5	25	147.5
150	282	266.5	268	124	118	62	62	56	8	4	211.5	25	172.5

Stroke/Symbols	A	AB	AC	JB	JC	KB	LB	LC	M	N	PA	PB	R
10	108	92.5	94	50	18	45	46	22	4	2	46.5	16	32.5
20	108	92.5	94	50	18	40	46	22	4	2	46.5	16	42.5
30	108	92.5	94	50	18	48	46	22	4	2	46.5	16	52.5
40	118	102.5	104	56	22	58	56	22	4	2	56.5	16	62.5
50	136	120.5	122	48	48	42	See Figure	See Figure	6	3	72.5	18	72.5
75	169	153.5	155	56	73	55	56	17	6	3	98.5	25	97.5
100	226	210.5	212	112	74	50	56	18	8	4	155.5	25	122.5
125	254	238.5	240	118	96	55	59	37	8	4	183.5	25	147.5
150	282	266.5	268	124	118	62	62	56	8	4	211.5	25	172.5

Stroke/Symbols	A	AB	AC	JB	JC	KB	LB	LC	M	N	PA	PB	R
10	108	90.5	92	45	22	50	45	22	4	2	47	12	35
20	108	90.5	92	45	22	50	45	22	4	2	47	12	45
30	108	90.5	92	45	22	50	45	22	4	2	47	12	55
40	118	100.5	102	55	22	60	55	22	4	2	57	12	65
50	131	113.5	115	35	55	35	35	20	6	3	70	12	75
75	172	154.5	156	70	61	60	35	26	6	4	90	33	100
100	213	195.5	197	70	102	70	35	32	6	5	119	45	125
125	271	253.5	255	76	154	75	38	40	8	6	155	67	150
150	311	293.5	295	80	190	80	40	30	8	7	180	82	175

Stroke/Symbols	A	AB	AC	JB	JC	KB	LB	LC	M	N	PA	PB	R
10	108	90.5	92	45	22	50	45	22	4	2	47	12	35
20	108	90.5	92	45	22	50	45	22	4	2	47	12	45
30	108	90.5	92	45	22	50	45	22	4	2	47	12	55
40	118	100.5	102	55	22	60	55	22	4	2	57	12	65
50	131	113.5	115	35	55	35	35	20	6	3	70	12	75
75	172	154.5	156	70	61	60	35	26	6	4	90	33	100
100	213	195.5	197	70	102	70	35	32	6	5	119	45	125
125	271	253.5	255	76	154	75	38	40	8	6	155	67	150
150	311	293.5	295	80	190	80	40	30	8	7	180	82	175

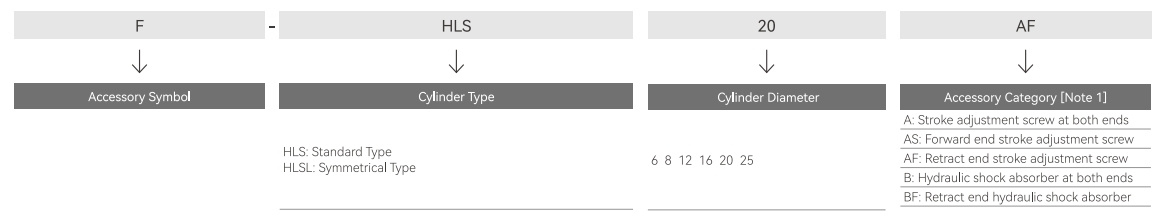

Accessory Order Code and Optional

[Note 1] The forward end accessory is universal with the HLQ series cylinders.

Standard Type (HLS)

Standard Type (HLSL)

Accessory Category/Cylinder Diameter

Both Ends

A Type (Adjusting Screw)

F-HLQ6A

F-HLQ8A

F-HLQ12A

F-HLQ16A

F-HLQ20A

F-HLQ25A

Both Ends

A Type (Adjusting Screw)

F-HLQL6A

F-HLQL8A

F-HLQL12A

F-HLQL16A

F-HLQL20A

F-HLQL25A

B Type (Hydraulic Shock Absorber)

F-HLQ8B

F-HLQ12B

F-HLQ16B

F-HLQ20B

F-HLQ25B

B Type (HydraulicShock Absorber)

F-HLQL8B

F-HLQL12B

F-HLQL16B

F-HLQL20B

F-HLQL25B

Forward End

AS Type (Adjusting Screw)

F-HLQ6AS

F-HLQ8AS

F-HLQ12AS

F-HLQ16AS

F-HLQ20AS

F-HLQ25AS

Forward End

AS Type (Adjusting Screw)

F-HLQ6AS

F-HLQ8AS

F-HLQ12AS

F-HLS16AS

F-HLS20AS

F-HLS25AS

BS Type (Hydraulic Shock Absorber)

F-HLQ8BS

F-HLQ12BS

F-HLQ16BS

F-HLQ20BS

F-HLQ25BS

BS Type (Hydraulic Shock Absorber)

F-HLQ8BS

F-HLQ12BS

F-HLQ16BS

F-HLQ20BS

F-HLQ25BS

Backward End

AF Type (Adjusting Screw)

F-HLQ6AF

F-HLQ8AF

F-HLQ12AF

F-HLQ16AF

F-HLQ20AF

F-HLQ25AF

Backward End

AF Type (Adjusting Screw)

F-HLQL6AF

F-HLQL8AF

F-HLQL12AF

F-HLQL16AF

F-HLQL20AF

F-HLQL25AF

BF Type (Hydraulic Shock Absorber)

#VALUE!

F-HLQ8BF

F-HLQ12BF

F-HLQ16AF

F-HLQ20BF

F-HLQ25BF

BF Type (Hydraulic Shock Absorber)

F-HLQL8BF

F-HLQL12BF

F-HLQL16AF

F-HLQL20BF

F-HLQL25BF

[Note] A=AS+AF; B=BS+BF, Standard Type and Symmetrical Type Backward End Accessories are not Universal.

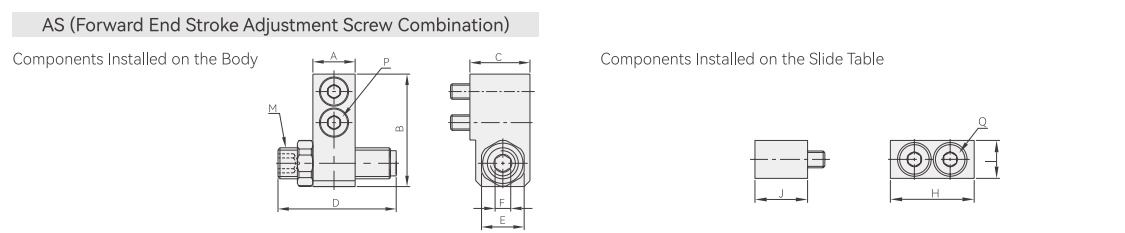

Accessory External Specifications

Cylinder Diameter/Symbol	Stroke Adjustment Range	A	B	C	D	E	F	M	P	H	I	J	Q
6	5	7	19	10.5	16.5	8	3	M6X1.0	M2.5 Length: 10	12.5	6.5	10.5	M2.5 Length: 10
8	5	8.5	21.5	14	21.5	11	4	M8X1.0	M3 Length:14	14.5	8	12	M3 Length:14
12	5	11	29	15.5	21.5	11	4	M8X1.0	M4 Length: 16	20	9	13.5	M4 Length: 12
16	5	12	36	17.5	24	14	5	M10X1.0	M5 Length:16	23	10.5	17	M5 Length:16
20	5	15	44.5	22	28	17	6	M12X1.0	M6 Length: 20	25	12.5	21	M6 Length: 20
25	5	16	53.5	24	32	19	6	M14X1.5	M8 Length:20	33	16.5	23	M8 Length:20

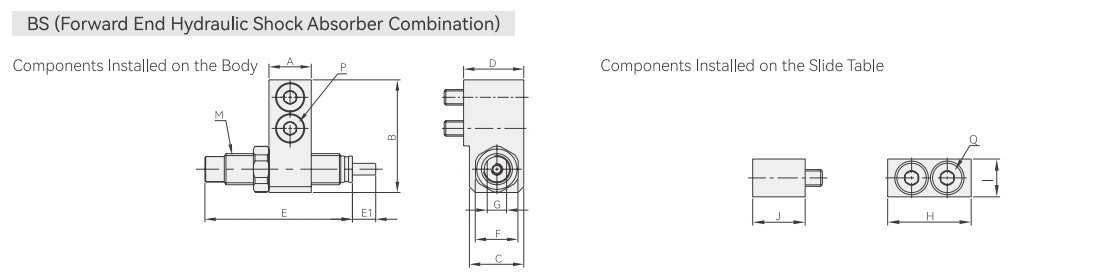

Cylinder Diameter/Symbol	A	B	C	D	E	F	M	P	H	I	J	Q
8	8.5	21.5	12.5	14	40	11	M8X1.0	M3 Length:14	14.5	8	12	M3 Length:14
12	11	29	14	15.5	40	11	M8X1.0	M4 Length: 16	20	9	13.5	M4 Length: 12
16	12	36	16	17.5	49	14	M10X1.0	M5 Length:16	23	10.5	17	M5 Length:16
20	15	44.5	20	22	53.5	17	M12X1.0	M6 Length: 20	25	12.5	21	M6 Length: 20
25	16	53.5	22	24	68.5	19	M14X1.5	M8 Length: 20	33	16.5	23	M8 Length: 20

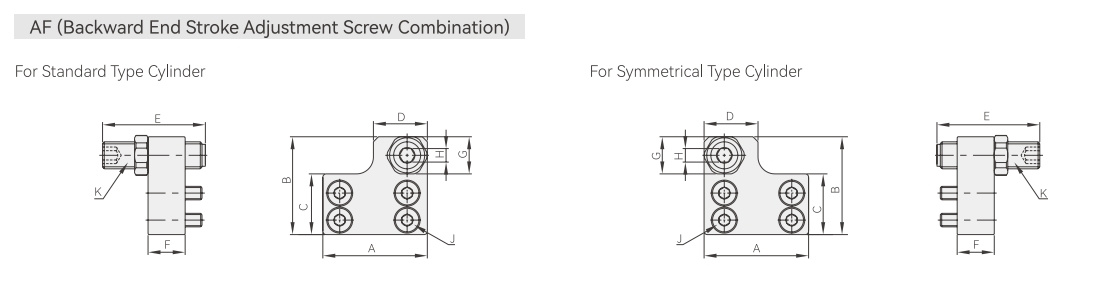

Cylinder Diameter/Symbol	Stroke Adjustment Range	A	B	C	D	E	F	H	J	K
6	5	18	19	11	8	21.5	7	3	M2.5 Length: 6	M6X1.0
8	5	24	22.5	13	14	21.5	8.5	4	M3 Length:8	M8X1.0
12	5	31	29	18	16	21.5	11	4	M4 Length: 12	M8X1.0
16	5	37	37.5	23	18	24	12	5	M5 Length:12	M10X1.0
20	5	45.5	47	28.5	23	28	15	6	M5 Length: 16	M12X1.0
25	5	54	56	34	28	32	16	6	M6 Length:18	M14X1.5

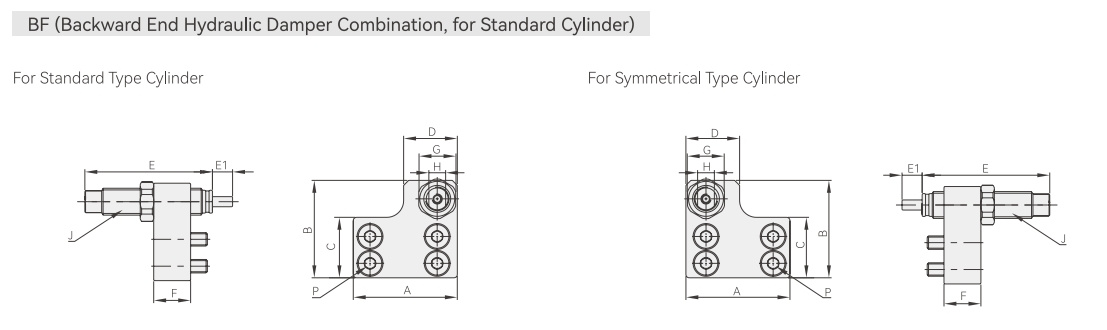

Cylinder Diameter/Symbol	A	B	C	D	E	E1	F	G	H	J	P
8	24	22.5	13	14	40	6	8.5	11	7	M8X1.0	M3 Length: 8
12	31	29	18	16	40	6	11	11	7	M8X1.0	M4 Length: 12
16	37	37.5	23	18	49	7	12	14	9	M10X1.0	M5 Length: 12
20	45.5	47	28.5	23	53.5	10	15	17	11	M12X1.0	M5 Length: 16
25	54	56	34	28	68.5	12	16	19	12	M14X1.5	M6 Length: 18

FAT1.5-M8 Series

FDT3-M8 Series

FBT0.5-MM3 Series
