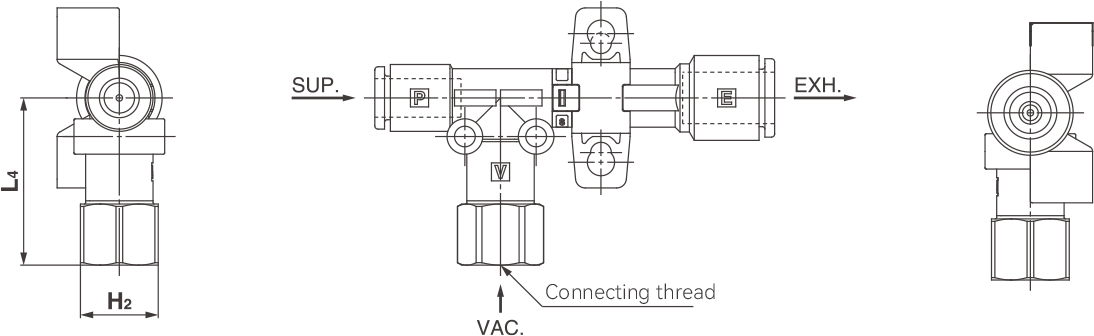

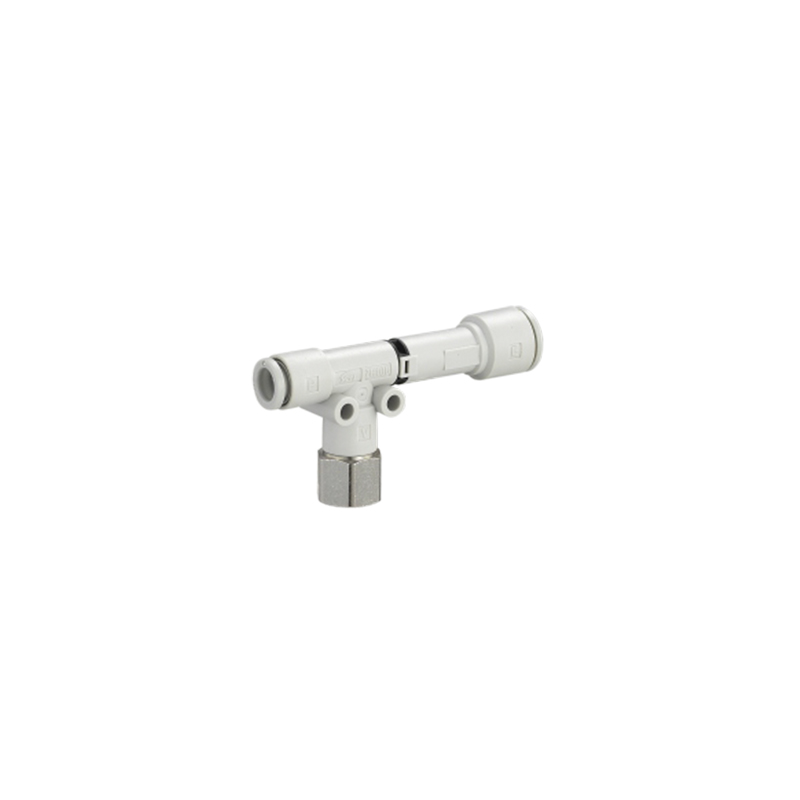

FZH Series Direct Piping Type-Quick-Change Joint Connection+Threaded Connection

The FZH Series is designed for direct piping applications, combining a quick-change joint connection on one side with a threaded connection on the opposite side. This configuration provides a practical interface between tubing and threaded ports, allowing for efficient integration into pneumatic systems where both flexibility and secure mounting are required.

The quick-connect end features a locking mechanism that engages upon tube insertion, creating a secure connection without the need for tools. Disassembly is equally straightforward, supporting quick maintenance or component replacement when needed. A notable feature of this end is its ability to rotate 360 degrees after the tube is secured. This rotational capability allows users to orient the tubing in the most suitable direction without twisting or straining the line, which is particularly beneficial in confined spaces or when routing tubes around other components in densely arranged equipment.

The threaded end is engineered to provide a reliable seal without the use of Teflon tape or other supplementary sealing materials. This design helps prevent loosening over time and reduces the risk of leakage at the threaded interface. The sealing method also contributes to shock resistance, making the joint suitable for applications where vibration or mechanical movement is present during normal operation.

Internal flow channels are designed with a straight and smooth configuration to promote efficient air passage. By minimizing obstructions and maintaining a direct path, the flow characteristics help reduce pressure loss across the joint. This is important in applications where consistent air delivery and system responsiveness are required.
