FZH Series Box Type-Quick-Change Joint Connection
Detailed description

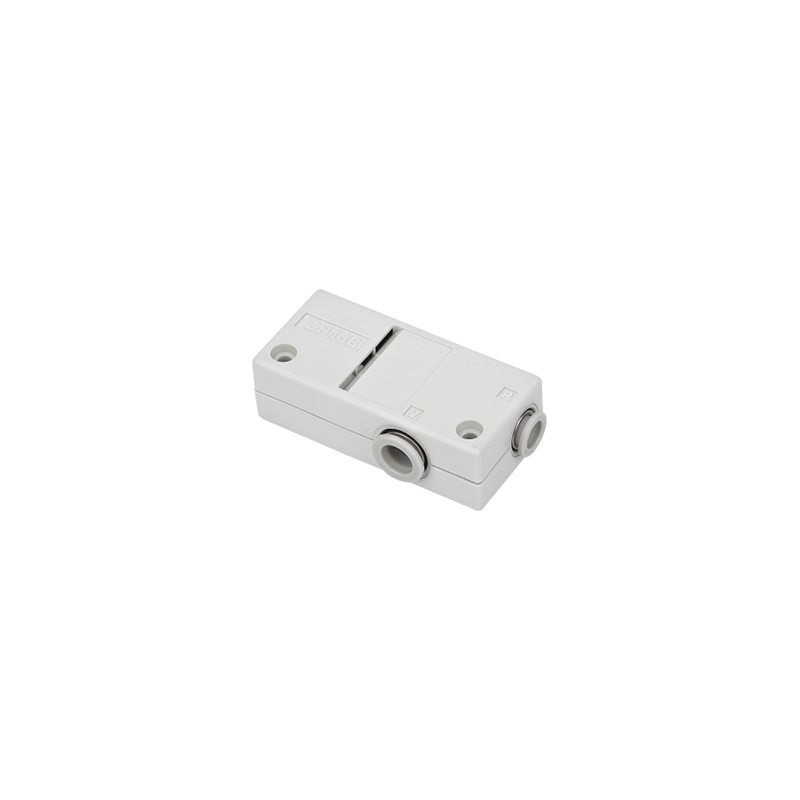

The FZH Series box type features a square exterior structure that provides stable installation and positioning. Unlike cylindrical fittings that may rotate during assembly or use, the box-shaped design helps maintain a fixed orientation once mounted, which is particularly beneficial in applications where consistent alignment is required or where surrounding components demand predictable positioning.
This model incorporates an integrated design that combines a quick-connect snap-fit connector on one end with an external thread on the opposite end. The quick-connect interface allows for rapid tube insertion and removal without the need for tools, supporting efficient assembly and simplifying maintenance procedures. The snap-fit mechanism engages automatically when the tube is inserted, creating a secure connection that remains stable during normal operation.
The external thread on the opposite end provides a reliable interface for mounting into threaded ports on manifolds, valves, or other pneumatic components. This configuration enables a direct transition between flexible tubing and rigid threaded connections, offering flexibility in system layout while maintaining secure attachment at the equipment interface.
The main body is constructed from brass with a nickel-plated finish. This material selection provides good mechanical strength, allowing the fitting to withstand the pressures commonly encountered in pneumatic systems. The nickel plating offers resistance to corrosion, helping to protect the component from moisture, oxidation, and other environmental factors that could affect long-term performance. The plating also contributes to the sealing characteristics of the fitting, supporting consistent operation over time.
The box-shaped exterior and compact form factor make the FZH Series box type suitable for installations where space is limited or where precise positioning is required. The fixed orientation of the body helps simplify tubing routing by ensuring that the quick-connect port remains in a predictable location after installation.
Technical parameters

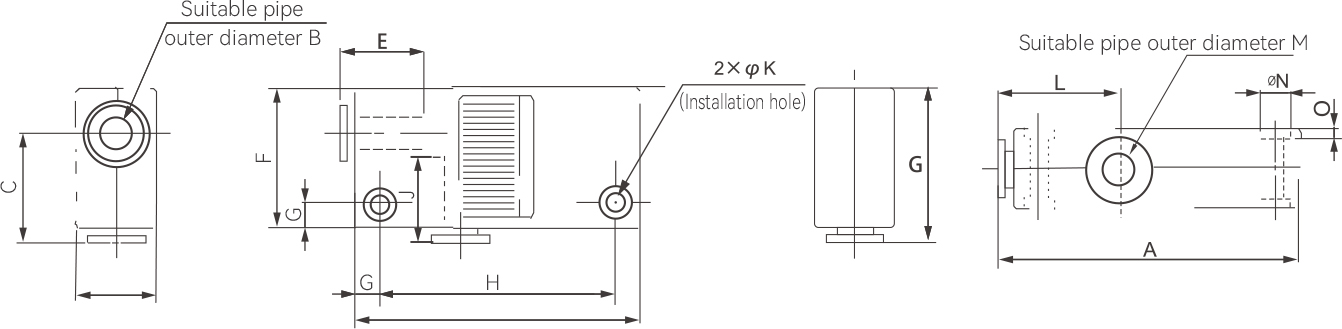

| Model | A | ΦB | C | D3 | E | F | G | H | I | J | ΦK | L | ΦM | ΦN | O | P |
| FZH05BS-06-06 | 60 | 6 | 18.9 | 16 | 14.1 | 28 | 5 | 47 | 57 | 14.1 | 3.2 | 20 | 6 | 5.8 | 2 | 31 |
| FZH05BL-06-06 | ||||||||||||||||
| FZH07BS-06-06 | ||||||||||||||||
| FZH07BL-06-06 | ||||||||||||||||
| FZH10BS-06-06 | 62.5 | 6 | 19 | 18 | 14.1 | 29 | 5 | 50 | 60 | 14.1 | 3.2 | 19.8 | 6 | 5.8 | 2 | 31.5 |
| FZH10BL-06-06 | ||||||||||||||||
| FZH13BS-08-10 | 78 | 8 | 25.5 | 23 | 14.8 | 35 | 7 | 61 | 75 | 16.9 | 4.2 | 22.5 | 10 | 7.5 | 3 | 38.3 |
| FZH13BL-08-10 |
