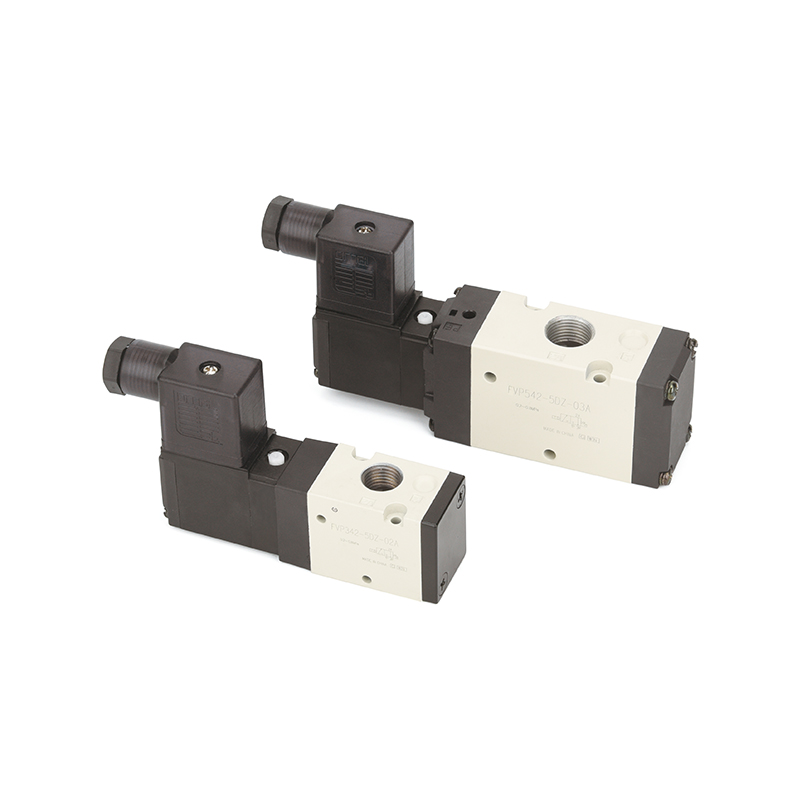

FVP series resilient seal 3-way / pilot seat valve direct piping type / single unit (542 Series)

The FVP Series 542 represents a 3-way pilot-operated seat valve employing resilient sealing elements and a direct piping configuration that permits individual unit installation without manifold requirements. This design approach prioritizes functional flexibility and application adaptability across various pneumatic control scenarios.

A key operational feature is the ability to interchange between normally-closed and normally-open functionality without any modification to the port connections. This means a single valve type can serve either role depending on the application need, reducing the number of unique part numbers that must be stocked and simplifying field modifications when system requirements change. The conversion process does not involve disassembling plumbing or reconfiguring port assignments, allowing maintenance personnel to adapt the valve's behavior quickly during commissioning or retrofitting activities.

Attention has been given to reliability in environments where airborne contaminants might otherwise compromise performance. An integrated filter element within the pilot stage serves to reduce the ingress of impurities that could interfere with proper operation. By trapping particulates before they reach critical internal passages, this built-in filtration helps maintain consistent shifting behavior and reduces the likelihood of malfunctions over extended service periods. This feature proves particularly valuable in applications where compressed air quality may vary or where additional external filtration is impractical due to space constraints.

For specialized manufacturing environments with strict material compatibility requirements, an optional variant designated 25A-VP is available. This version is constructed using materials that contain no copper or zinc, addressing concerns about metal migration or contamination in sensitive production processes. Lithium battery manufacturing lines represent a primary application for this option, as the presence of certain metals can pose risks to cell performance or safety. The copper-free and zinc-free construction provides assurance that the valve itself will not introduce undesirable elements into the production environment, even under continuous cycling conditions.

The resilient seal design contributes to reliable sealing performance across the operating pressure range, while the pilot-operated construction ensures consistent response to control signals. As a direct piping type unit, installation proceeds without base plates, allowing each valve to be positioned based on accessibility and spatial constraints rather than manifold layouts. Individual replacement involves straightforward tubing disconnection, leaving adjacent units undisturbed during maintenance procedures.
