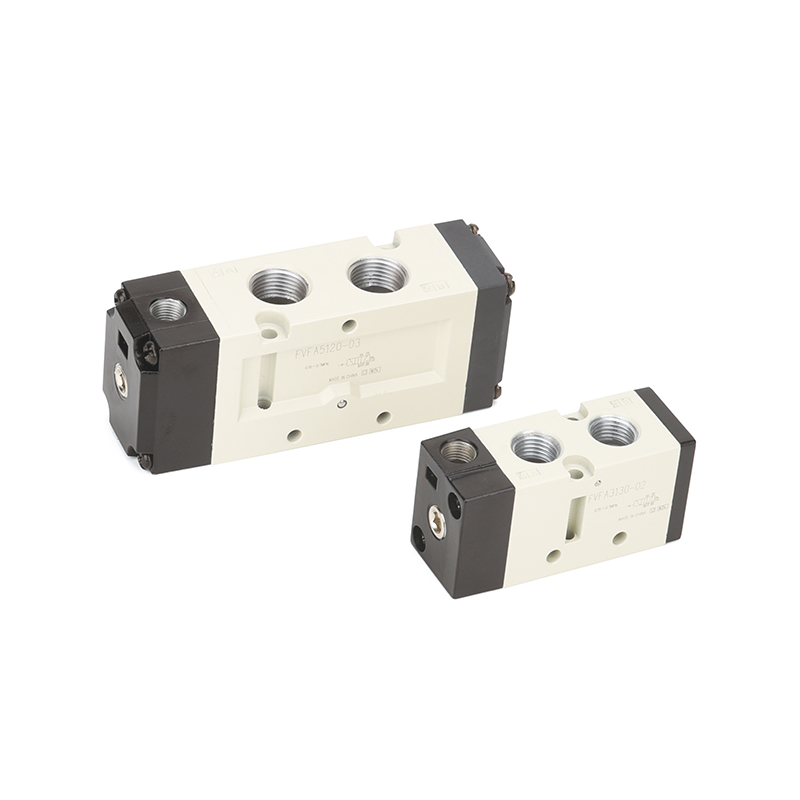

FVFA5000 series direct piping type (5120 Series)
Detailed description
Configured as a 5-way valve with direct piping connections, this series manages to deliver respectable flow capacity while maintaining a notably compact external envelope. The relationship between size and output is characterized by favorable flow density, meaning the valve can handle meaningful air volumes without occupying excessive panel space. This characteristic proves advantageous when designing dense manifold assemblies or when retrofitting pneumatic functions into existing equipment with limited clearance.
Energy consumption receives careful attention through the inclusion of power-saving circuitry on selected variants. These models reduce electrical demand to approximately 0.55 watts during continuous energization, a figure that compares favorably with conventional solenoid designs. The practical implications extend beyond simple utility savings; lower coil consumption generates less heat within control cabinets, potentially reducing thermal stress on adjacent components and simplifying enclosure ventilation requirements. For facilities operating numerous valves across multiple machines, the cumulative reduction in power draw can become meaningful over time.
The internal configuration incorporates a shared exhaust pathway that combines the pilot stage discharge with the main valve exhaust function. This integration eliminates the need for separate pilot exhaust ports and the associated plumbing they would otherwise require. From an installation perspective, fewer connections mean reduced assembly time and fewer potential leak points to inspect during maintenance. The air circuit becomes inherently cleaner, with less tubing and fewer fittings competing for space around the valve assembly. Technicians performing routine servicing encounter a less cluttered arrangement that facilitates access and visual inspection.
A practical manual override mechanism adds to the valve's usability during both initial setup and ongoing operations. The device offers two distinct positions: unlocked for temporary actuation during commissioning or troubleshooting, and locked for maintaining the valve state continuously when required. This dual-mode approach allows personnel to verify circuit function without energizing the solenoid, check actuator movement against expected behavior, or hold a specific configuration during maintenance procedures. The override requires no special tools to operate and integrates cleanly into the valve body without protruding unnecessarily.
Graphic symbols
|
2-position single pneumatic control |
2-position dual pneumatic control |
||
|
|
|
||
|
3-position center closed type |
3-position center exhaust type |
3-position center pressure type |
|
|
|
|
![]() |
|
Flow characteristics quality table
| Valve mode | Function | Port size | Flow characteristics | Mass g | |||||||
| 1,4,2 (P,A,B) |
5,3 (EA,EB) |
1→4/2(P→A/B) | 4/2 → 5/3(A/B →EA/EB) | ||||||||
| C[dm3/s∙bar)] | b | Cv | C[dm3/s∙bar)] | b | Cv | ||||||
| FVFA1□20-M5 | 2-position | single pneumatic control | M5x0.8 | 0.49 | 0.4 | 0.13 | 0.52 | 0.35 | 0.13 | 97 | |
| dual pneumatic control | 0.49 | 0.4 | 0.13 | 0.52 | 0.35 | 0.13 | 120 | ||||
| FVFA1□20-01 | 2-position | single pneumatic control | 1/8 | M5x0.8 | 0.76 | 0.22 | 0.17 | 0.53 | 0.28 | 0.13 | 93 |
| dual pneumatic control | 0.76 | 0.22 | 0.17 | 0.53 | 0.28 | 0.13 | 116 | ||||
| FVFA3□30-01 | 2-position | single pneumatic control | 1/8 | 3 | 0.38 | 0.78 | 2.8 | 0.3 | 0.67 | 135 | |
| dual pneumatic control | 3 | 0.38 | 0.78 | 2.8 | 0.3 | 0.67 | 158 | ||||
| 3-position | center closed type | 2.4 | 0.31 | 0.64 | 1.8 | 0.37 | 0.46 | 175 | |||
| center exhaust type | 2.6 | 0.37 | 0.7 | 3.0[2.5] | 0.32[0.28] | 0.76[0.62] | |||||
| center pressure type | 3.0[1.4] | 0.42[0.44] | 0.83[0.39] | 2.4 | 0.27 | 0.59 | |||||
| FVFA3□30-02 | 2-position | single pneumatic control | 1/4 | 1/8 | 4 | 0.36 | 1 | 3.1 | 0.32 | 0.75 | 131 |
| dual pneumatic control | 4 | 0.36 | 1 | 3.1 | 0.32 | 0.75 | 154 | ||||
| 3-position | center closed type | 2.4 | 0.45 | 0.68 | 1.9 | 0.37 | 0.47 | 171 | |||
| center exhaust type | 3 | 0.42 | 0.82 | 3.1[2.7] | 0.36[0.29] | 0.79[0.66] | |||||
| center pressure type | 5.5[1.4] | 0.37[0.50] | 1.4[0.40] | 2.6 | 0.32 | 0.64 | |||||
| FVFA5□20-02 | 2-position | single pneumatic control | 1/4 | 7.1 | 0.46 | 1.9 | 7.7 | 0.51 | 2.2 | 294 | |
| dual pneumatic control | 7.1 | 0.46 | 1.9 | 7.7 | 0.51 | 2.2 | 329 | ||||
| 3-position | center closed type | 6.7 | 0.46 | 1.8 | 6.6 | 0.41 | 1.8 | 368 | |||
| center exhaust type | 7.1 | 0.42 | 1.9 | 8.0[7.4] | 0.45[0.47] | 2.2[2.1] | |||||
| center pressure type | 6.8[2.7] | 0.51[0.50] | 2.0[0.78] | 5.7 | 0.37 | 1.4 | |||||
| FVFA5□20-03 | 2-position | single pneumatic control | 3/8 | 8.8 | 0.44 | 2.4 | 10 | 0.49 | 2.9 | 280 | |
| dual pneumatic control | 8.8 | 0.44 | 2.4 | 10 | 0.49 | 2.9 | 315 | ||||
| 3-position | center closed type | 7.5 | 0.43 | 2 | 7.5 | 0.38 | 1.9 | 354 | |||
| center exhaust type | 8.3 | 0.4 | 2.2 | 10.1[8.7] | 0.48[0.46] | 3.0[2.4] | |||||
| center pressure type | 9.2[3.0] | 0.50[0.49] | 2.6[0.85] | 6.1 | 0.35 | 1.6 | |||||

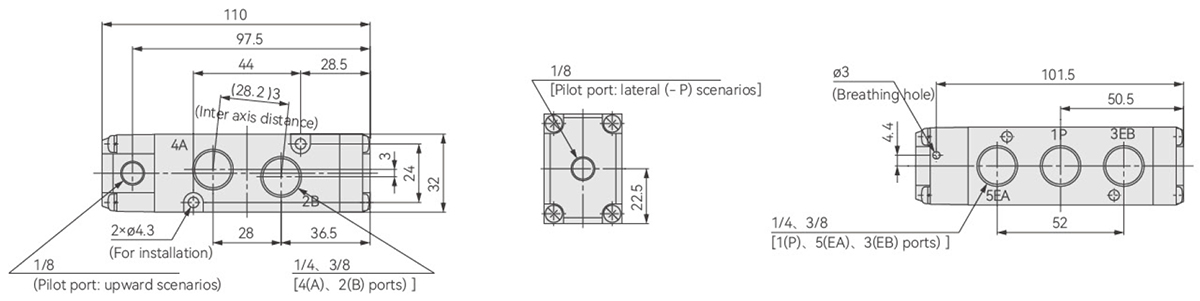

outline dimension diagram
