FVFA3000 series direct piping type (3130 Series)

The FVFA3000 Series is a 5-way solenoid valve featuring direct piping configuration and pilot-operated construction. Its internal design incorporates a shared exhaust arrangement between the pilot stage and main body, eliminating separate exhaust components and simplifying the pneumatic circuit with fewer connections.

A manual override mechanism provides both unlocked and locked positions, facilitating commissioning and diagnostic procedures without energizing the solenoid. Electrical connectivity accommodates various installation requirements through multiple voltage options including 12/24V DC and 110/220V AC. Wiring choices extend to DIN-style connectors, pre-leaded cables, and M8 or M12 circular connectors, permitting integration with diverse control systems and panel layouts.

    Detailed description

    The FVFA3000 Series direct piping type solenoid valve, designated as the 3130 model, incorporates several design elements intended to simplify installation and enhance operational flexibility in pneumatic control systems. This 5-way valve utilizes pilot-operated construction while maintaining the direct piping format, allowing individual units to be connected directly to supply and working lines without requiring manifold bases.

    A notable feature of the internal architecture is the shared exhaust arrangement between the pilot stage and the main valve body. In many conventional pilot-operated designs, the pilot section requires its own exhaust path, often necessitating separate venting provisions or additional plumbing to handle discharge air from the pilot circuit. By integrating this function, the FVFA3000 eliminates the need for those separate exhaust components and the associated connections. This consolidation reduces the overall complexity of the air circuit, decreases the number of potential leak points, and streamlines the installation process. Technicians have fewer lines to route and secure, which can be particularly beneficial in applications where space is limited or where multiple valves are mounted in close proximity.

    For commissioning and troubleshooting purposes, each unit includes a manual override mechanism offering both unlocked and locked positions. The unlocked setting permits temporary shifting of the valve during initial setup or function verification without applying power to the solenoid. This proves useful when checking actuator movement, confirming proper plumbing, or diagnosing circuit issues. When moved to the locked position, the manual override maintains the valve state continuously, which can be advantageous during maintenance procedures or when simulating specific operating conditions for testing purposes. The dual-mode design provides this functionality without complicating the operator interface or requiring additional tools for actuation.

    Electrical connectivity has been addressed with attention to the varied requirements encountered across different equipment designs and regional practices. Coil voltage options encompass both direct current at 12 and 24 volts and alternating current at 110 and 220 volts, ensuring compatibility with common industrial control systems internationally. The wiring method can be selected based on installation preferences and environmental considerations. DIN-style connectors offer quick disconnect capability suitable for applications where valves may need periodic replacement. Pre-leaded cable configurations provide a permanent connection appropriate for installations where vibration resistance or space constraints favor hardwiring. M8 and M12 circular connectors accommodate applications utilizing standardized industrial networking interfaces or seeking uniform connector types across multiple components. This range of choices allows the valve to integrate into diverse control schemes without requiring custom adapters or interface modifications.

    Graphic symbols

    2-position single pneumatic control

    2-position dual pneumatic control

     31

    32

    3-position center closed type

    3-position center exhaust type

    3-position center pressure type

     33

     34

    35

    Flow characteristics quality table

    Valve mode Function Port size Flow characteristics Mass g
    1,4,2 5,3 1→4/2(P→A/B) 4/2 → 5/3(A/B →EA/EB)
    (P,A,B) (EA,EB) C[dm3/s∙bar)] b Cv C[dm3/s∙bar)] b Cv
    FVFA1□20-M5 2-position single pneumatic control M5x0.8 0.49 0.4 0.13 0.52 0.35 0.13 97
    dual pneumatic control 0.49 0.4 0.13 0.52 0.35 0.13 120
    FVFA1□20-01 2-position single pneumatic control 1/8 M5x0.8 0.76 0.22 0.17 0.53 0.28 0.13 93
    dual pneumatic control 0.76 0.22 0.17 0.53 0.28 0.13 116
    FVFA3□30-01 2-position single pneumatic control 1/8 3 0.38 0.78 2.8 0.3 0.67 135
    dual pneumatic control 3 0.38 0.78 2.8 0.3 0.67 158
    3-position center closed type 2.4 0.31 0.64 1.8 0.37 0.46 175
    center exhaust type 2.6 0.37 0.7 3.0[2.5] 0.32[0.28] 0.76[0.62]
    center pressure type 3.0[1.4] 0.42[0.44] 0.83[0.39] 2.4 0.27 0.59
    FVFA3□30-02 2-position single pneumatic control 1/4 1/8 4 0.36 1 3.1 0.32 0.75 131
    dual pneumatic control 4 0.36 1 3.1 0.32 0.75 154
    3-position center closed type 2.4 0.45 0.68 1.9 0.37 0.47 171
    center exhaust type 3 0.42 0.82 3.1[2.7] 0.36[0.29] 0.79[0.66]
    center pressure type 5.5[1.4] 0.37[0.50] 1.4[0.40] 2.6 0.32 0.64
    FVFA5□20-02 2-position single pneumatic control 1/4 7.1 0.46 1.9 7.7 0.51 2.2 294
    dual pneumatic control 7.1 0.46 1.9 7.7 0.51 2.2 329
    3-position center closed type 6.7 0.46 1.8 6.6 0.41 1.8 368
    center exhaust type 7.1 0.42 1.9 8.0[7.4] 0.45[0.47] 2.2[2.1]
    center pressure type 6.8[2.7] 0.51[0.50] 2.0[0.78] 5.7 0.37 1.4
    FVFA5□20-03 2-position single pneumatic control 3/8 8.8 0.44 2.4 10 0.49 2.9 280
    dual pneumatic control 8.8 0.44 2.4 10 0.49 2.9 315
    3-position center closed type 7.5 0.43 2 7.5 0.38 1.9 354
    center exhaust type 8.3 0.4 2.2 10.0[8.7] 0.48[0.46] 3.0[2.4]
    center pressure type 9.2[3.0] 0.50[0.49] 2.6[0.85] 6.1 0.35 1.6

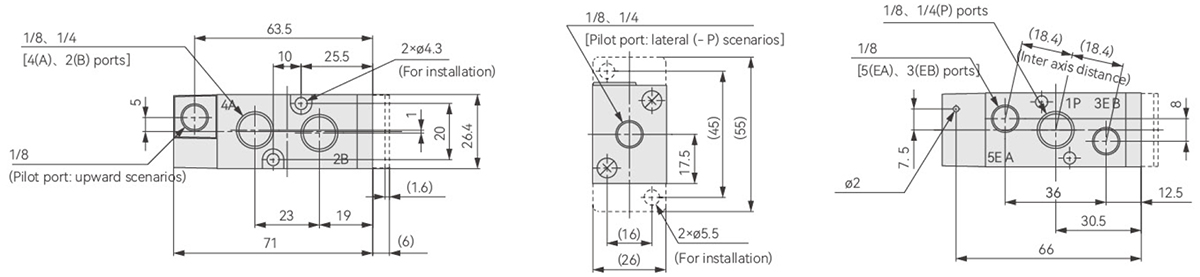

    outline dimension diagram

    40
