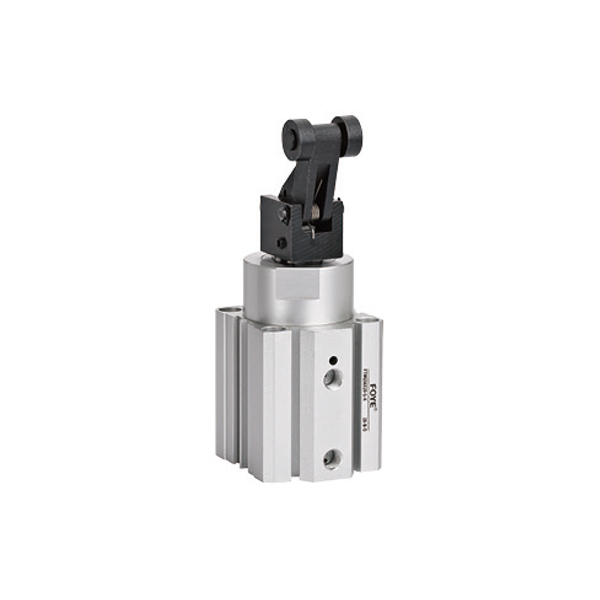

FTWQ Series Stopper Cylinder
Technical parameters
| FTWQ | 50×20 | - | S | K | □ | □ |
| ↓ | ↓ | ↓ | ↓ | ↓ | ↓ | |
| Specification code | Bore × Stroke | Magnet code | Stopper type | Self-locking function | Thread code[Note 2] | |
| FTWQ: Stopper cylinder (Height-fixed double-acting type) FTTQ: Stopper cylinder (Height-fixed single-acting type) [Note 1] |
Blank: No magnet attached S: Magnet attached |
C: Cylindrical B: Flat column type R: Roller type K: Lever roller type (with adjustable hydraulic oil buffer) |
Blank: Without self-locking F: With self-locking |
Blank: PT thread |
[Note 1]Single-acting spring -return type means: The piston rod retracts when pressurized. compressing the rear-mounted spring upon exhaust, the piston rod extends and resets under the spring force.
[Note 2]Leave the code field blank if the port is M5 threaded.
[Note 2]Leave the code field blank if the port is M5 threaded.
