9.FTWH, FTWM Series Stopper Cylinder.jpg

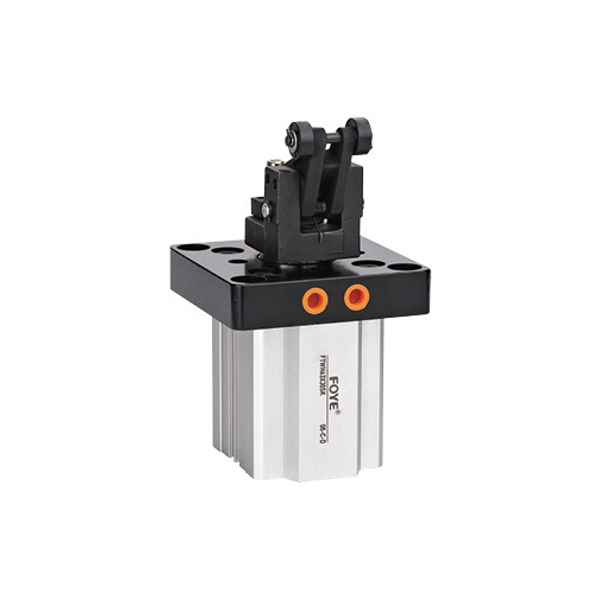

FTWH、 FTWM Series Stopper Cylinder

    Contact us
    product details

    Technical parameters

    FTWH 50×30 - S K □ □
    ↓ ↓   ↓ ↓ ↓ ↓
    Specification code Bore × Stroke Magnet code Stopper type[Note 2] Self-locking function Thread code[Note 3]
    FTWH: Stopper cylinder(Double-acting type)
    FTDH: Stopper cylinder(Built-in spring double-acting type)
    FTTH: Stopper cylinder(Single-Acting Pull Type)[Note 1]
    FTWM: Stopper cylinder(Double-acting type)
    FTDM: Stopper cylinder(Built-in spring double-acting type)
    FTTM: Stopper cylinder(Single-Acting Pull Type)    		   Blank: No magnet
    attached
    S: Magnet
    attached    		 L: Lever roller type
    (Non-Adjustable oil buffer)
    K: Lever roller type(Adjustable oil buffer)    		 Blank: Without self-locking
    F: With self-locking    		 Blank: PT thread

    [Note 1]Single -acting spring return type means: The piston rod retracts when pressurized. compressing the rear-mounted spring; upon exhaust, the piston rod extends and resets under the spring force.
    [Note 2]Oil buffers with bore sizes 20 and 25 are non-adjustable; oil buffers with bore sizes 32 and above are adjustable.
    [Note 3]Leave the code field blank if the port is M5 threaded.
