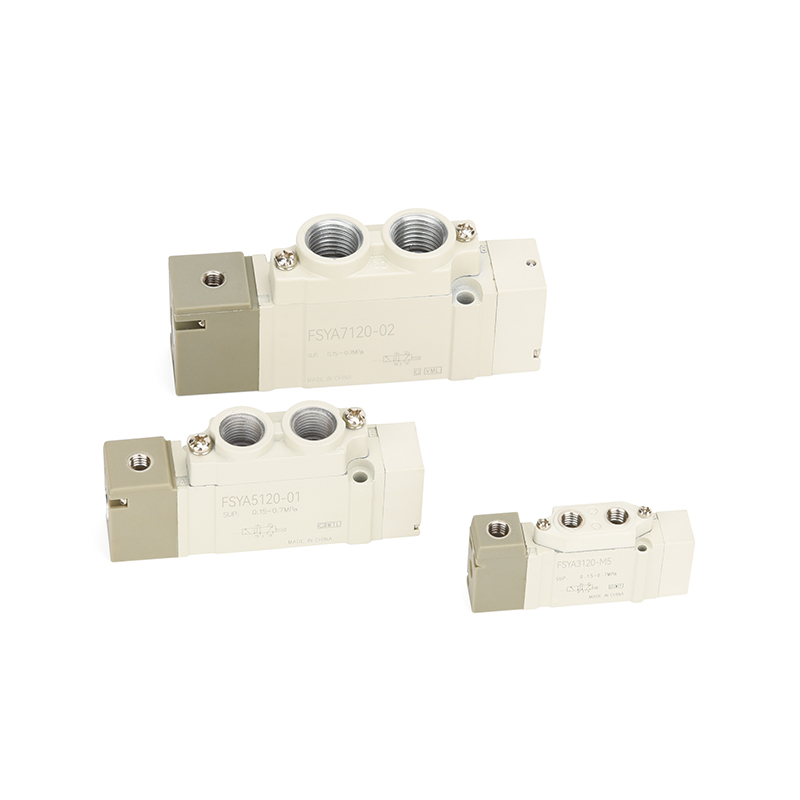

FSYA5000 series direct piping type (5120 Series)

The FSYA5000 Series is a 5-way solenoid valve with direct piping configuration for pneumatic control applications. It features energy-efficient operation, with standard models consuming 0.4W and power-saving variants requiring only 0.1W.

Technical specifications include an operating pressure range of 0.1–0.7 MPa for internal pilot and -100 kPa–0.7 MPa for external pilot. Response time measures ≤19–30 ms at 0.5 MPa, with maximum cycling frequency of 5 Hz. Ambient and fluid temperature range is -10–50°C, and protection rating is IP65.

Each unit includes a non-locking push-type manual override for commissioning assistance, with push-to-lock available on select models for added convenience during setup.

    Contact us
    product details

    Detailed description

    Energy-Efficient Operation
    The standard valve configuration draws 0.4W during continuous operation. For applications where minimizing power usage is a priority, models equipped with power-saving circuitry consume only 0.1W. This reduced electrical demand makes the series appropriate for equipment where multiple valves are in use or where control systems have limited output capacity. Lower coil heat generation also contributes to extended service life in continuously energized applications.

    Response and Cycling Performance
    Under 0.5MPa operating conditions, the valve achieves response times within 19 to 30 milliseconds. This consistent reaction speed supports applications requiring precise timing of actuator movements. The maximum operating frequency reaches 5Hz, accommodating moderate to high-speed cycling requirements found in automated machinery and repetitive task operations.

    Manual Override Provisions
    Each unit includes a non-locking push-type manual override button as standard equipment. This feature permits manual shifting of the valve position during initial commissioning, troubleshooting, or setup procedures without energizing the solenoid. Select variants incorporate a push-to-lock mechanism, allowing the manual position to be maintained for extended periods when continuous manual operation is required during maintenance or testing.

    Technical Specifications Summary
    Operating Pressure Range: Internal pilot configuration accepts 0.1 to 0.7 MPa. External pilot configuration operates from -100 kPa to 0.7 MPa, accommodating vacuum or low-pressure applications.
    Environmental Tolerance: Ambient and fluid temperatures ranging from -10 to 50°C are permissible, covering typical indoor industrial conditions without special provisions.
    Ingress Protection: The IP65 rating provides defense against dust entry and low-pressure water jets, suitable for general manufacturing environments where occasional exposure to moisture or particulates occurs.

    Application Considerations
    The combination of modest power requirements, reliable response characteristics, and manual override functionality makes this series appropriate for several common scenarios. It suits equipment where control panels have limited available current, installations requiring occasional manual intervention, and applications where predictable switching behavior contributes to overall system reliability.

    Design Philosophy
    The FSYA5000 focuses on essential functionality without superfluous features. Its direct piping format eliminates base plate requirements, while the power consumption options allow matching to specific installation demands. Manual controls provide practical utility during setup without adding operational complexity.

    Graphic symbols

    2-position single pneumatic control

    2-position dual pneumatic control

     13

    		 14

    3-position center closed type

    3-position center exhaust type

    3-position center pressure type

     15

     16

    		 17

    Flow characteristics quality table

    Valve mode Function Pilot port
    connection
    size    		 Port size Flow characteristics Mass g
    (P、EA、EB) (A、B) 1→4/2(P→A/B) 4/2 → 5/3(A/B →EA/EB)
    C[dm3/s∙bar)] b Cv C[dm3/s∙bar)] b Cv
    Direct
    piping
    type

    FSYA5

    □20-01□

    		 2-position single pneumatic control M5x0.8 1/8 M5x0.8 1.9 0.35 0.49 2.4 0.39 0.61 58
    dual pneumatic control 64
    3-position center closed type 1.7 0.43 0.45 1.8 0.35 0.46 69
    center exhaust type 1.5 0.44 0.41 0.25[1.5] 0.32[0.43] 0.59[0.40]
    center pressure type 2.2[0.91] 0.46[0.58] 0.61[0.28] 1.8 0.38 0.46

    FSYA5

    □20-C4

    		 2-position single pneumatic control

    C4(ø4

    Quick

    change

    connector)

    		 0.75 0.43 0.2 0.85 0.64 0.3 85
    dual pneumatic control 87
    3-position center closed type 0.74 0.4 0.19 0.84 0.57 0.28 93
    center exhaust type 0.75 0.36 0.19 0.84[0.84] 0.64[0.53] 0.30[0.27]
    center pressure type 0.78[0.71] 0.44[0.37] 0.21[0.18] 0.84 0.57 0.27

    FSYA5

    □20-C6

    		 2-position single pneumatic control

    C6(ø6

    Quick

    change

    connector)

    		 1.5 0.33 0.33 2 0.37 0.52 76
    dual pneumatic control 72
    3-position center closed type 1.3 0.31 0.33 1.6 0.32 0.39 87
    center exhaust type 1.3 0.33 0.33 1.8[1.4] 0.35[0.37] 0.44[0.35]
    center pressure type 1.7[0.80] 0.31[0.47] 0.42[0.23] 1.7 0.33 0.44

    FSYA5

    □20-C8

    		 2-position single pneumatic control

    C8(ø8

    Quick

    change

    connector)

    		 1.9 0.21 0.45 2.3 0.29 0.57 68
    dual pneumatic control 74
    3-position center closed type 1.6 0.29 0.39 1.7 0.38 0.46 79
    center exhaust type 1.4 0.38 0.39 2.0[1.5] 0.37[0.40] 0.52[0.43]
    center pressure type 2.2[1.6] 0.32[0.44] 0.56[0.44] 1.8 0.41 0.5

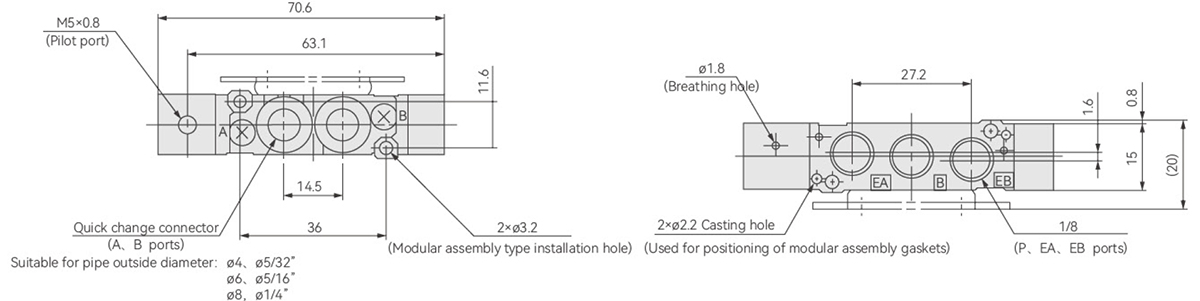

    outline dimension diagram

    33
