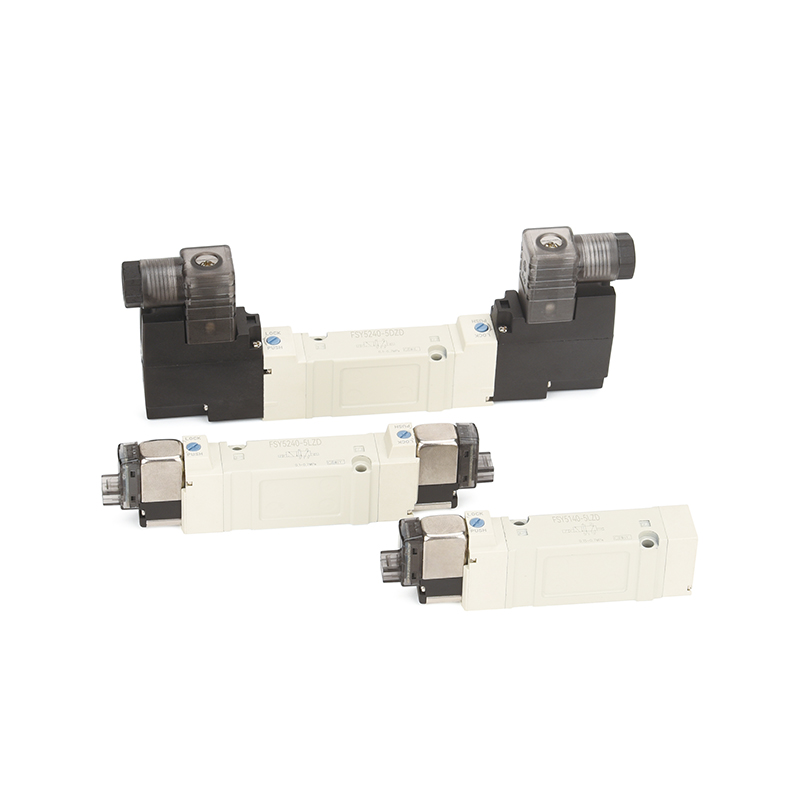

FSY5000 series bottom plate piping type (5140 Series)
Detailed description
Compact Design with Bottom Plate Configuration
The FSY5000 features a bottom plate piping design where all pneumatic connections are made through the mounting base rather than directly into the valve body. This configuration maintains the compact footprint characteristic of the SY series while providing a clean, organized piping arrangement. The valve itself can be easily mounted or removed from the bottom plate without disturbing the fixed piping, simplifying both installation and maintenance procedures.
Wide Applicability Across Small Automation Systems
This series is particularly well-suited for standalone equipment and small automated workstations, including applications such as small assembly machines and testing equipment. The combination of compact size and bottom plate routing makes it ideal for pneumatic control circuits where installation space is limited and only a small number of valves are required. The clean piping layout also contributes to a more professional appearance in finished equipment.
Simplified Installation and Maintenance
A key advantage of the bottom plate design is the separation between the piping connections and the valve body. Installers can mount and pipe the bottom plates during initial machine assembly, then install the valves at a later stage. For field applications requiring rapid installation, commissioning, or frequent valve replacement, this configuration significantly reduces downtime. Valves can be swapped in minutes without disconnecting any piping, allowing for quick troubleshooting or changes in valve function.
Energy Efficiency and Reliable Operation
The FSY5000 series is designed for small pneumatic systems with low energy consumption requirements. The solenoid construction is optimized for efficient power usage, making it compatible with compact control systems and helping to minimize overall operating costs. Combined with the high reliability expected from the SY series, these valves provide consistent performance over extended periods of use.
Graphic symbols
|
2-position single solenoid control |
2-position double solenoid control |
||
|
|
|
||
|
3-position center closed type |
3-position center exhaust type |
3-position center pressure type |
|
|
|
|
 |
|
Flow characteristics quality table
| Valve mode | Function | Port size | Flow characteristics | Mass g | |||||||||
| 1→4/2(P→A/B) | 4/2 → 5/3(A/B →EA/EB) | Direct lead-out type |
L-shaped M-shaped socket type |
DIN shaped socket type | W-shaped M8 connector |
||||||||
| C[dm3/s∙bar)] | b | Cv | C[dm3/s∙bar)] | b | Cv | ||||||||
| FSY5□40-□-02 | 2-position | single solenoid control | 1/4 | 2.4 | 0.41 | 0.64 | 2.8 | 0.29 | 0.66 | 121(58) | 123(61) | 154(92) | 127(65) |
| double solenoid control | 139(76) | 144(81) | 186(123) | 152(89) | |||||||||
| 3-position | center closed type | 1.8 | 0.47 | 0.5 | 1.8 | 0.4 | 0.47 | 144(82) | 150(87) | 192(129) | 158(95) | ||
| center exhaust type | 1.4 | 0.55 | 0.44 | 3.0[1.2] | 0.33[0.48] | 0.72[0.37] | |||||||
| center pressure type | 3.3[0.84] | 0.36[0.60] | 0.85[0.28] | 1.8 | 0.4 | 0.48 | |||||||

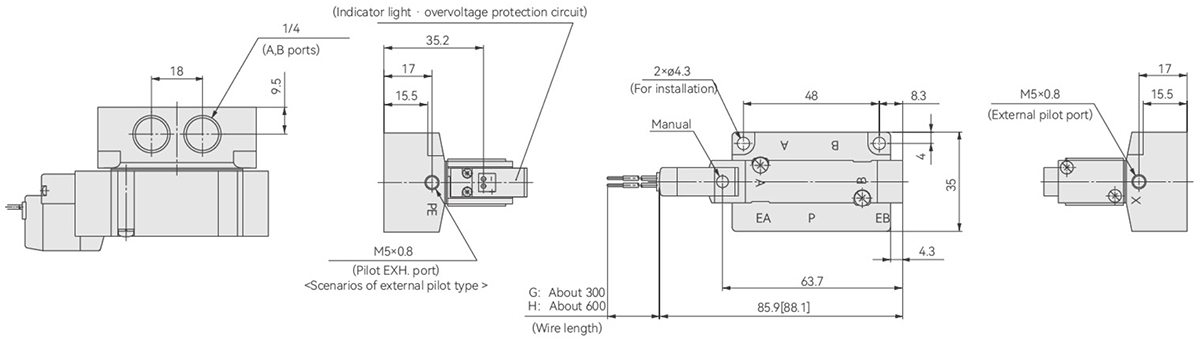

outline dimension diagram
