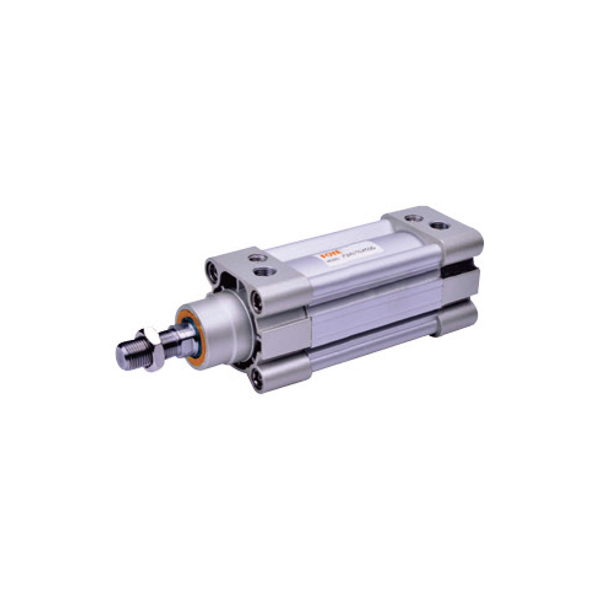

3.FSAl Series Standard Cylinder.jpg

FSAl Series Standard Cylinder

    Contact us
    product details

    Technical parameters

    FSAI 160 □ × 50 S □ □ □
    ↓ ↓ ↓   ↓ ↓ ↓ ↓ ↓
    Specification code Bore Rod Material Stroke Magnet Mounting type[Note1] Seals Material Thread type
    FSAl:Double
    acting type    		 32 Blank:Medium
    carbonsteel
    A: SUS420J2
    B: SUS304    		 Refer to
    stroke
    table for
    details    		 Blank:Without
    magnet

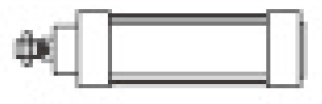

    S:With magnet    		 Blank 1-11 FTC 8-3 Blank: TPU
    H: Viton
    N:NBR    		 Blank: PT
    G:G

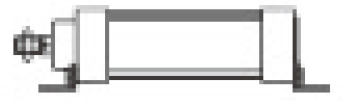

    40 LB 2-6 TC 9-3
    50 FA 3-5 Blank 10-3

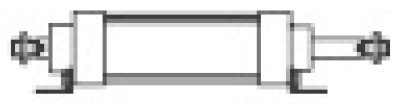

    63 FB 4-5 LB 11-3

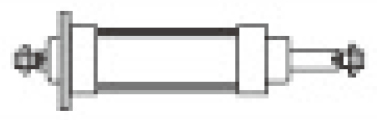

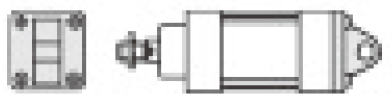

    80 CA 5-4 FA 12-3
    100

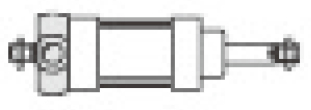

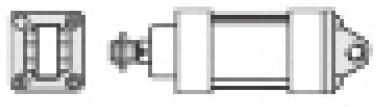

    125 CB 6-3 FTC 13-2
    160
    200 CR 7-4 TC 14-2
    [Note1] CR is used with CB; FTC. TC are used with TCM1, TCM2, please refer to page 22-24 for details.
