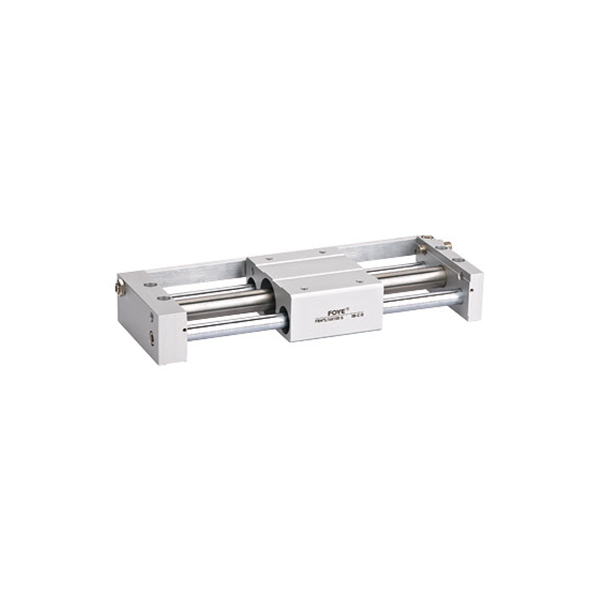

FRMTL Series Magnetic Coupling Rodless Cylinders(Precision Guide Rod Type)
Technical parameters
| FRMTL | 20 | × | 100 | S | □ | □ |
| ↓ | ↓ | ↓ | ↓ | ↓ | ↓ | |
| Specification code | Bore | Stroke | Magnet code | Cushioning method[Note 1] | Thread code | |
| FRMTL: Magnetic Coupling Rodless Cylinders(Precision Guide Rod Type) |
10 16 20 25 32 40 |
Blank: No magnet attached S: Magnet attached |
Blank: Adjustment Screw A: Hydraulic oil buffer cushioning 2 |
Blank: M5/PT thread G: G thread T: NPT thread |
[Note 1]When the hydraulic oil buffer is selected for cushioning, two adjustment screws will be attached.
