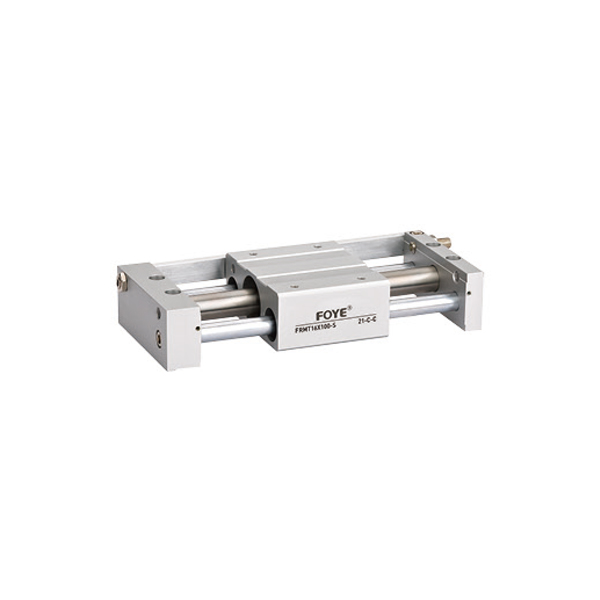

FRMT Series Magnetic Coupling Rodless Cylinders(Guide Rod Type)
Technical parameters
| FRMT | 20 | × | 100 | S | □ | □ |
| ↓ | ↓ | ↓ | ↓ | ↓ | ↓ | |
| Specification code | Bore | Stroke | Magnet code | Cushioning method | Thread code[Note] | |
| FRMT: Magnetic coupling rodless cylinder (guide rod type) |
10 20 25 32 40 | Blank: No magnet attached S: Magnet attached |
Blank: Adjustment Screw 2 A: Hydraulic Shock Absorber 2 |
Blank: PT thread G: G thread T: NPT thread |
[Note]:In the Thread codes:Blank= Metric M or PT thread;Φ10/Φ16 bores have metric M threads only;Add "G” or “T” code when ordering G-thread or NPT thread specifications.
