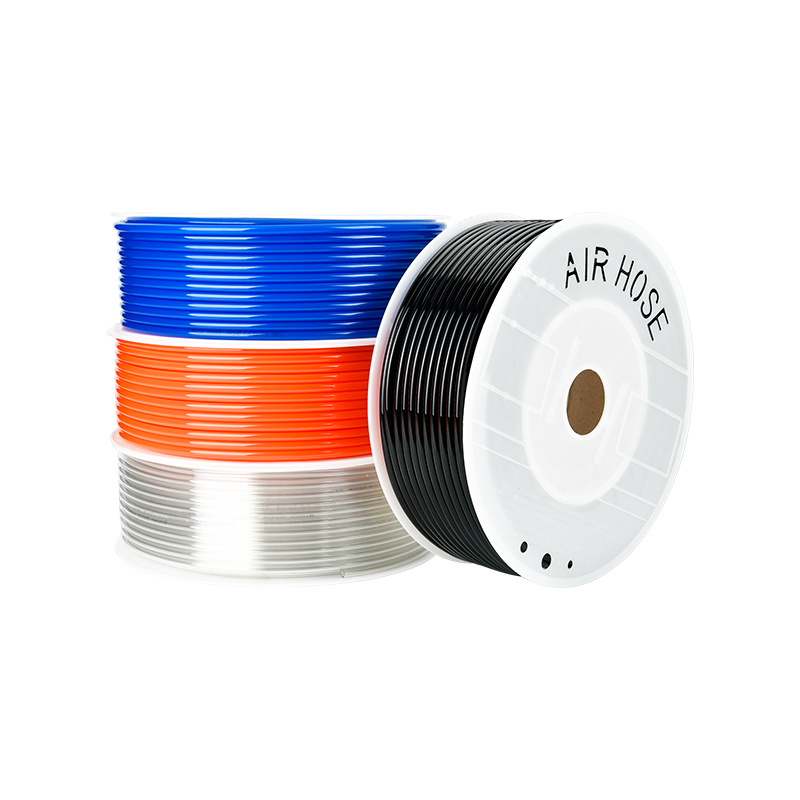

FPU Pipe
Detailed description
The FPU Pipe is manufactured from flexible polyurethane material and is designed to comply with ROHS environmental standards, supporting applications where material composition and regulatory compliance are considerations.
The material offers high elasticity, which allows the pipe to achieve a small bending radius. This characteristic enables routing through confined spaces and around obstacles without requiring excessive clearance, making it suitable for installations where layout constraints are present. The flexibility also contributes to reduced stress on fittings and connections during installation.
Compared to other plastic piping options, the FPU Pipe provides improved resistance to tangling. This property helps maintain organized routing in multi-line assemblies or applications where movement may otherwise cause lines to become intertwined, supporting cleaner system layouts and reducing the likelihood of interference between adjacent tubing.
The pipe exhibits excellent plastic resilience, allowing it to withstand repeated stretching without permanent deformation. This characteristic is beneficial in applications where tubing may be subjected to cyclic motion or occasional tension during operation or maintenance.
Abrasion resistance is another notable feature, contributing to a longer service life in environments where tubing may come into contact with rough surfaces or experience friction during use. This durability helps reduce the frequency of replacement in applications where wear is a concern.
Low gas permeability helps minimize the loss of compressed air through the pipe wall, supporting system efficiency and reducing the risk of leakage-related contamination. This property is relevant in applications where maintaining consistent pressure and clean operation is important.
The pipe demonstrates good solubility resistance, meaning it does not release solvents into the surrounding environment during use. This characteristic helps avoid environmental contamination that could arise from material degradation or chemical interaction with conveyed media.
Low compressibility helps the pipe maintain its physical properties under pressure, supporting consistent performance across operating conditions. The FPU Pipe is suitable for use with air and water as conveyed media, making it applicable in a range of pneumatic and fluid transfer systems where flexibility, durability, and resistance to wear and tangling are required.
Finished Product Order Code
| FPU | 10 | 4.0- | 100M | BU | ||
| ↓ | ↓ | ↓ | ↓ | ↓ | ||
| Specification Code | Outer Diameter Code | Speed Code | Speed Code | Color Code | ||
| FPU12×8 | 3.2:Φ3.2mm 4.0:Φ4.0mm 6.0:Φ6.0mm |
2.0:Φ2.0mm 2.5:Φ2.5mm 4.0:Φ4.0mm 5.0:Φ5.0mm 5.5:Φ5.5mm 6.0:Φ6.0mm |
6.5:Φ6.5mm 8.0:Φ8.0mm 10:Φ10.0mm 11:Φ11.0mm 12:Φ12.0mm |
100M: 100m/Roll 200M:200m/Roll |
BU:Blue BK:Black C:Transparent CB:Transparent Blue R:Red Y:Yellow GA:Gray GN:Green CR:Transparent Red CG:Transparent Green CY:Transparent Yellow |
|
| 8.0:Φ8.0mm 10:Φ10.0mm 12:Φ12.0mm 16:Φ16.0mm |
100M:100m/Roll | |||||
| FPU10×6.5 | 3.2:Φ3.2mm 4.0:Φ4.0mm 6.0:Φ6.0mm |
2.0:Φ2.0mm 2.5:Φ2.5mm 4.0:Φ4.0mm 5.0:Φ5.0mm |
5.5:Φ5.5mm 6.5:Φ6.5mm 8.0:Φ8.0mm |
20M:20m/Roll | 100M:100m/Roll 200M:200m/Roll |
|
| 8.0:Φ8.0mm 10:Φ10.0mm 12:Φ12.0mm |
20M:20m/Roll | 100M:100m/Roll | ||||
Specifications (Low-Pressure Type)
| Model [Note 1] | Outer Diameter (mm) |
Inner Diameter (mm) |
Wall Thickness (mm) |
Length per Roll (m) | Working Pressure at 23℃ (MPa) [Note 2] |
Bursting Pressure at 23℃ (MPa) | Bending Radius (mm) |
Weight per 100 Meters (kg) | Working Temperature (℃) |
| FPU3.2×2.0□□ | 3.2 | 2 | 0.6 | 100\200 | 1 | 3 | 8 | 0.6 | -20~70 |
| FPU4.0×2.5□□ | 4 | 2.5 | 0.75 | 100\200 | 1 | 3 | 10 | 0.94 | |
| FPU6.0×4.0□□ | 6 | 4 | 1 | 100\200 | 1 | 3 | 15 | 1.93 | |
| FPU8.0×5.0□□ | 8 | 5 | 1.5 | 100 | 1 | 3 | 20 | 3.66 | |
| FPU10×6.5□□ | 10 | 6.5 | 1.75 | 100 | 1 | 3 | 25 | 5.44 | |
| FPU12×8.0□□ | 12 | 8 | 2 | 100 | 1 | 3 | 30 | 7.56 |
| Model [Note 1] | Outer Diameter (mm) |
Inner Diameter (mm) |
Wall Thickness (mm) |
Length per Roll (m) | Working Pressure at 23℃ (MPa) [Note 2] |
Bursting Pressure at 23℃ (MPa) | Bending Radius (mm) |
Weight per 100 Meters (kg) | Working Temperature (℃) |
| FPU3.2×2.0□□ | 3.23 | 2 | 0.6 | 20\100\200 | 1 | 3 | 8 | 0.6 | -40~70 |
| FPU4.0×2.5□□ | 4 | 2.5 | 0.75 | 20\100\200 | 1 | 3 | 8 | 0.94 | |
| FPU6.0×4.0□□ | 6 | 4 | 1 | 20\100\200 | 1 | 3 | 12 | 1.91 | |
| FPU8.0×5.0□□ | 8 | 5 | 1.5 | 20\100 | 1 | 3 | 17 | 3.58 | |
| FPU10×6.5□□ | 10 | 6.5 | 1.75 | 20\100 | 1 | 3 | 20 | 5.32 | |
| FPU12×8.0□□ | 12 | 8 | 2 | 20\100 | 1 | 3 | 30 | 7.27 |
Specifications (Standard Pressure Type)
| Model [Note 1] | Outer Diameter (mm) |
Inner Diameter (mm) |
Wall Thickness (mm) |
Length per Roll (m) | Working Pressure at 23℃ (MPa) [Note 2] |
Bursting Pressure at 23℃ (MPa) | Bending Radius (mm) |
Weight per 100 Meters (kg) | Working Temperature (℃) |
| FPU8.0×5.5□□ | 8 | 5 | 1.25 | 100 | 0.8 | 2 | 20 | 3.25 | -20~70 |
| FPU4.0×2.5□□ | 8 | 6 | 1 | 100 | 0.4 | 1.5 | 25 | 2.7 | |
| FPU6.0×4.0□□ | 16 | 12 | 2 | 100 | 0.4 | 2 | 80 | 8.23 |
| Model [Note 1] | Outer Diameter (mm) |
Inner Diameter (mm) |
Wall Thickness (mm) |
Length per Roll (m) | Working Pressure at 23℃ (MPa) [Note 2] |
Bursting Pressure at 23℃ (MPa) | Bending Radius (mm) |
Weight per 100 Meters (kg) | Working Temperature (℃) |
| FPU8.0×5.5□□ | 8 | 5 | 1.25 | 20\100 | 0.8 | 1.5 | 17 | 3.18 | -40~70 |
[Note 1] The first box in the model column"□□ " represents the order code "Unit and the second box represents the order code "Color'.
[Note 2] Working pressure: Safety factor is 1/3 of the bursting pressure.
