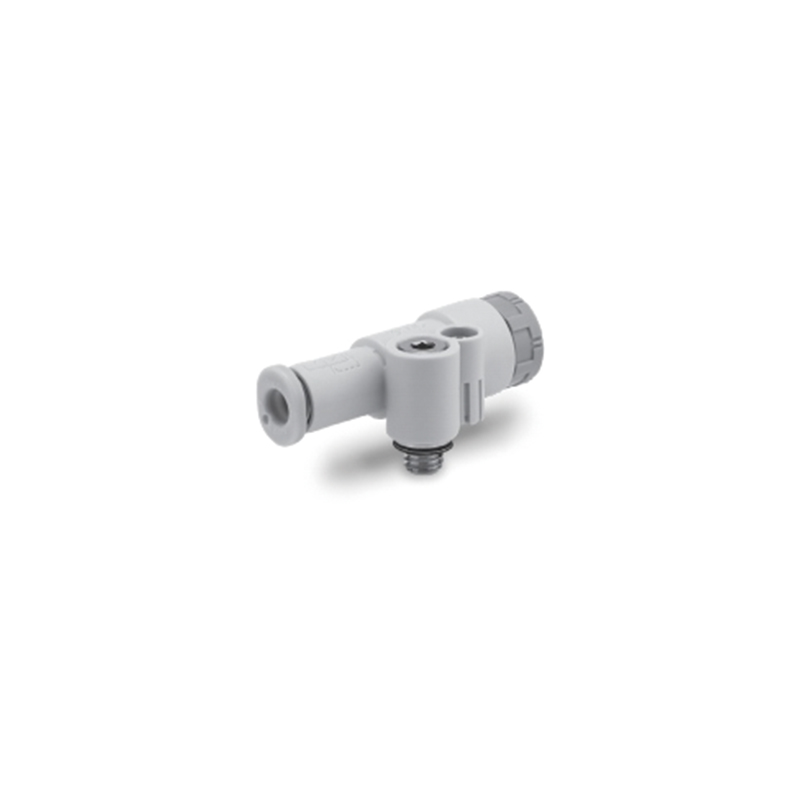

FJASV Series Gasket Seal

The FJASV Series is offered in both straight-through and elbow configurations, providing flexibility to accommodate different piping layouts and space constraints. The compact structure of these valves allows them to be installed in applications where space is limited, while the availability of multiple body styles supports more adaptable system design without compromising functionality.

For simplified connection, one end is fitted with a quick-connect coupling that allows users to insert the tubing until it locks securely. This design facilitates straightforward assembly and disassembly, reducing the time required for installation or replacement. The ability to easily disconnect and reconnect the tube is particularly beneficial in applications where routine maintenance or reconfiguration is necessary.

The opposite end features an external thread combined with a sealing gasket that creates a face seal against the mounting port. This configuration eliminates the need for Teflon tape or other supplementary sealing materials during installation. The integrated gasket provides a reliable seal at the threaded interface, helping to prevent leakage while also supporting repeated assembly and disassembly without degradation of sealing performance. This approach simplifies the installation process and contributes to consistent long-term reliability.

The combination of a quick-connect fitting on one side and a gasket-sealed thread on the other makes the FJASV Series well suited for applications requiring both ease of tube connection and secure port sealing. The availability of straight-through and elbow configurations adds further versatility, allowing users to select the body style that best aligns with the spatial and routing requirements of their pneumatic systems.

Overall, the FJASV Series offers a practical solution for applications where compact dimensions, flexible installation, and dependable sealing are priorities. Its straightforward connection methods and choice of configurations support efficient integration into a range of automated equipment and pneumatic circuits.
