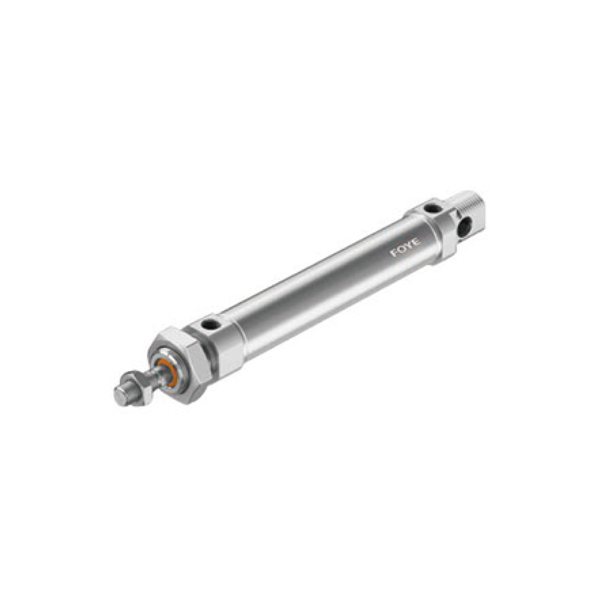

FDSNU Series Mini Cylinders
Technical parameters
| FDSNU | 25 | - | 80 | - | PPV | - | A | - | MQ |
| ↓ | ↓ | ↓ | ↓ | ↓ | ↓ | ||||
| Specification code | Piston | Stroke | Cushioning | Positionsensing | Variant | ||||
| DSNU/DSN: Standard cylinder |
P:Flexible cushioning rings/ plates at both ends |
A:For proximity sensing |
MQ:Lateral air connection MA:Axial air connection MH:With mounting flange on bearing cap CT:Free of copper, PTFE and silicone |
||||||
| PPV:Pneumatic cushioning adjustable at both ends |
