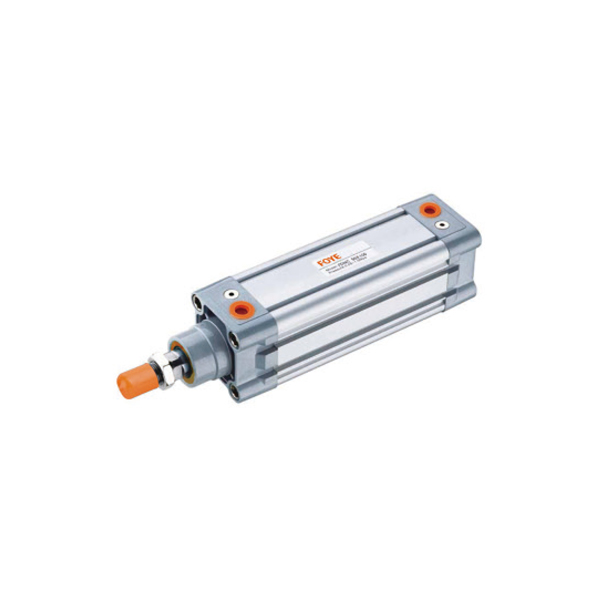

FDNC Series Standard Cylinder
Technical parameters
| FDNC | □ | 50 | × | 100 | - | 25 | - | S | - | □ |
| ↓ | ↓ | ↓ | ↓ | ↓ | ↓ | ↓ | ||||
| Specification code | TubeType | Cylinder Bore |
Stroke | Adjust Storke | Magnet Code | Fixed Type | ||||
| DNC:ISO15552 Standard Double Action Type | Blank:Square Type | 32-125mm | 25:25mm | Blank: Without Magnet |
Blank: NormalType LB: Front and back fixed type FA: Front cover fixed type (Front flange type) FB: Back cover fxed ype (Back flange type) CB: Back cover fixed type (Double earring) SDB: Back cover fixed type |
|||||
| DNT:ISO15552 Standard With Mickey Mouse(Groove) Tube |
||||||||||
| T:Tie-rod Type | 50:50mm | |||||||||
| DNCD:ISO15552 Standard Two Axis Double Action Type | S:With Magnet | |||||||||
| M:Mickey Mouse Type |
75:75mm | |||||||||
| DNCJ:ISO15552 Two AxisStroke Adjust Type | ||||||||||
