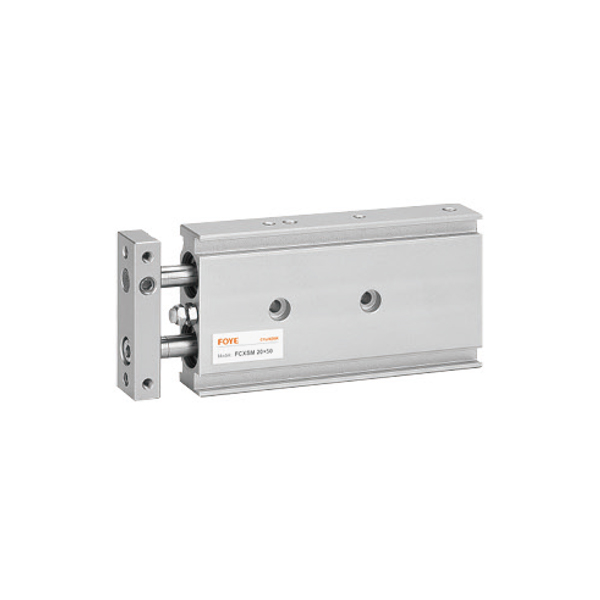

FCXS Series Double-Acting Cylinder
Technical parameters
| FCXS | M | 20 | - | 100 | - | Y7BW | S |
| ↓ | ↓ | ↓ | ↓ | ↓ | ↓ | ||
| Specification code | Types of Bearings | Cylinder Diameter | Adjustable Stroke | Magnetic Switch | Number of Magnetic Switches | ||
| FCXS:Double-Acting Cylinder / Basic Type |
M:Sliding Bearing L:Ball Bearing |
6 | 10,20,30,40,50, | No Mark:Without Magnetic Switch (Built-in MagneticRing) |
No Markc2 Units | ||
| 10 | 10,15,20,25,30,35,40,45, 50,60,70,75 |
s:1 Units | |||||
| 15,20,25,32 | 10,15,20,25,30,35,40,45, 50,60,70,75,80,90,100 |
n:n Units |
