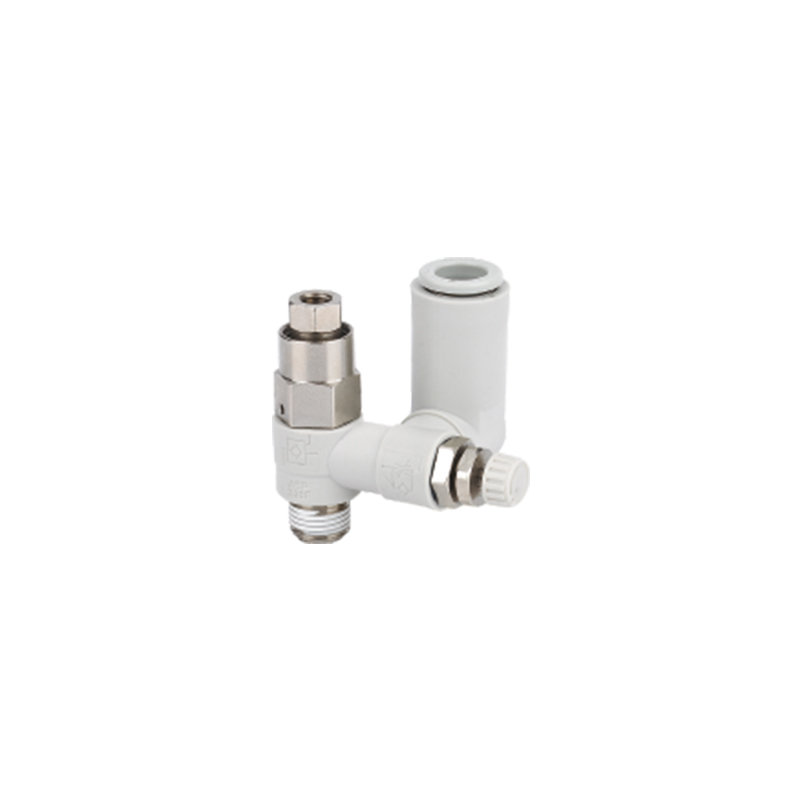

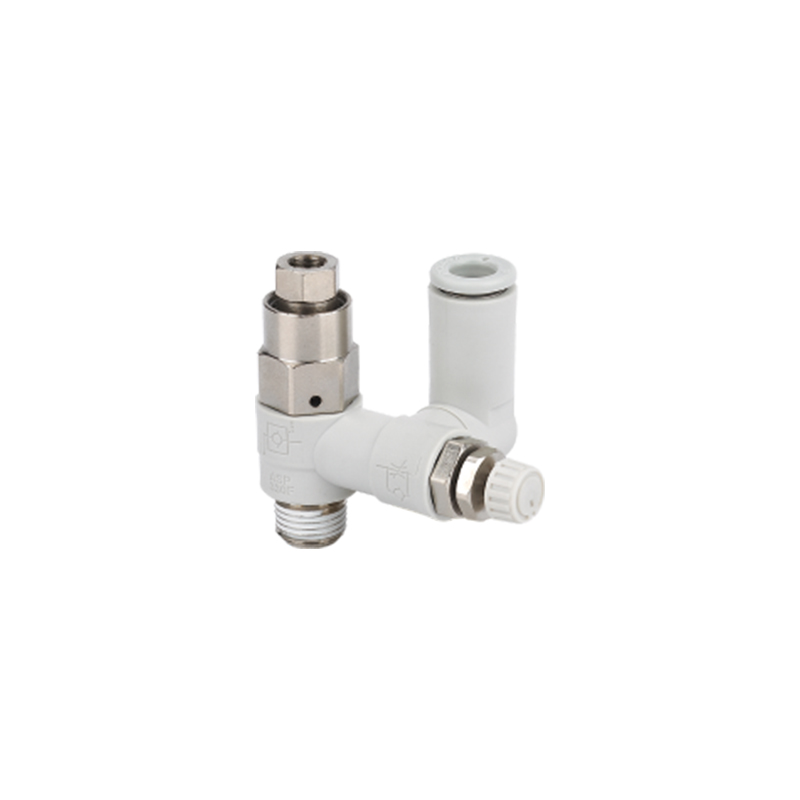

FASP Series-With Pilot Check Valve/Speed Control Valve

The FASP Series combines speed control functionality with a pilot-operated check valve within a single compact unit. This integrated design reduces the number of individual components required in a pneumatic circuit, helping to simplify installation and conserve space in systems where both flow regulation and load holding are necessary.

For connection flexibility, one end is equipped with a quick-connect fitting that supports straightforward replacement. Users can insert the tubing until it locks securely, allowing for convenient disassembly when maintenance or reconfiguration is required. This feature helps minimize downtime and eliminates the need for specialized tools during installation or removal.

The opposite end features an external thread connection, which can be configured with either a gasket or a pre-applied sealant depending on the application requirements. This approach provides reliable sealing at the threaded interface and helps reduce the risk of leakage without the need for additional sealing materials such as Teflon tape during installation.

To further enhance installation adaptability, the valve body is designed to rotate 360 degrees. This rotational capability allows for greater flexibility when aligning tubing and fittings within equipment layouts, particularly in confined spaces or complex pneumatic assemblies where precise orientation is beneficial. The ability to adjust the valve position after mounting helps simplify piping arrangements and reduces strain on connected lines.

By integrating speed control and pilot-operated check valve functions into a single device, the FASP Series offers a streamlined solution for applications requiring both adjustable flow rates and the ability to hold cylinder position against unintended movement. The combination of practical connection options, rotatable body, and space-saving construction makes this series suitable for use in automated systems where efficient layout and dependable performance are important considerations.
