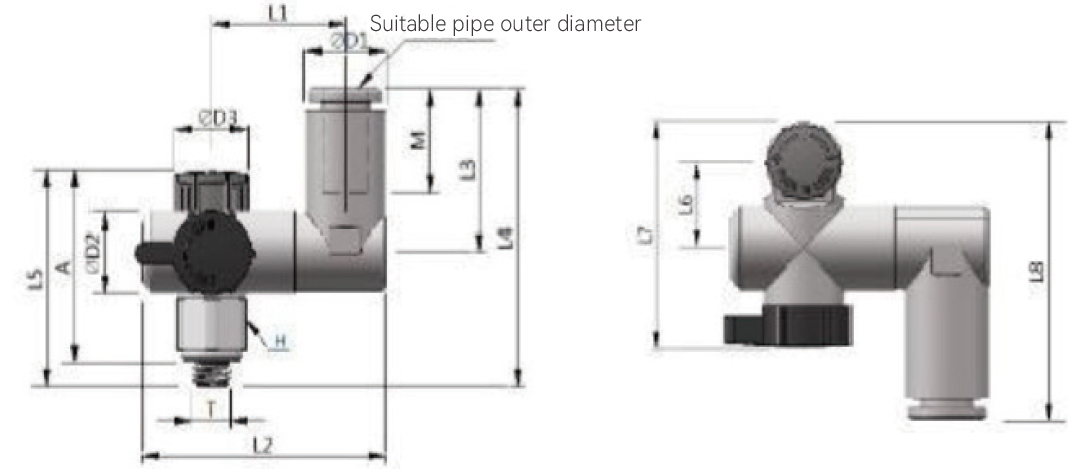

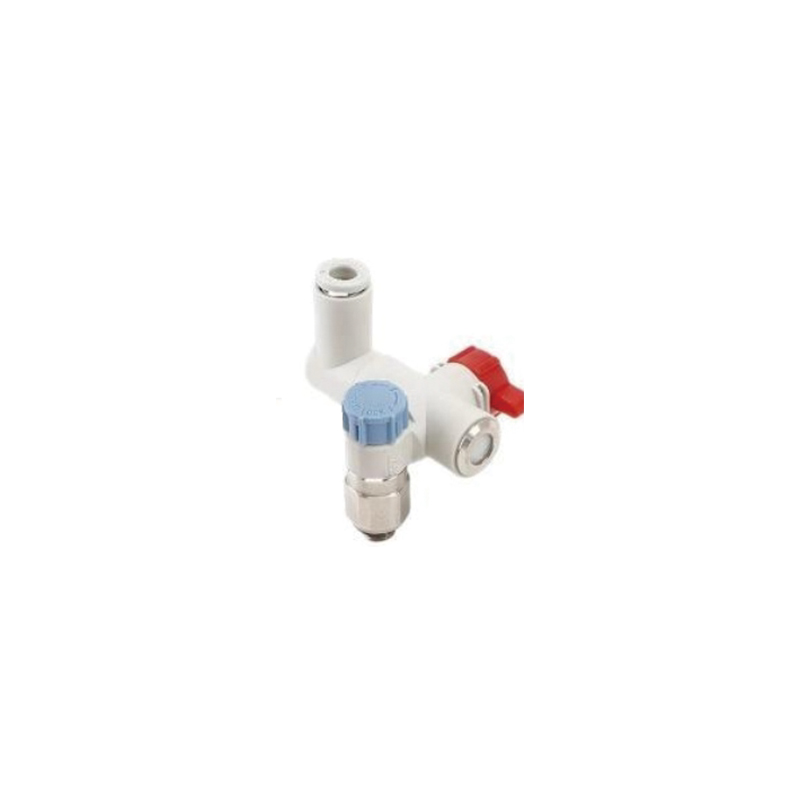

FASE Series-Speed Control Valve For Residual Exhaust- Universal Type-Gasket
Detailed description
Metric Size
| Model | d | T | H | D1 | D2 | D3 | L1 | L2 | L3 | L4 | L5Note1) | ANote2) | L6 | L7 | L8 | M1 | ||
| Unlocking | Locking | Unlocking | Locking | |||||||||||||||
| FASE13 □ 1FM3-04A | 4 | M3×0.5 | 9 | 8.8 | 10.2 | 9.6 | 17.3 | 33 | 17.7 | 34.5 | 26.7 | 25.7 | 24.2 | 23.2 | 10.2 | 28.2 | 32.7 | 13.5 |
| FASE13 □ 1FM3-06A | 6 | 10.6 | 34.1 | 20.8 | 37.6 | 35.8 | 15.5 | |||||||||||
| FASE13 □ 1FM5-04A | 4 | M5×0.8 | 9 | 8.8 | 10.2 | 9.6 | 17.3 | 33 | 17.7 | 34.5 | 27.2 | 26.2 | 24.2 | 23.2 | 10.2 | 28.2 | 32.7 | 13.5 |
| FASE13 □ 1FM5-06A | 6 | 10.6 | 34.1 | 20.8 | 37.6 | 35.8 | 15.5 | |||||||||||
