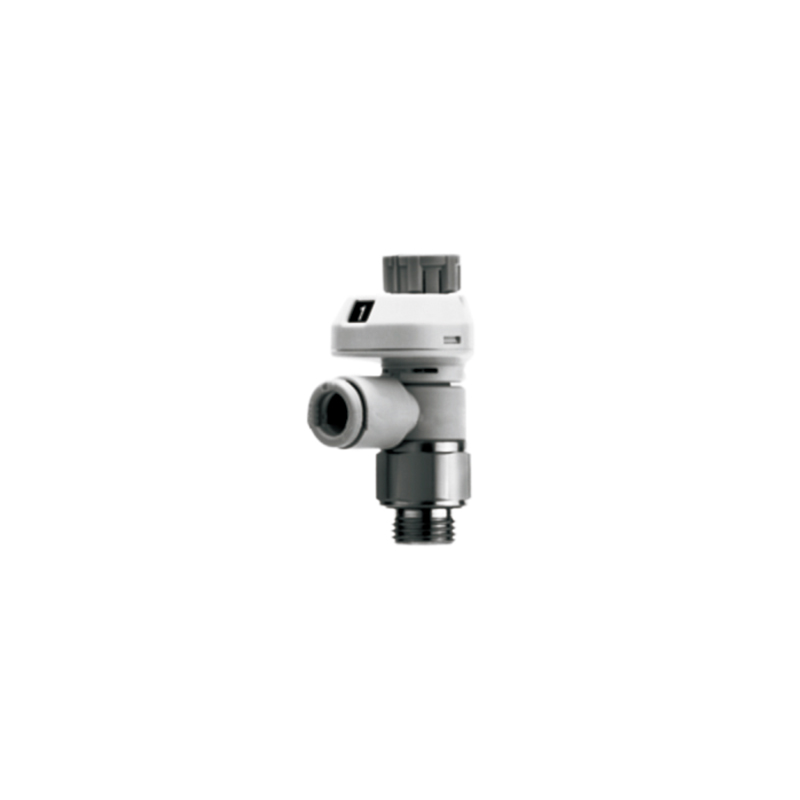

FAS-FS Series- Speed Control Valve With Scale-Elbow Type-Gasket

One end has a quick-connect fitting for easy replacement; simply insert the tube and lock it in place for convenient disassembly.

The other end has an external thread and a sealing gasket, providing an end-face seal, eliminating the need for Teflon tape, preventing leakage, and allowing for repeated disassembly and assembly.

Features a graduated adjustment handwheel for more precise and consistent flow rate adjustment.

Needle valve fine-tuning structure ensures stable low-speed control

The needle valve features an anti-dislodgement structure to prevent it from slipping off due to excessive adjustment.

Features a push-lock function to prevent flow drift caused by vibration.

    Contact us
    product details

    Detailed description

    The FAS-FS Series is a speed control valve designed with an elbow-type configuration and includes a gasket for sealing purposes. One end incorporates a quick-connect fitting that allows for straightforward replacement. Users only need to insert the tube, and it locks securely in place, making disassembly convenient without requiring complex tools or procedures. This design simplifies maintenance and reduces downtime during component changes.

    On the opposite end, an external thread is combined with a sealing gasket that provides an end-face seal. This eliminates the need for Teflon tape during installation, helping to prevent leakage while also supporting repeated assembly and disassembly without compromising sealing performance. The inclusion of the gasket enhances reliability in applications where consistent sealing is required.

    For flow adjustment, the valve is equipped with a graduated handwheel that enables more precise and repeatable control. The clear scale allows operators to set and replicate flow rates with greater accuracy, which is particularly useful in applications where consistent cylinder speed is necessary. A fine-tuning structure based on a needle valve contributes to stable performance even at low speeds, giving users better command over gradual adjustments.

    To improve durability and safe operation, the needle valve includes an anti-dislodgement feature. This mechanism helps prevent the adjusting component from coming loose or detaching even if adjustments are made beyond normal ranges, reducing the risk of unintended disassembly during use. Additionally, a push-lock function allows the handwheel to be secured in place with a simple pressing action. This helps prevent flow drift that may otherwise occur due to vibration in automated or continuously operating equipment.

    The FAS-FS Series is suited for applications requiring reliable speed regulation in pneumatic systems, combining practical sealing features with precise adjustment and protective mechanisms to support stable, long-term operation.

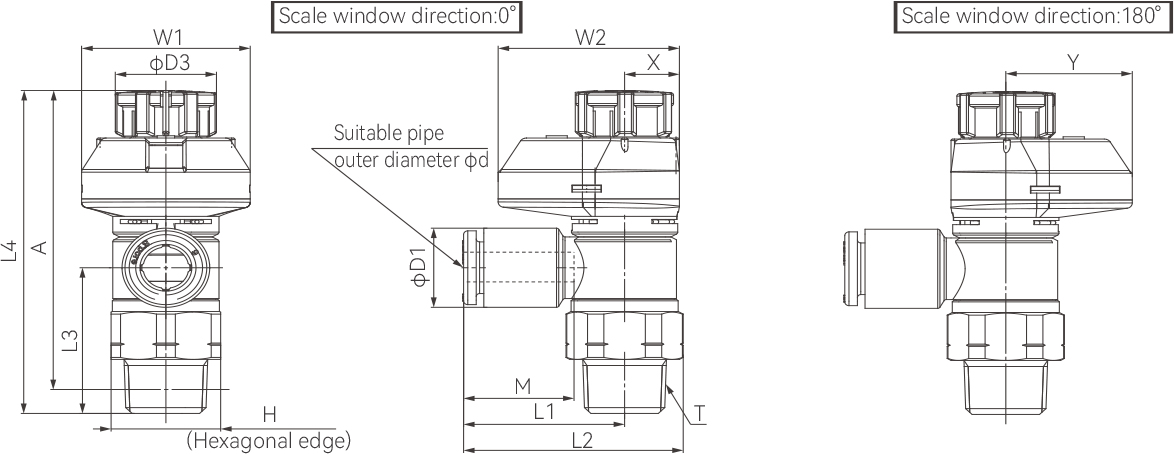

    Technical parameters

    Model

    d

    T

    H

    D1

    D3

    L1

    L2

    L3

    L4Note1)

    ANote2)

    M

    W1

    W2

    X

    Y

    Unlocking

    Locking

    Unlocking

    Locking

    FAS12 □ 1FS □ -M5-04

    4

    M5x0.8

    10/32UNF

    8

    8.2

    9.4

    17.2

    21.7

    16.9

    39

    36.5

    35

    33.5

    13.3

    13.6

    15.1

    5.5

    9.6

    FAS12 □ 1FS □ -M5-06

    6

    10.4

    18.6

    23.1

    16.5

    FAS22 □ 1FS □ -01-02(S)

    3.2

    1/8

    12(13.7)

    7.2

    12

    19.1

    26.2

    19.1

    43.9

    42.4

    40.8

    39.3

    13.3

    20

    21.5

    6.5

    15

    FAS22 □ 1FS □ -01-04(S)

    4

    8.2

    FAS22 □ 1FS □ -01-06(S)

    6

    10.4

    FAS22 □ 1FS □ -01-08(S)

    8

    13.2

    22.4

    29.5

    14.2

    FAS22 □ 1FS □ -01-10(S)

    10

    15.9

    25.3

    32.4

    15.6

    FAS22 □ 1FS □ -02-02(S)

    3.2

    1/4

    17(17.5)

    7.2

    13

    20.9

    30.2(30.3)

    22.6

    49.7

    48.3

    44.2

    42.8

    13.3

    21.5

    24

    7.8

    16.2

    FAS22 □ 1FS □ -02-04(S)

    4

    8.2

    FAS22 □ 1FS □ -02-06(S)

    6

    10.4

    23.4

    32.7(32.8)

    FAS22 □ 1FS □ -02-08(S)

    8

    13.2

    23.9

    33.2(33.3)

    14.2

    FAS22 □ 1FS □ -02-10(S)

    10

    15.9

    26.9

    36.2(36.3)

    15.6

    FAS32 □ 1FS □ -02-06(S)

    6

    1/4

    19

    10.4

    16.6

    21.8

    32.1

    36.4

    63.1

    61.7

    57.9

    56.5

    13.3

    24.5

    28.5

    9.3

    19.2

    FAS32 □ 1FS □ -02-08(S)

    8

    13.2

    22.7

    33



    14.2

    FAS32 □ 1FS □ -02-10(S)

    10

    15.9

    26.7

    37

    35.7

    15.6

    FAS32 □ 1FS □ -02-12(S)

    12

    18.5

    29.7

    40

    34.5

    17

    FAS32 □ 1FS □ -03-06(S)

    6

    3/8

    19

    10.4

    16.6

    21.8

    32.1

    28.7

    55.4

    54

    50.2

    48.8

    13.3

    24.5

    28.5

    9.3

    19.2

    FAS32 □ 1FS □ -03-08(S)

    8

    13.2

    22.7

    33



    14.2

    FAS32 □ 1FS □ -03-10(S)

    10

    15.9

    26.7

    37

    28

    15.6

    FAS32 □ 1FS □ -03-12(S)

    12

    18.5

    29.7

    40

    26.8

    17

    FAS42 □ 1FS □ -04-10(S)

    10

    1/2

    24(23.8)

    15.9

    18.8

    27.4

    40.3(40.2)

    36.2

    64.1

    62.5

    57

    55.4

    15.6

    26

    29

    10

    19

    FAS42 □ 1FS □ -04-12(S)

    12

    18.5

    30.8

    43.7(43.6)

    35.1

    17

    FAS42 □ 1FS □ -04-16(S)

    16

    23.8

    34.8

    47.7(47.6)

    32.7

    20.6
