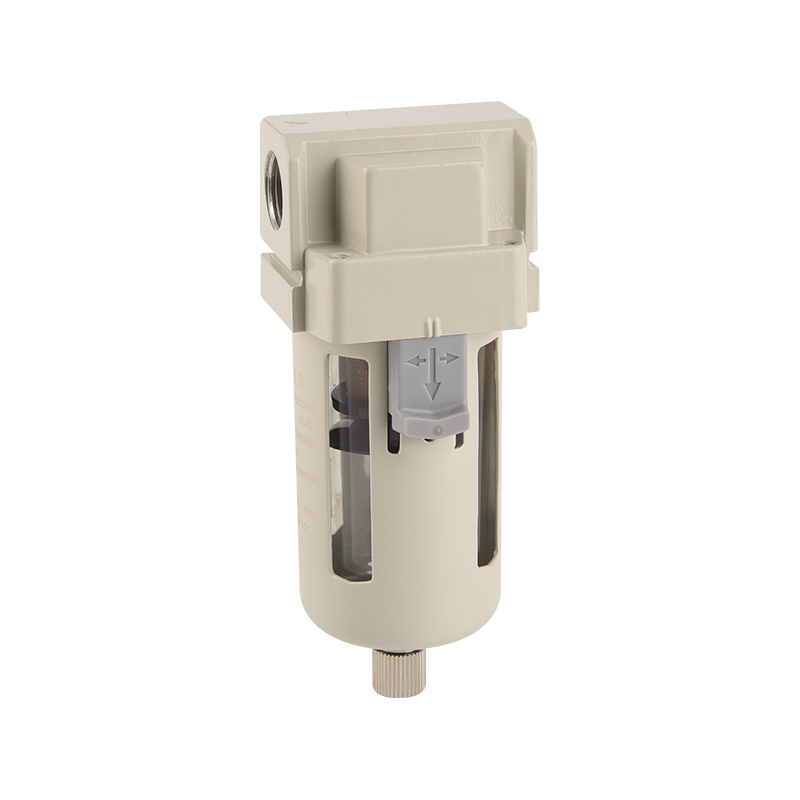

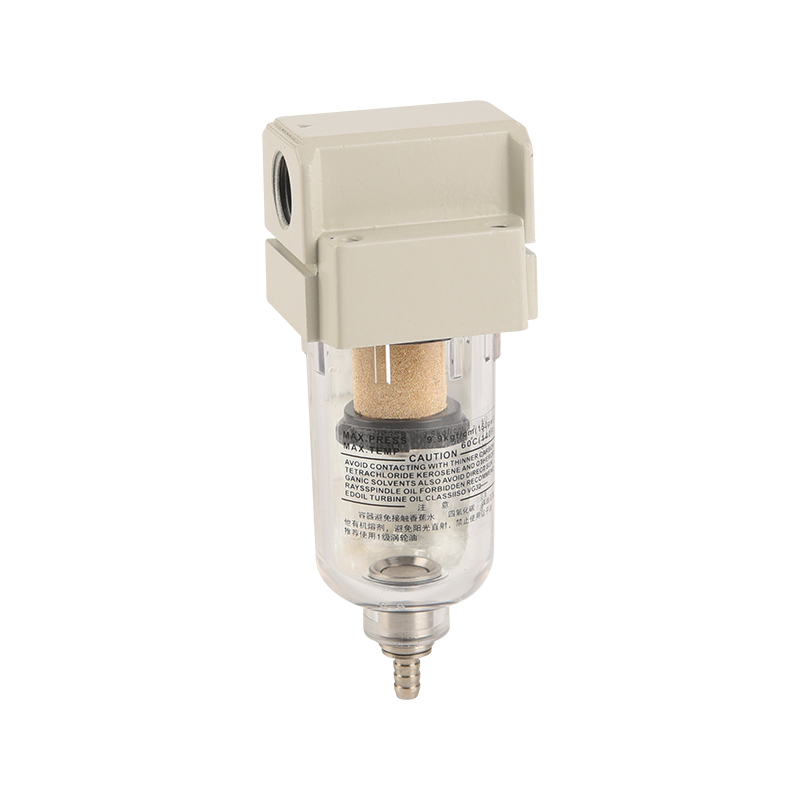

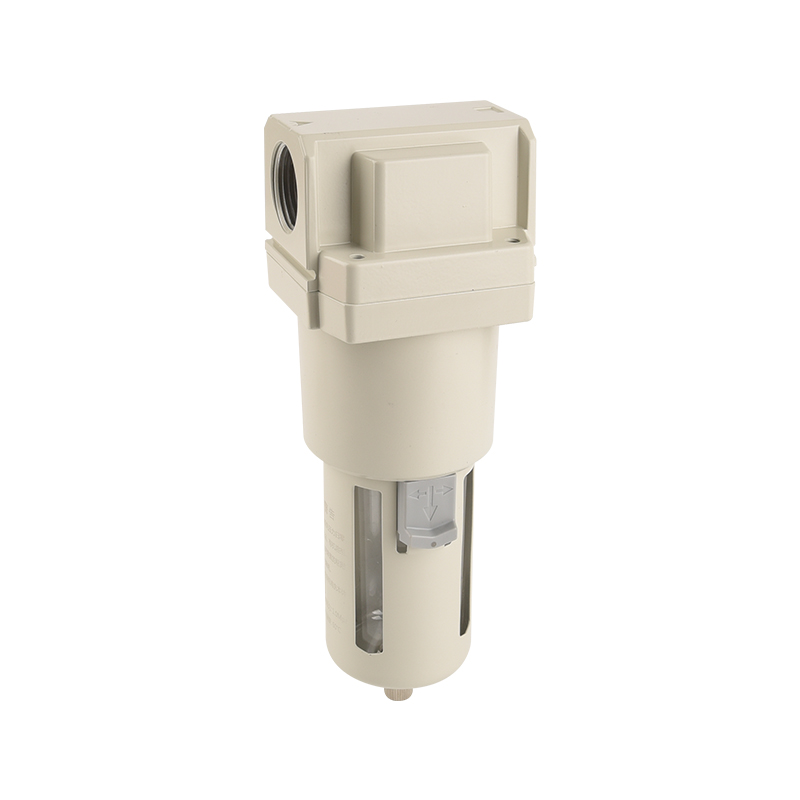

FAF1000~5000 Series Air Filter

The FAF1000–5000 Series Air Filter is available in mini, standard, and large-diameter versions with port sizes from 1/8″ to 2″, suitable for small to high-flow pneumatic systems. It comes standard with a 5μm glass fiber element, and a 1μm precision variant is optionally available. Filtration efficiency reaches ≥99%, effectively removing solid contaminants and liquid water. The aluminum housing features an anti-static coating, while the polycarbonate bowl is equipped with an explosion-proof cover, offering corrosion and impact resistance for harsh environments. The transparent bowl enables visual inspection of impurities, and the filter cartridge can be quickly removed and replaced. Select models include a drainage indicator and automatic drainage functionality. Its modular design allows rapid combination with pressure regulators and lubricators to form two- or three-unit assemblies, providing strong installation flexibility.

product details

Detailed description

The FAF1000~5000 Series Air Filter is designed to provide reliable contaminant removal across a broad spectrum of pneumatic applications, with graded compatibility that allows users to select the appropriate size for their system requirements. The series includes mini, standard, and large-diameter models, offering port sizes from 1/8 inch to 2 inches to accommodate small-scale equipment, conventional industrial systems, and higher-flow applications alike.

Filtration performance is centered around a 5μm glass fiber filter element as the standard configuration, which effectively captures solid particulates and removes liquid water from compressed air lines. For applications requiring finer contaminant control, a precision model with a 1μm filter element is available. Across both configurations, the filtration efficiency reaches ≥99%, contributing to cleaner air downstream and helping to protect sensitive pneumatic components from premature wear or malfunction.

Durability is addressed through the choice of materials and construction. The housing is made from aluminum alloy with an anti-static coating, providing resistance to corrosion and supporting long-term use in industrial environments. The polycarbonate bowl is fitted with an explosion-proof cover, which helps contain fragments in the event of accidental breakage while still allowing visual monitoring of accumulated impurities.

Maintenance has been designed with practicality in mind. The transparent bowl enables operators to easily observe contaminant buildup without disassembly, allowing for timely servicing. The filter cartridge can be removed and replaced quickly, reducing downtime and eliminating the need to replace the entire unit. Depending on the model, additional convenience features such as a drainage indicator and automatic drain function are available to simplify routine maintenance further.

The modular design of the FAF series allows for seamless integration with SMC pressure regulating valves and lubricators, enabling quick assembly into two- or three-unit configurations. This modularity provides installation flexibility, making it easier to build complete air preparation units that align with specific system layouts or space constraints.

Symbols

Finished Product Order Code

Model	Specifications				Accessories	Drainage functions	Automatic drainage type ^{Note 1)}
	Rated Flow^{Note 2)}	Tube Connection Diameter(G)^{Note 3)}	Capacity (cm³)	Weight(kg)	Bracket
FAF1000-M5	110	M5	4	0.07	-	Manual drainage	None/NO
FAF1500-M5	200	M5	4	0.046	-
FAF1500-01		1/8
FAF2000-01	750	1/8	15	0.19	B240		FAF2000-01D
FAF2000-02		1/4					FAF2000-02D
FAF3000-02	1500	1/4	20	0.29	B340	a.Gas stop and drainage b.Manual drainage	FAF3000-02D
FAF3000-03		3/8					FAF3000-03D
FAF4000-03	4000	3/8	45	0.55	B440		FAF4000-03D
FAF4000-04		1/2					FAF4000-04D
FAF4000-06	6000	3/4	45	0.58	B540		FAF4000-06D
FAF5000-06	7000	3/4	130	1.08	B640		FAF5000-06D
FAF5000-10		1					FAF5000-10D

Note 1)FAF2000 has two optional automatic drainage structures,including conventional pulse automatic drainage device and optional lever automatic drainage device indicated by "FAF2000-D2" for ordering; FAF3000~FAF5000 has two automatic drainage structures, including conventional lever type, and optional floating ball type;please see the introduction of automatic drainage devices for more details.

Note 2) When the supply pressure is 0.7 MPa (7.1 kgf/cm²) and the set pressure is 0.5 MPa (5.1 kgf/cm²).

Note 3) Rc and NPT threads are available for connecting pipes.

Specifications

Model	FAF1000~5000
Guaranteed Pressure Resistance	1.5MPa(15kgf/cm²)
Maximum Operating Pressure	1.0MPa(10kgf/cm²)
Ambient and Fluid Temperature	-20~80°C
*Filter Rating	25μm
**Filter element material	Copper
Container material	PC
Protective cover	AC1010-2010(None),AC3010-5010(Have)

*There is 5、50um for selection.
**There is PE Filter element for selection.

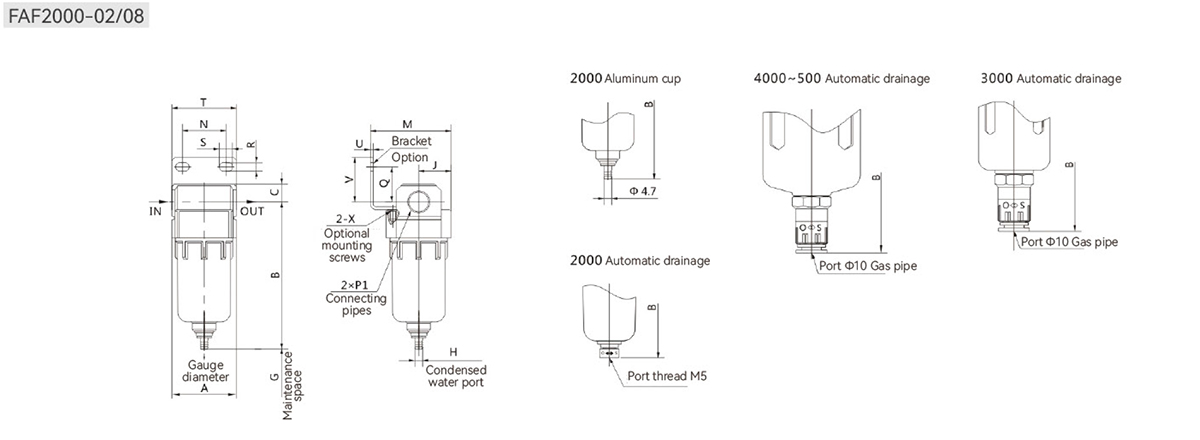

External Specifications

Model	Standard Specifications
Model	2×P1	A	B	C	D	T	N	R	S	M
FAF2000-01,02	G1/8,G1/4	40	91.5	11	-	40	27	5.4	8.4	50
FAF3000-02.03	G1/4,G3/8	53	114.5	14	0.8	53	40	6.5	8	67.8
FAF4000-04	G1/2	70	144.8	18.7	2.5	69.1	51.5	8	12	88.5
FAF4000-06	G3/4	75	147.5	20	2.5	69.1	51.5	8	12	88.5
FAF5000-06,10	G3/4,G1	90	218.2	23.3	-	91	66	11	13	109.5

Model	Standard Specifications							Optional Specifications
	Standard Specifications							Aluminum cup	Automatic Drainage
	J	U	V	Q	2X	H	G	B	B
FAF2000-01,02	20	1.8	27.2	21.7	M4×6	Φ4.7	25	93.8	106
FAF3000-02.03	27.3	2	30	23.5	M4×6	G1/8	35	-	160
FAF4000-04	37.5	1.8	35	25.5	M5×8	G1/8	40	-	189
FAF4000-06	37.5	1.8	33	23.5	M5×8	G1/8	40	-	191.5
FAF5000-06,10	45	2.2	46.5	35.3	M5×8	G1/8	40	-	262.1
