01

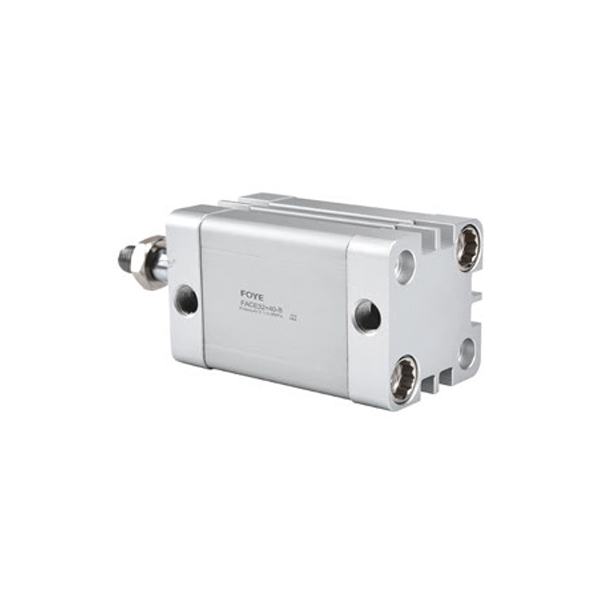

FACE ISO 15552 cylinder
Technical parameters
| FACE | 20 | × | 30 | 30 | S | B |
| ↓ | ↓ | ↓ | ↓ | ↓ | ↓ | |
| Specification code | Bore | Stroke | Adjustable stroke | Magnet | Rod type | |
| FACE: Double acting FASE: Single acting spring extend FATE: Single acting spring return FACED: Double rod FACEJ: Adjustable stroke FTACE: Double acting non-rotating with yoke FTACED: Double shaft non-rotating with yoke |
10:10mm 20:20mm 30:30mm 40:40mm 50:50mm 75:75mm 100:100mm |
Blank:Without magnet S: With magnet |
Blank: Female thread B: Male thread N:No thread |
