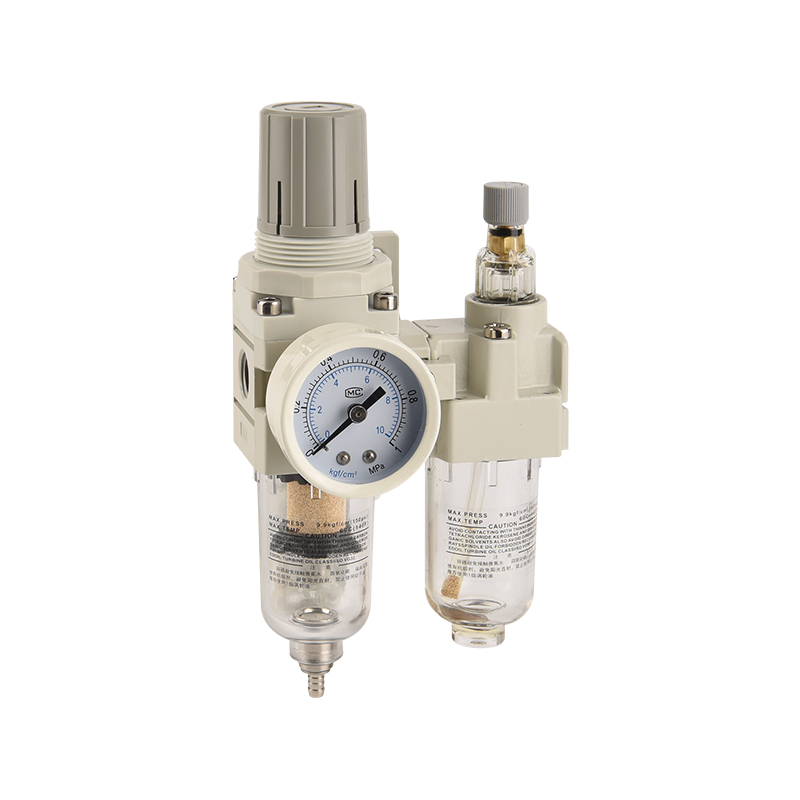

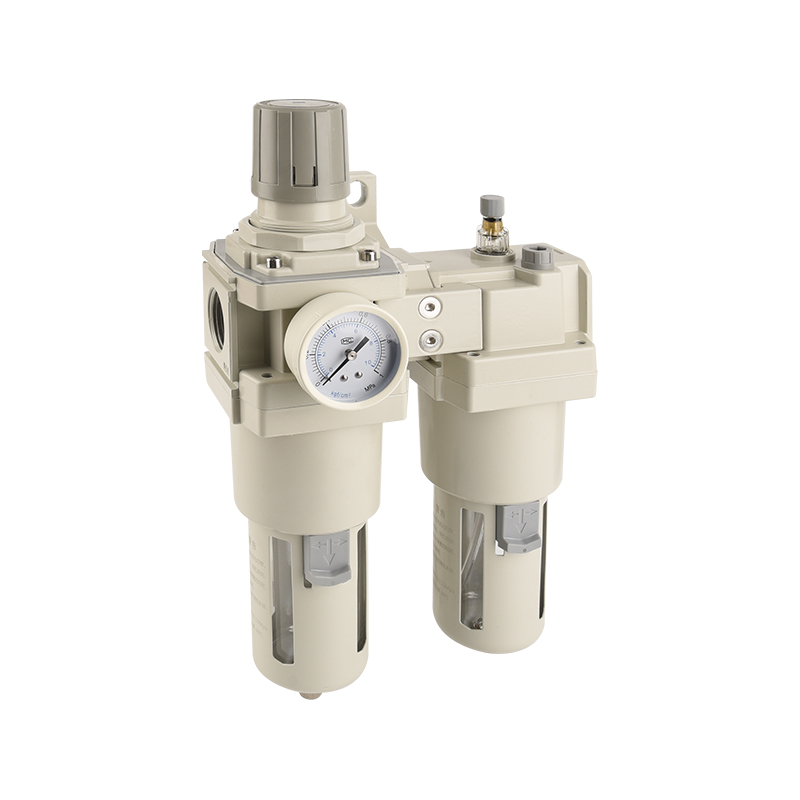

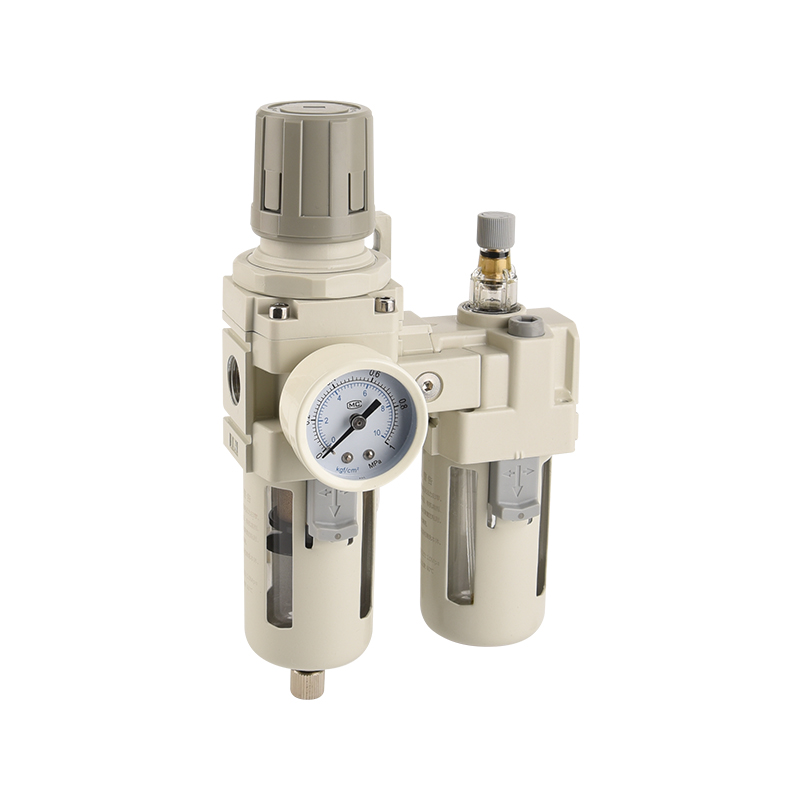

FAC1010~5010 Series Gas treatment combined components(Duplex pieces)

The FAC1010~5010 Series Gas Treatment Combined Components are designed as duplex units that integrate key air preparation functions into a compact assembly, offering a balance of performance and flexibility across a wide range of pneumatic applications. The series is available in mini, standard, and large-diameter configurations, each sized to accommodate different flow demands—from small-scale or precision equipment to larger industrial systems with higher air consumption. This graded approach allows users to select a configuration that aligns closely with the operating requirements of their specific machinery.

Precision in pressure control and air treatment is a defining characteristic of the series. The integrated pressure regulating valve maintains a pressure deviation of ≤0.005MPa, delivering a level of stability suitable for precision pneumatics. For applications that demand extremely clean air, the filter can be equipped with a 0.01μm micro-mist filter element, enabling the removal of fine particulates and oil mist to support sensitive downstream components.

The modular assembly design allows the units to be configured as two- or three-component sets, depending on system needs. This approach simplifies installation by reducing the number of separate piping connections and supports a more organized layout, which is particularly beneficial in control panels or confined machine spaces.

Durability is supported through the use of robust materials throughout the construction. The aluminum alloy housing features an anti-static coating, contributing to resistance against corrosion and extending service life in industrial environments. Cup body options include polycarbonate with an explosion-proof cover for visibility and impact protection, as well as a metal version for applications where additional mechanical resilience is required.

Maintenance considerations are integrated into the design to support efficient servicing. The transparent cup allows for quick visual checks of fluid levels or accumulated impurities, while manual or automatic drainage options provide flexibility for different operational preferences. Filter cartridges and oil cups can be replaced individually without the need to disassemble the entire unit, helping to reduce downtime and simplify routine upkeep. Overall, the FAC1010~5010 series combines precise regulation, flexible assembly, durable construction, and practical maintenance features to deliver reliable compressed air preparation across a variety of industrial settings.
