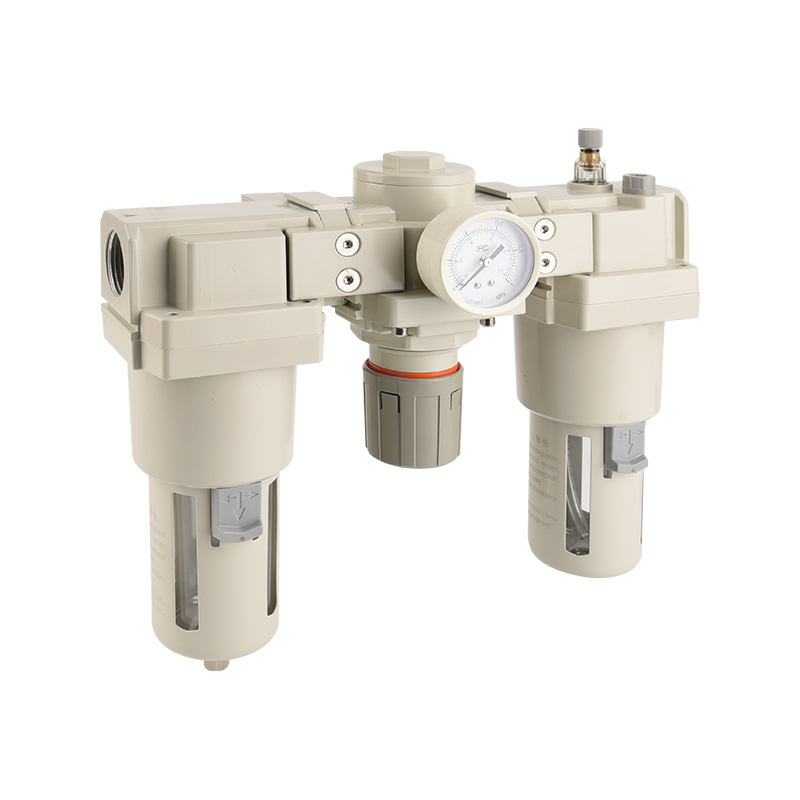

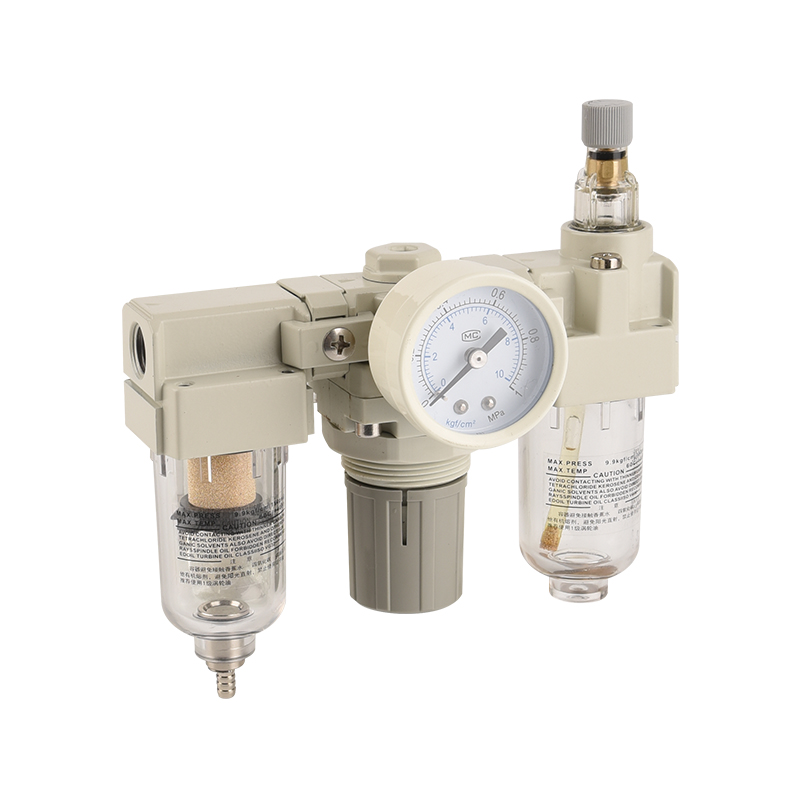

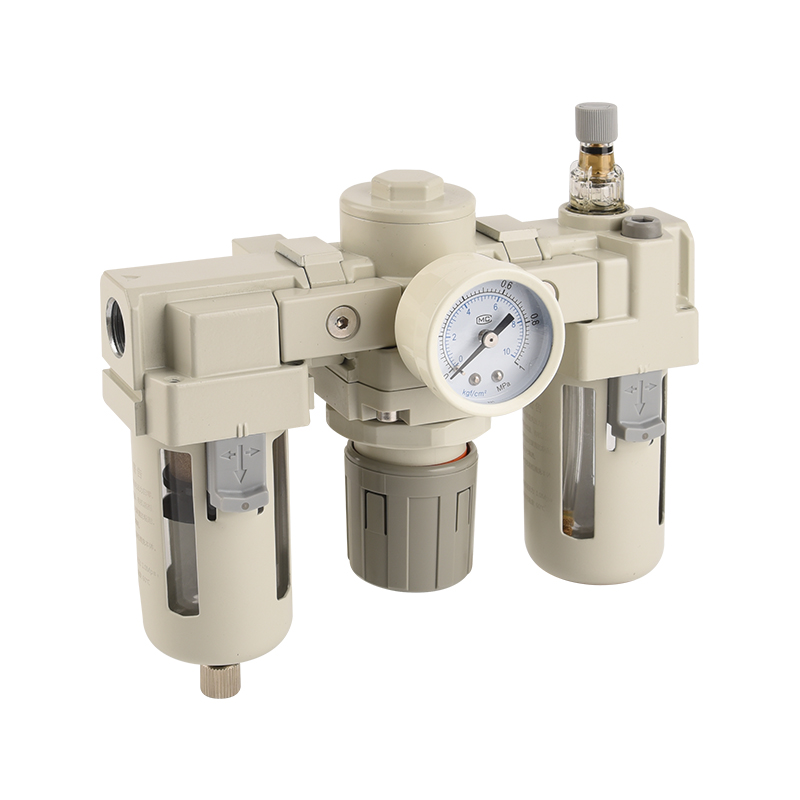

FAC1000~5000 Series Gas treatment combined components(Unit)
Detailed description
The FAC1000~5000 Series Gas Treatment Combined Components are designed as a versatile and scalable solution for pneumatic systems, offering graded compatibility across a range of application scales. The series includes mini, standard, and large-diameter versions, each engineered to suit different flow requirements—from small-scale or micro-equipment up to heavy-duty industrial systems with higher air consumption. This range allows users to select configurations that align with the specific demands of their equipment without oversizing or under-specifying components.
Precision in processing is a key feature across the series. The pressure regulating valve maintains a pressure deviation of ≤0.005MPa, providing a level of stability suitable for precision pneumatics. For applications requiring enhanced air quality, the filter can be equipped with a 1μm micro-mist filter element, enabling finer contaminant removal to support more sensitive downstream components.
The series emphasizes compact integration through a modular splicing design that allows individual components to be combined freely into two- or three-unit assemblies. This approach simplifies piping connections by reducing the number of separate lines and fittings, while also conserving installation space—an advantage in control panels or machinery with limited layout room.
Durability is addressed through the use of robust materials. The housing is constructed from aluminum alloy with an anti-static coating, contributing to resistance against corrosion and extending service life in demanding industrial environments. Cup body options include polycarbonate for visibility and metal for applications requiring higher impact resistance, allowing users to select based on environmental conditions.
Compatibility is another strength of the series. Port sizes range from 1/8 inch to 2 inches, and the units are designed to interface with SMC pneumatic components. Additionally, they can serve as replacements for comparable products from brands such as Airtac and Festo, providing flexibility for system upgrades, maintenance, or standardization across mixed-brand installations. Overall, the FAC series combines scalable sizing, precise regulation, modular flexibility, durable construction, and broad compatibility to support reliable compressed air preparation across diverse industrial applications.
Symbols
Finished Product Order Code
| Model | Specifications | Accessories | ||||||||
| Assembly | Rated FlowNote2) | Tube Connection Diameter (G)Note 3) |
Gauge Port Size | Weight (kg) |
Bracket | Gauge Port | ||||
| Manual drainage type |
Automatic drainage typeNote1) |
Filter | Regulator | Lubricator | ||||||
| FAC1000-M5 | None | FAF1000 | FAR1000 | FAL1000 | 90 | M5 | 1/16 | 0.26 | Y10L | G27-10-R1 |
| FAC1500-M5 | None | FAF1500 | FAR1500 | FAL1500 | 200 | M5 | 1/8 | 0.223 | Y10L | G36-10-01 |
| FAC1500-01 | None | 1/8 | ||||||||
| FAC2000-01 | FAC2000-01D | FAF2000 | FAR2000 | FAL2000 | 500 | 1/8 | 1/8 | 0.74 | Y20L | G36-10-01 |
| FAC2000-02 | FAC2000-02D | 1/4 | ||||||||
| FAC2500-02 | FAC2500-02D | FAF3000 | FAR3000 | FAL3000 | 1500 | 1/4 | 1/8 | 1.04 | Y30L | |
| FAC2500-03 | FAC2500-03D | 3/8 | ||||||||
| FAC3000-02 | FAC3000-02D | FAF3000 | FAR3000 | FAL3000 | 2000 | 1/4 | 1/8 | 1.18 | Y30L | G46-10-02 |
| FAC3000-03 | FAC3000-03D | 3/8 | ||||||||
| FAC4000-03 | FAC4000-03D | FAF4000 | FAR4000 | FAL4000 | 4000 | 3/8 | 1/4 | 2.14 | Y40L | |
| FAC4000-04 | FAC4000-04D | FAF4000-06 | FAR4000-06 | FAL4000-06 | 4500 | 1/2 | 1/4 | 2.47 | Y50L | |
| FAC4000-06 | FAC4000-06D | 3/4 | ||||||||
| FAC5000-06 | FAC5000-06D | FAF5000 | FAR5000 | FAL5000 | 5000 | 3/4 | 1/4 | 3.82 | Y60L | |
| FAC5000-10 | FAC5000-10D | 1 | ||||||||
Note 1) FAC2000 has two optional automatic drainage structures,including conventional pulse automatic drainage device and optional lever automatic drainage device indicated by” D2” for ordering, FAC2500-FAC5000 has two automatic drainage structures,including conventional lever type, and optional floating ball type, please see the introduction of automatic drainage devices for more details.
Note 2) When the supply pressure is 0.7 MPa (7.1 kgf/cm2) and the set pressure is 0.5 MPa (5.1 kgf/cm2).
Note 3) Rc and NPT threads are available for connecting pipes.
Specifications
| Model | FAC1000~5000 |
| Guaranteed Pressure Resistance | 1.5MPa(15kgf/cm2) |
| Maximum Operating Pressure | 1.0MPa(10kgf/cm2) |
| Ambient and Fluid Temperature | -20~80°C |
| *Filter Rating | 25μm |
| Oil recommendation | ISOVG32 |
| Container material | PC |
| Protective cover | AC1000-2000(None),AC2500-5000(Have) |
| Pressure Adjustment Range | AC1000-1500:0.05-0.7MPa(0.5-7kgf/cm2),AC2000-5000:0.05-0.85MPa(0.5-8.5kgf/cm2) |
| Valve Type | Overflow type |
*There is 5、50um for selection.

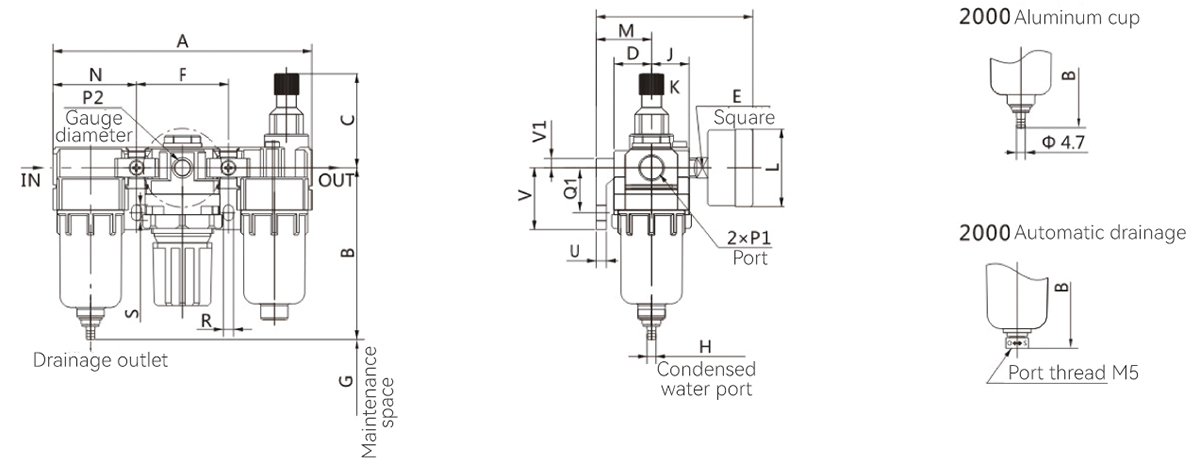

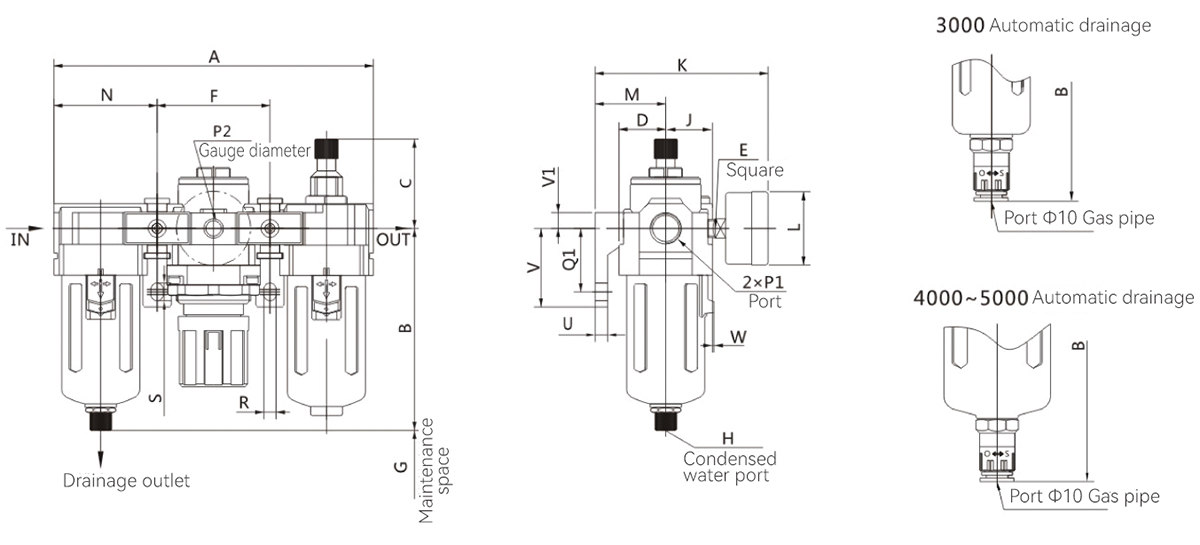

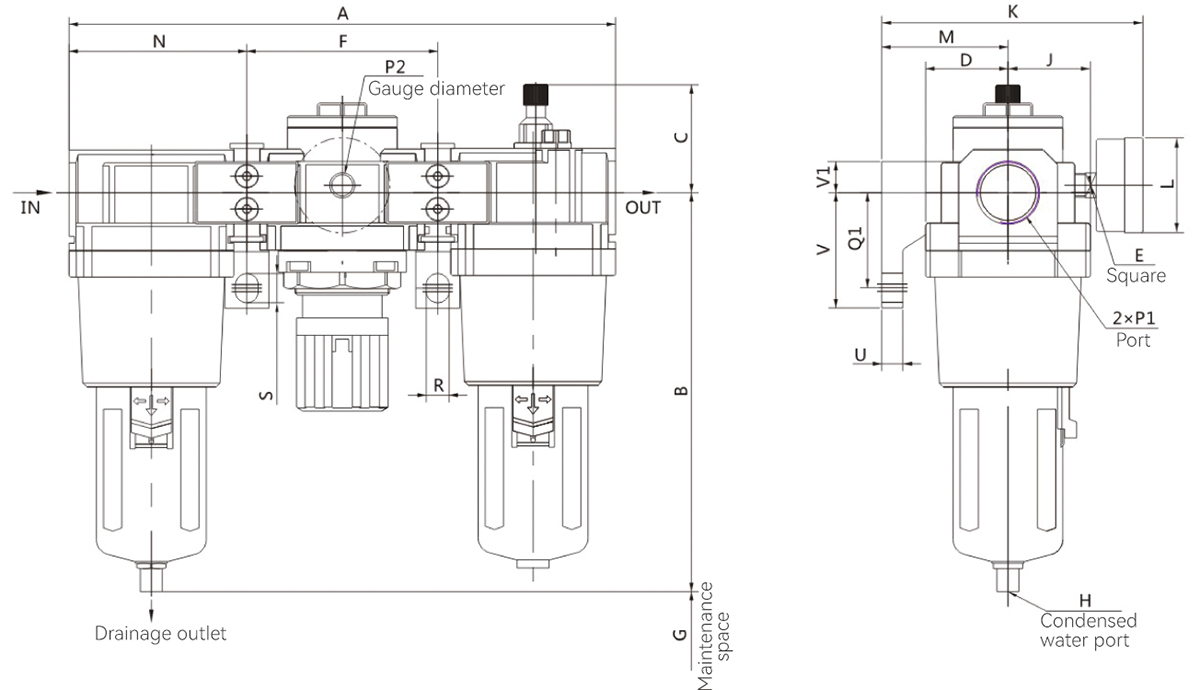

External Specifications
| Model | Standard Specifications | |||||||||||
| 2×P1 | P2 | A | B | C | D | N | R | S | K | M | J | |
| FAC2000-01,02 | G1/8,G1/4 | G1/8 | 138 | 91.5 | 50.1 | 20 | 44.5 | 5.4 | 8.4 | 83.5 | 29.5 | 20 |
| FAC3000-02,03 | G1/4,G3/8 | G1/8 | 181 | 114.5 | 50.6 | 26.5 | 58.5 | 7 | 10 | 98 | 40 | 26.5 |
| FAC4000-04 | G1/2 | G1/4 | 238.5 | 145.7 | 51.6 | 35 | 77.1 | 9 | 13 | 118 | 49.2 | 35 |
| FAC4000-06 | G3/4 | G1/4 | 253 | 147.5 | 53.7 | 35 | 82 | 9 | 13 | 118.3 | 50.1 | 35 |
| FAC5000-06.10 | G3/4,G1 | G1/4 | 298.6 | 218.2 | 58.9 | 45 | 97.2 | 12.5 | 16 | 142.7 | 69 | 45 |
| Model | Standard Specifications | Optional Specifications | ||||||||||
| Aluminum cup | Automatic rainage | |||||||||||
| U | V | V1 | Q1 | E | L | H | F | W | G | B | B | |
| FAC2000-01,02 | 5.4 | 32.9 | 5 | 24 | 11 | Φ42 | Φ4.7 | 49 | - | 60 | 93.8 | 106 |
| FAC3000-02,03 | 7 | 44.5 | 9 | 36 | 11 | Φ42 | G1/8 | 64 | 0.8 | 80 | - | 160 |
| FAC4000-04 | 7 | 50.3 | 11.8 | 40.3 | 14 | Φ52 | G1/8 | 84.2 | 2.5 | 100 | - | 189 |
| FAC4000-06 | 7 | 49 | 13 | 40 | 14 | Φ52 | G1/8 | 89 | 2.5 | 100 | - | 191.5 |
| FAC5000-06,10 | 11.5 | 63 | 17 | 52 | 14 | Φ52 | G1/8 | 104.3 | - | 100 | - | 262.1 |
