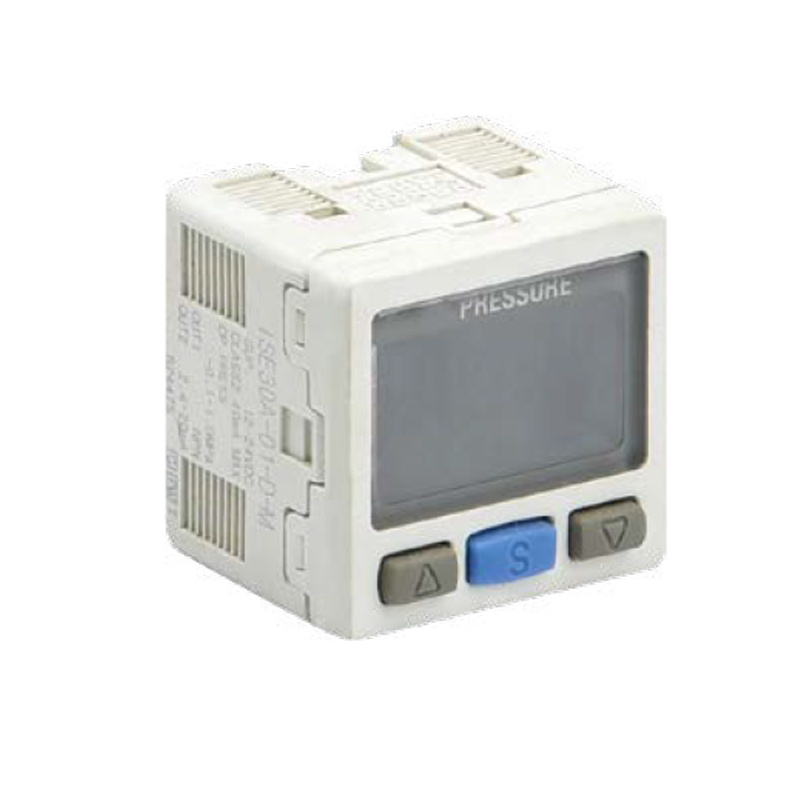

FDPS Series Electronic Digital Display Pressure Sensor
Symbols

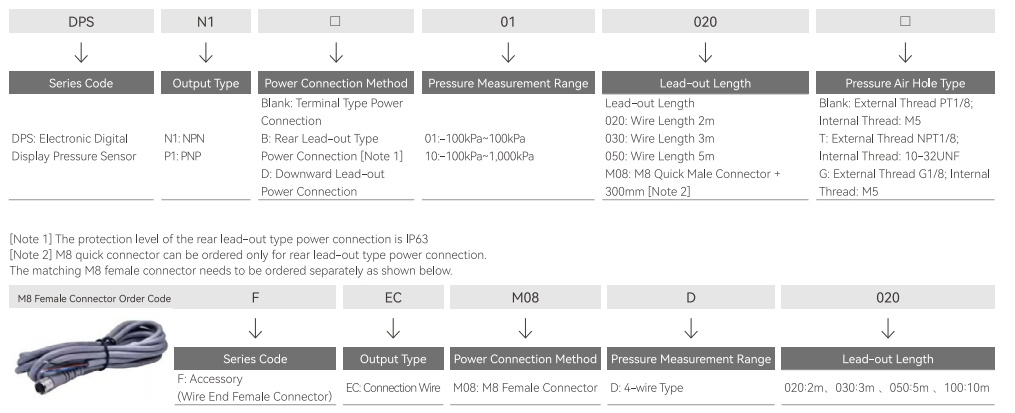

Finished Product Order Code
Specifications
|
Input Power |
Voltage Range |
12-24 VDC±10% Ripple Peak <10% |
|
Pressure Measurement |
Fluid Type |
Non-corrosive Gas |
|
DPSN1(P1)-01:-100kPa~100kPa |
||
|
Measurement Range |
DPSN1(P1)-10:-100kPa~1,000kPa |
|
|
Maximum Pressure Resistance |
DPSN1(P1)-01:200kPa |
|
|
DPSN1(P1)-10:1500kPa |
||
|
Measurement Error |
±2% Full Scale,±1digit (Ambient Temperature 25±3℃) |
|
|
Repeated Accuracy |
±0.2% Full Scale |
|
|
Temperature Error |
±3% Full Scale (25℃ Standard, 0~50℃ Range) |
|
|
Display Type |
Double-row LCD display can display 4-digit quantity value and 3.5-digit setting display. |
|
|
Display |
Display Color |
Optional Dual Color Display (Red, Green) |
|
Display Cycle |
100ms、250ms、500ms、1,000ms |
|
|
Output |
Number of Output Groups |
DPSN1: Built-in 2 Groups of NPN Output |
|
DPSP1: Built-in 2 Groups of PNP Output |
||
|
Transistor Output |
NPN: Maximum Pressure Resistance 30V/100mA, Residual Voltage <1.5V |
|
|
PNP: Maximum Pressure Resistance 30V/100mA, Residual Voltage <1.5V |
||
|
Output Delay Time |
2ms、20ms、50ms、100ms、250ms、500ms |
|
|
1.000ms、2.500ms、5,000ms |
||
|
Delay |
DPSN1(P1)-01:0.1、0.2、0.3......0.8(kPa) |
|
|
DPSN1(P1)-10:1、2、3......8(kPa) |
||
|
Output Mode |
Simple Mode, Delay Mode, Window Mode |
|
|
Air Pressure Unit |
DPSN1(P1)-01 |
kPa、kgf/cm²、bar、psi、mmHg、inHg |
|
DPSN1(P1)-10 |
MPa、kPa、kgf/cm、bar、psi、cmHg、inHg |
|
|
Vibration Resistance |
10-500Hz,10mm Amplitude，3-Axis Direction 2 Hours |
|
|
Impact Resistance |
Maximum 100m/s²,3-Axis 6-Direction 3 Times Each |
|
|
Operating Environment Temperature |
0~50℃ |
|
|
Storage Environment Temperature |
-20-65℃ |
|
|
Operating Environment Humidity |
35%~80%RH (No Condensation) |
|

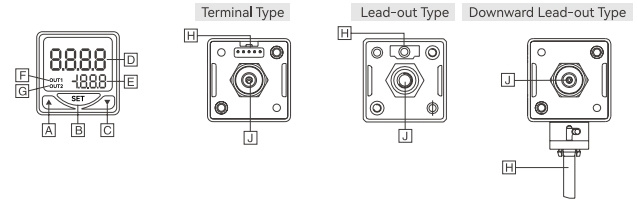

Panel Function Introduction
|
No. |
Name |
|
A |
Value Up Key |
|
B |
Set, Confirm Key |
|
C |
Value Down Key |
|
D |
Pressure Value Display Area |
|
E |
Set Pressure Value Display Area |
|
F |
Output 1 Indicator |
|
G |
Output 2 Indicator |
|
H |
Power Supply and Output Signal |
|
J |
Pressure Input Air Hole |

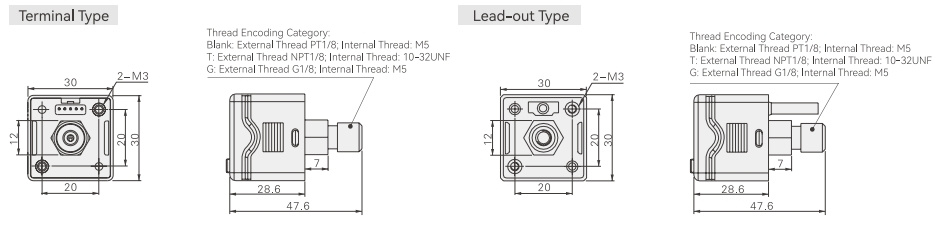

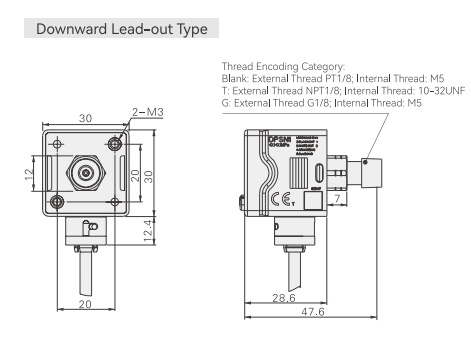

External Specifications

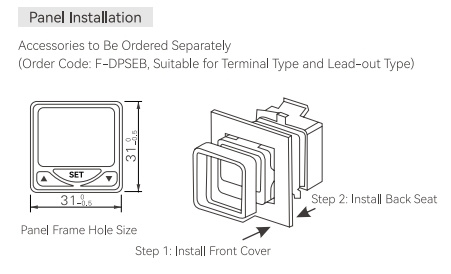

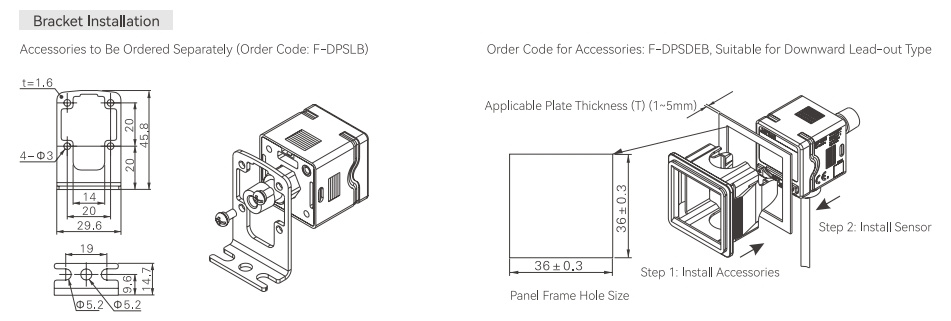

Installation Method and Accessories
